Wurlitzer 542 Funmaker Organ

The Wurlitzer 542 Funmaker is a beginner-friendly organ released in 1975.

The technical drawings that we currently have scanned include:

  • 509097 (Painted bracket for the Wurlitzzer 542)

  • 661411 (Bottom pad, foot, for the 542)

  • 661431 (Bracket, molding, upper keyboard, for the 542)

  • 661432 (Retainer, grille cloth, for the 542)

  • 661447 (Bottom tongue, black, for the 542)

  • 661455 (Filler block, keyblock, lower right, for the 542)

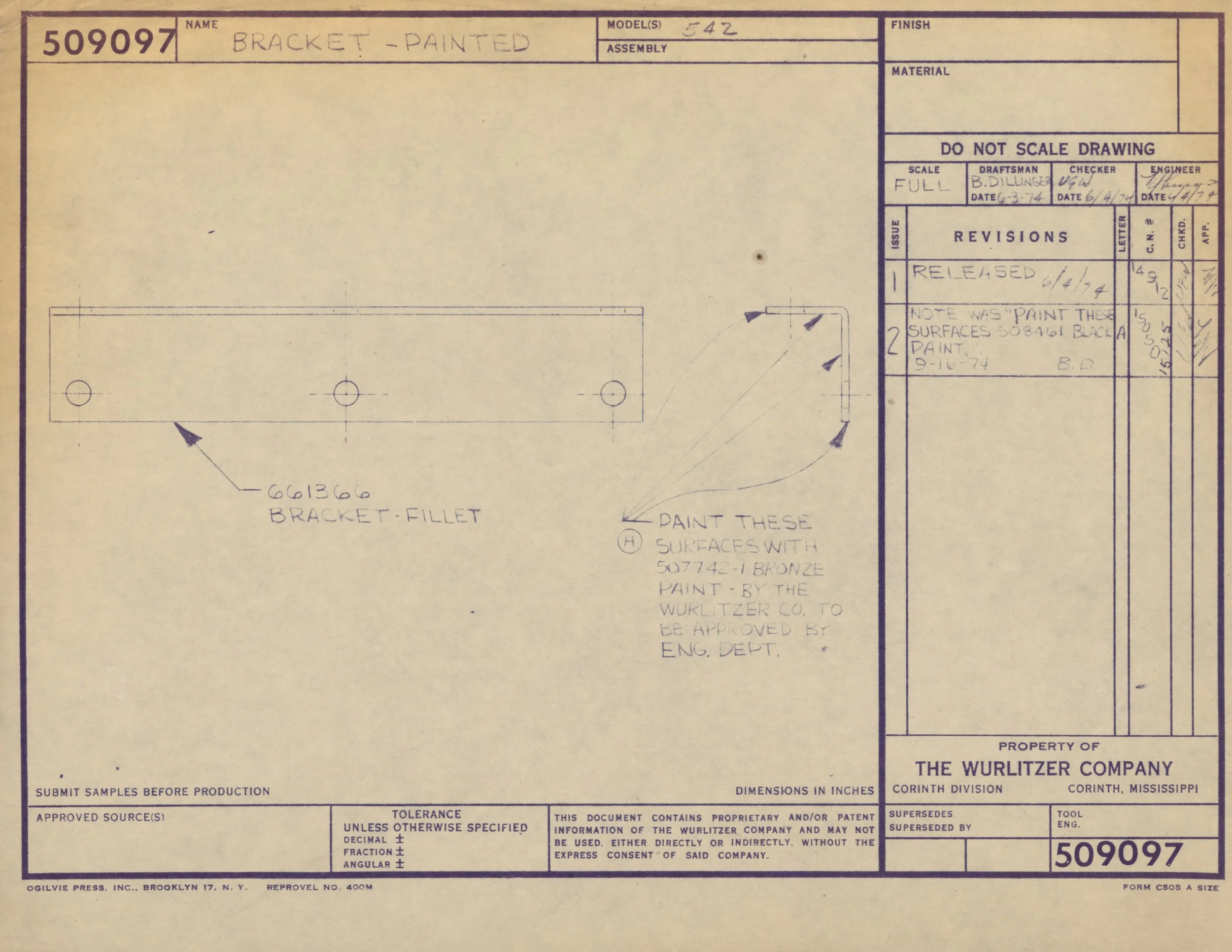

Blueprint of a painted bracket part labeled with part number 509097 and notes to paint surfaces with specific black and bronze paint types. It includes handwritten notes on revision release and approval dates.

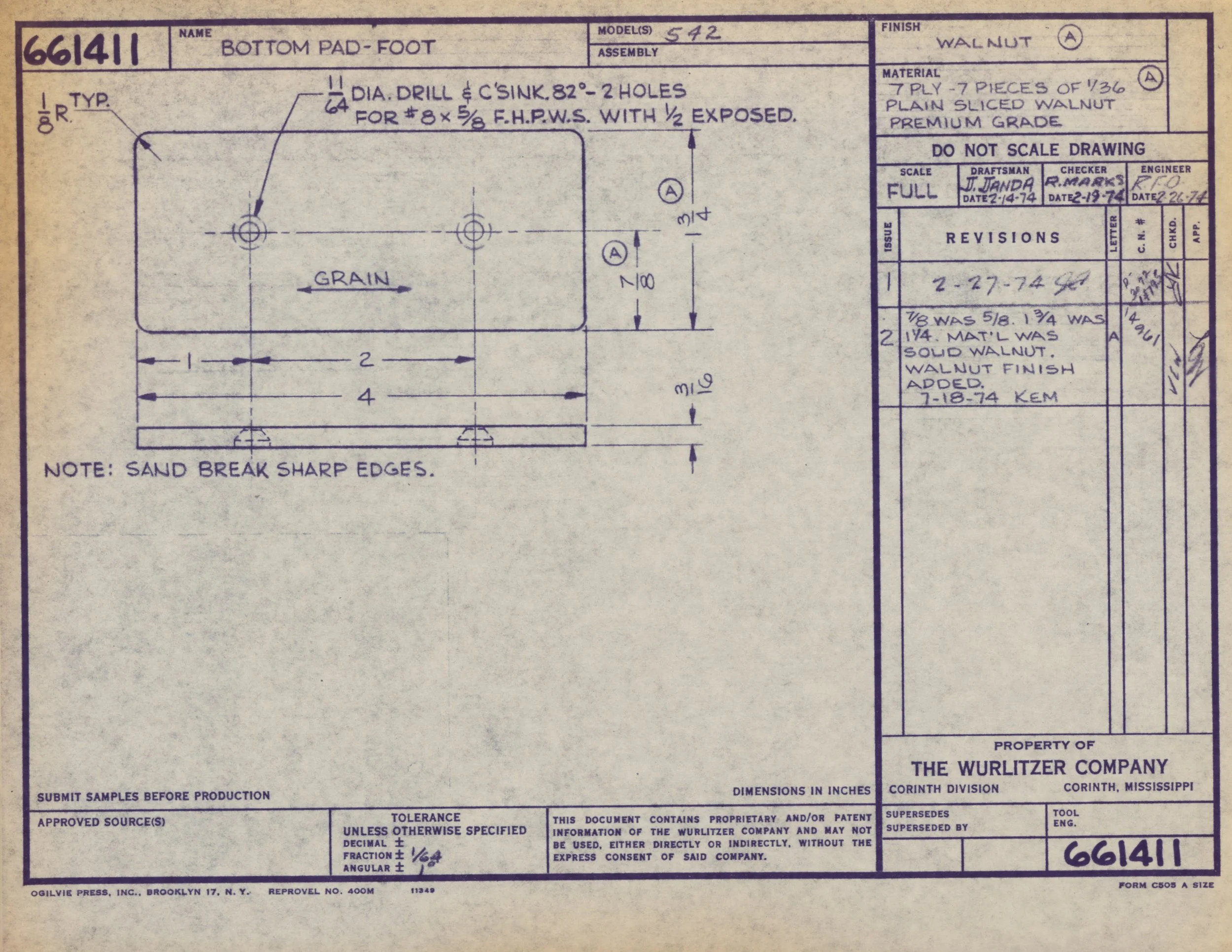

Technical drawing of a wooden bottom pad-foot with measurements, material details, and construction notes, produced by Wurlitzer Company in Corinth, Mississippi.

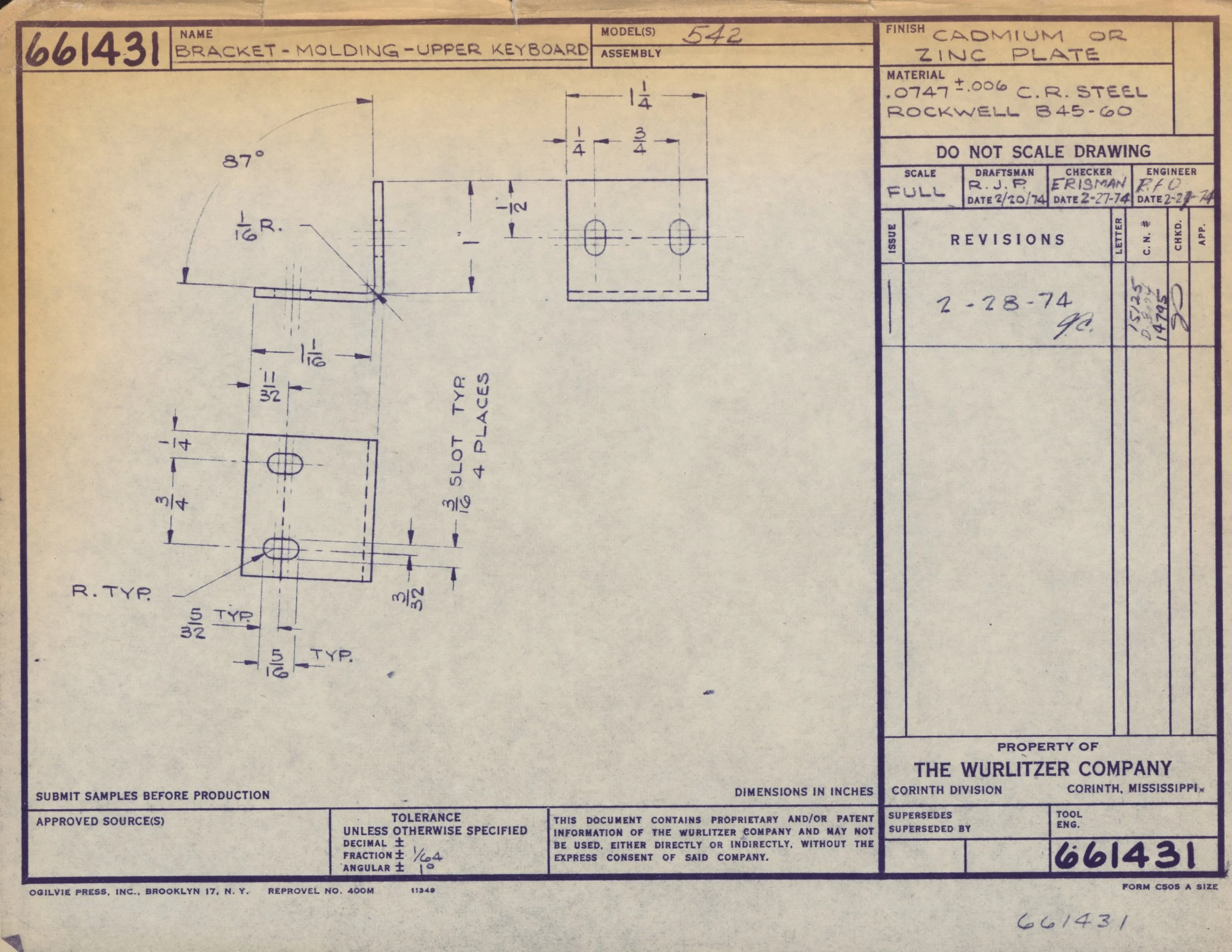

Technical engineering drawing of a bracket for upper keyboard, showing dimensions, angles, and hole placements, labeled with specifications and material information.

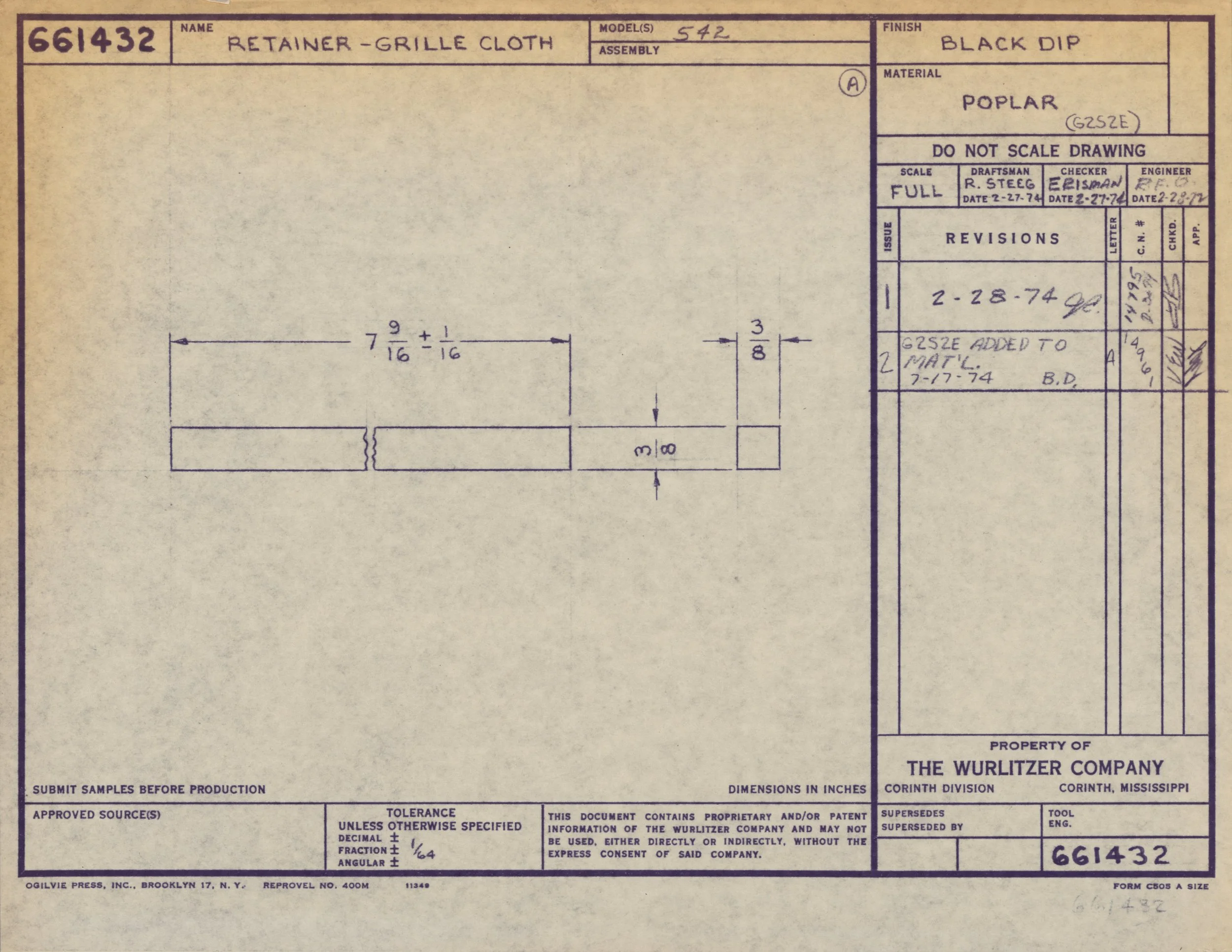

A technical drawing or blueprint for a retainer-grille cloth, showing dimensions, material (poplar wood), and finish (black dip). The document includes handwritten notes, signatures, dates, and approval stamps from the Wurlitzer Company in Corinth, M

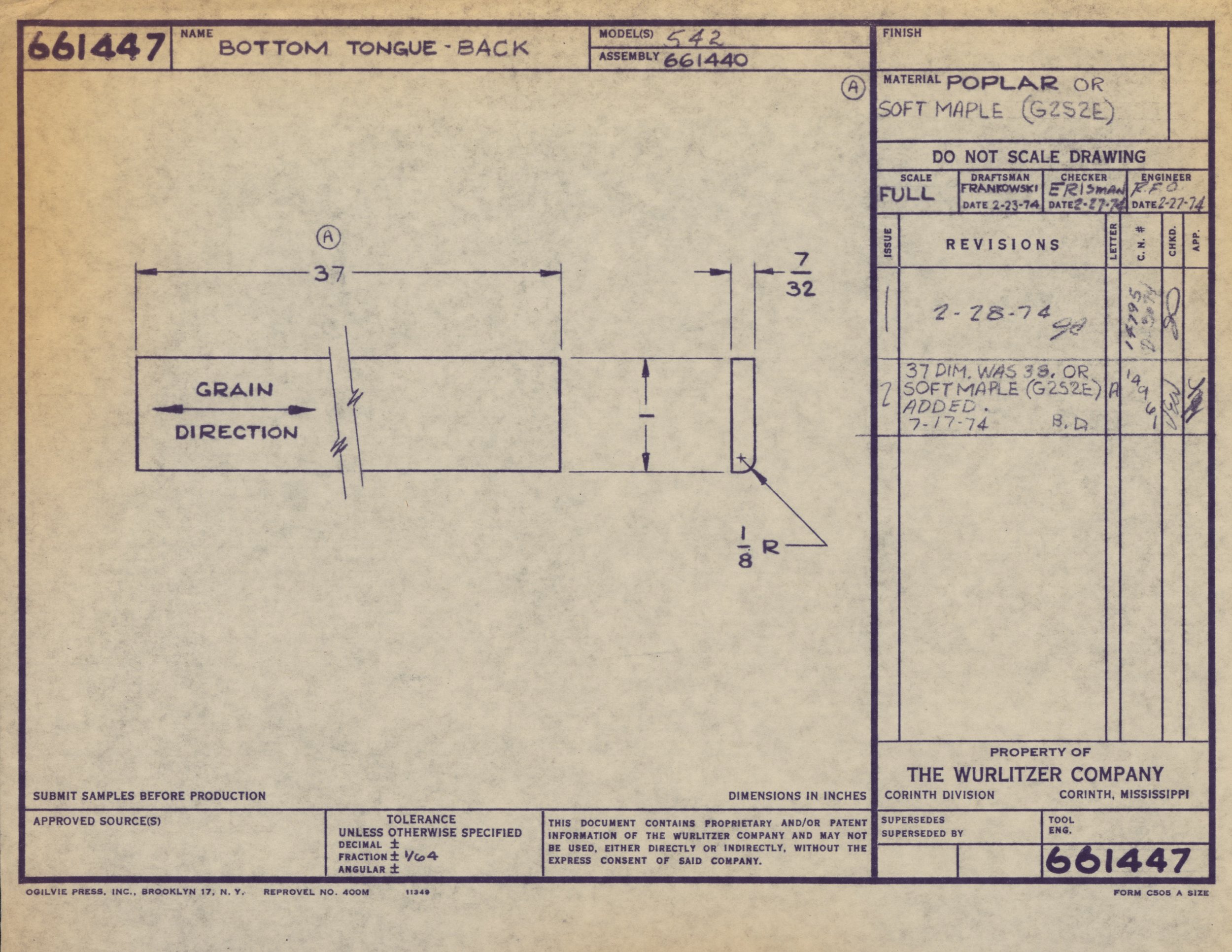

Technical drawing or blueprint for a part labeled "Bottom Tongue-Back," showing measurements and specifications, with handwritten notes and approval stamps.

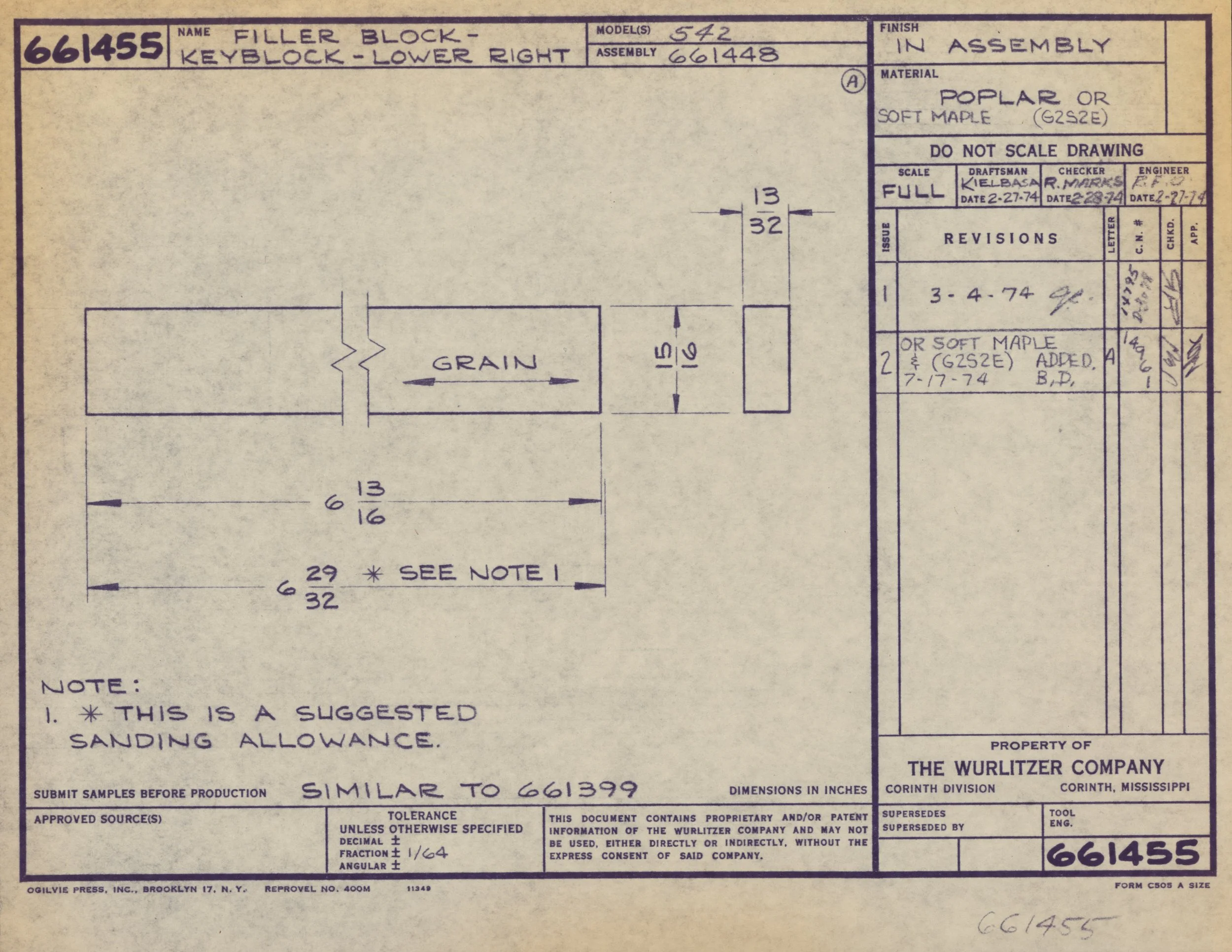

Technical drawing of a filler block with dimensions, material specifications, and approval signatures, labeled as lower right keyblock, model 542.
