Tone cabinets for organs

Organ tone cabinets were built to compliment the sound and tonal requirements of Wurlitzer organs. These cabinets contained an amplifier and a rotating speaker element which made a chorus or tremolo effect.

150

300

350

420

Model:

Tone cabinets for electronic pianos

The electronic piano tone cabinets were built to complement a specific concurrent model of electronic piano. Like organ tone cabinets, these units contained an amplifier and a speaker. They also featured electronically induced tremolo effects.

Model:

920

930

Spectra-Tone

Because the Leslie rotating speaker system was under patent, Wurlitzer had to develop their own rotating speaker for their tone cabinets. The result was the Spectra-Tone.

Spectra-Tone technology is found in multiple organs and tone cabinets. We have the following Spectra-Tone drawings scanned:

  • 503981 (Tag, caution, for 2-speed rotating speaker)

  • 506632 (Housing, bearing and bobbin assembly for the Spectra-Tone)

  • 506633 (Housing, bearing and bobbin assembly for the Spectra-Tone)

  • 506635 (Rubber liner for the Spectra-Tone)

  • 506636 (Housing, bearing, for the Spectra-Tone)

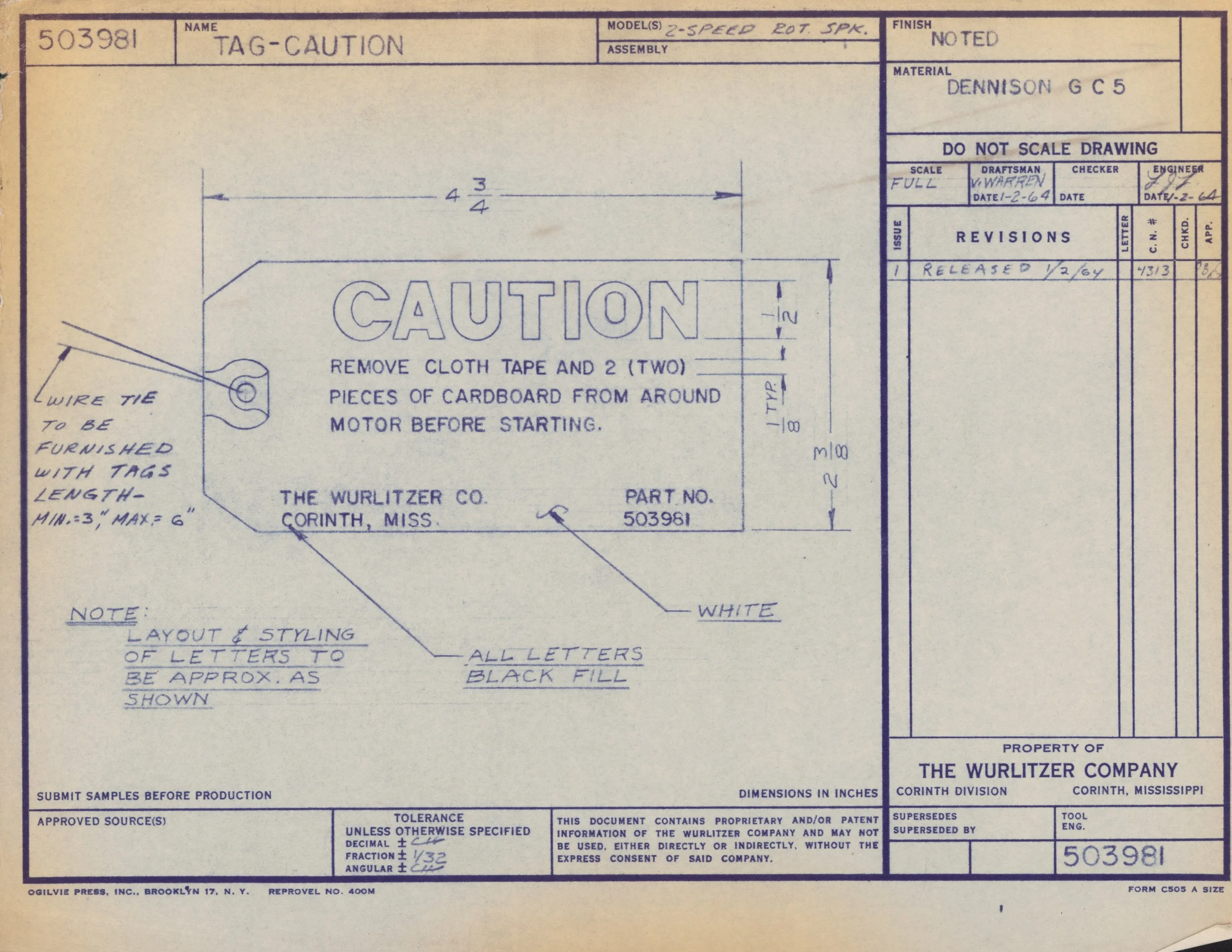

Technical drawing of a caution tag with the word 'CAUTION' in large letters, and detailed instructions for removing cloth tape and cardboard pieces from around a motor before starting. The drawing includes measurements and notes on materials and asse

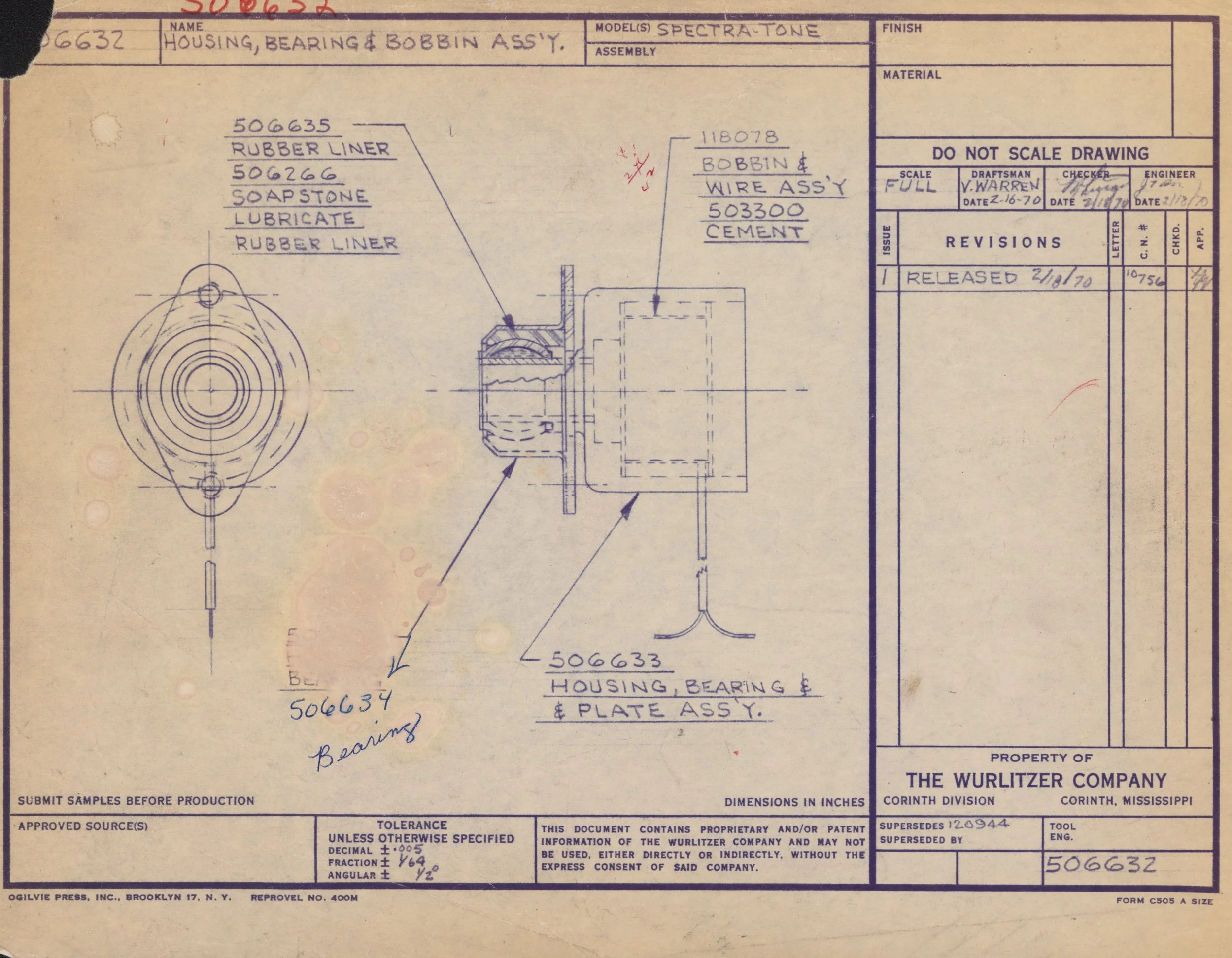

Technical engineering drawing or blueprint for housing, bearing, and bobbin assembly with detailed notes and specifications.

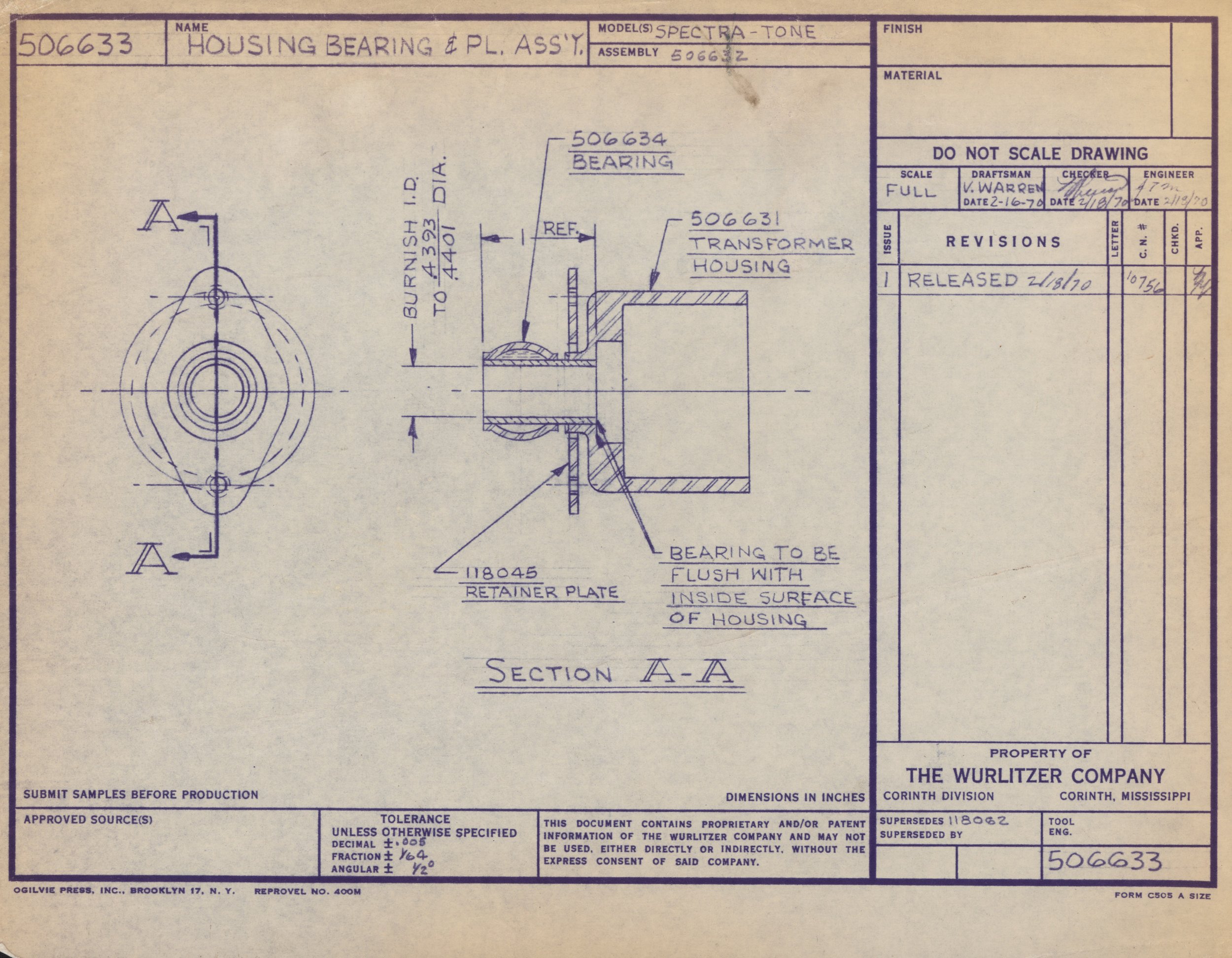

Technical engineering drawing showing detailed sectional view of a transformer housing and bearing assembly, including measurements, annotations, and revision history.

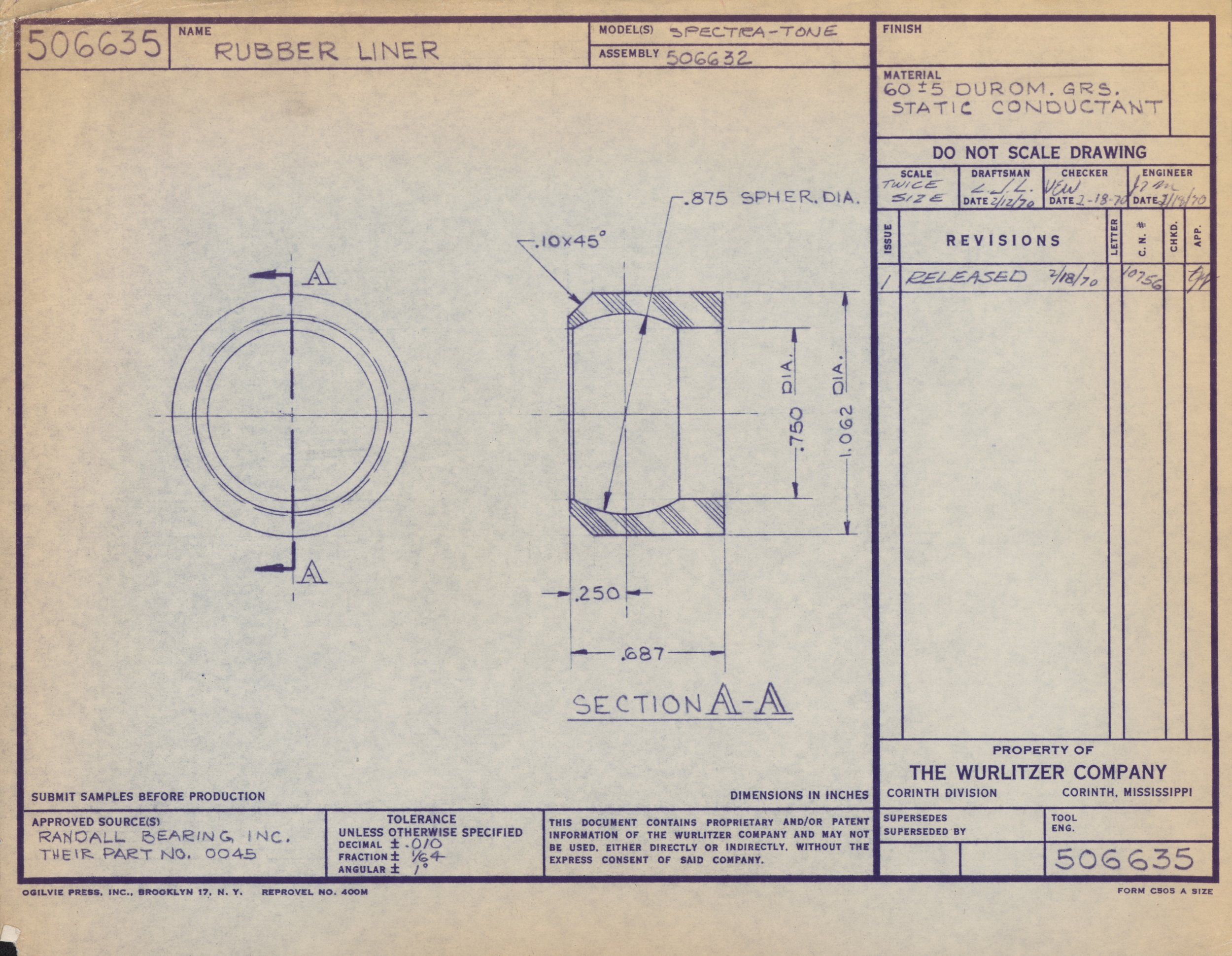

Technical engineering drawing of a rubber liner, showing front and cross-section views with measurements and specifications.

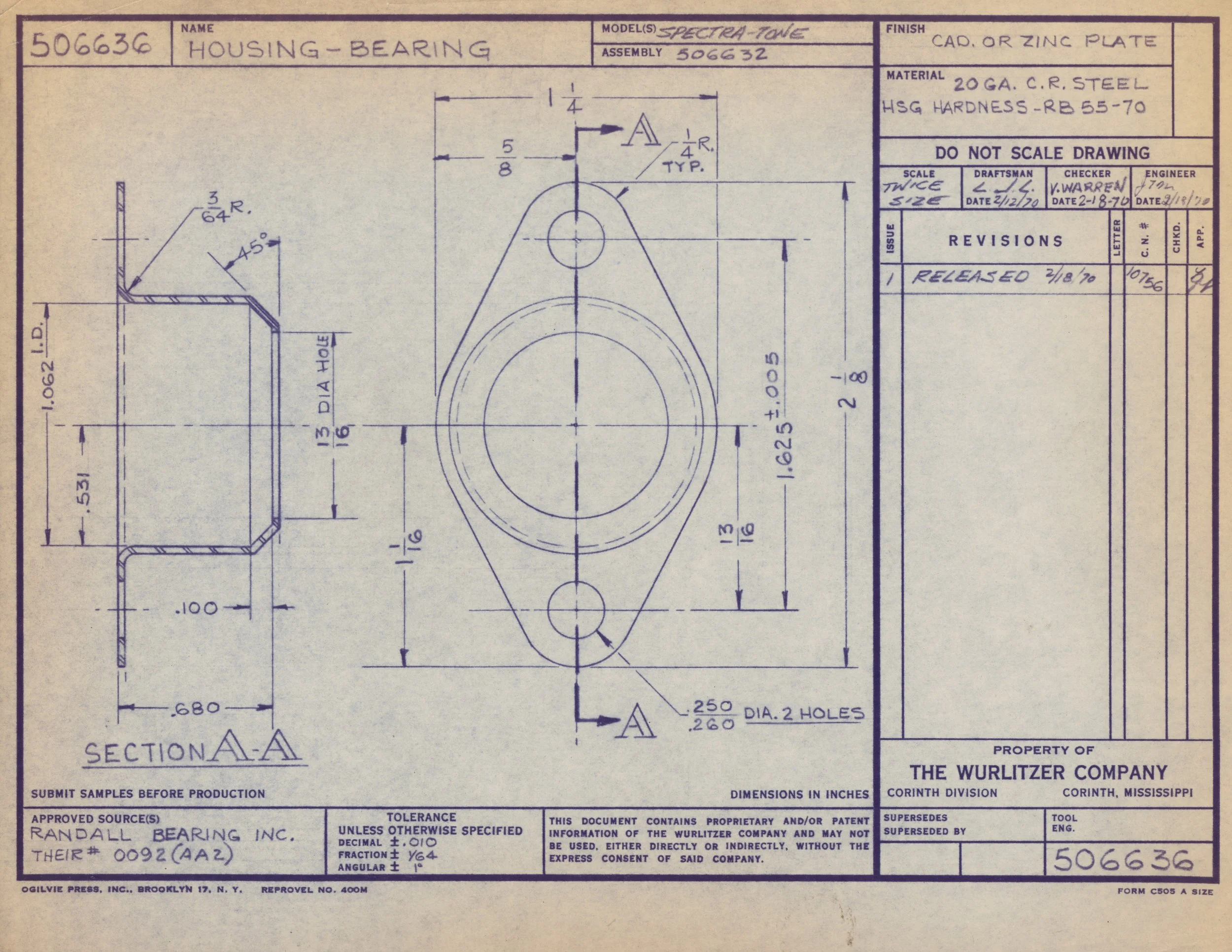

Technical drawing of a bearing housing with measurements and specifications, including details about material, finish, and assembly.
