Free reed organs: models 4420, 4430, 4460
Free reed organs are similar to keyed reed organs, but air blows continuously over the reeds (instead of just when a key is pressed). This gives free reed organs a faster attack.
Free reed organs are extremely unique, and are often compared to Hammond tonewheels. They were manufactured during the 1950s and early 1960s.
Wurlitzer models 4420, 4430 and 4460 were among the second generation of Wurlitzer free reed organs, and these models share a lot of technical drawings. Drawings for other models can be found here.
Models of free reed organs (and their initial year of manufacture) include:
44 (1953)
4600, 4601 (1954)
4800 (1955)
4410, 4602 (1956)
4420 (1959)
4430, 4460, 4462 (1961)
4420Wurlitzer 4420
So far, we’ve scanned the following technical drawings of electronic components for the Wurlitzer 4420 free reed organs:

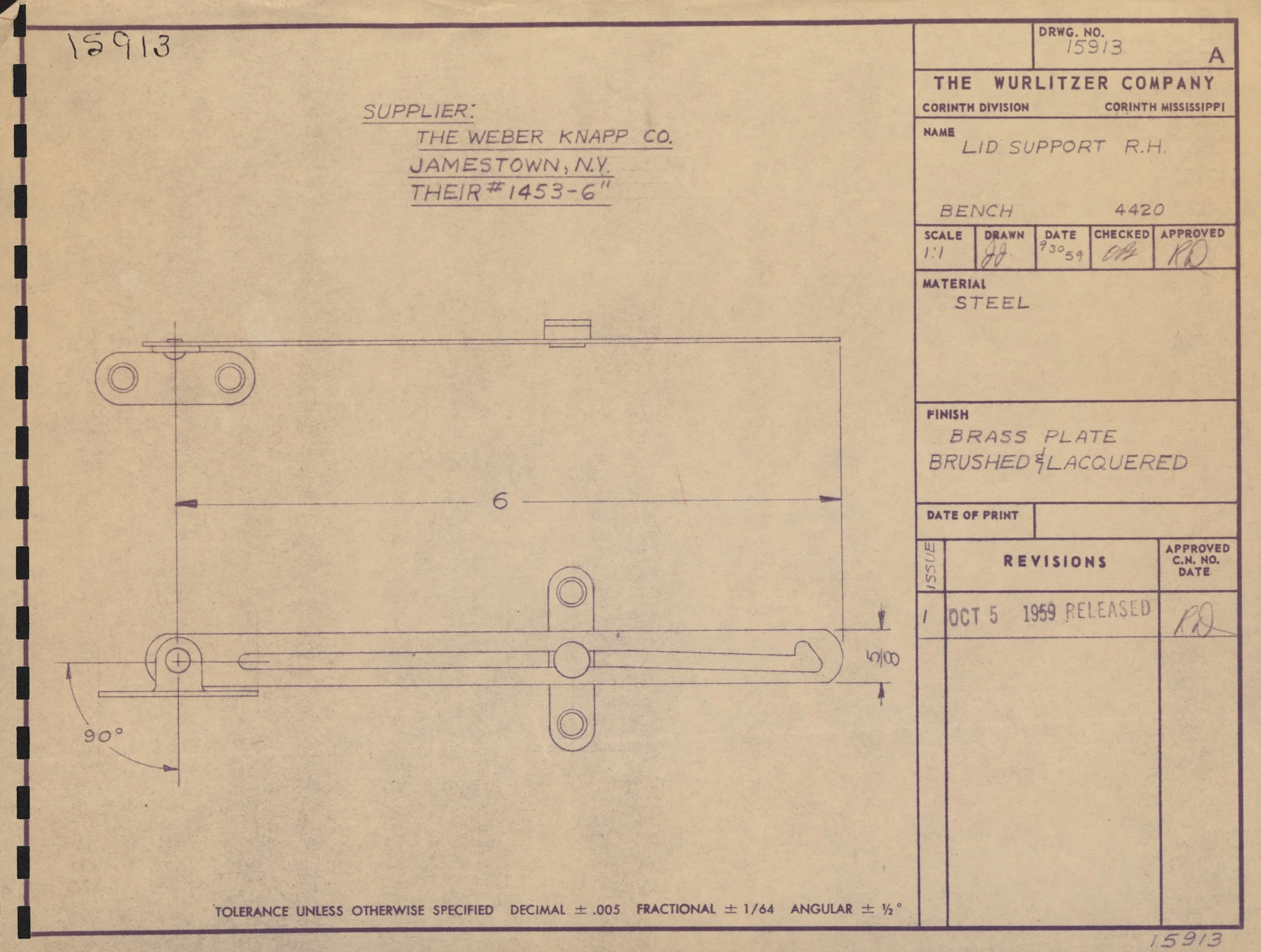

15912 (Hinge for Wurlitzer 4420)
15913 (Lid support, right hand, bench, for 4420)

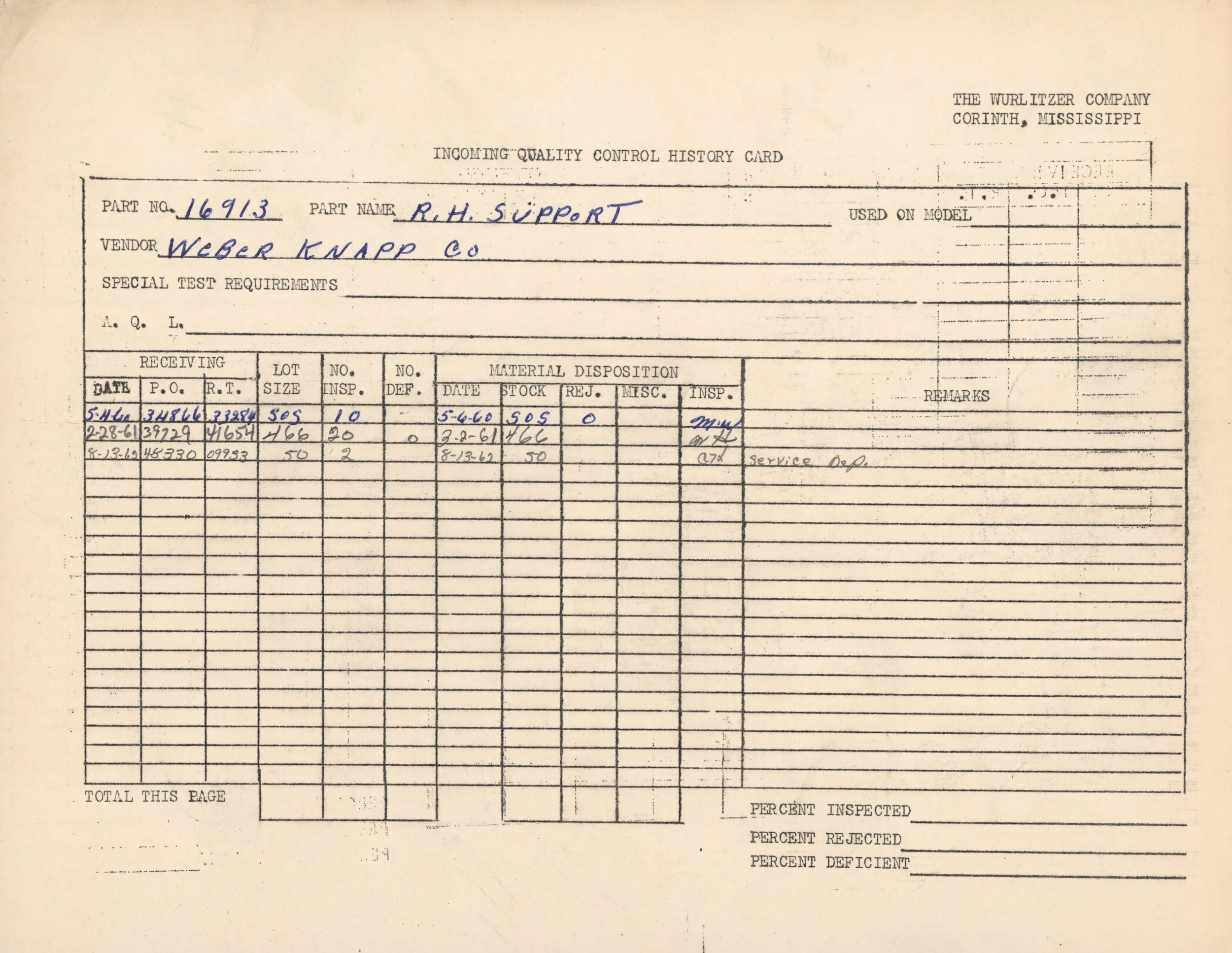

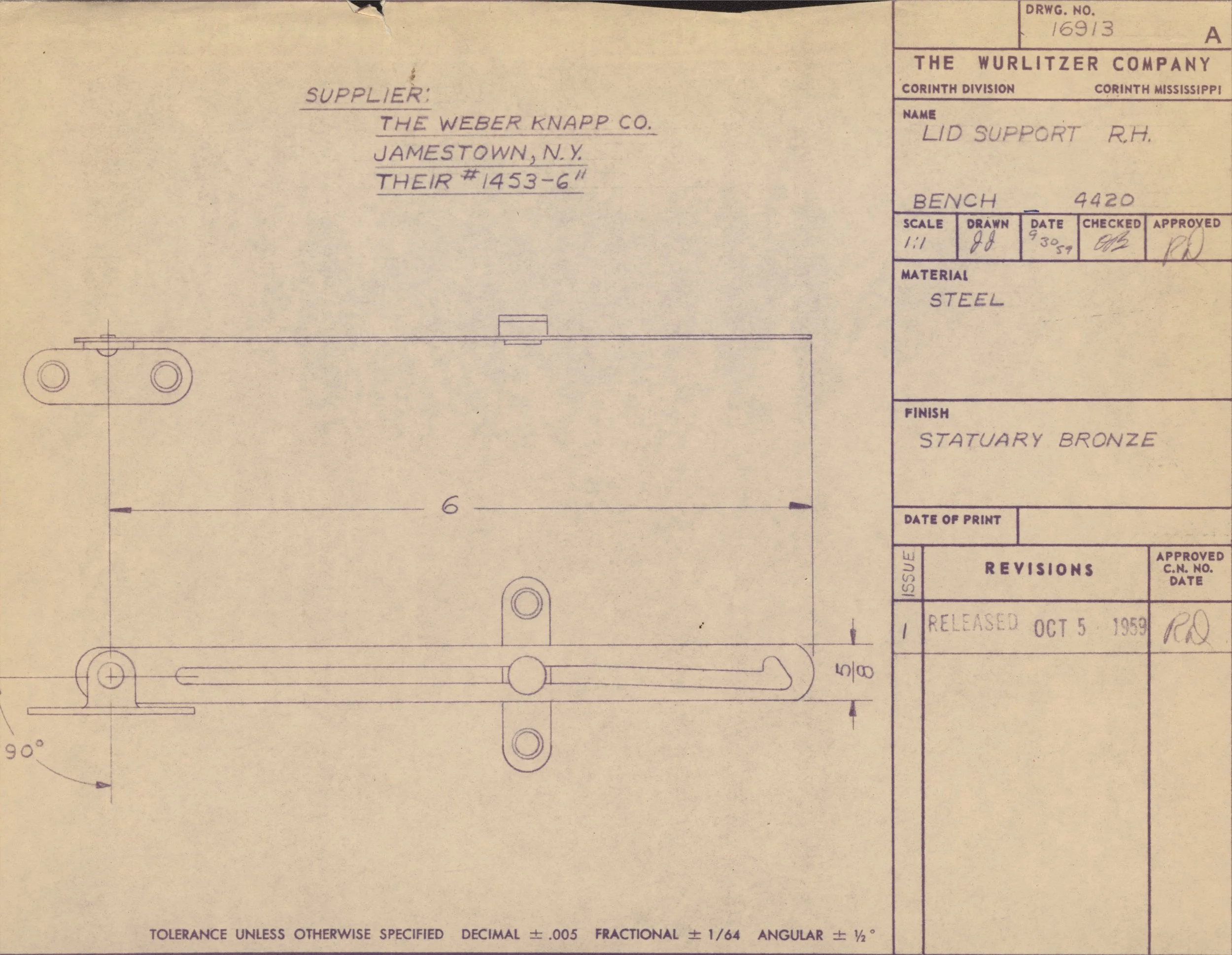

16913 (Lid support, right hand, bench, for 4420)
4430Wurlitzer 4430
We have scanned the following technical drawings for the Wurlitzer 4430 organ:

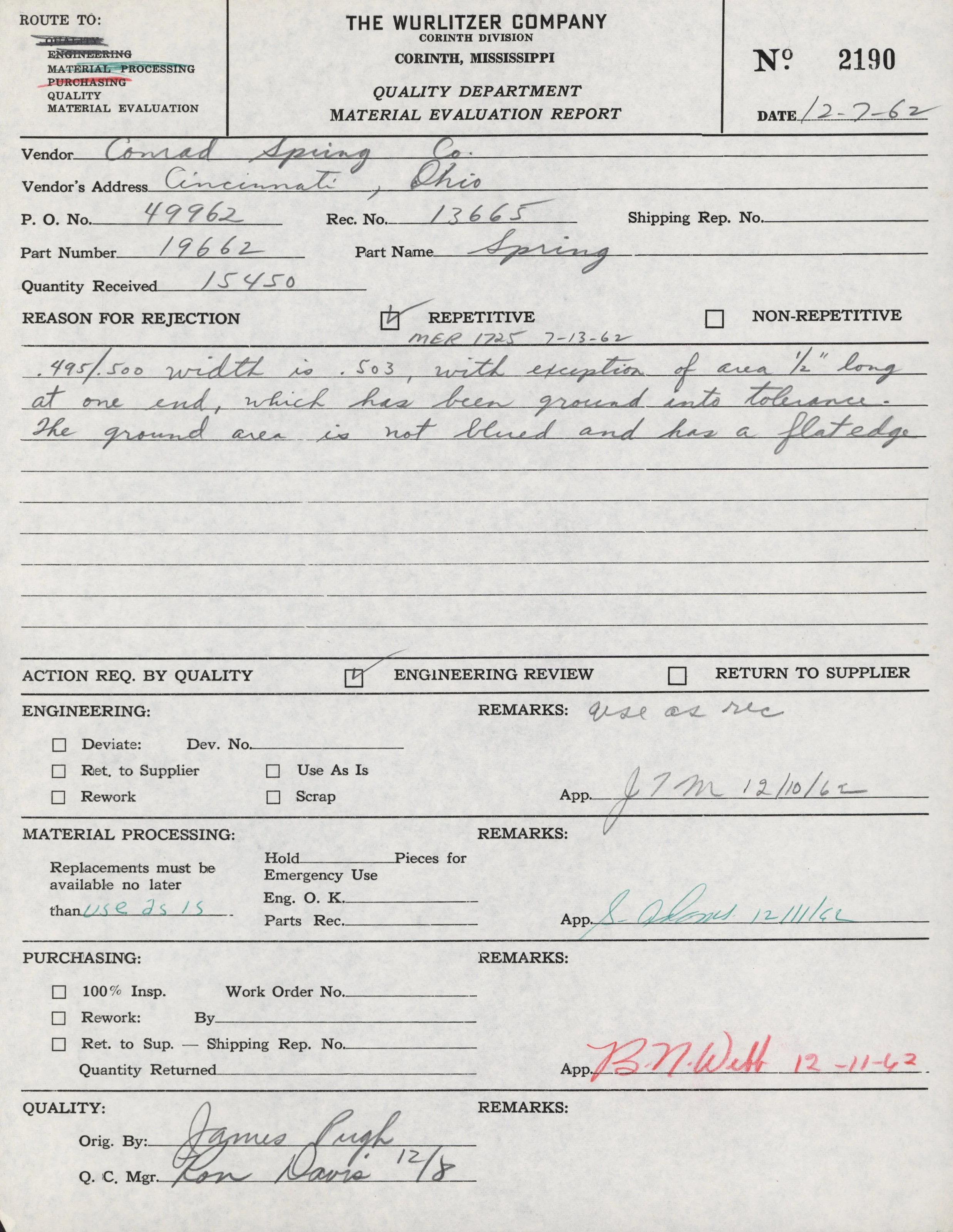

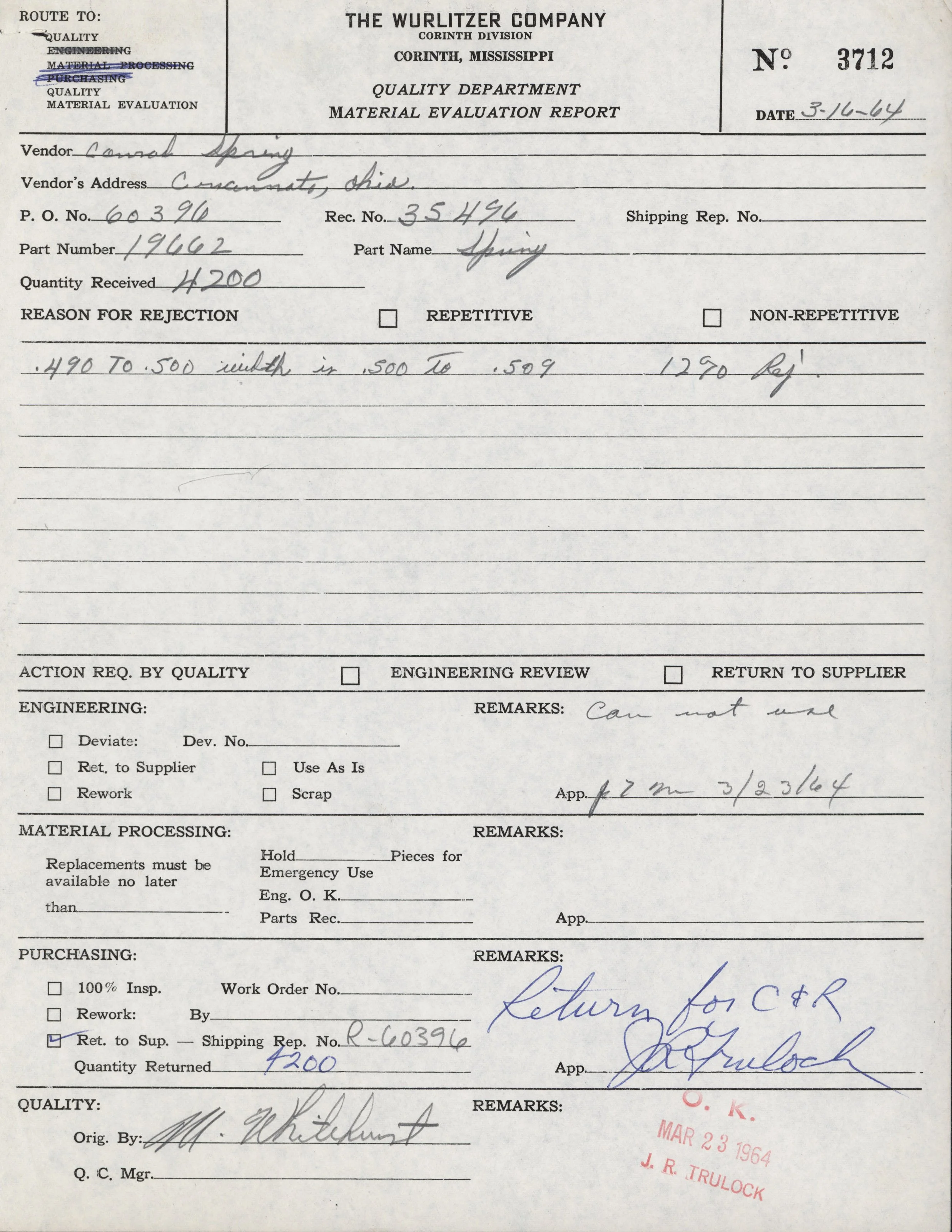

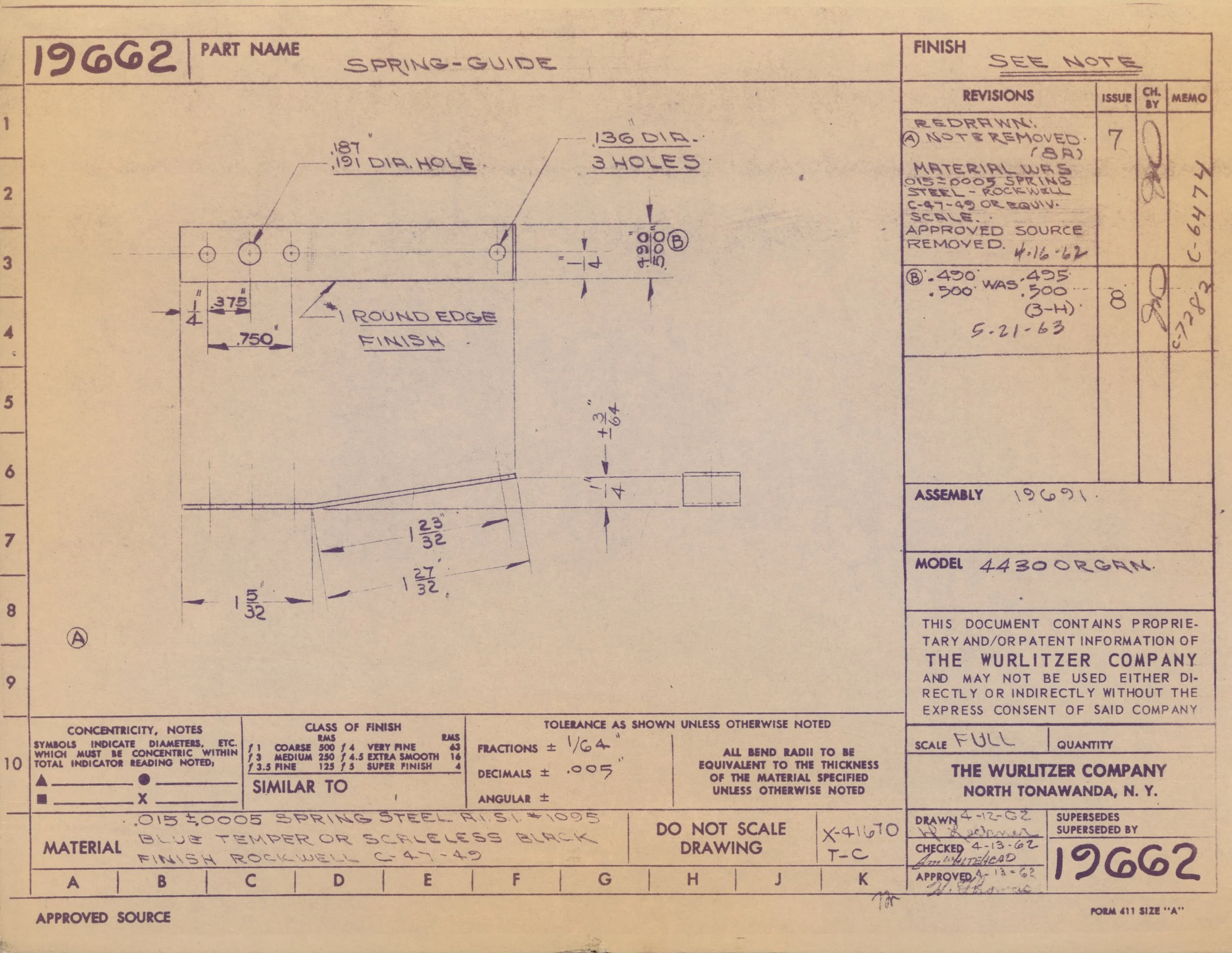

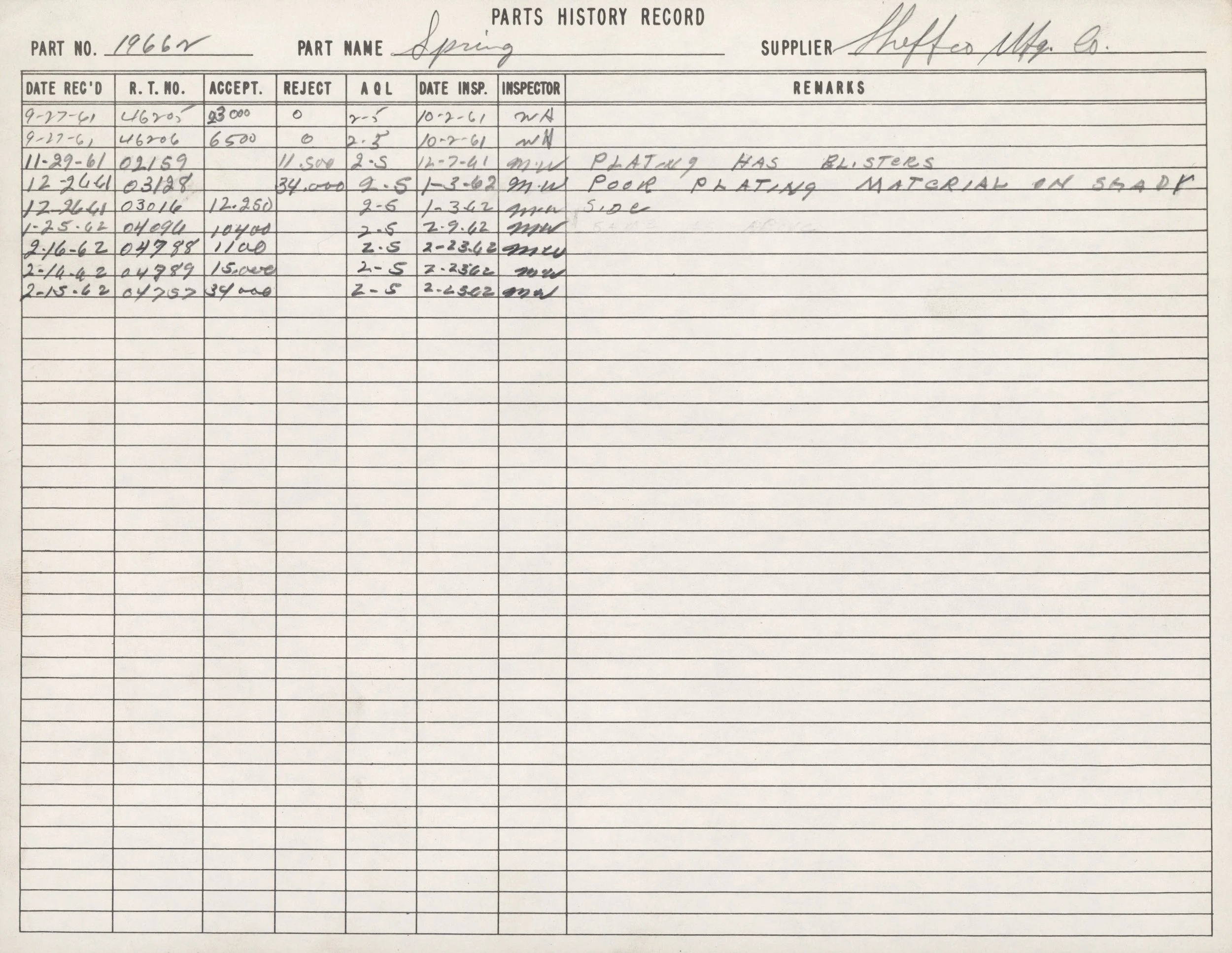

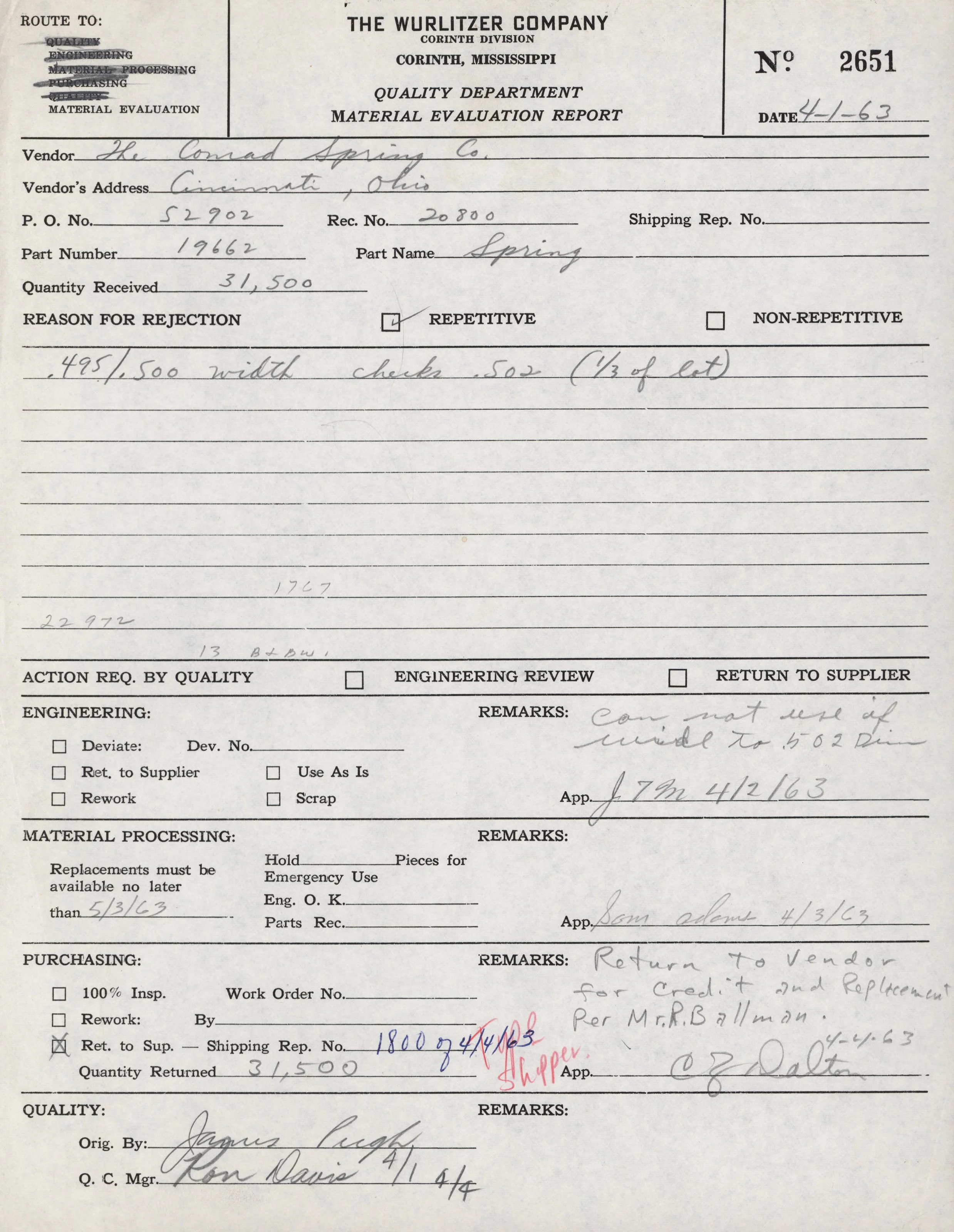

19662 (Spring, guide, for 4430)
4462Wurlitzer 4462
So far, we’ve scanned the following drawings for the Wurlitzer 4462:
502899 (Leaf switch for the 4462)
