WX- series organs

The Wurlitzer WX-series organs are modular versions of Omni organs.

Models of Omni WX series organs (and their initial year of manufacture) include:

  • WX-30 (1986)

  • WX-40 (1985)

  • WX-410 (1984)

  • WX-430 (1984)

  • WX-450 (1984)

44
4410
4600
4800

Technical drawings for Wurlitzer WX-series organs

The following drawings are for parts found in multiple WX-series organs:

  • 154135 (Carton, bench, for WX series)

  • 154936 (Two-position push terminal for WX-series speakers)

  • 154999 (Integrated circuit, quad 2, input OR gate 7BC32 for WX series)

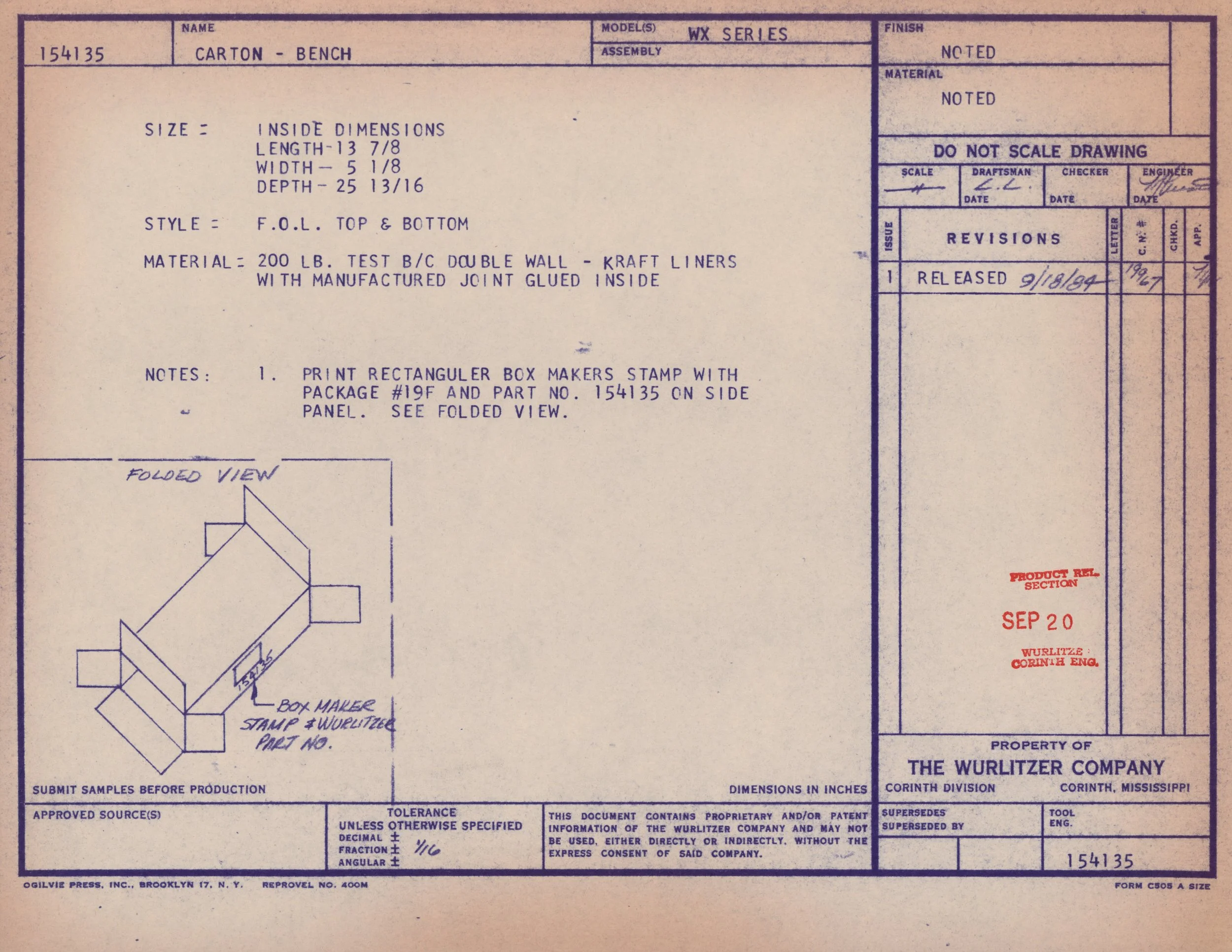

Technical blueprint or engineering drawing for a carton bench from the WX series by The Wurlitzer Company, dated September 20. The document contains dimensions, materials, and revision history, with detailed notes and diagrams of the product.

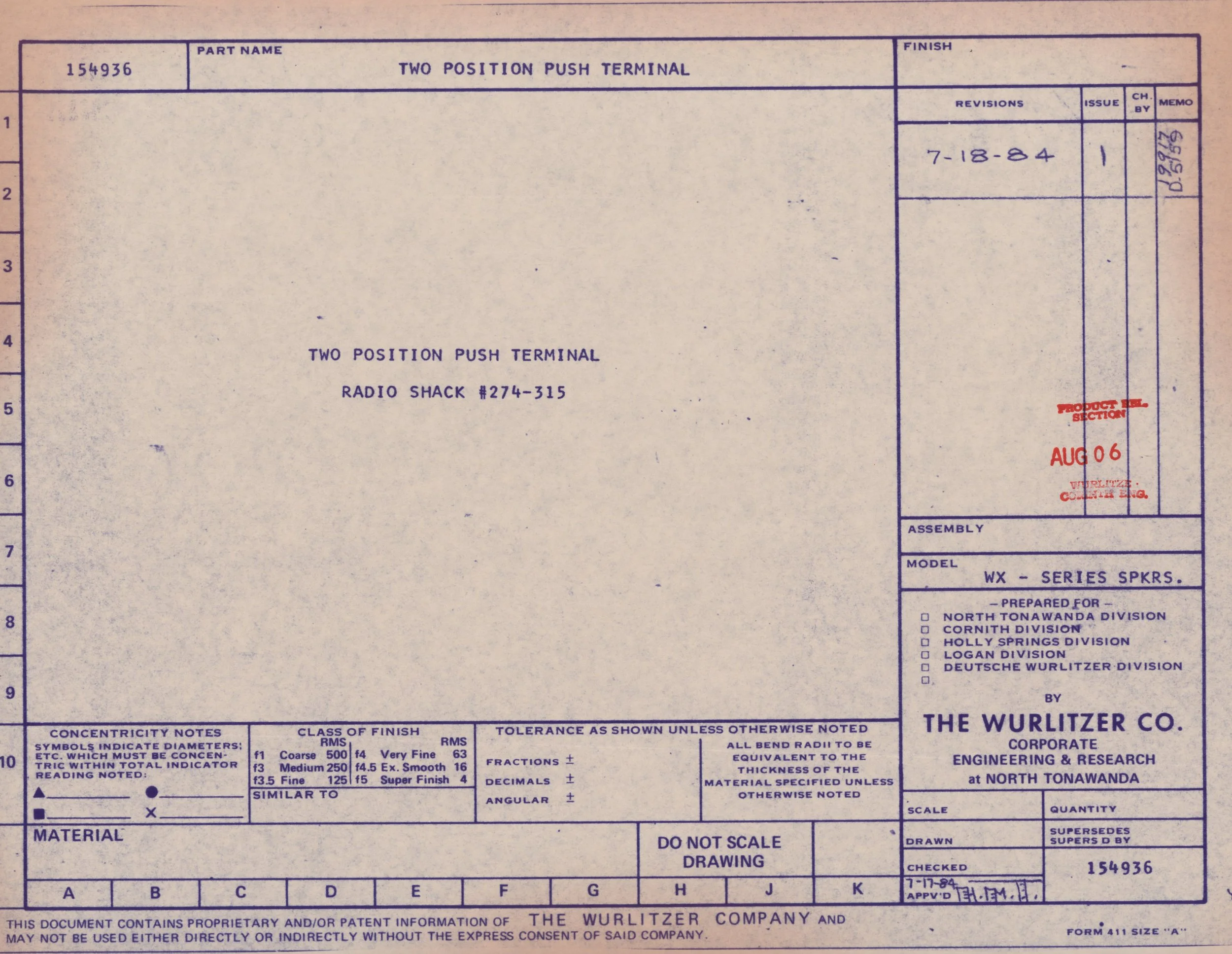

Close-up of an engineering blueprint or technical drawing for a two-position push terminal, including detailed specifications, revision date of July 18, 1984, and various technical notes and measurements.
Close-up of a technical engineering datasheet for an integrated circuit, including part number, revision date, and manufacturer information.
WX-20
WX-40
WX-42

Wurlitzer WX-20, WX-40 & WX-42

The drawings below include parts found in the models WX-20, WX-40 and WX-42:

  • 154151 (Edge veneer, end panel, for WX-40)

  • 154933 (Serial number plate for WX-42)

  • 155080 (Cleat, name rail, for WX-40)

  • 155085 (Spacer, pivot pin, for WX-40)

  • 155349 (Serial number plate for WX-20)

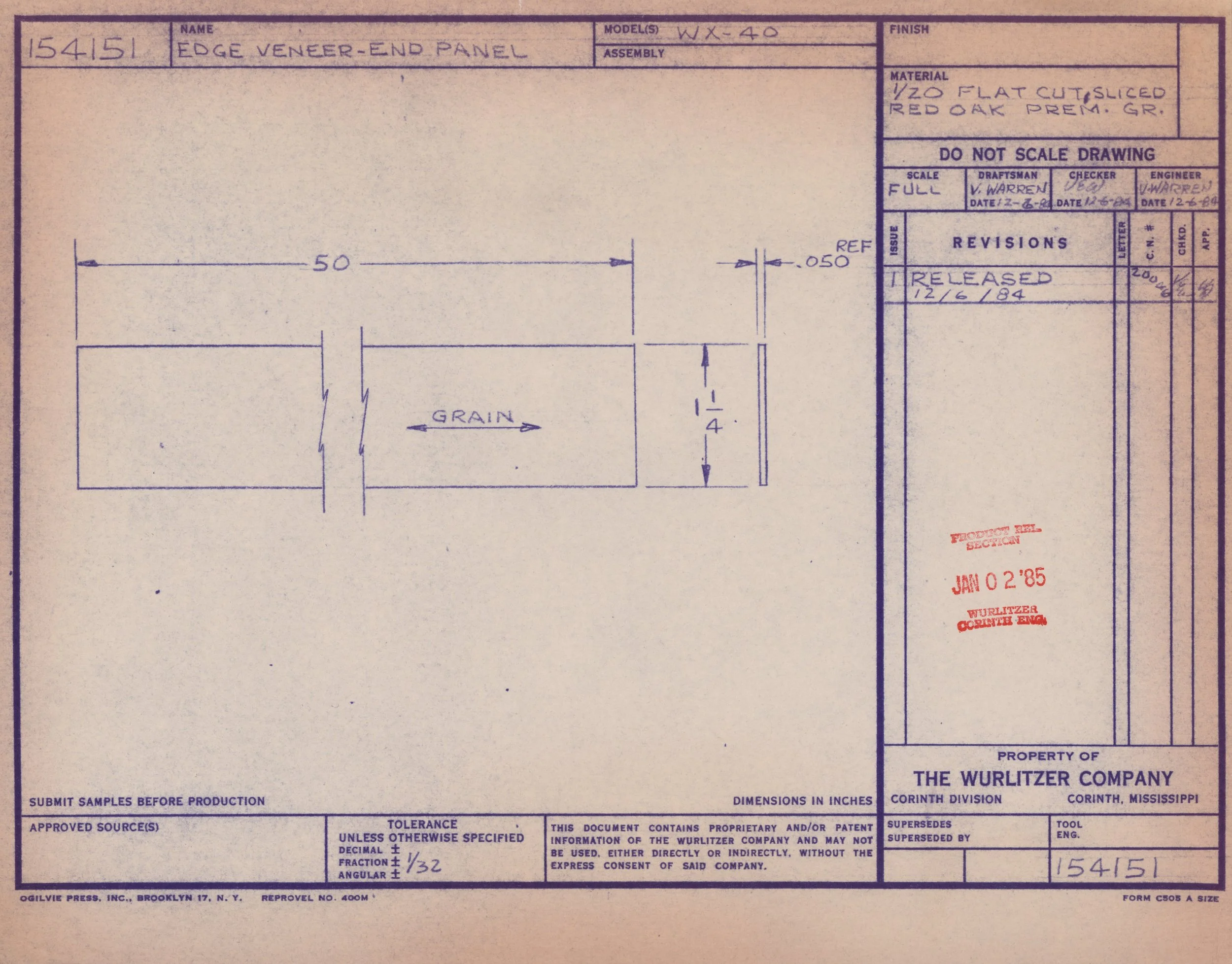

Technical drawing of a corner or edge veneer-end panel, with measurements and specifications, including dimensions and material details, created by Wurlitzer Company.

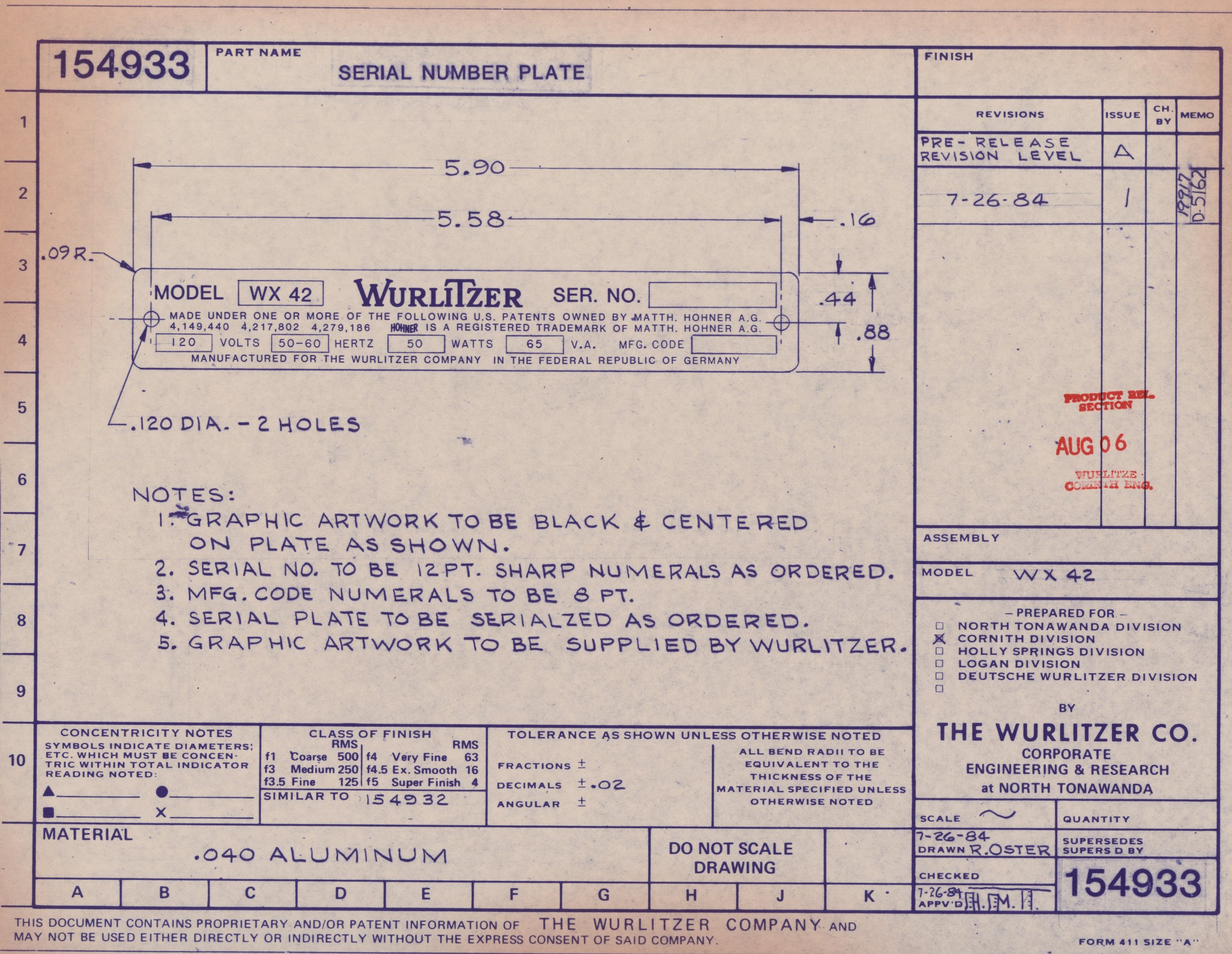

Blueprint for a model serial number plate for Wurlitzer WX 42, including dimensions, materials, model number, manufacturing details, and notes.
Blue technical drawing blueprint for a rail part with dimensions and annotations, titled "Cleat - Name Rail" by The Wurlitzer Company, dated January 2, 1985.
Technical engineering drawing of a spacer-pivot pin, showing detailed measurements, specifications, and material information with annotations in blue ink and red stamp marks.
Technical engineering drawing of a serial number plate for a Wurlitzer model WX-20, with dimensions, specifications, and manufacturer details.
WX-400
WX-410
WX-430
WX-450

Wurlitzer Omni WX-400, WX-410, WX-430 & WX-450:

The drawings are for parts found in Wurlitzer WX-400, WX-410, WX-430 and WX-450 organs:

  • 154137 (Skid assembly for WX-410, WX-430, and WX-450)

  • 154140 (Ground cable assembly for WX-450)

  • 154882 (Cleat for WX-410, WX-430, and WX-450)

  • 154901 (Glue block for WX-400 series)

  • 154916 (Spacer block for WX-400 series)

  • 154934 (Glue block for WX-410)

  • 154935 (Glue block for WX-430 and WX-450)

  • 154937 (D-sub-miniature connector for WX-410, WX-430, and WX-450)

  • 154938 (DIN receptacle for WX-410, WX-430, and WX-450)

  • 512834 (Corner post for WX-430 and WX-450)

  • 512835 (Top pad for WX-430 and WX-450)

Technical blueprint or engineering drawing of a part, labeled with measurements, part numbers, and technical notes, created by The Wurlitzer Company. The details include dimensions, material specifications, and revision information.

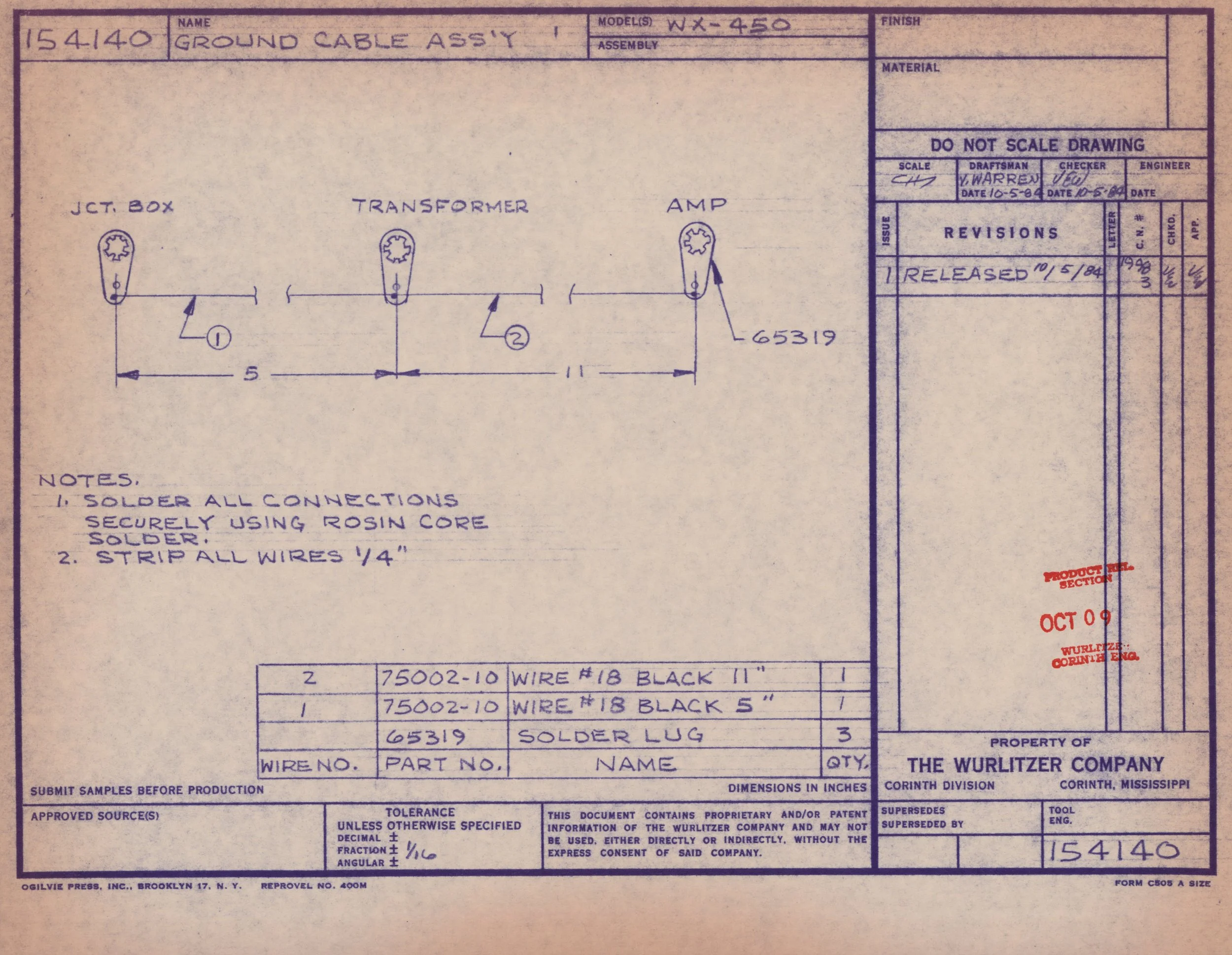

Technical engineering blueprint for grounding cable assembly, including diagrams of connectors and detailed notes on assembly instructions, dimensions, and materials.
Technical engineering drawing with the part name 'CLEAT' and detailed specifications, including grain direction, material as 'poplar,' and various measurements and notes.

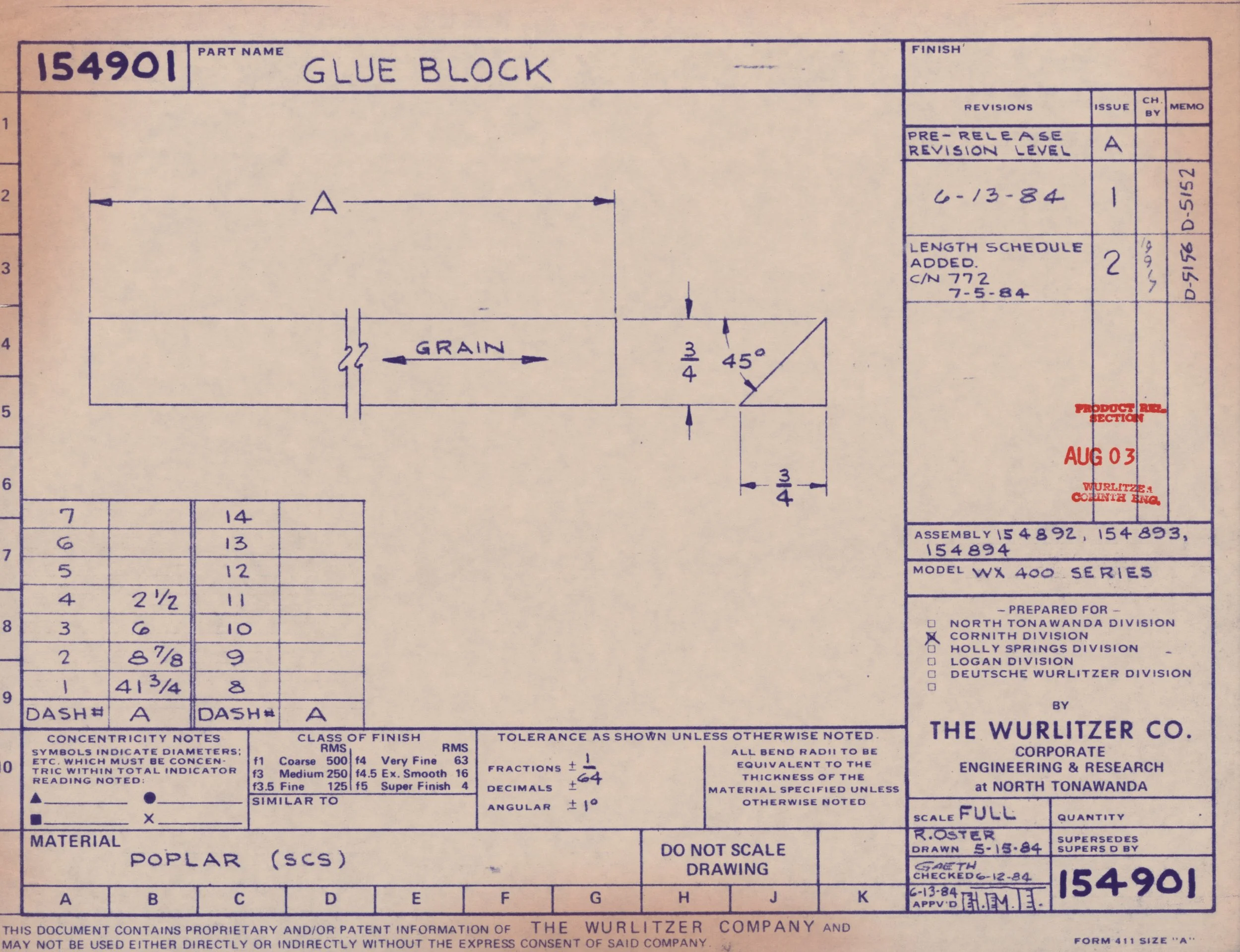

Blueprint or technical drawing for a glue block made of poplar wood, includes measurements, angles, and notes.
Close-up of a technical engineering drawing for a spacer block, dated June 13, 1984, appears to be created by The Wurlitzer Company, indicating specifications and material details.

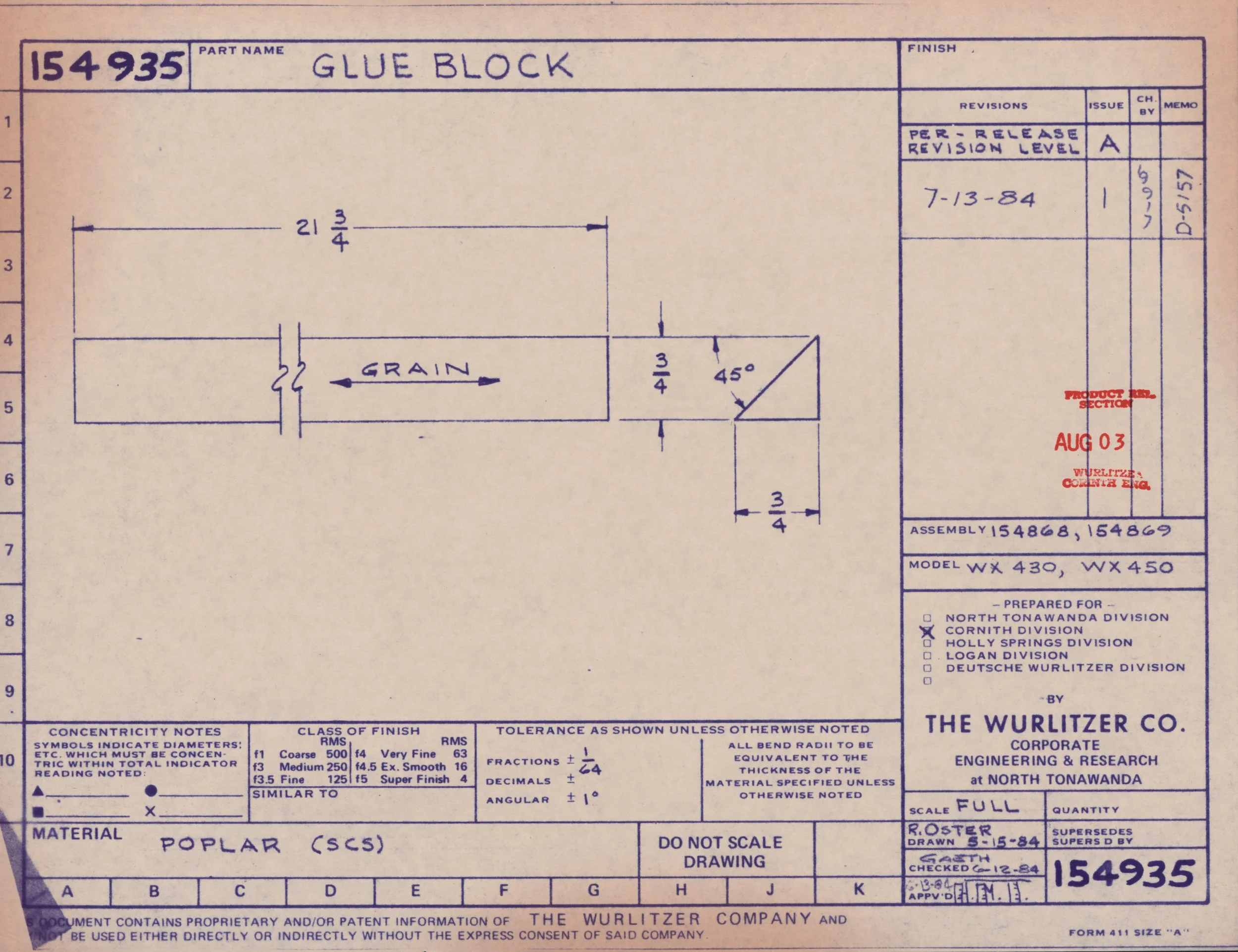

Technical drawing blueprint titled 'Glue Block' with measurements and notes, including dimensions, angles, and material specifications for a part made of poplar wood.
Technical engineering drawing for a glue block, including dimensions, material specifications, and revision details, printed on blueprint paper.
Close-up of a technical engineering drawing for a D-Sub-Miniature Connector, including detailed notes, specifications, revision history, and approval stamps.
Close-up of a technical drawing or blueprint, including text, measurements, and notes related to a sink part, with annotations and stamps indicating revisions and approval dates.
Architectural blueprint drawing of a corner post, with detailed measurements, notes, and revisions, created by The Wurlitzer Company.
Technical engineering drawing of a top pad with handwritten notes, dimensions, revision history, and company details, created by The Wurlitzer Company in Corinth, Mississippi.
