200-series electronic piano

The 200 series was the final version of Wurlitzer electronic pianos. This series is easily identified by its lightweight plastic lid.

There are many variations of 200-series Wurlitzers. All of the models shared many parts, hence many technical part drawings were for multiple models in the series. Note that some of these parts may also be similar or identical for other electronic piano models which are not listed on the schematic.

Models in 200 series include:

  • 200 series (203, 206…)

  • 200A series (206A, 214A…)

Action parts

The drawings below include action parts for 200-series electronic pianos.

  • 201712 (Grommet for all electronic pianos)

  • 201763 (Front rail punching for all electronic pianos)

203W
206
207
214

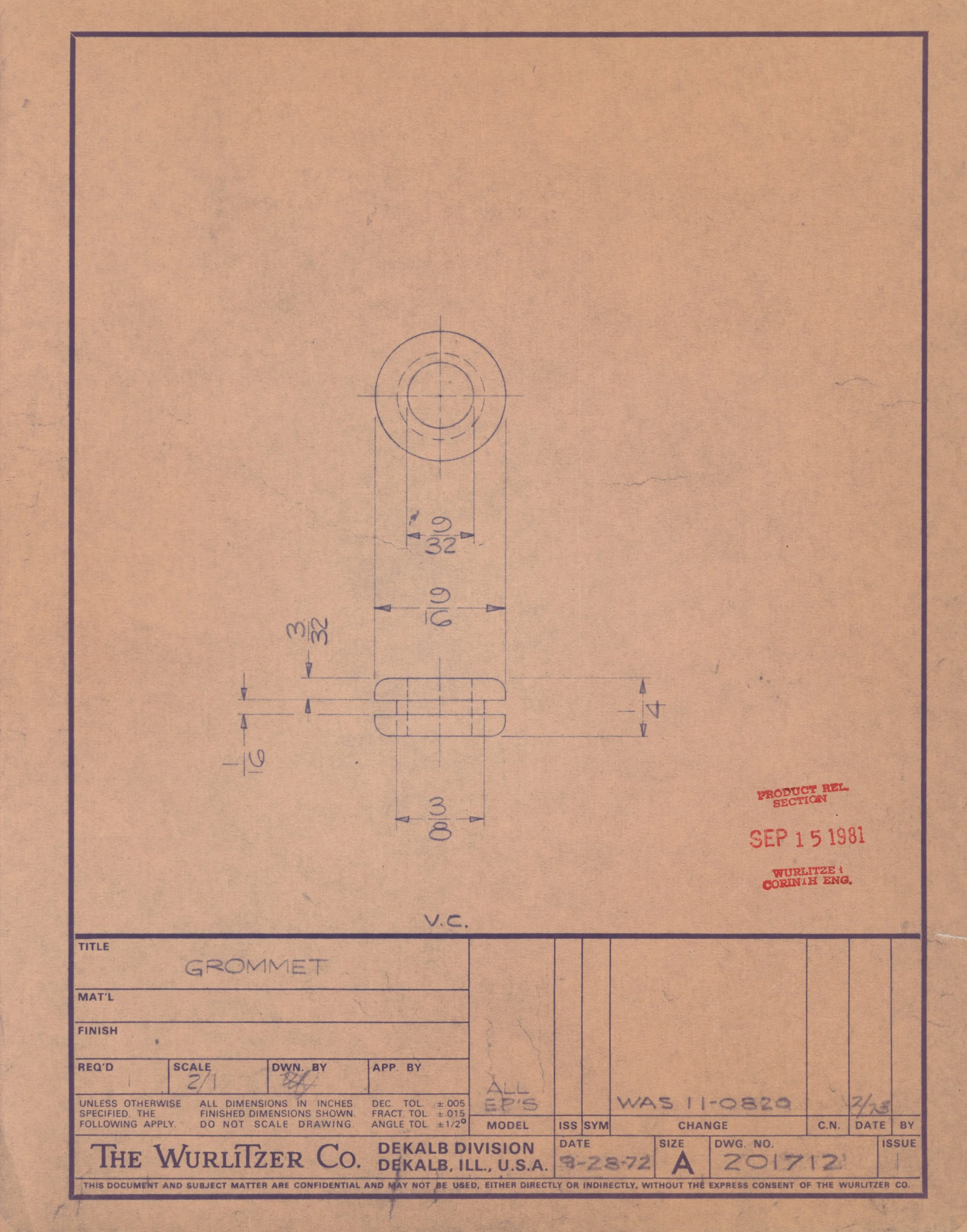

Blueprint technical drawing from The Wurlitzer Co., showing detailed measurements and annotations for a part called GROMMET, created by Wurlitzer in DeKalb, Illinois, issued on September 15, 1981.

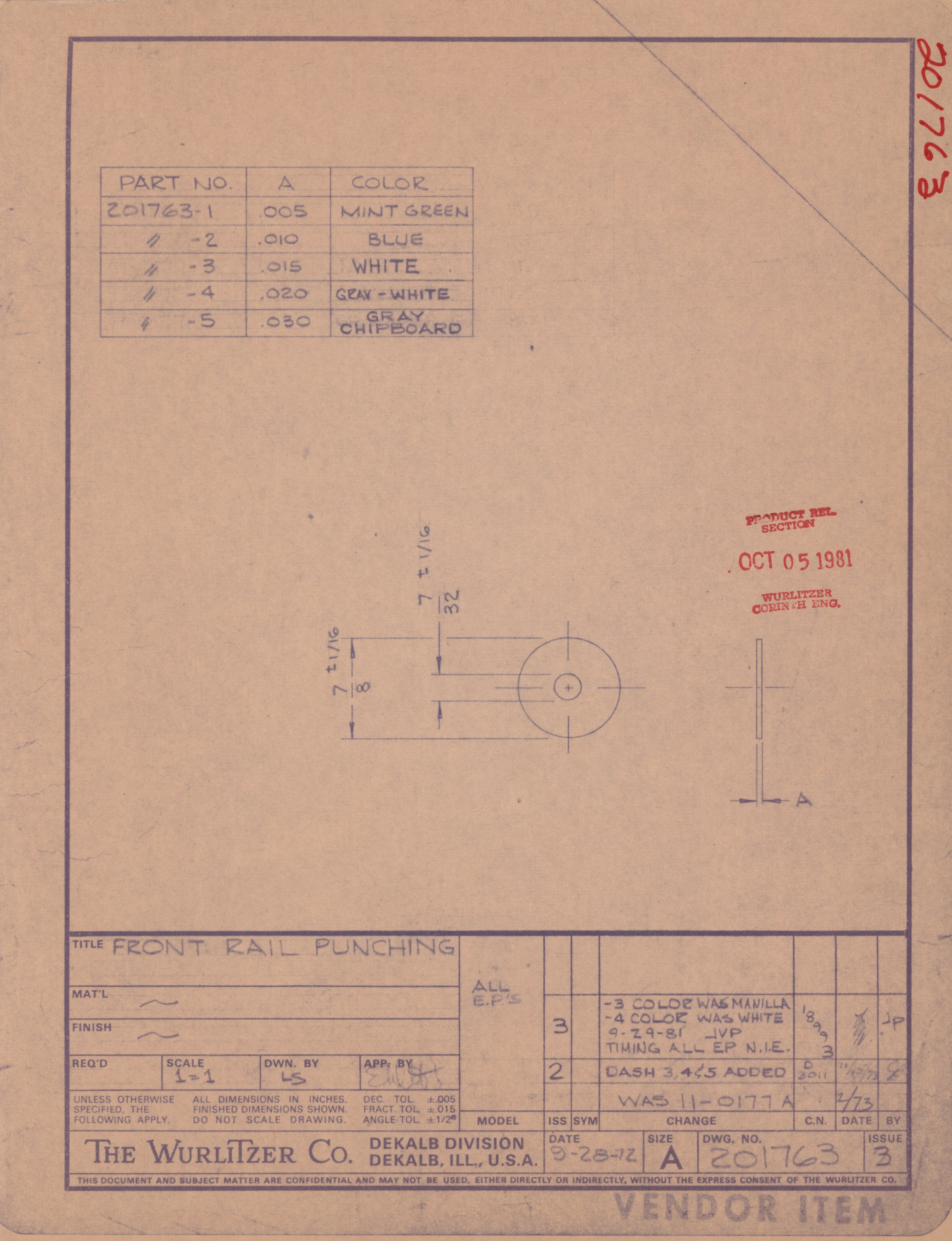

A technical drawing or blueprint titled 'Front Rail Punching' from The Wurlitzer Co. dated October 5, 1981, showing detailed measurements, specifications, and part numbers related to the front rail punching of a musical instrument.
200
200A
203W
206
207
207V
214
270

Cabinet & sustain pedal drawings

The following drawings are for parts of the exterior case of the instrument, including legs, casters, silkscreened chassis, and the sustain pedal.

  • 11-1198 (Chassis, inside, for the Wurlitzer 207)

  • 11-1198 (Chassis, silk screened, for the 207)

  • 11-1200 (Silk screen for the 207)

  • 11-1201 (Chassis, inside, silk screened, for the 207)

  • 154145 (Leg assembly, service replacements, piano case, for the 200A)

  • 201719 (Keybed dowel for all electronic pianos)

  • 201728 (Fabric for covering base for all electronic pianos except 200)

  • 201743 (Stamped pedal for the 200, 270, 206, 207V, and 214)

  • 201744 (Cable assembly for all electronic pianos except 200)

  • 201746 (Cable nut for all electronic pianos)

  • 201749 (Cable clamp for all electronic pianos)

  • 201754 (Locking casters for the 214 and 203W)

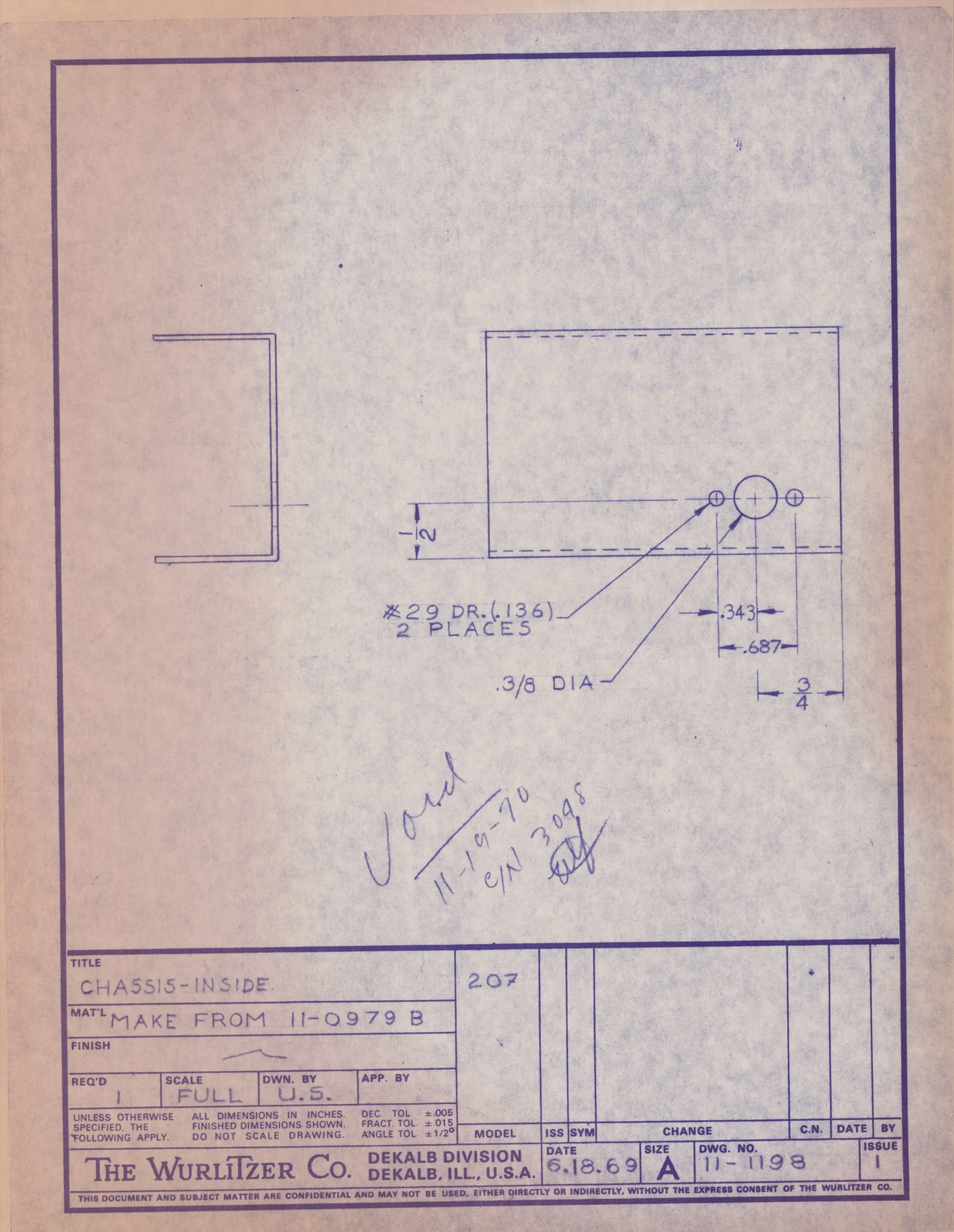

Technical drawing or blueprint of a chassis inside view, including measurements and notes, created by The Wurlitzer Co. on June 18, 1969.

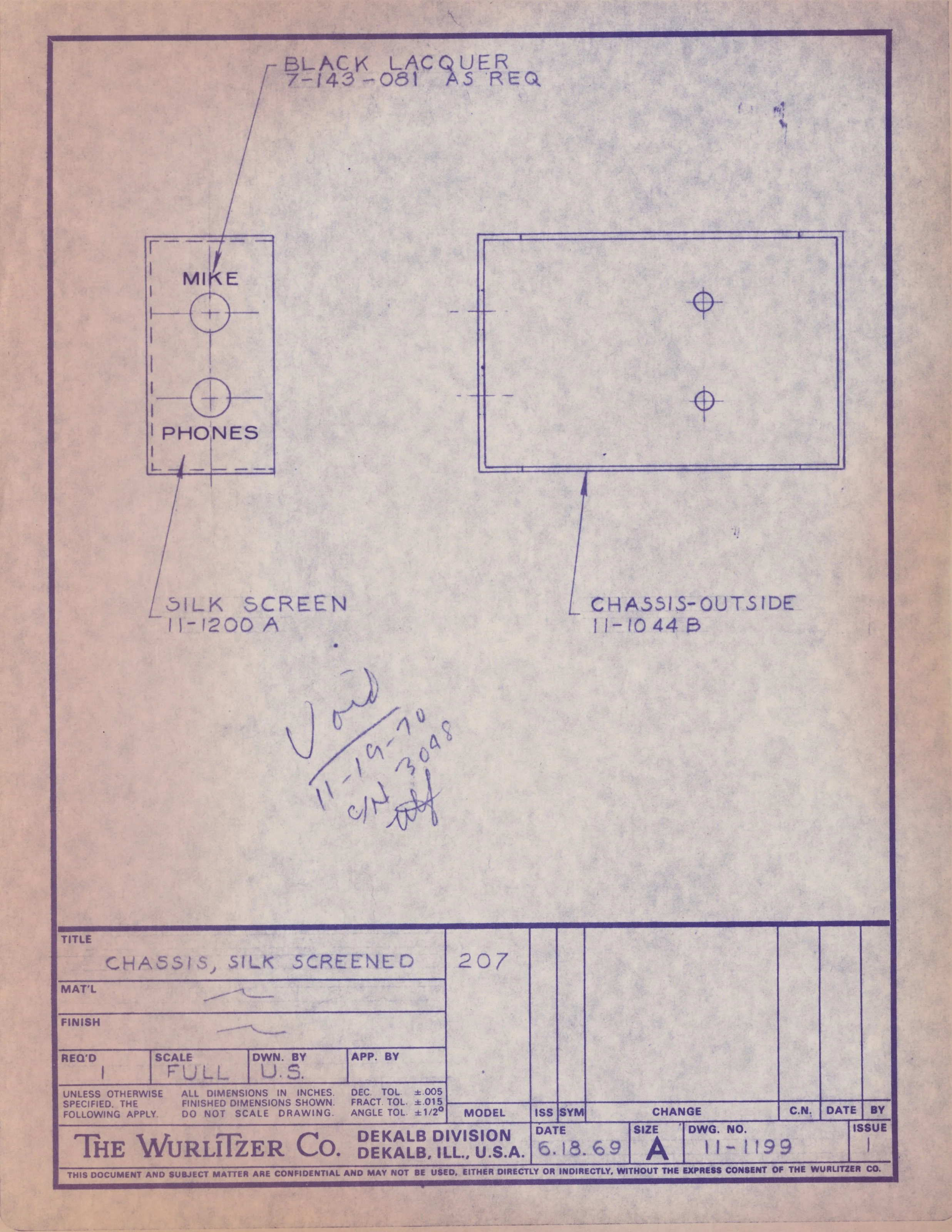

Blueprint of a chassis with silk screening details, including labels for 'Mike' and 'Phones', and notes for the materials and finishes.

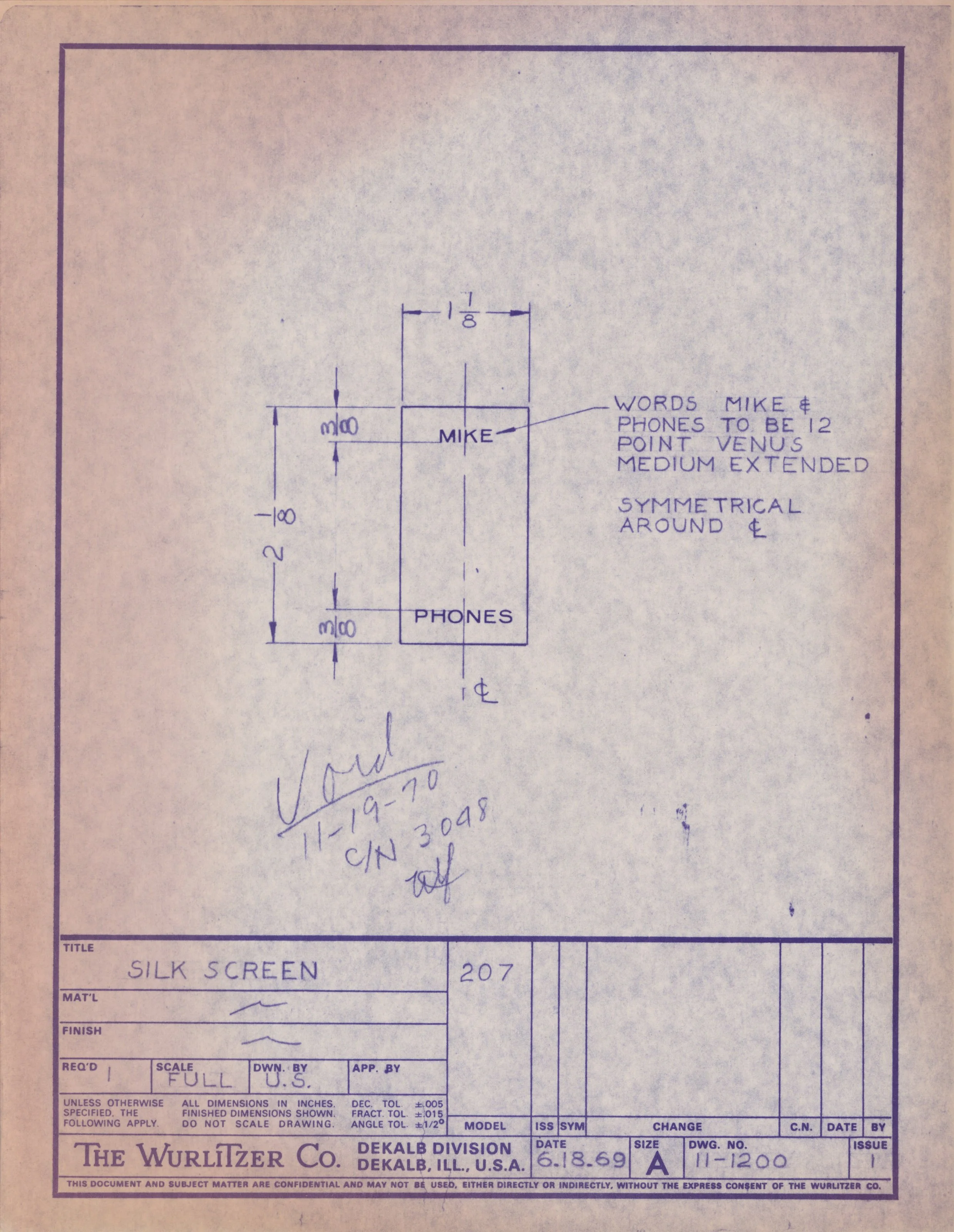

Engineering blueprint or technical drawing for a silk screen design, with measurements, handwritten notes, and specifications for the project.

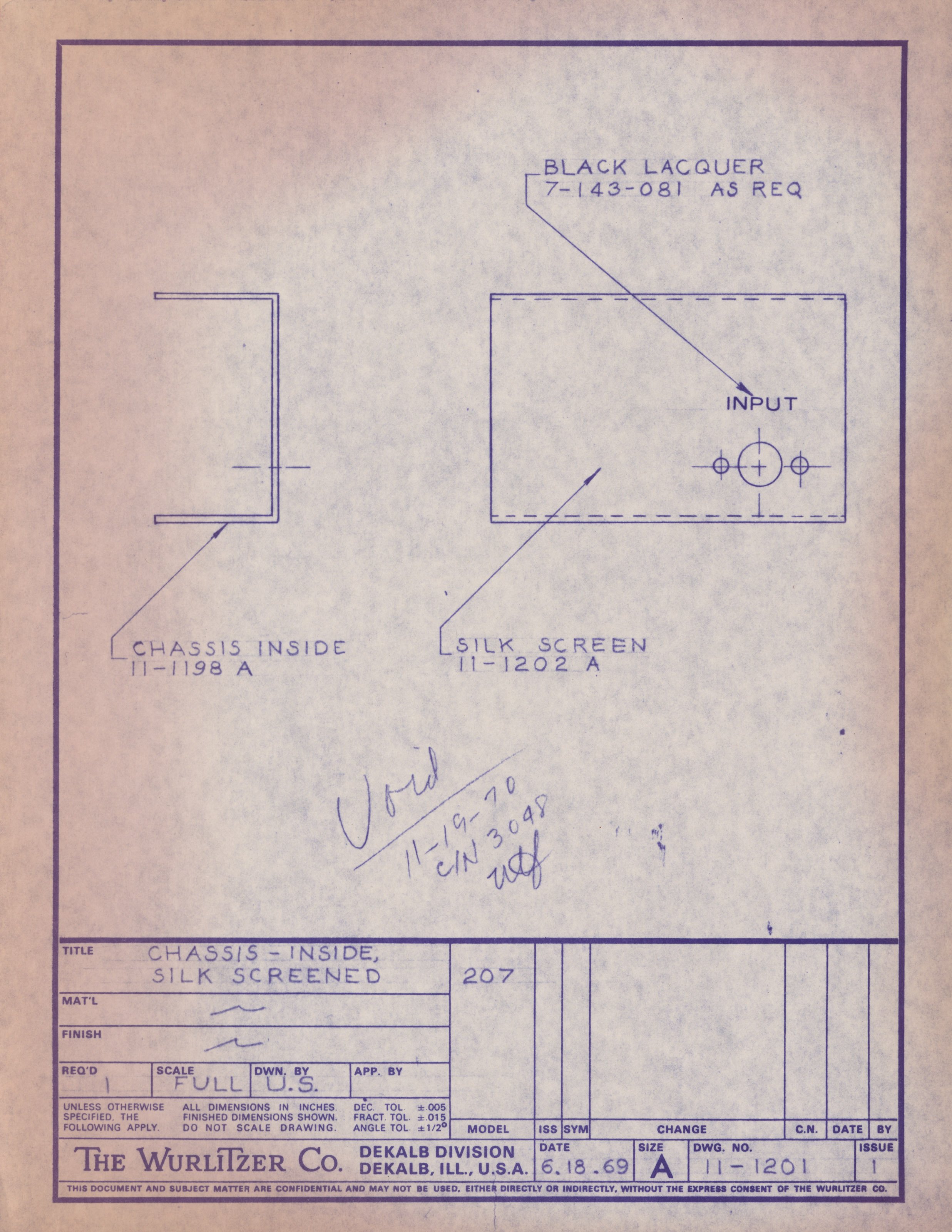

Technical drawing of a car's interior parts, including the chassis inside and silk screen with detailed annotations, from The Wurlitzer Co., dated June 18, 1969.

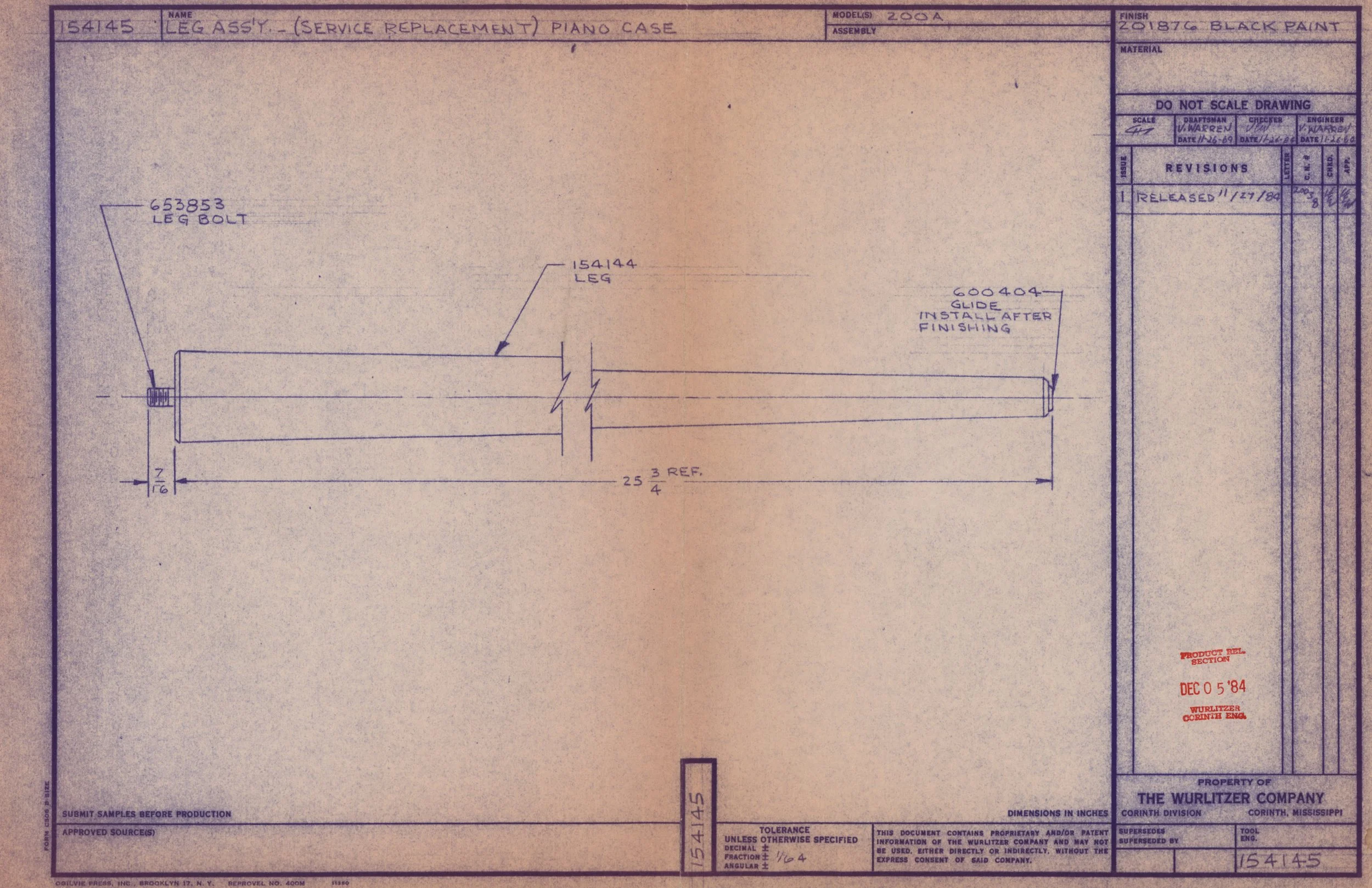

Blueprint of a piano case redesign labeled as 'LEGASSY - SERVICE REPLACEMENT PIANO CASE' with technical notes, measurements, and revisions, and stamped with dates and company information.

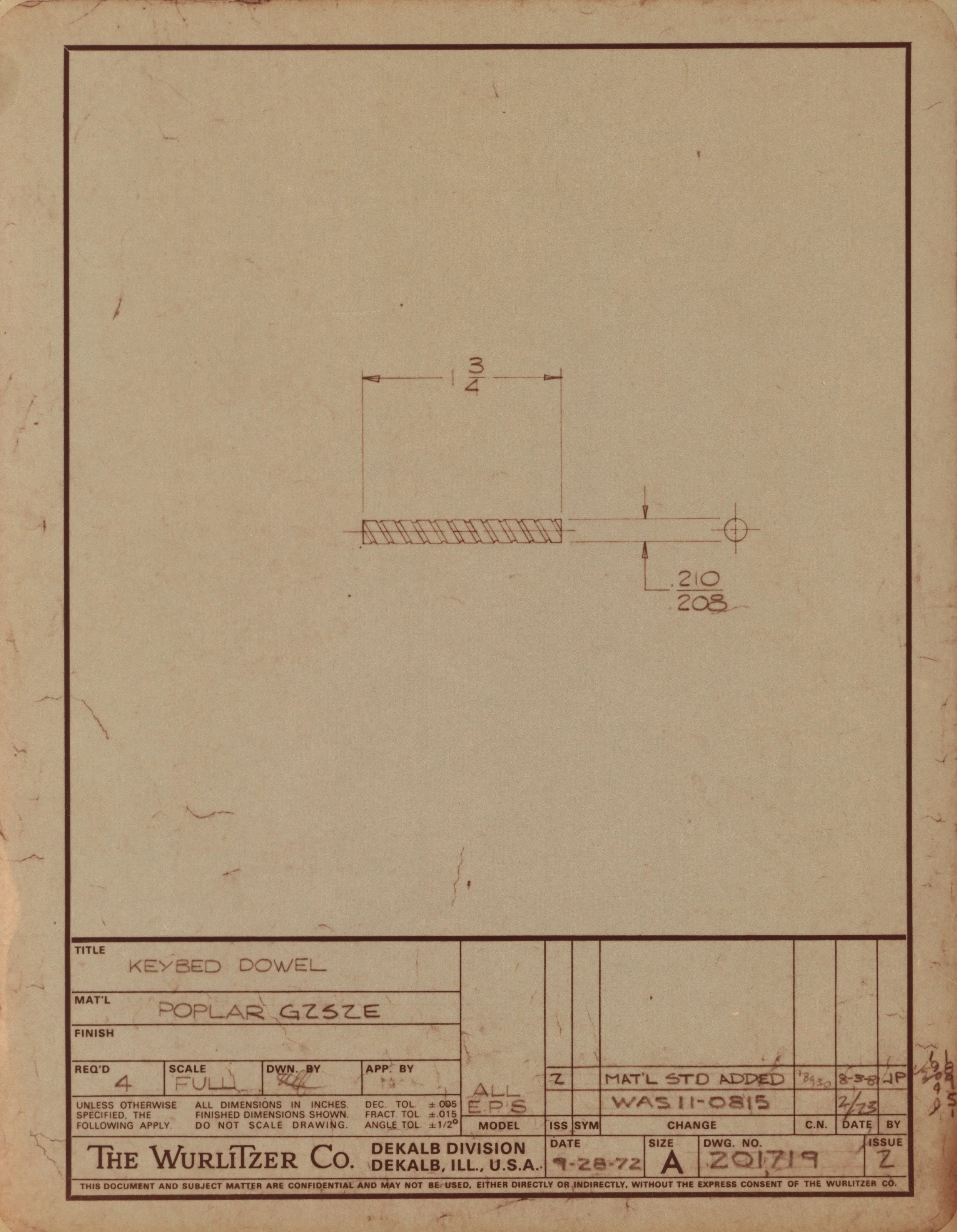

A technical drawing or blueprint for a keyed dowel made of poplar wood, with measurements and specifications.

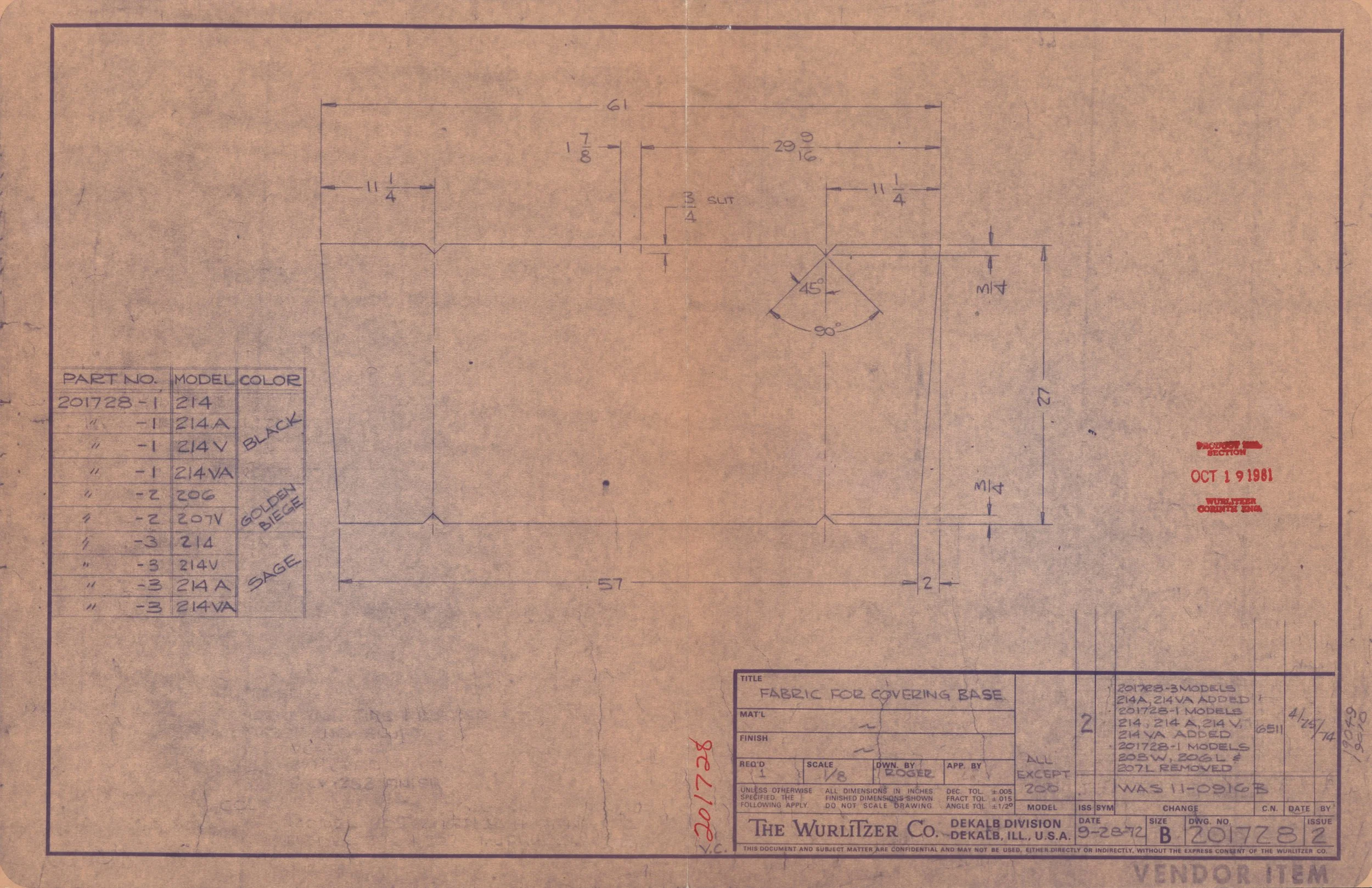

Technical blueprint drawing of fabric for covering base, with measurements, notes, and company information from The Wurlitzer Co., dated October 19, 1981.

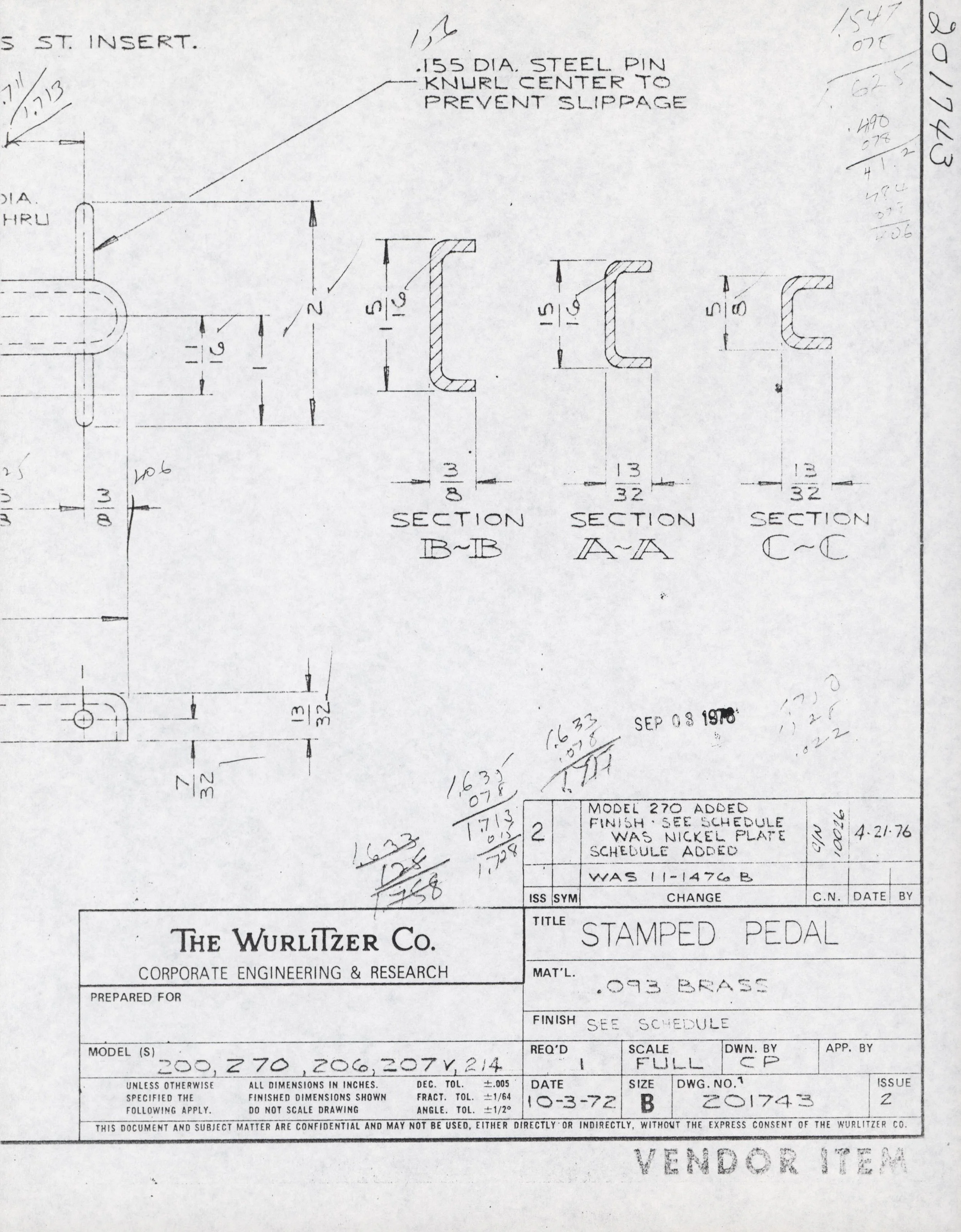

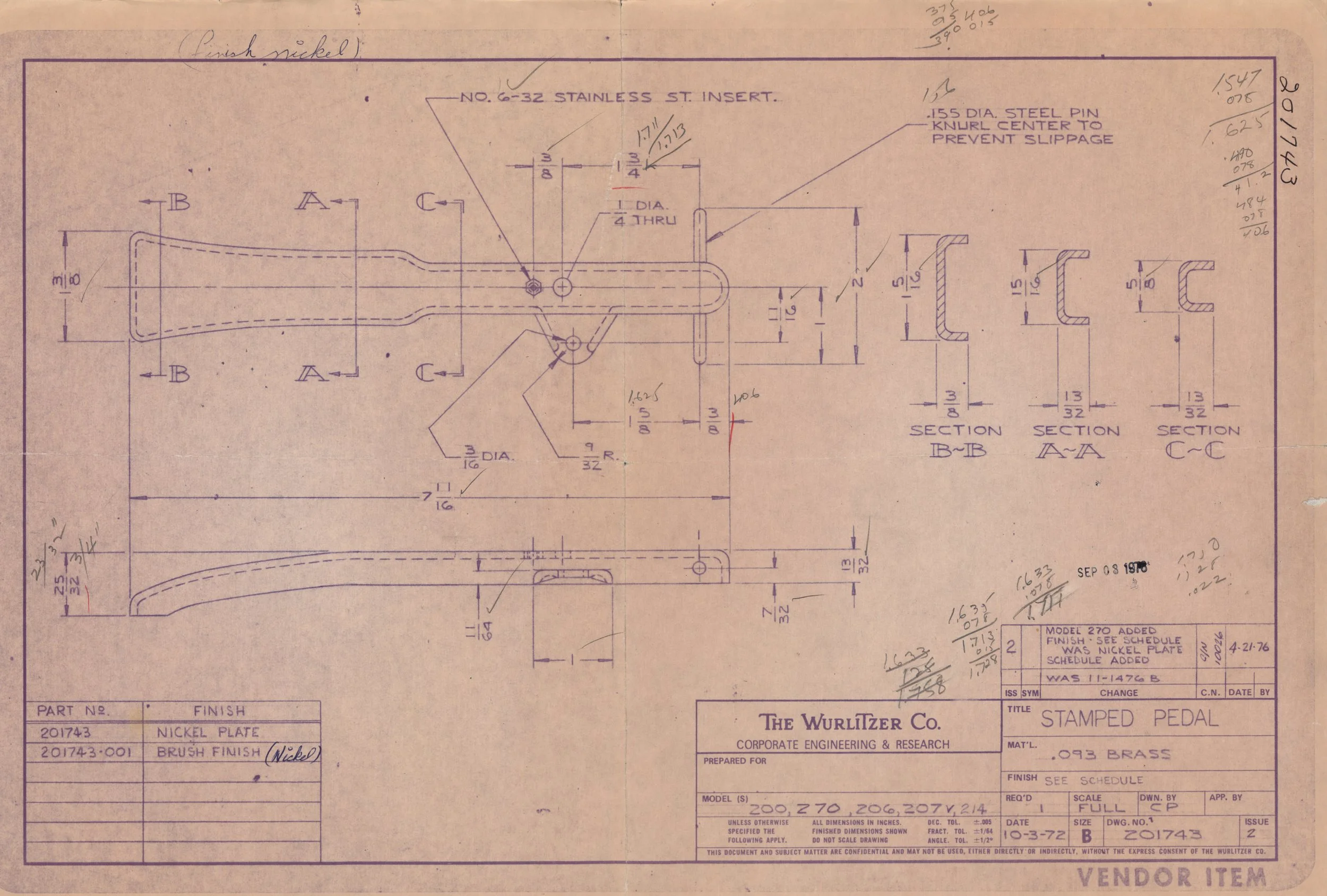

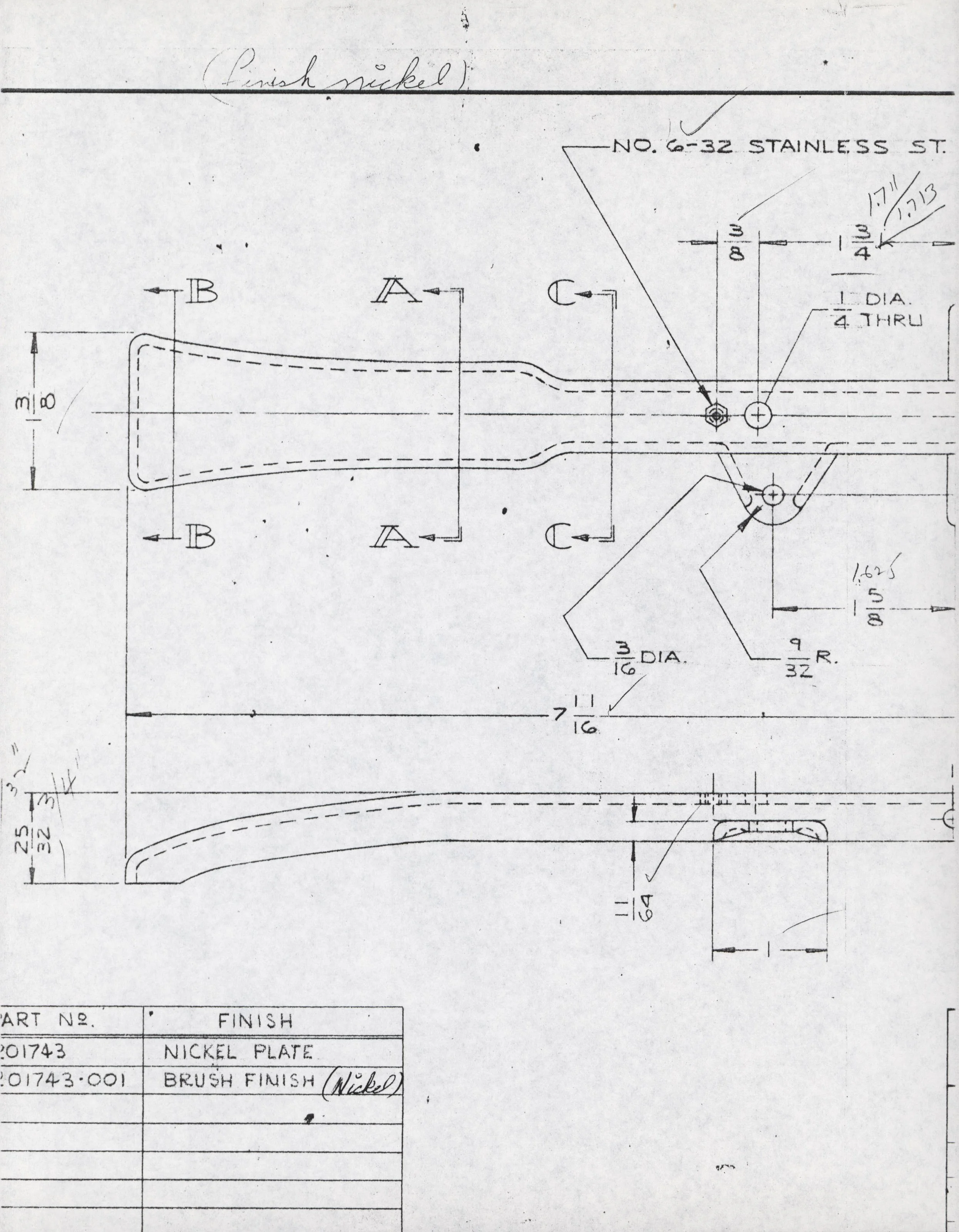

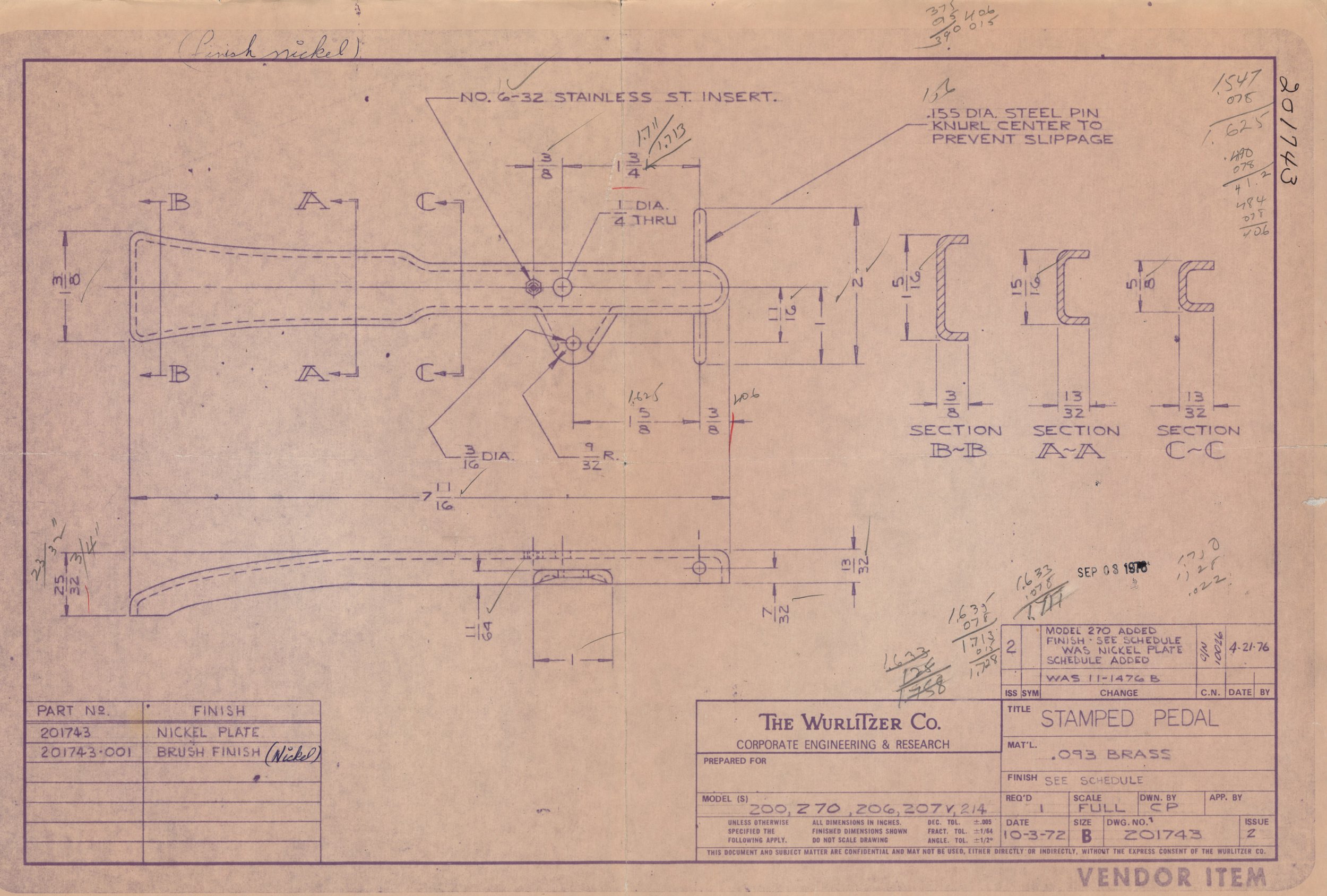

Technical engineering diagram of a stamped pedal, showing detailed measurements, sections, and annotations in purple ink on paper.

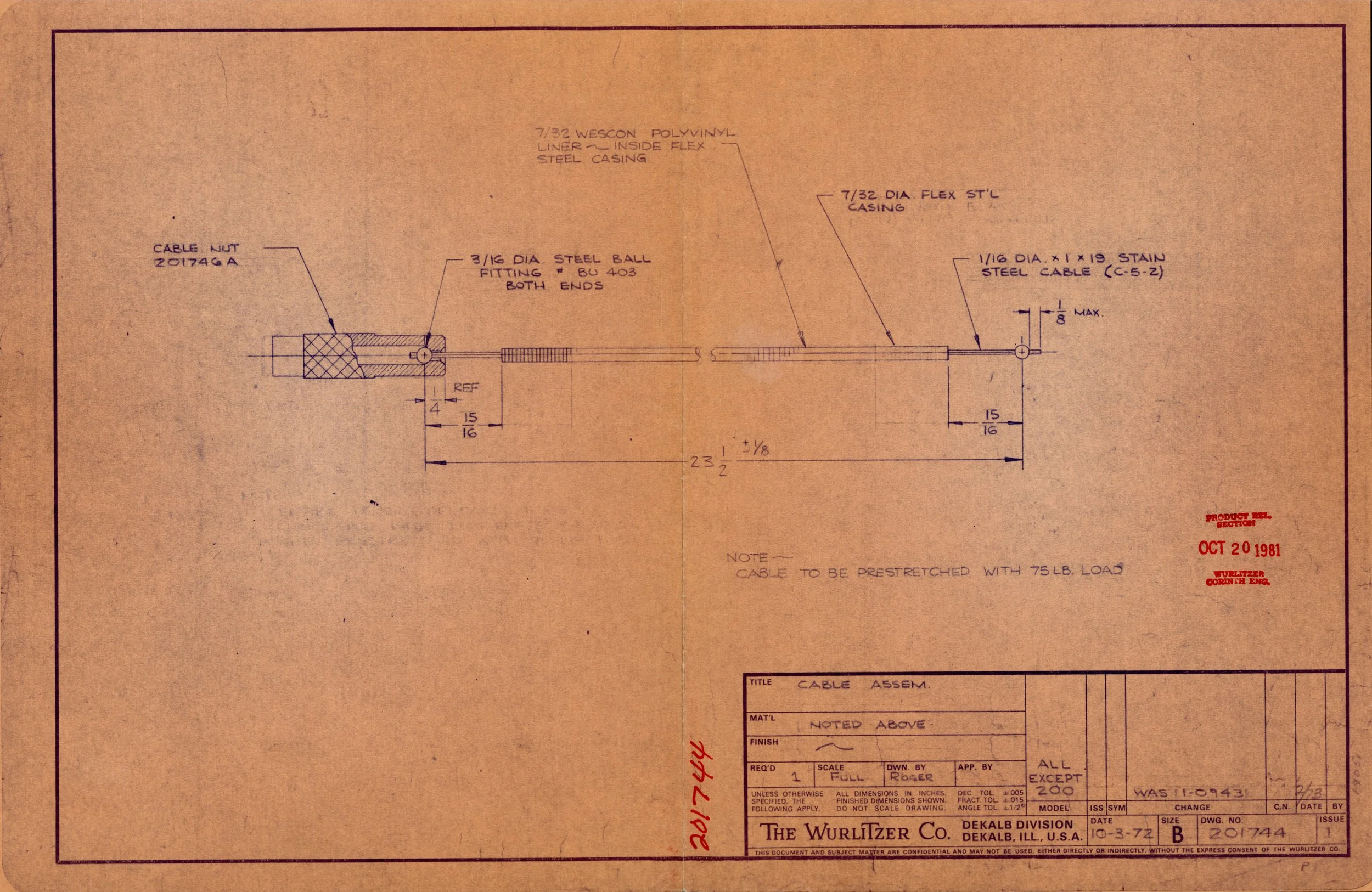

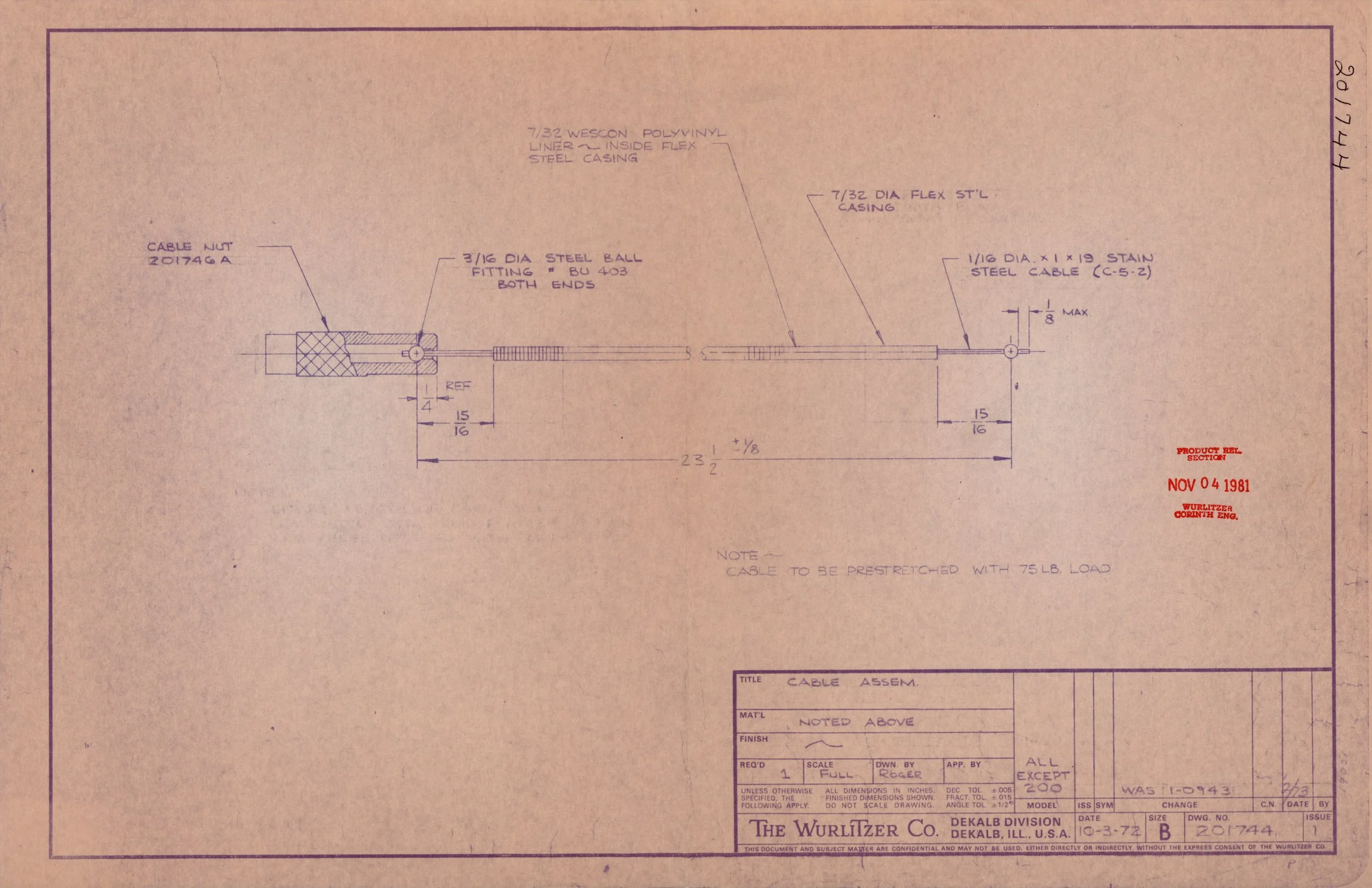

Technical drawing of a cable assembly with specifications, dimensions, and materials, dated October 20, 1981, created by The Wurlitzer Company.
Technical drawing of a cable assembly, including specifications and measurements, created by The Wurlitzer Co. in 1981.

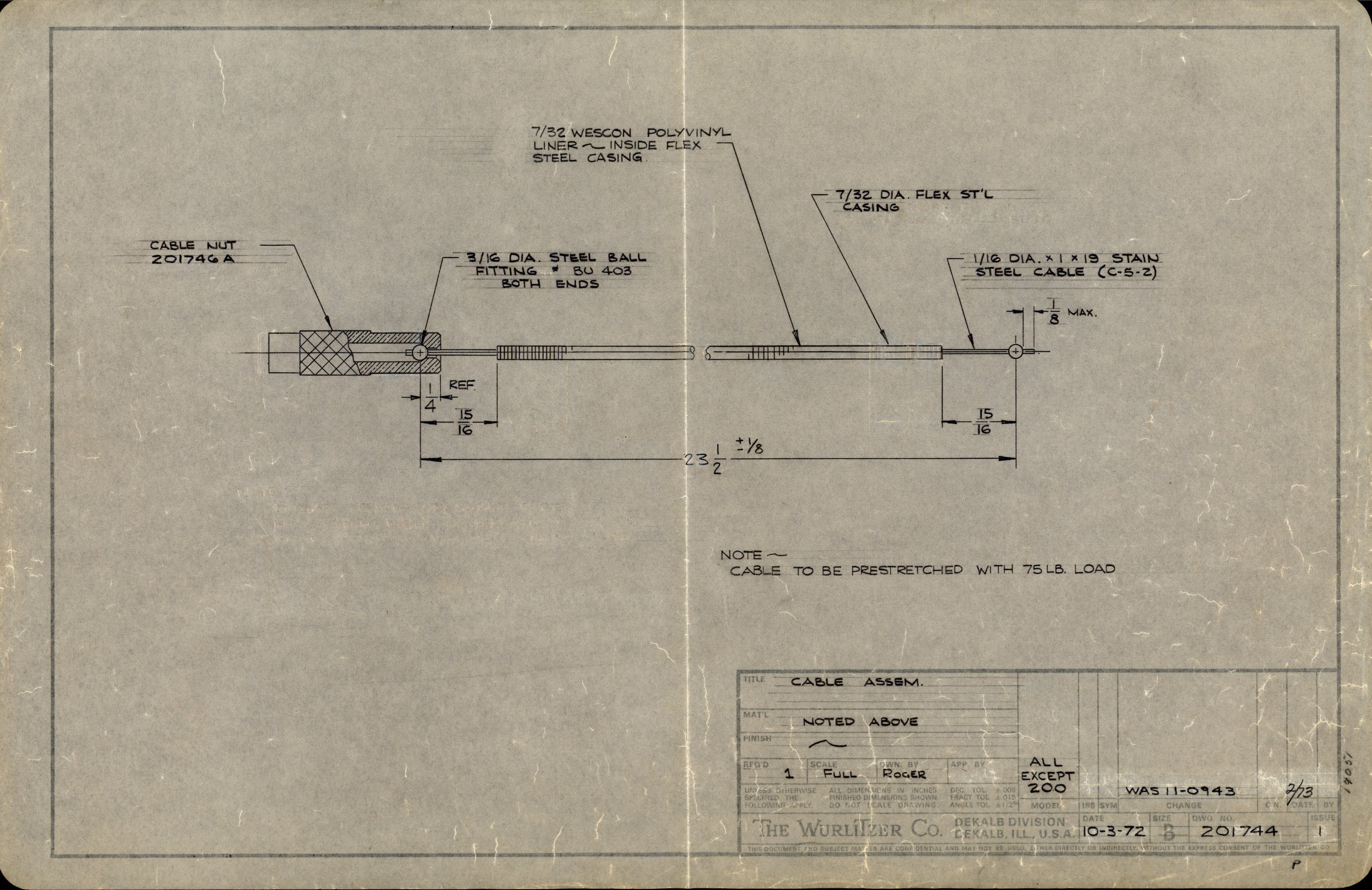

Technical drawing of cable assembly with detailed measurements, components, and specifications.

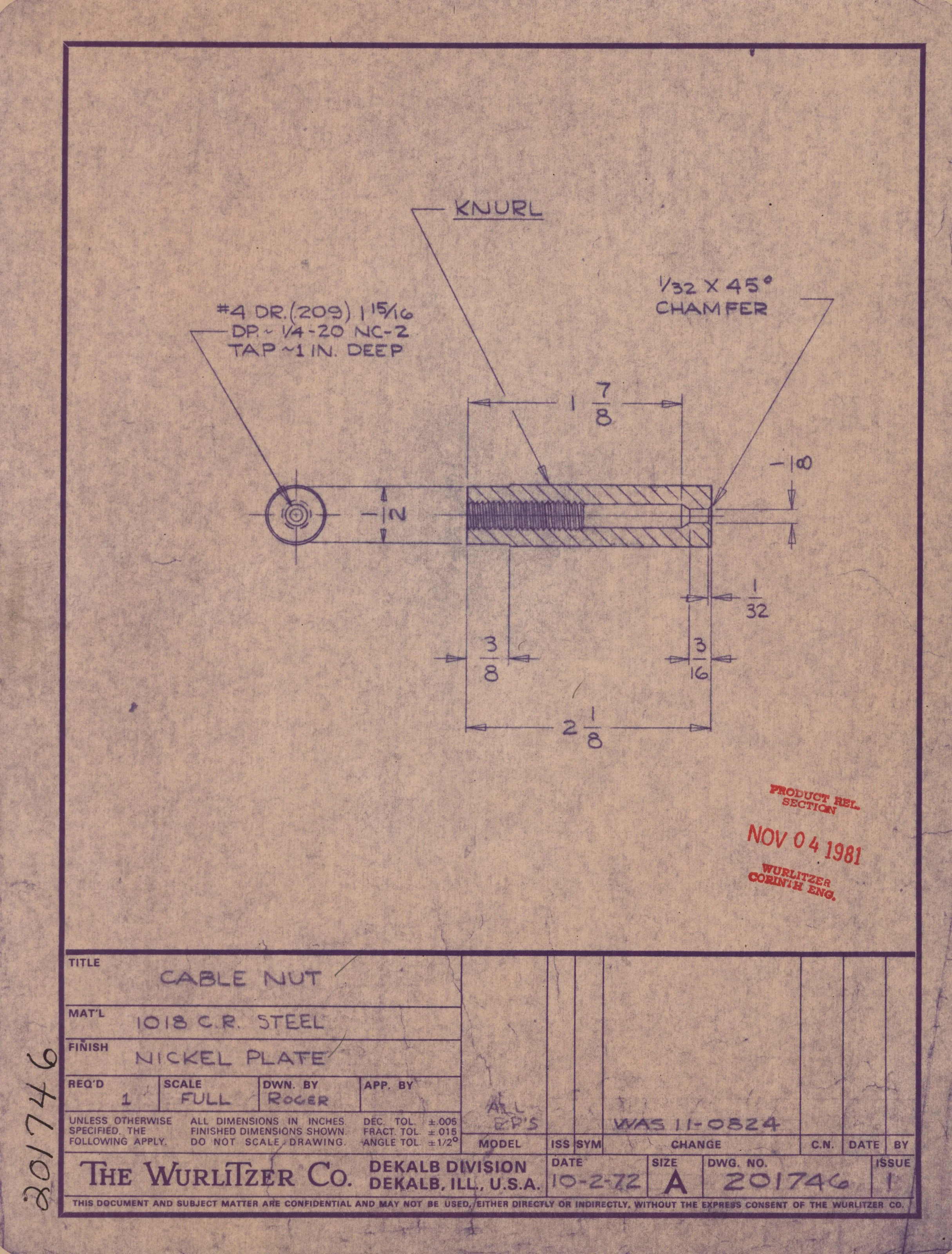

Technical drawing of a cable nut made of steel with nickel plating from Wurlitzer Co., labeled with measurements and specifications, dated October 2, 1972.

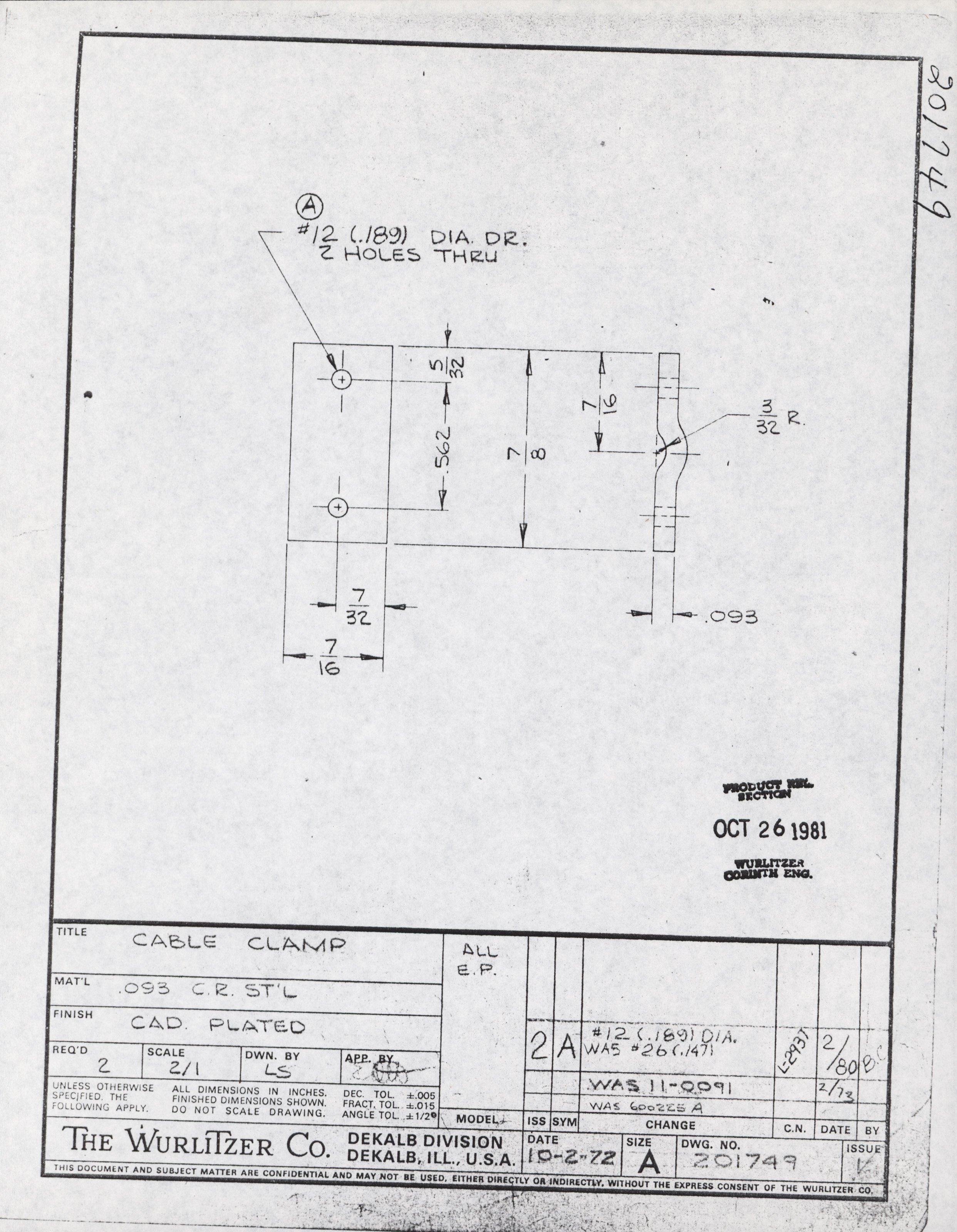

Technical drawing of a cable clamp, showing dimensions and specifications with handwritten notes, including the title "Cable Clamp" and manufacturer "The Wurlitzer Co." from December 1972.

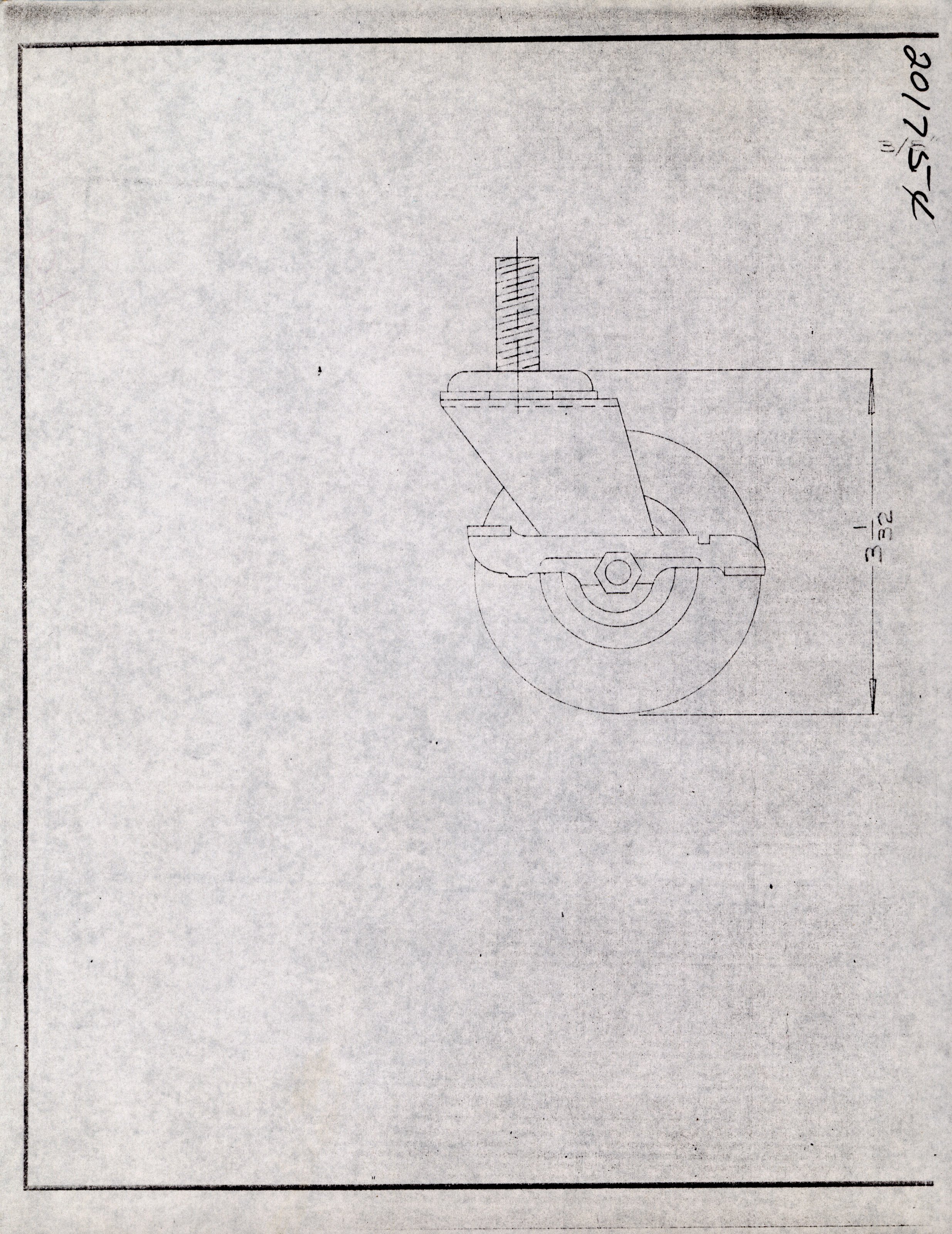

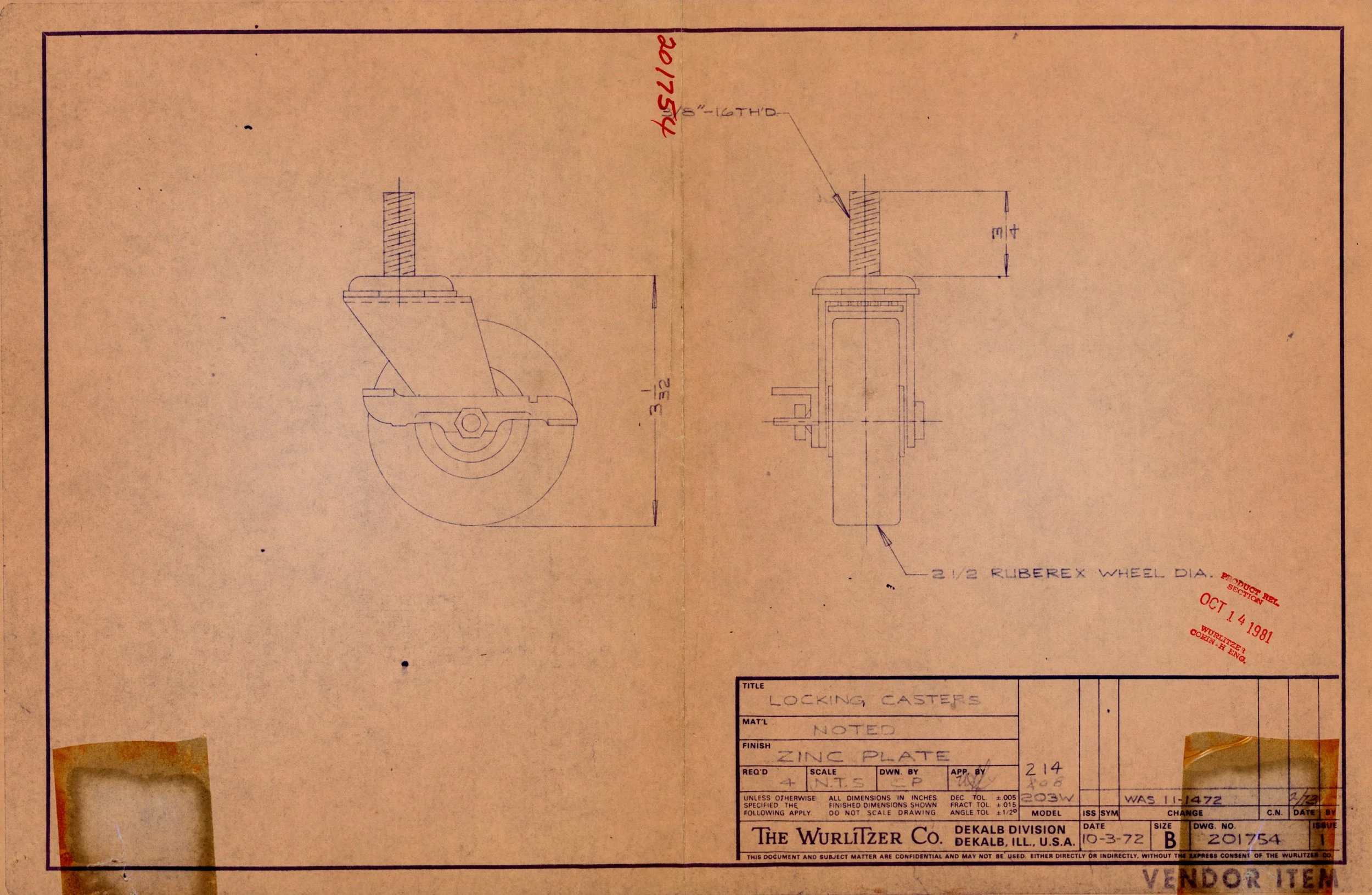

Technical drawing of locking casters with detailed measurements and specifications, created by The Wurlitzer Co. in 1981, showing side and front views.

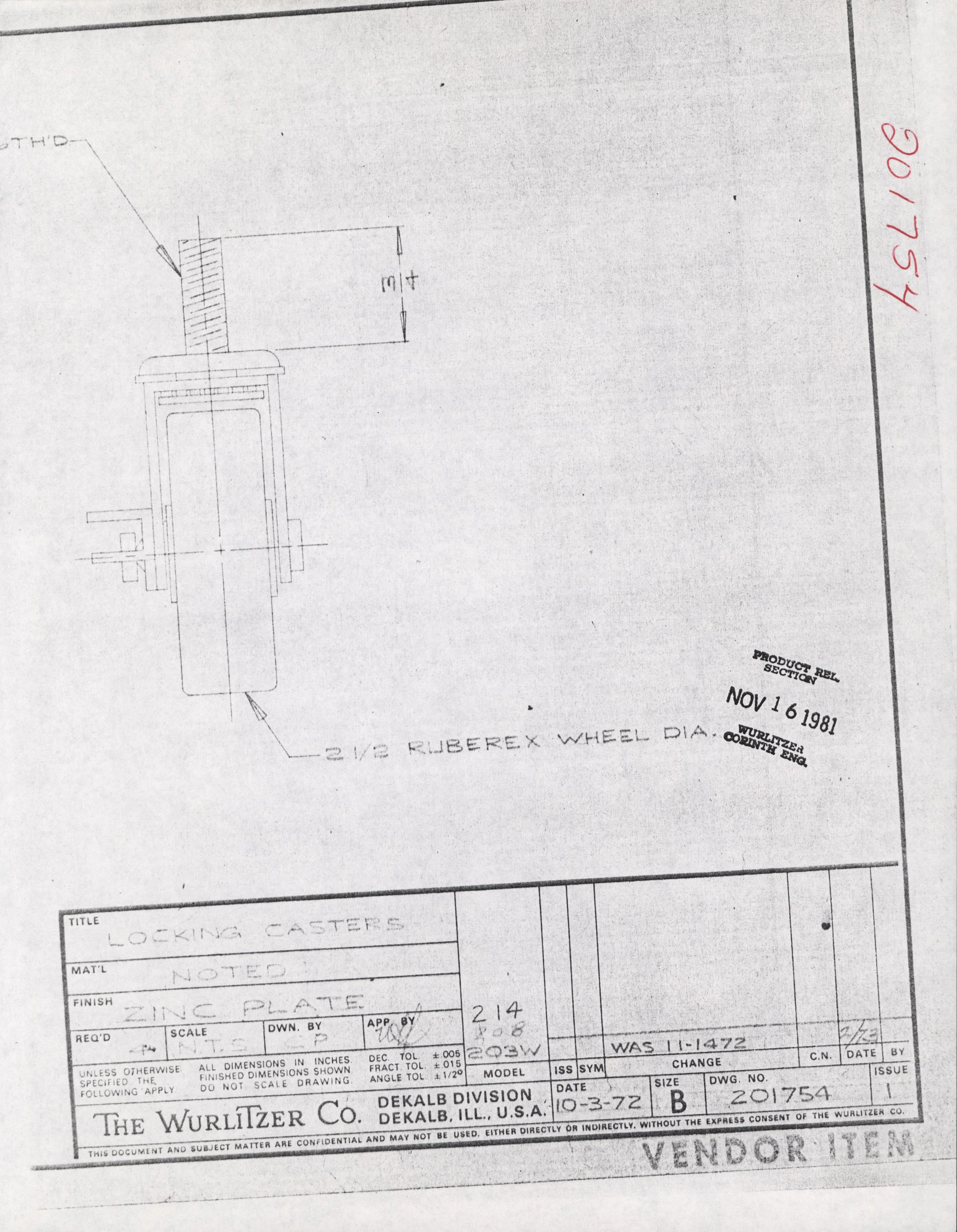

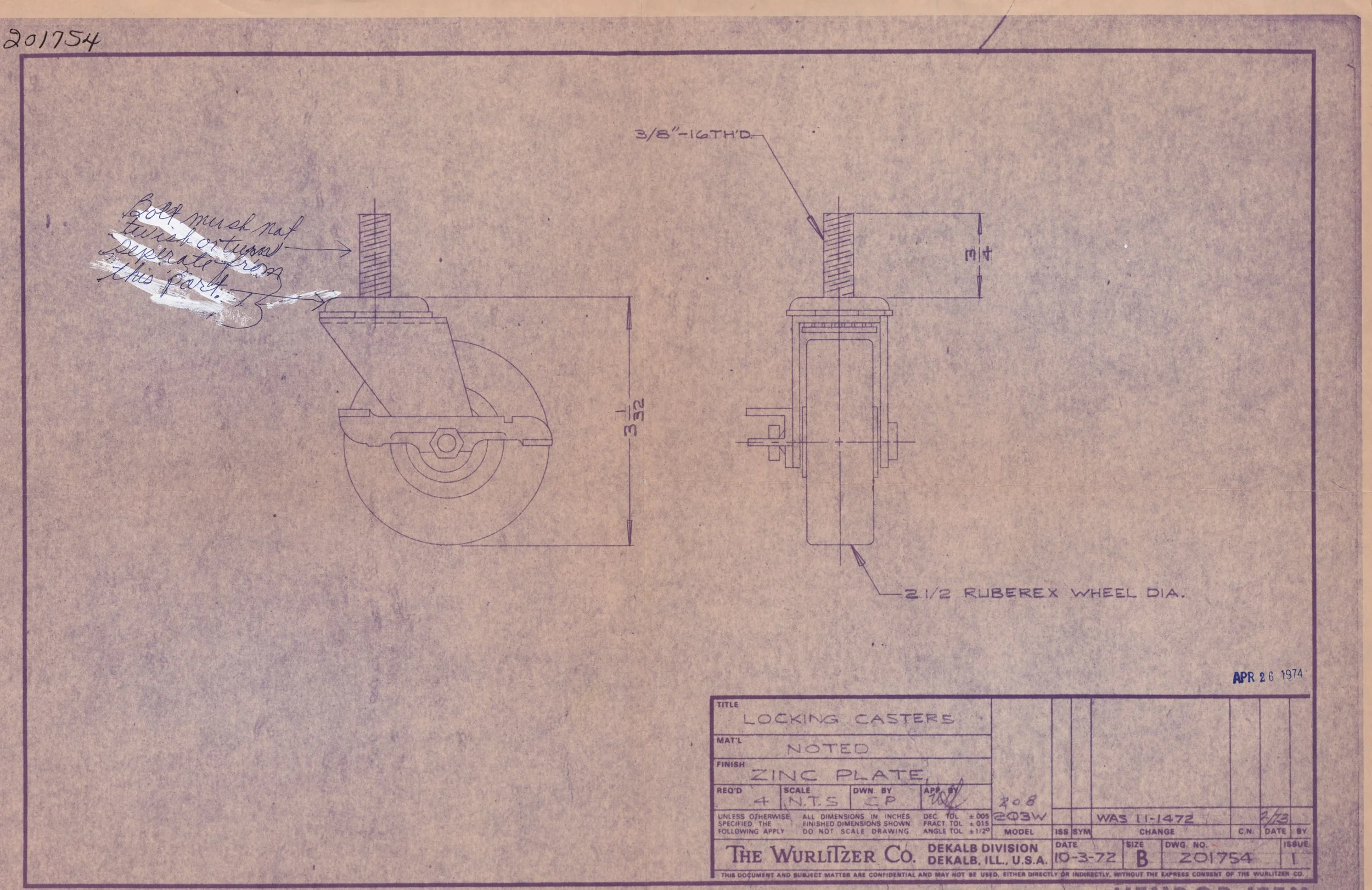

Technical drawing of locking casters with detailed measurements and specifications, dated April 26, 1974.

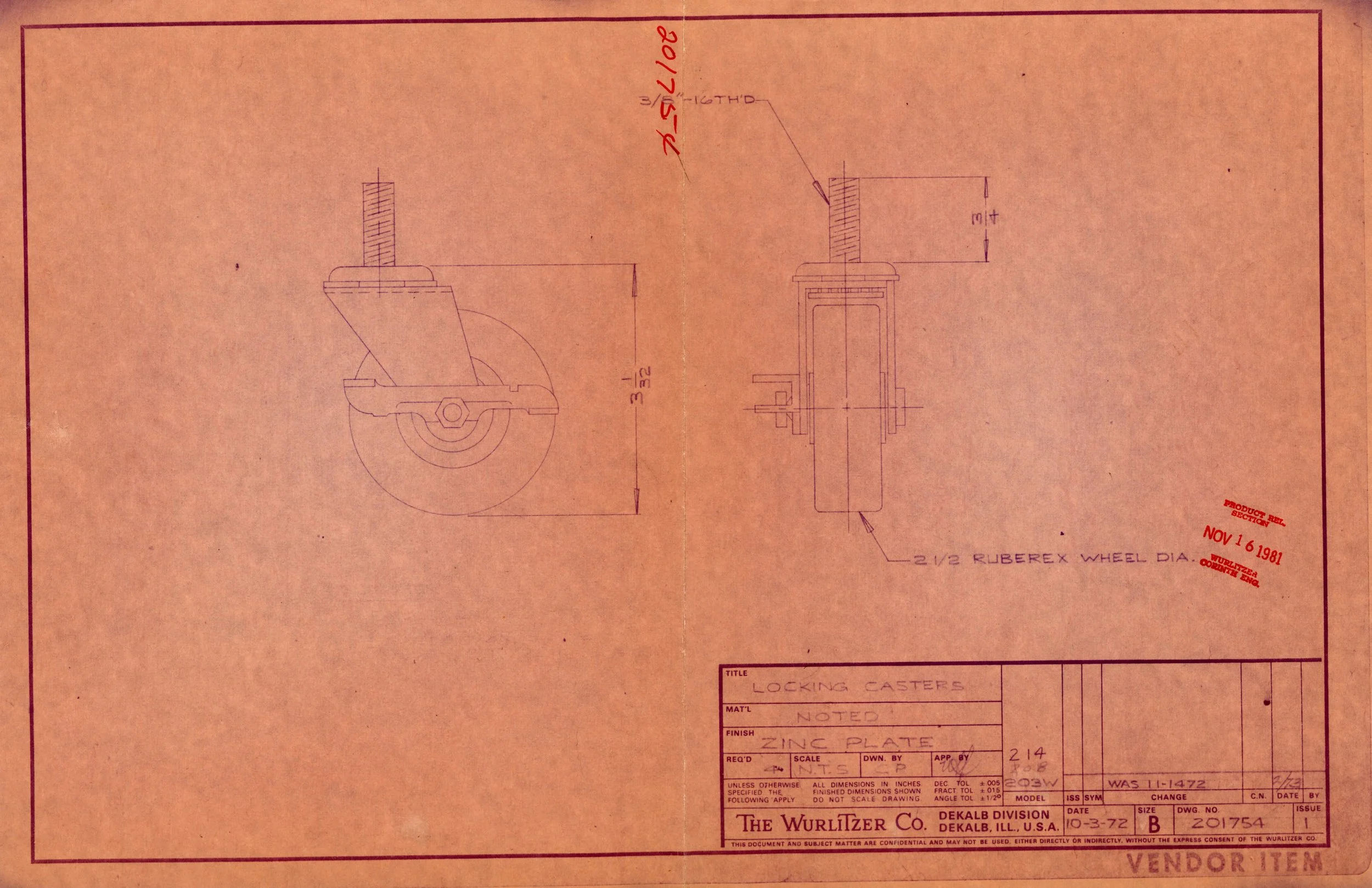

Blueprint for locking casters, with technical details and measurements, created by The Wurlitzer Co., dated October 3, 1972.
200
200A
206

Electronic components & adhesives

The drawings below include electronic components such as resistors, potentiometers, and cable assemblies.

  • 11-0777 (Polarized electrolytic capacitor for the 200 series)

  • 201757 (Contact adhesive for all electronic pianos)

  • 203717 (Variable resistor for the 200A, 206A, 207VA, 214A and 214VA)

  • 204424 (AC power distribution assembly for the 214A export model)

  • 825371 (Volume control for 200-series keyboards)

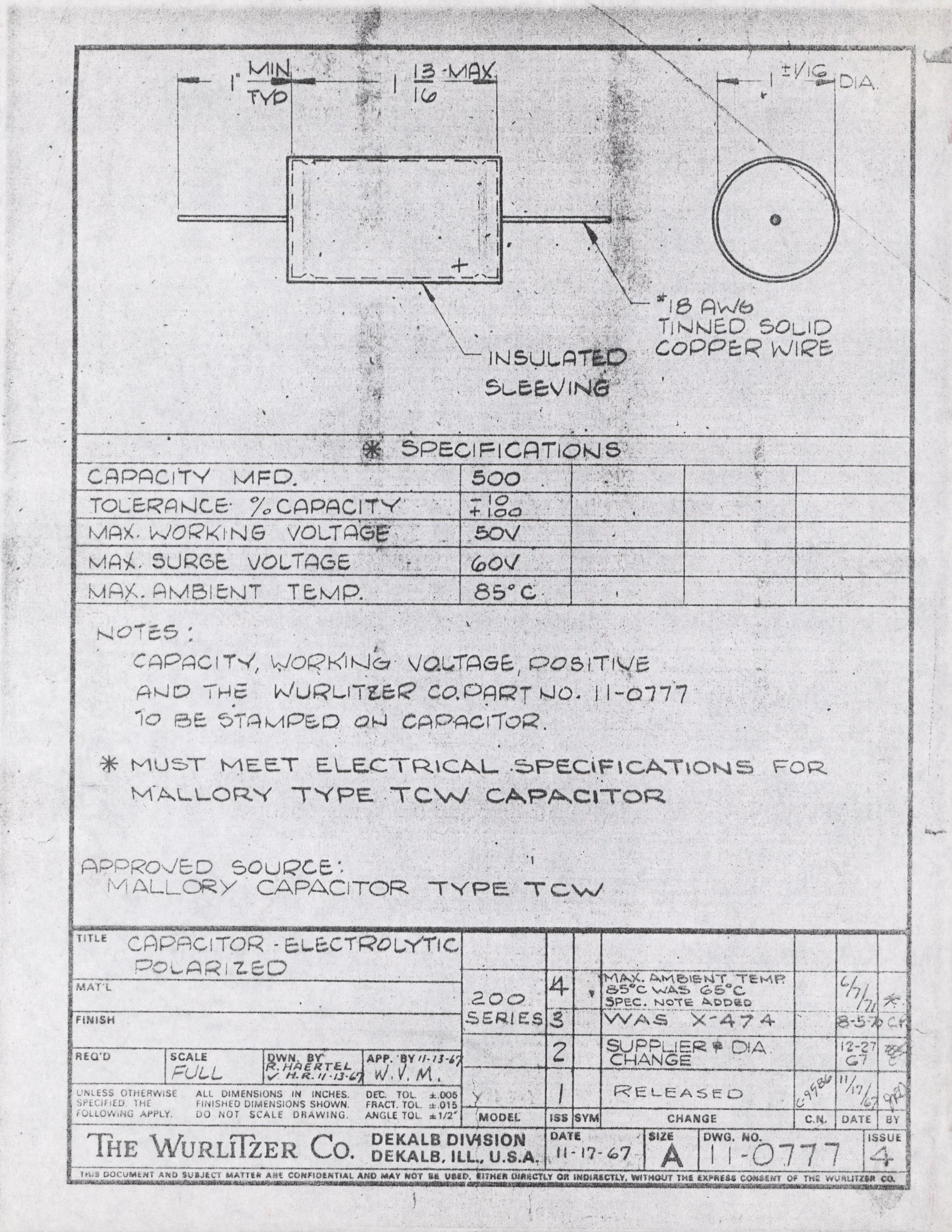

Technical drawing of capacitor with labeled dimensions and specifications, including capacity, tolerance, working voltage, surge voltage, ambient temperature, and construction details.

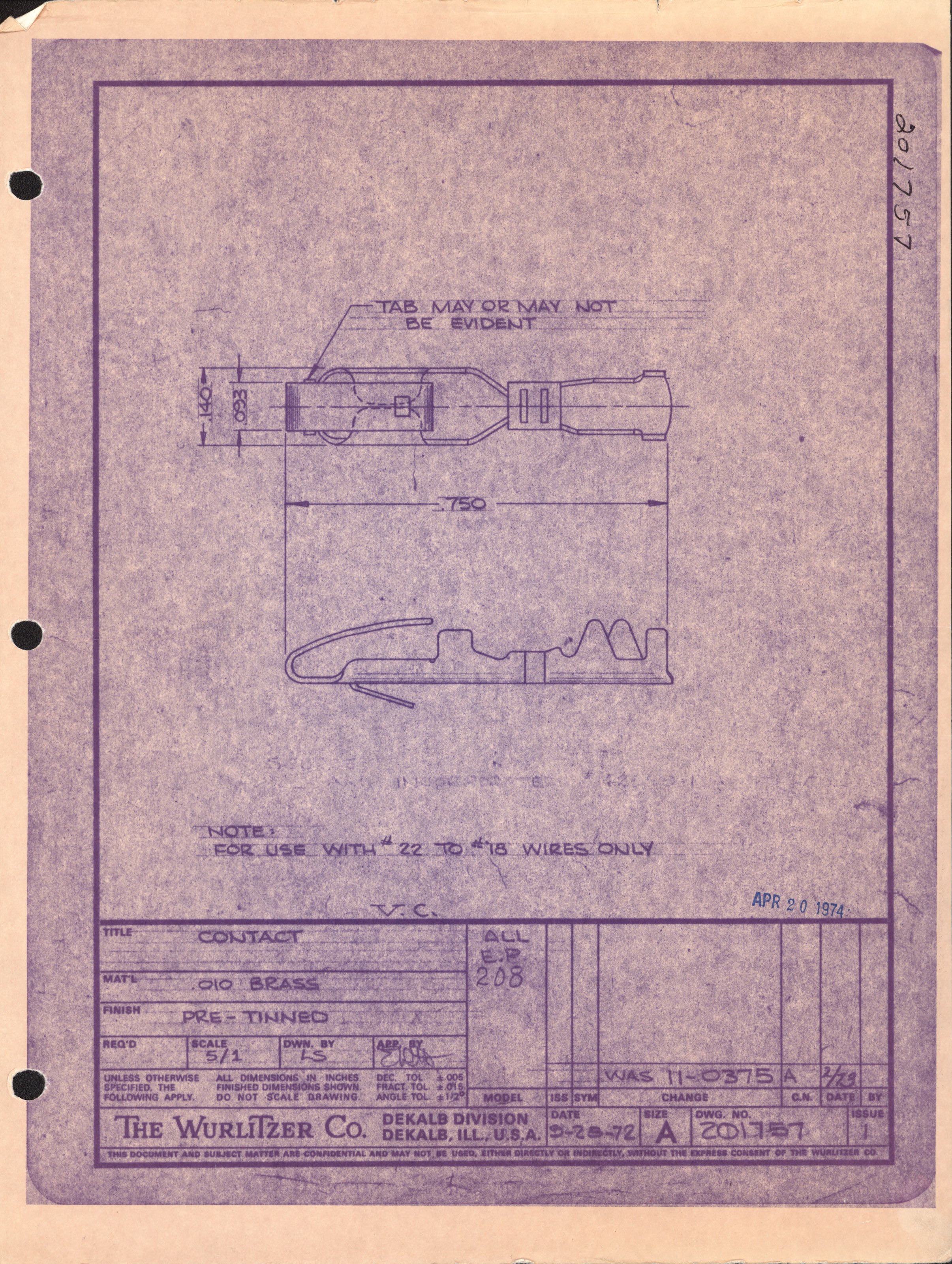

Technical drawing of a metal part with dimensions and notes, printed on purple blueprint paper from 1974.

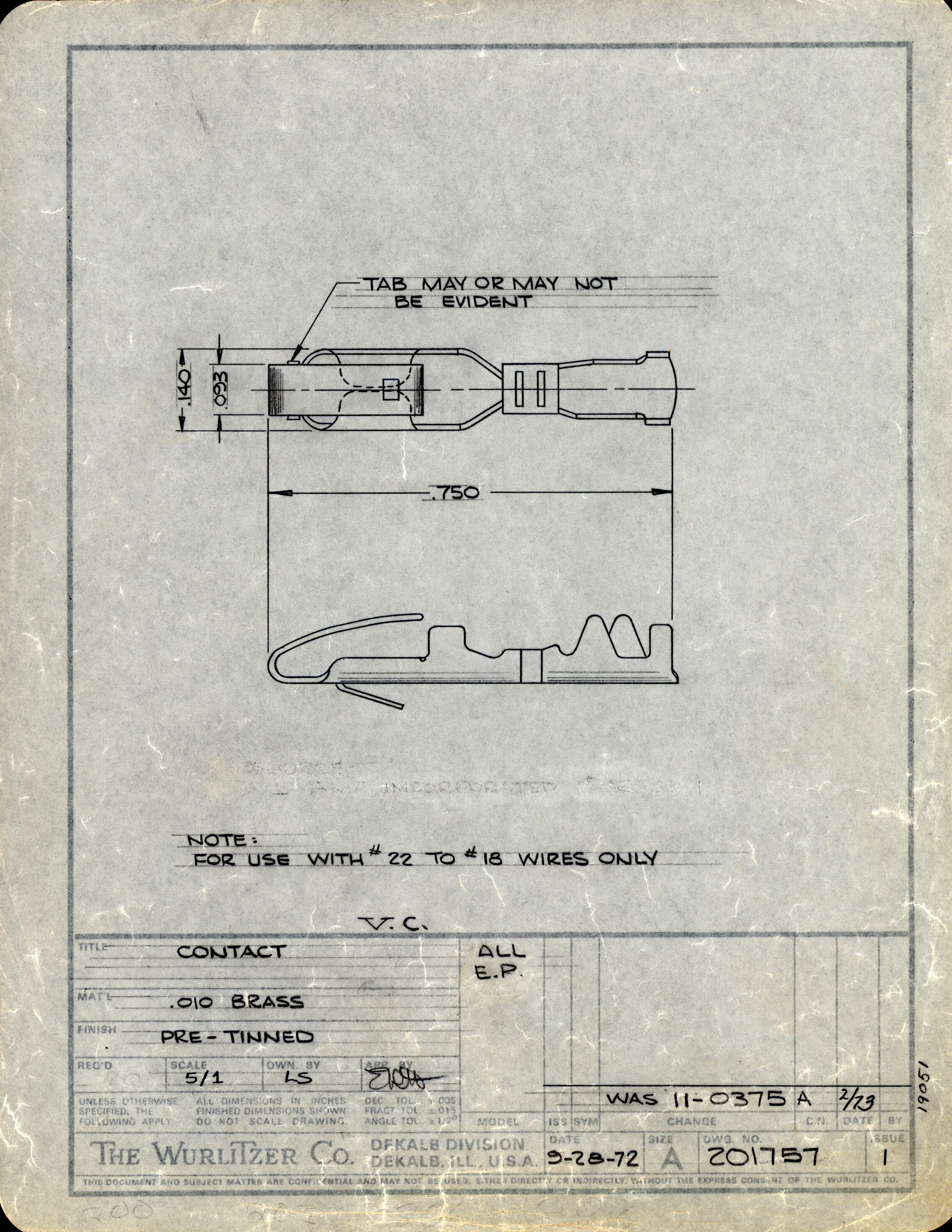

Technical drawing of a mechanical part, with measurements and notes, titled 'The Wurlitzer Co. DeKalb Division, DeKalb, Ill. U.S.A.', with a control section, material, finish, and scale details.

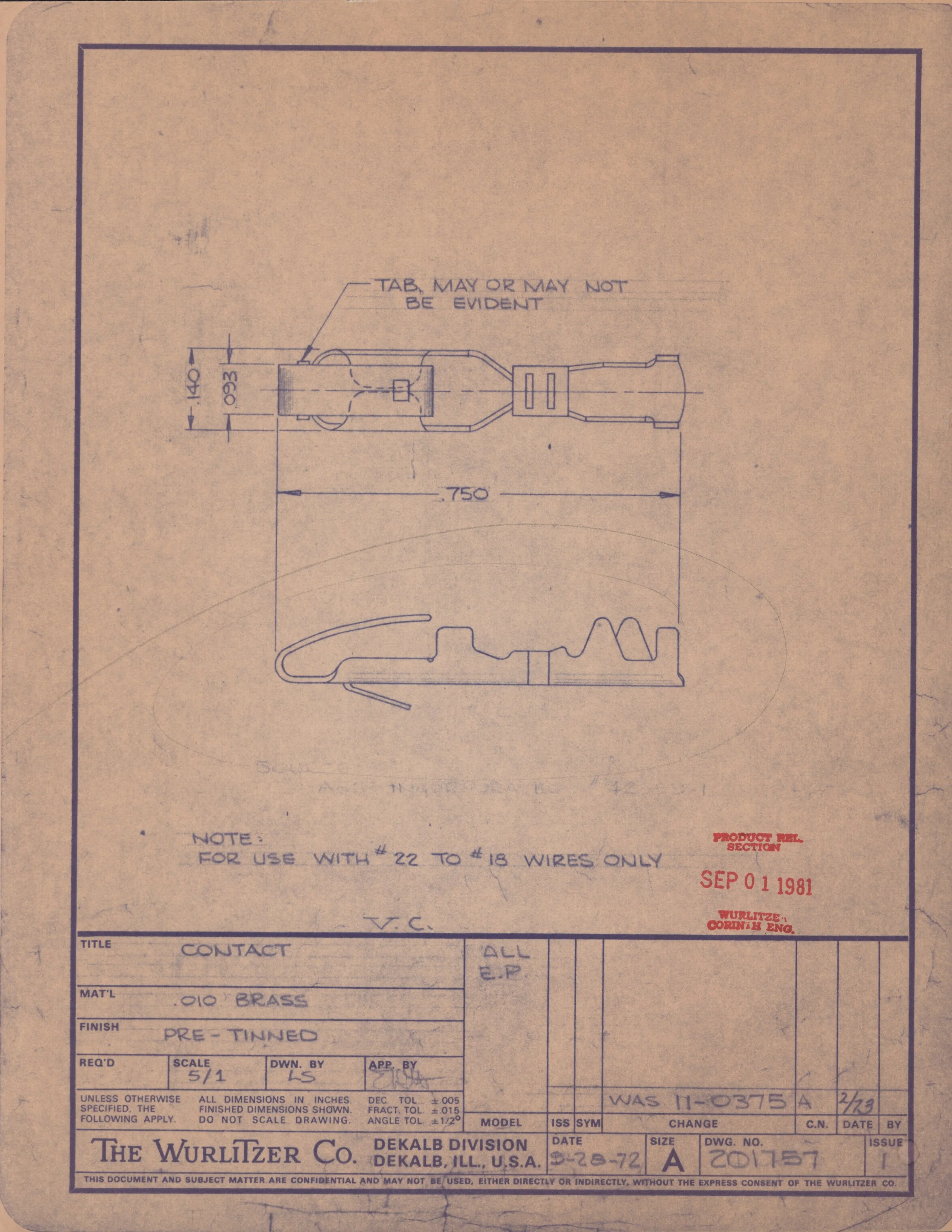

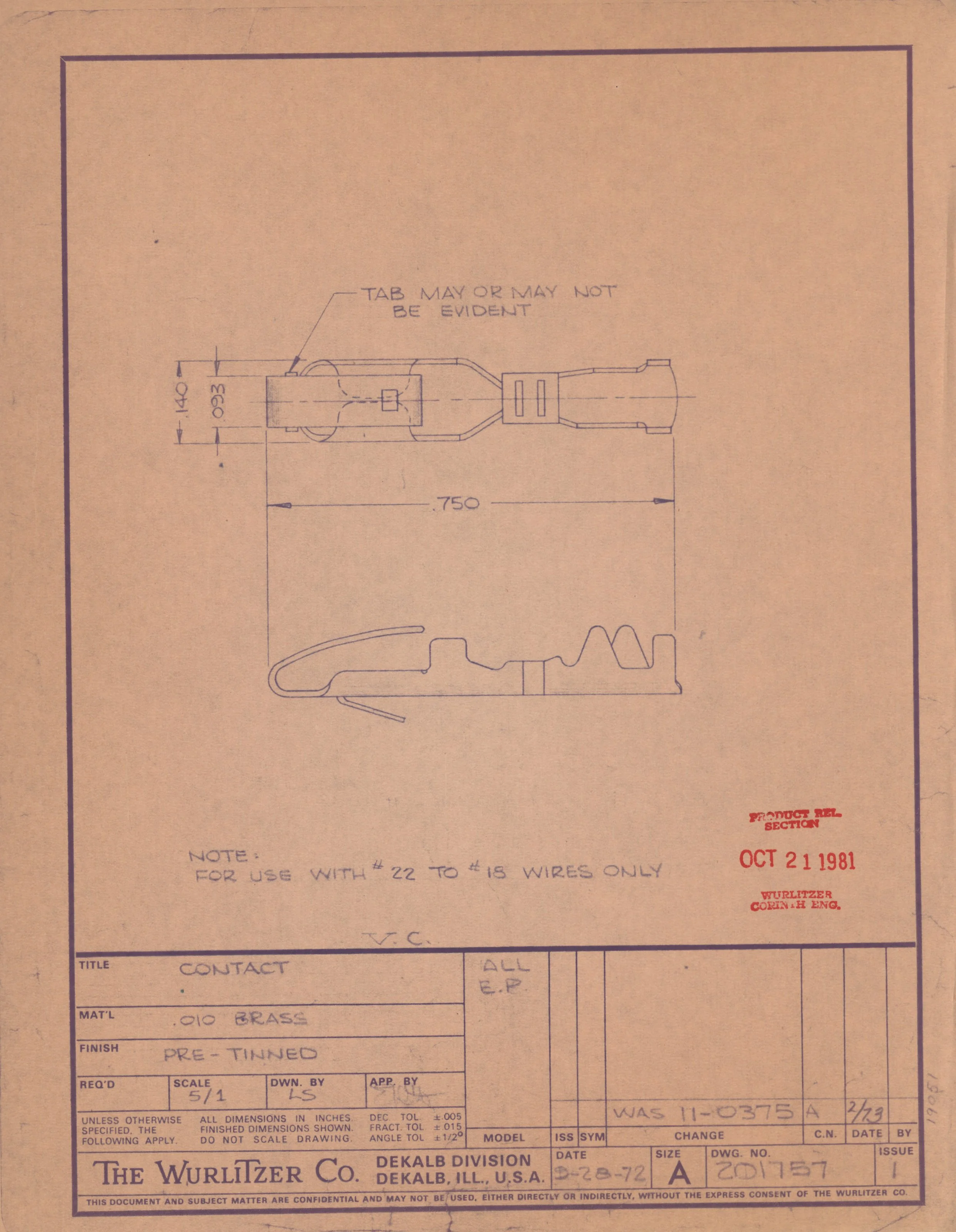

Technical blueprint drawing of a mechanical part, showing dimensions and a note stating 'For use with #22 to #18 wires only'. The document is titled 'The Wurlitzer Co., DeKalb Division, DeKalb, Illinois, U.S.A.' and is dated September 1, 1981.

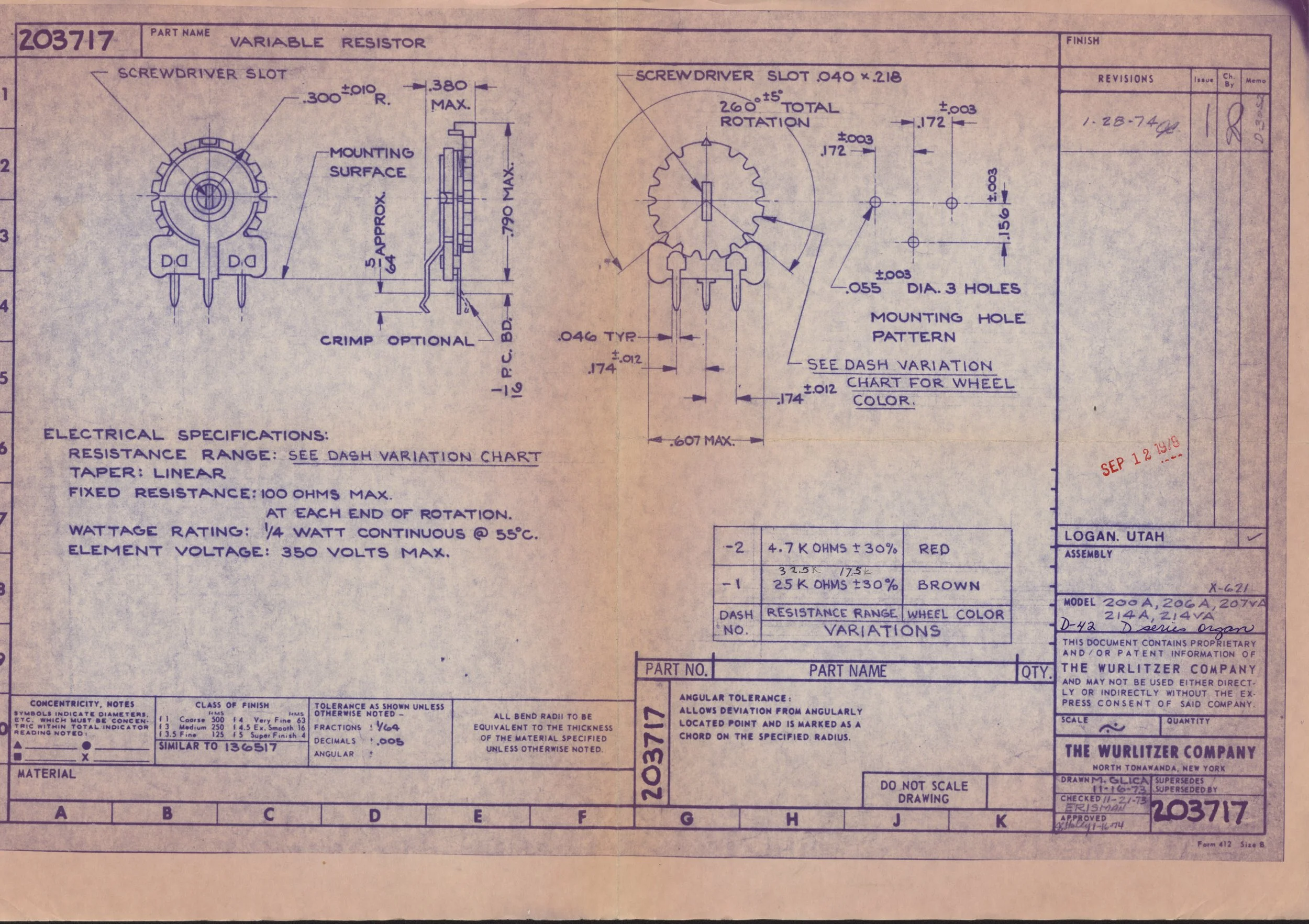

Blueprint for a variable resistor part with detailed dimensions and specifications, including views, mounting surface, and electrical resistances. It includes handwritten notes with revision dates and manufacturing details.

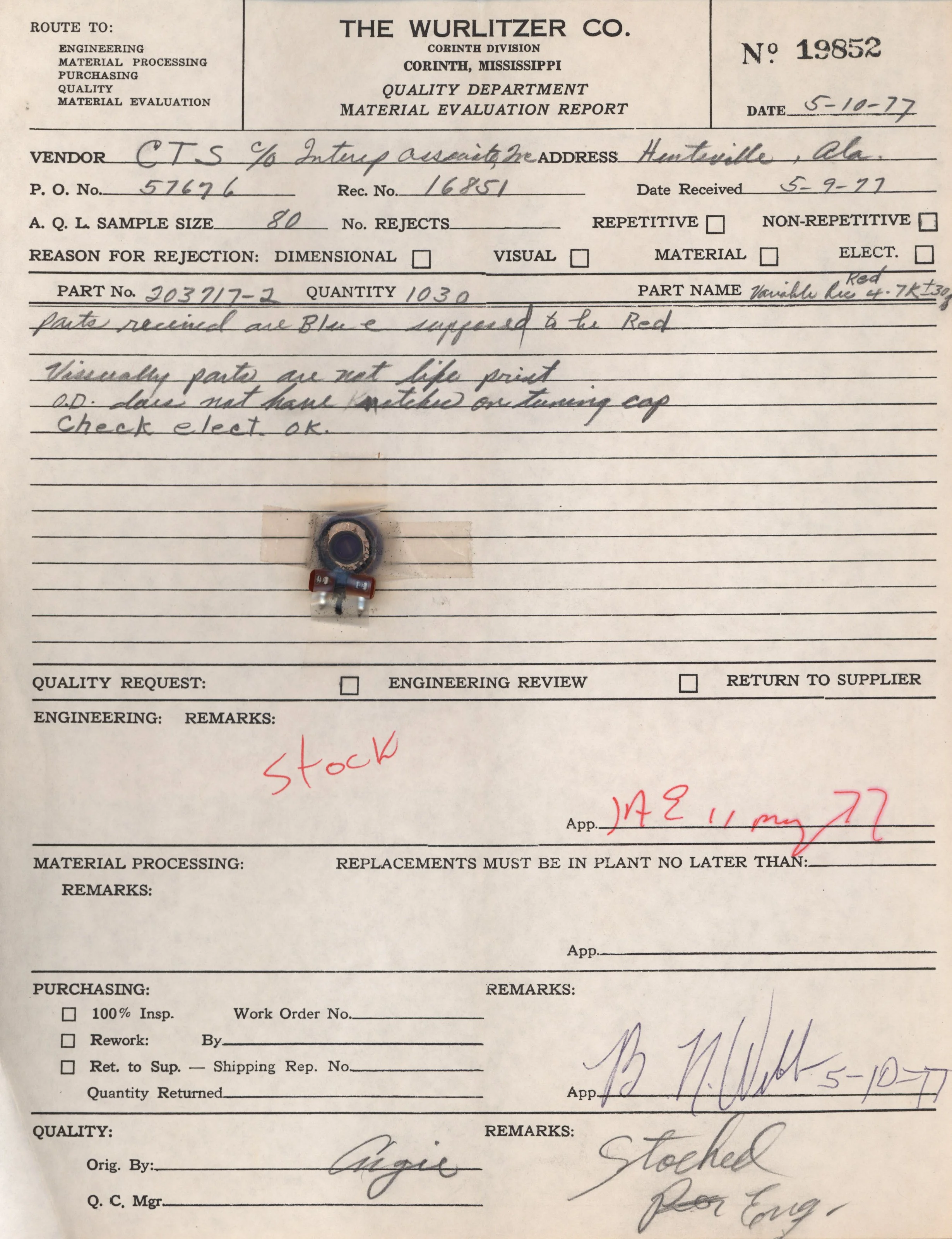

A detailed material evaluation report form from The Wurlitzer Co., Corinth Division, dated May 10, 1977. It includes handwritten notes, signatures, and a small electronic component below the paper, with some parts of the sheet torn or damaged.

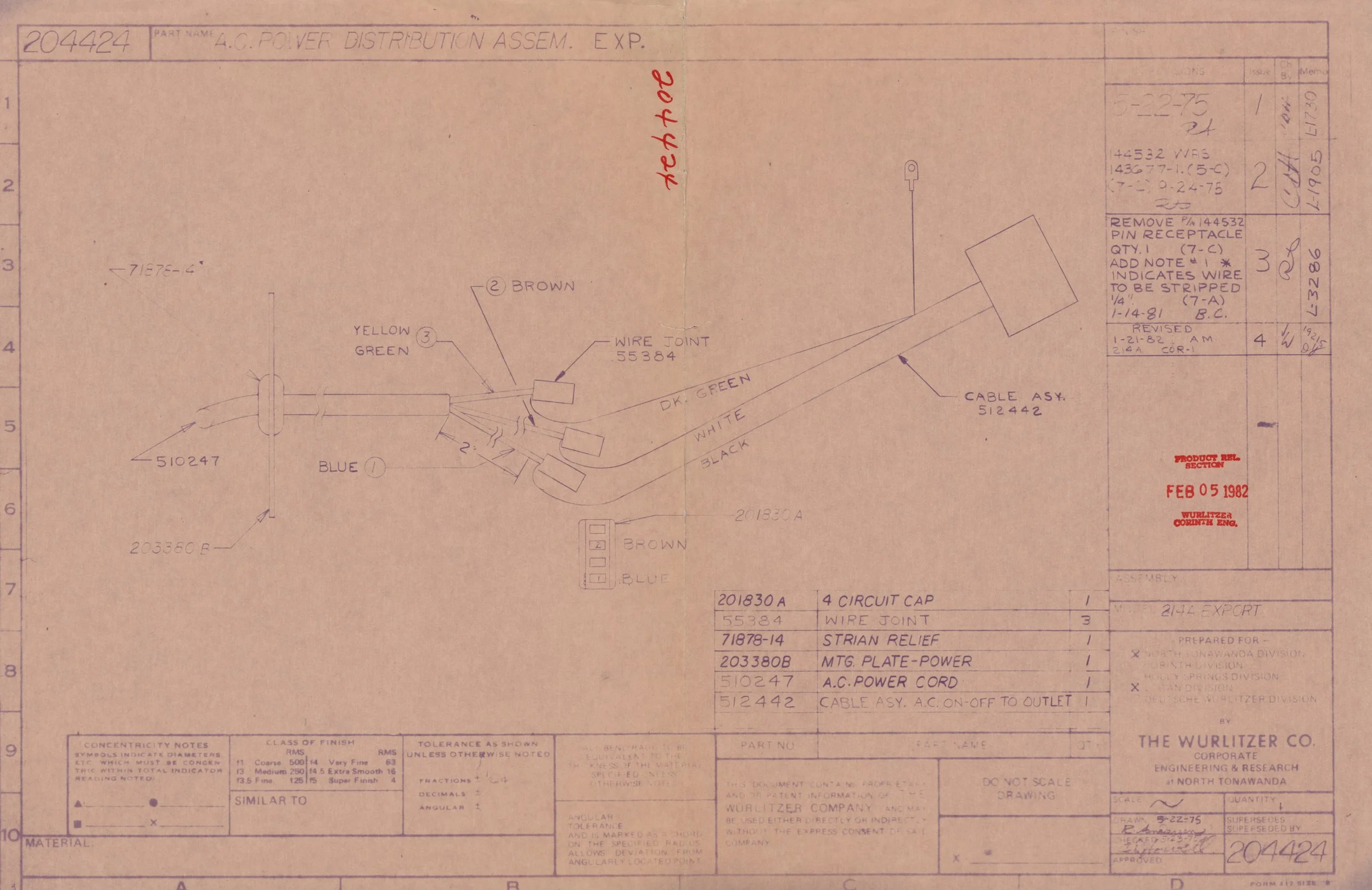

Technical engineering drawing of electrical wiring and components for an AC power distribution assembly.

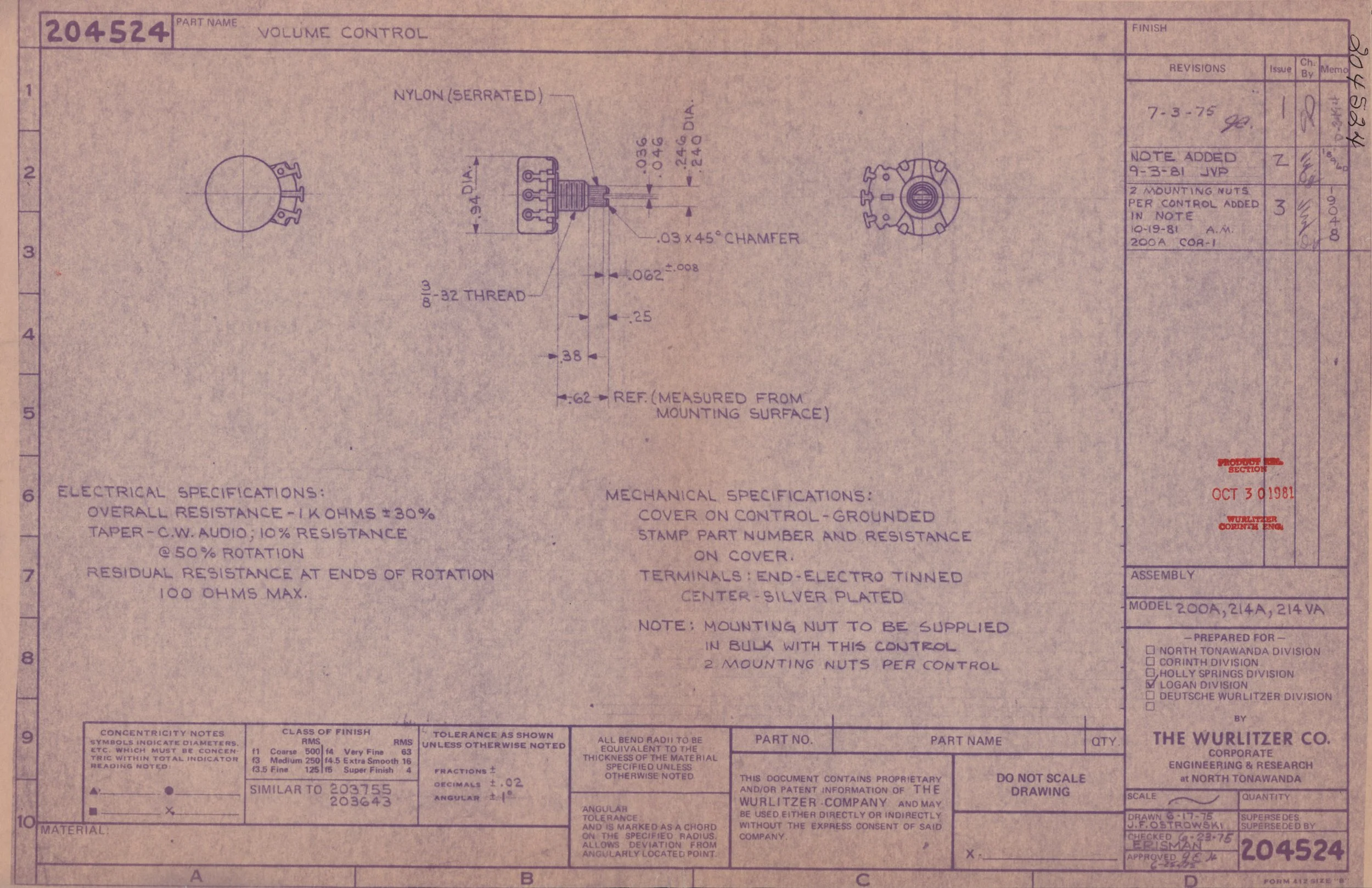

Technical drawing of a volume control with detailed measurements and specifications, including component dimensions, thread size, and mounting instructions.

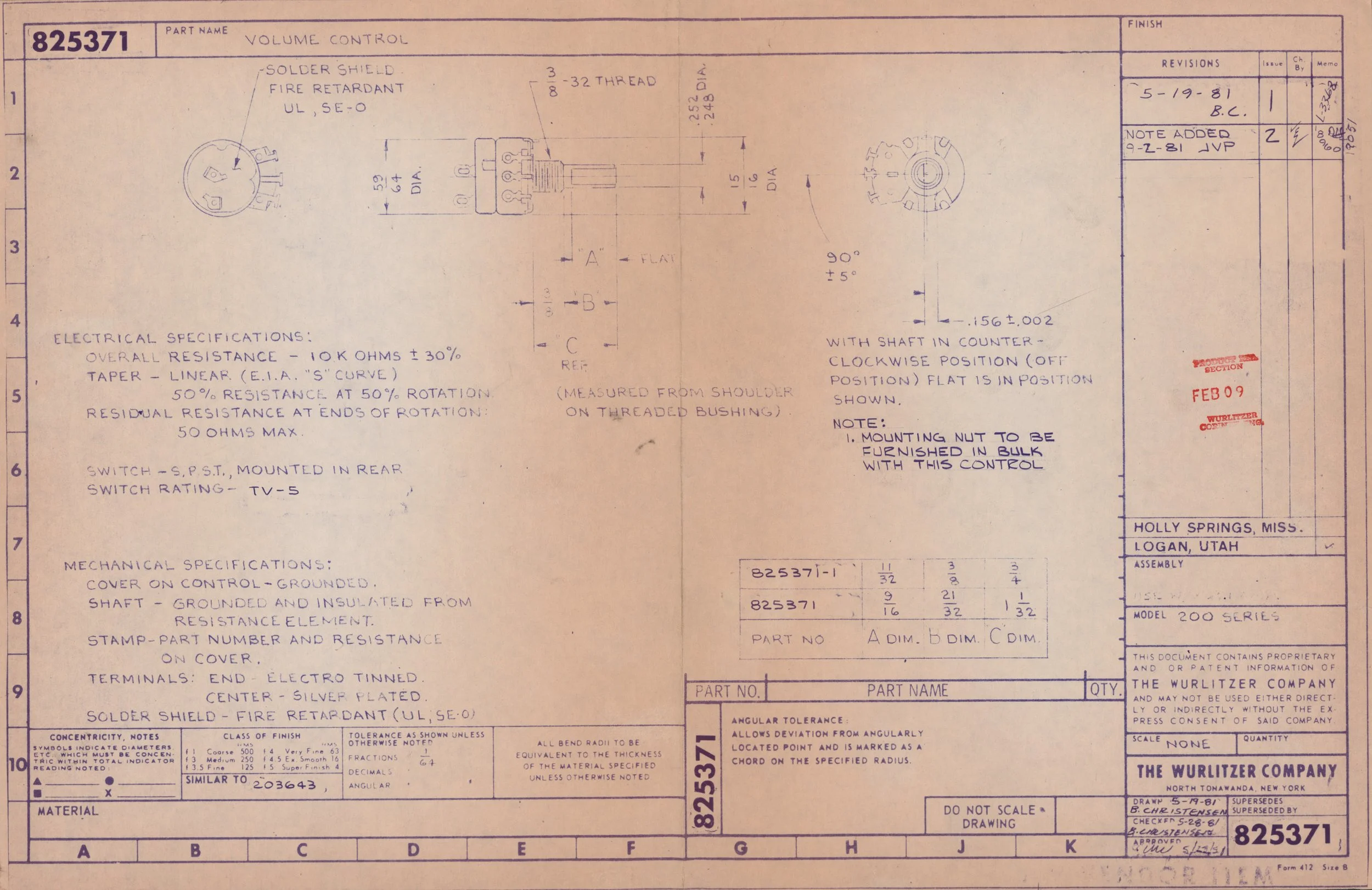

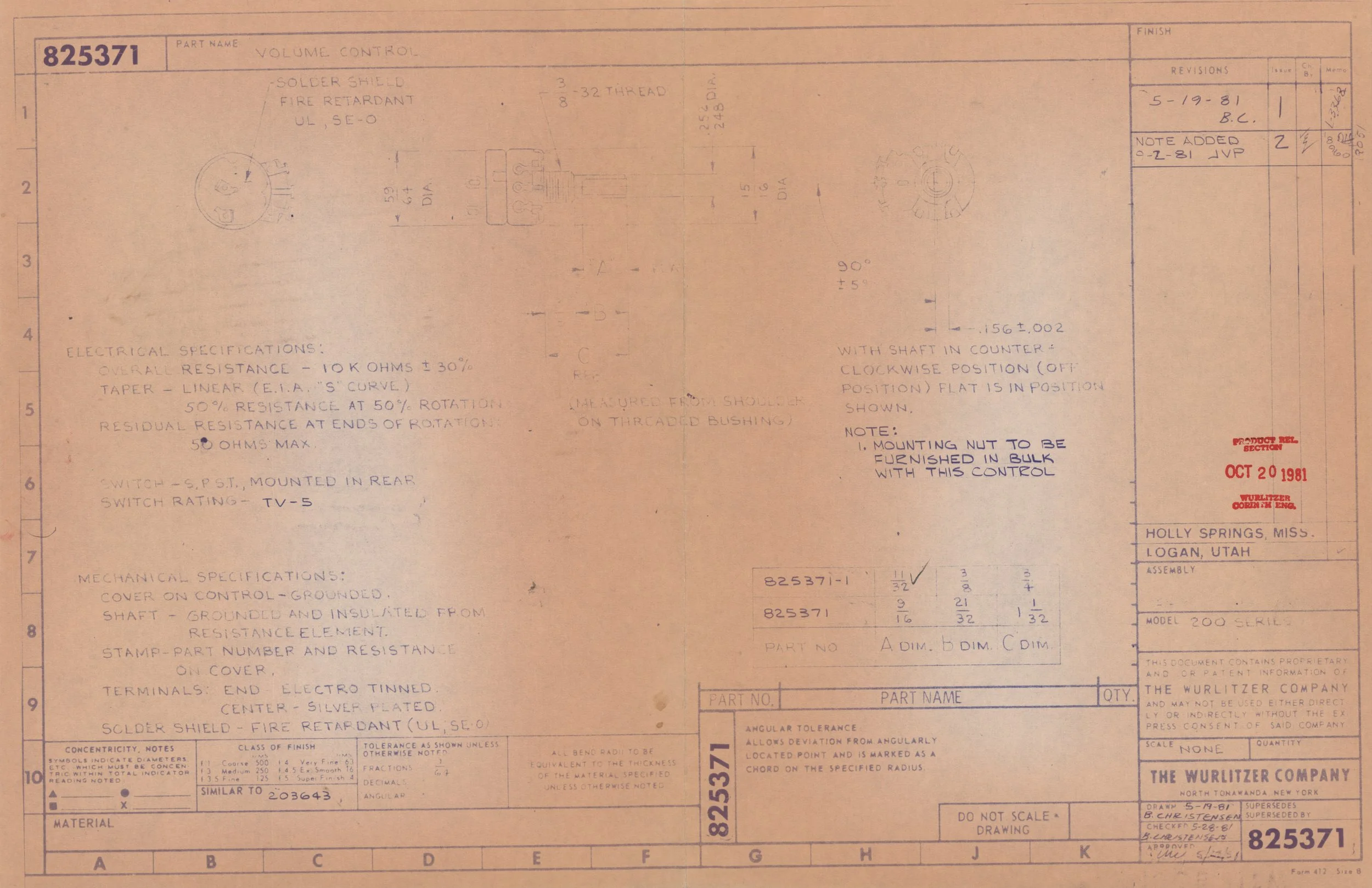

Technical engineering drawing labeled as part number 825371 for a volume control. It includes detailed measurements, specifications, and notes, with sections for material, mechanical and electrical specifications, and assembly instructions.
Technical engineering blueprint with handwritten notes and specifications for a volume control part, including details about electrical and mechanical specifications, materials, and dimensions, stamped and signed with dates from 1981.

Mounting & fasteners

The drawings below include mounting components and fasteners for 200-series electronic pianos.

  • 201706 (Damper lift rod assembly, complete, for the 203W, 206, 207, and 214)

  • 201748 (Cable mounting bracket for the 203W, 206, 207 and 203W)

  • 201751 (Screw eyes for the 203W, 206, 207, 214)

203W
206
207
214

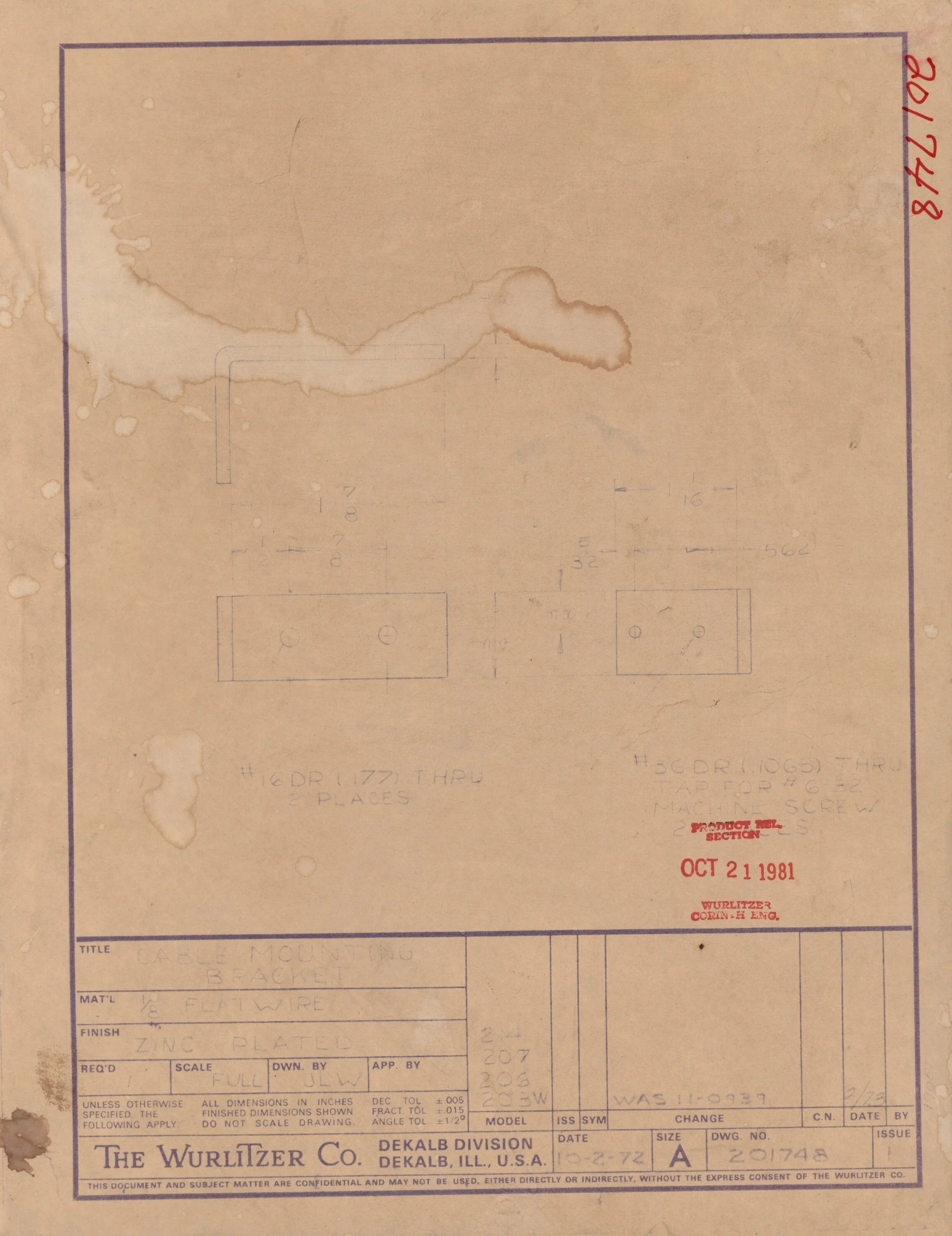

A technical blueprint with faded and stained paper shows outline and measurements for a cable mounting bracket. Handwritten notes include model and material details, and there is a red stamp indicating production section and date of October 21, 1981.

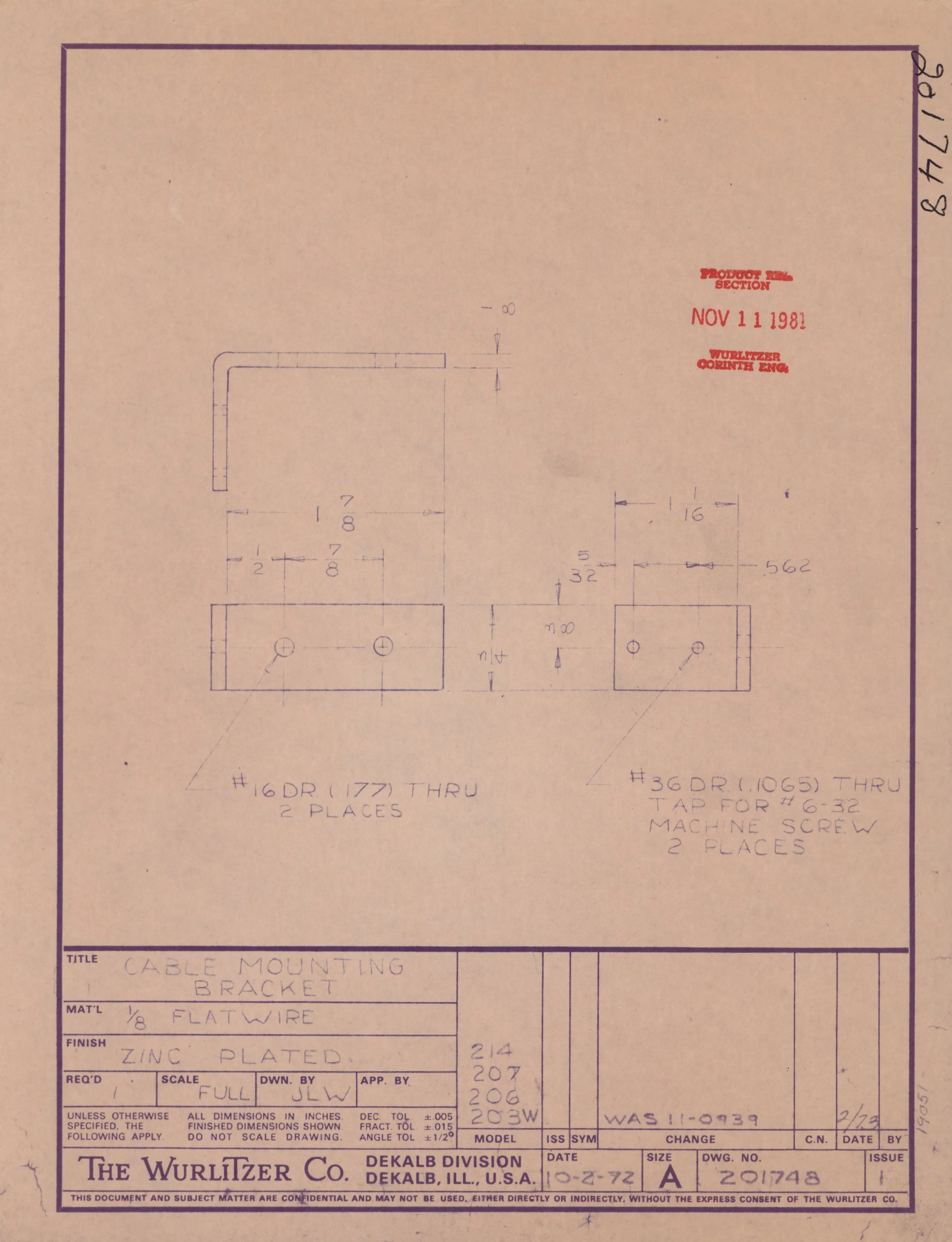

Technical blueprint for cable mounting bracket, dated November 11, 1981, from The Wurlitzer Co., detailing dimensions and specifications for parts and assembly.

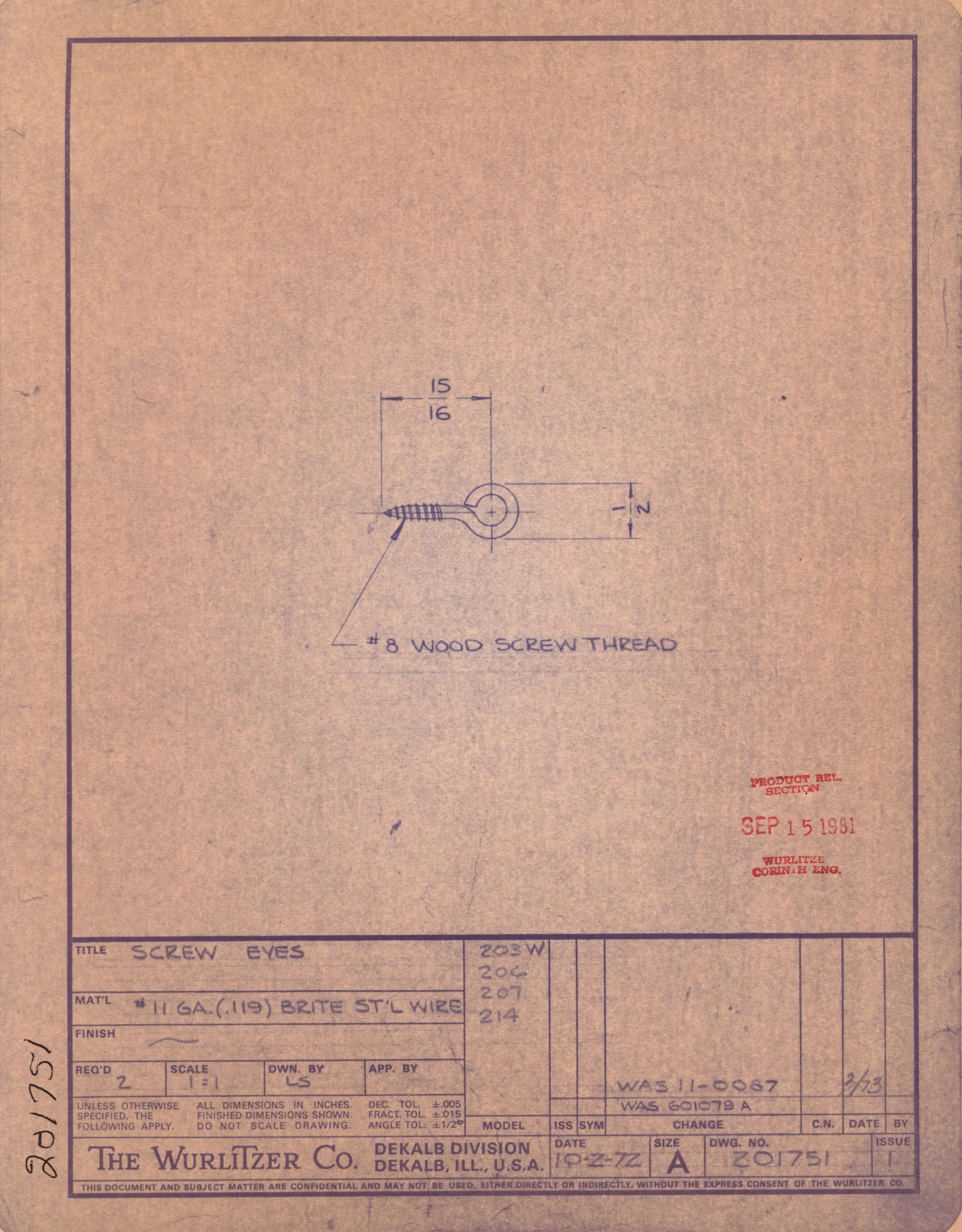

Blueprint drawing of a screw eye, including dimensions, material specifications, and approval signatures from The Wurlitzer Company, dated September 15, 1981.

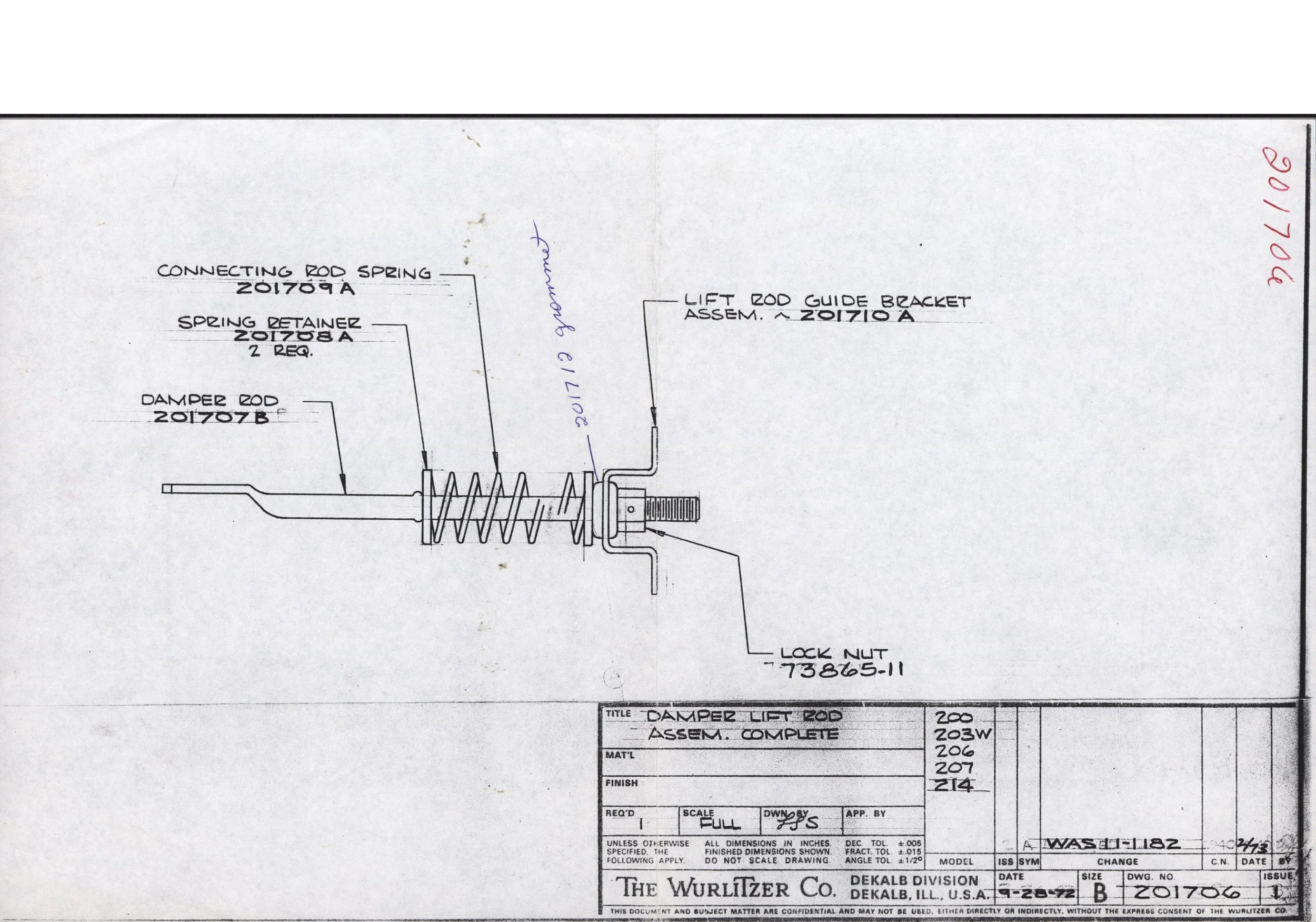

Technical schematic drawing of a damper lift rod assembly with labels and part numbers.

Headsets

The drawings below are for the headsets that came with student and teacher model Wurlitzers.

  • 204648 (Headset, teacher, model 130, for the Wurlitzer 205V)

  • 204649 (Headset, student, model 131, for the Wurlitzer 206A)

203W
206
207
214
Blueprint drawing of a headset model, showing detailed views and specifications, including parts like logo, cushions, cords, and microphone connectors.

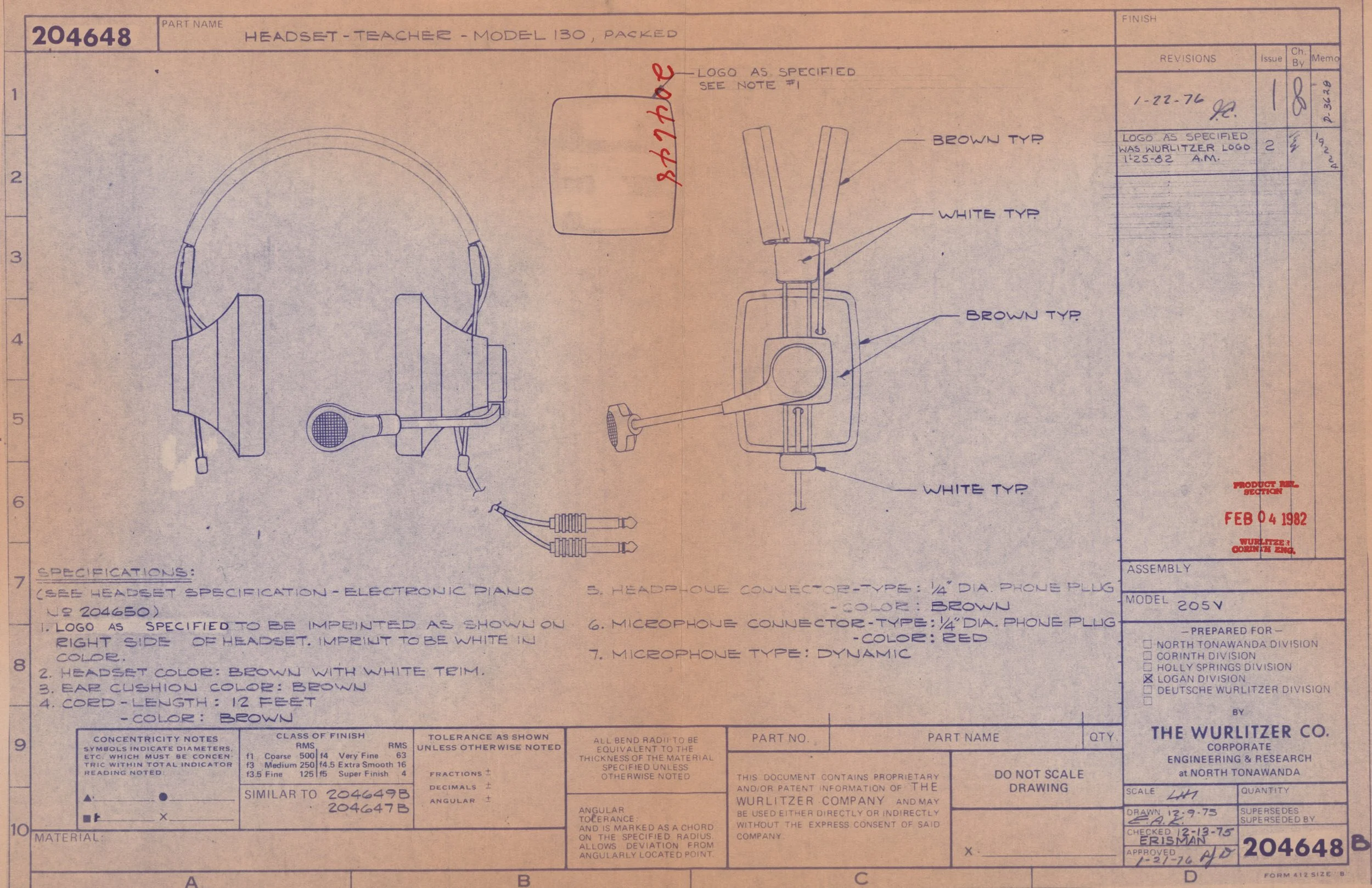

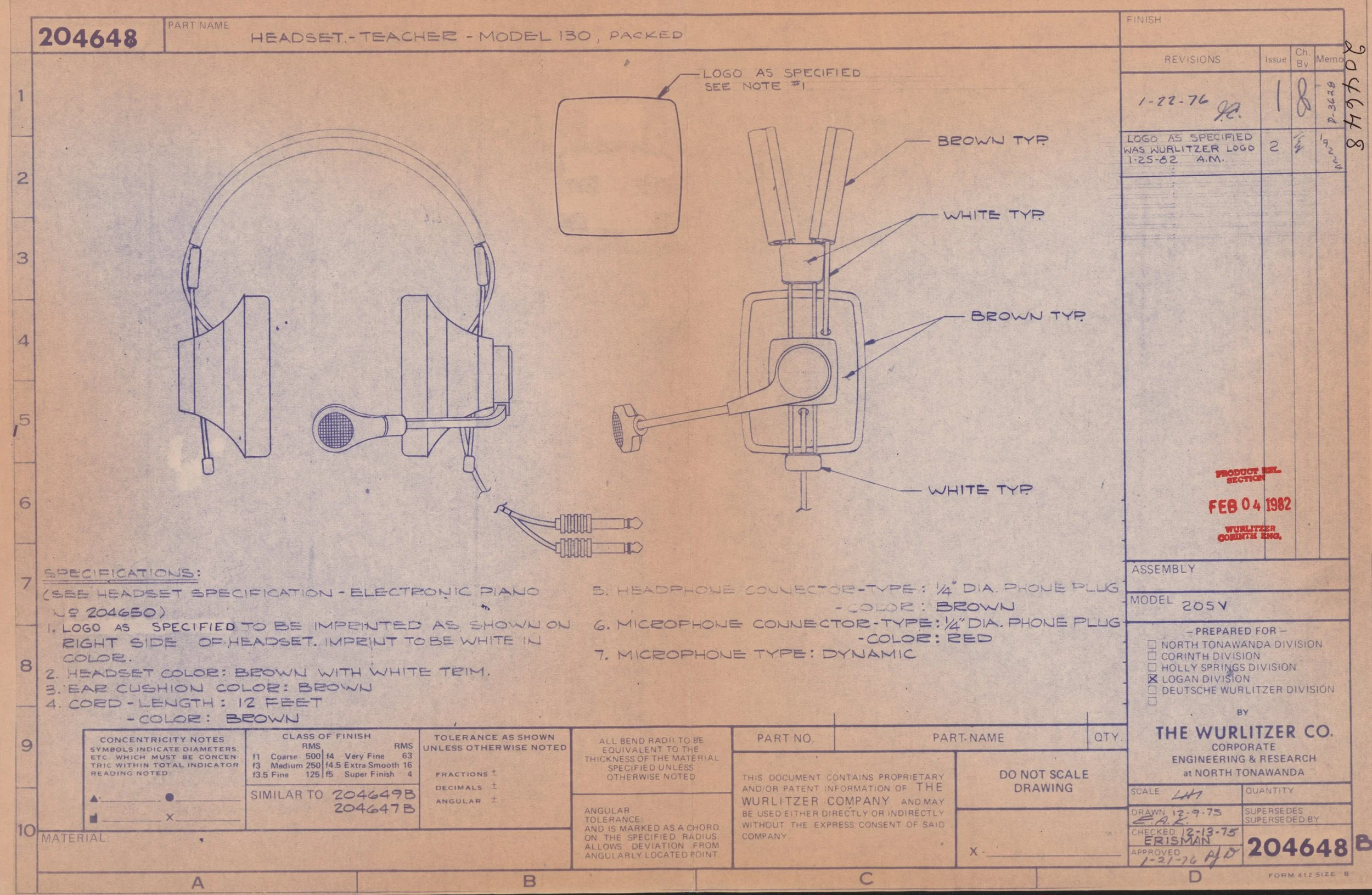

Technical blueprint of a headset with detailed schematics and notes, titled 'Headset - Teacher - Model 130, Packed,' with drawings of the headset's headband, microphone, and cushions, annotations on colors, materials, and specifications, including a

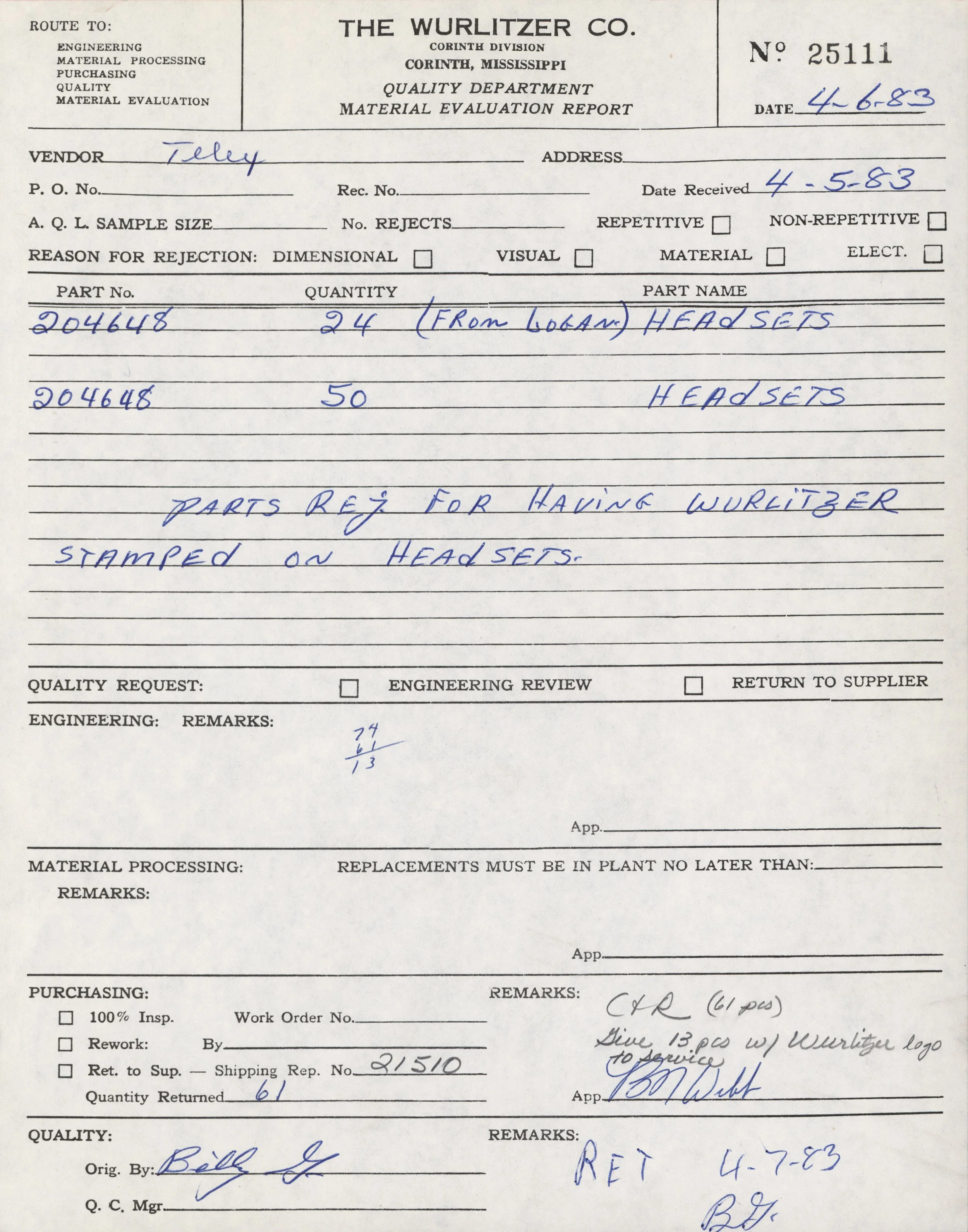

A handwritten document titled 'Material Evaluation Report' from The Wurlitzer Company, dated April 6, 1983, referencing headsets and parts numbers, with notes on reworking and approvals.

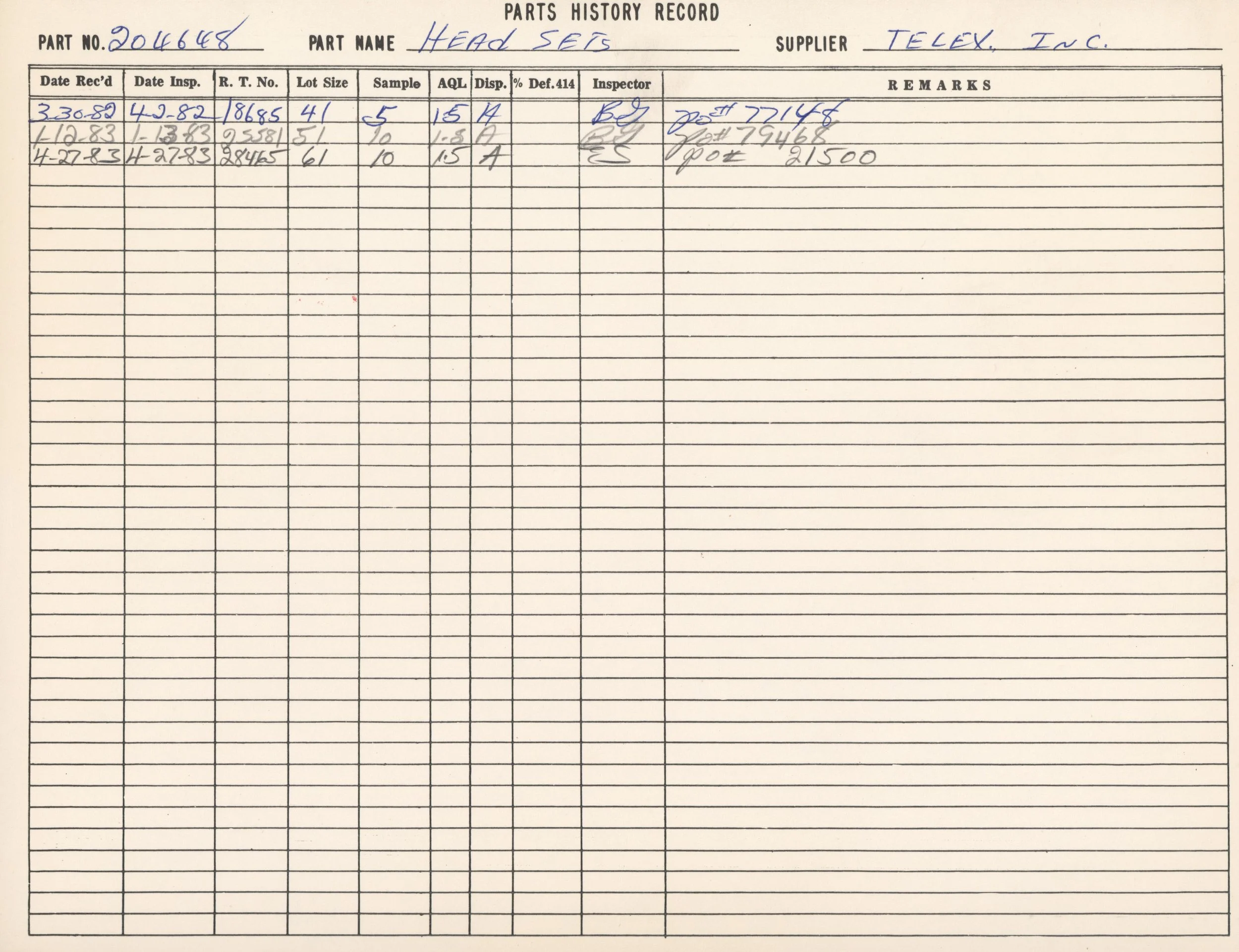

This is a vintage parts history record for head sets, produced by TELLEX INC. It contains handwritten entries with dates, part numbers, descriptions, inspection details, and remarks in blue ink.

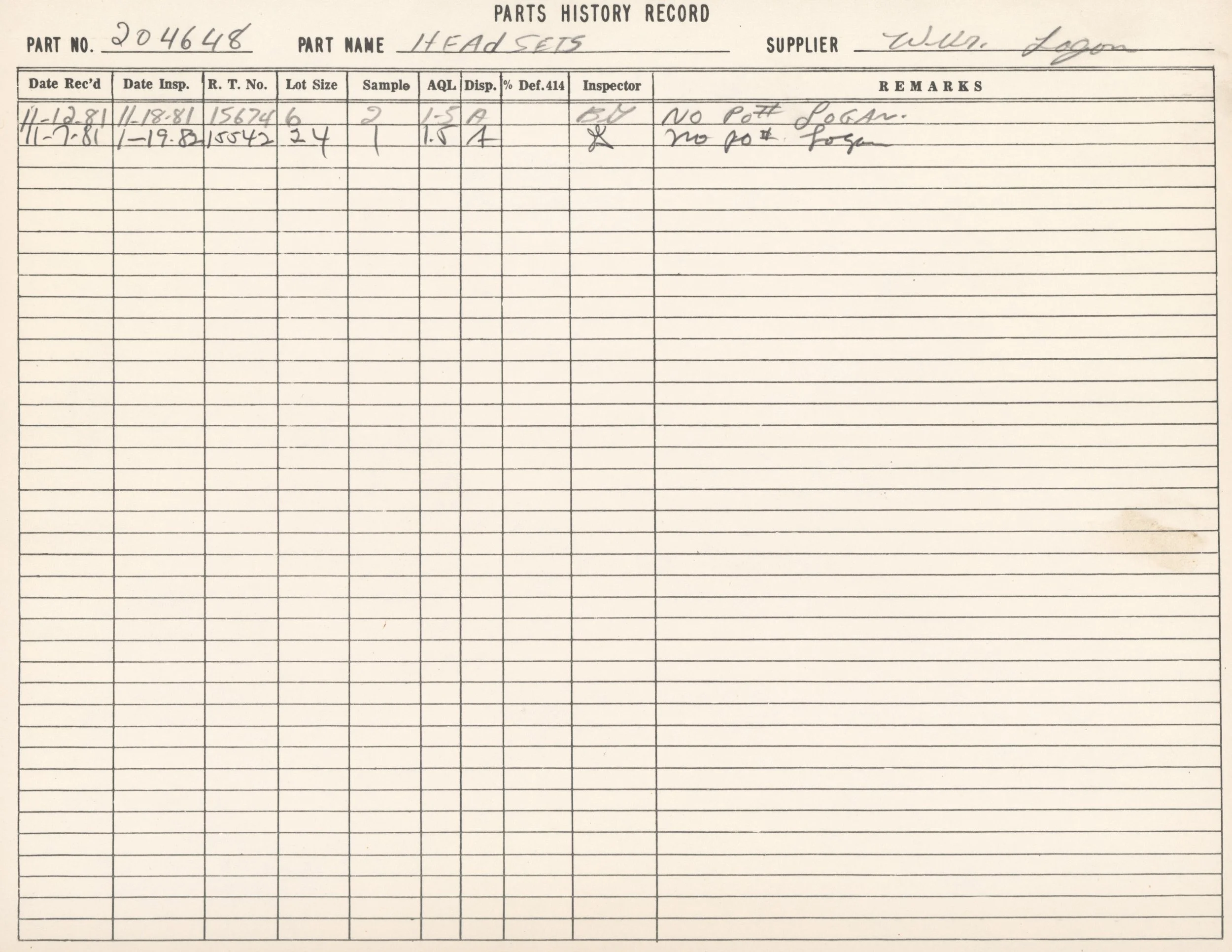

A handwritten parts history record sheet for part number 204648, named 'Headsets,' supplied by Warner Loom. The sheet includes inspection dates, lot sizes, sample counts, and remarks about the inspection status, noting no patches found during the ins

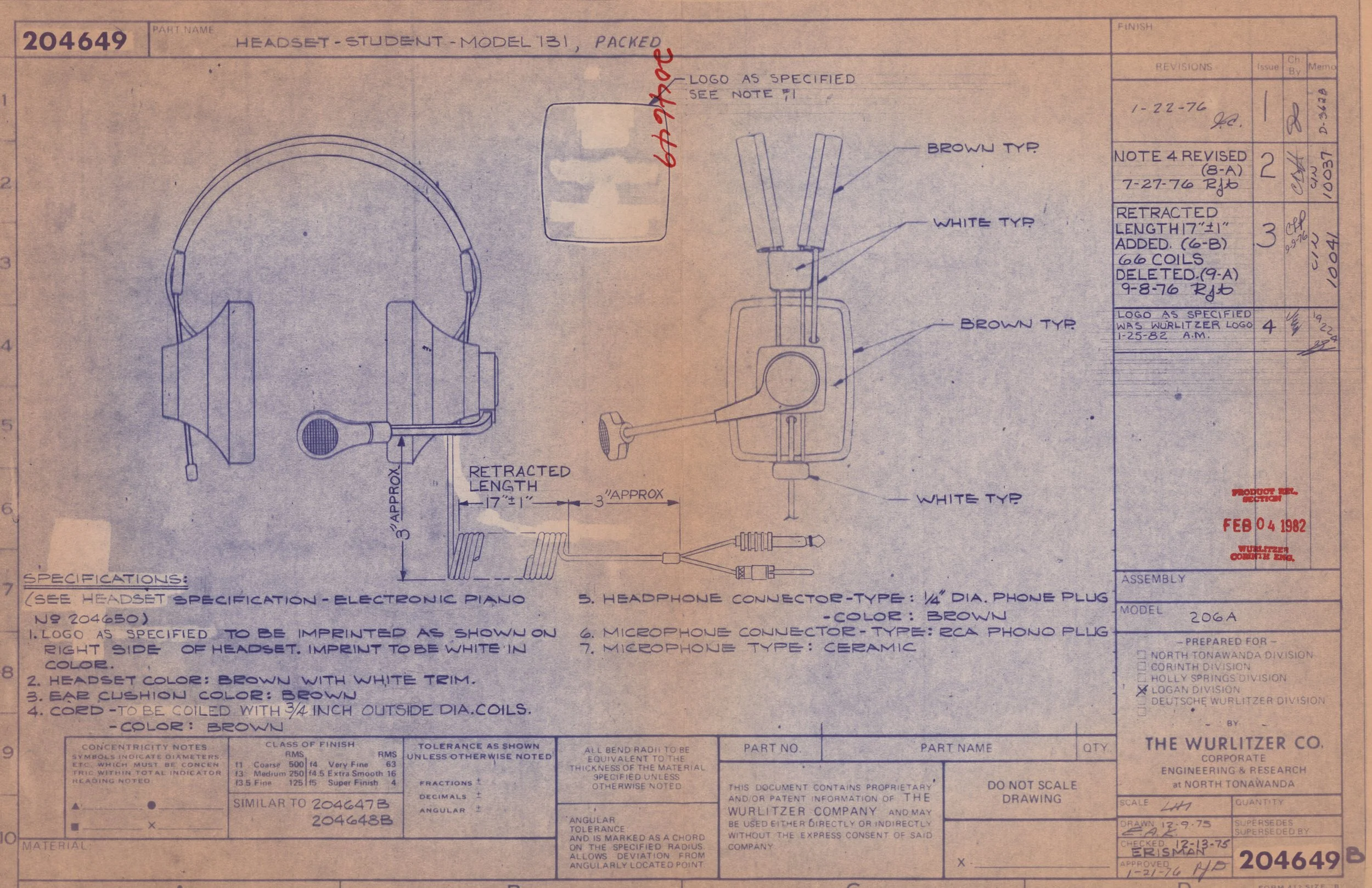

Blueprint drawing of a headset, including side and front views, with notes on materials, colors, and components such as ear cushions, microphone, and headband.

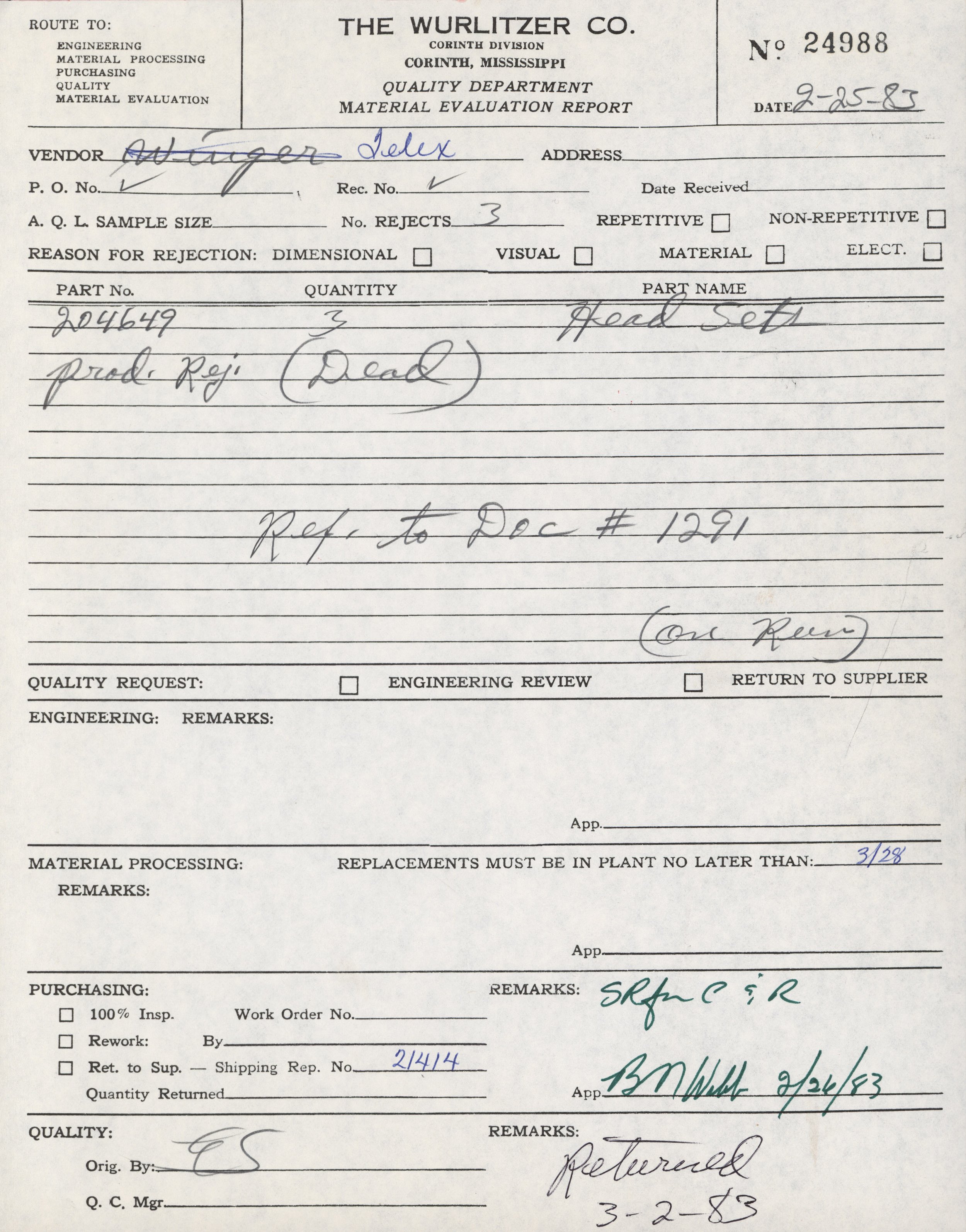

A scanned form titled 'Material Evaluation Report' from The Wurlitzer Co., Corinth Division, dated September 25, 1983. It contains handwritten notes, part numbers, quantities, and remarks related to a head set and other manufacturing details.
