Wurlitzer 585

The Wurlitzer 585 is an IC divider organ produced in the 1970s. It is part of the Centura line, which was marketed as a more professional organ for serious players.

The technical drawings that we currently have scanned include:

  • 661902 (Support bracket, upper manual, for the 585)

  • 661955 (Key guide for the 585)

  • 661956 (Contact spring for the 585)

  • 661957 (Button spring for the 585)

  • 661960 (Felt strip, key stops, for the 585)

  • 662025 (Light collector, key slip, r., for the 585)

  • 662036 (Lamp bracket for the 585)

  • 662047 (Support bracket, keyblock, lower right hand, for the 585)

  • 662051 (Support bracket, lower left keyblock, for the 585)

  • 662052 (Spacer, upper manual, pivot, for the 585)

  • 662053 (Mounting plate, switch, for the 585)

  • 662060 (Bracket, tie down, right hand, for the 585)

  • 662061 (Bracket, tie down, left hand, for the 585)

  • 662216 (Grille cloth, baffle board, for the 585)

  • 661224 (Felt, bracket, tie down, Orbit, for the 585)

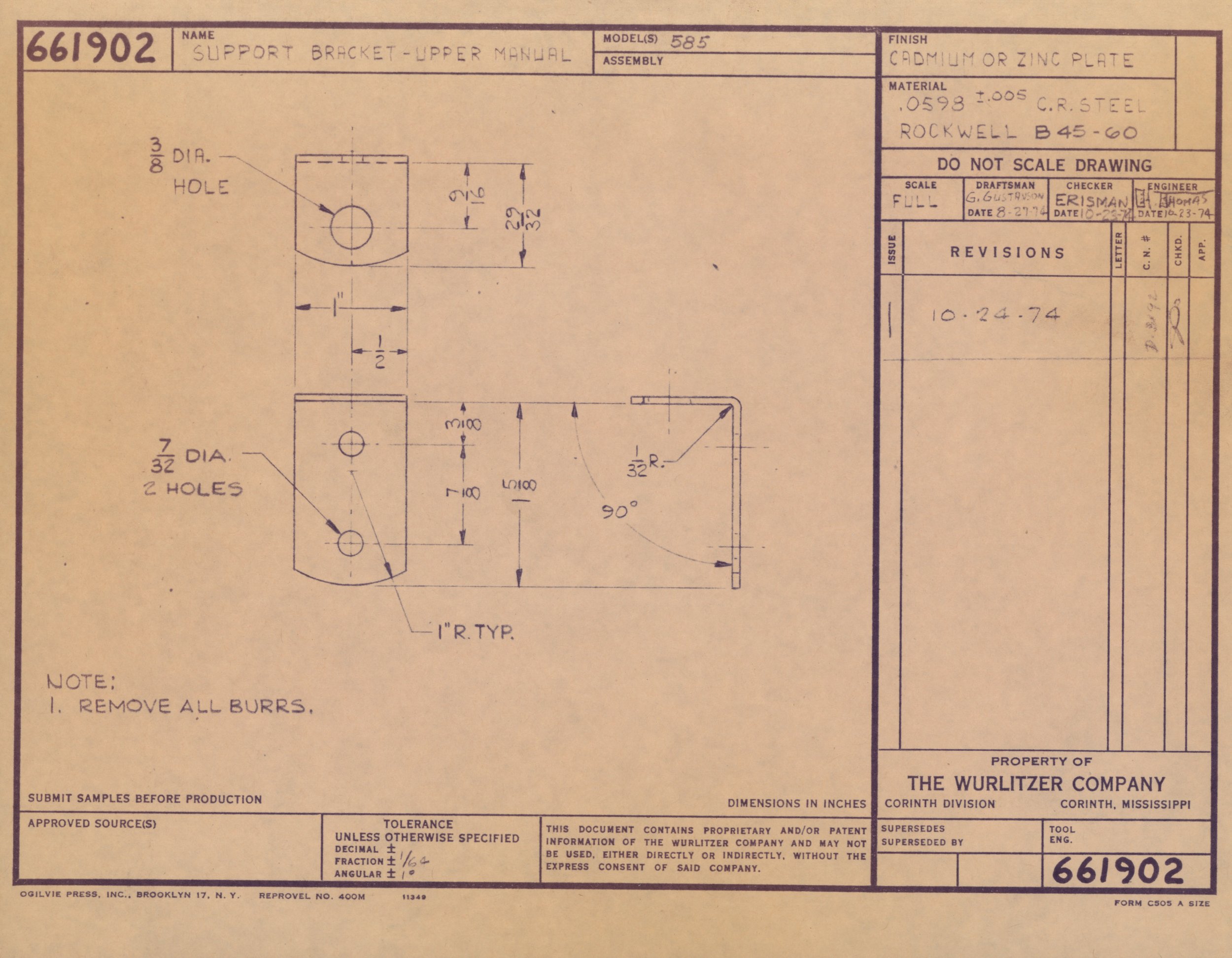

Blueprint drawing of an upper support bracket for a manual, featuring dimensions and hole placements, with handwritten notes and approval signatures.

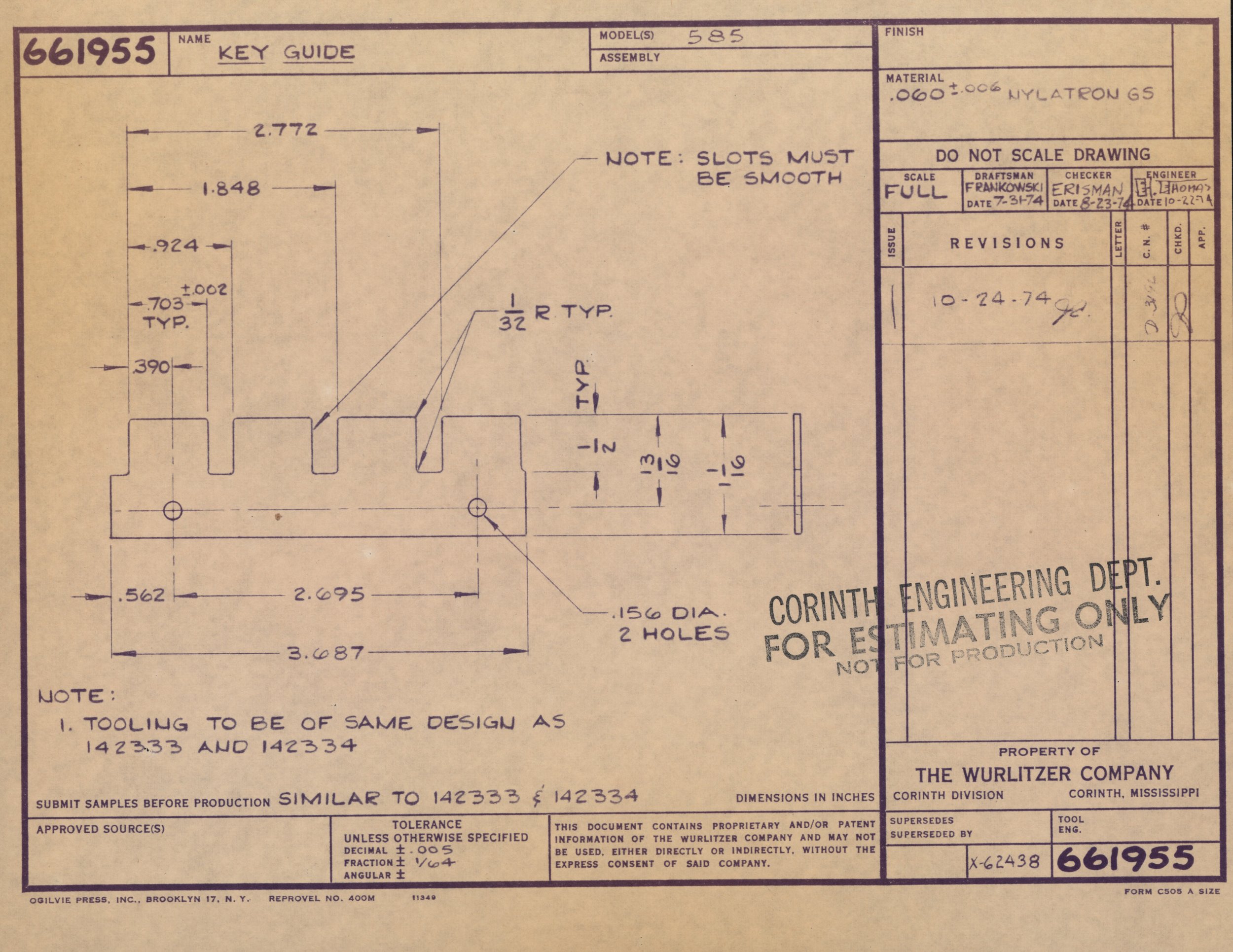

A technical engineering blueprint with measurements, notes, and details about a part or component, including dimensions, material specifications, and revision information.

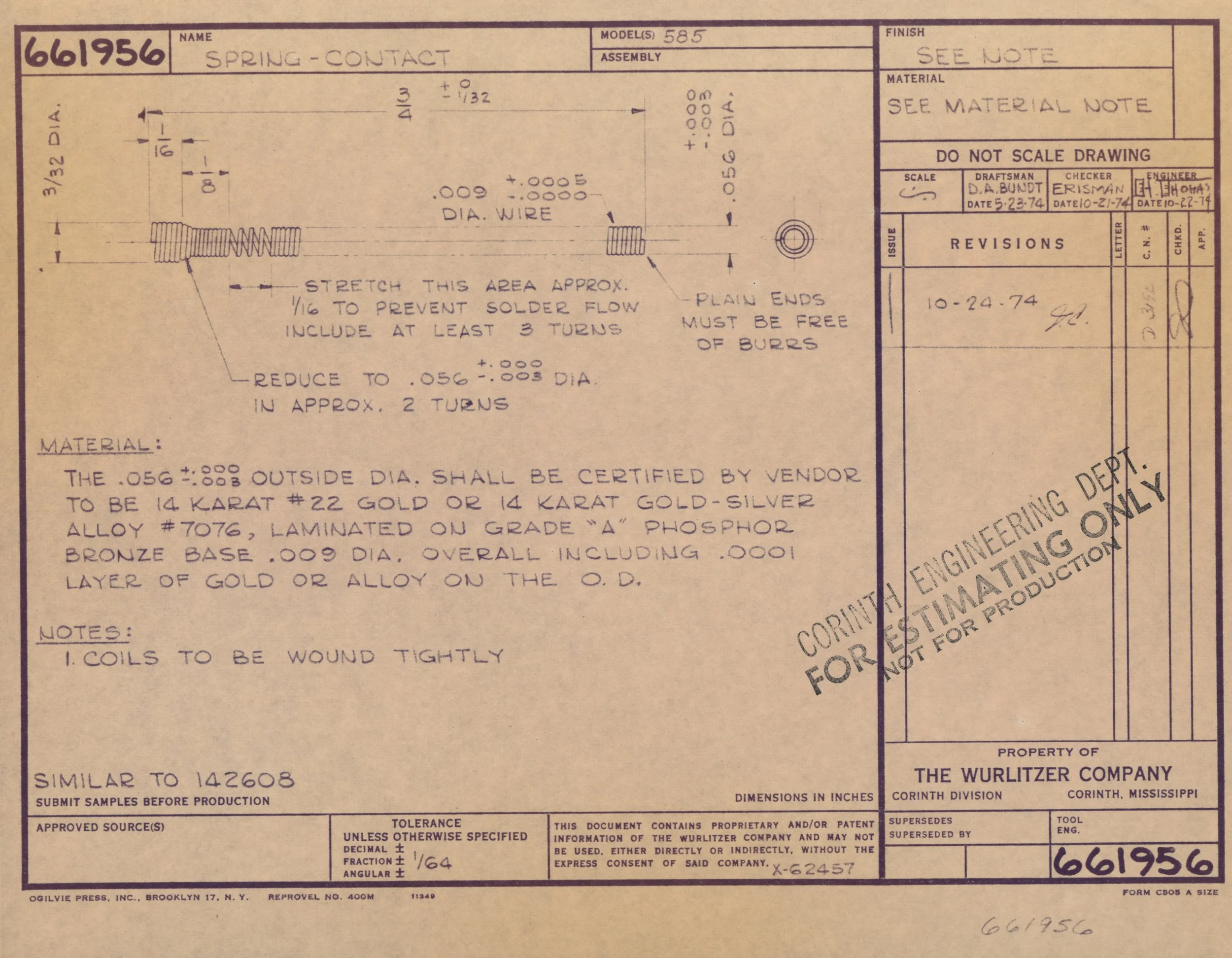

Technical drawing of a spring contact with detailed dimensions and notes, produced by Wurlitzer Company in Mississippi.

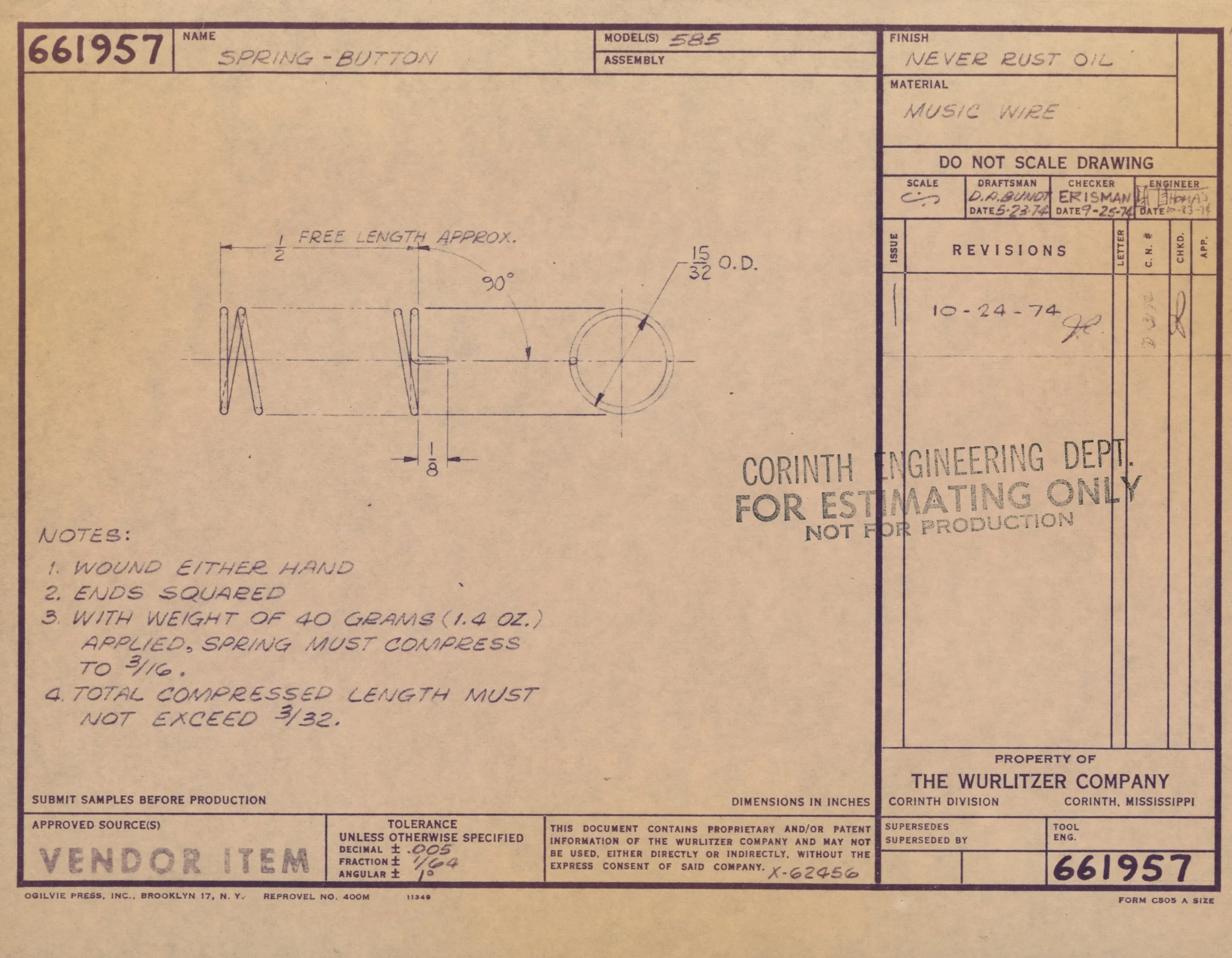

Technical engineering drawing of a spring button with measurements, sketches, and notes, created by Corinth Engineering Department.

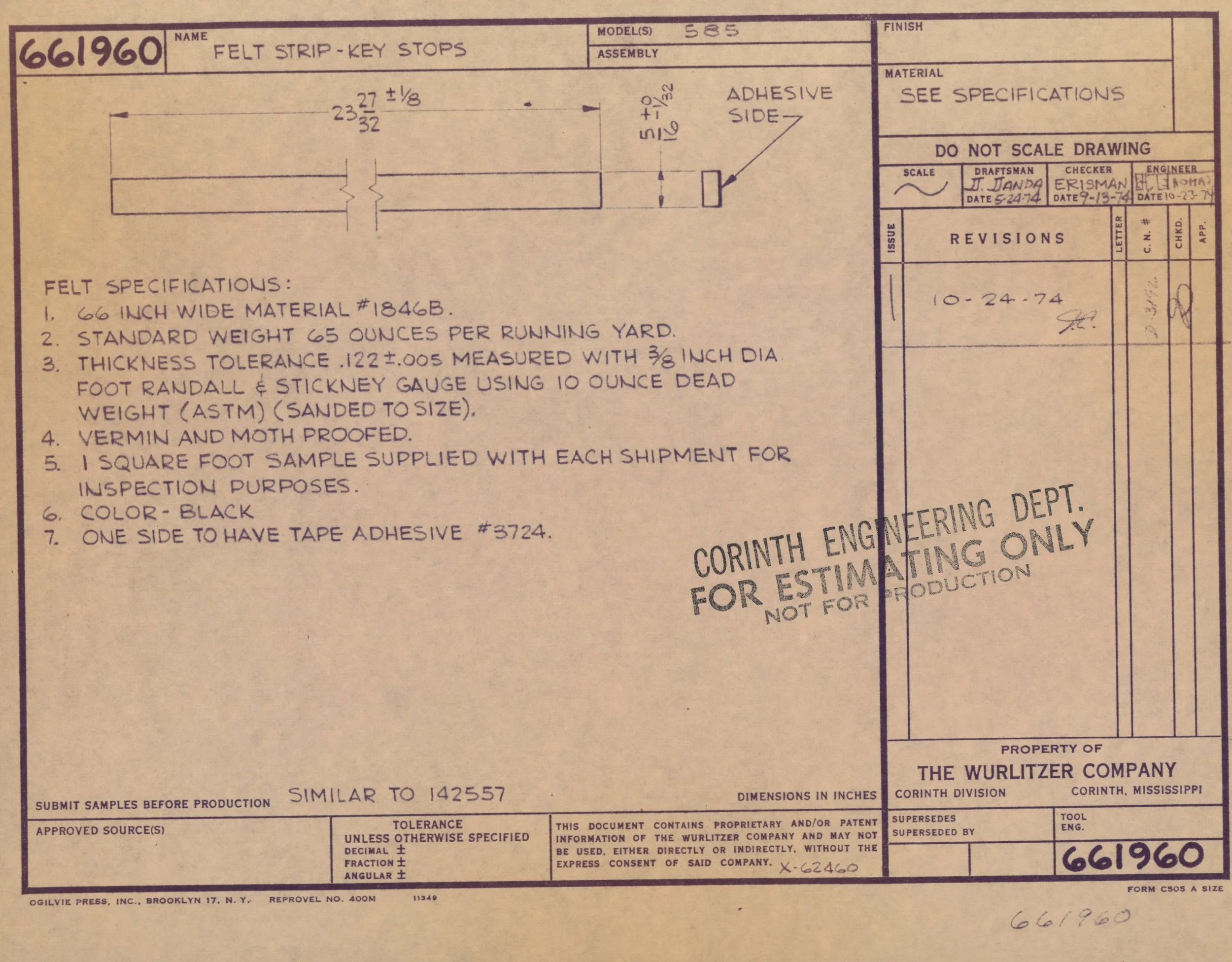

Technical drawing or blueprint of felt strip with key stops, including measurements, specifications, and approval signatures.

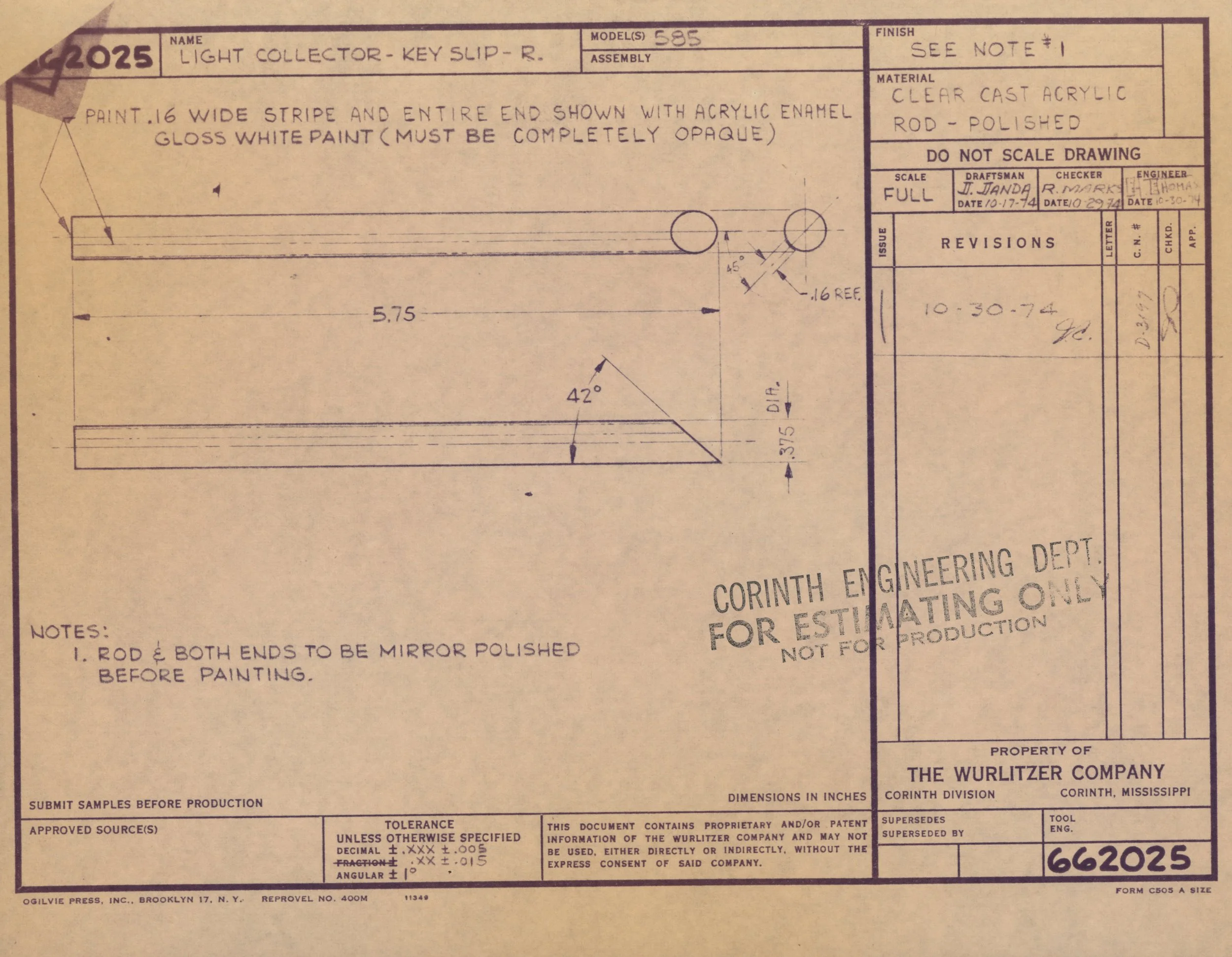

Technical drawing of a light collector rod with detailed measurements and instructions for painting and finishing, produced by Ogilvie Press for the Wurlitzer Company.

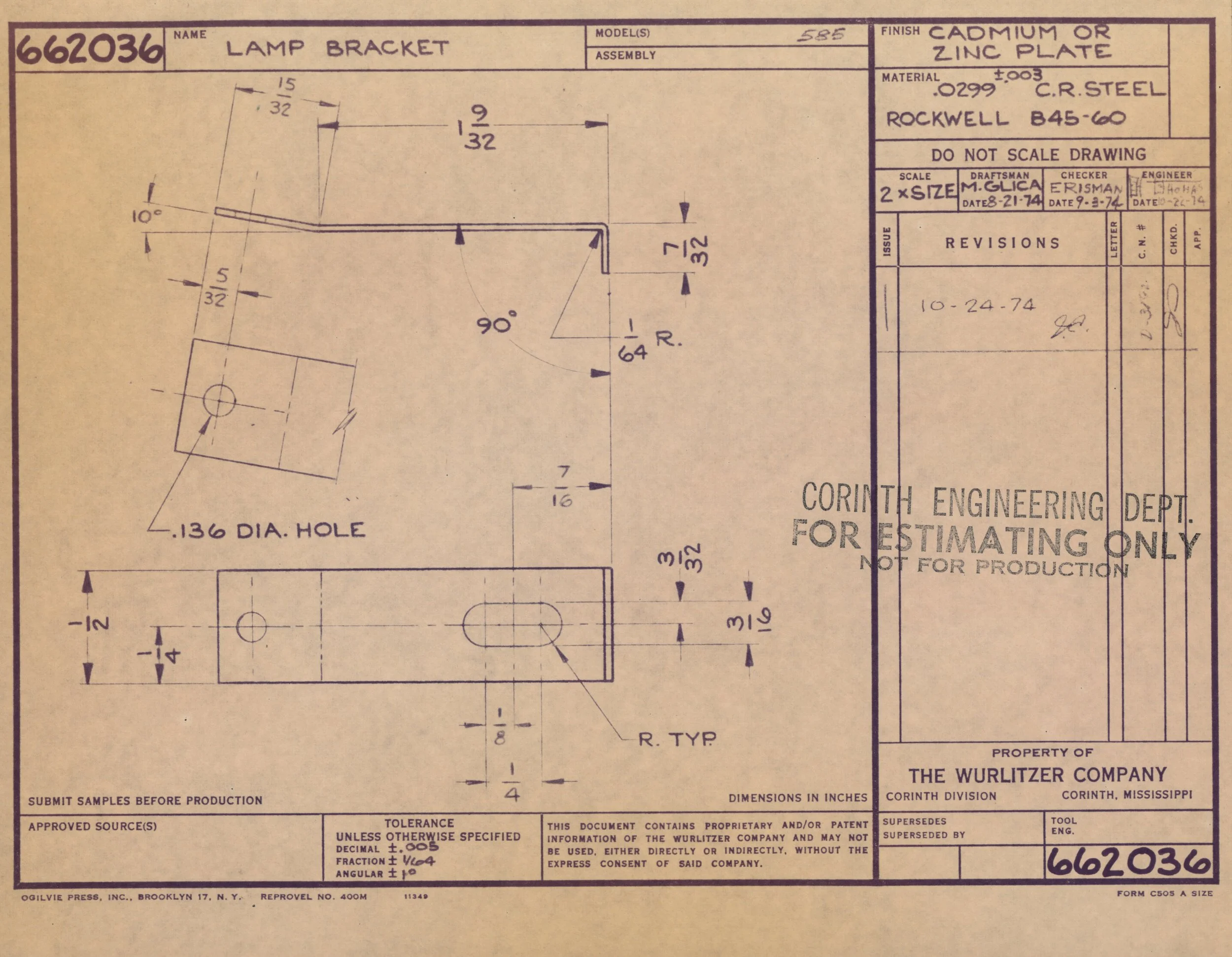

Technical engineering blueprint for a lamp bracket, showing dimensions, angles, and hole sizes, with annotations related to materials and approvals.

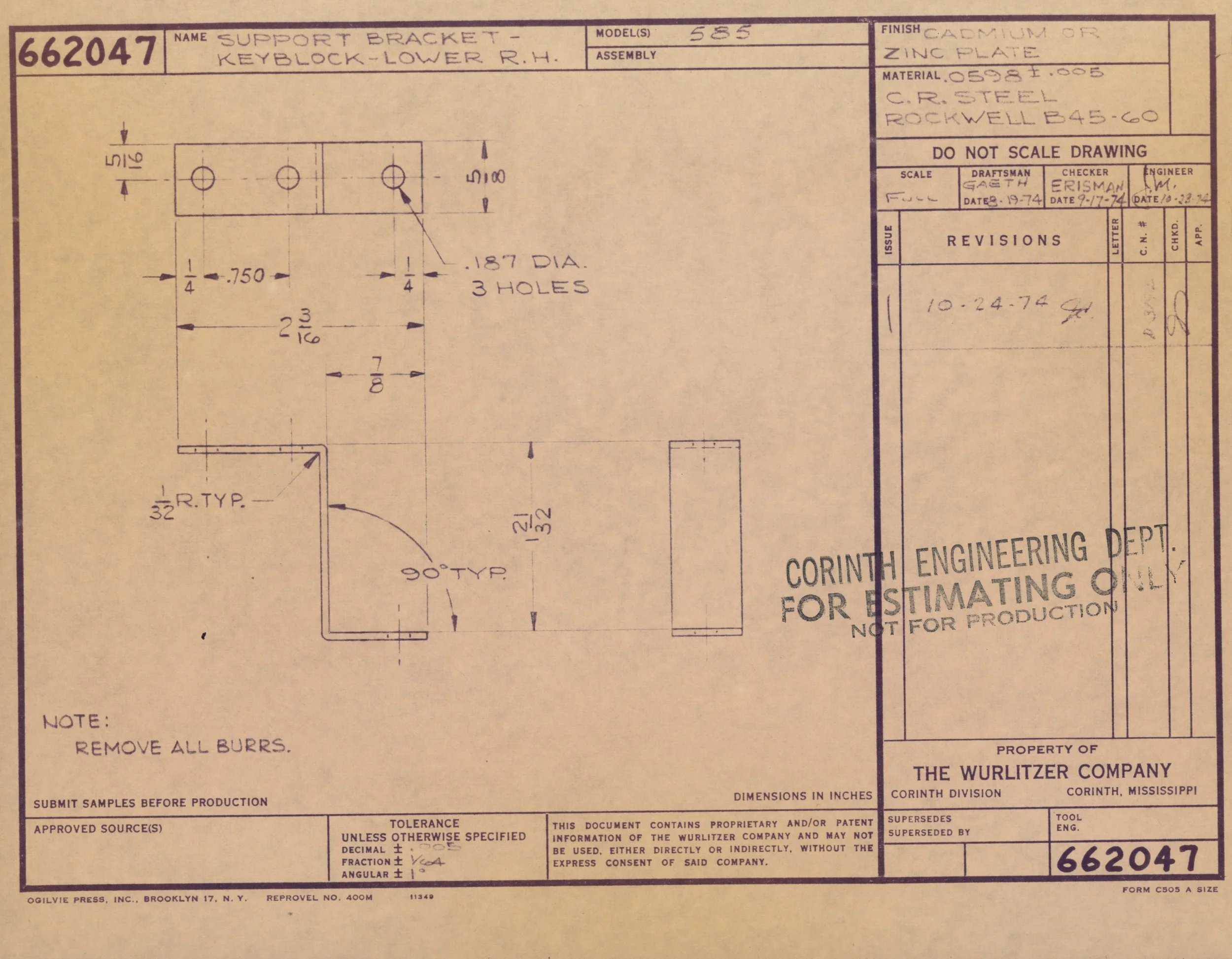

Technical blueprint of a support bracket, specifically for a keyboard, showing dimensions and hole placements, with handwritten notes for revisions and approval stamps.

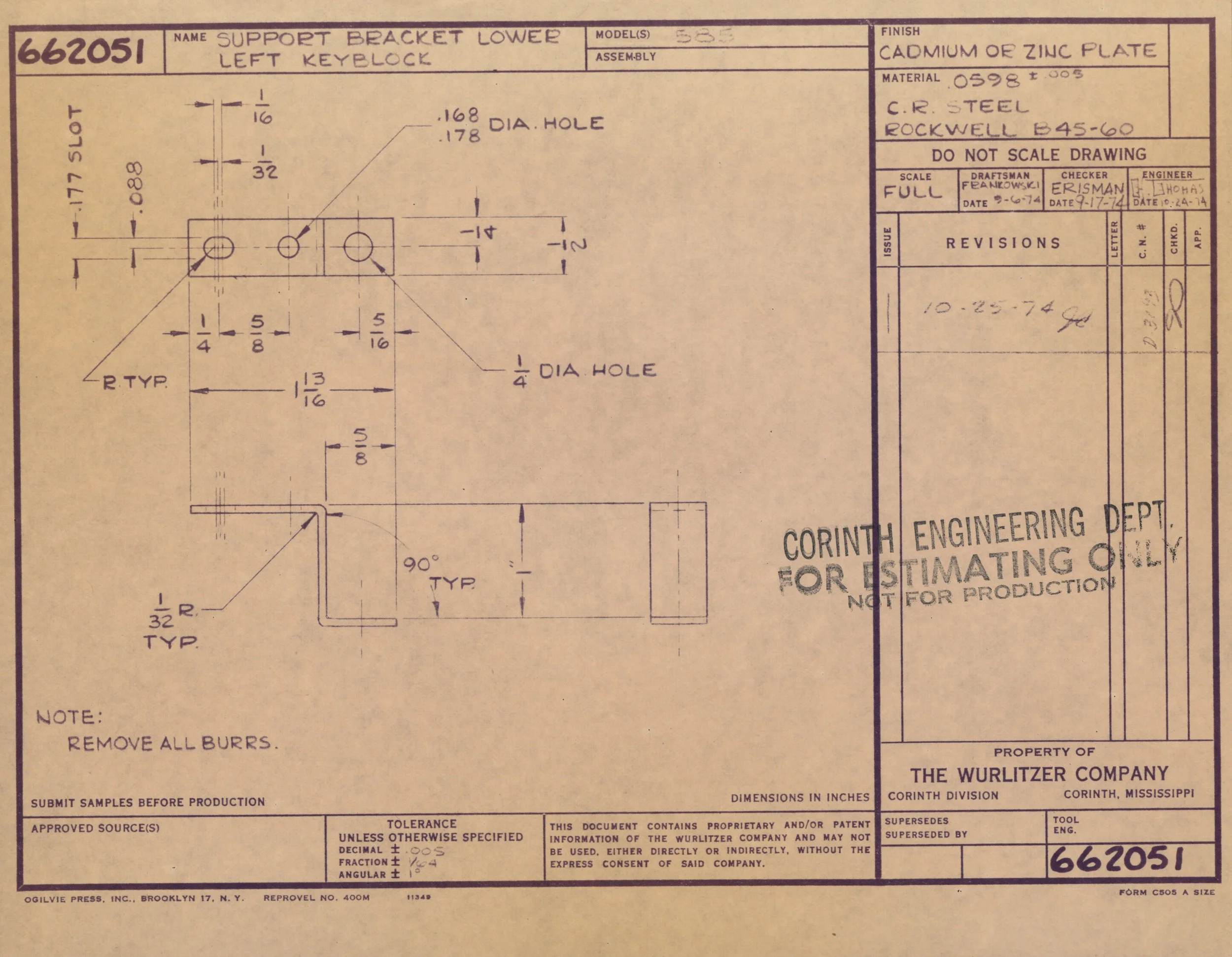

Technical engineering drawing of a support bracket for a left keyblock, including dimensions, holes, and annotations, created by the Corinth Engineering Department of Wurlitzer Company, dated September 6, 1974.

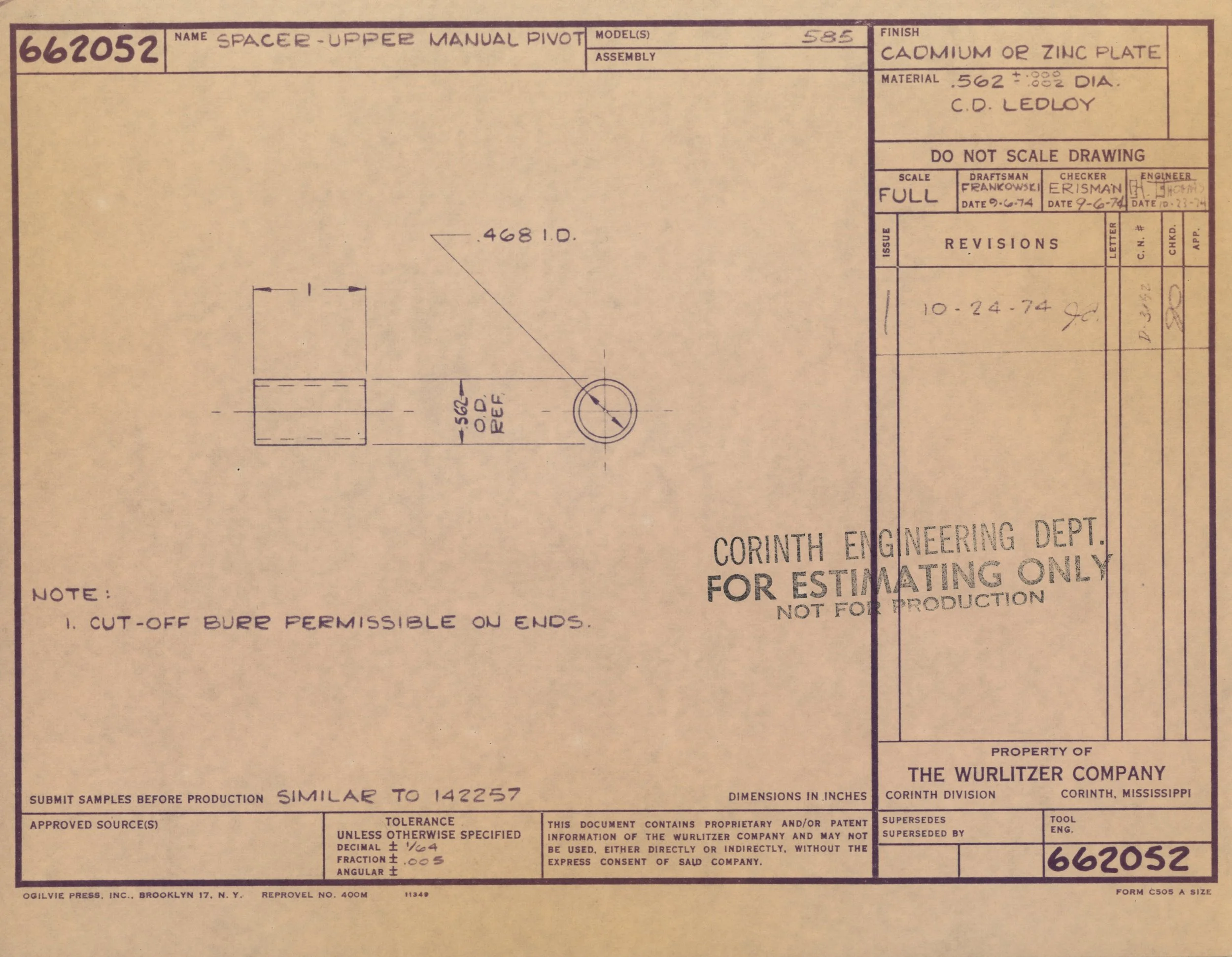

Technical blueprint or engineering diagram with detailed measurements and specifications for a space-upper manual pivot, including notes, approvals, and company information.

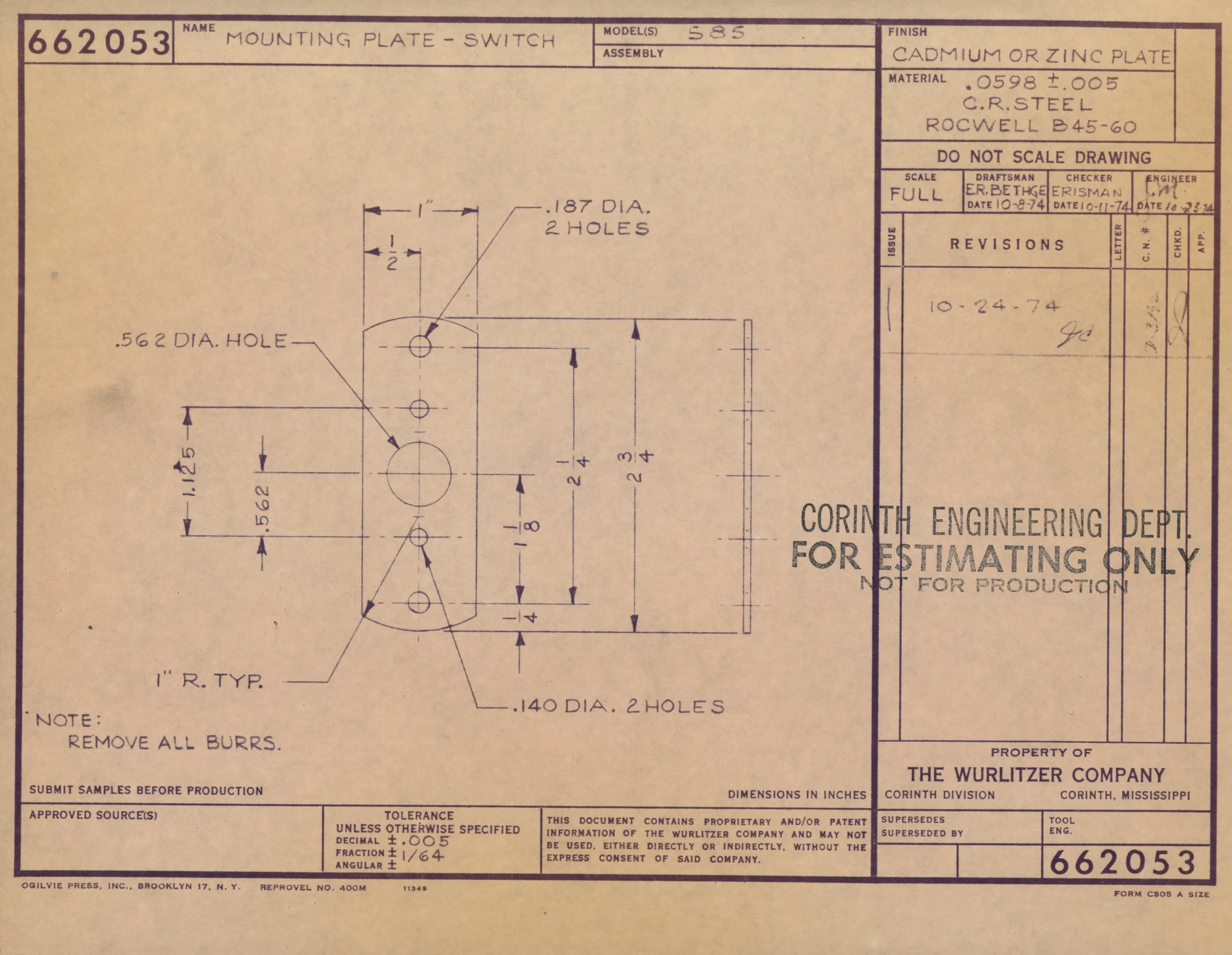

Technical engineering drawing of a mounting plate switch with detailed measurements, hole sizes, notes, and approval stamps.

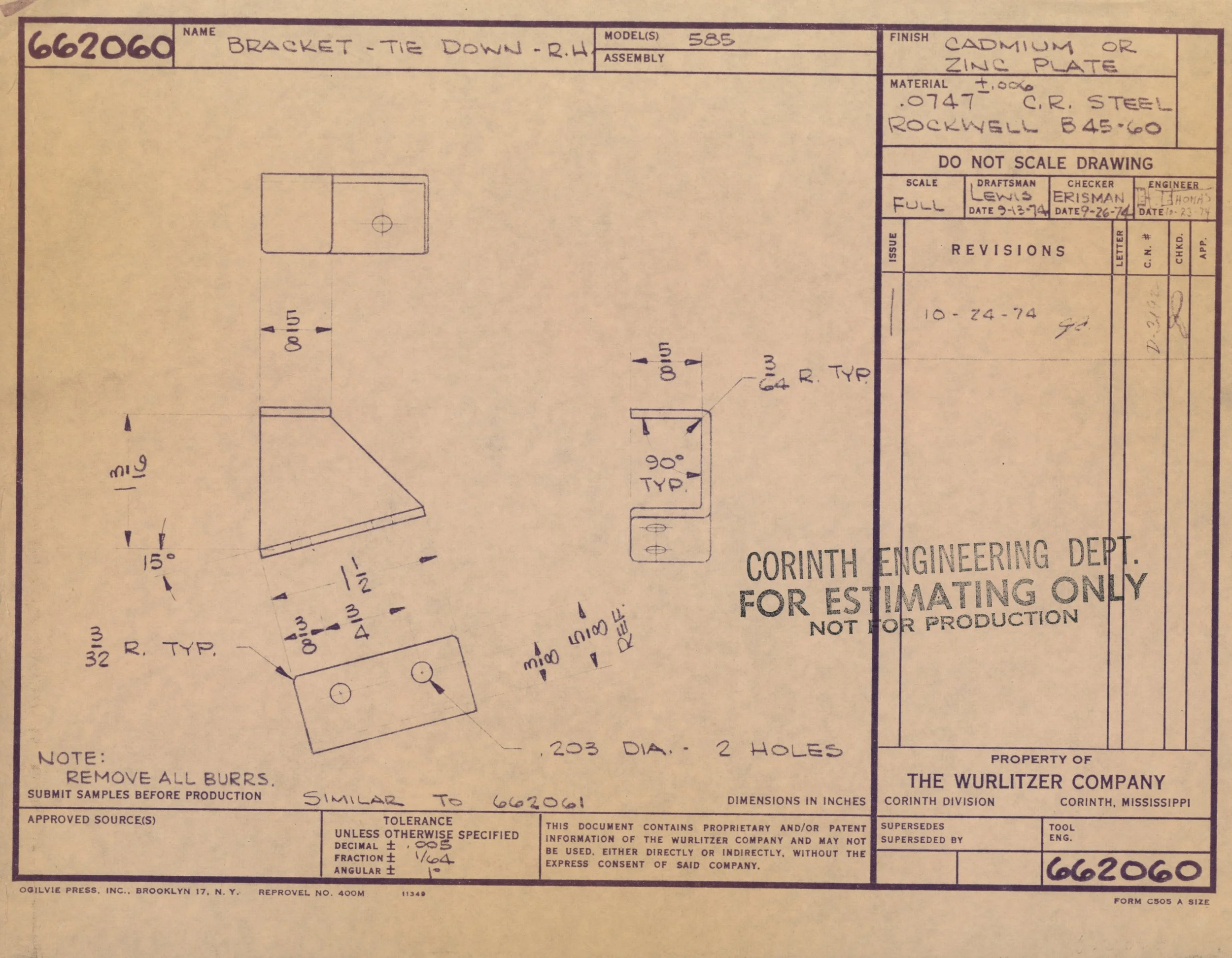

Blueprint drawing titled 'Bracket - Tie Down - R. H.' created by Corinth Engineering Dept. for Wurlitzer Company, property of Corinth Division, Mississippi, showing detailed technical specifications of a tie-down bracket with measurements and notes.

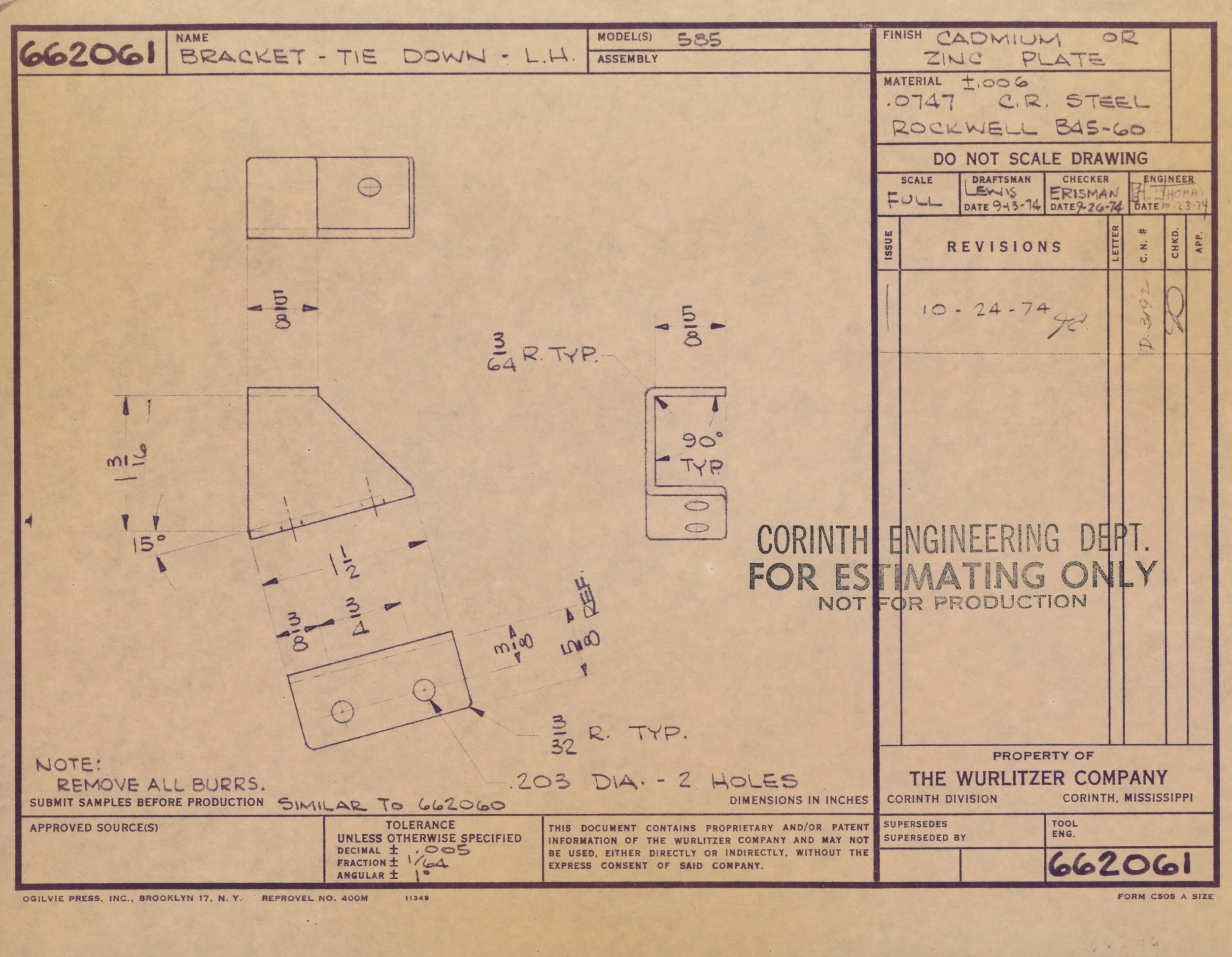

Blueprint drawing of a metal bracket, featuring measurements, angles, and hole specifications, created by the Corinth Engineering Department.

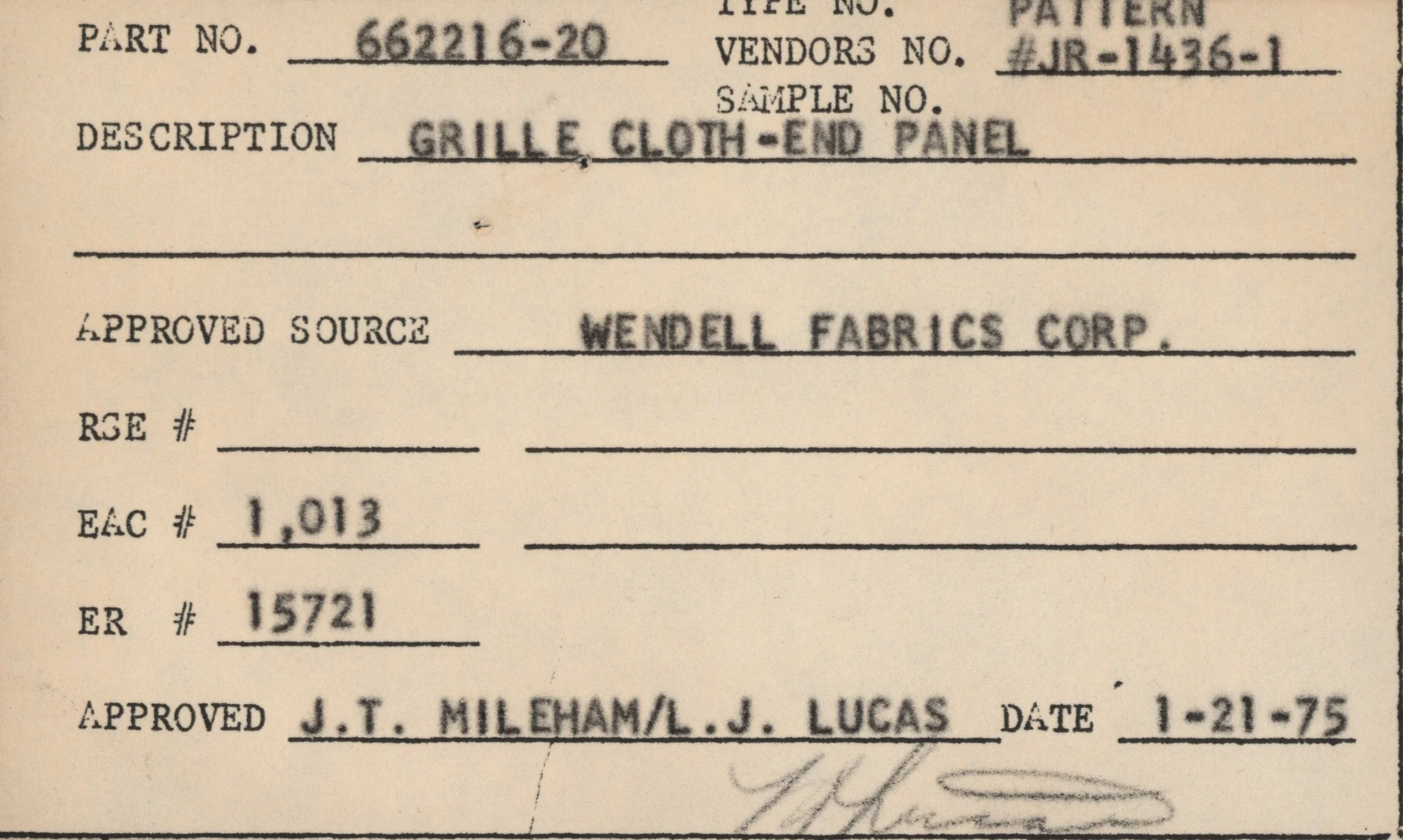

A close-up of a vintage technical or manufacturing document, showing part number 662216-20 and description 'Grille Cloth- End Panel'. The document contains details such as vendor number, sample number, source approval, and a signature.

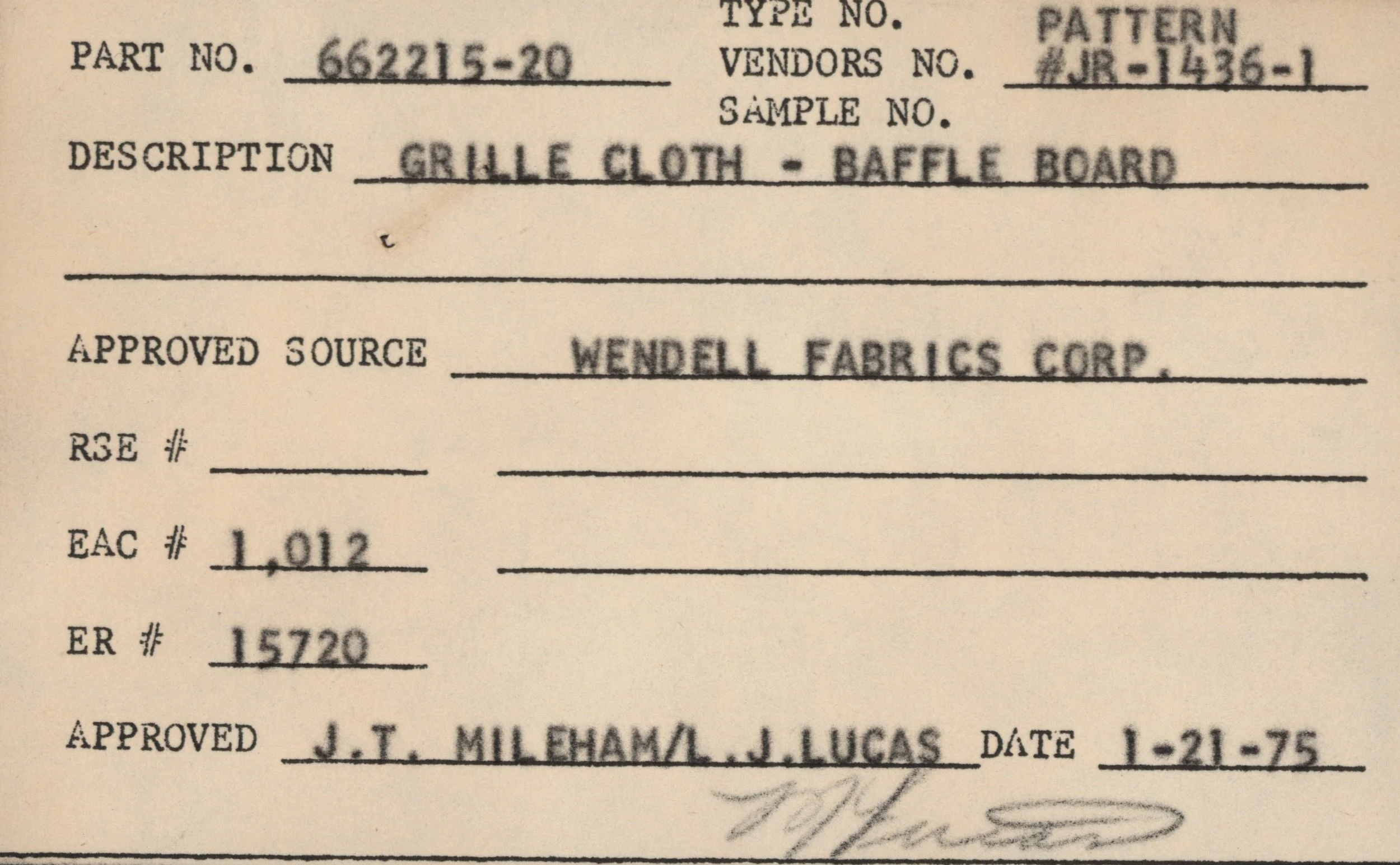

Close-up of a vintage document labels for a part with details including part number 662215-20, description 'grille cloth - baffle board', vendor Wendell Fabrics Corp, and approval signatures with dates.

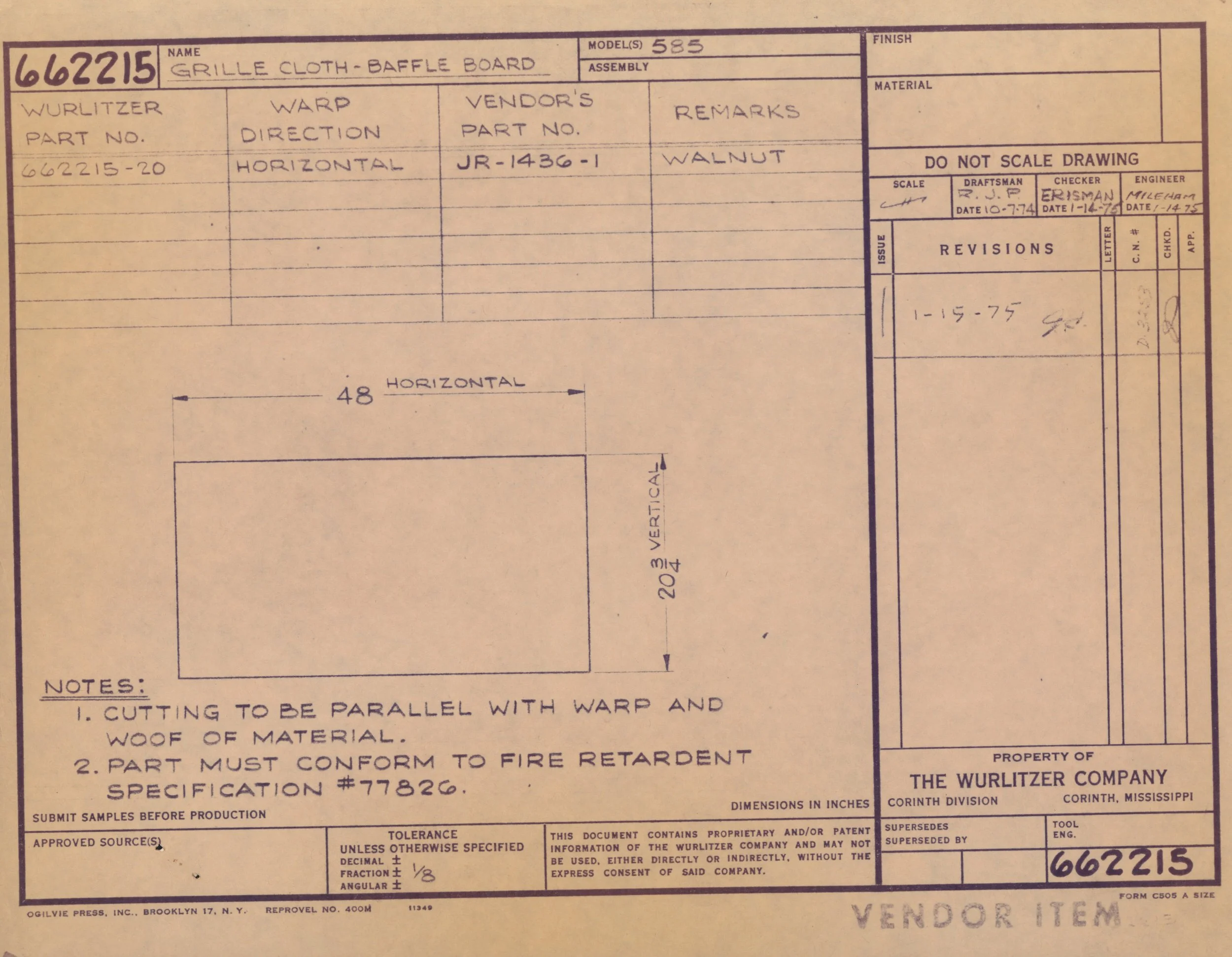

Close-up of a technical drawing or blueprint for a walnut grille cloth-baffle board with detailed specifications, measurements, and notes.

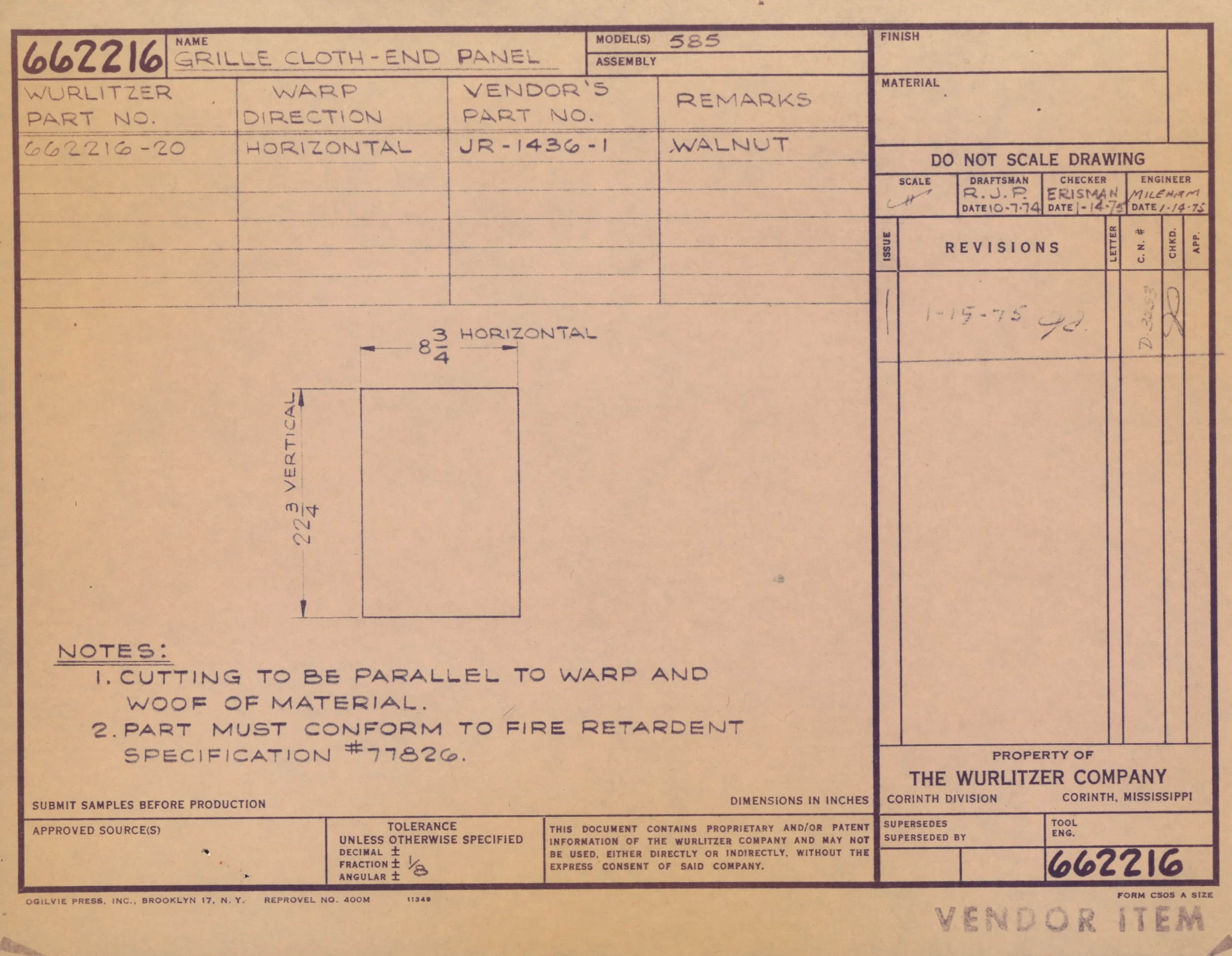

A technical drawing or blueprint for a walnut-colored grille cloth end panel, with specifications, measurements, and approval signatures.

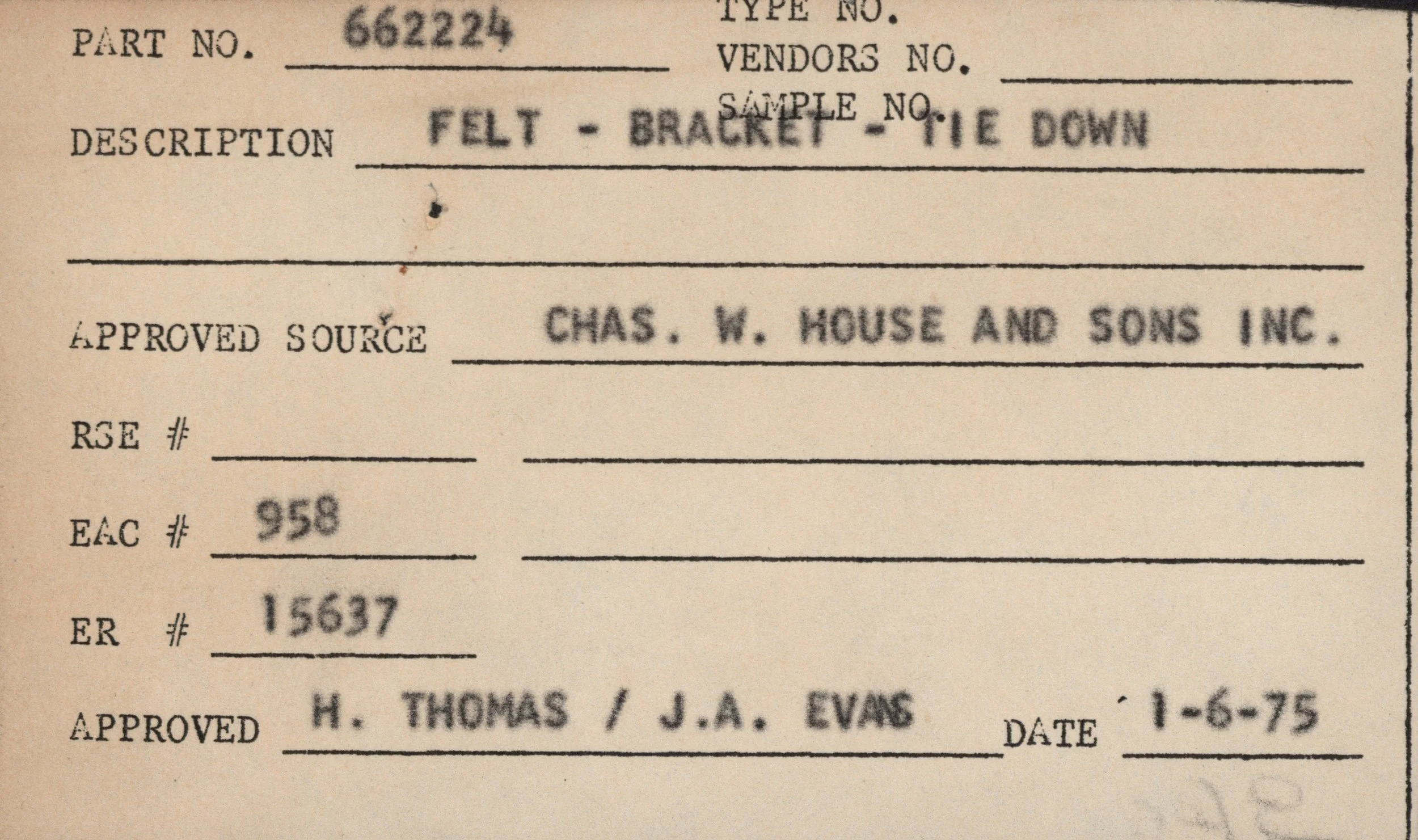

A close-up of a vintage typewritten document showing part numbers, description as 'FELT - BRACKET - TIE DOWN', and approval details with handwritten dates.

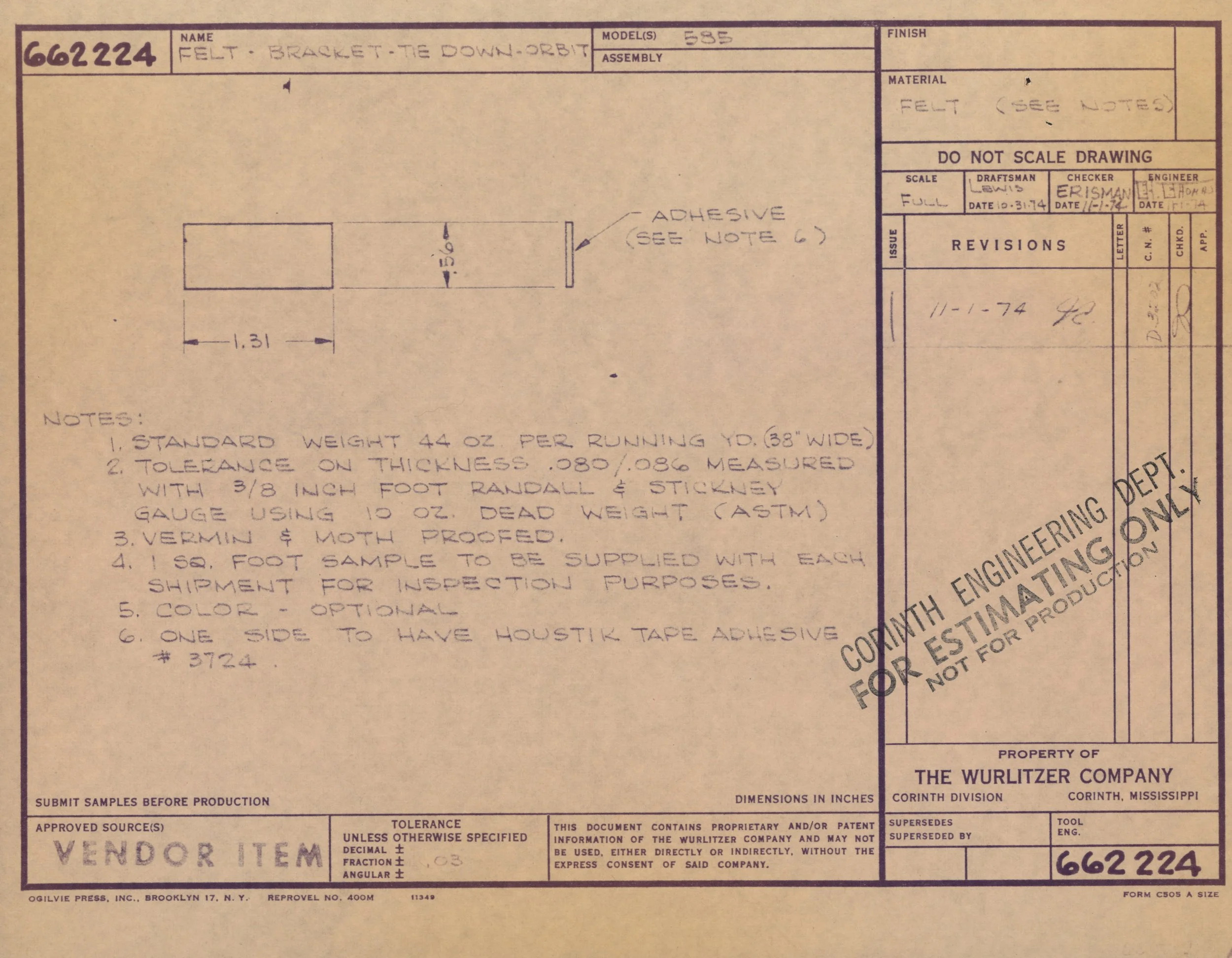

Blueprint or technical drawing of a felt bracket for down orbits, containing measurements, notes, and annotations, with a gray background and purple lines and text.
