Centura 950, 960 and 960T organs

The Wurlitzer 950, 960, 960T organs were first produced in the mid-1970s as part of the Centura line, which was marketed towards more serious players. They use IC divider tone generators.

950
960
960T

Cabinet drawings

The following drawings depict cabinet parts on the Wurlitzer Centura 950, 960, and 960T.

  • 148091 (Corner trim moulding for the 950, 960, and 960T)

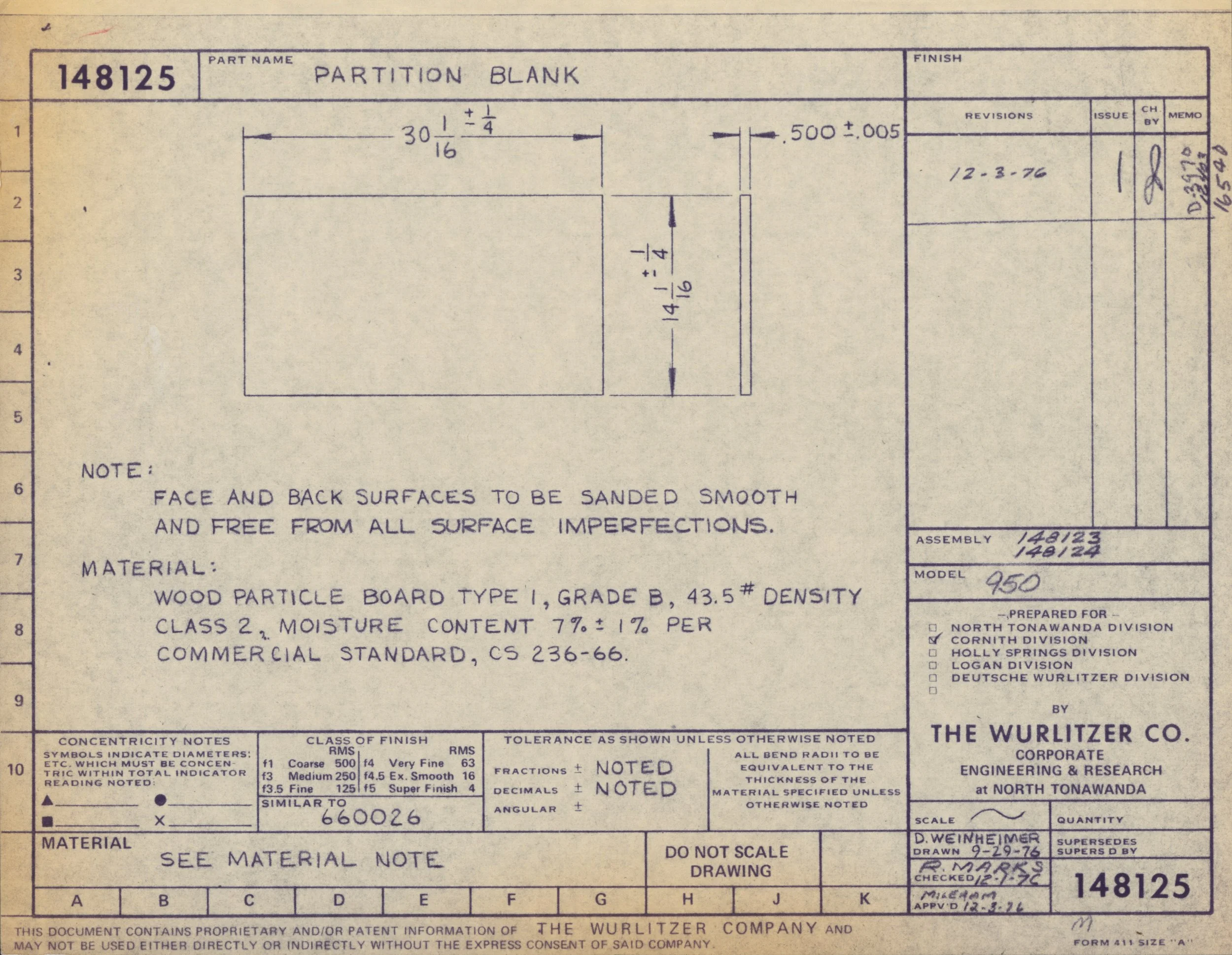

  • 148125 (Partition blank for the 950)

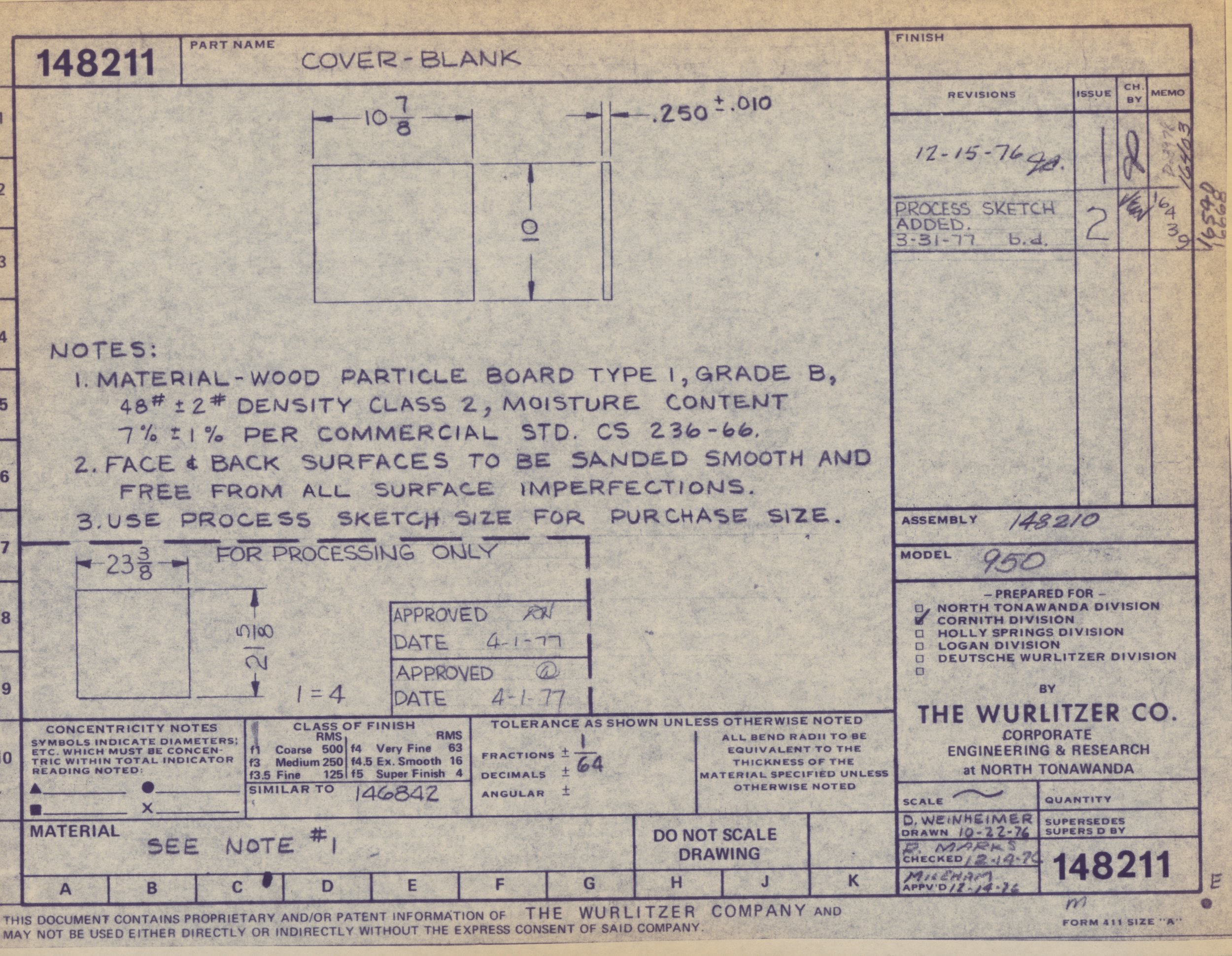

  • 148211 (Cover, blank, for the 950)

  • 148252 (Grille cloth, baffle, for the 950)

  • 148254 (Grille cloth, back, for the 950)

  • 148269 (Serial number plate for the 950)

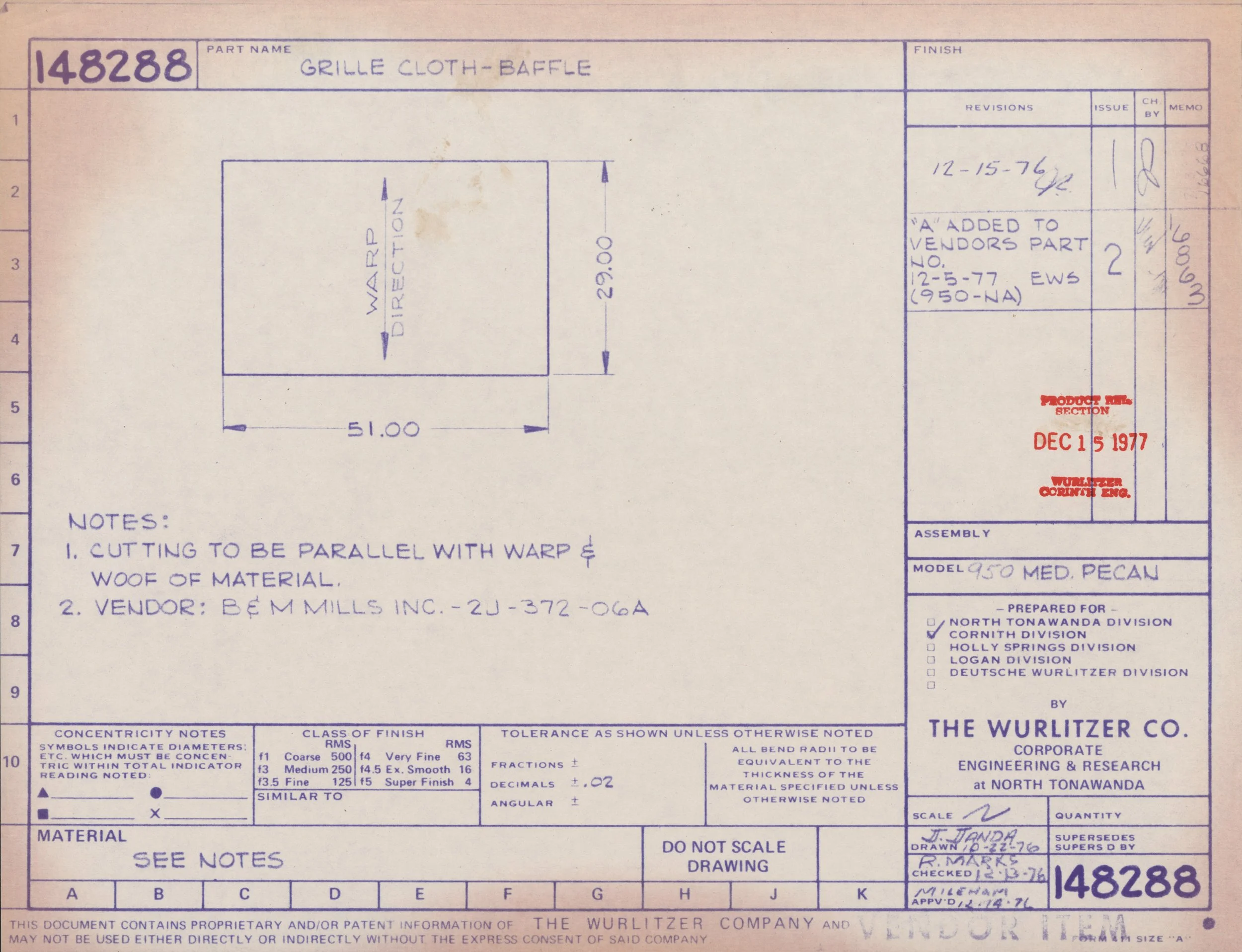

  • 148288 (Grille cloth baffle for the 950)

  • 148290 (Grille cloth, back, for the 950)

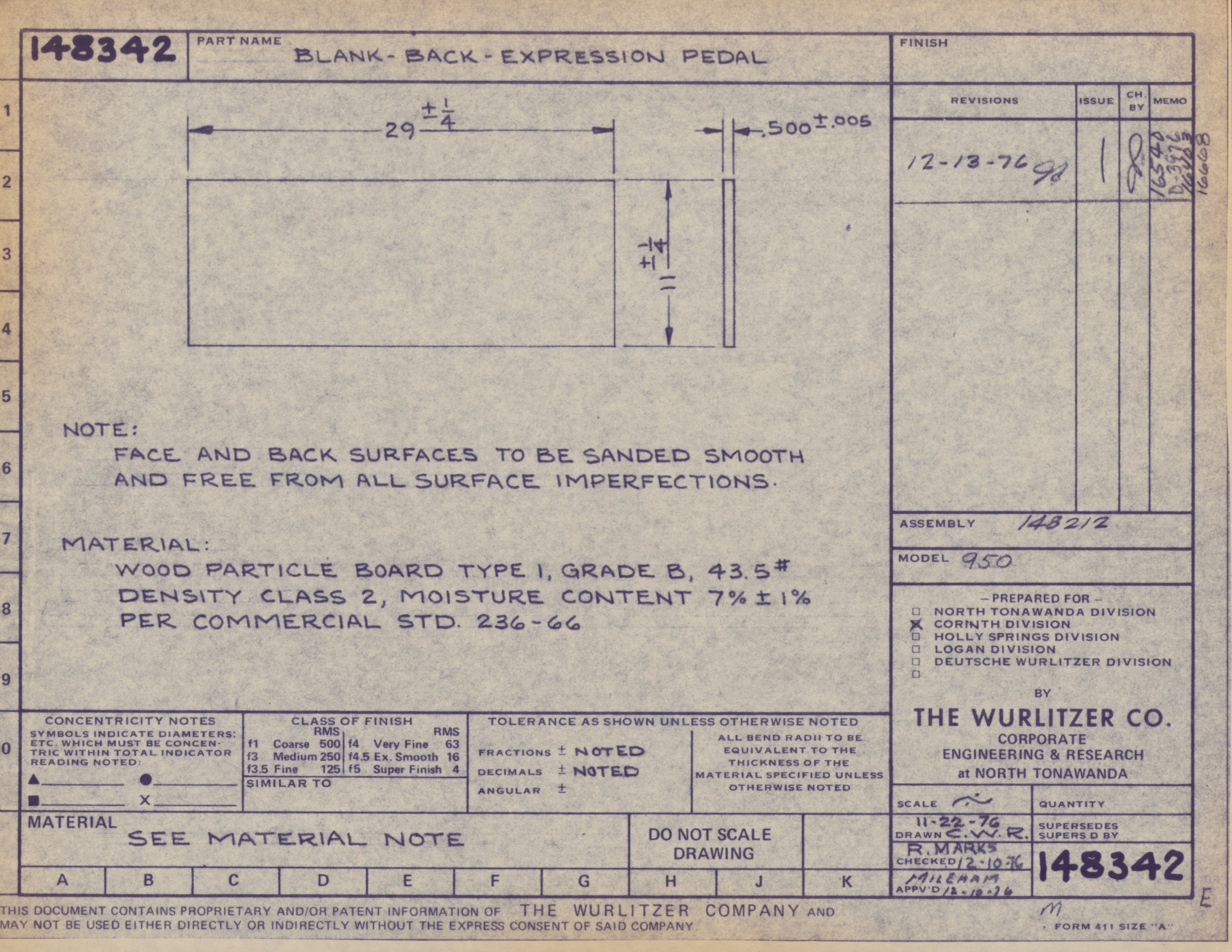

  • 148342 (Blank, back, expression pedal, for the 950)

  • 148436 (Blank, shelf separator, upper, for the 950)

  • 148550 (Ferrule, top, for the 950)

  • 148551 (Ferrule, bottom, for the 950)

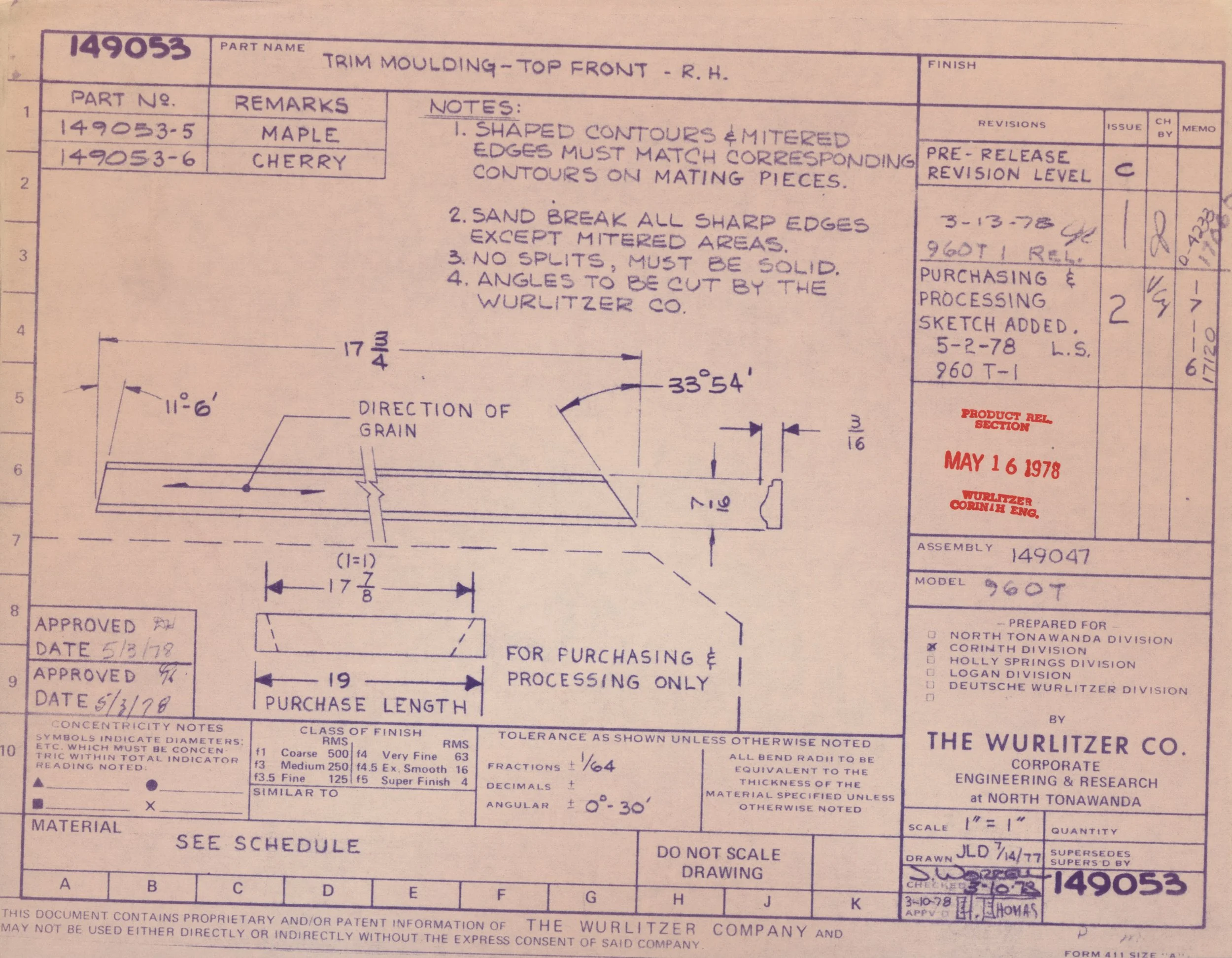

  • 149053 (Trim moulding, top front, right hand, for the 960T)

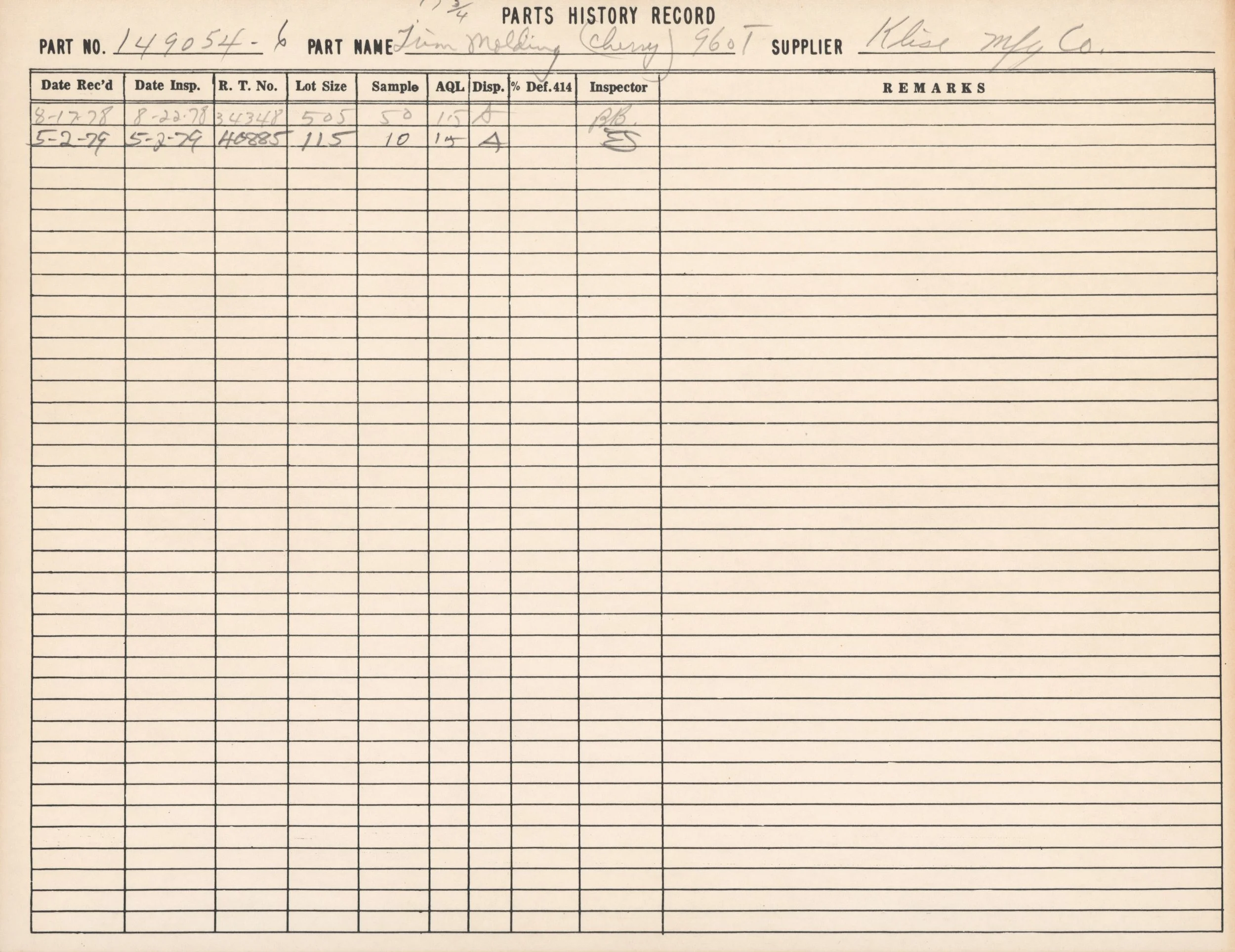

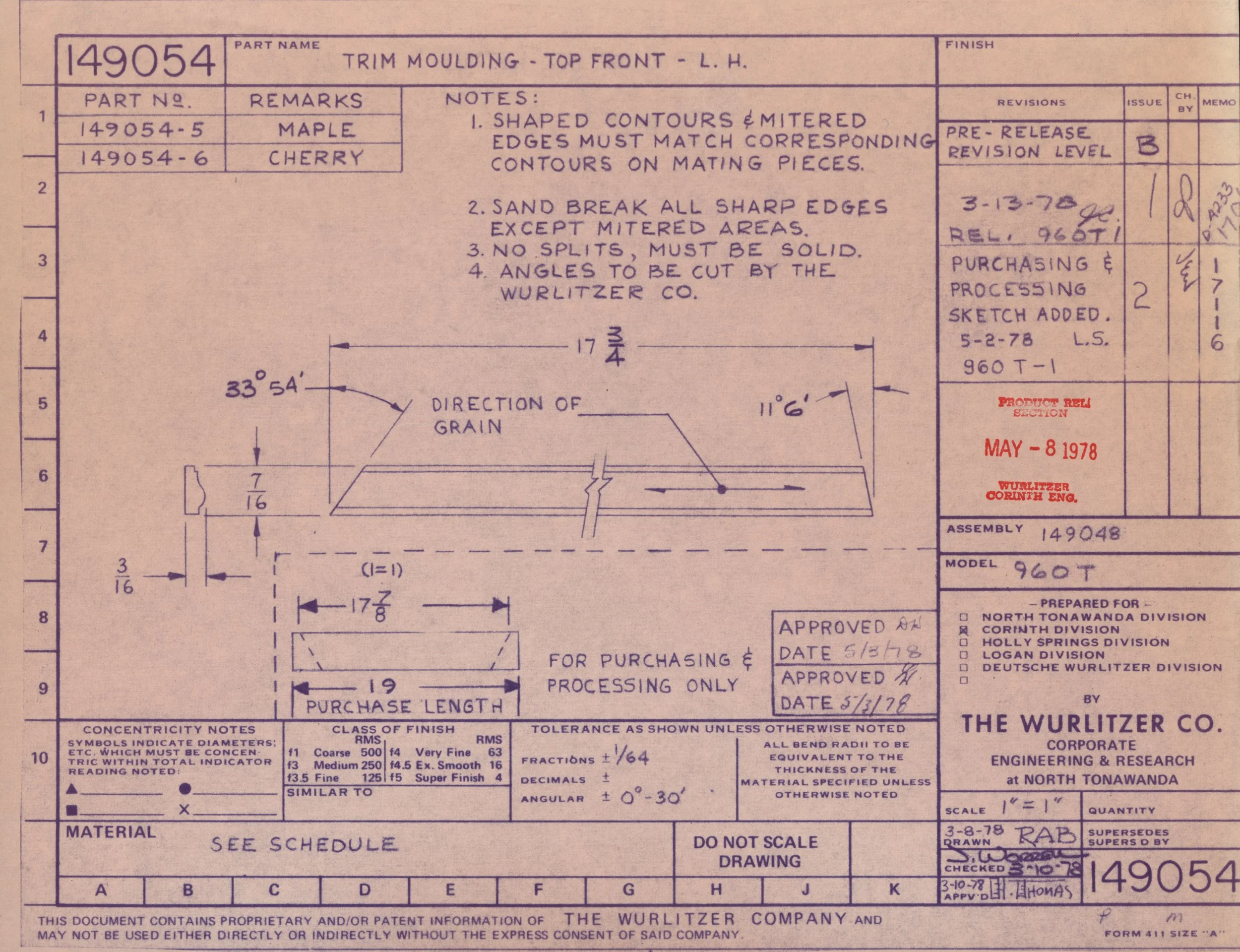

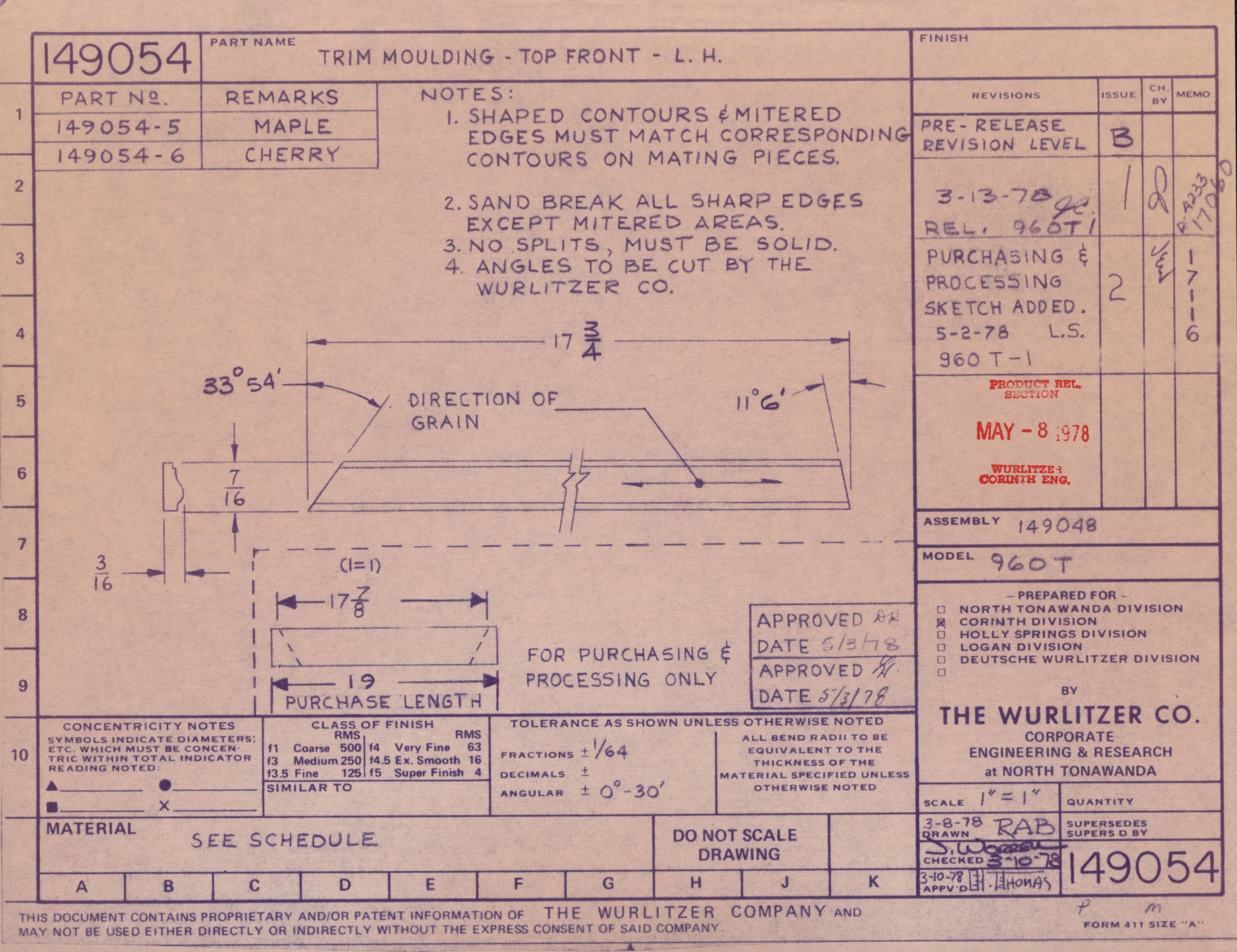

  • 149054 (Trim moulding, top front, left hand, for the 960T)

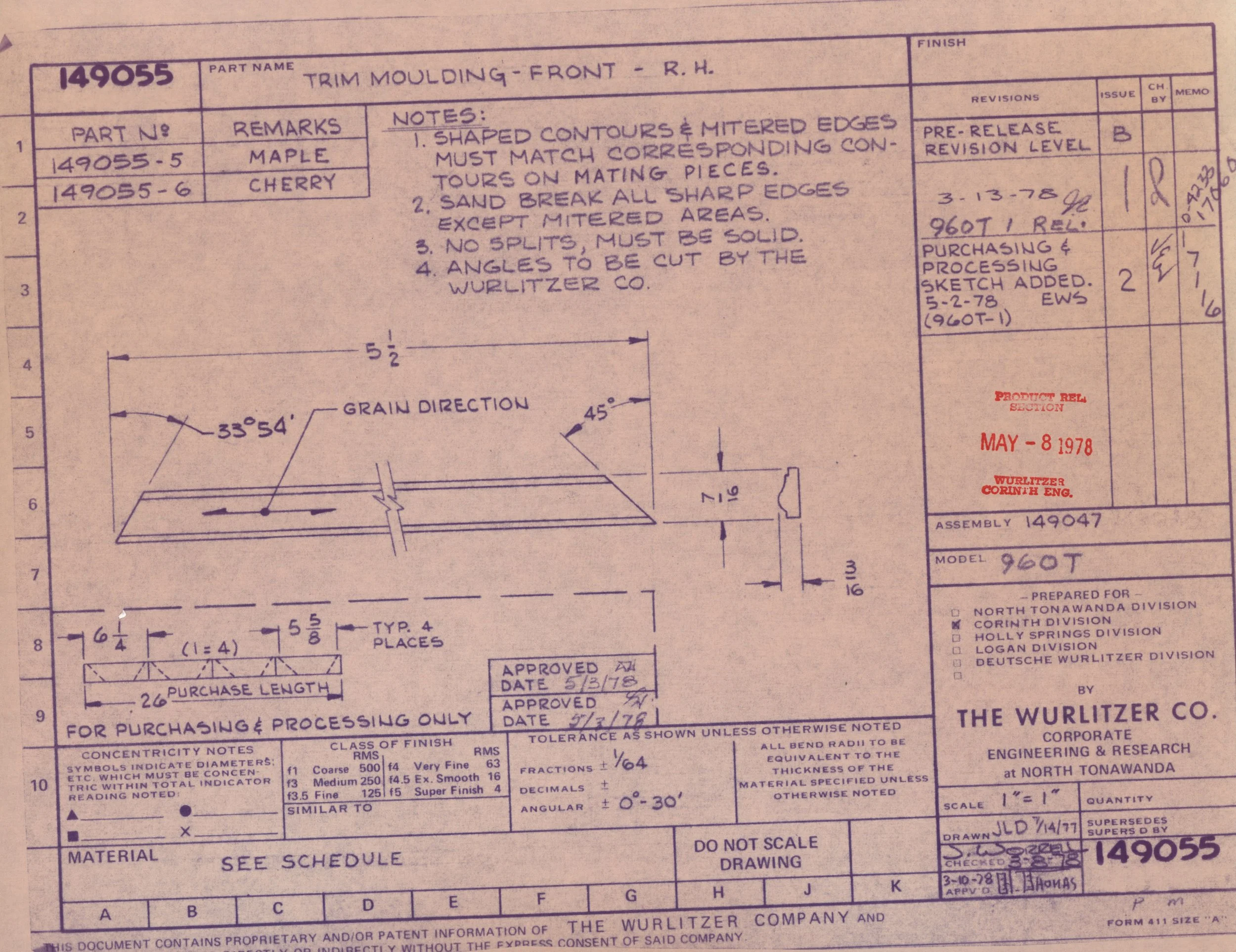

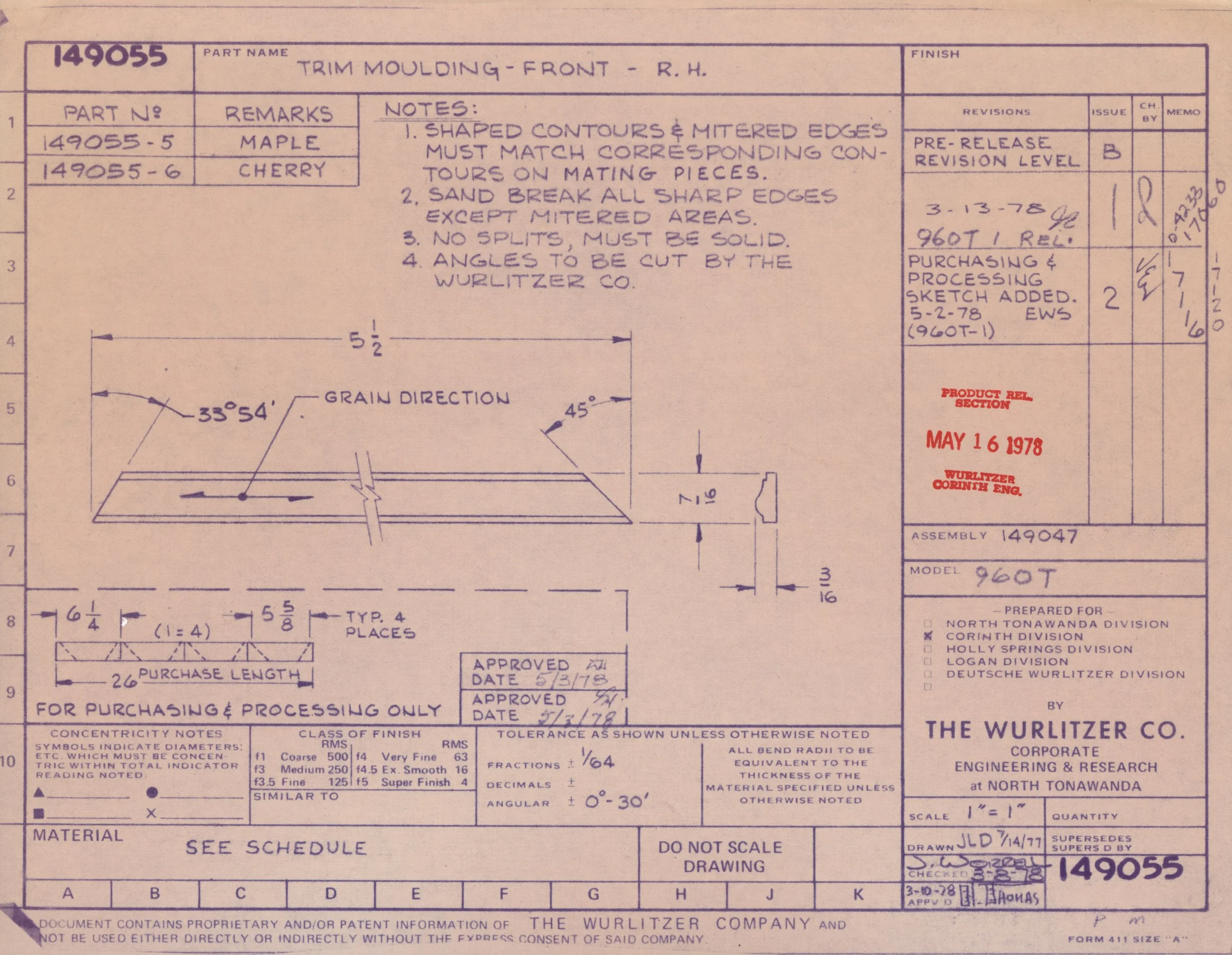

  • 149055 (Trim moulding, front, right hand, for the 960T)

  • 149056 (Trim moulding, front, left hand, for the 960T)

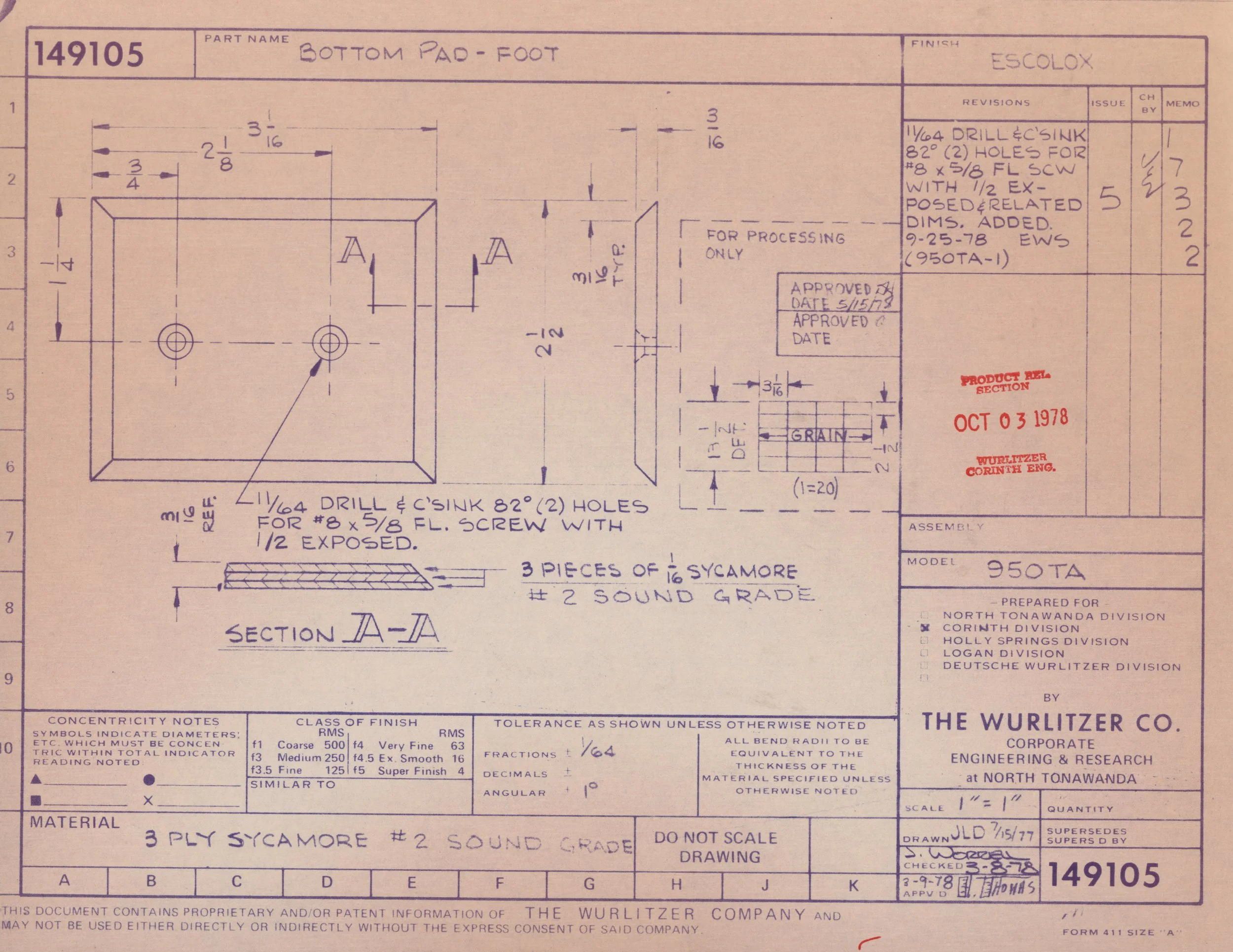

  • 149105 (Bottom pad, foot, for the 950TA)

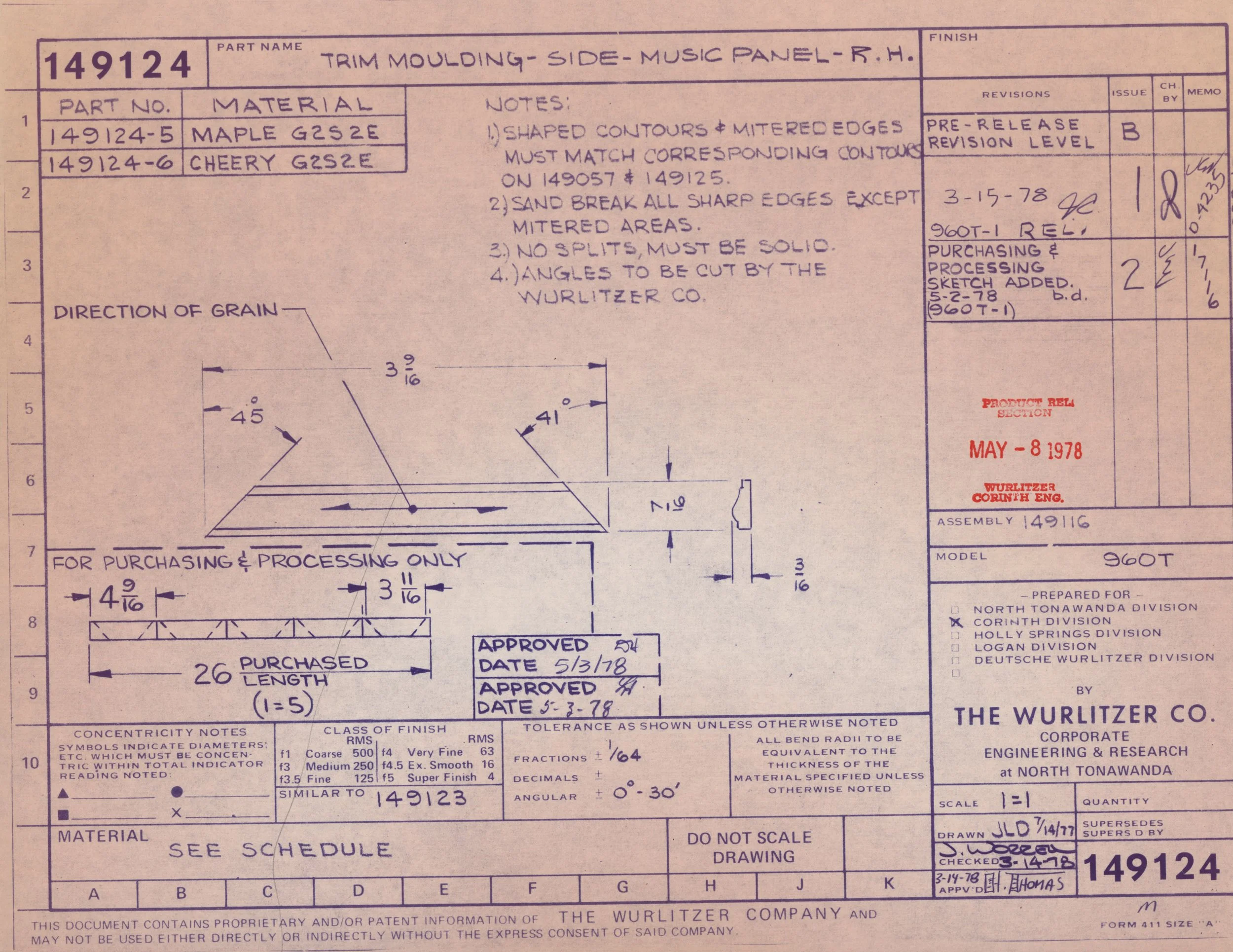

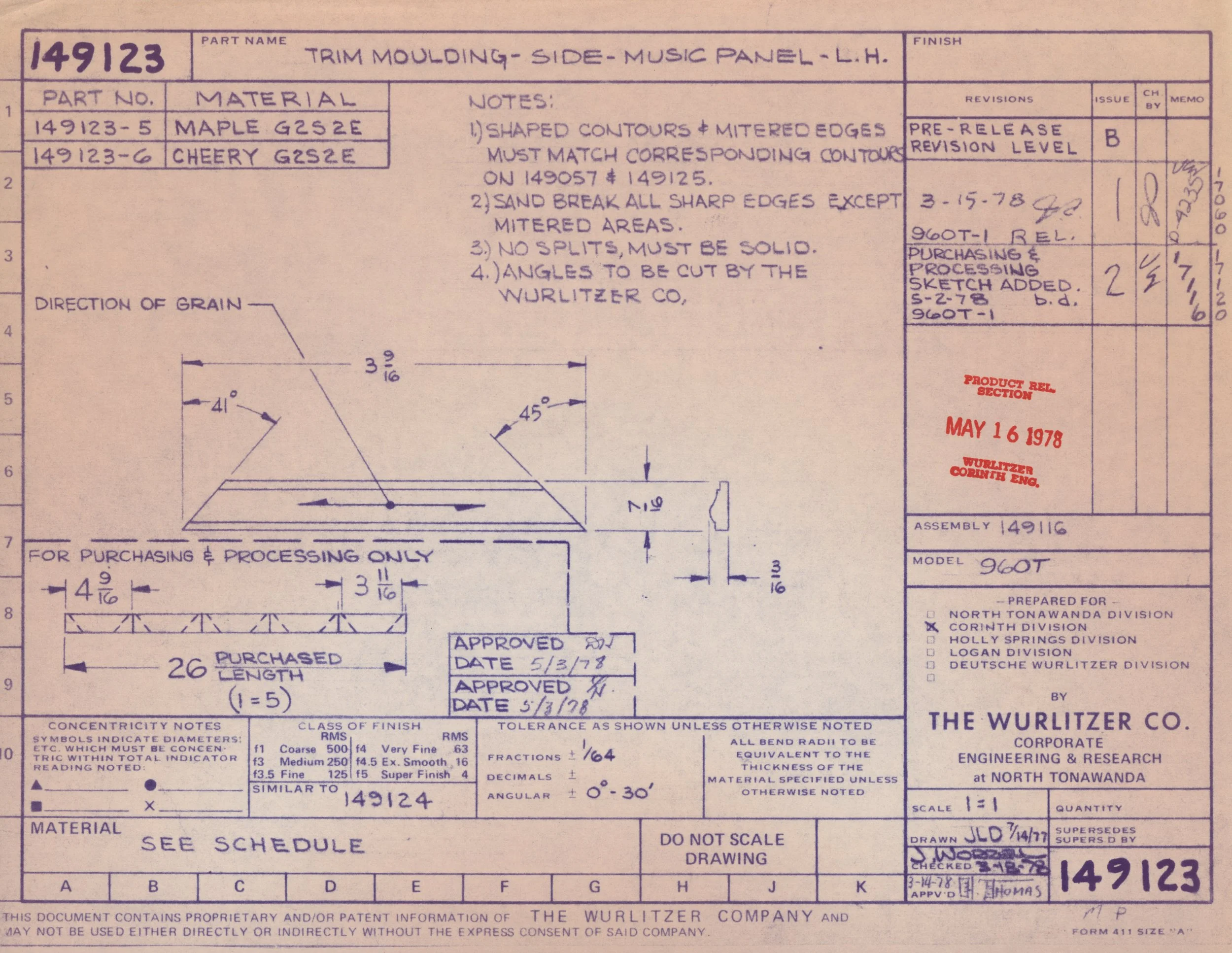

  • 149123 (Trim moulding, side, music panel, left hand, for the 960T)

  • 149124 (Trim moulding, side, music panel, right hand, for the 960T)

  • 149125 (Corner trim moulding, music panel, for the 960T)

  • 149126 (Overlay, music panel, for the 960T)

  • 149141 (Core blank, bench top, for the 950TA)

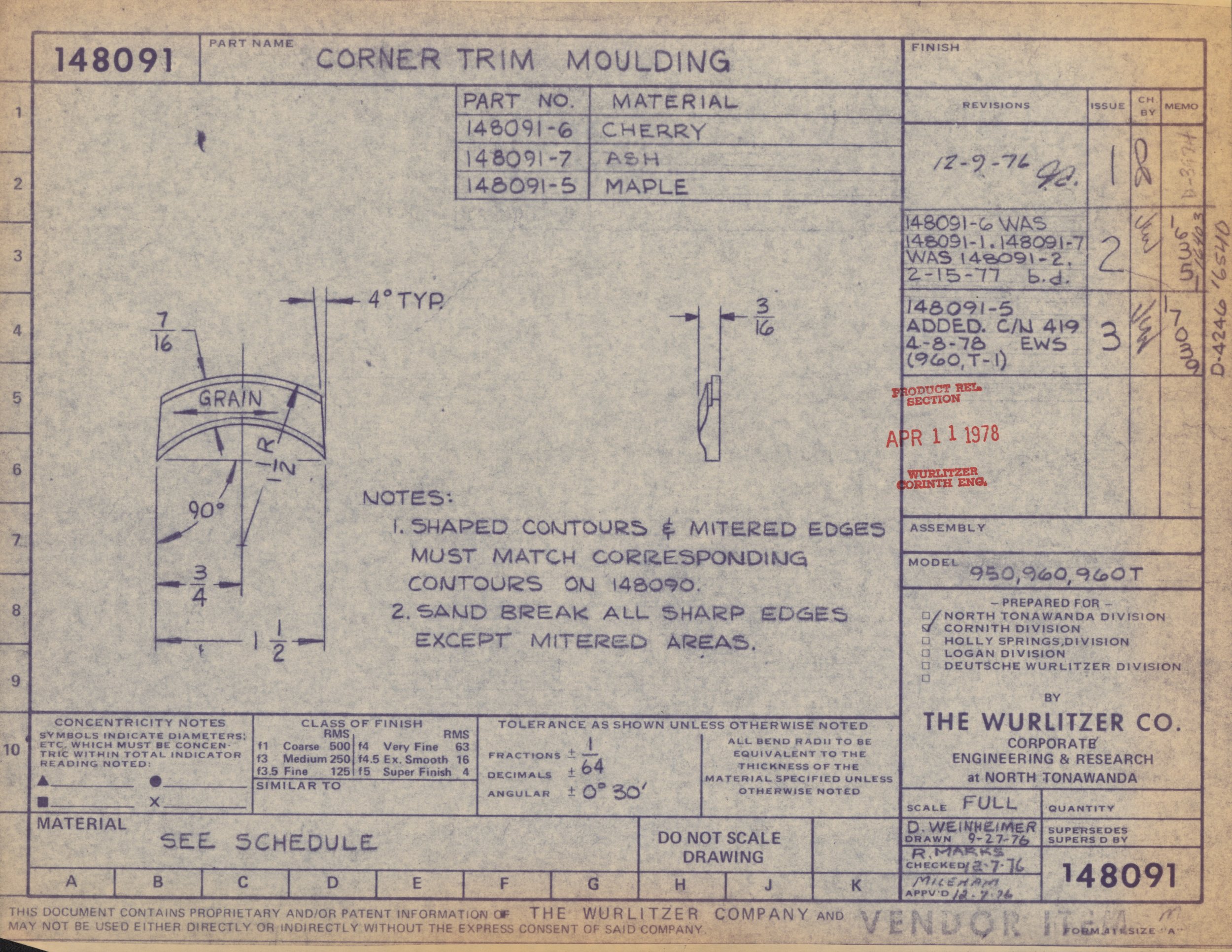

Technical drawing of a corner trim molding with detailed measurements and notes, including material specifications such as cherry, ash, maple, and illustrations of contours and edges.
Blueprint drawing of a partition blank with detailed measurements and specifications, prepared by The Wurlitzer Company.
A technical engineering drawing with various measurements, notes, and handwritten annotations, including parts of a blueprint for a wood particle board panel.

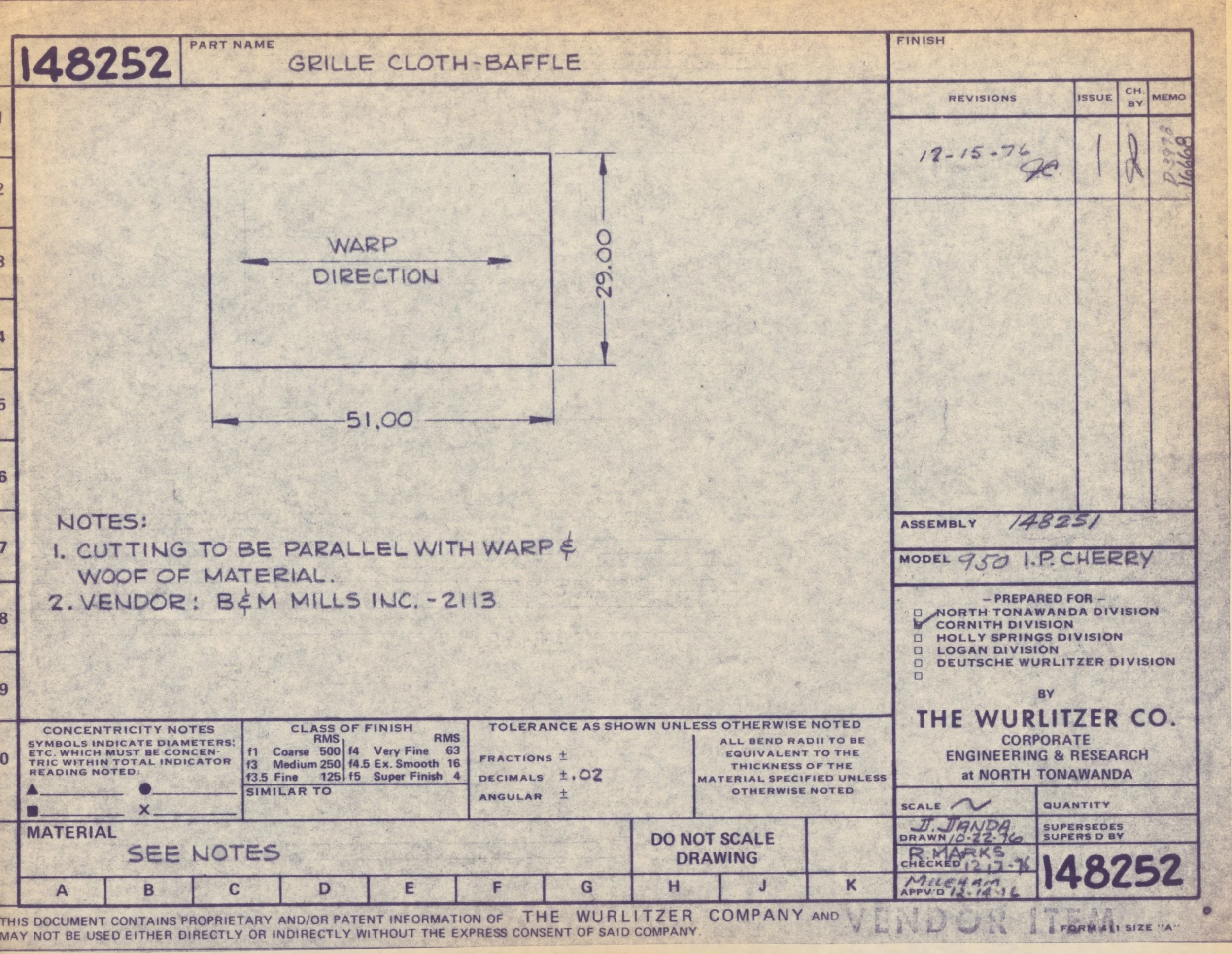

Blueprint or technical drawing of a material called "Grille Cloth-Baffle" measuring 51 inches by 29 inches. Contains handwritten notes, revision date 12-15-76, and printed company information for The Wurlitzer Co.
Technical drawing of a grille cloth back part with measurements, notes, and manufacturing details from the Wurlitzer Company.

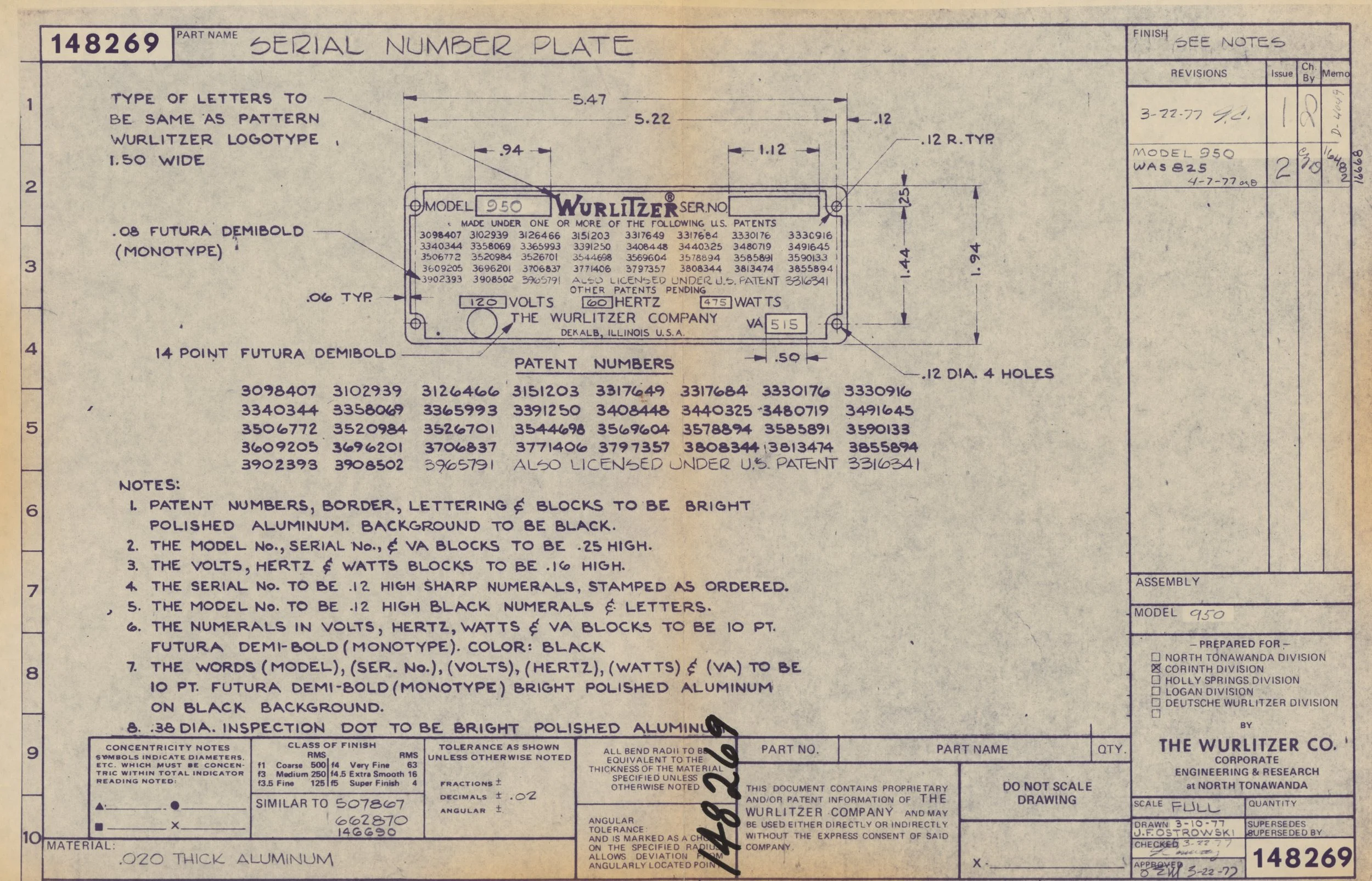

Technical drawing of a serial number plate for a model 950, made by Wurlitzer. The drawing includes measurements, specifications, and notes for manufacturing, with details about lettering, dimensions, and materials.
This is a technical drawing or blueprint for a grill cloth-baffle. The drawing includes specifications such as dimensions, part number, vendor, material, and notes. The date on the document is December 15, 1976, and it is prepared for North Tonawanda

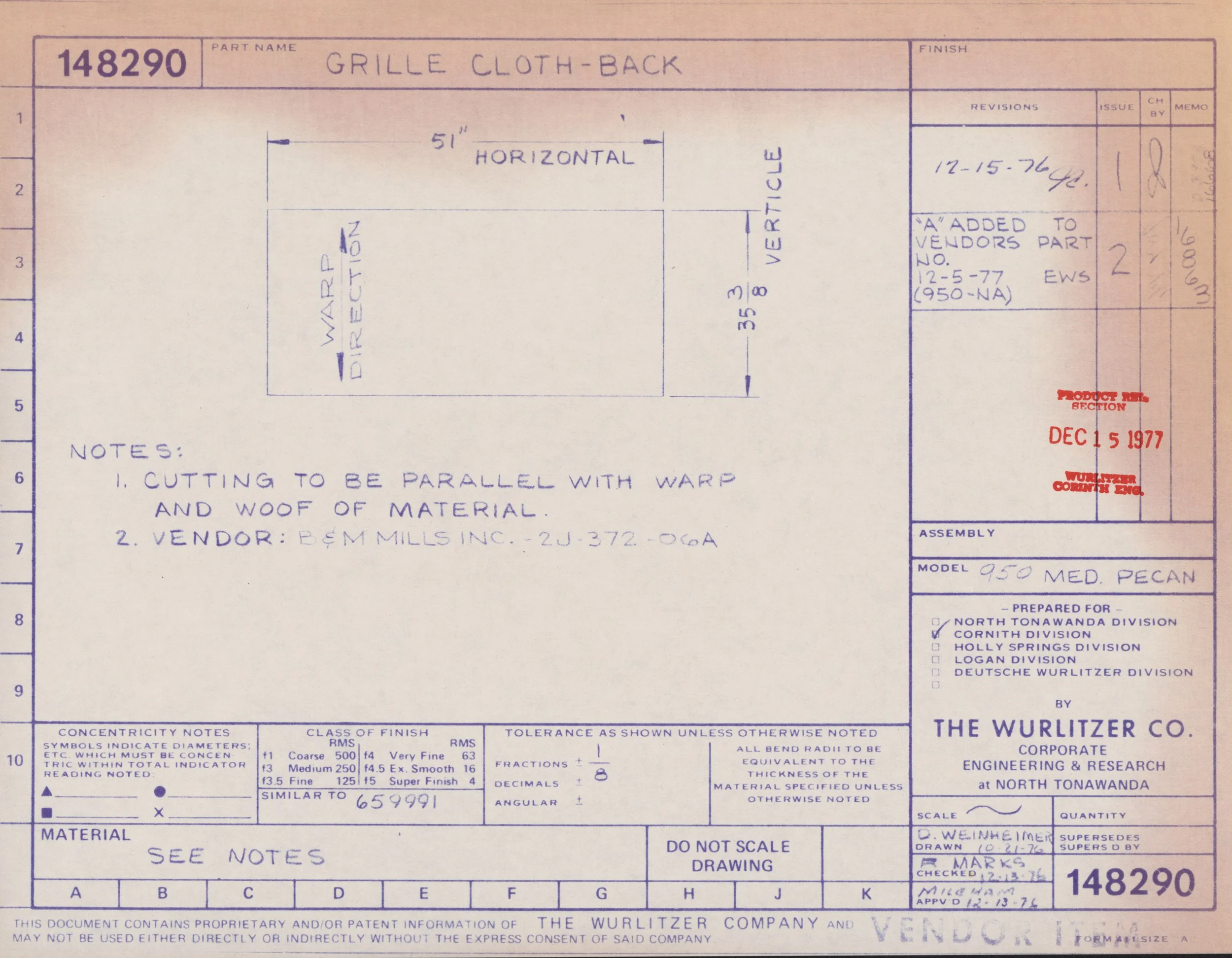

Blueprint or technical drawing of a back grille cloth with dimensions, notes, and manufacturer details.
A technical drawing or blueprint of a part labeled 'Blank-Back-Expression Pedal,' including detailed measurements, specifications, revision history, and material notes.

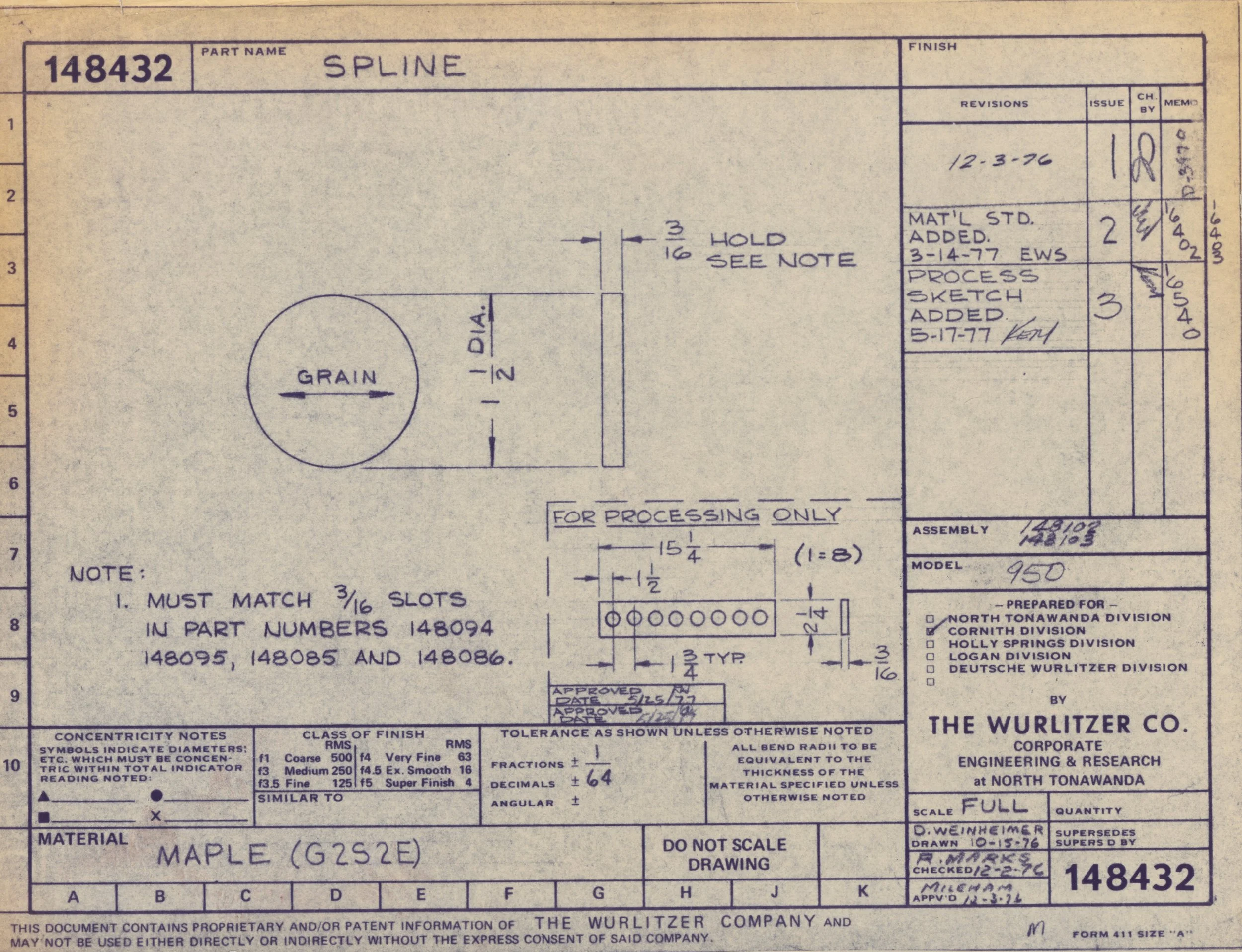

Close-up of a detailed engineering blueprint for a spline part, with handwritten notes, dimensions, material specifications, and approval signatures.

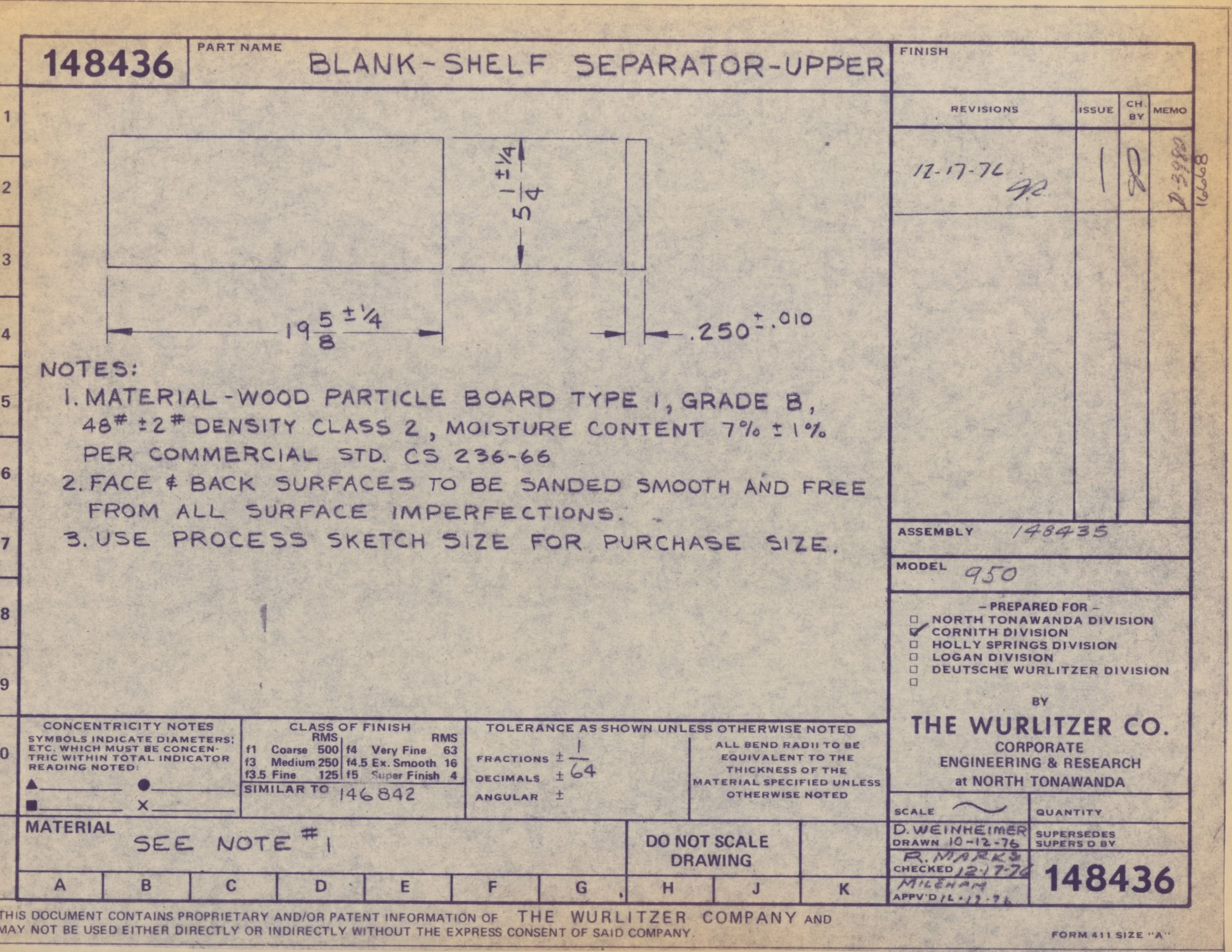

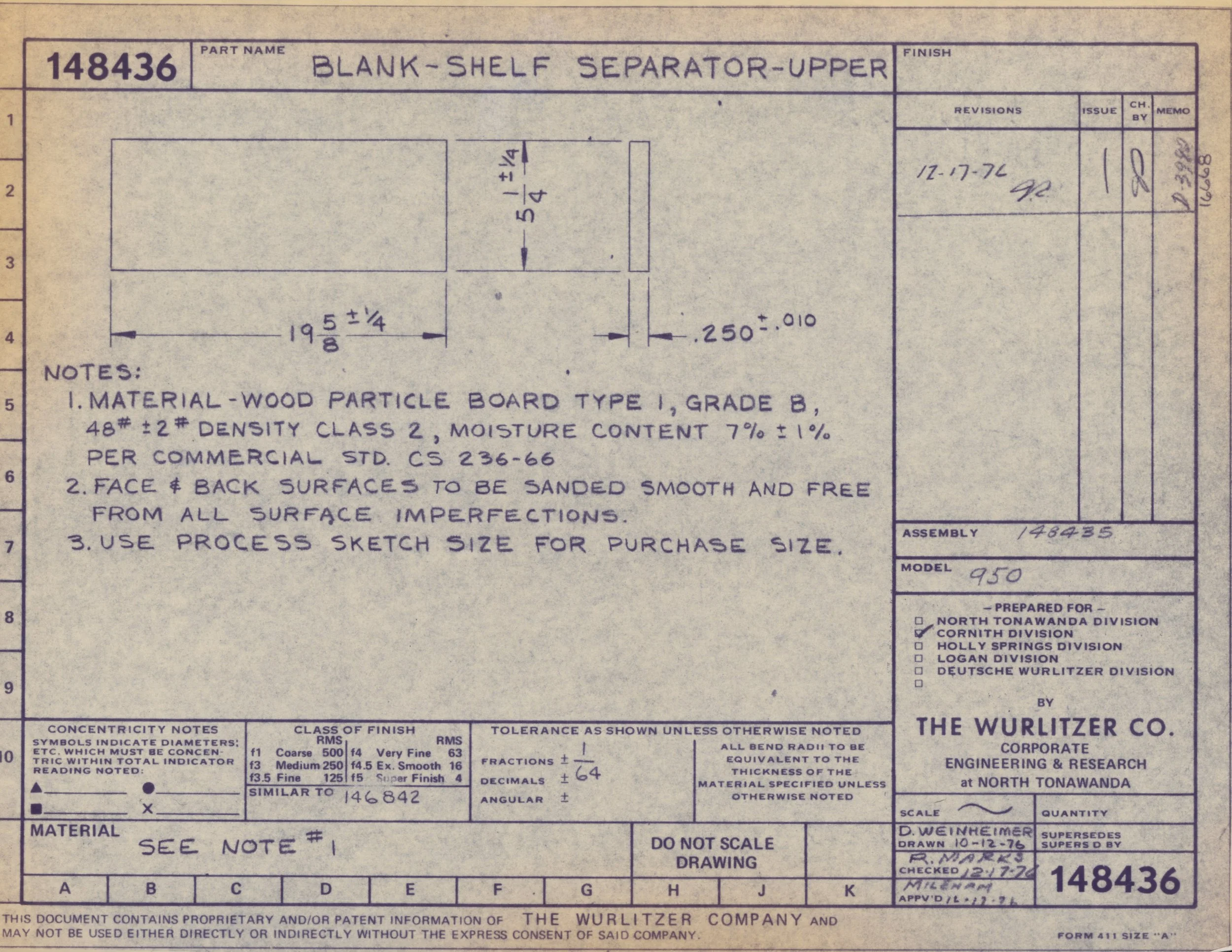

Technical blueprint for an upper shelf separator, including measurements, notes on materials, and specifications for construction, created by The Wurlitzer Company.
Engineering blueprint for a wood particle board shelf separator with detailed measurements and notes.

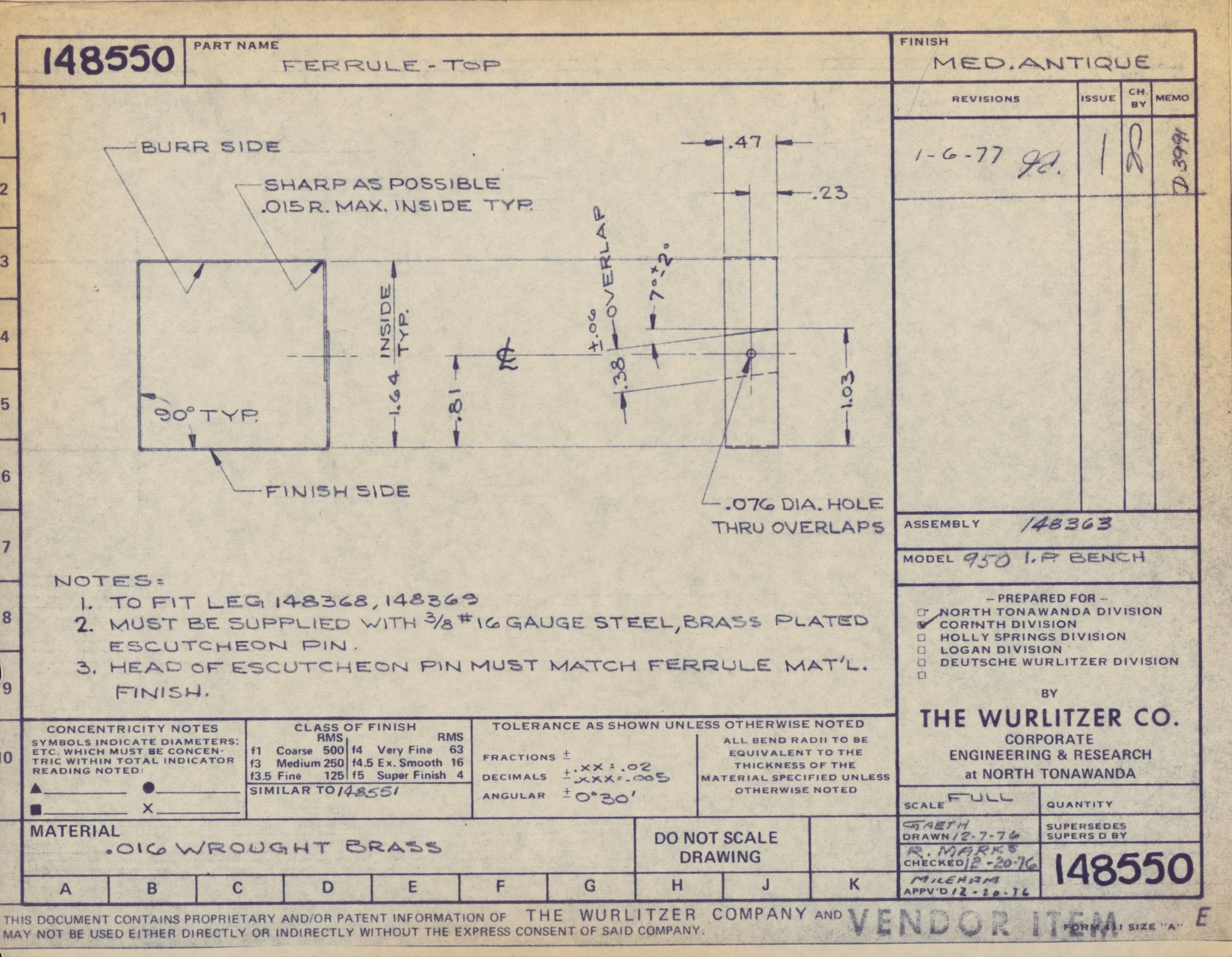

Technical engineering blueprint for a ferrule-top, showing dimensions, materials, and assembly instructions.

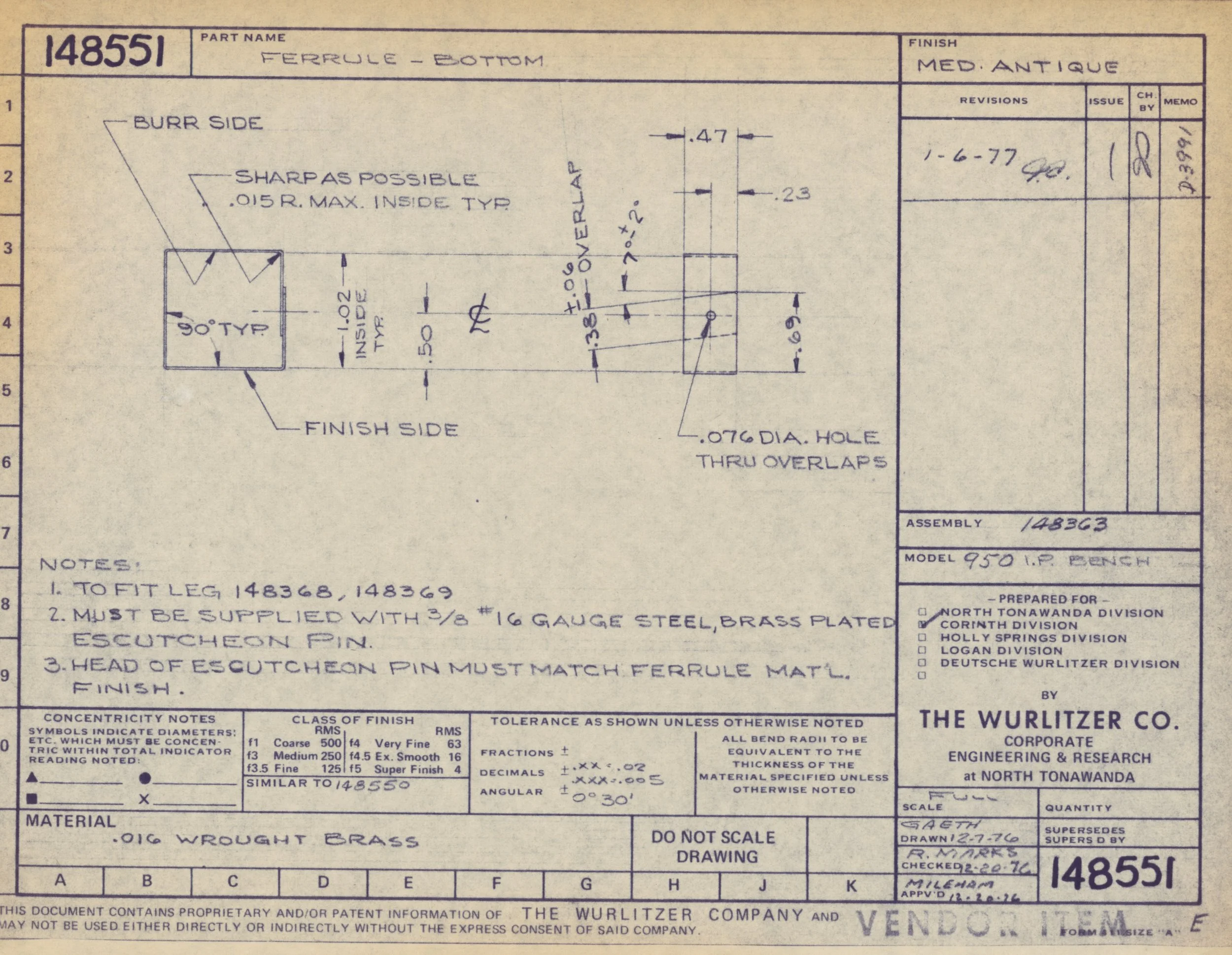

Technical drawing of a metal ferrule bottom with detailed measurements, notes, and instructions, created by The Wurlitzer Company for assembly and material specifications.

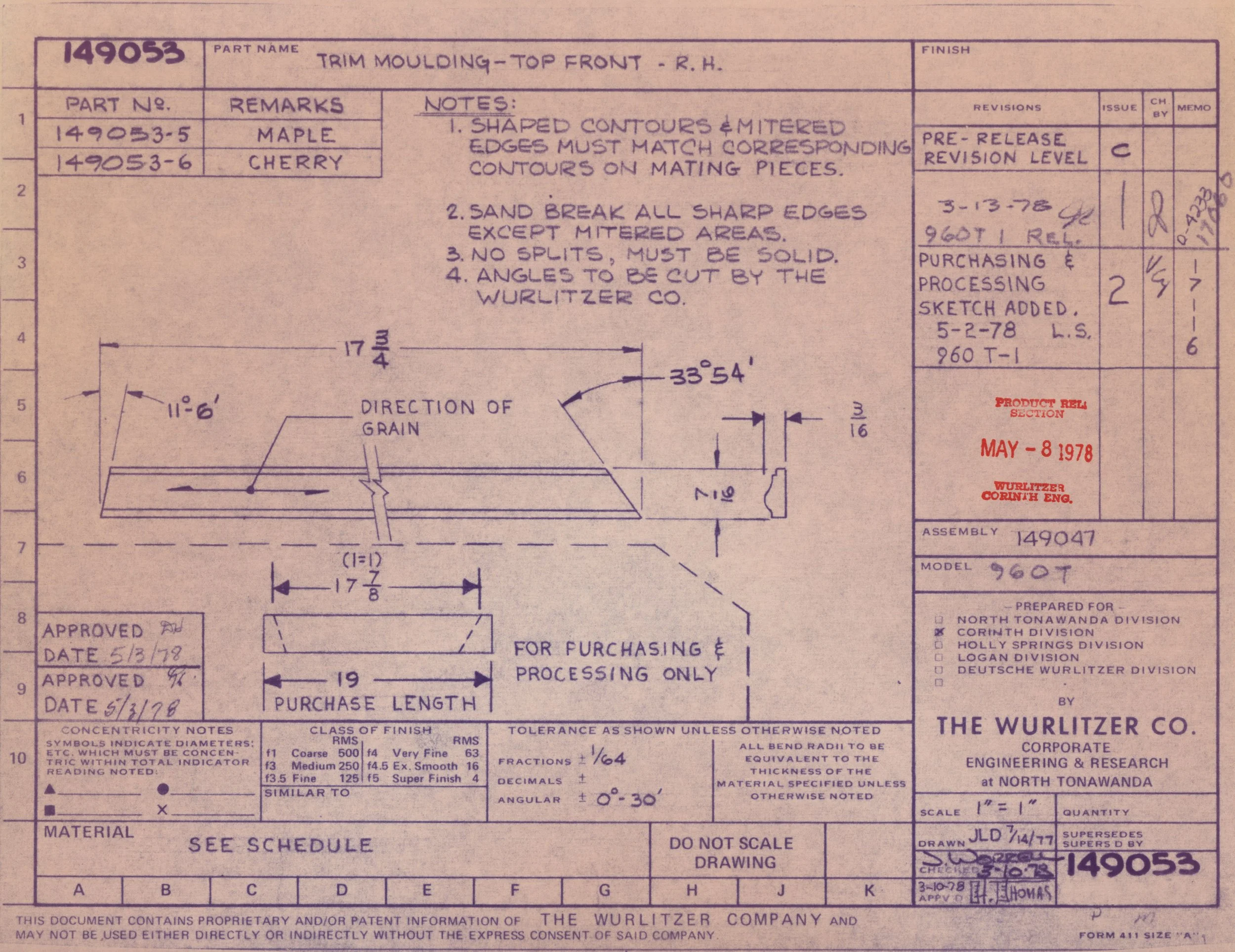

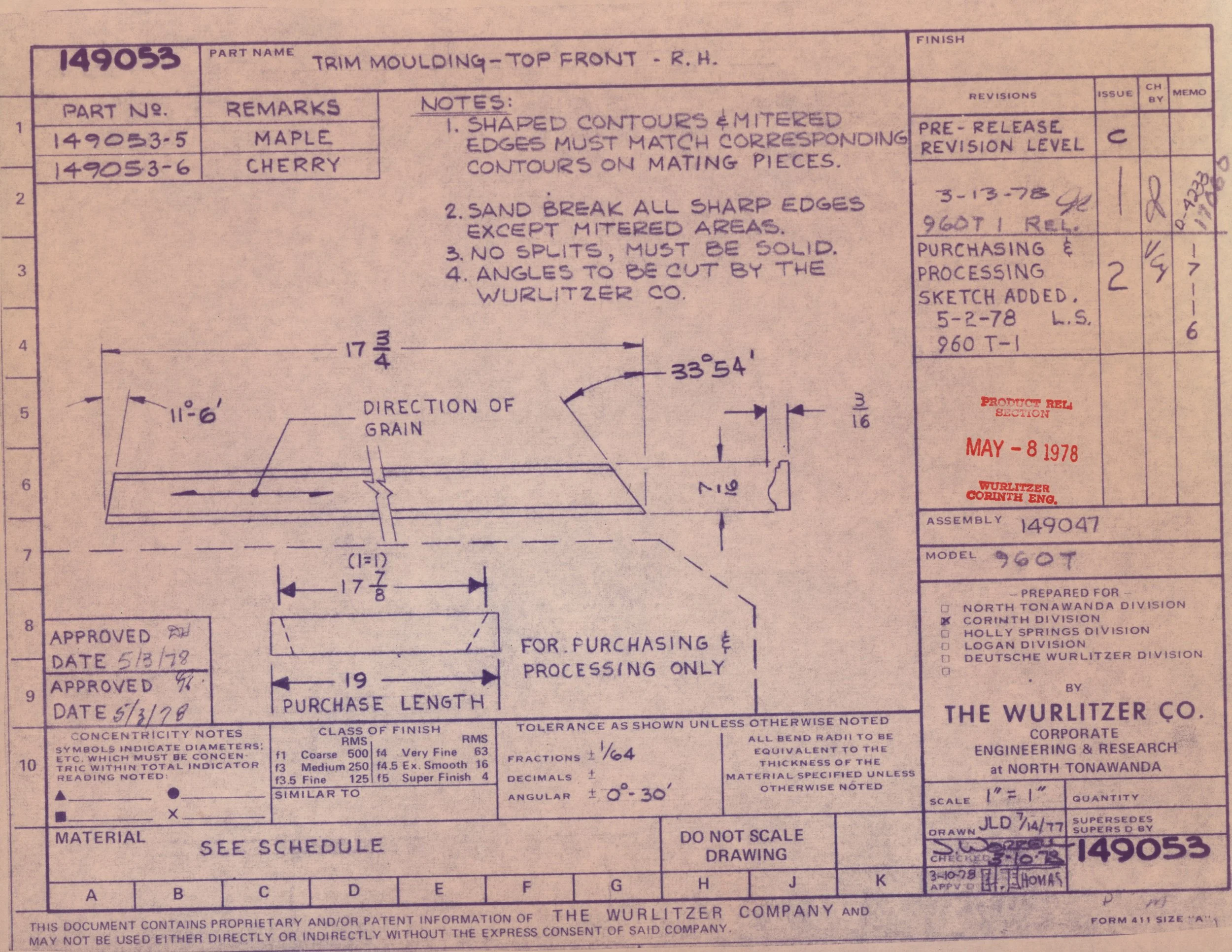

Technical blueprint or engineering drawing for a trim moulding, top front right hand, with notes on contours, edges, sandbreak, and angles, including dimensions and revision details.
Technical engineering blueprint with detailed notes, measurements, and specifications, including section labels and approval stamps.
Technical drawing blueprints with measurements and notes, detailing a trim moulding design with specific angles, dimensions, and material instructions.

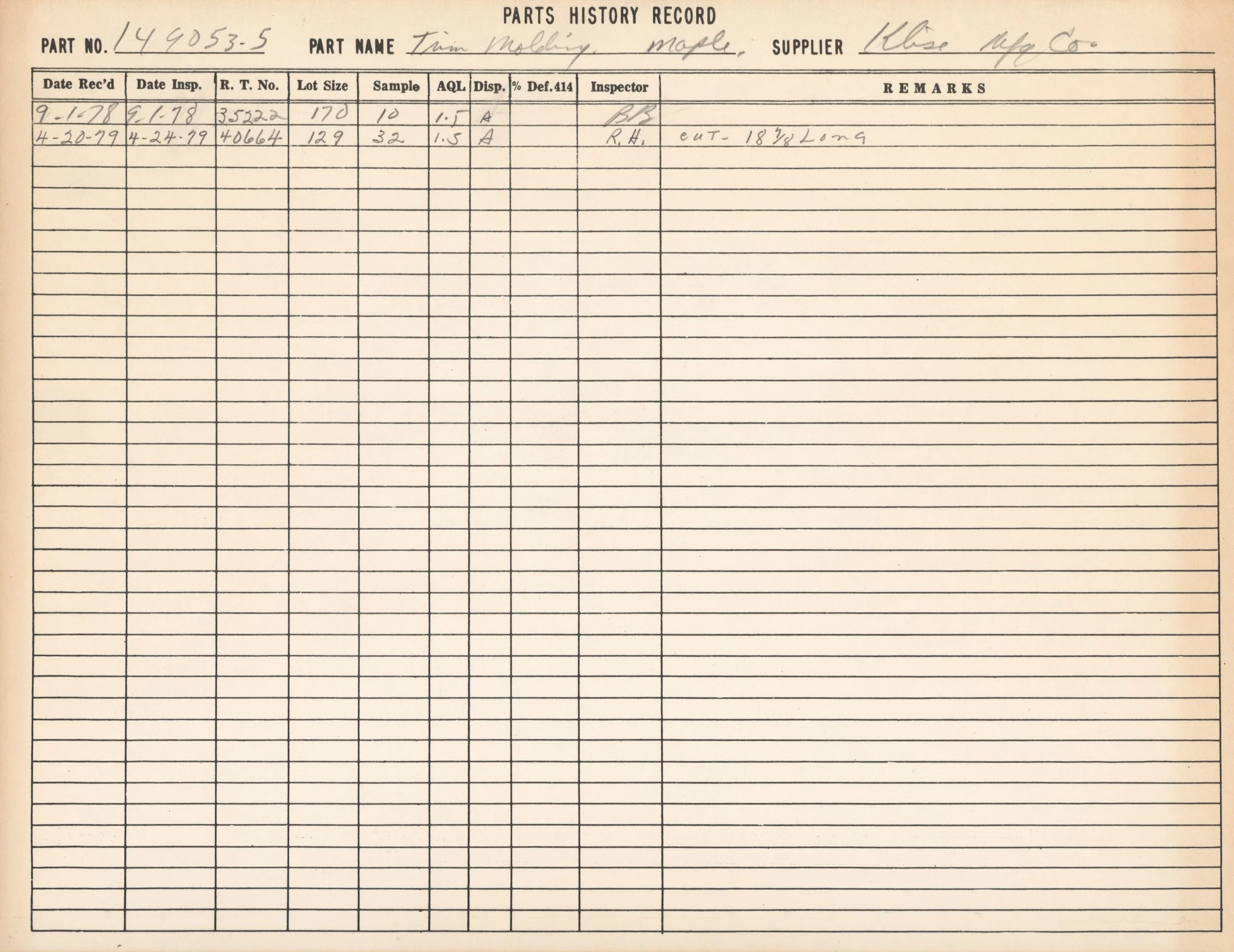

A detailed parts history record sheet for a model train, with handwritten entries including part number, part name, supplier, date received, date inspected, lot size, sample size, AQL, disposition, percentage defective, inspector, and remarks. The pa
A vintage handwritten record chart for parts inventory detailing part number, part name, supplier, dates, sample size, and inspection remarks.
Technical blueprint or engineering drawing with handwritten notes, measurements, and specifications for a part named 'Trim Moulding - Top Front - L.H.' by The Wurlitzer Company, dated March 13, 1978.

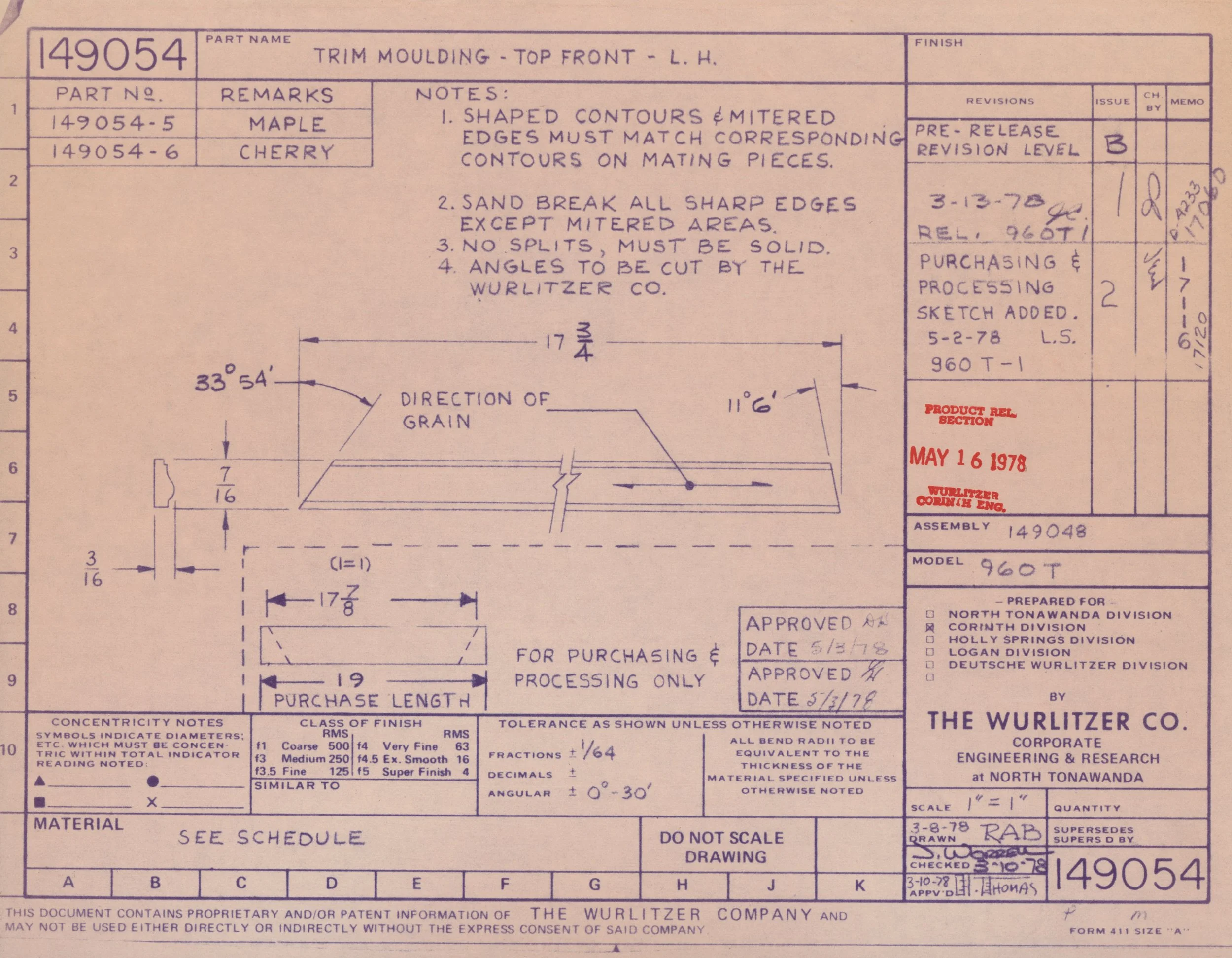

Engineering blueprint for trim molding top front for left hand, including notes on shaped contours, tapered edges, sandblasting, and angles, with technical measurements and specifications.

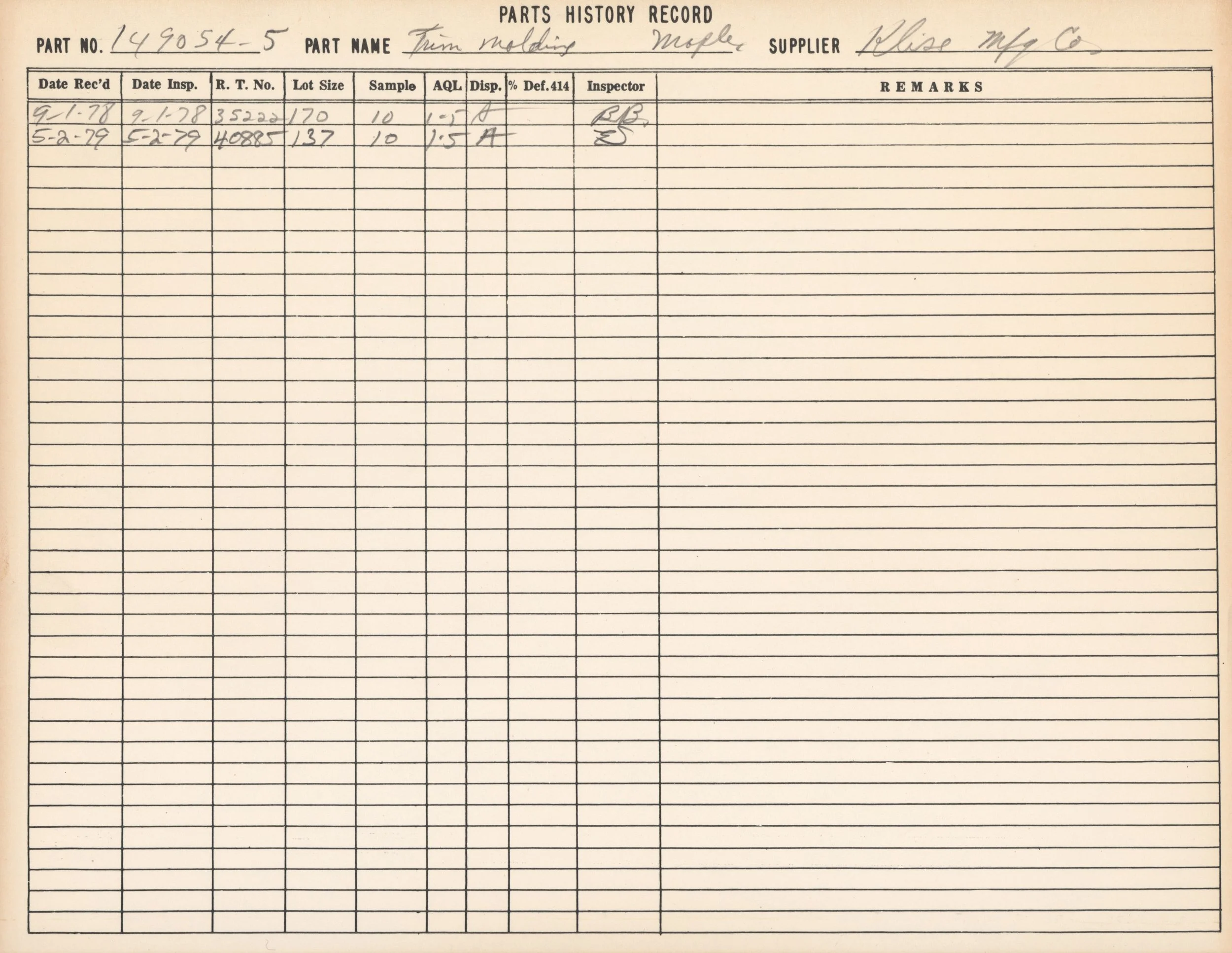

A handwritten parts history record chart with columns for part number, part name, supply, date received, date inspected, lot size, sample size, AQL, disposal, percent defective, inspector, and remarks. The top section notes part number 149054-5, part
A handwritten record sheet titled "Parts History Record" for a cherry molding part, with details including part number, name, supplier, dates, lot size, sample, inspections, and inspector remarks.

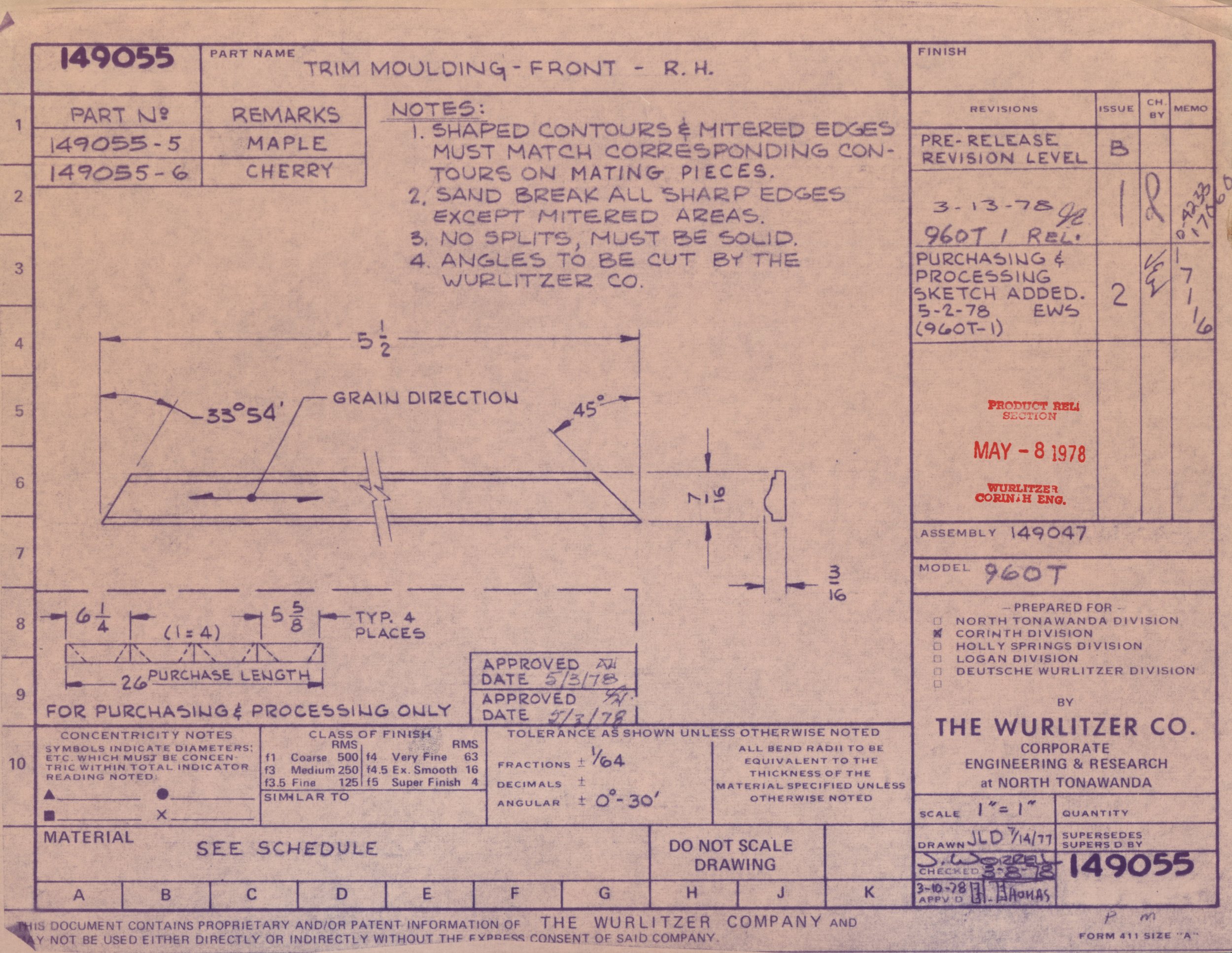

Technical blueprint or engineering drawing for a product part, labeled 'TRIM MOULDING - FRONT - R.H.', dated May 16, 1978, created by Wurlitzer Corporation, showing specifications, notes, and measurements.
Technical engineering drawing with detailed annotations and specifications, including material and process notes, dimensions, and approval stamps, dated May 8, 1978.
Close-up of a technical drawing or blueprint with markings, notes, and measurements.

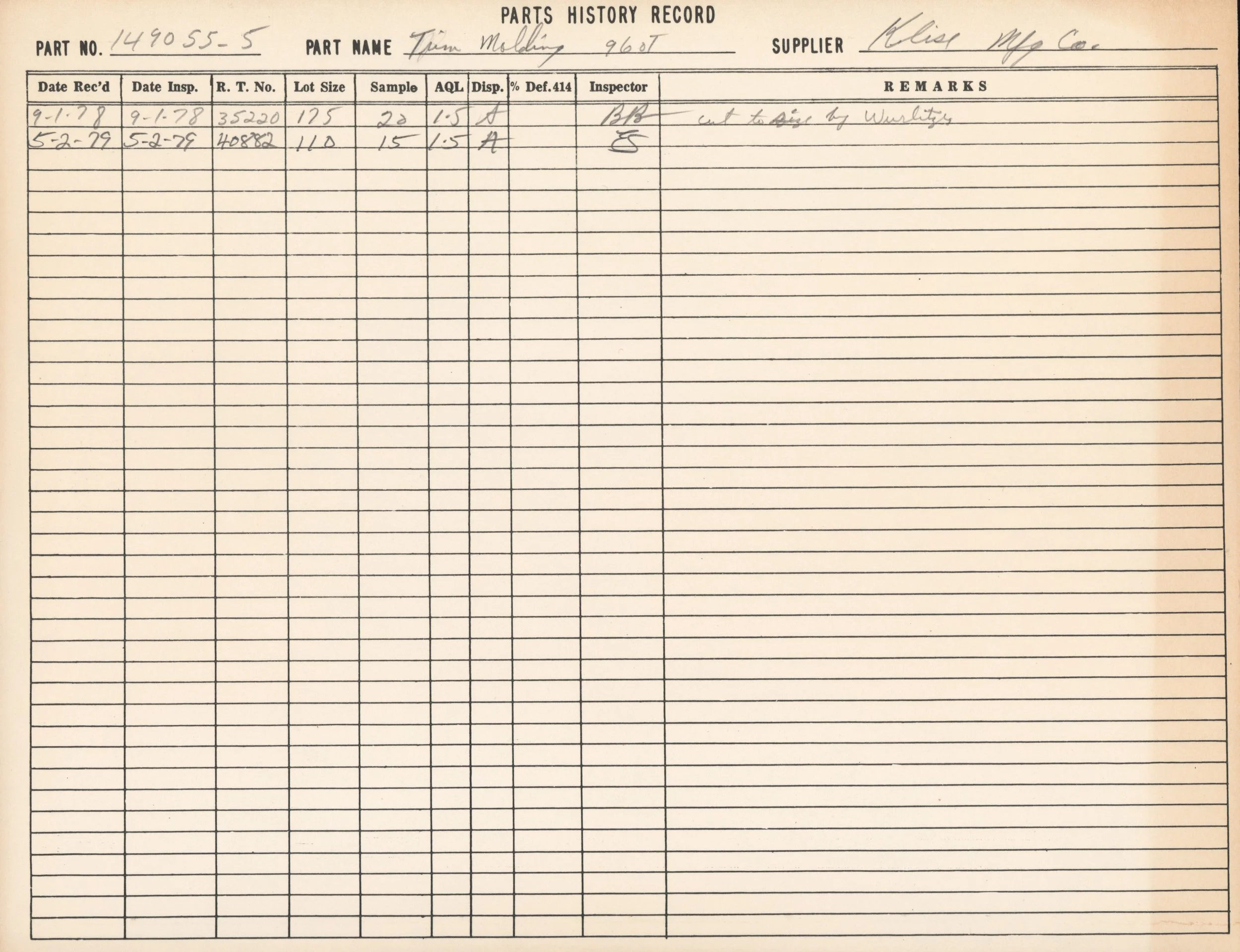

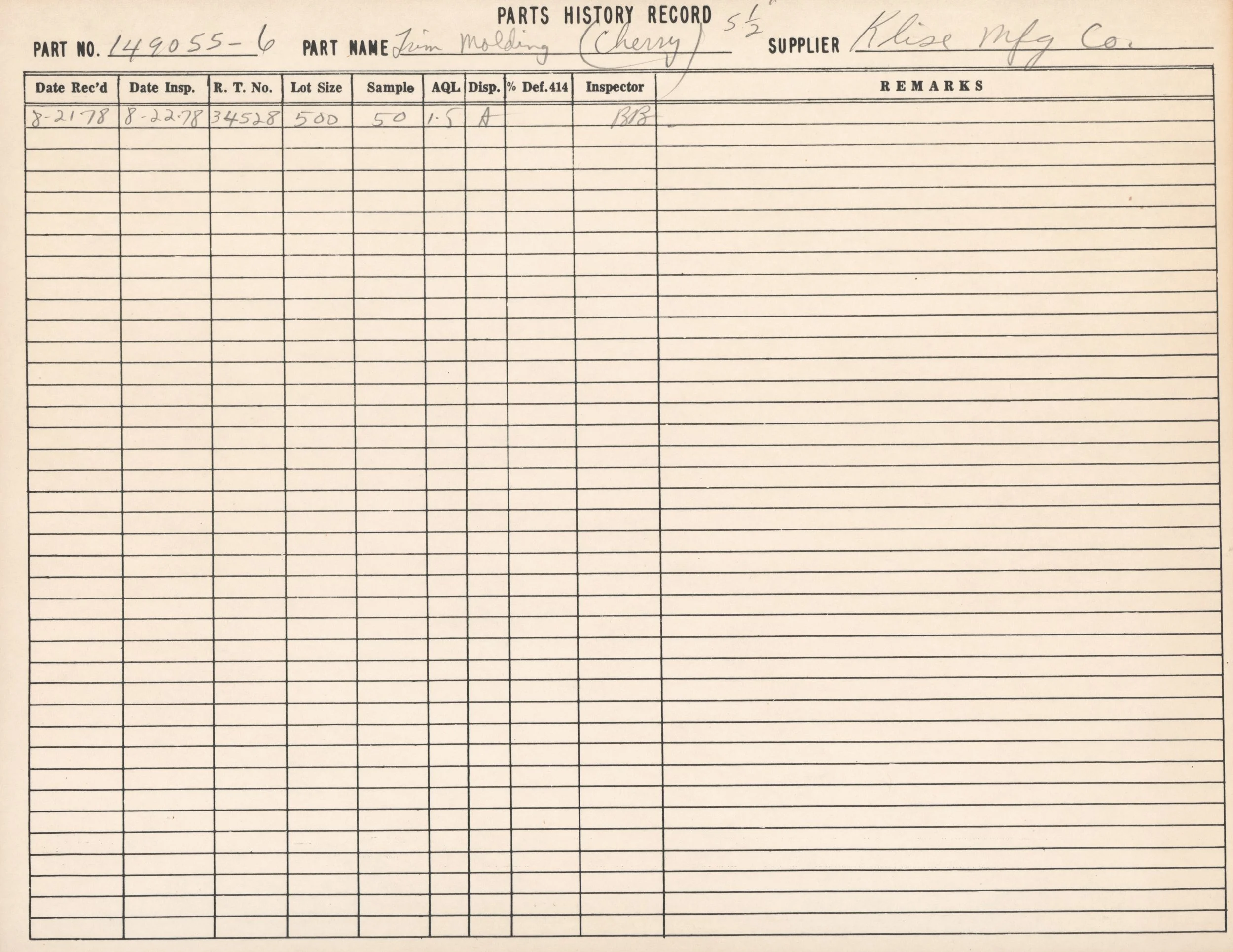

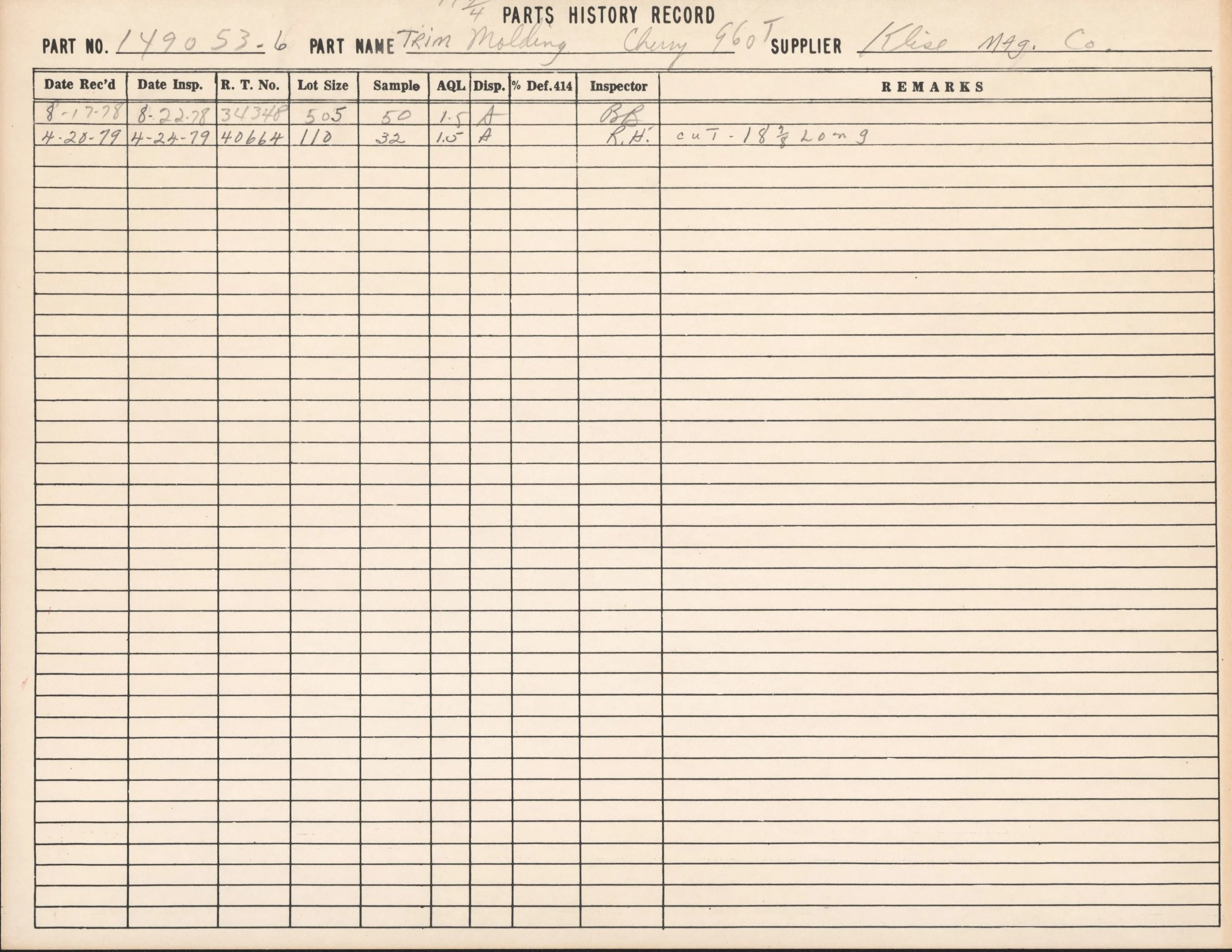

A historical record sheet titled 'Parts History Record', detailing the part number 149055-5, part name 'Trim Molding 9607', and supplier 'Kleis Mfg Co'. The sheet contains handwritten entries, dates, inspection details, lot sizes, sample and AQL quan
A vintage parts history record form with handwritten information about a cherry molding part, including part number, name, supplier, inspection dates, lot size, sample, and remarks.

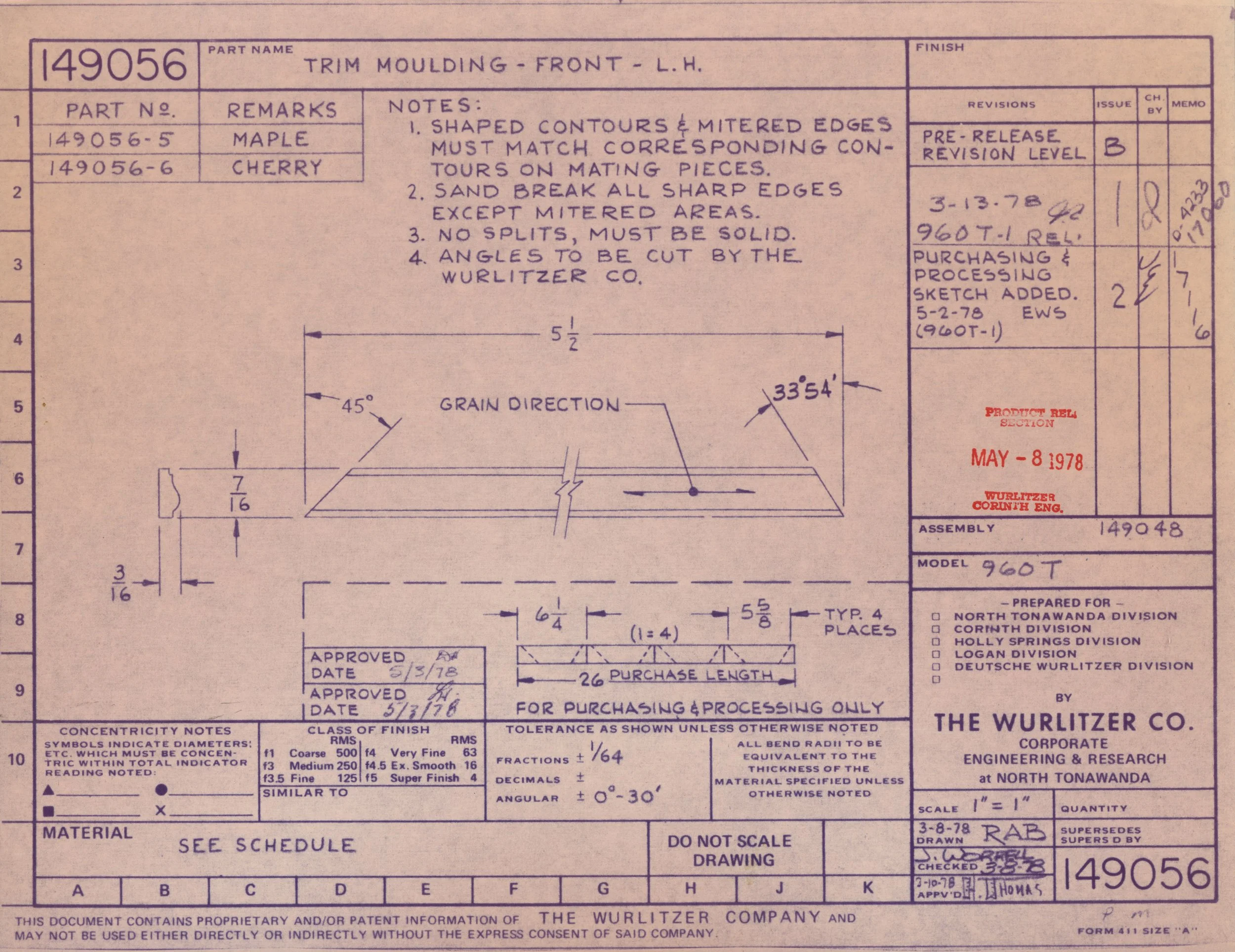

Technical drawing of a front trim molding with notes about dimensions, materials, and manufacturing specifications, dated May 16, 1978.

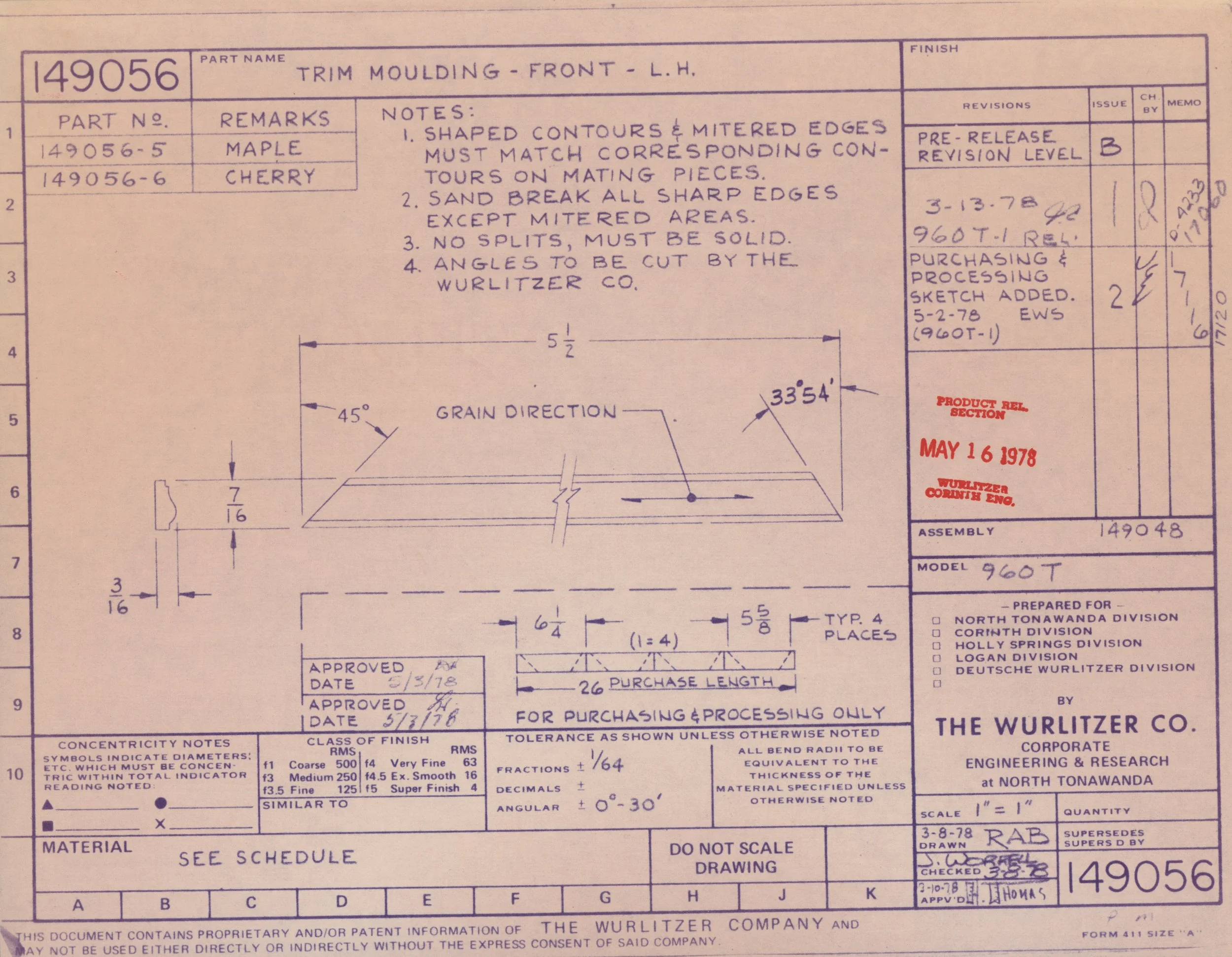

Technical blueprint or engineering drawing for a trim molding top front left hand part, indicating dimensions, notes, and material specifications.
Blueprint diagram for a trim molding, front left side, with detailed measurements and notes, dated May 8, 1978, created by The Wurlitzer Company.
A handwritten parts history record sheet for a Tim Molding Maple 960 part, including part number, description, supplier, inspection date, and notes.

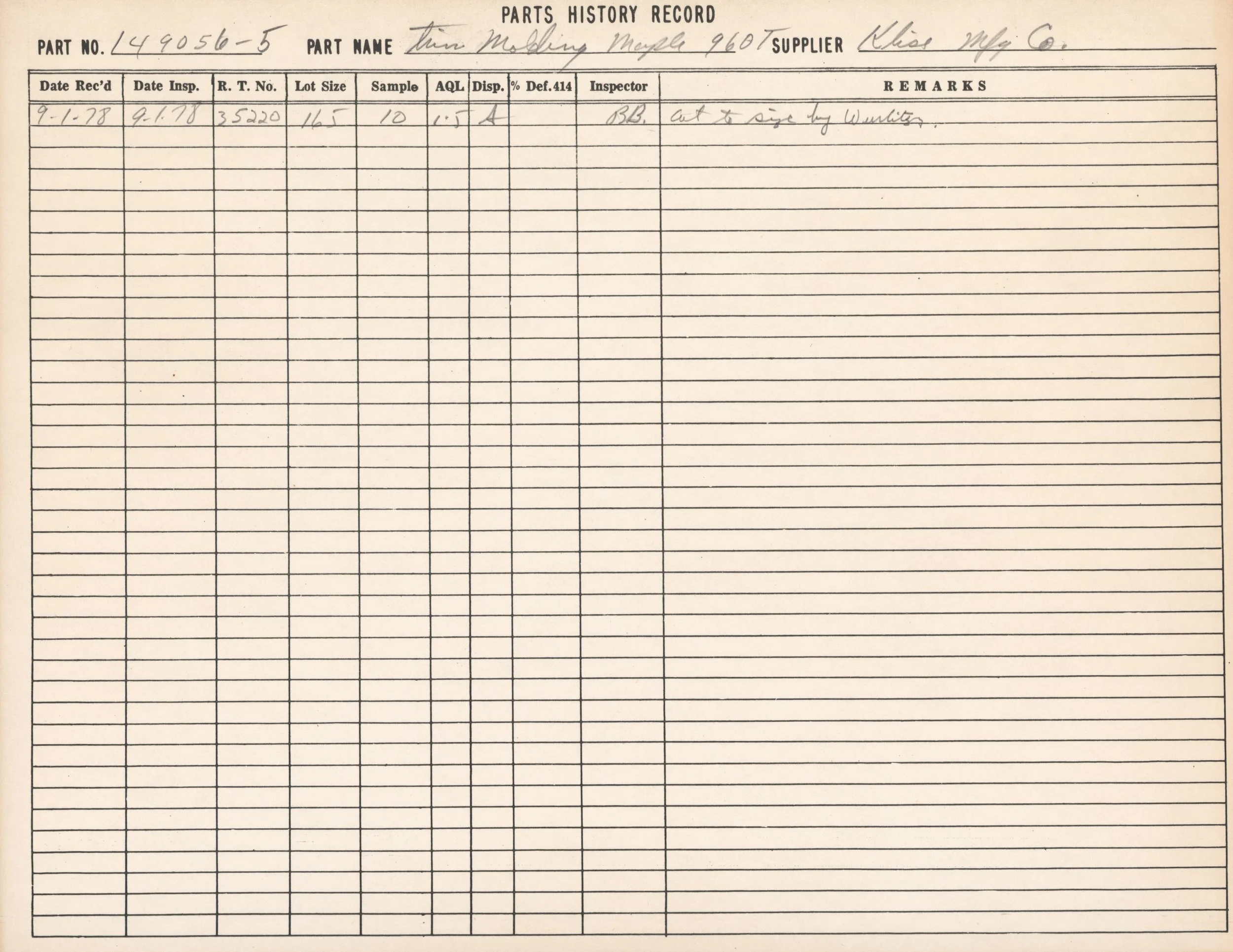

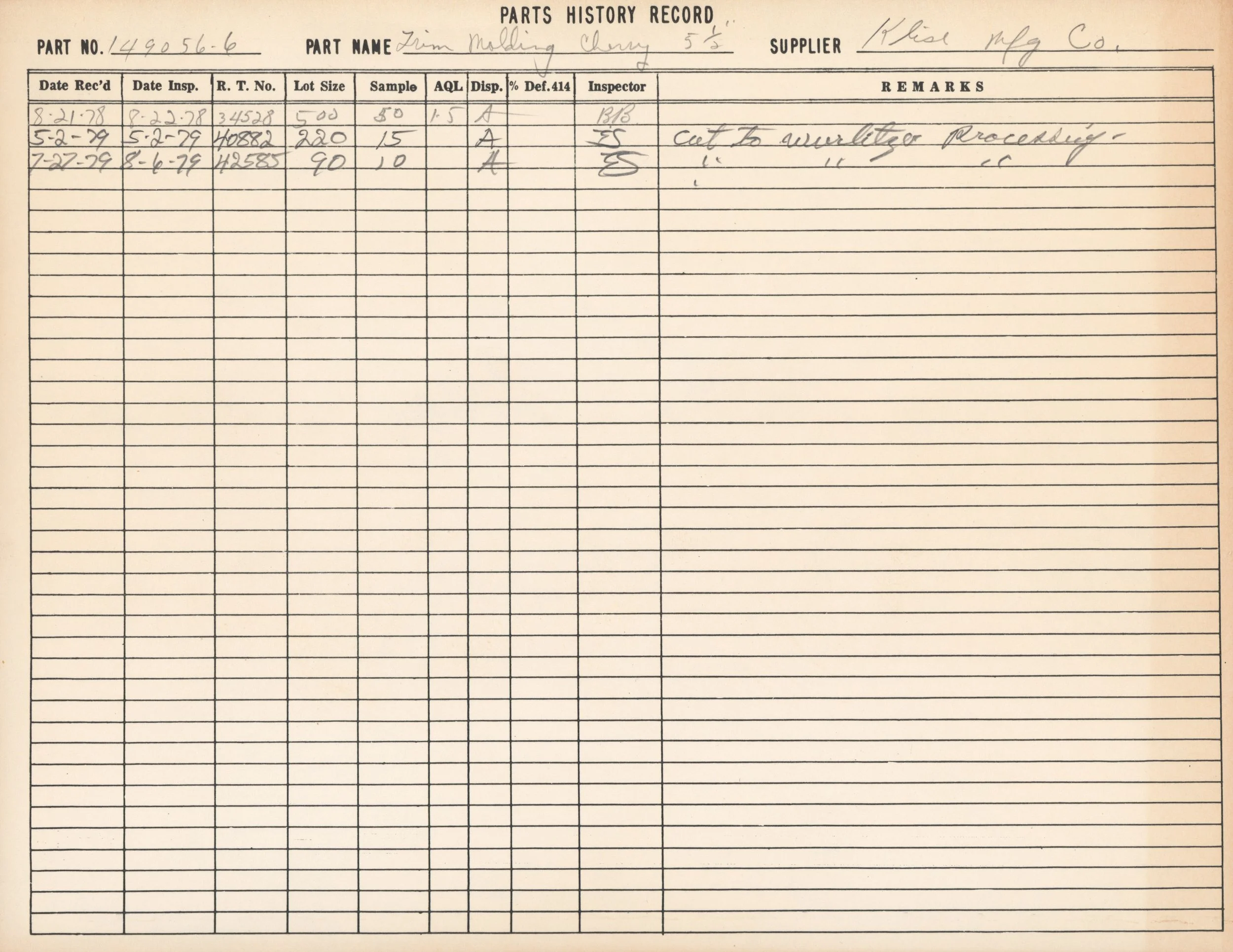

A handwritten record titled 'Parts History Record' for a part number 149056-6 called 'Trim Molding, Cherry, 5 1/2' supplied by McKee Mfg Co. The record includes dates, inspection details, lot size, sample data, and remarks.

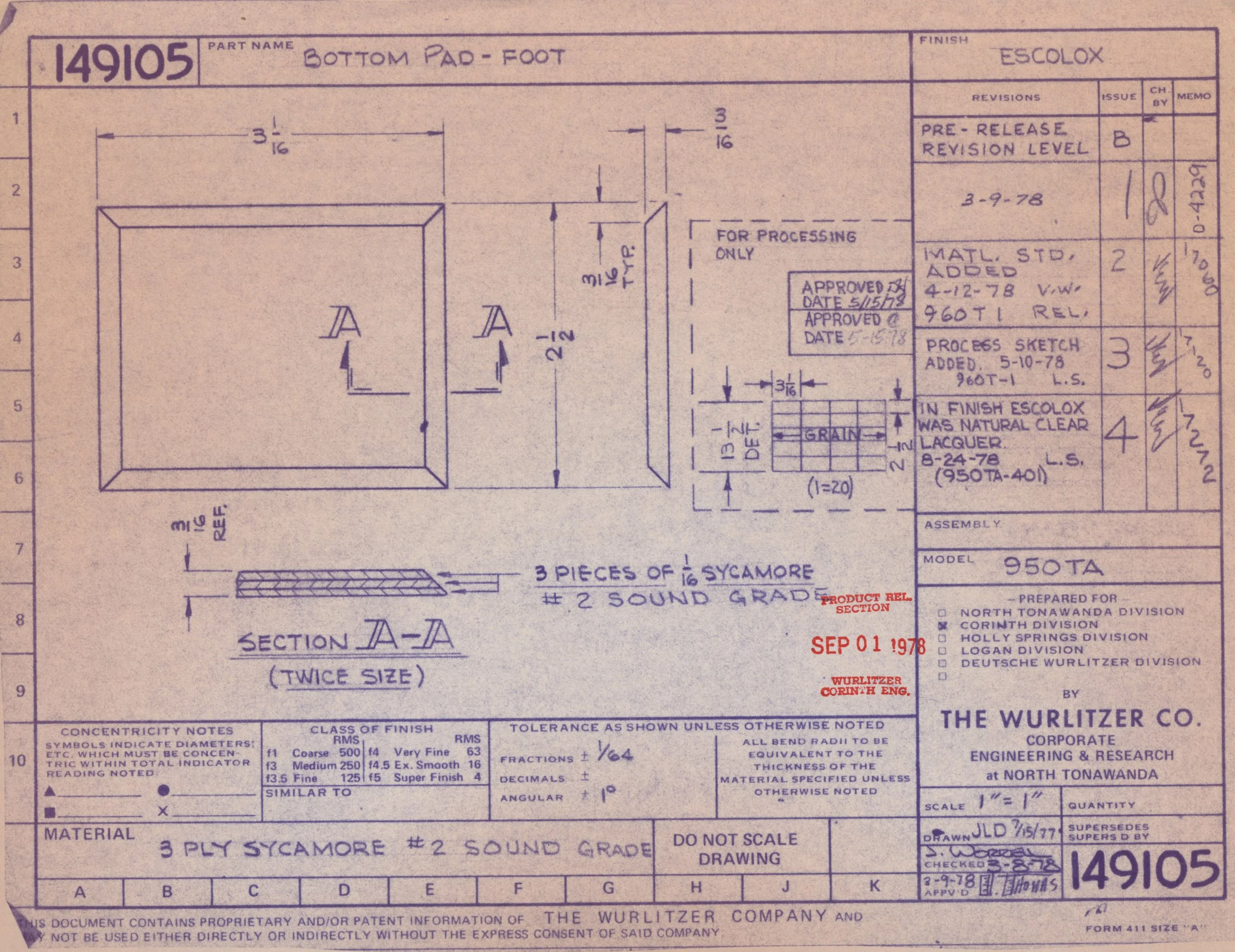

A technical drawing of a bottom pad for a foot, showing dimensions, material details, and manufacturing notes, with handwritten annotations, stamps, and signatures.
Technical engineering drawing of a bottom pad-foot component with detailed measurements, notes, and specifications on construction and material, including drill hole sizes and screw details.

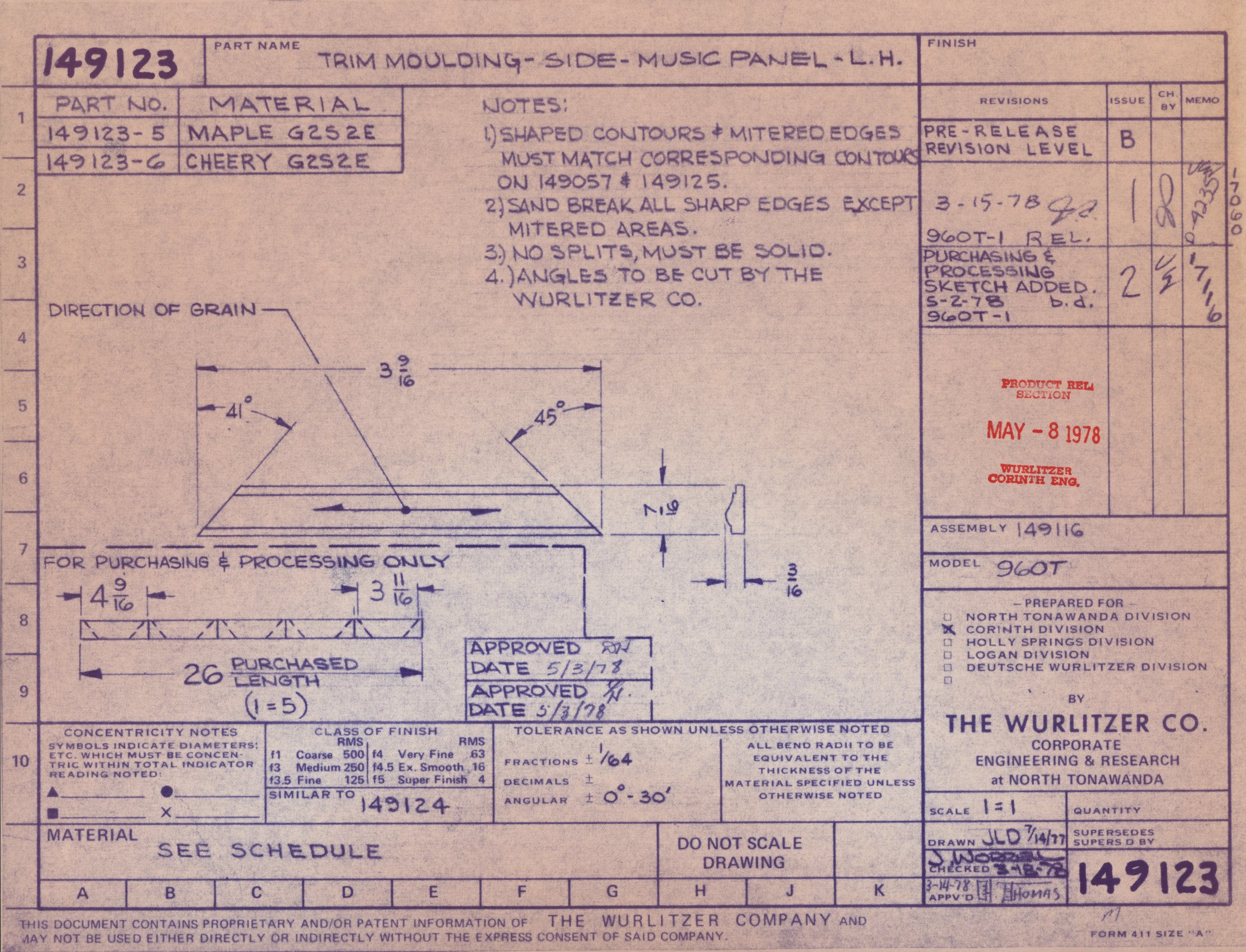

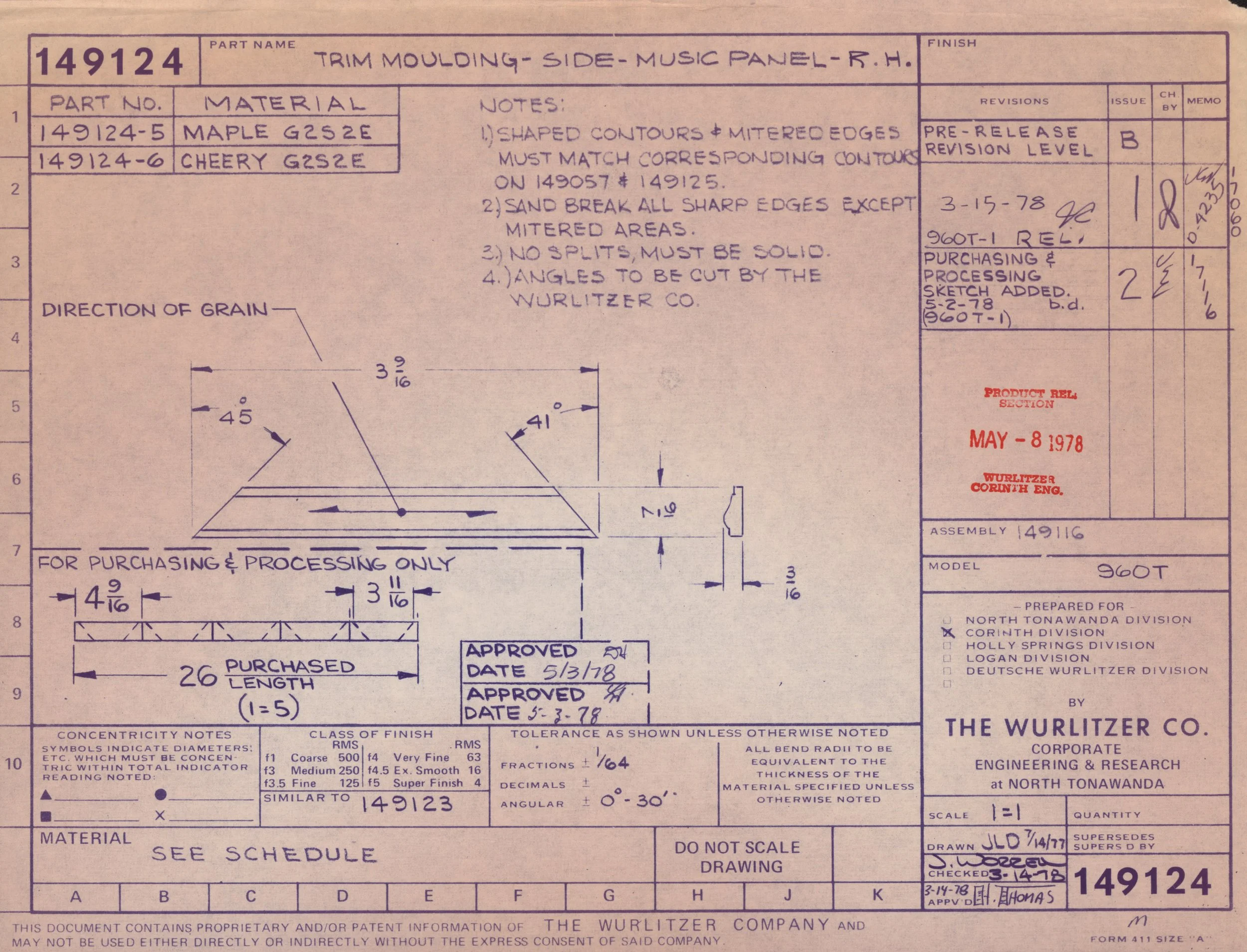

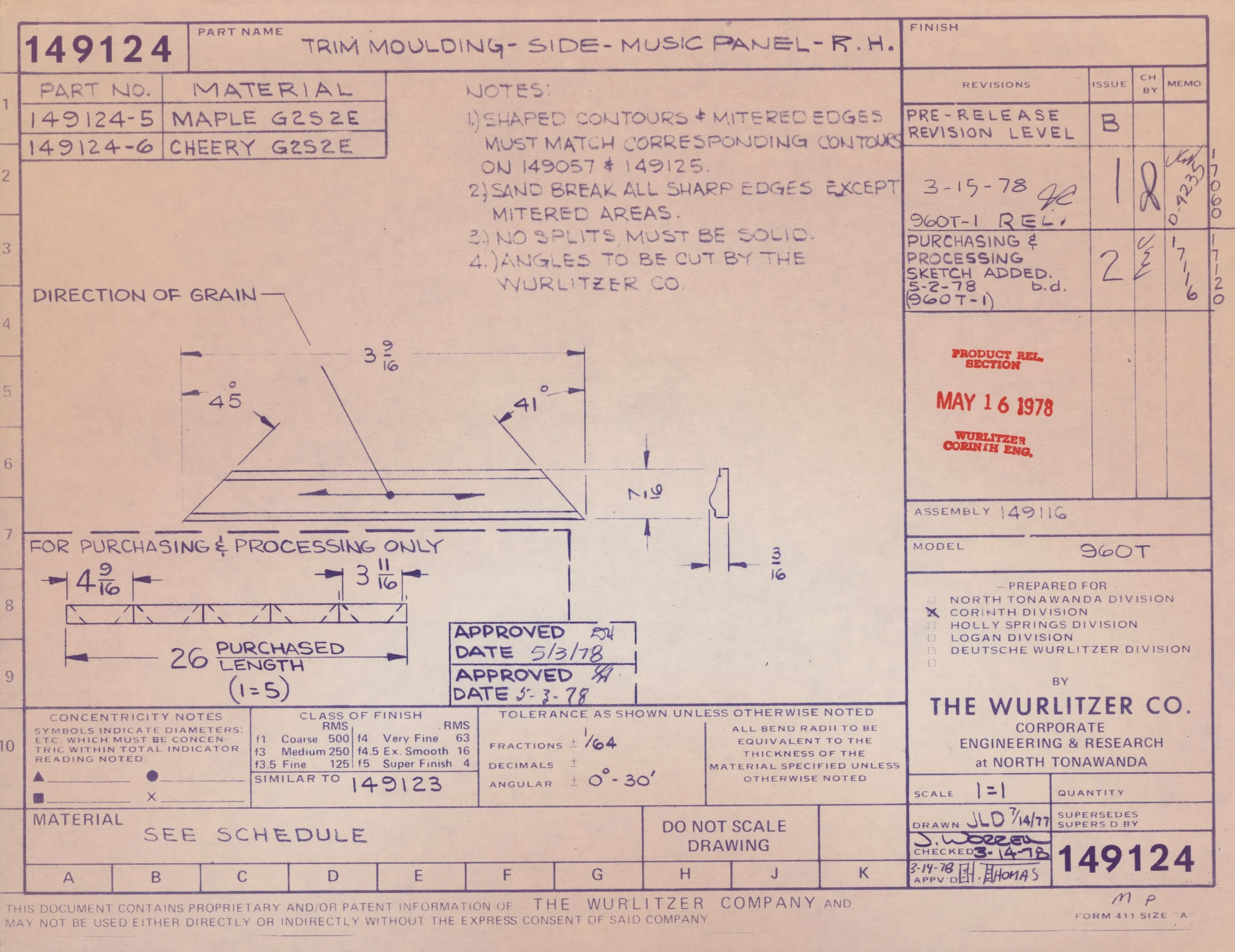

Technical drawing blueprint for a side music panel trim molding, showing measurements, notes, and details about the material, revision, approval dates, and manufacturer.

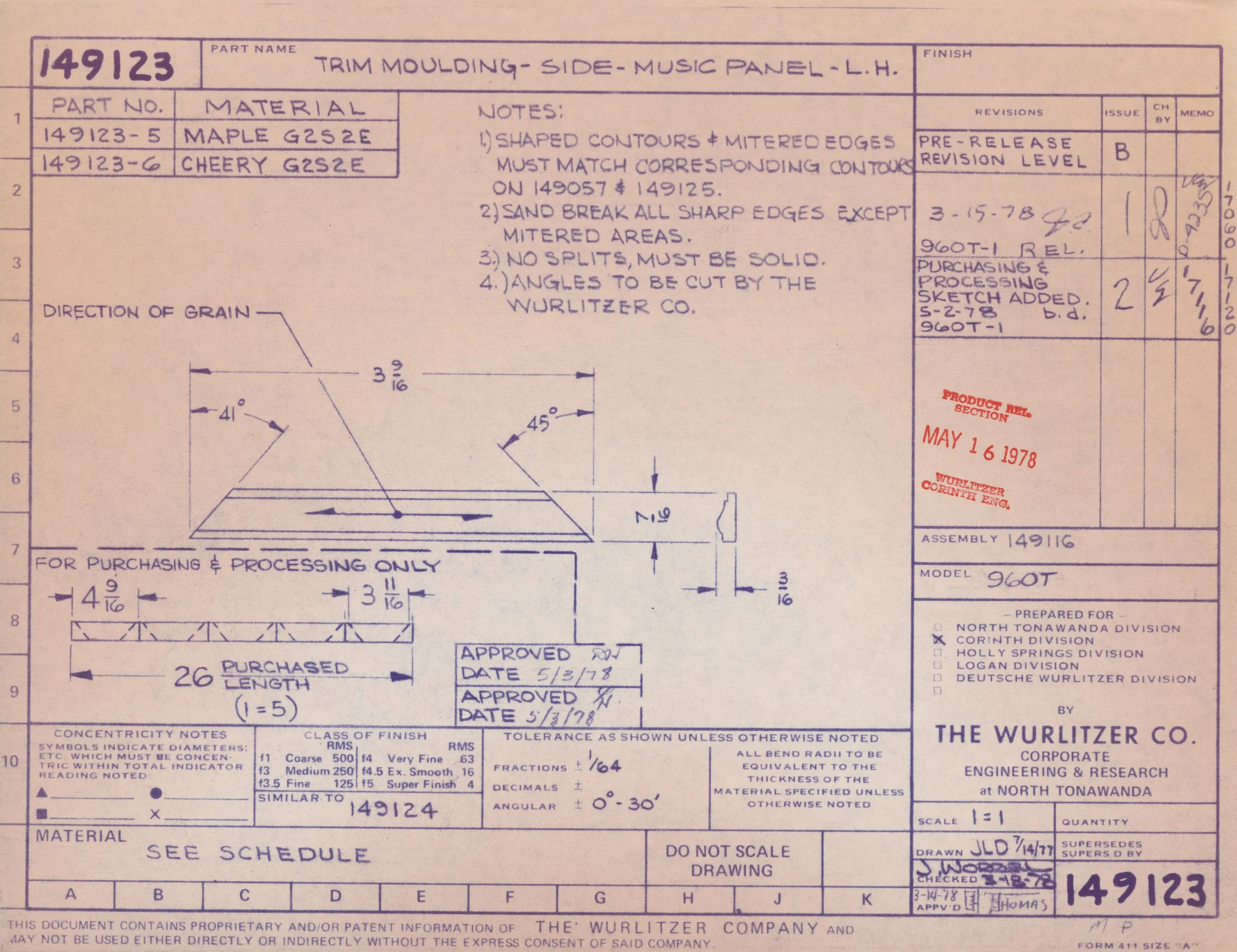

Blueprint for trim molding and side music panel with measurements, notes, and approval stamps, dated May 16, 1978.
Technical engineering drawing blueprints for a trim molding side music panel, including details like materials, measurements, notes, and approval stamps from Wurlitzer Company.

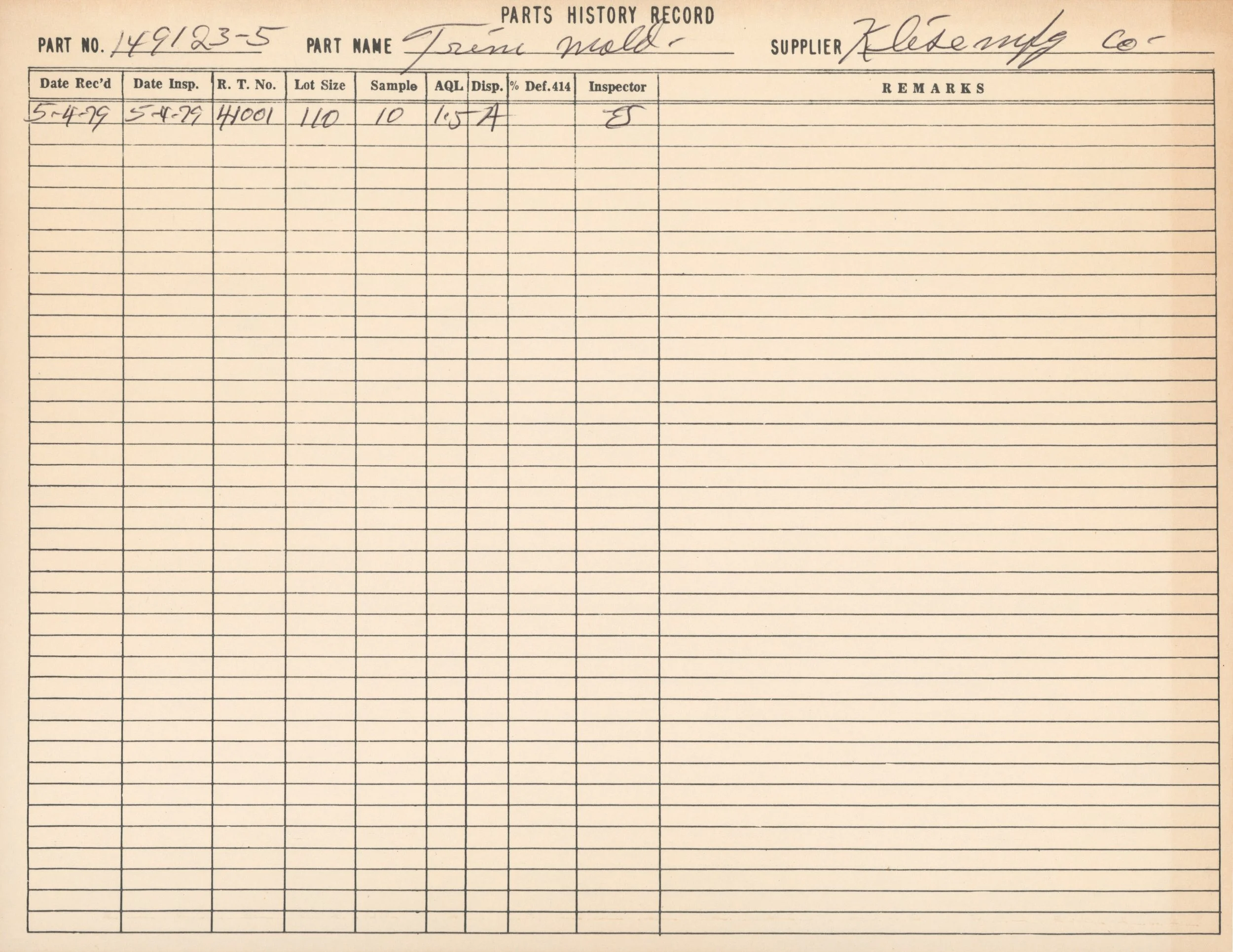

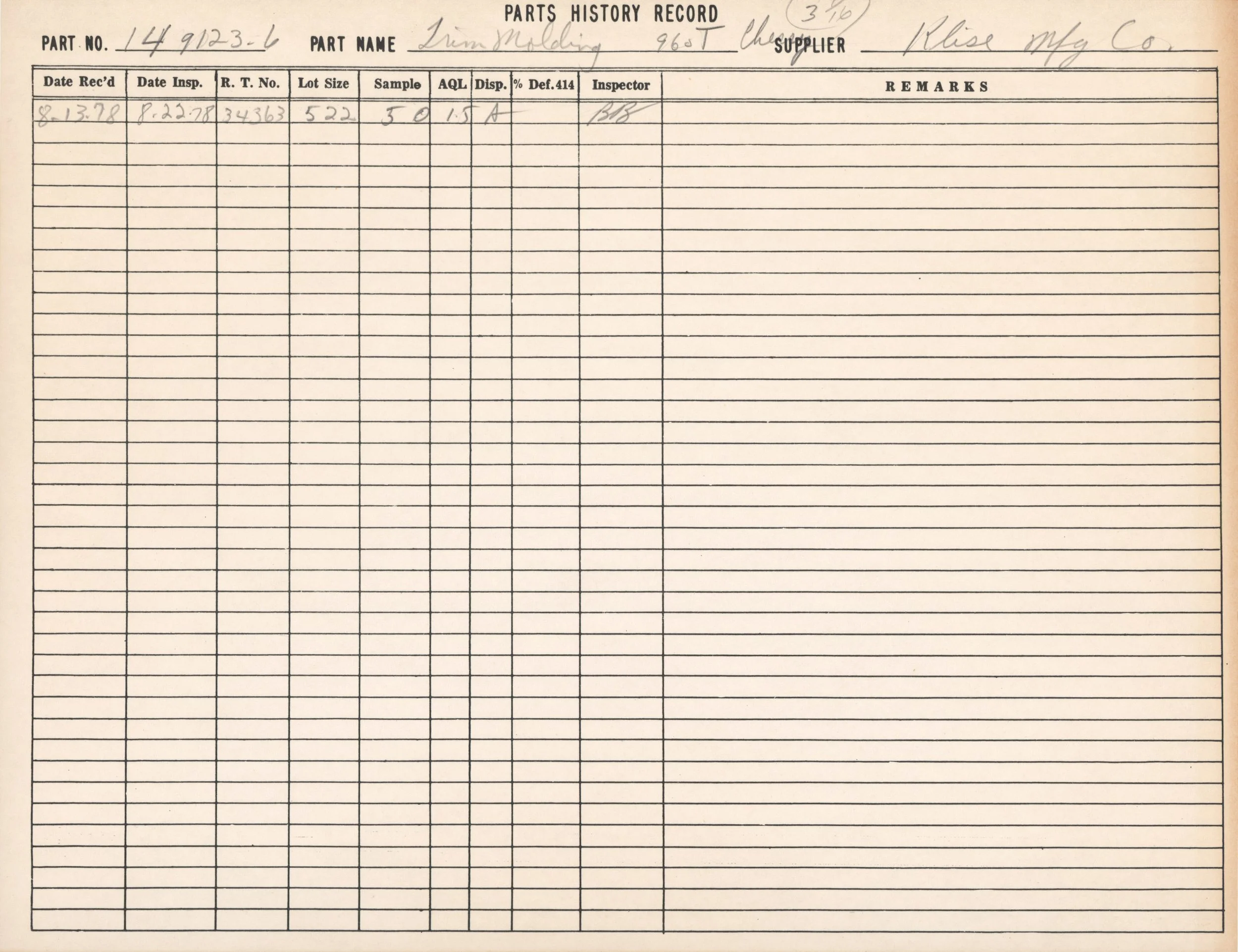

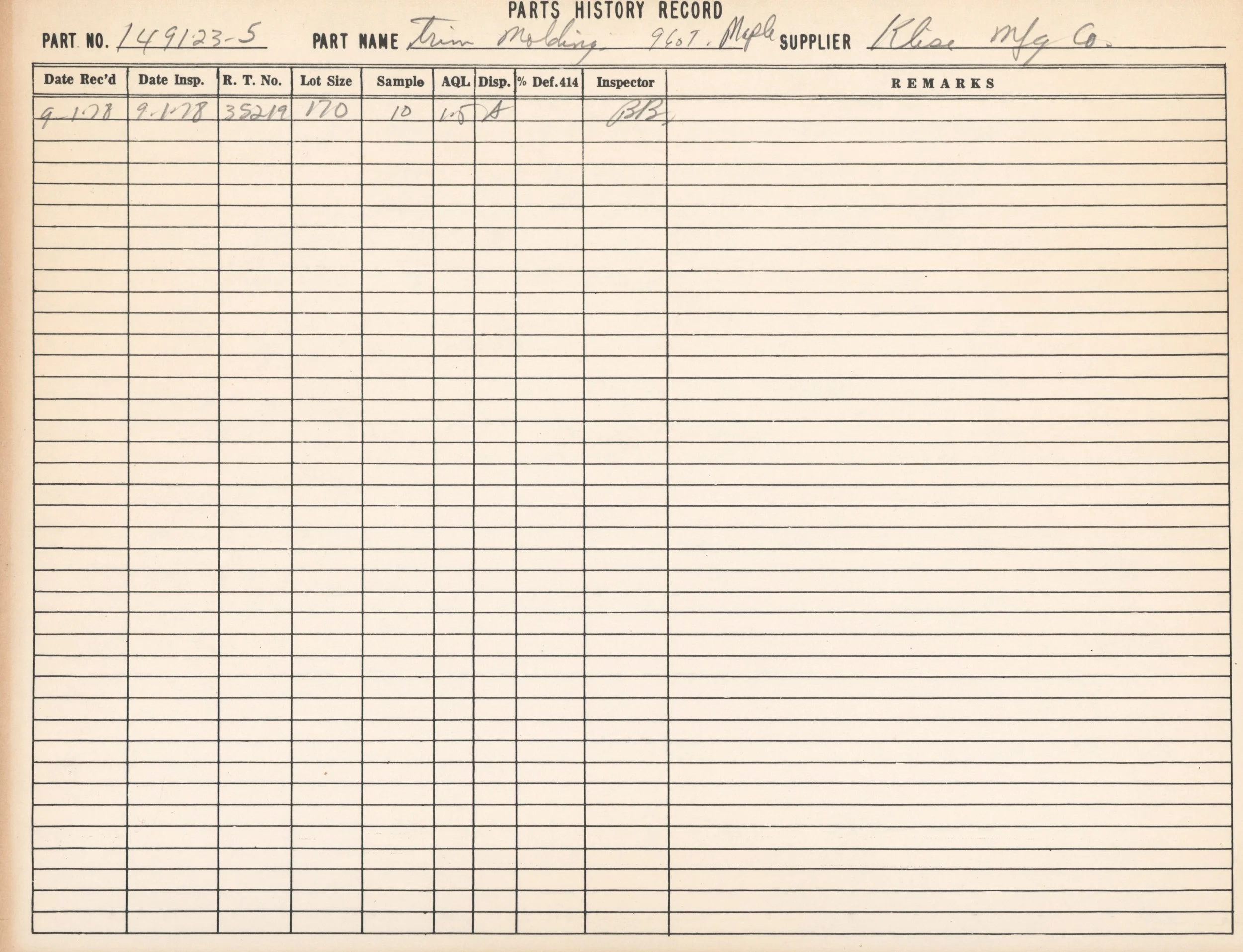

Handwritten parts history record document with details about a part number 149123-5, named 'fresen mold', supplied by Kleemff Co. The record includes dates, lot size, sample, AQL, disposition, and inspector comments.
Document titled Parts History Record for a part called twin molding, manufactured by Maple, supplied by Klose Mfg Co. The document has handwritten entries including part number 149123-5, received date September 28, inspection date September 17, and o
A scanned vintage part history record sheet for a part named "Lining Molding 968T" with handwritten details including part number 14 9123-6 and supplier Vlose Mfg Co, with various inspection and record entries.
Technical engineering drawing for a trim molding side music panel shows details like part number, material specifications, notes, dimensions, and approval stamps, with some handwritten signatures and dates.
Technical engineering drawing of a side music panel with dimensions and specifications, marked with part numbers, materials, notes, and approval dates.
Technical drawing of a music panel with detailed measurements, notes, and approval stamps, created by Wurlitzer.

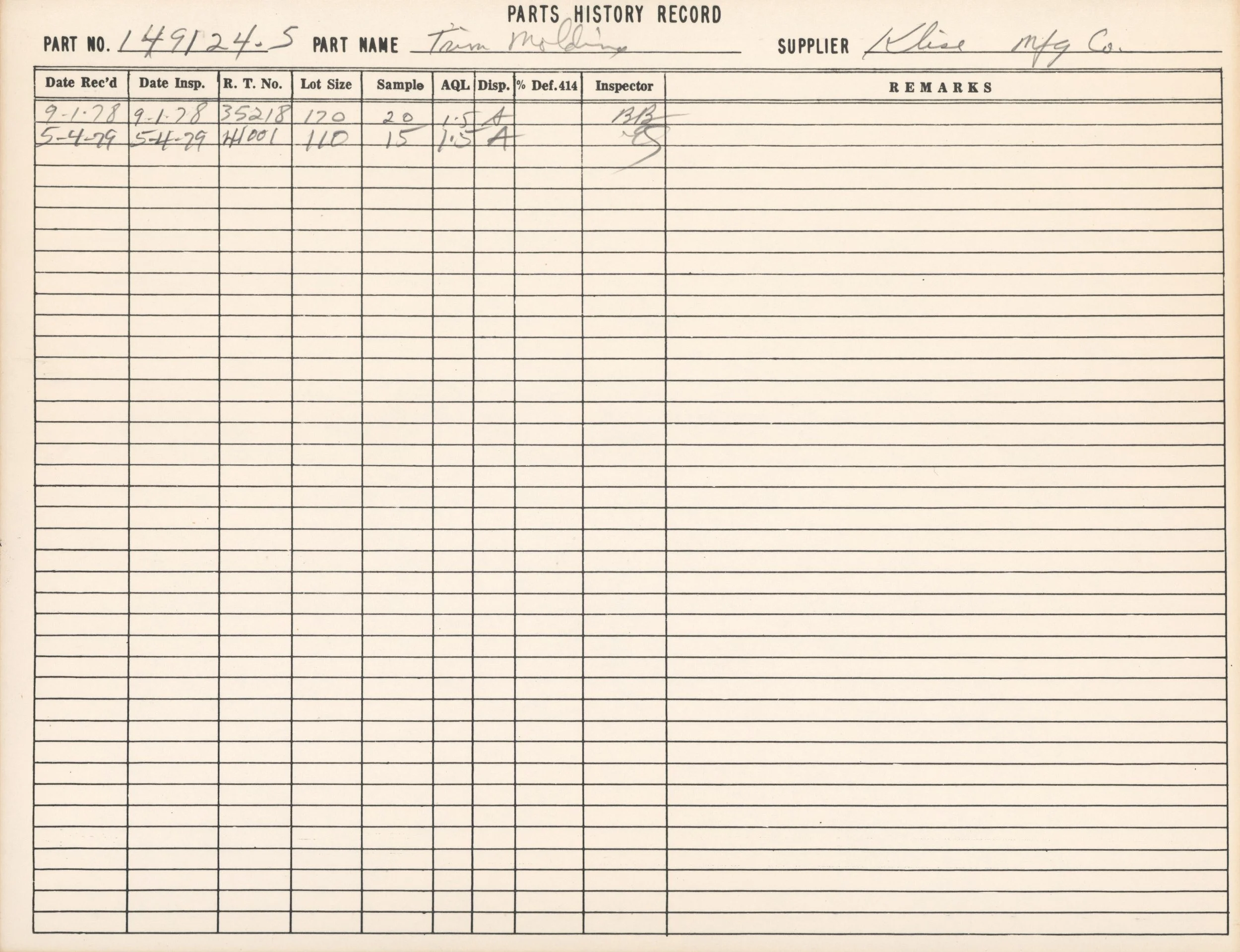

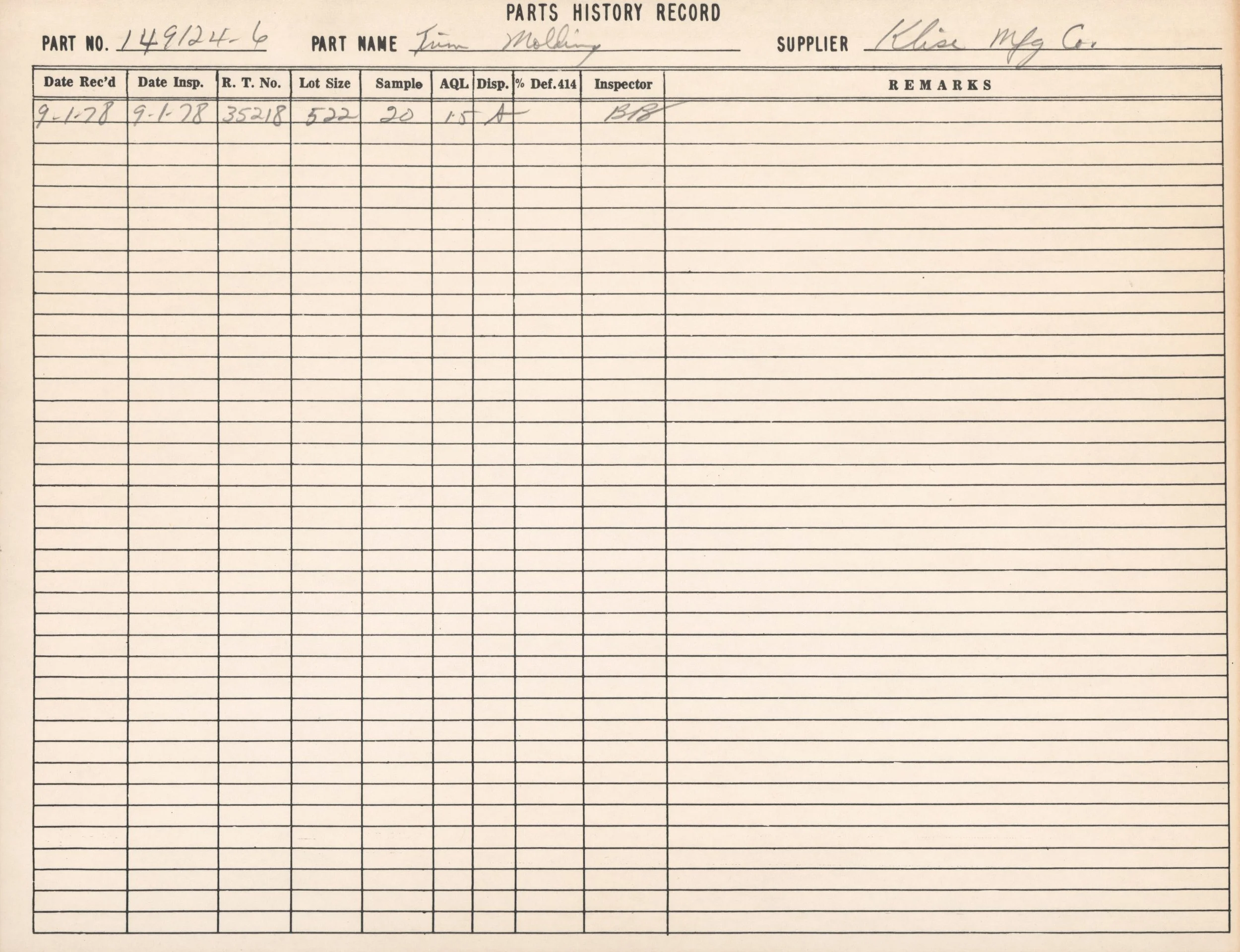

A handwritten record page documenting parts history for a part number 149124-5, with entries including dates, sample numbers, and inspector signatures.
A black and white parts history record sheet for a machine part, listing part number, name, supplier, inspection details, and remarks.

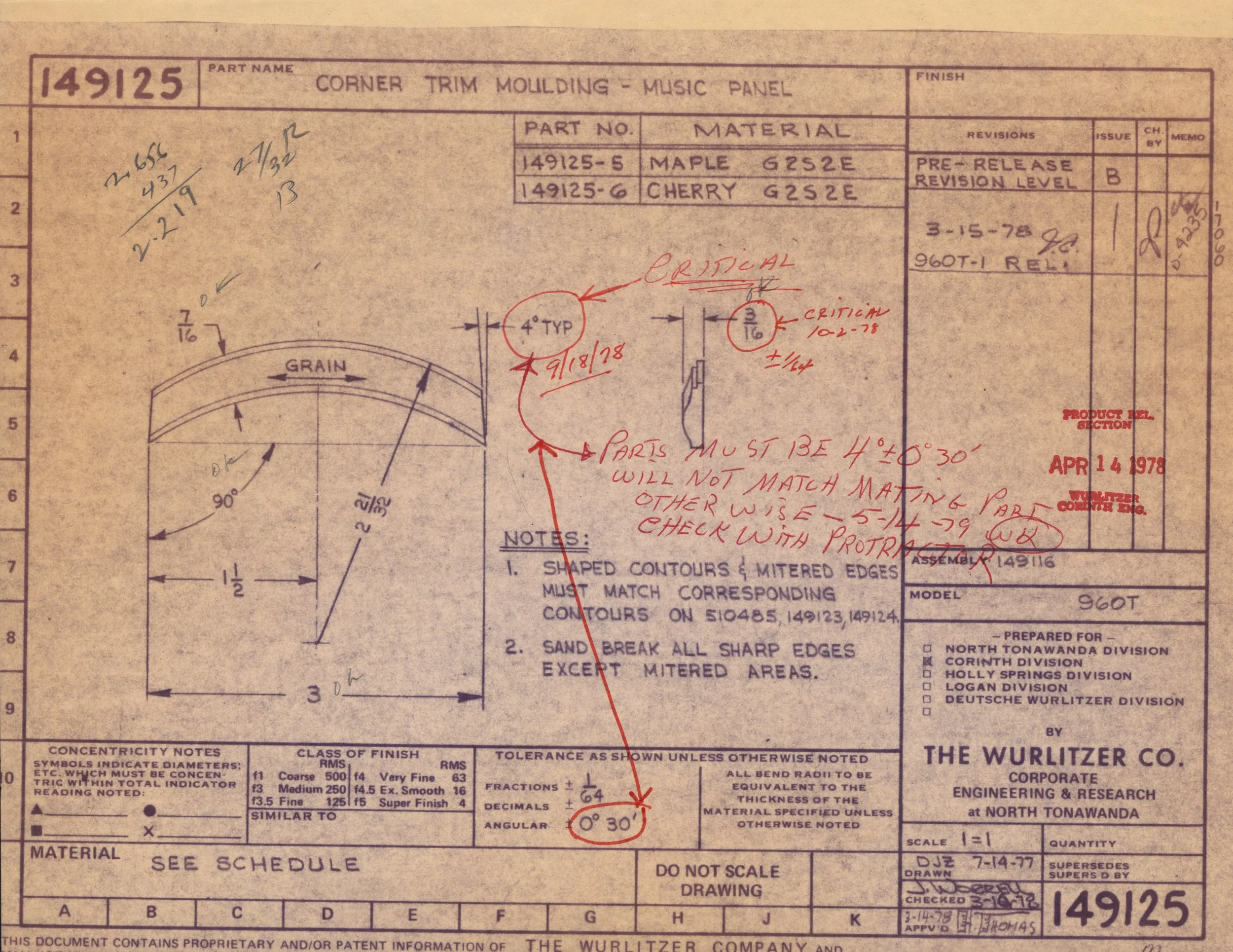

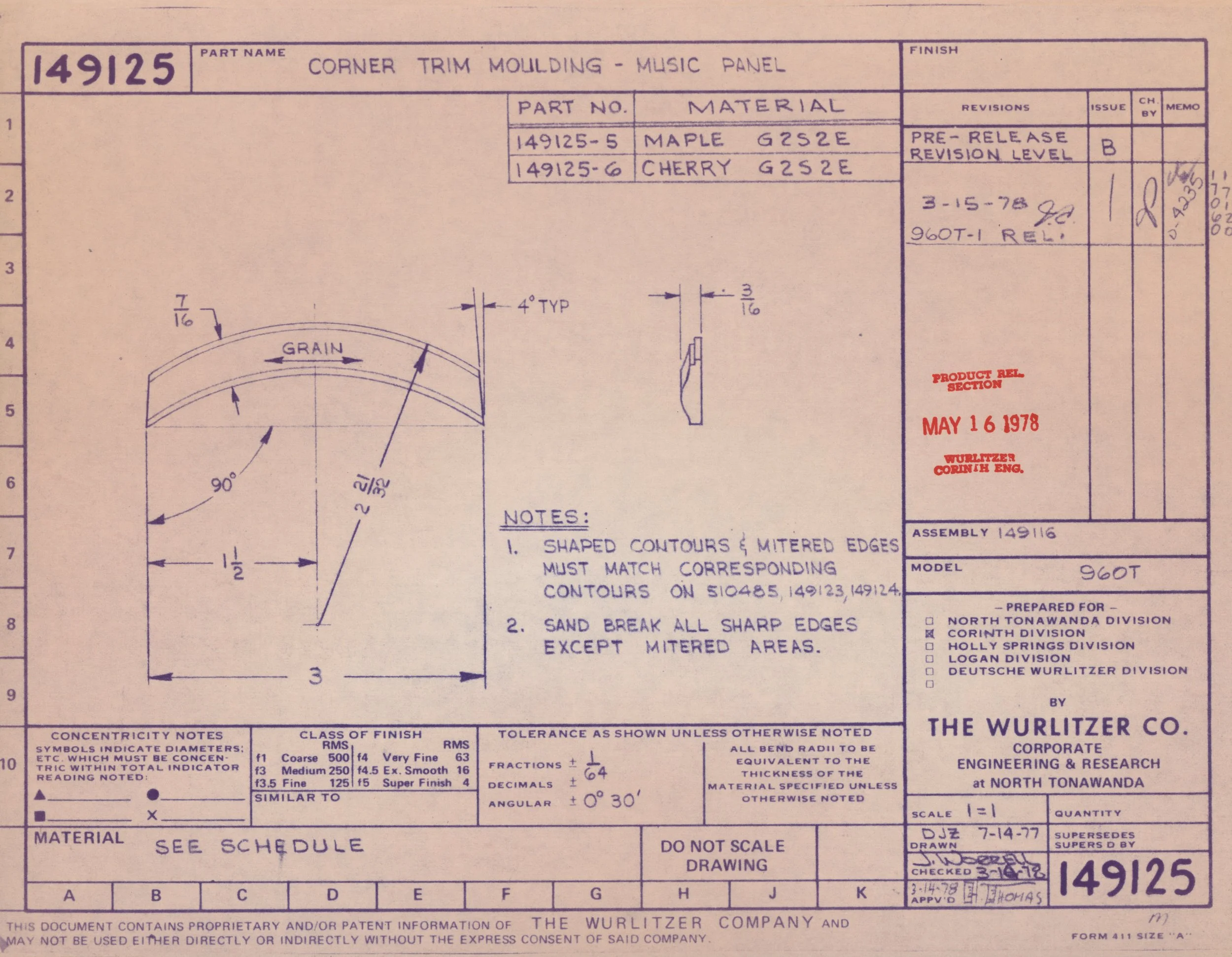

Technical engineering drawing sheet with handwritten annotations, detailing corner trim moulding specifications, including angles, measurements, and material notes.
Blueprint of corner trim molding with a music panel, showing technical drawings, measurements, materials, and notes.

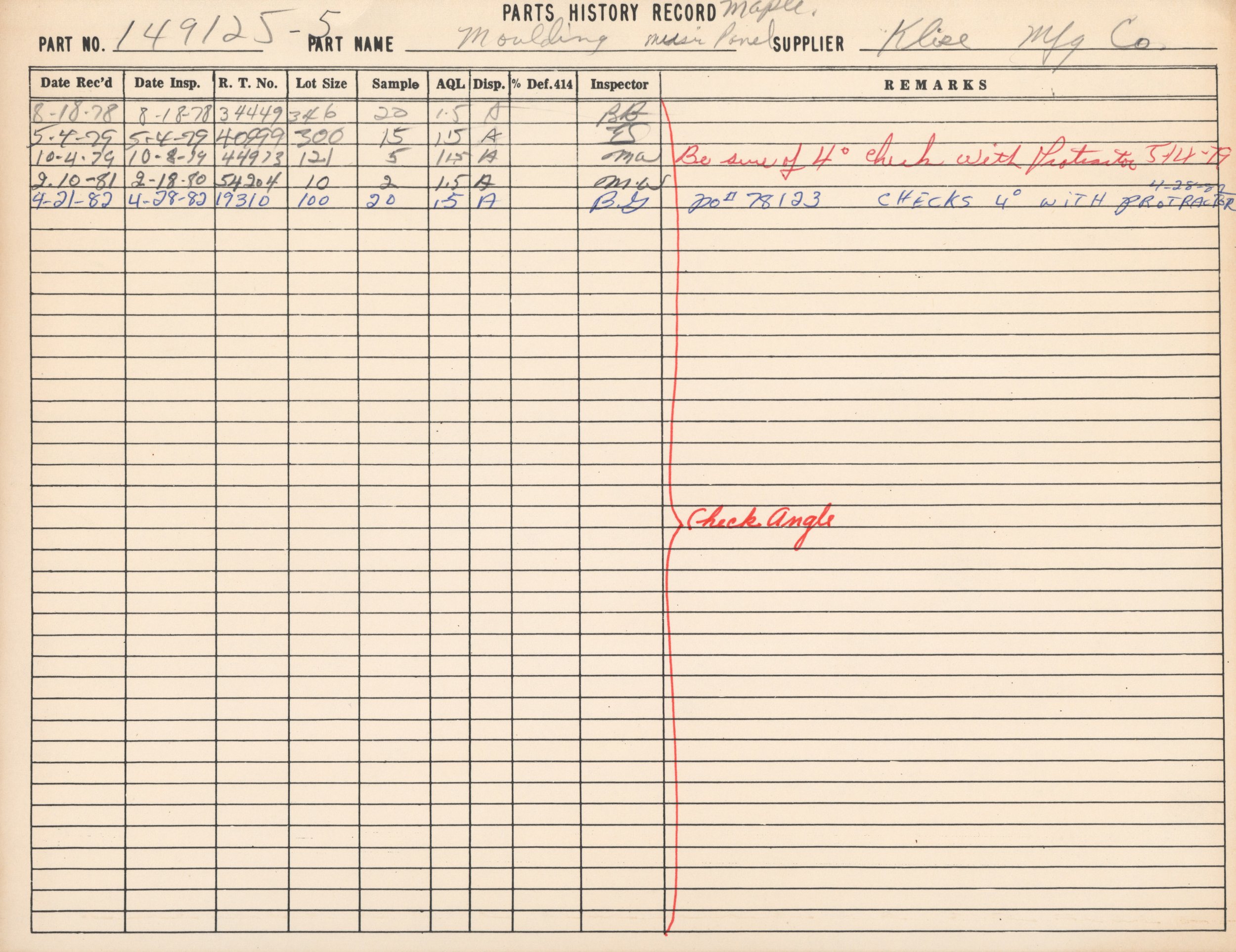

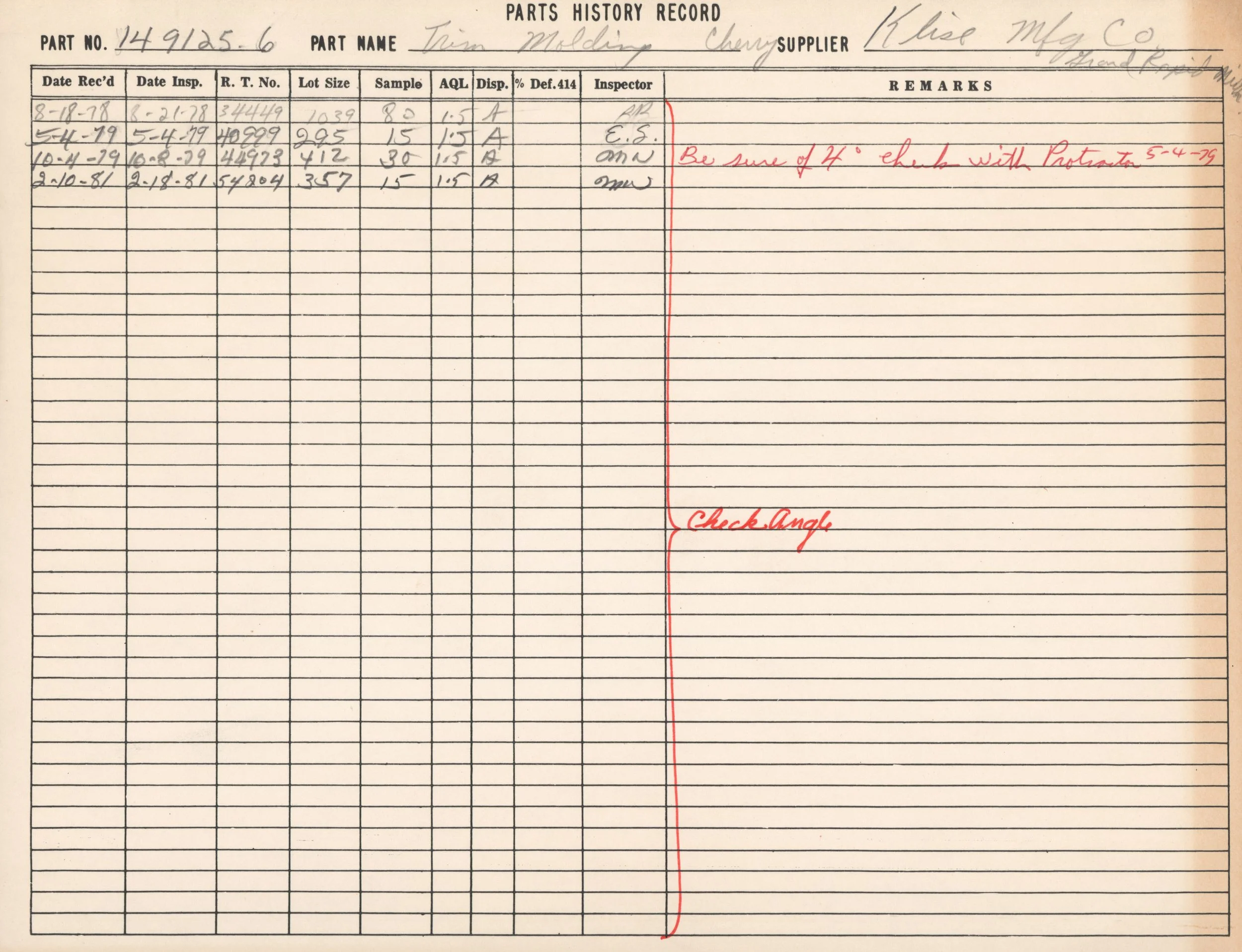

A historical record sheet for a molding machine part, showing part number 149125-5, supplier Klose Mfg Co, with handwritten dates, specifications, inspection details, and remarks.
Part of a handwritten parts history record sheet showing dates, part numbers, and remarks related to a twin molding part supplied by K. Chie Mfg Co. The handwritten notes specify inspection dates, lot sizes, and inspection comments, including one not

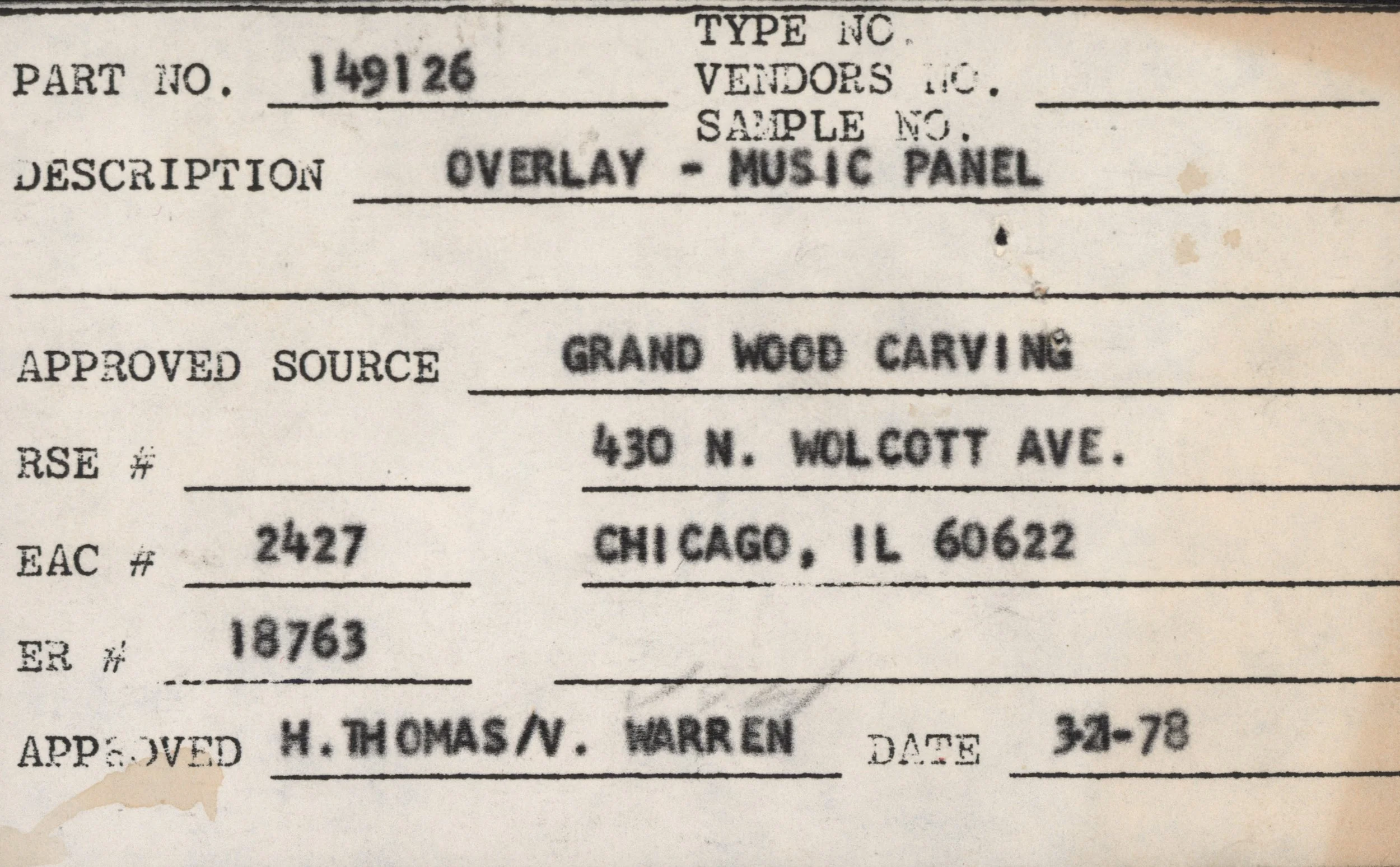

Close-up of a vintage shipping label or part of an old document showing part numbers, descriptions, addresses, and other identification details.

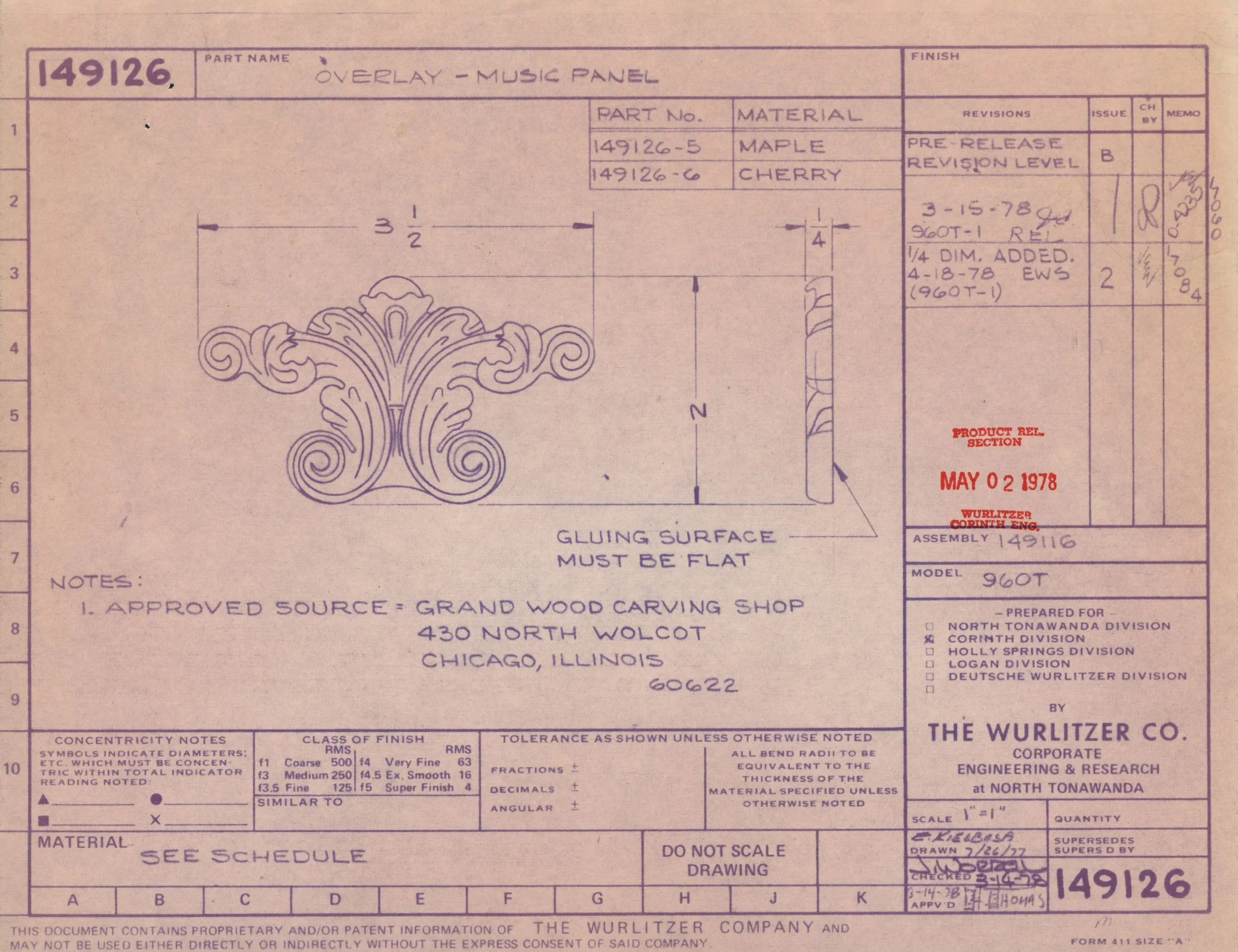

Blueprint drawing of a decorative music panel overlay featuring intricate swirling designs.

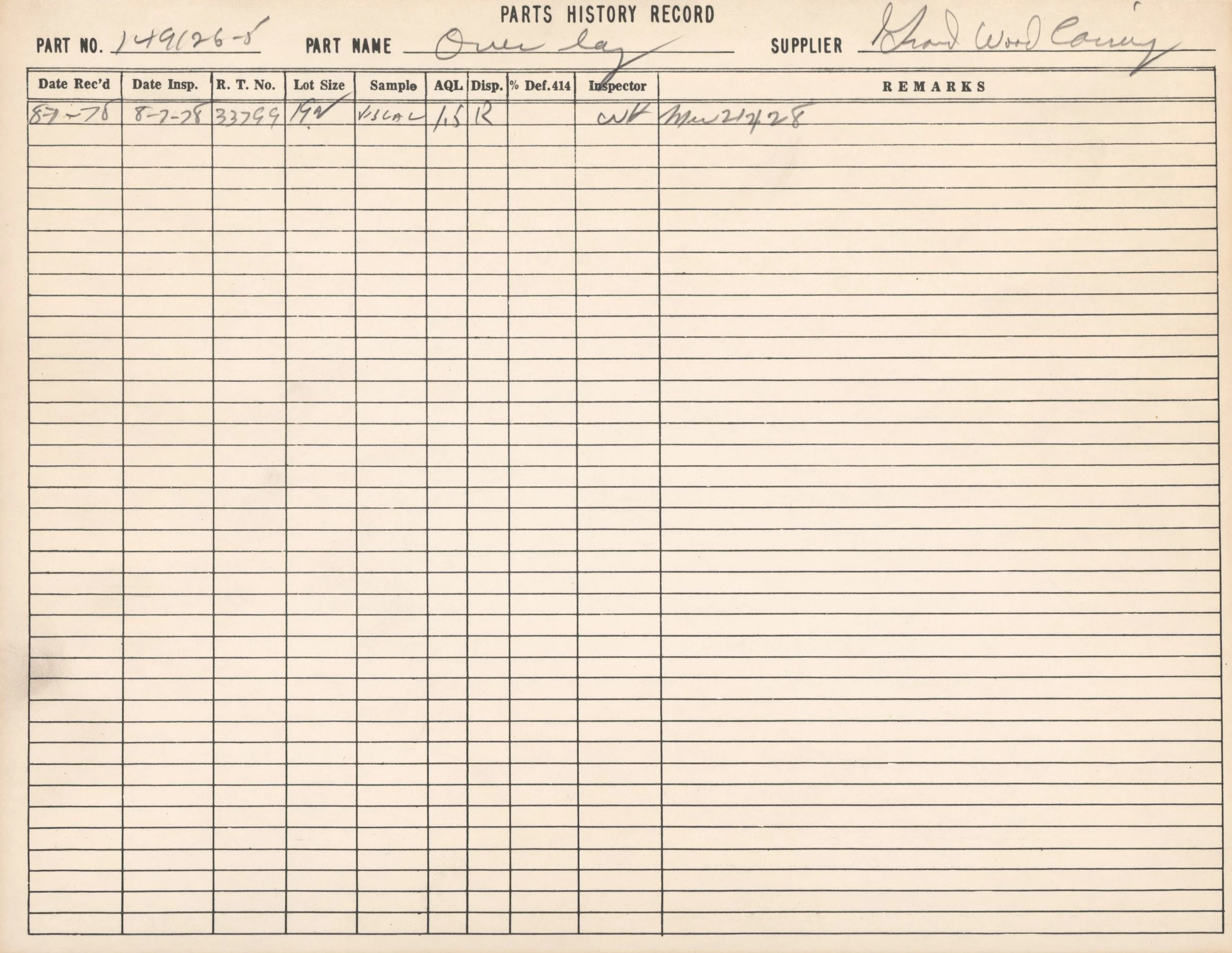

A handwritten record titled "Parts History Record" with details about a part number, part name, supplier, and related dates. The part number is 149426-8, part name is "One leg," and the supplier is David Wood County. The record includes dates of rece

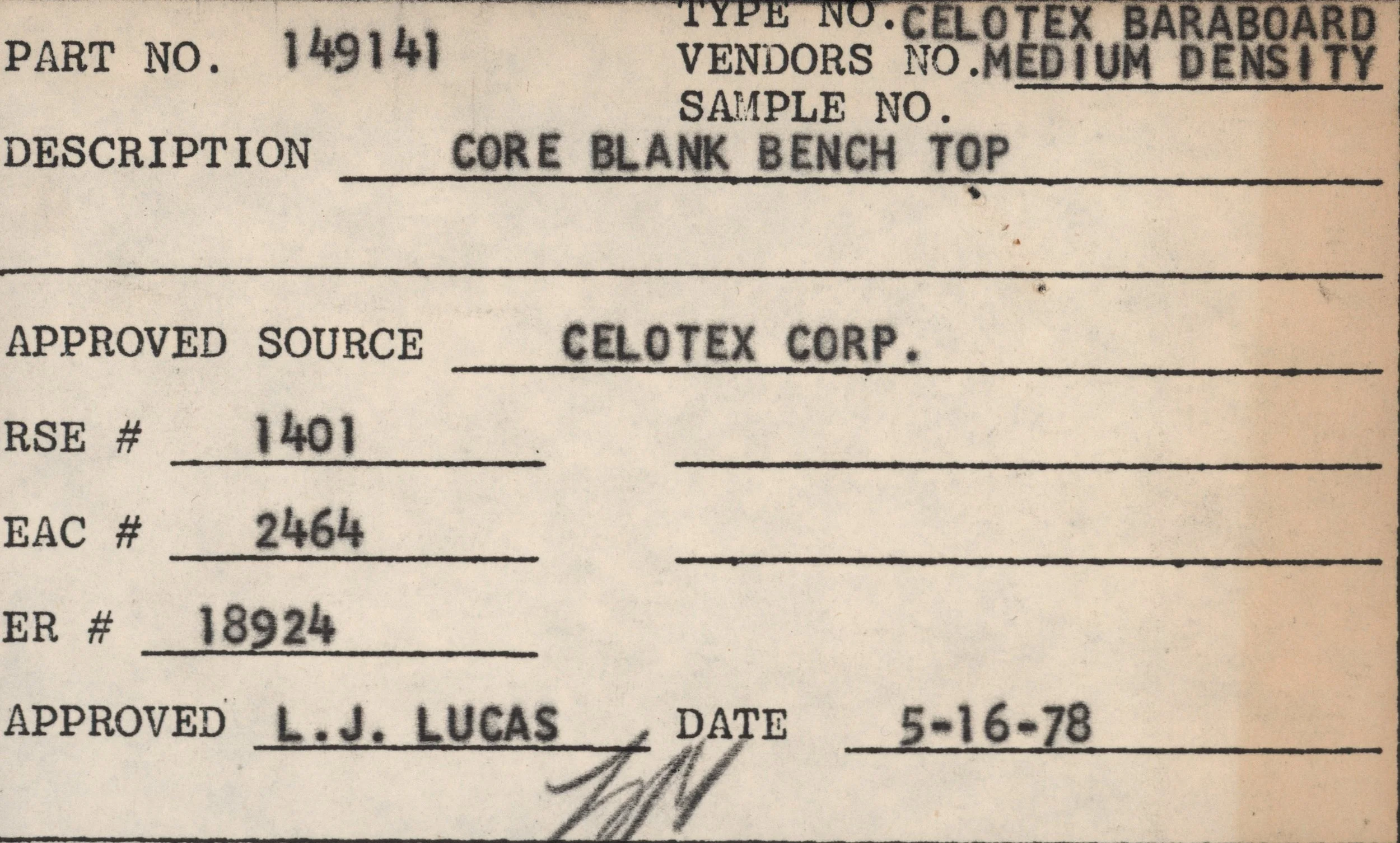

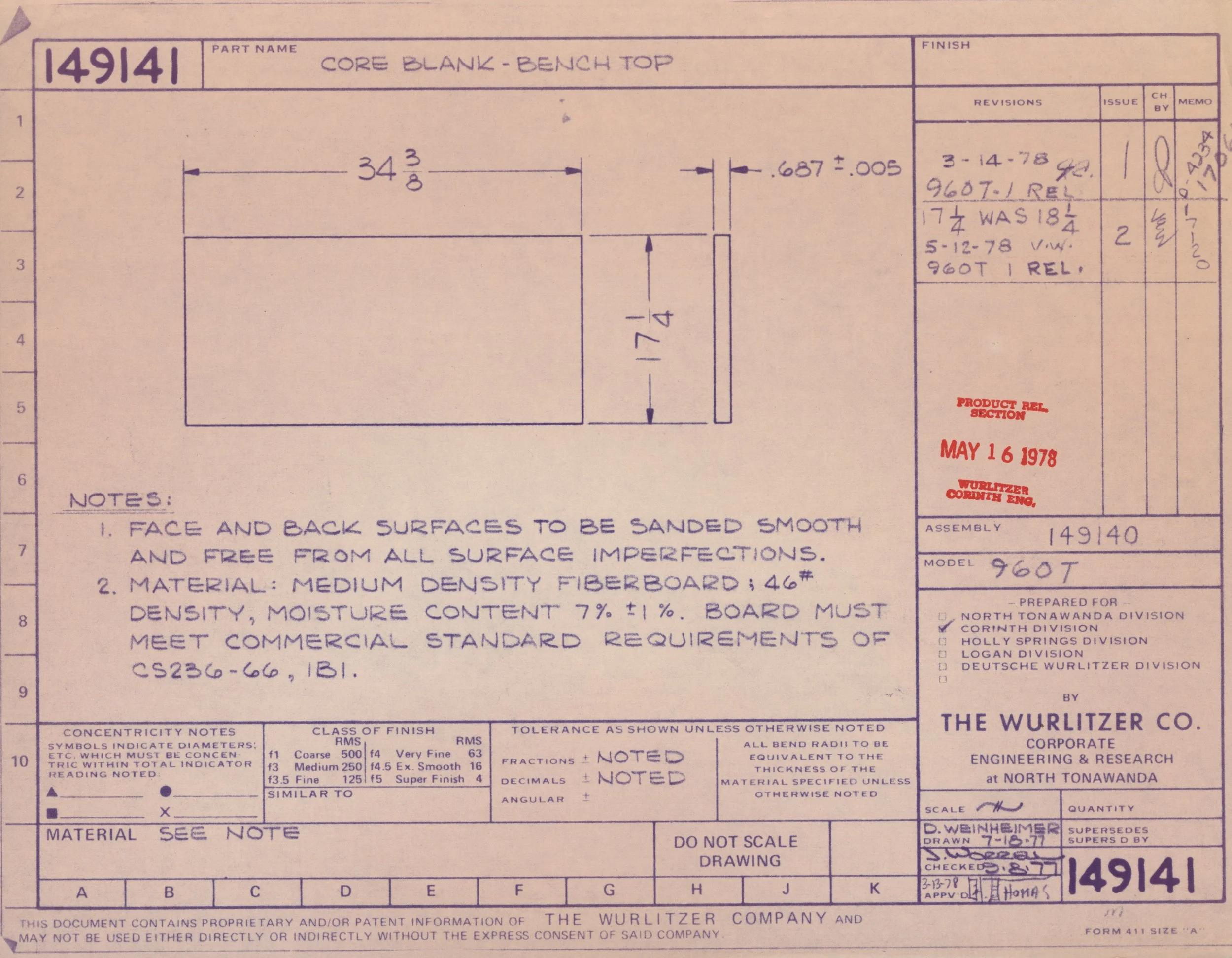

Close-up of a vintage typewritten document with information about a core blank bench top, including part number, description, and approval signatures.

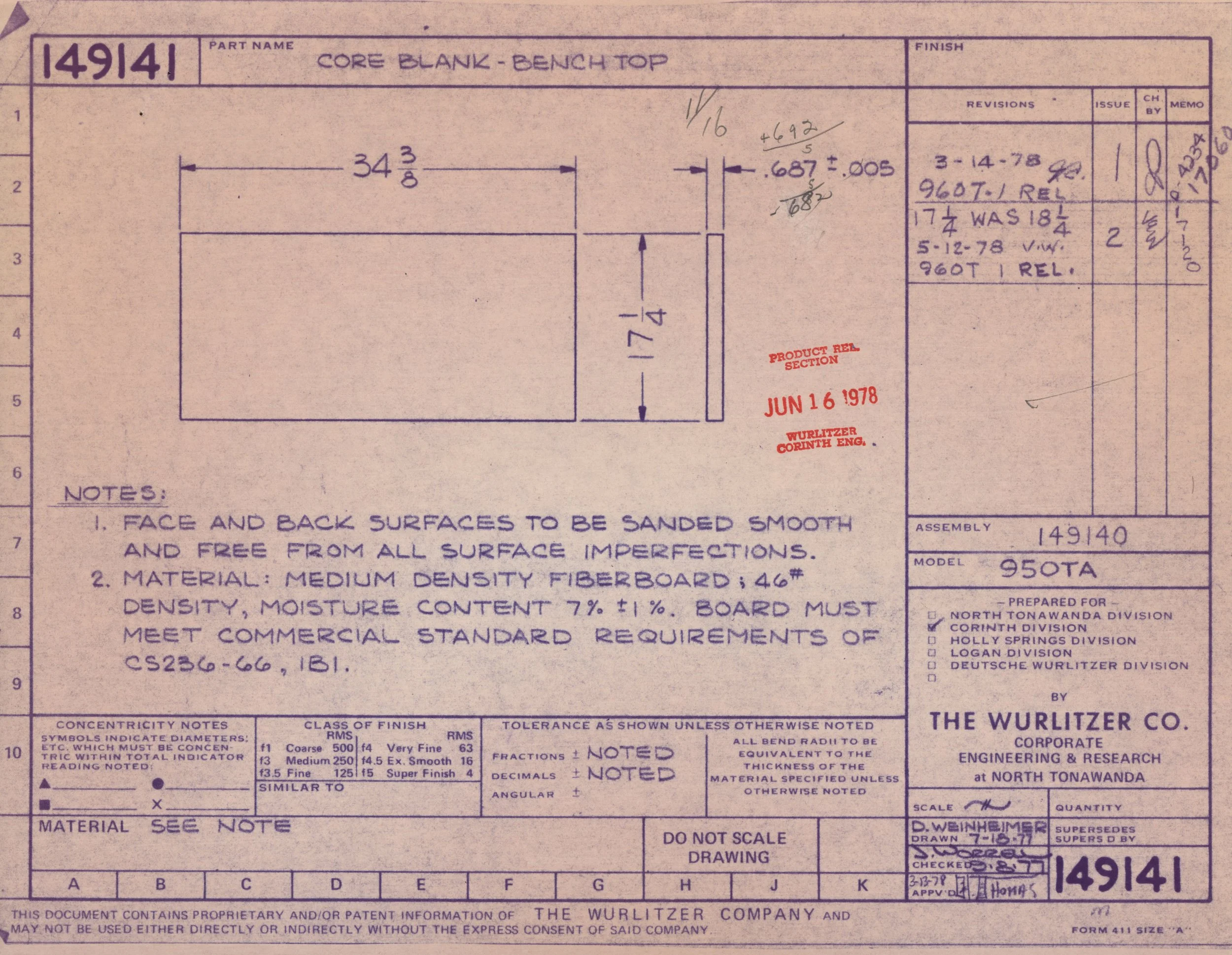

Technical engineering drawing paper for a bench top core blank, showing measurements, specifications, and notes for manufacturing, with red sample stamp and handwritten notes.
Technical drawing blueprint with detailed measurements, notes, and specifications for a core blank bench top, dated May 16, 1978, produced by The Wurlitzer Company.

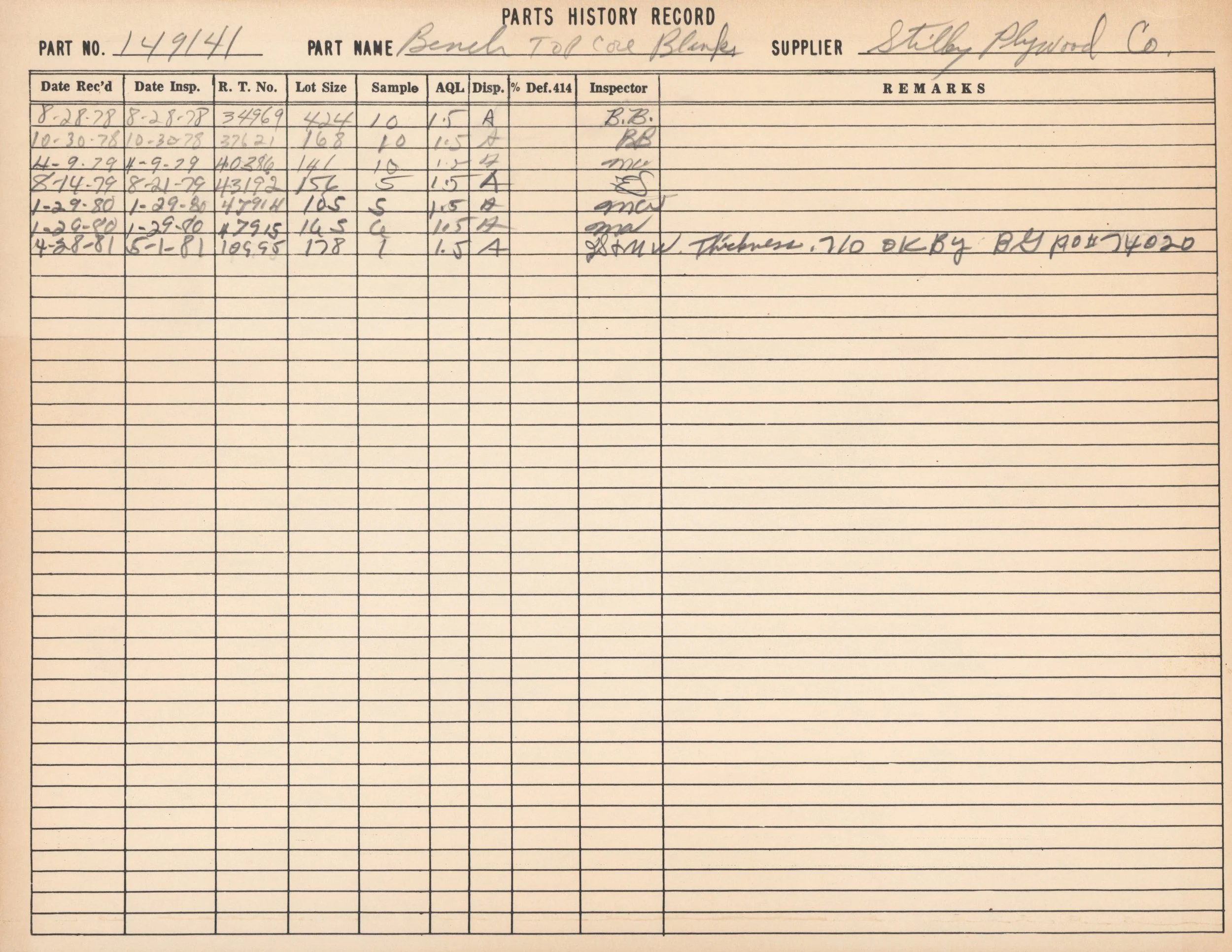

A handwritten record of parts history for a part named 'Bench Top Core Blanks' with details such as part number, supplier, dates, sample size, and inspection notes written in cursive and printed handwriting on an old form.
950
960
960T

Electronic drawings

The drawings below include electronic components for the Wurlitzer 950, 960, and 960T:

  • 148021 (Printed circuit board, piston switch, for the 950)

  • 148260 (LED printed circuit board assembly for the 950)

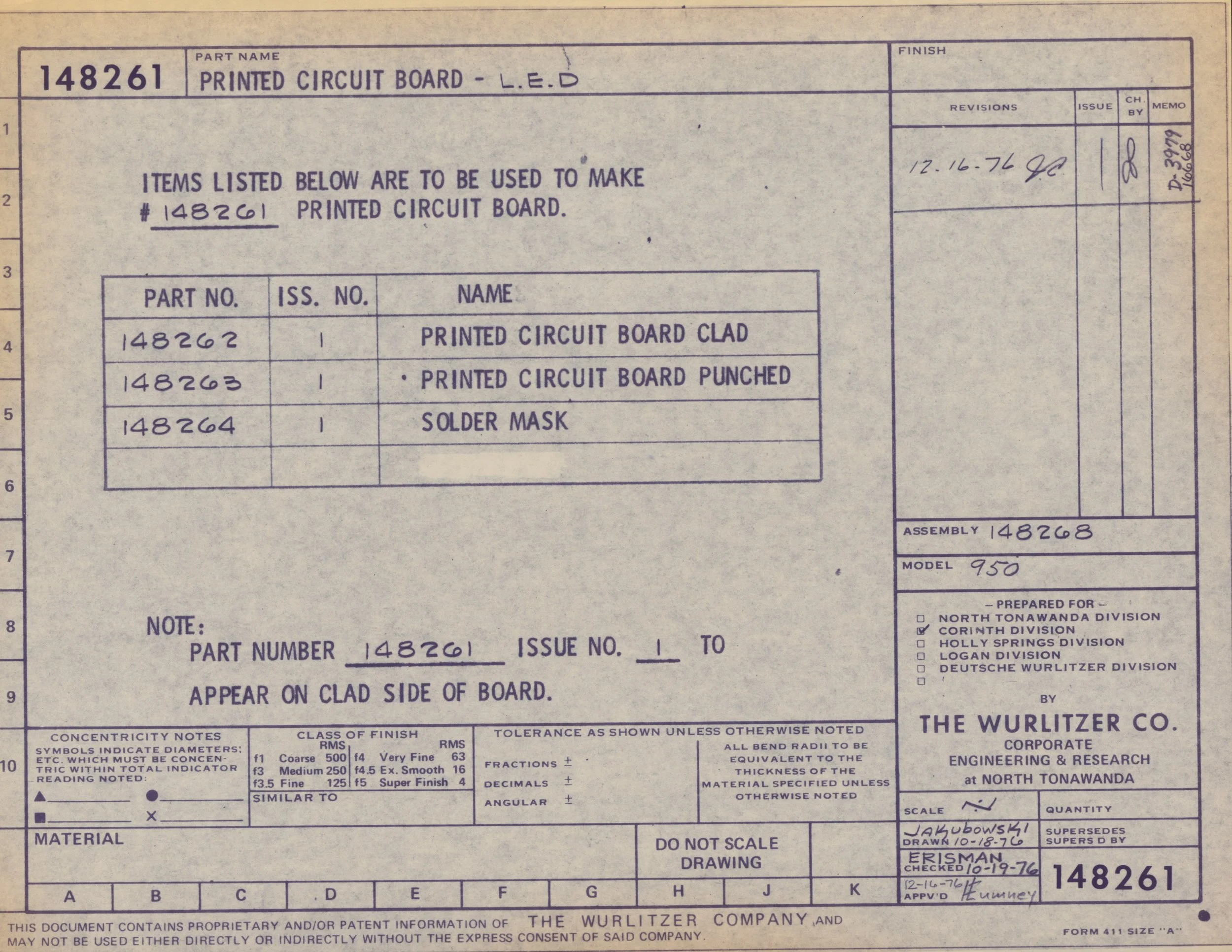

  • 148261 (Printed circuit board, LED, for the 950)

  • 148305 (Support, printed circuit board, for the 950)

  • 148444 (Clamp, tube lamp, for the 950)

Close-up of a technical drawing or blueprint for a printed circuit board, showing part numbers, revision details, signatures, and technical specifications.

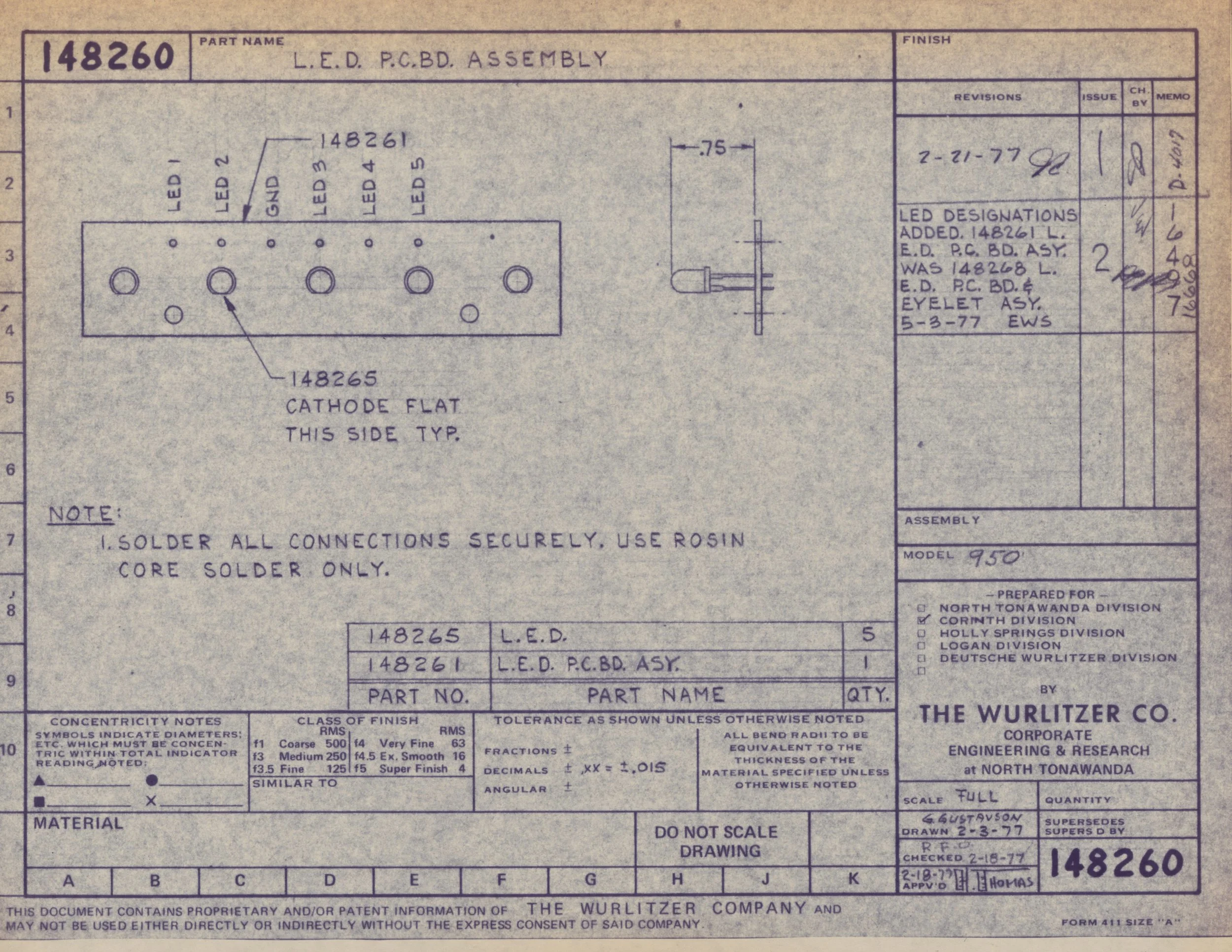

Technical drawing of an LED PCB assembly part with annotations, part numbers, and measurements.
Close-up of a technical document titled 'Printed Circuit Board - L.E.D' with handwritten notes, labels, and a list of item numbers and descriptions related to printed circuit board components.

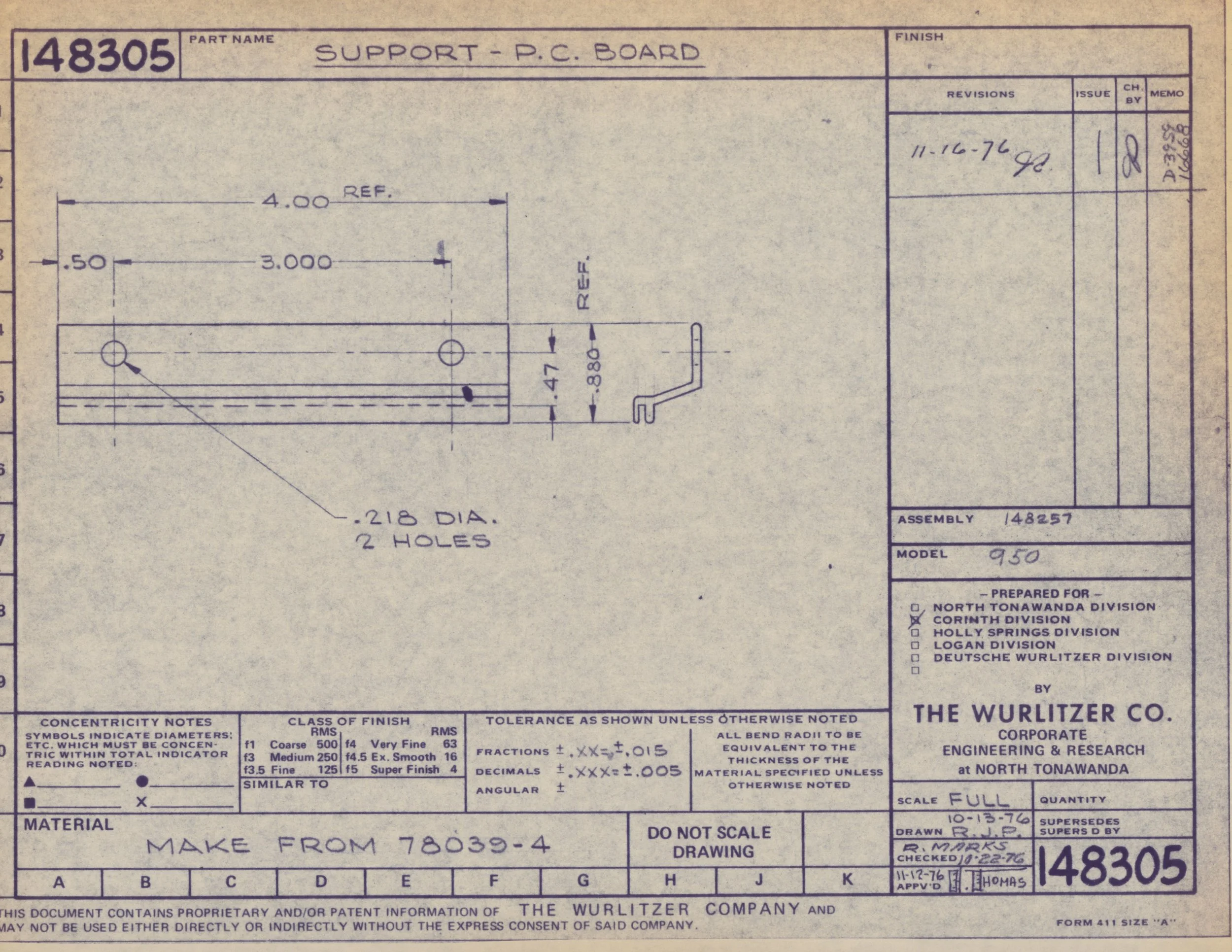

Technical engineering drawing of a support-P.C. board with dimensions and specifications, created by The Wurlitzer Company.

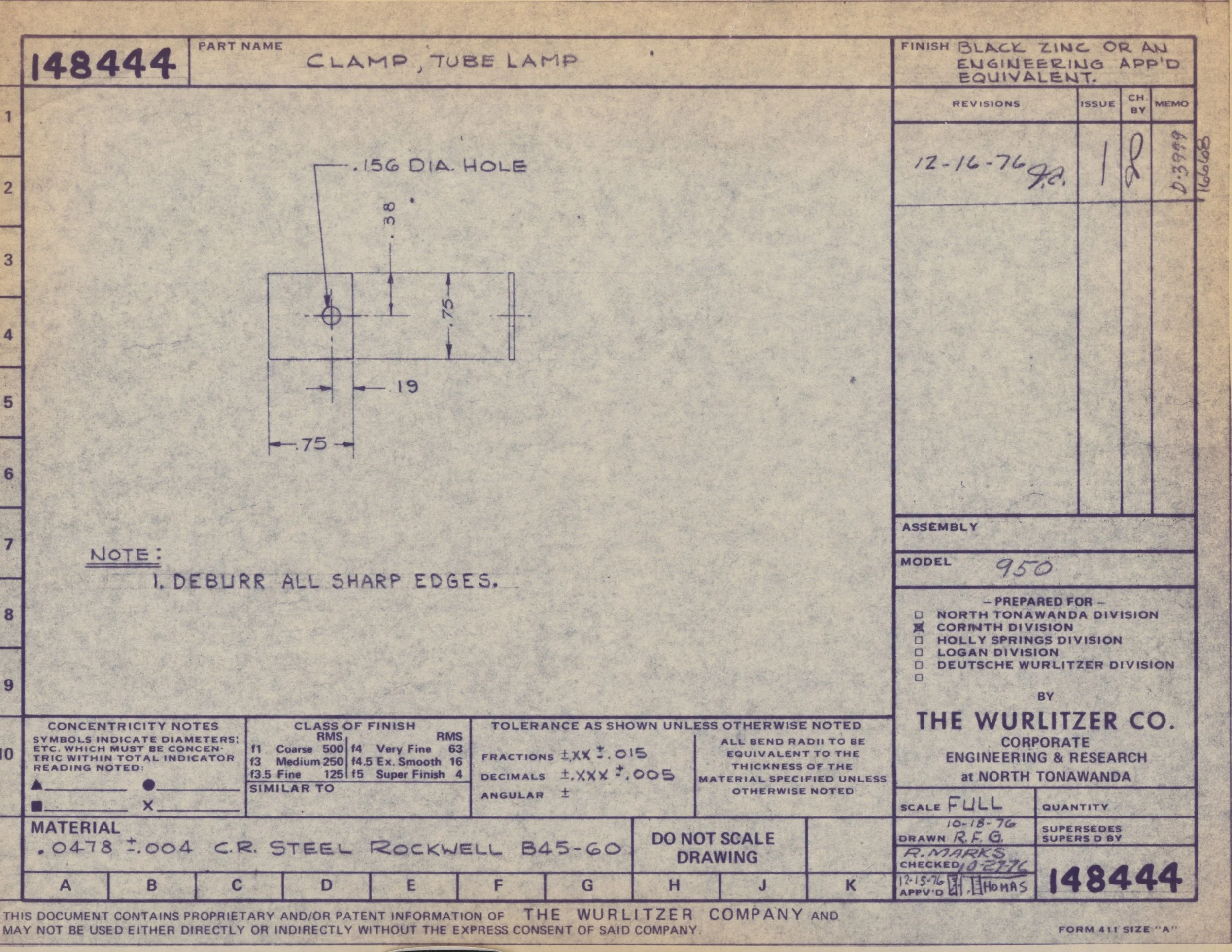

Technical engineering drawing for a clamp, tube lamp, with dimensions and annotations, made by The Wurlitzer Co., dated 1976.
950
960
960T

Mechanical parts

The drawings below include drawings for mechanical parts in the model 950.

  • 148068 (Spacer, keyblock, for the 950)

  • 148069 (Mounting bracket, lower keyblock, right, for the 950)

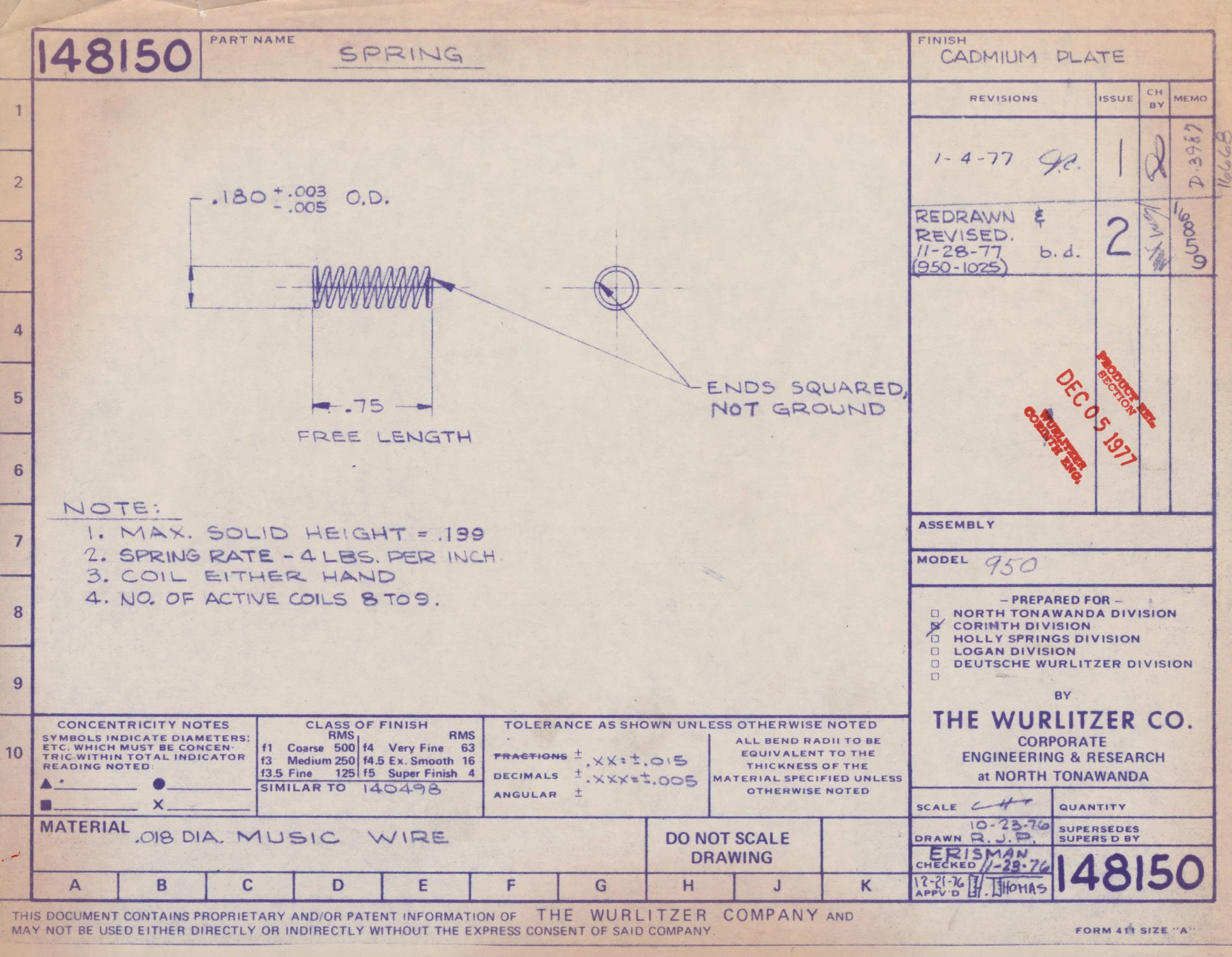

  • 148150 (Spring for the 950)

  • 148165 (Mounting bracket, lower left keyblock, for the 950)

  • 148186 (Switch rod, manual, for the 950)

  • 148204 (Shoulder screw for the 950)

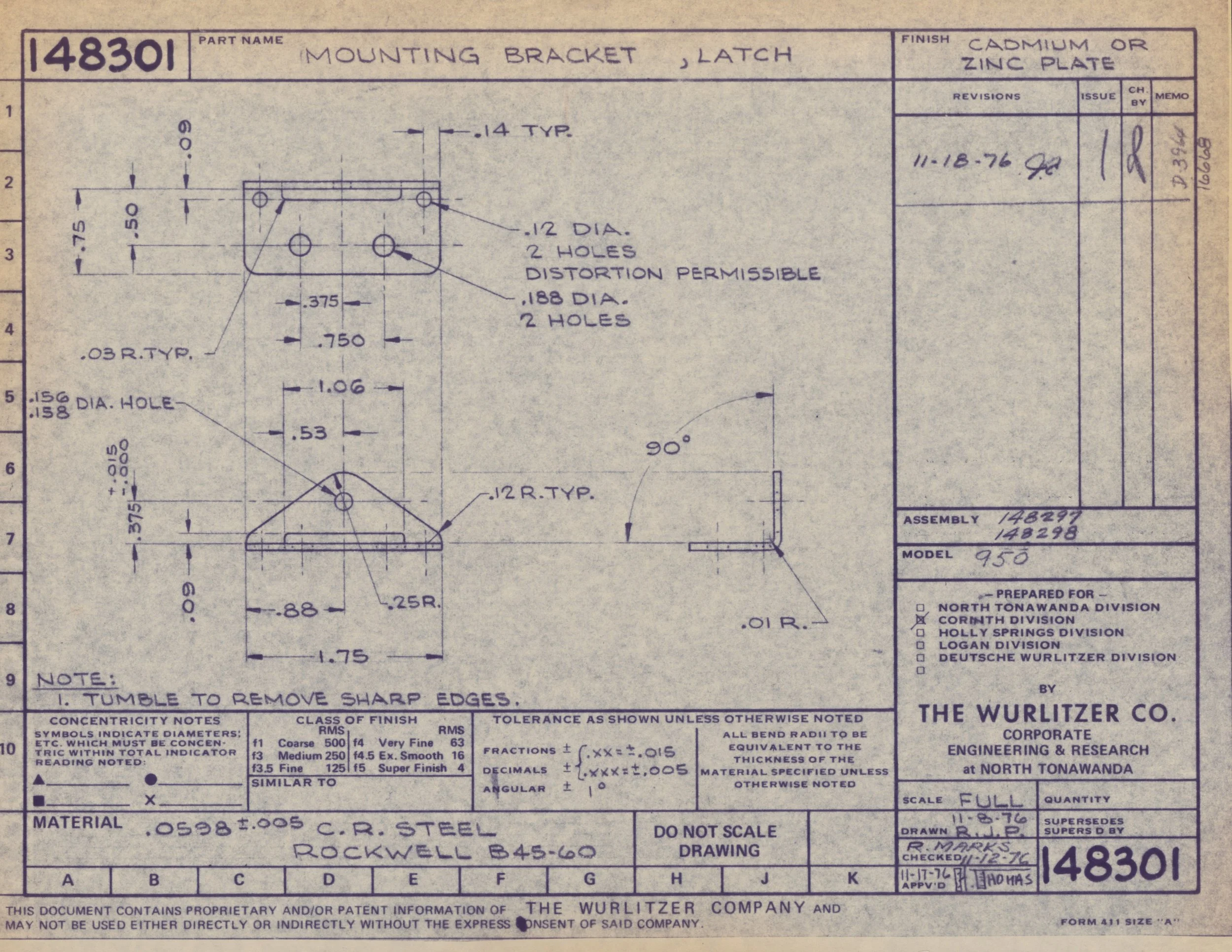

  • 148301 (Mounting bracket, latch, for the 950)

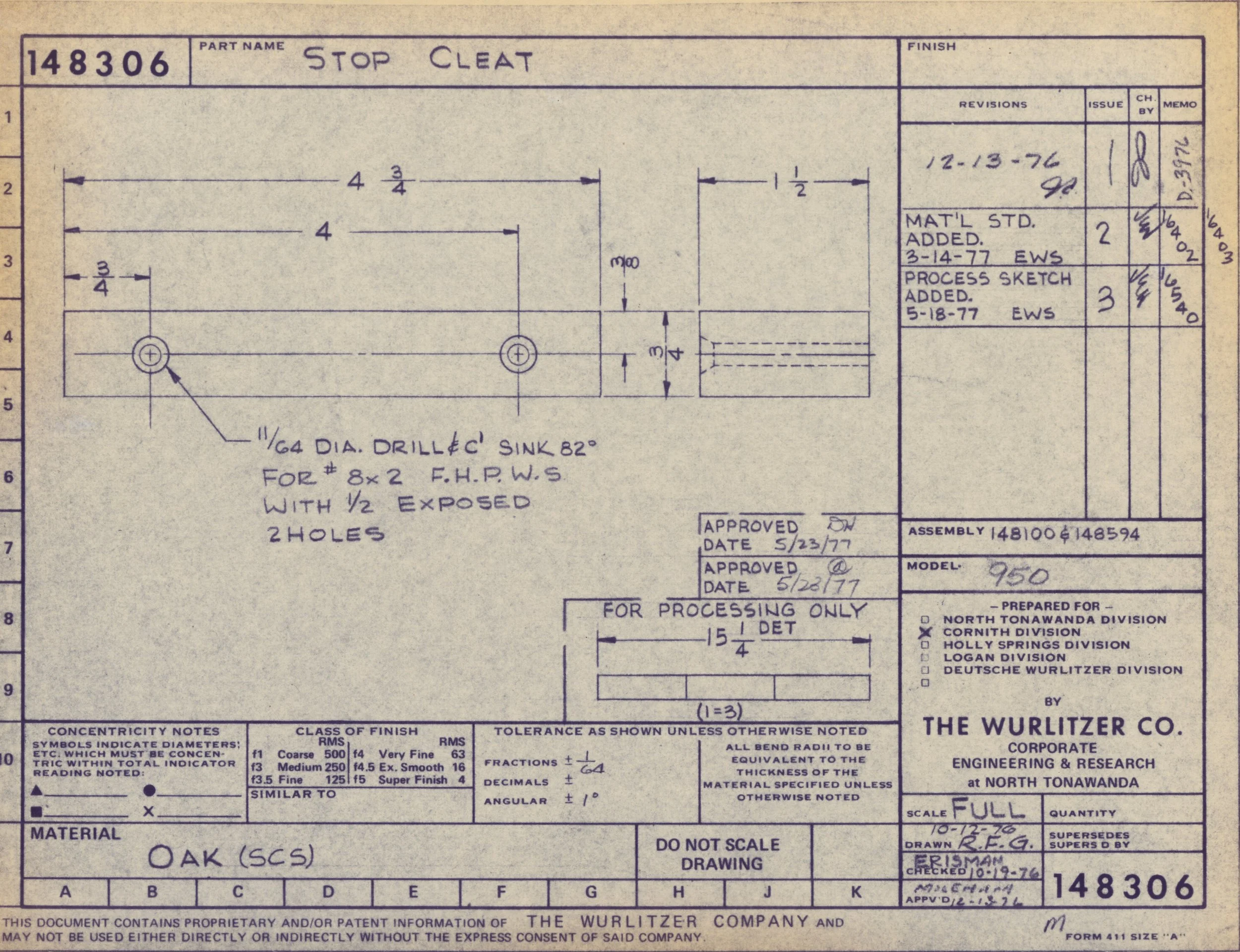

  • 148306 (Stop cleat for the 950)

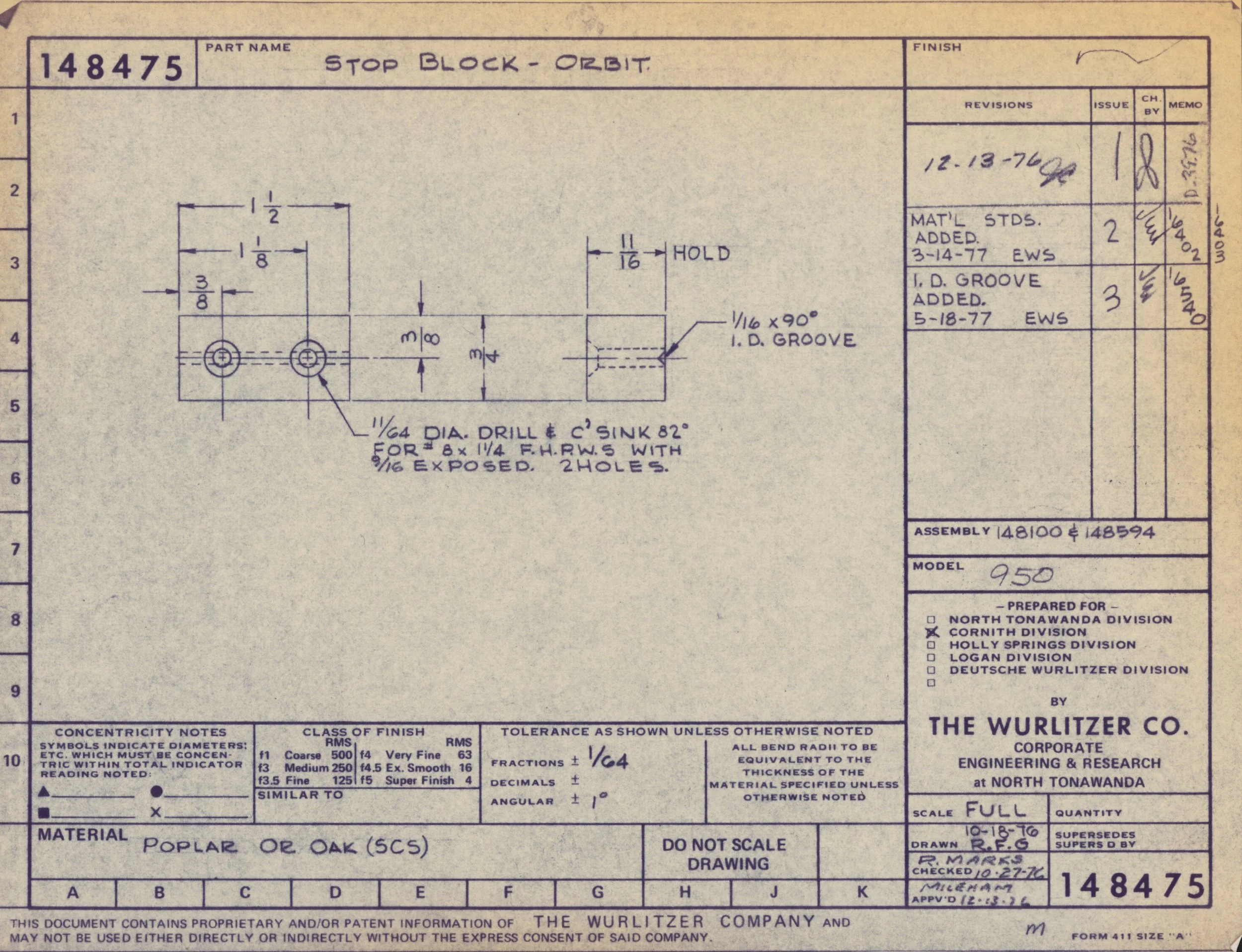

  • 148475 (Stop block, Orbit, for the 950)

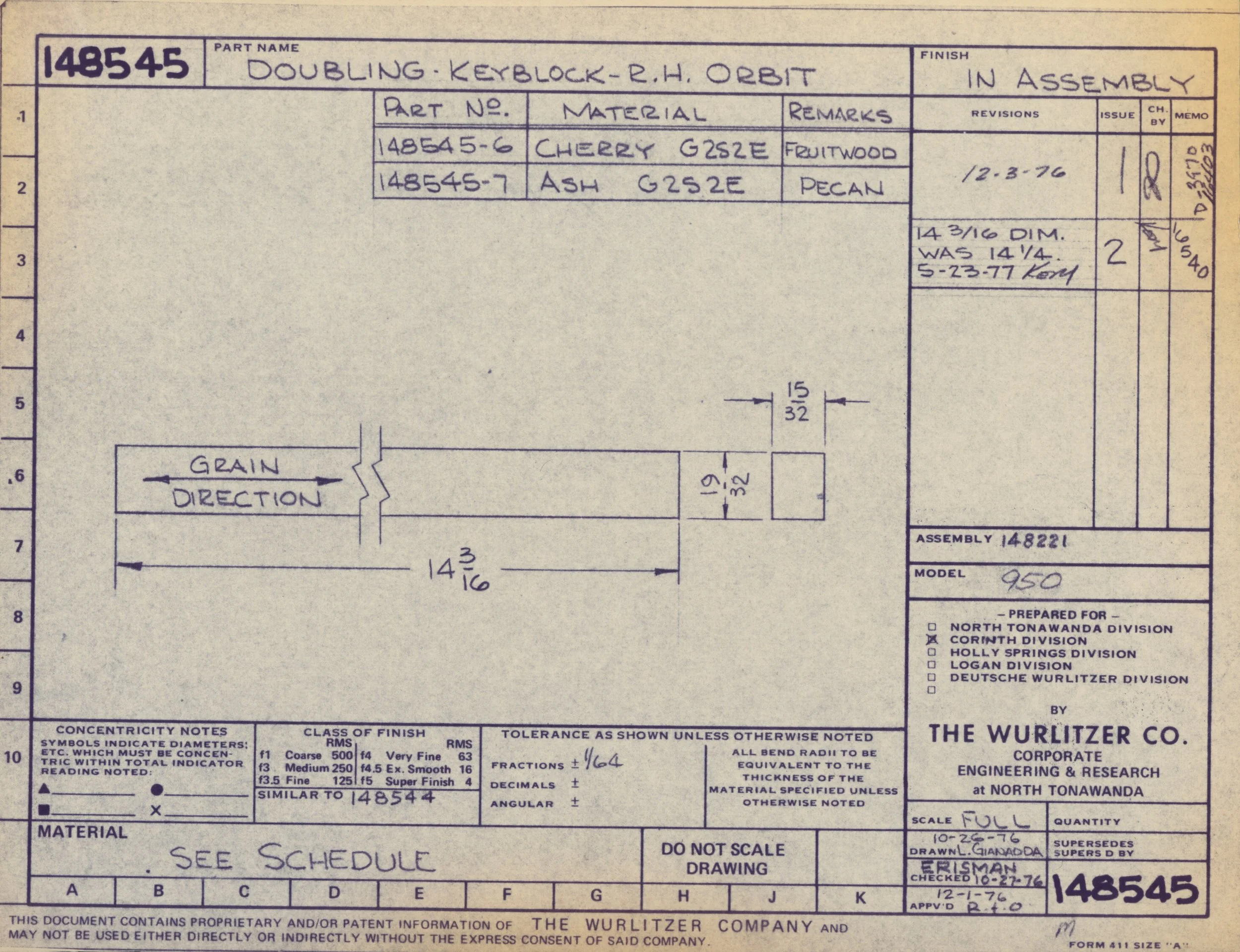

  • 148545 (Doubling, keyblock, right hand, Orbit, for the 950)

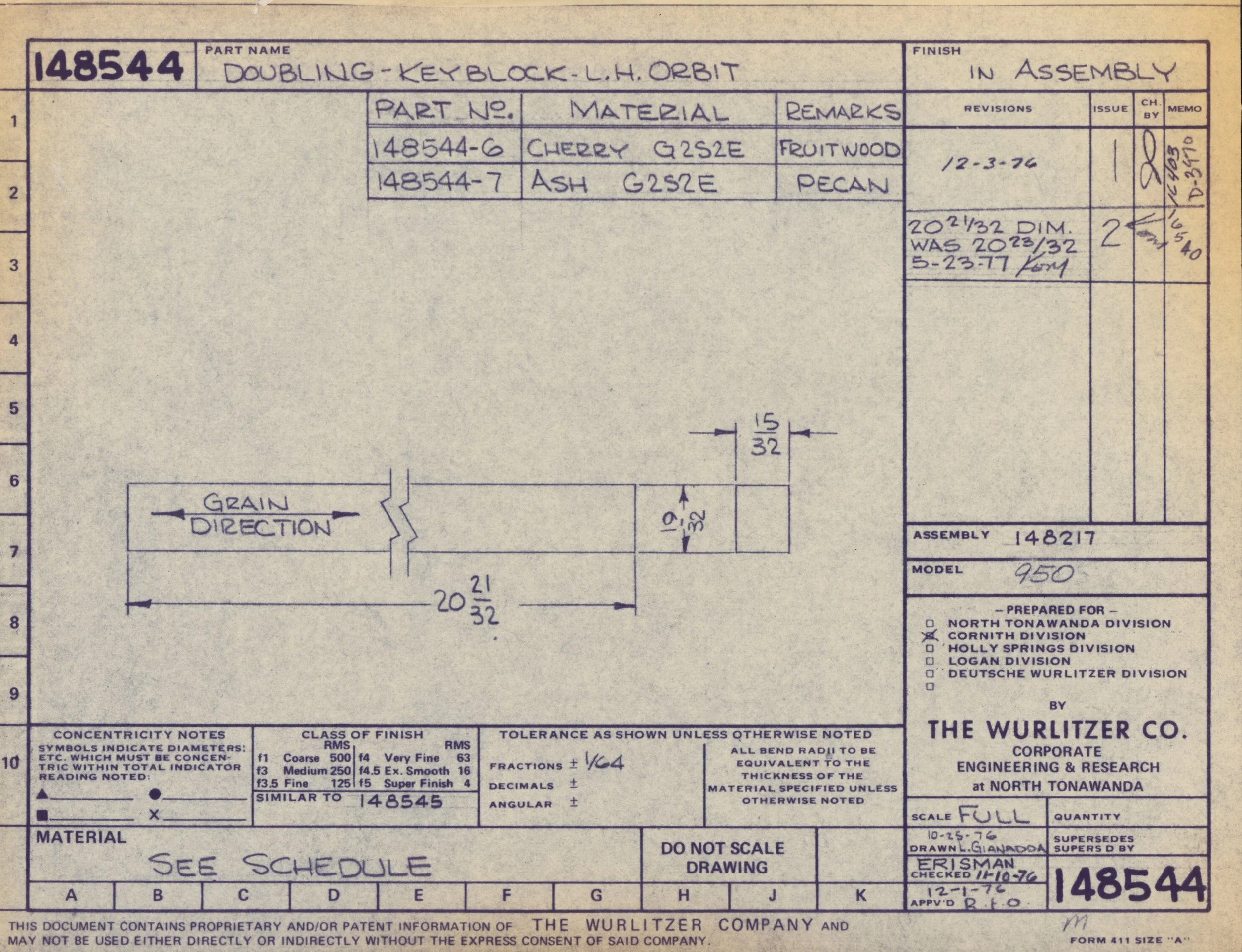

  • 148544 (Doubling, keyblock, left hand, Orbit, for the 950)

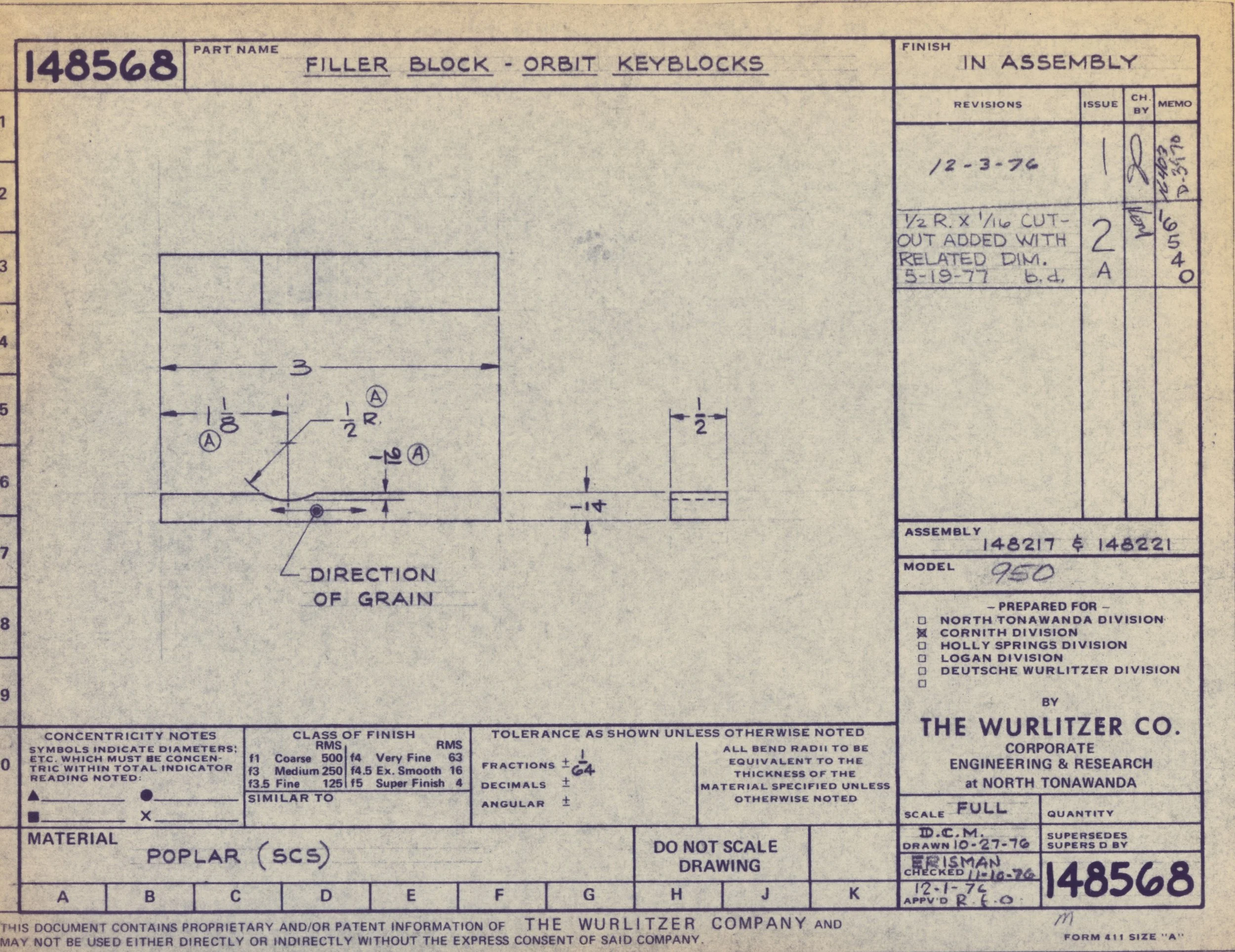

  • 148568 (Filler block, Orbit keyblocks, for the 950)

Close-up of an engineering blueprint or technical drawing for a spacer or keyboard part, with measurements and specifications written on it.

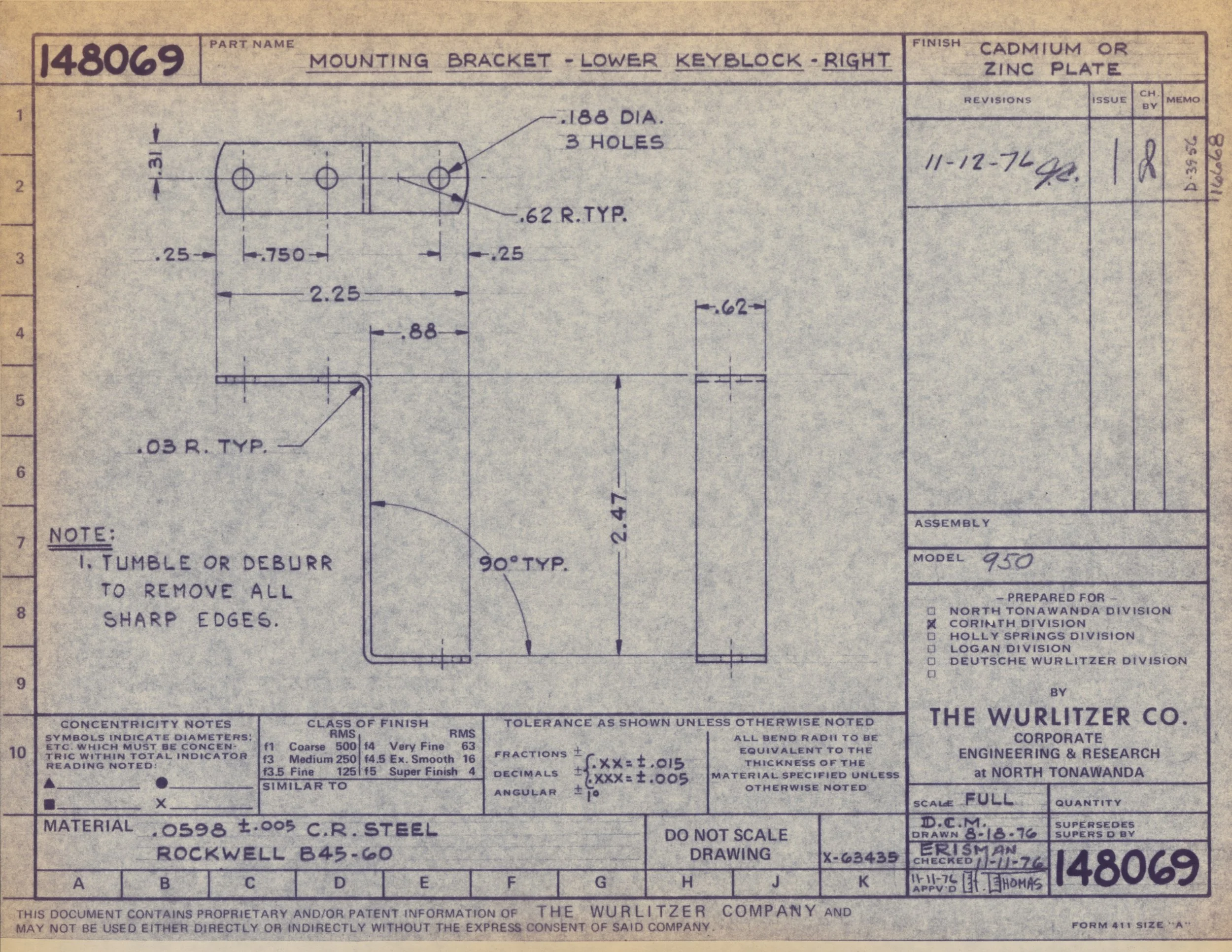

Technical engineering drawing of a mounting bracket for a lower keylock, showing dimensions, hole placements, and specifications, created by The Wurlitzer Co.

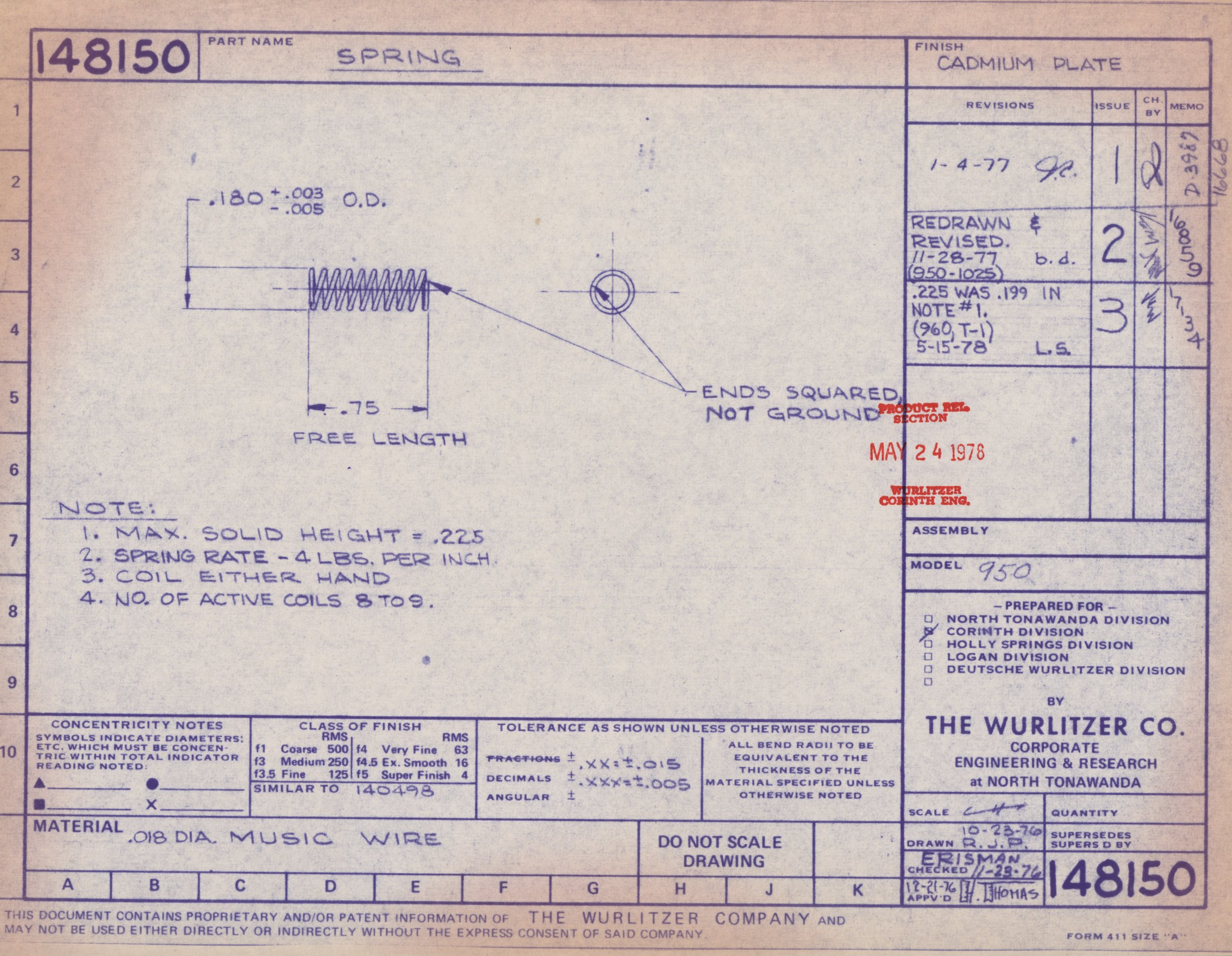

Technical engineering drawing of a spring, including dimensions, specifications, and annotations. The drawing is labeled "Spring" and includes notes about material, length, and other technical details.

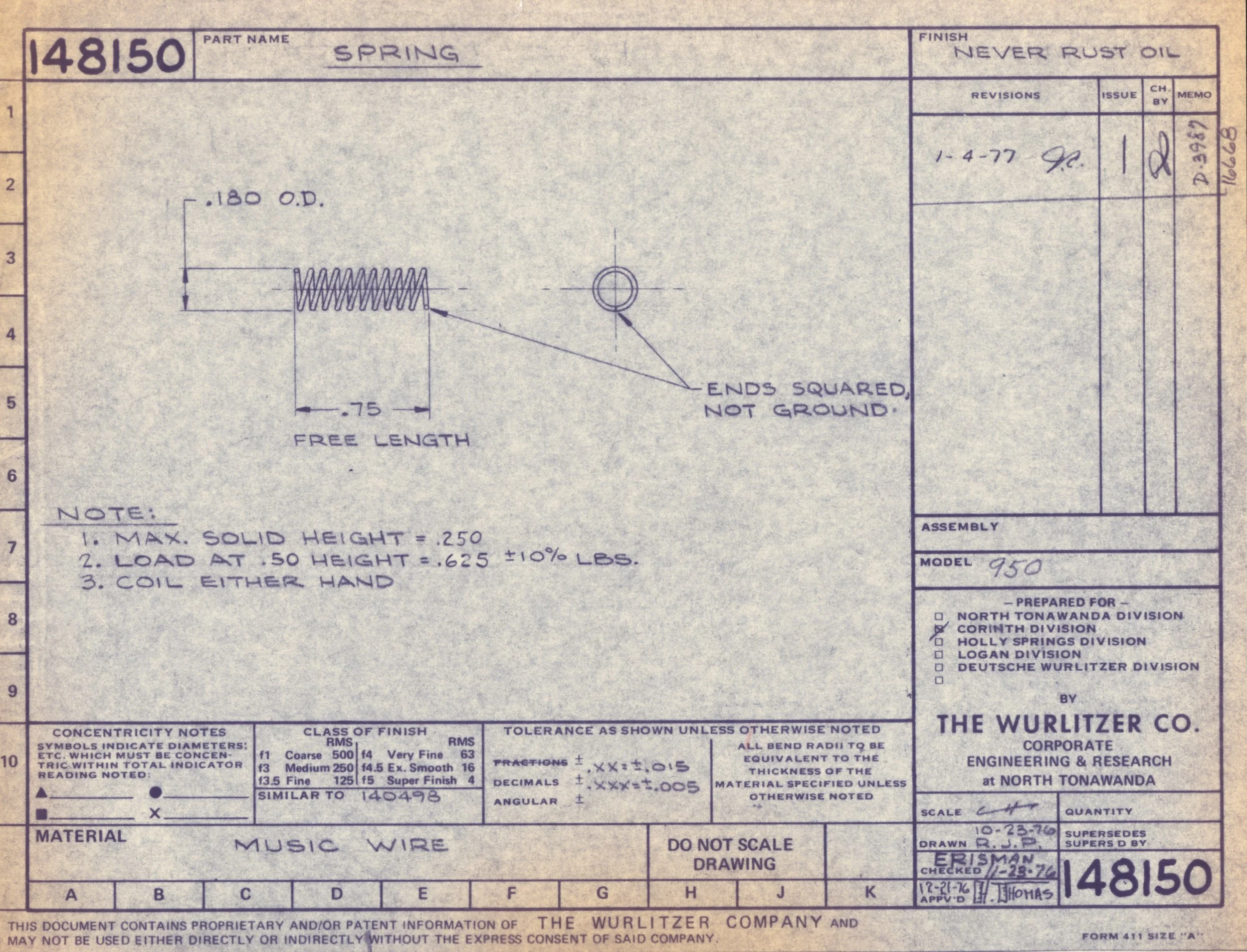

Technical engineering drawing or blueprint of a spring with detailed specifications including dimensions, material, and notes from Wurlitzer Company.
Technical engineering drawing of a spring, labeled 'Spring' with specifications, handwritten notes, part number 148150, and revision details, produced by The Wurlitzer Co., with additional manufacturing and design information.

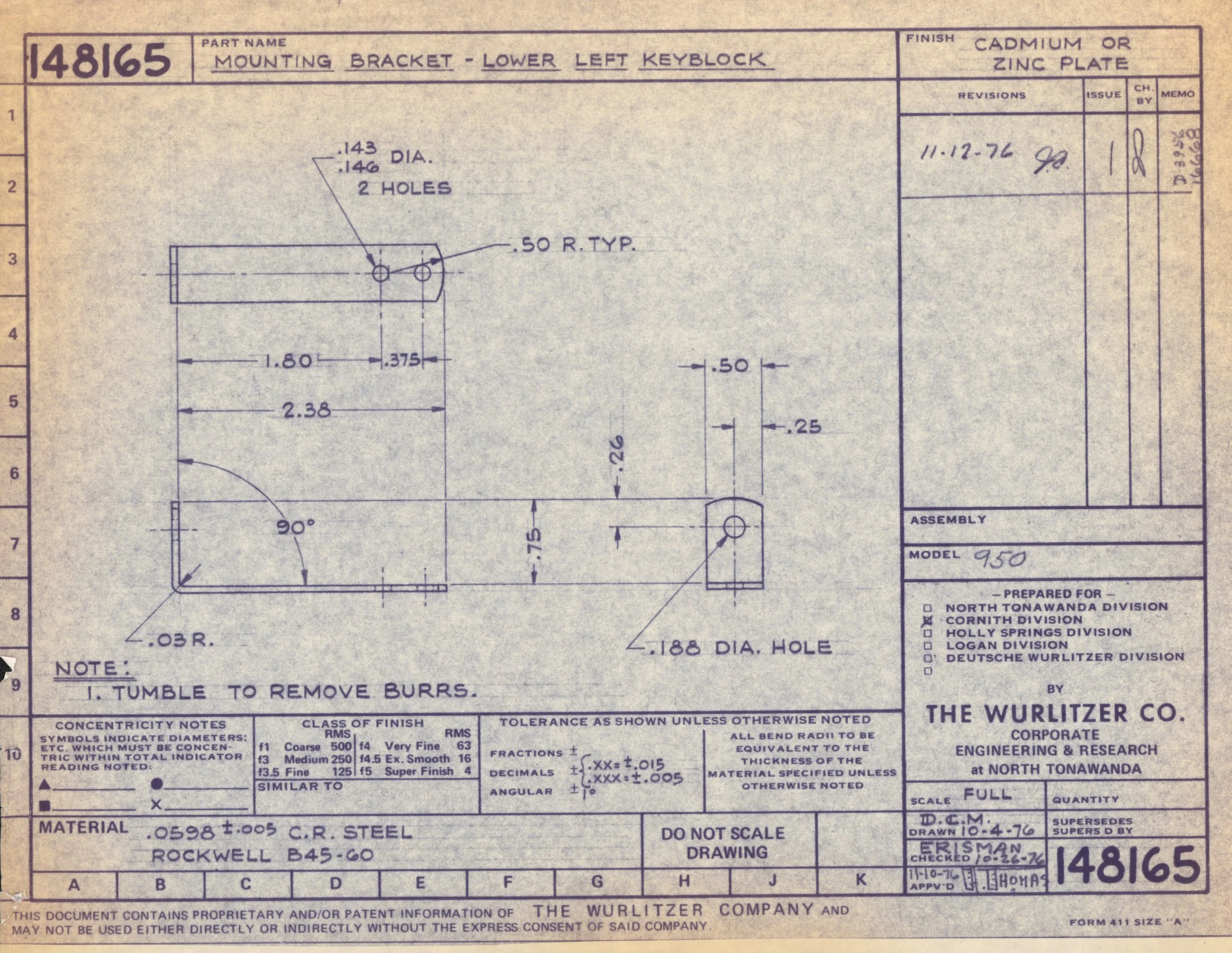

Technical drawing or blueprint of a mounting bracket for a lower left key block, including dimensions, hole sizes, and notes on materials and specifications.

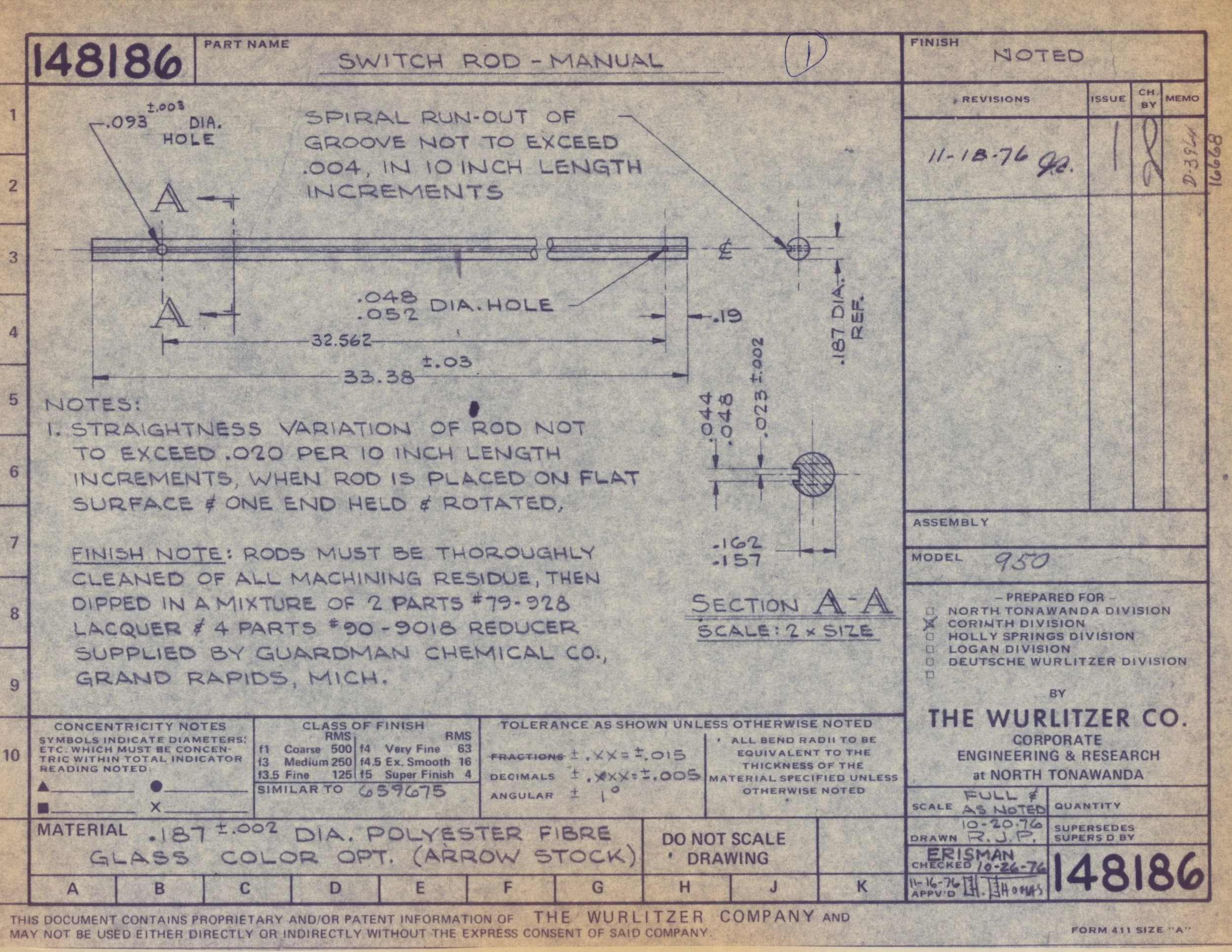

Technical engineering drawing for a switch rod, including detailed measurements, notes, and specifications, created by The Wurlitzer Co., Michigan.

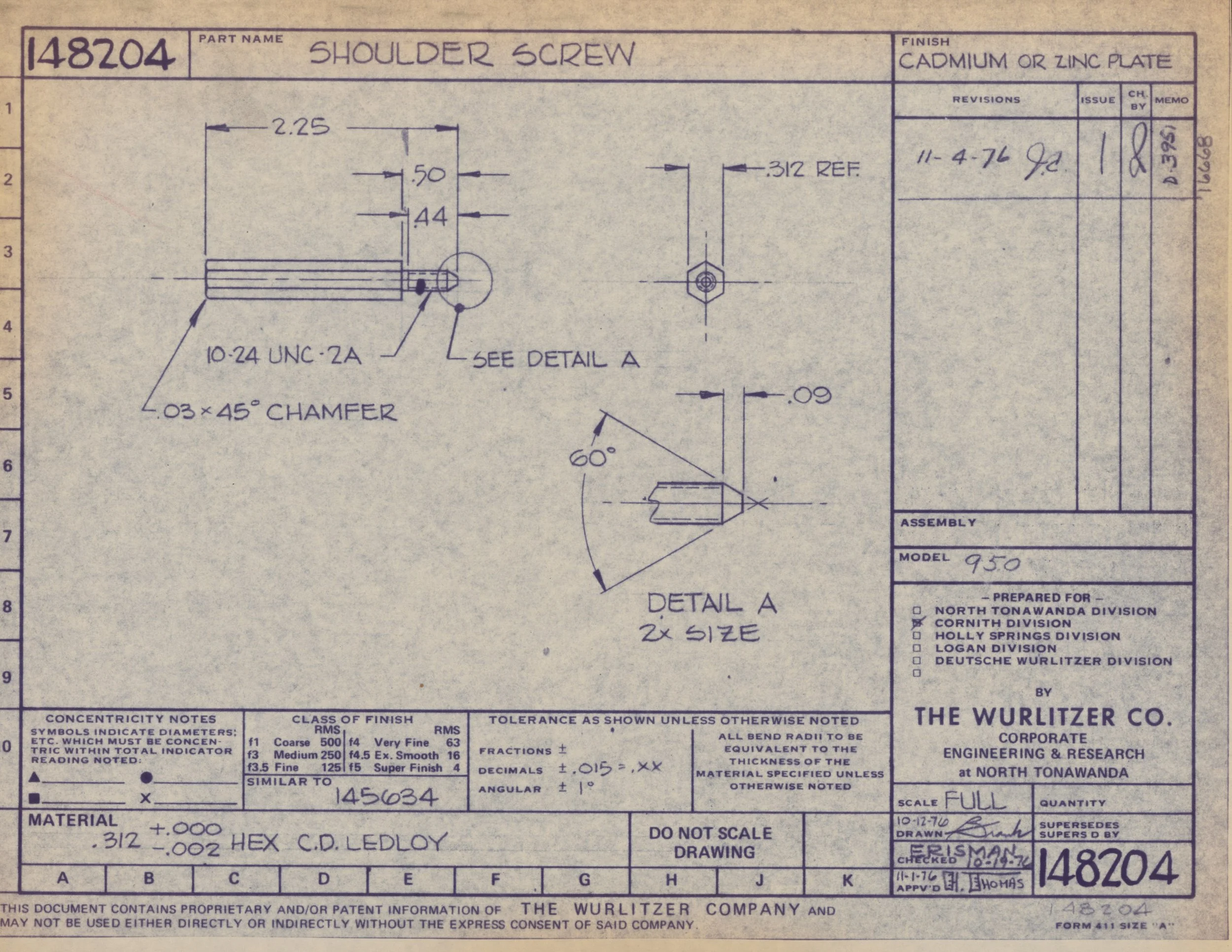

Engineering blueprint with technical drawings and annotations related to a shoulder screw, including dimensions, material specifications, and revision history.
Technical engineering drawing of a mounting bracket latch with dimensions and notes, created by The Wurlitzer Co., dated 1976.
Technical engineering drawing of a part named 'Stop Cleat' with detailed measurements, notes, and approval stamps from 1976.
Technical engineering blueprint for a part named 'Stop Block - Orbit' with detailed measurements and annotations, created by The Wurlitzer Co., dated March 14, 1977.
Technical drawing or blueprint with handwritten notes, measurements, and labels related to material parts and assembly details.
Close-up of a technical engineering drawing with handwritten notes, part numbers, and specifications, related to a doubing-keyblock component.
Technical engineering drawing blueprint for filler block orbit keylocks, including dimensions, specifications, and material details.

Packaging

The drawings below include packing for the Wurlitzer 950, 960, and 960T organs.

  • 148276 (Shipping carton for the 950)

950
960
960T

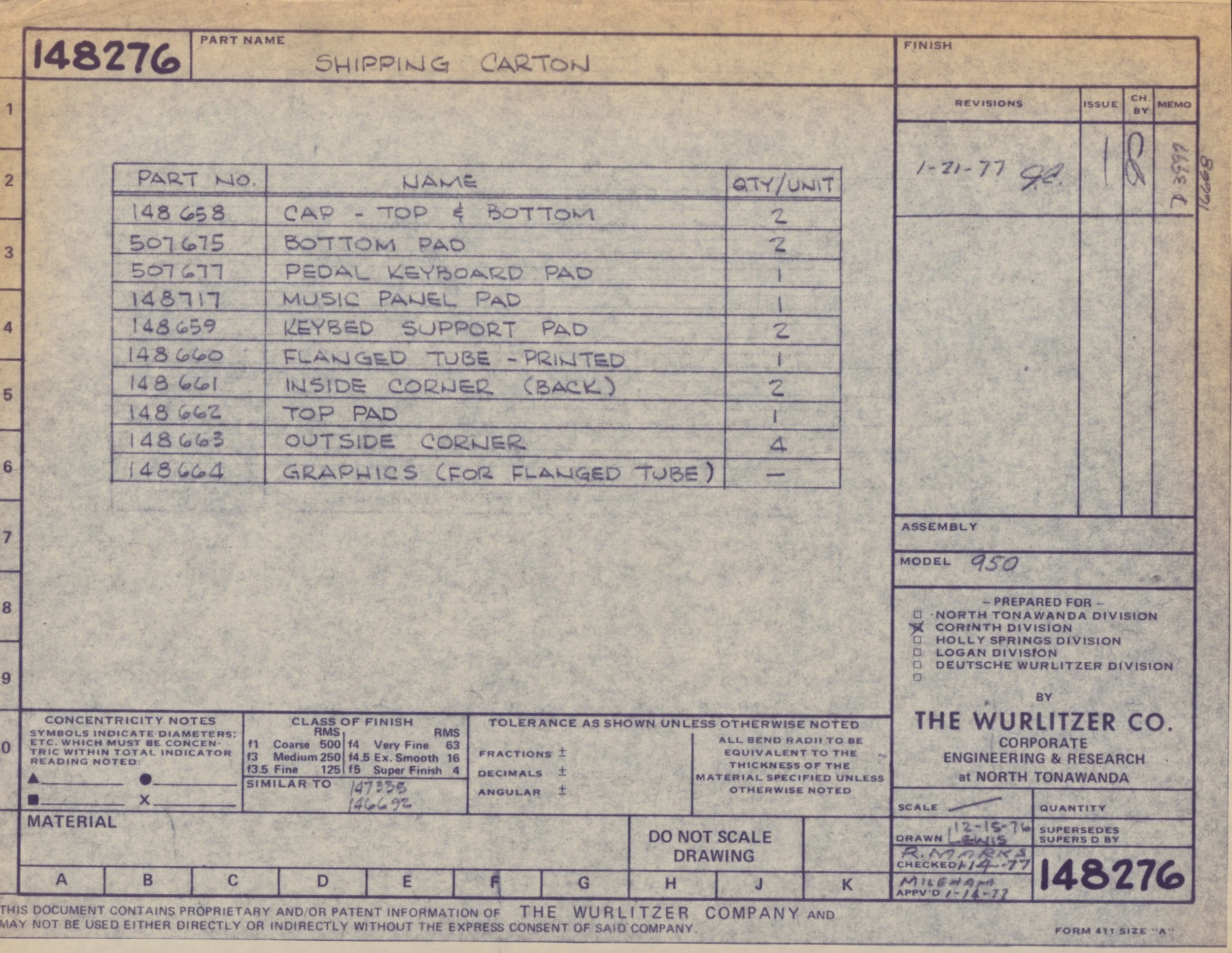

A technical drawing or blueprint document for a shipping carton, including part numbers and descriptions, revision details, and technical specifications.
