Wurlitzer 4019

The Wurlitzer 4019 is a solid state organ that was released in 1970. Its tone generator is an IC divider. It has thirteen bass pedals, and two manuals.

The technical drawings for the 4019 that we currently have scanned include:

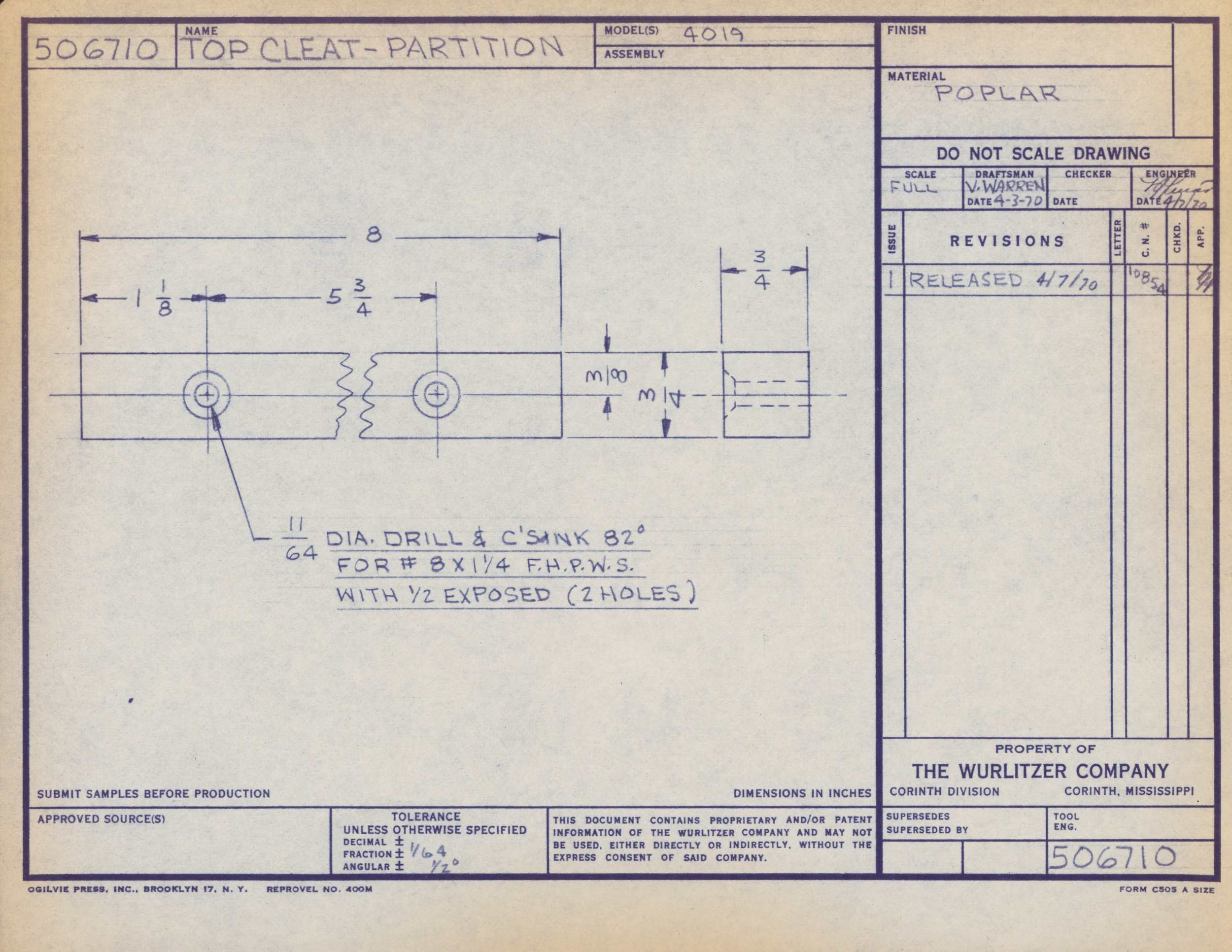

  • 506710 (Top, cleat, partition, for the 4019)

Blueprint drawing for a top cleat partition made of poplar wood, with measurements and technical details.
