Wurlitzer 4373

The Wurlitzer 4373 is a solid state transistor divider organ. It was produced in 1971. It has 13 bass pedals and two keyboard manuals.

The technical drawings for the 4373 that we currently have scanned include:

  • 658883 (Support bracket 3rd manual to straf LH)

  • 659368 (Grille cloth)

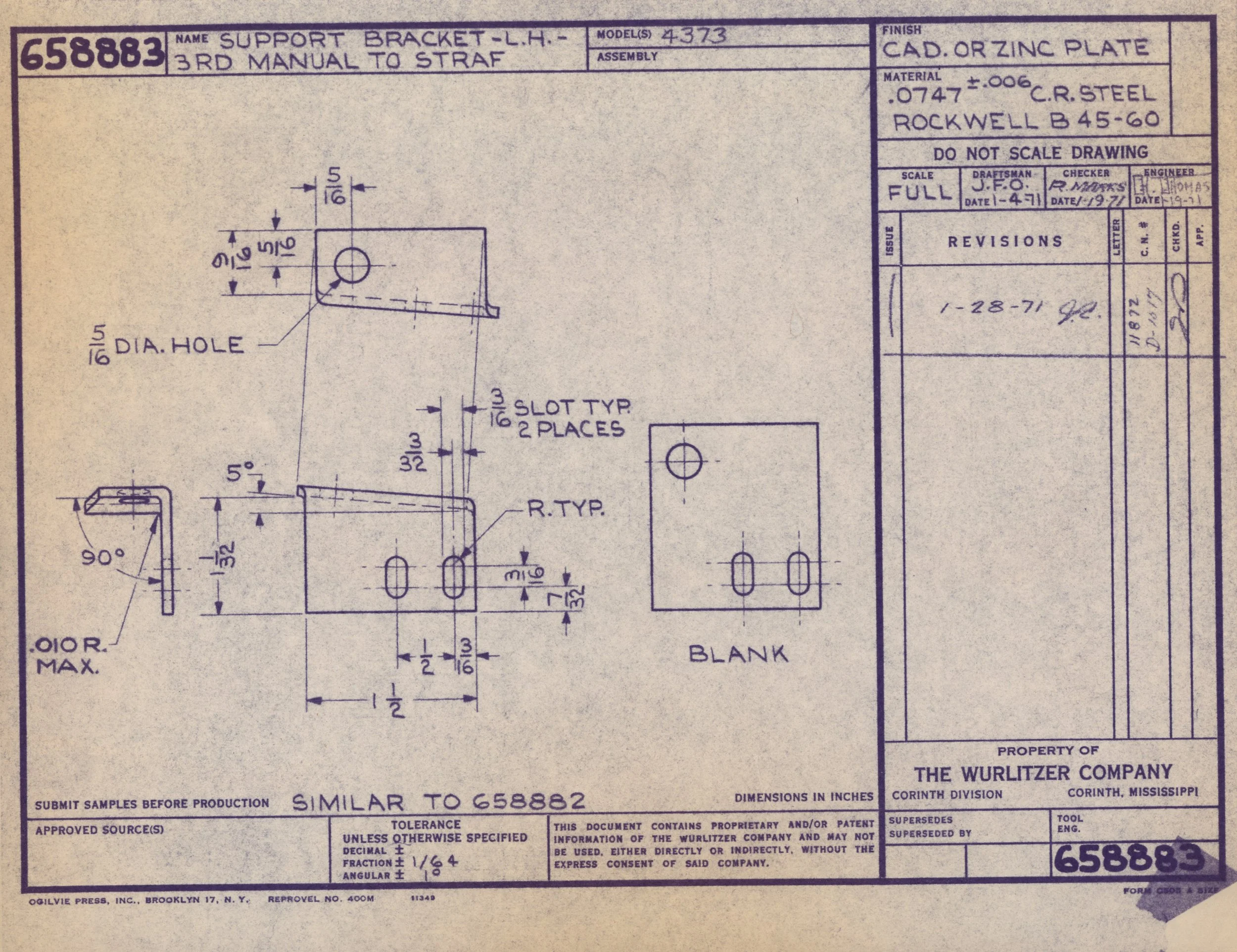

A technical engineering drawing for a support bracket, showing dimensions, hole placements, and material specifications, with labels and revision notes.

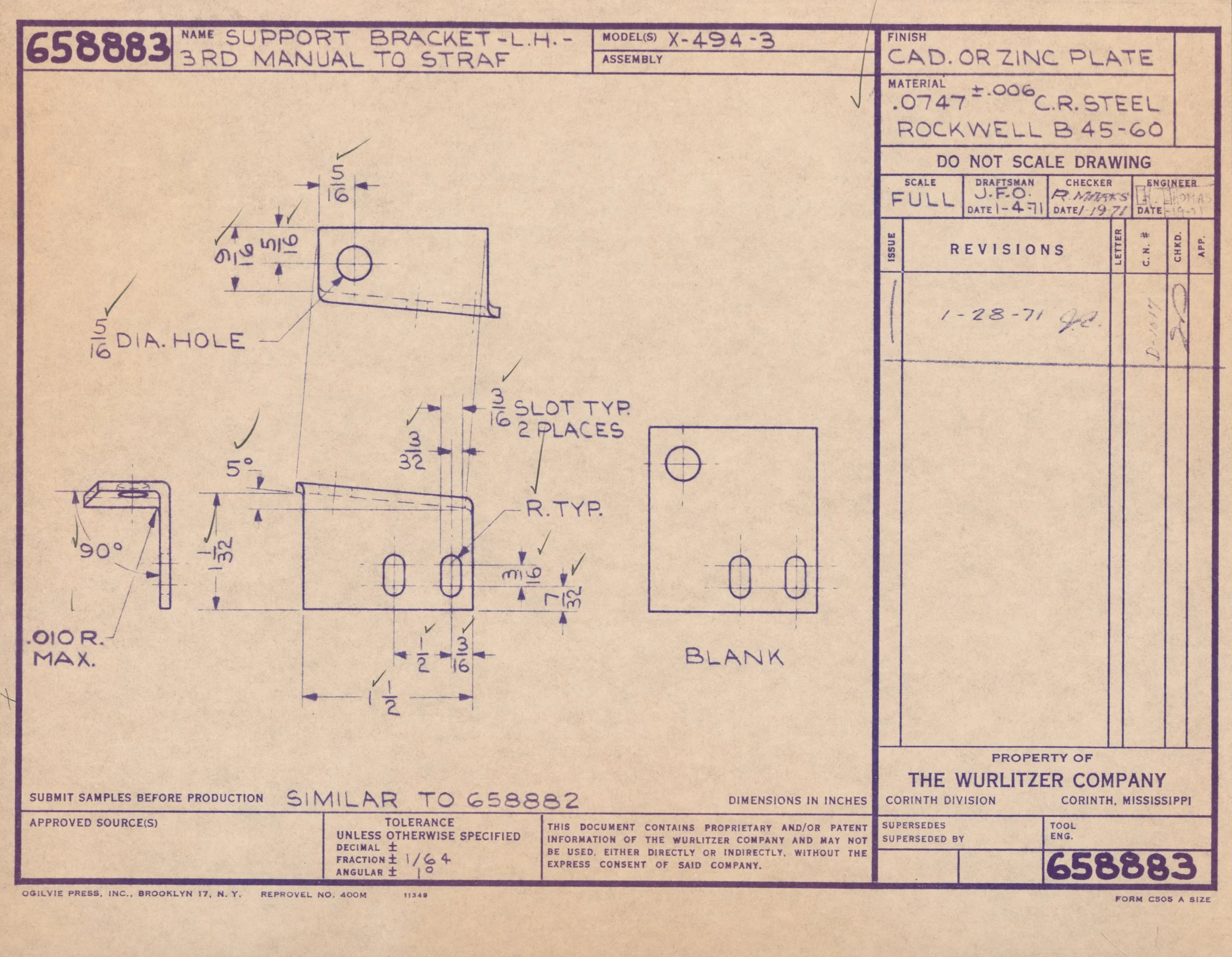

Technical engineering drawing of a support bracket with detailed measurements and annotations, created for manufacturing purposes.

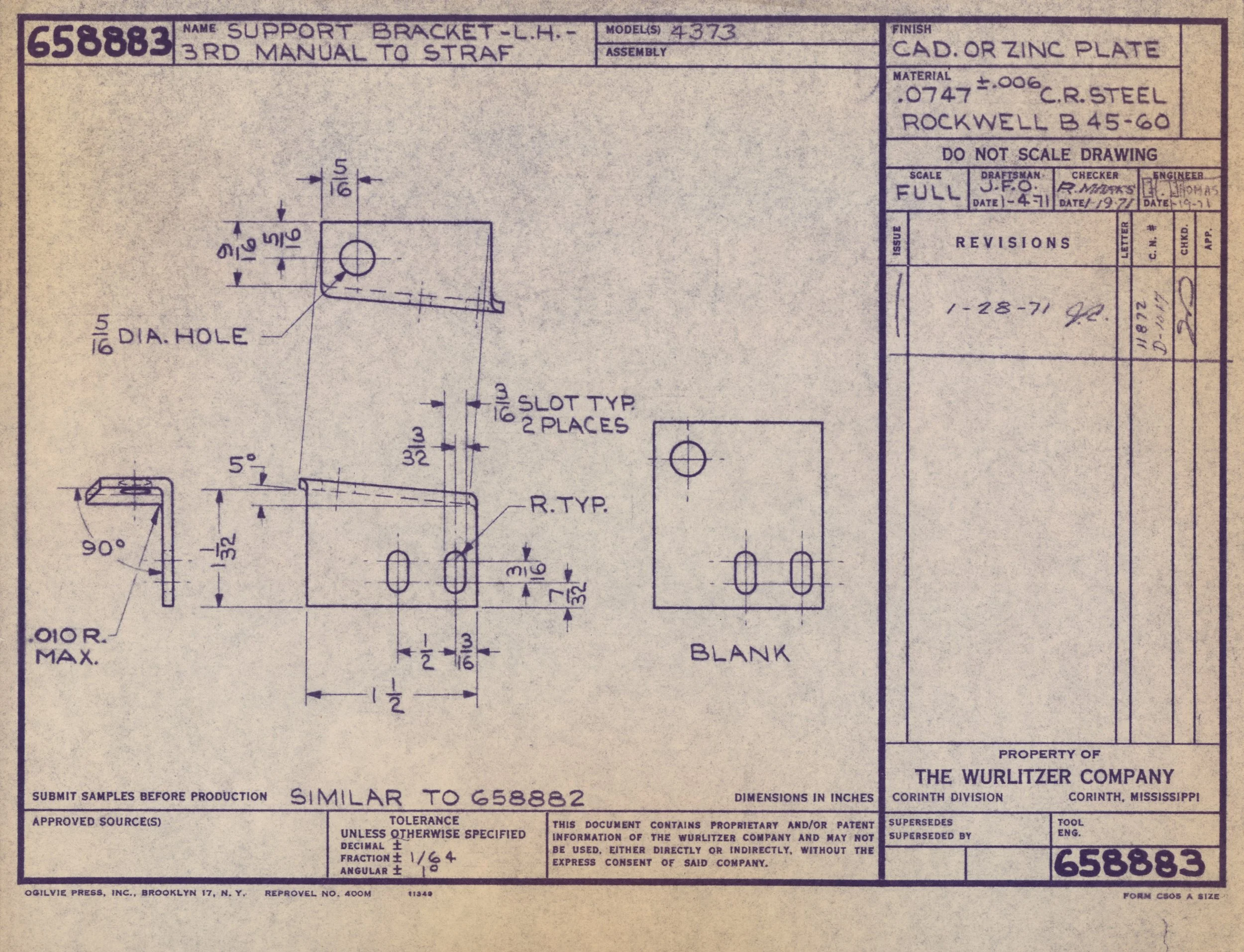

Technical engineering drawing of a support bracket with detailed measurements, hole sizes, and material specifications, labeled with project details and approval stamps.

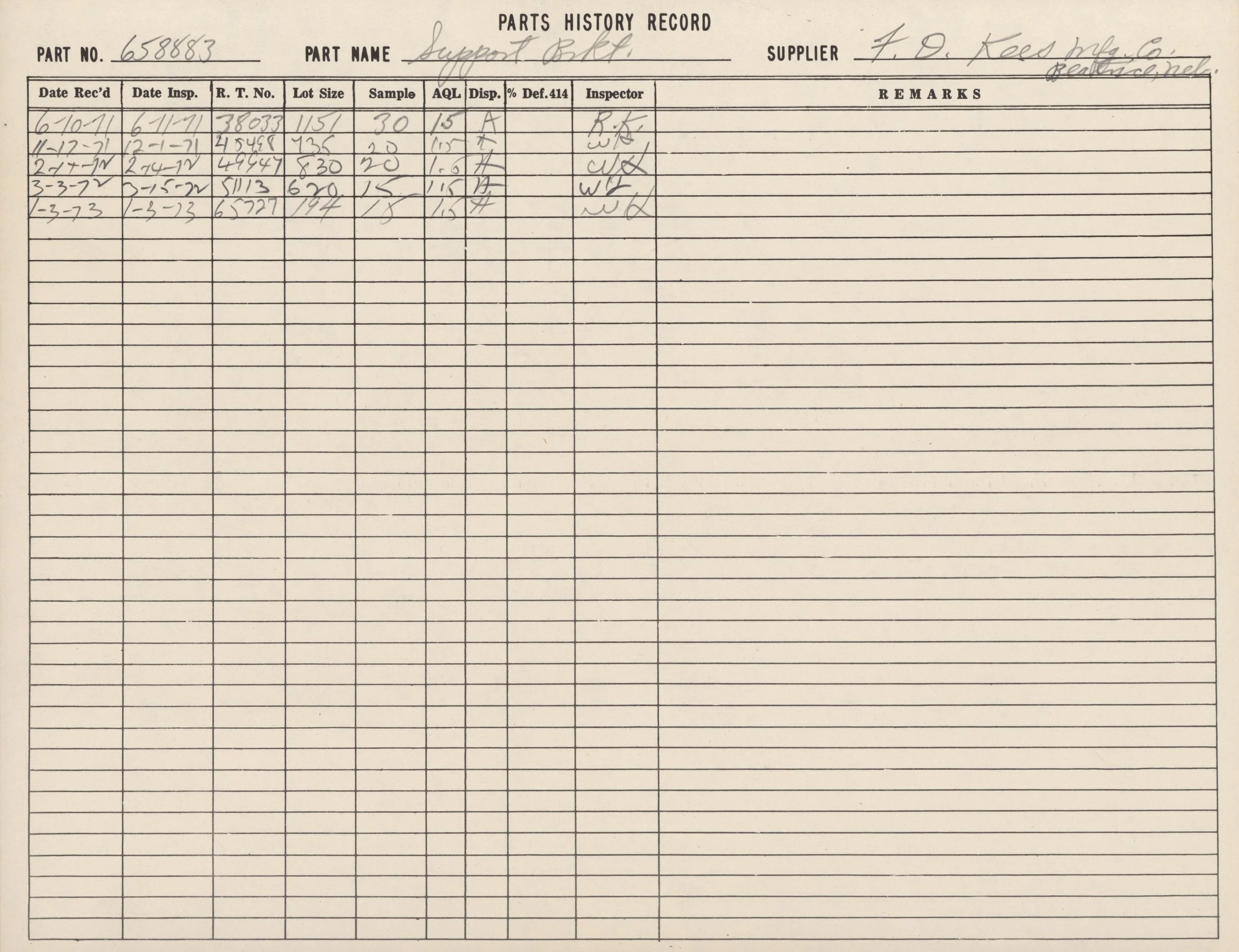

A handwritten record page titled 'Parts History Record' for part number 658883. It contains columns for date received, date inspected, R.T. No., lot size, sample, AQL, disposition, percent defective, inspector, and remarks. The entries show dates fro

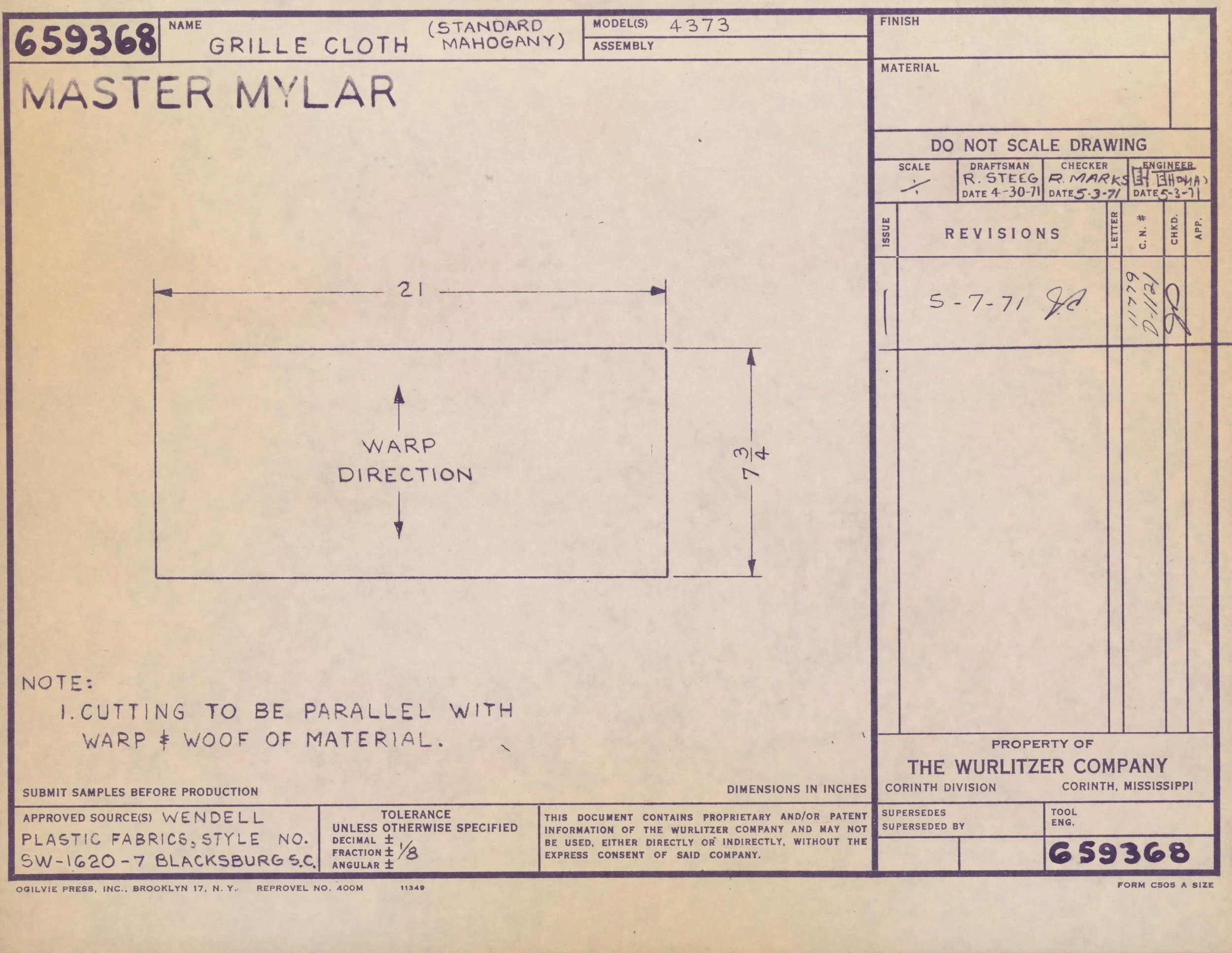

A technical drawing or blueprint for a material called "Grille Cloth" made of mahogany. The document includes measurements, instructions, and signatures from various engineers and draftsmen, with a note about cutting the material to be parallel and t

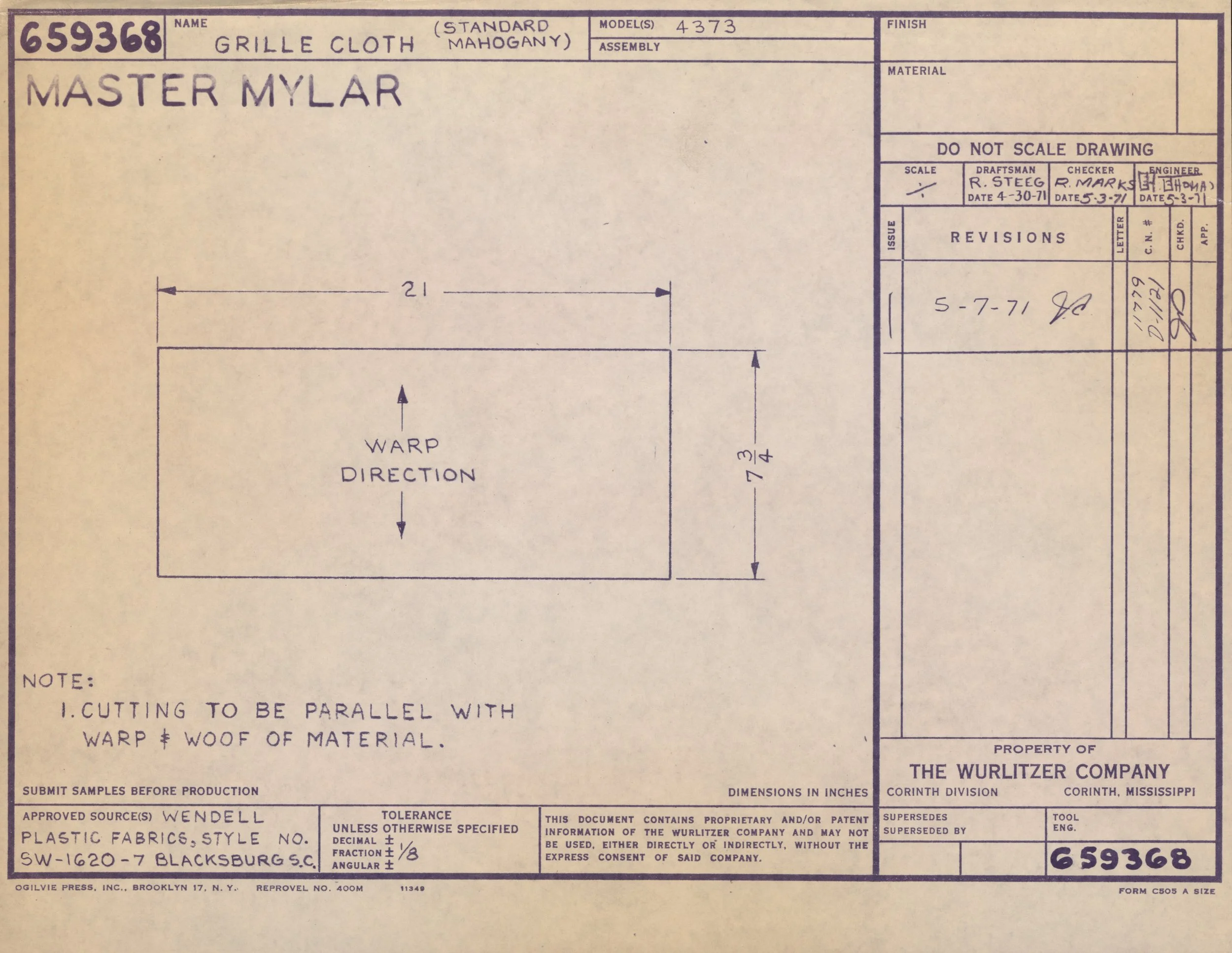

Close-up of a blueprint or technical drawing for a grate cloth, a type of mahogany material, with handwritten notes, dimensions, and approval signatures. The document includes technical specifications, instructions, and company information.
