Wurlitzer 4140

The Wurlitzer 4140 is a transistor divider organ that was produced in 1965. The organ has 13 bass pedals and two manuals.

4140

Cabinet and cosmetic parts

The drawings we have currently scanned pertaining to the cabinet and exterior components used in the Wurlitzer model 4140 organ include:

  • 653927 (Grille cloth, cherry, for Wurlitzer 4140)

  • 653928 (Grille cloth, walnut, for 4140)

  • 653299 (Grille cloth, oiled walnut, for 4140)

  • 653336 (Pivot pin and stop tablet assembly for 4140)

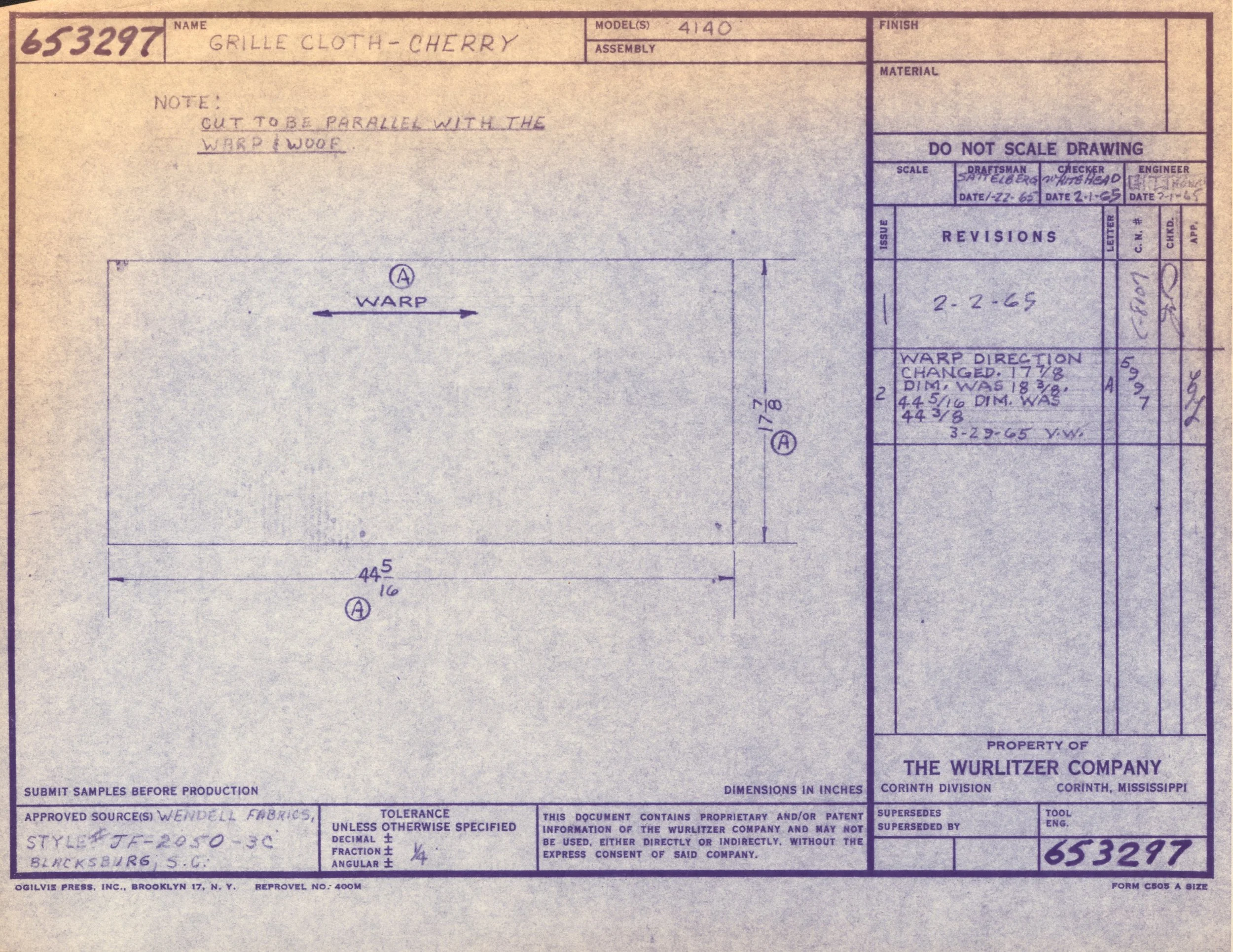

Technical drawing of a cherry-colored grille cloth with handwritten notes, dimensions, and specifications.

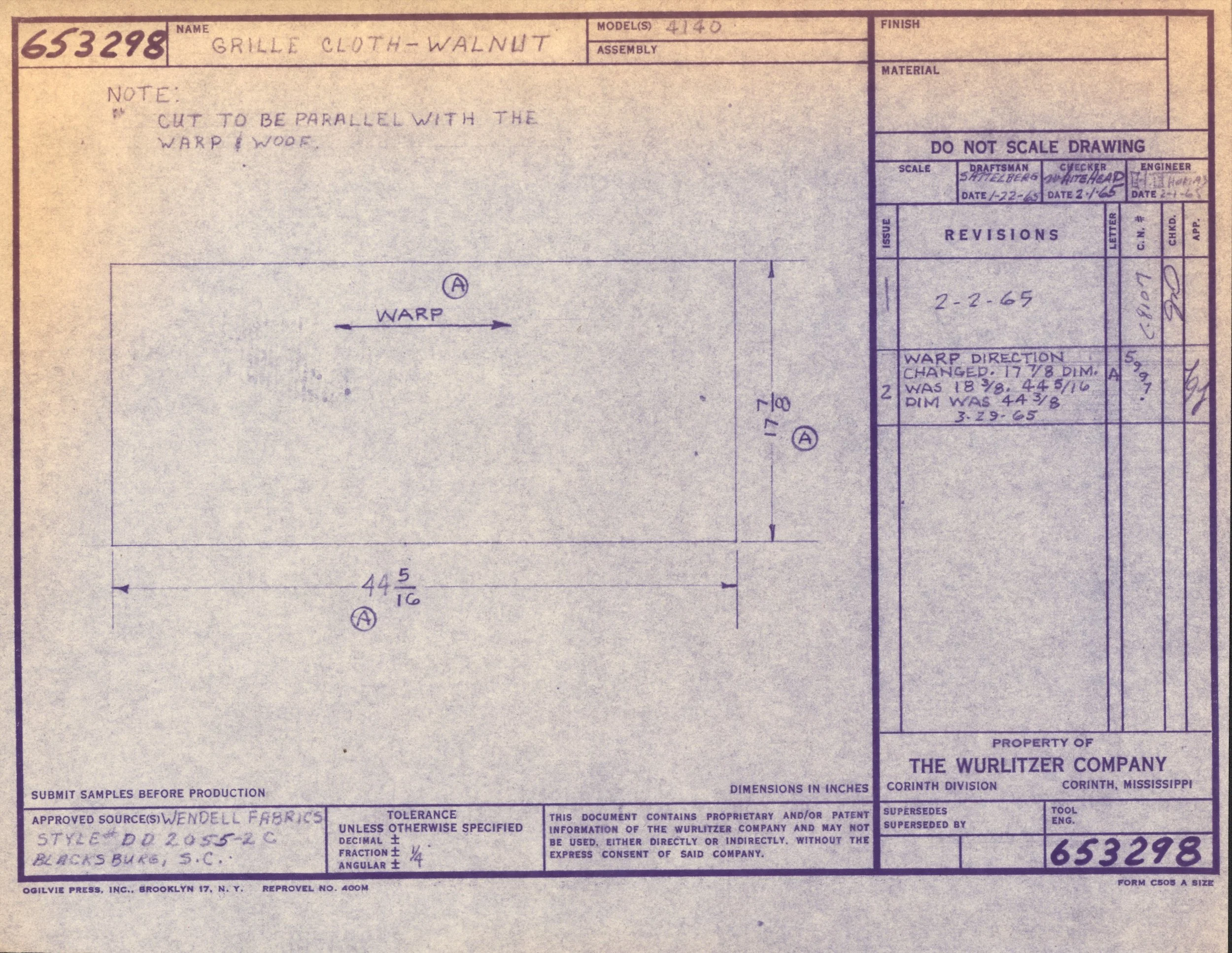

Blueprint for a walnut wood grill cloth from The Wurlitzer Company, including measurements, revision notes, and production information.

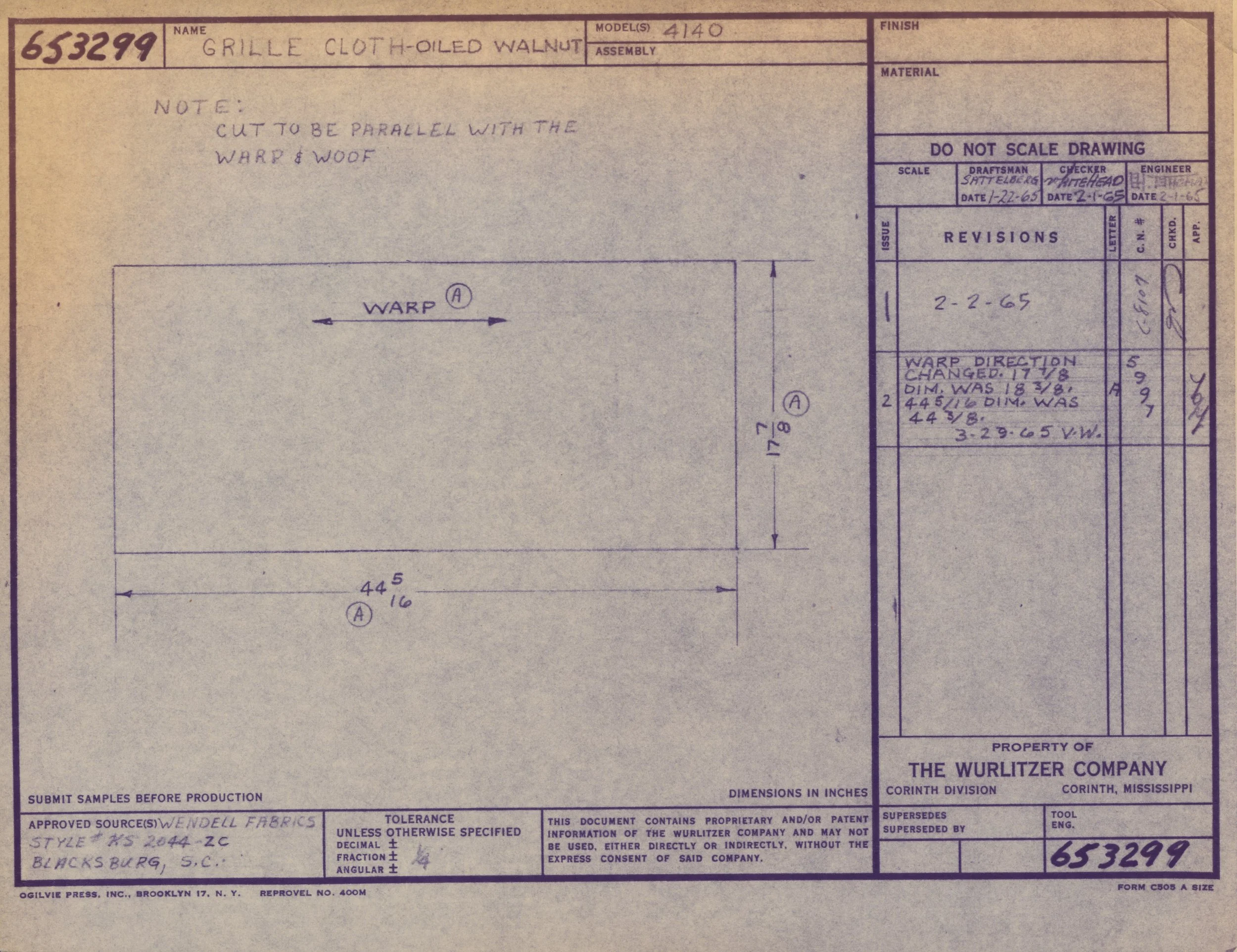

Blueprint or technical drawing of a piece of furniture labeled 'Grille Cloth - Oiled Walnut,' with measurements and notes, created by The Wurlitzer Company in Corinth, Mississippi.

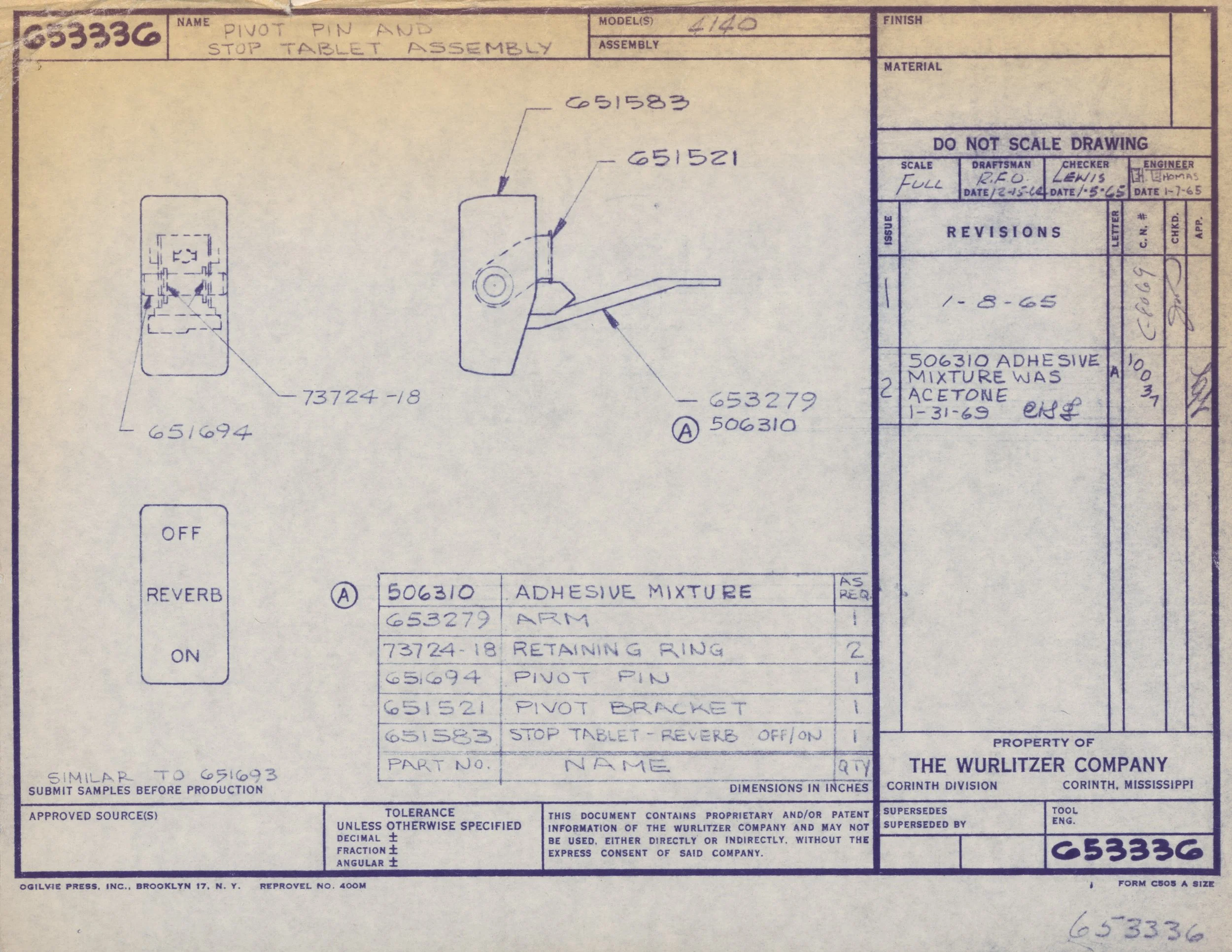

Blueprint of a stop tablet assembly for a machine, showing parts such as pivot pin, retaining ring, and bracket with listed part numbers and dimensions.

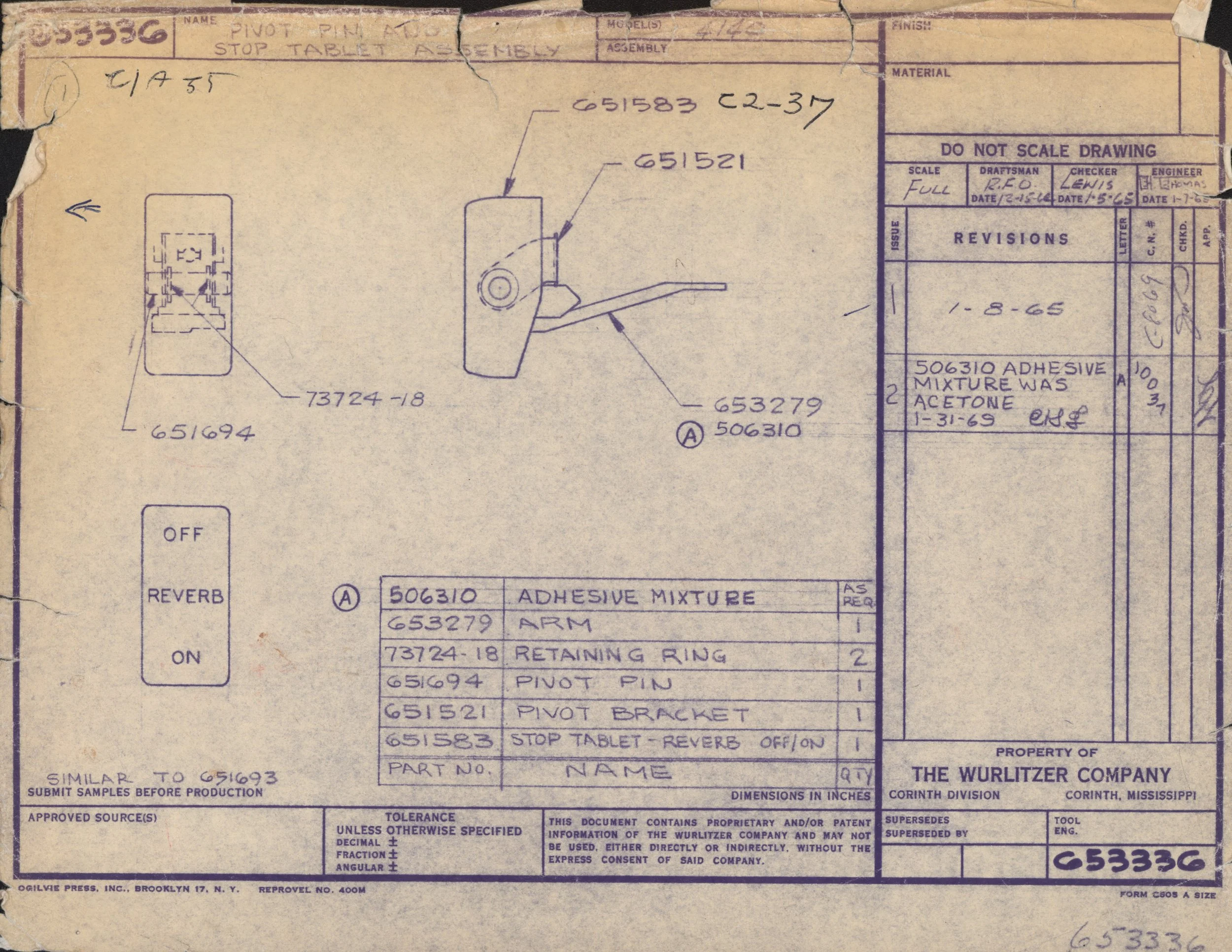

Technical blueprint of a stop tablet assembly with handwritten notes, part numbers, and manufacturing details from The Wurlitzer Company.
4140

Chemicals

The drawings we have currently scanned pertaining to chemicals used in the Wurlitzer model 4140 organ include:

  • 653111 (Triple-distilled mercury for Wurlitzer 4140)

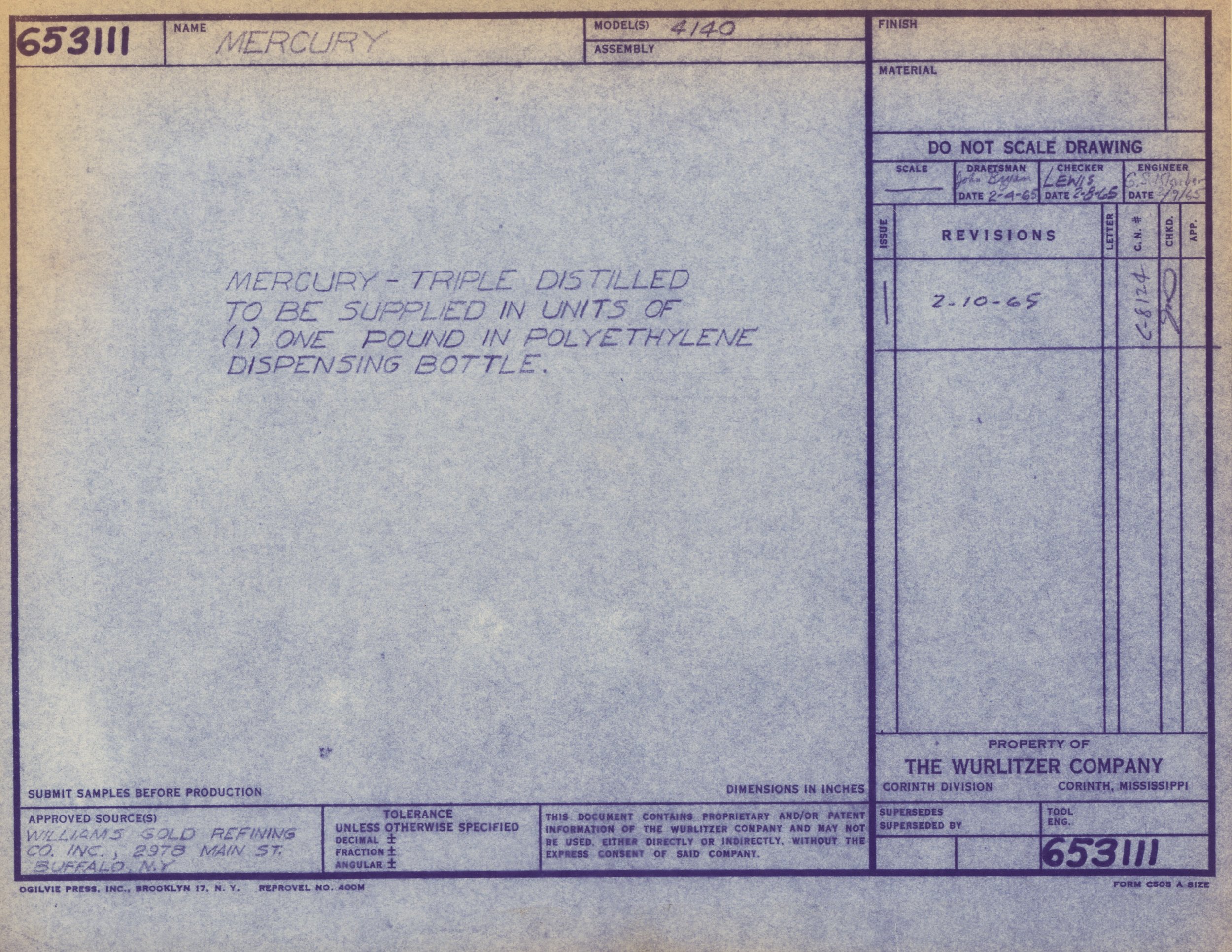

Technical document with handwritten notes and printed sections, mentioning Mercury, triple distilled, supplied in units of one pound in polyethylene dispensing bottle, and referencing Wurlitzer Company, located in Corinth, Mississippi.
4140

Electronic parts

The drawings we have pertaining to electronics used in the Wurlitzer model 4140 organ include:

  • 653235 (Buss wire, lower straf, for 4140)

  • 653236 (Buss wire, upper straf, for 4140)

  • 653237 (Buss wire, pedal strap, for 4140)

  • 653243 (Printed circuit pack, keying circuit, upper, for 4140)

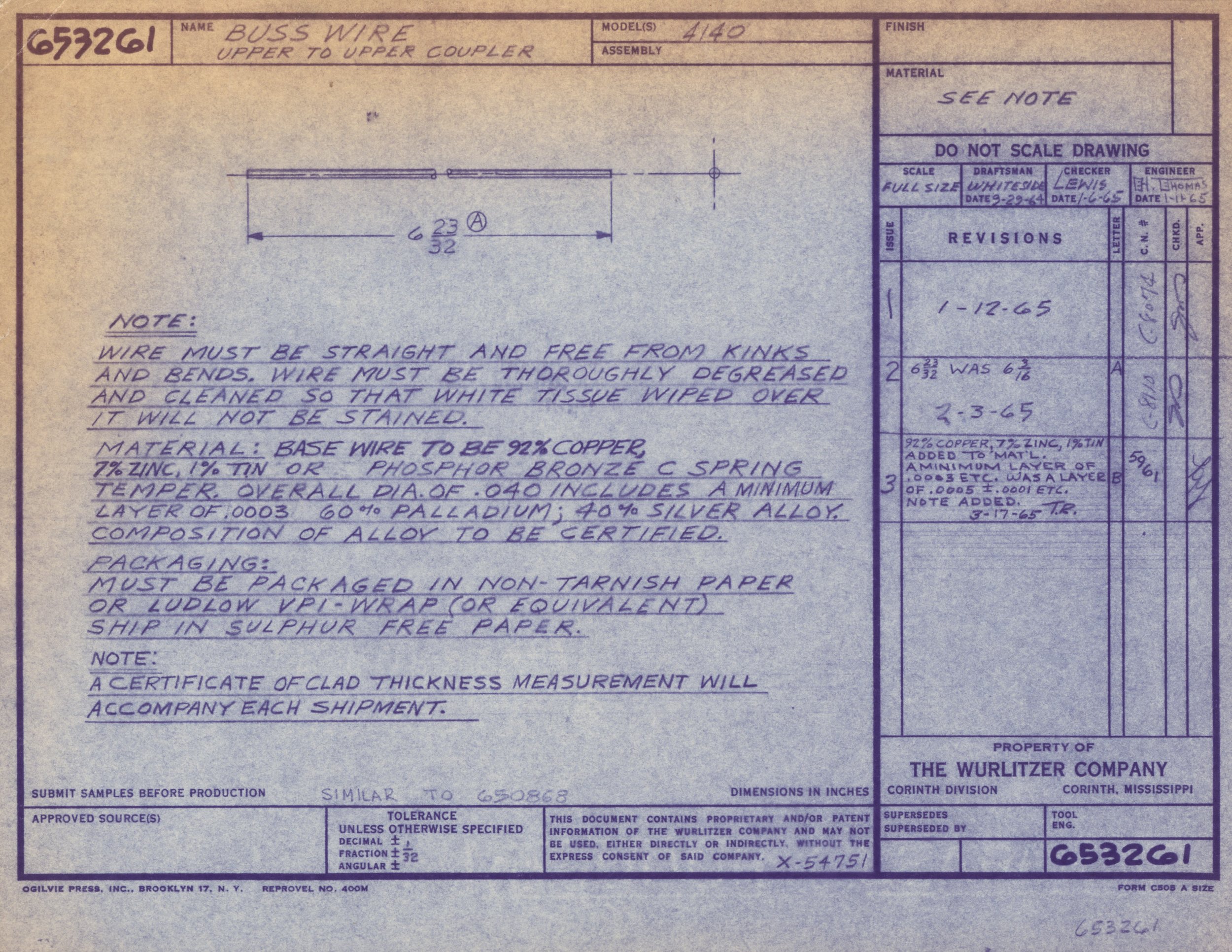

  • 653261 (Buss wire, upper to upper coupler, for 4140)

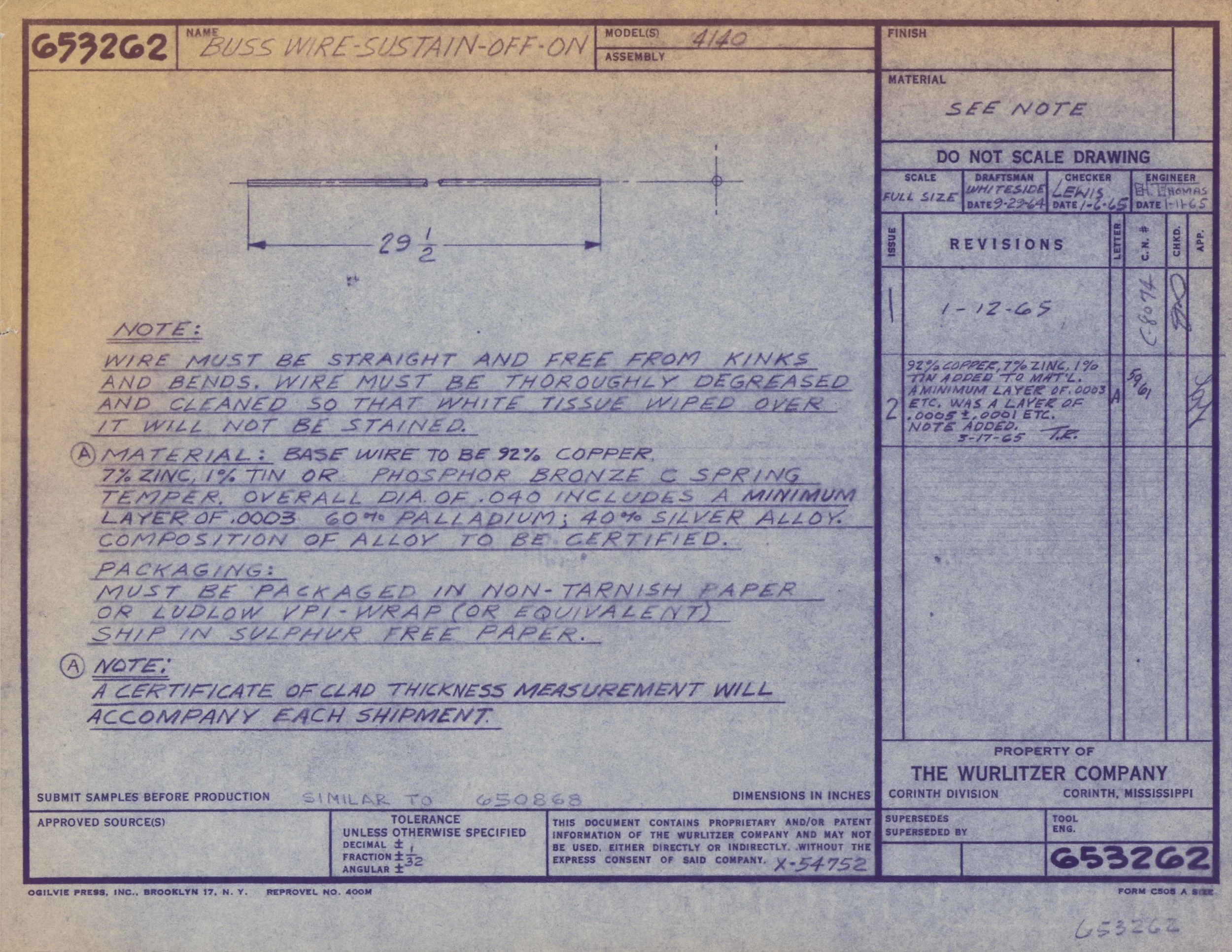

  • 653262 (Buss wire, sustain, off on, for 4140)

  • 653328 (Wire, #22 awg stranded, teflon insulation, for 4140)

  • 653499 (7-prong miniature plug for 4140)

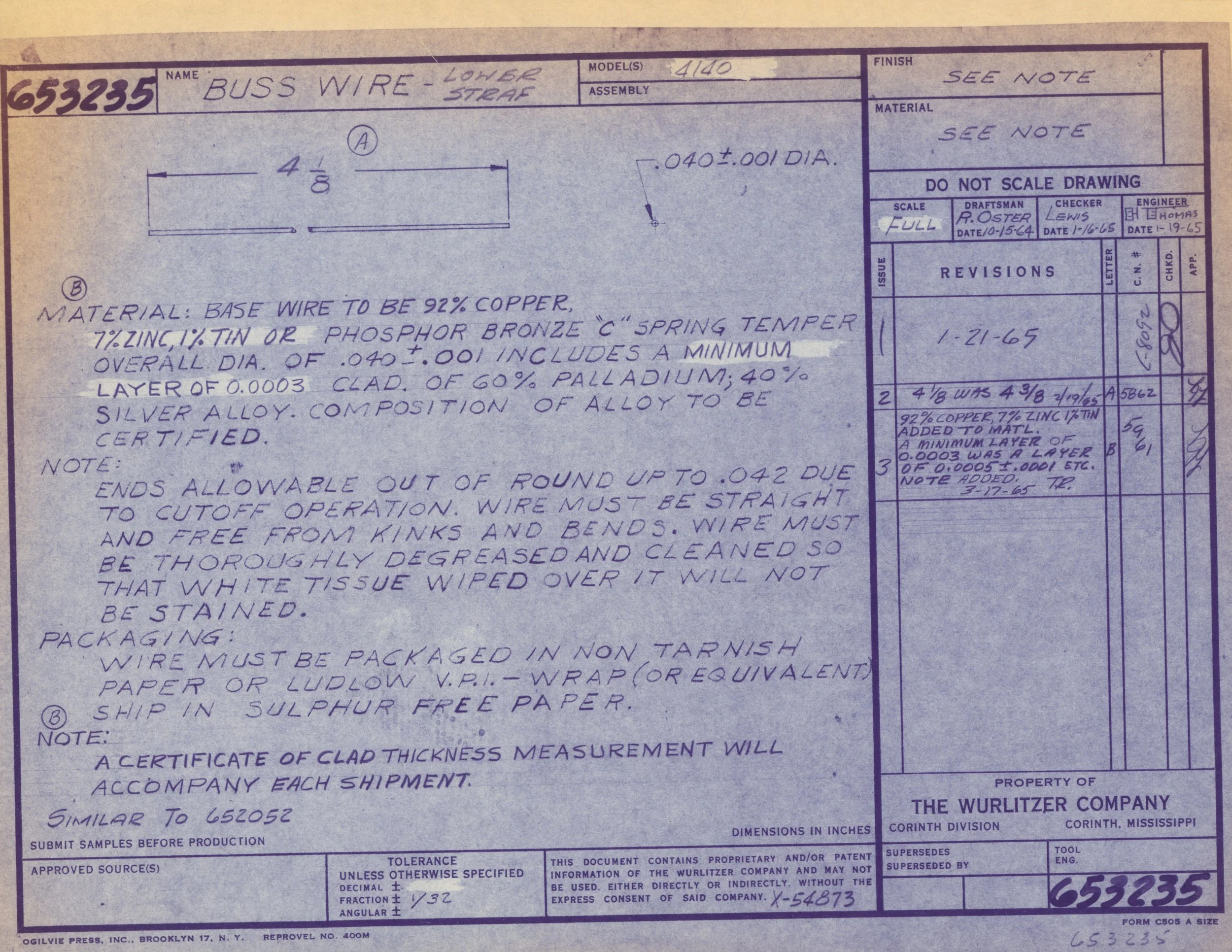

Technical engineering drawing of bus wire with handwritten notes and measurements.

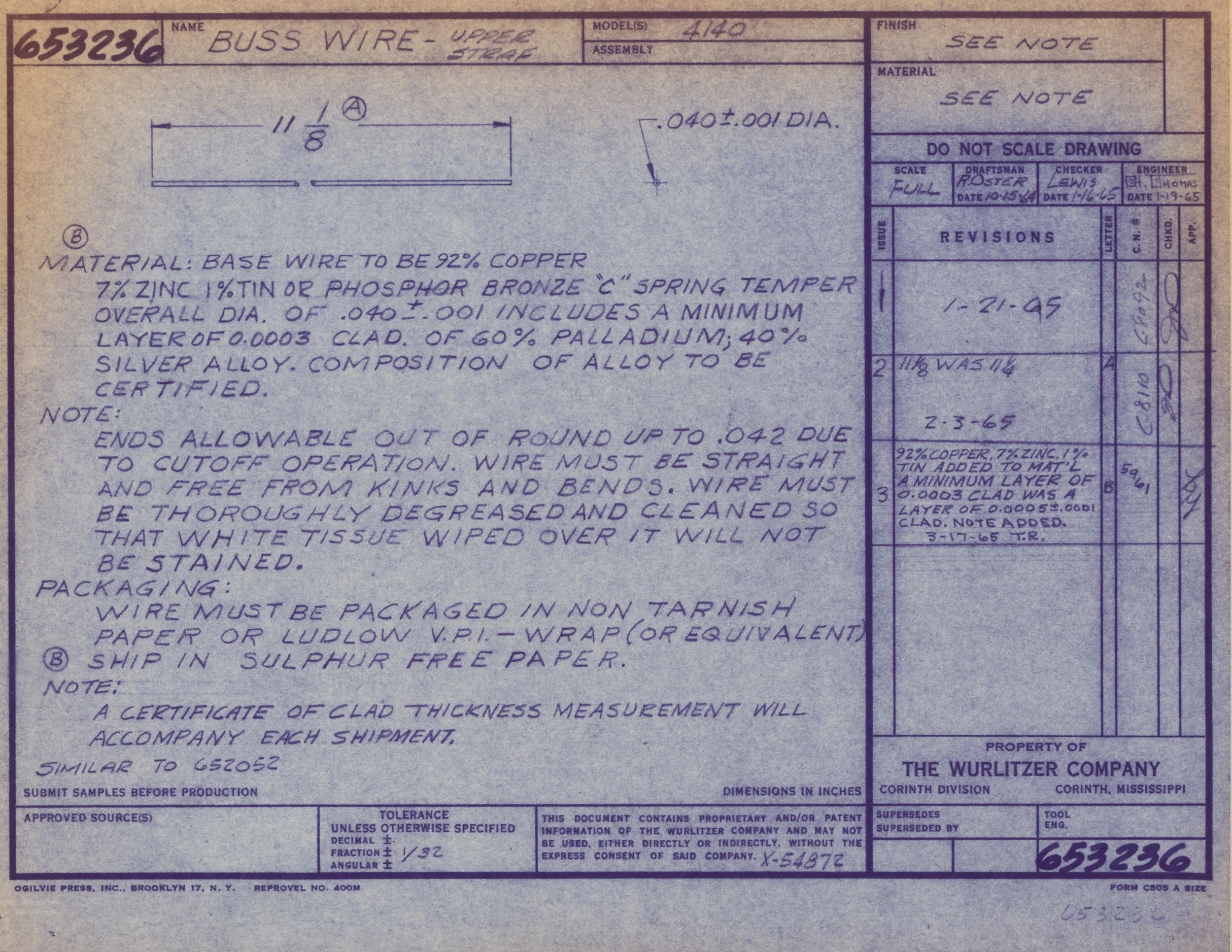

A technical blueprint or engineering drawing for bus wire, upper straight type, with detailed specifications, measurements, and material composition notes.

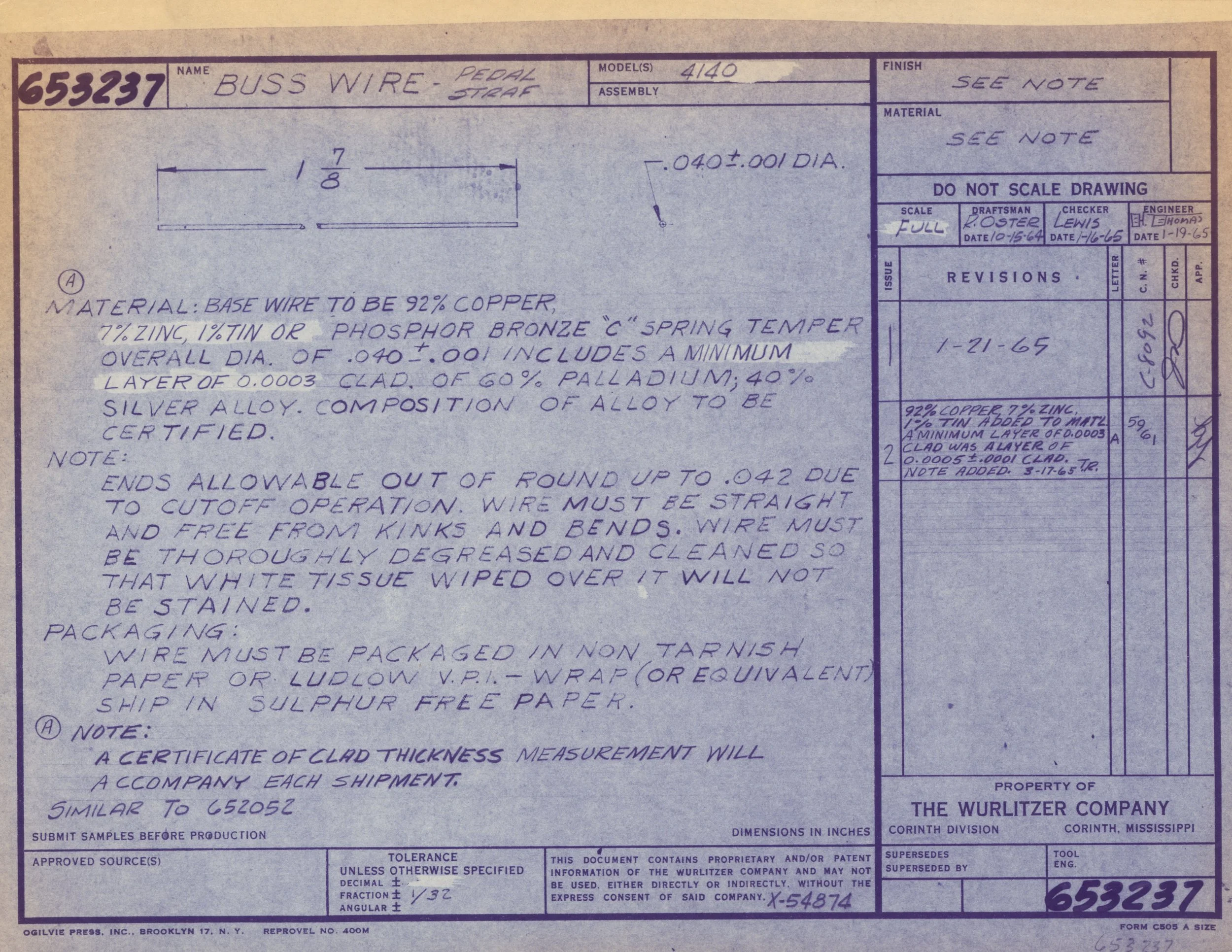

A detailed engineering drawing for a wire pedal, including specifications for materials, dimensions, and construction notes.

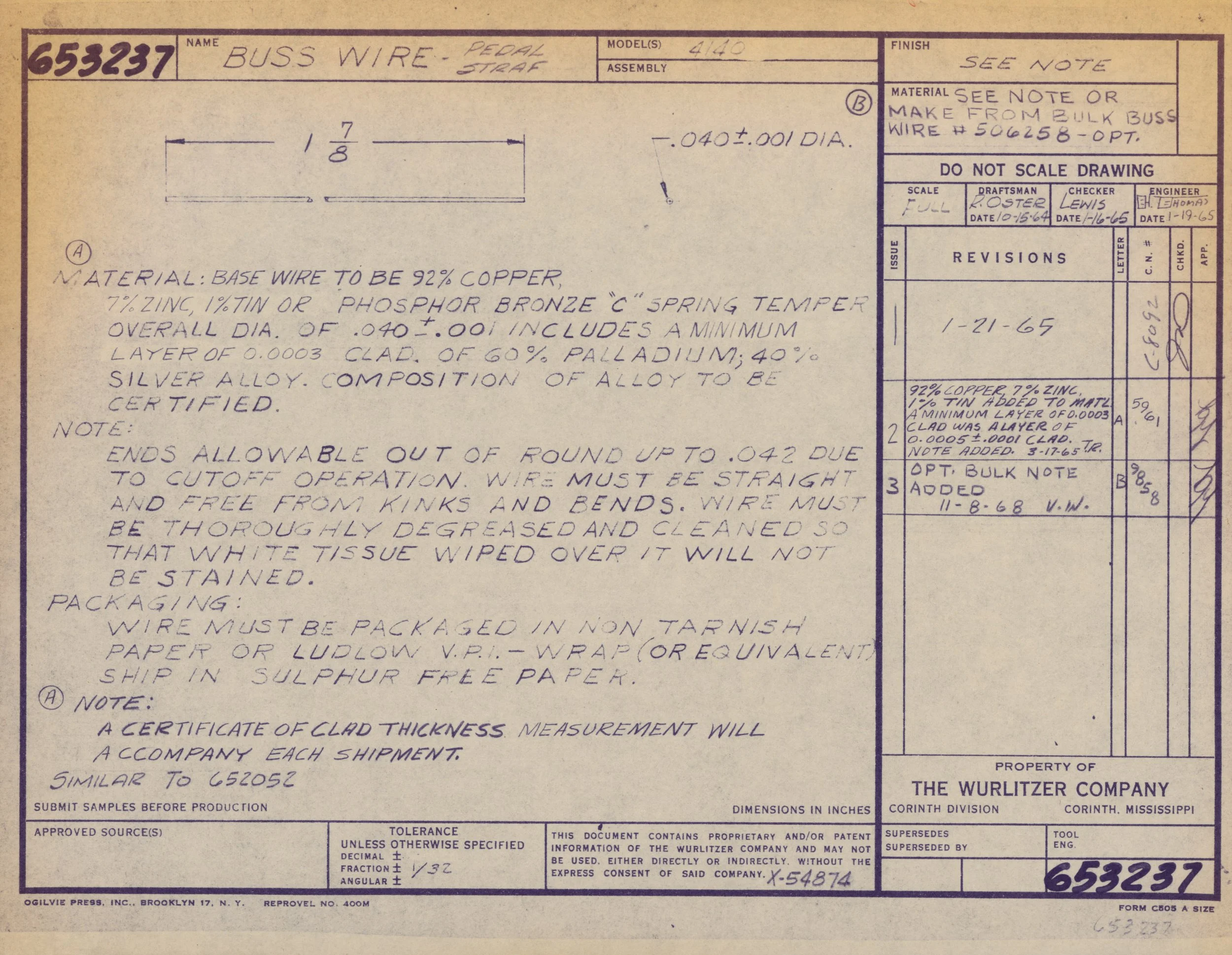

A technical drawing or blueprint of a wire labeled 'Buss Wire - Pear Strait,' with detailed specifications and notes about materials, dimensions, and manufacturing instructions.

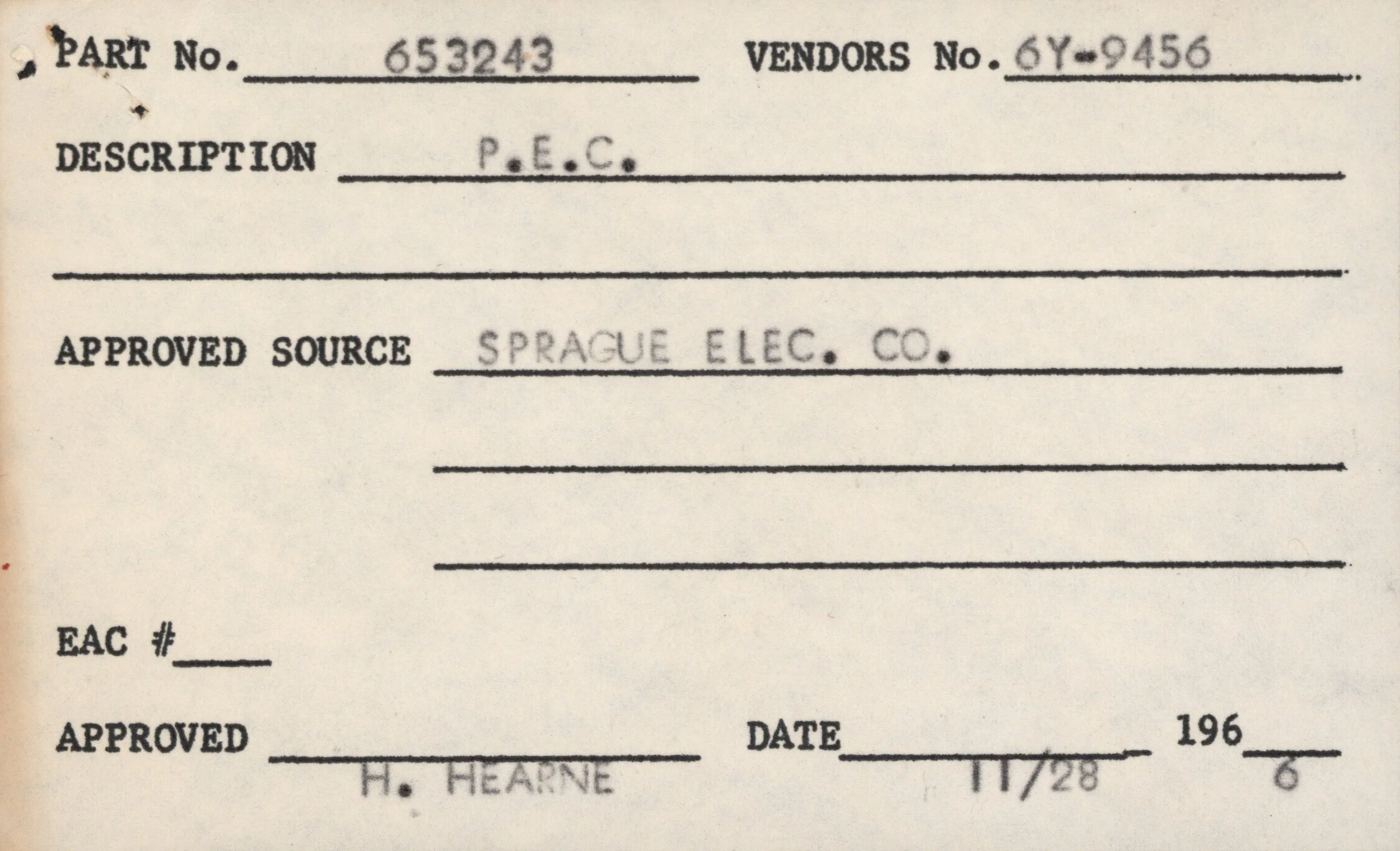

A vintage technical or engineering document with handwritten and typed information, including part number 653243, vendor number 6Y-9456, description P.E.C., approved source Sprague Elec. Co., and approval and date fields.

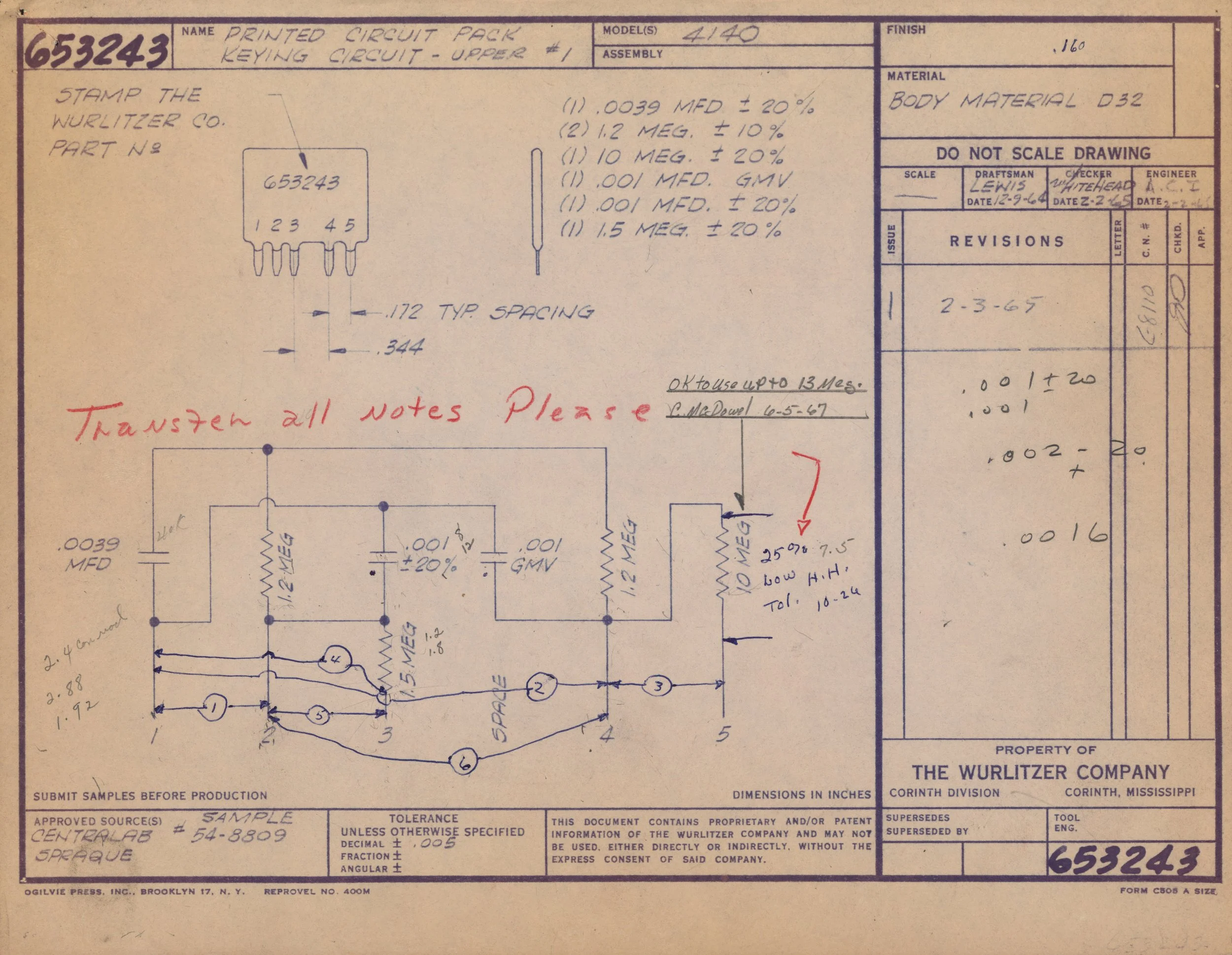

A detailed technical schematic diagram of an electronic circuit, including handwritten notes, component specifications, and annotations, from an engineering blueprint by the Wurlitzer Company.

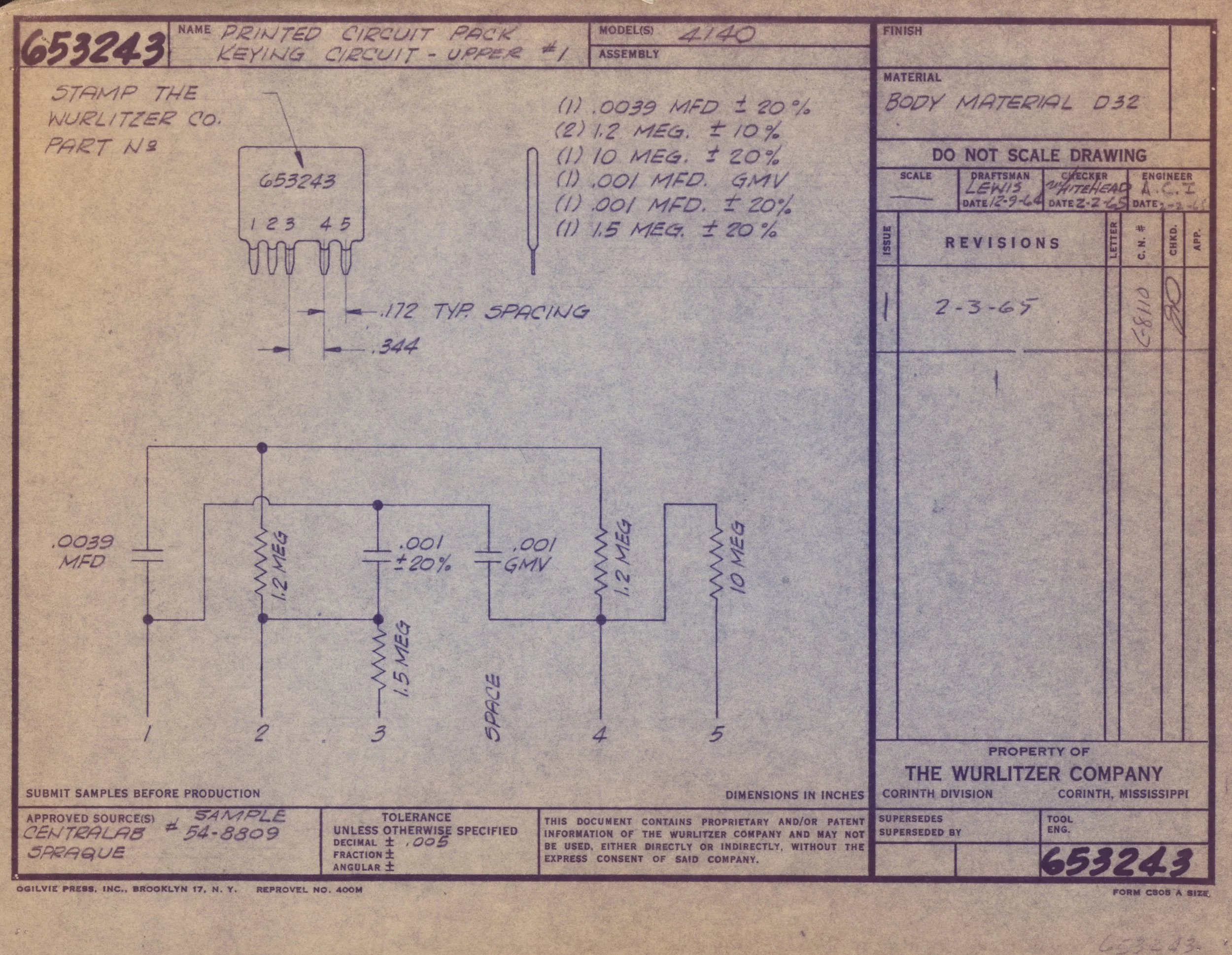

Technical schematic diagram for printed circuit pack, upper keying circuit, including component details and specifications, with labels, measurements, and approval stamps.

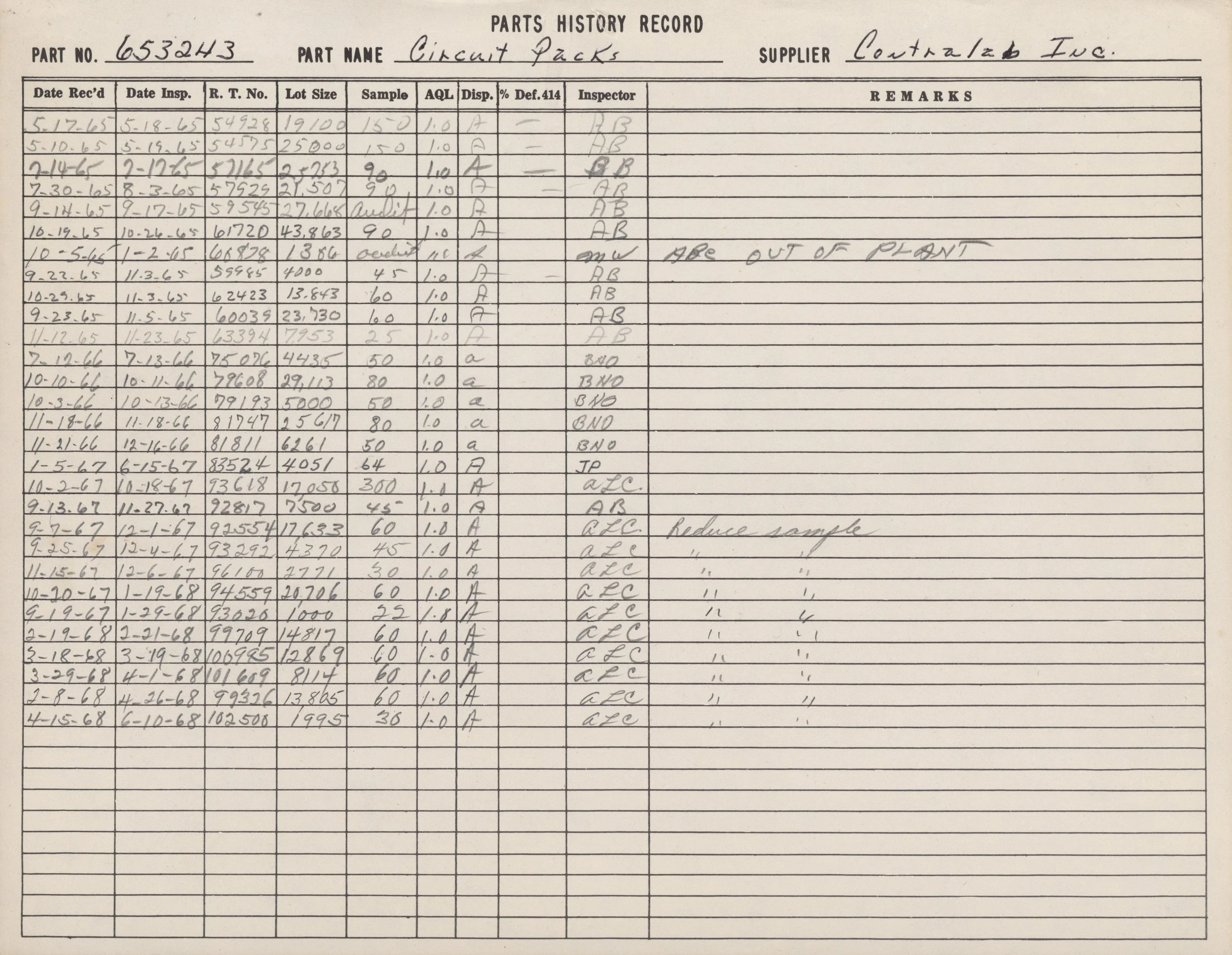

A handwritten parts history record sheet for gasket packs from Continental Inc., detailing dates, inspection numbers, lot sizes, samples, and remarks.

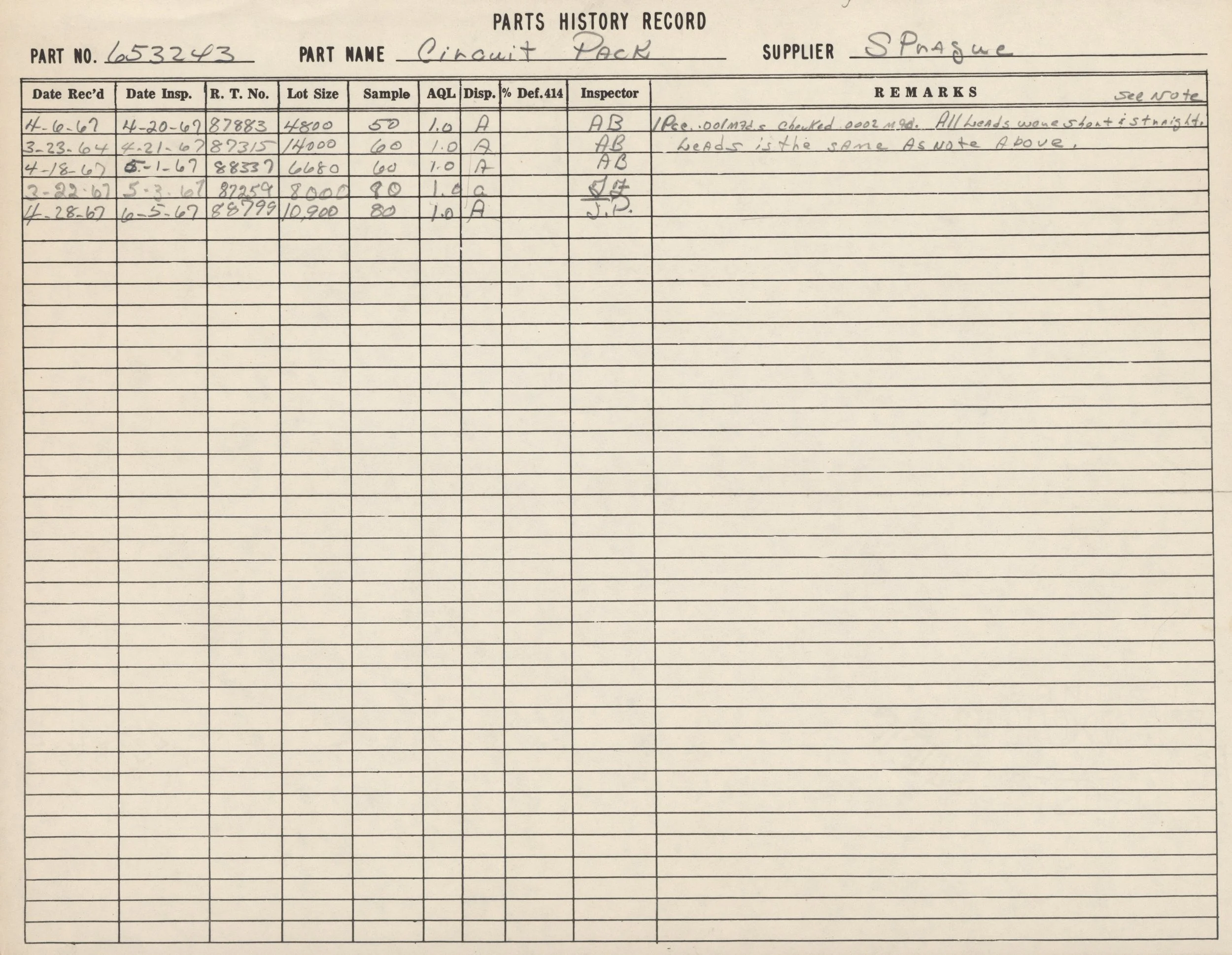

A page from a parts history record log, listing part number 653243, named Circuit Pack, supplied by Sprague. The record includes dates of inspection, receipt, lot size, sample size, approval quality level, disposition, and inspector notes, with handw

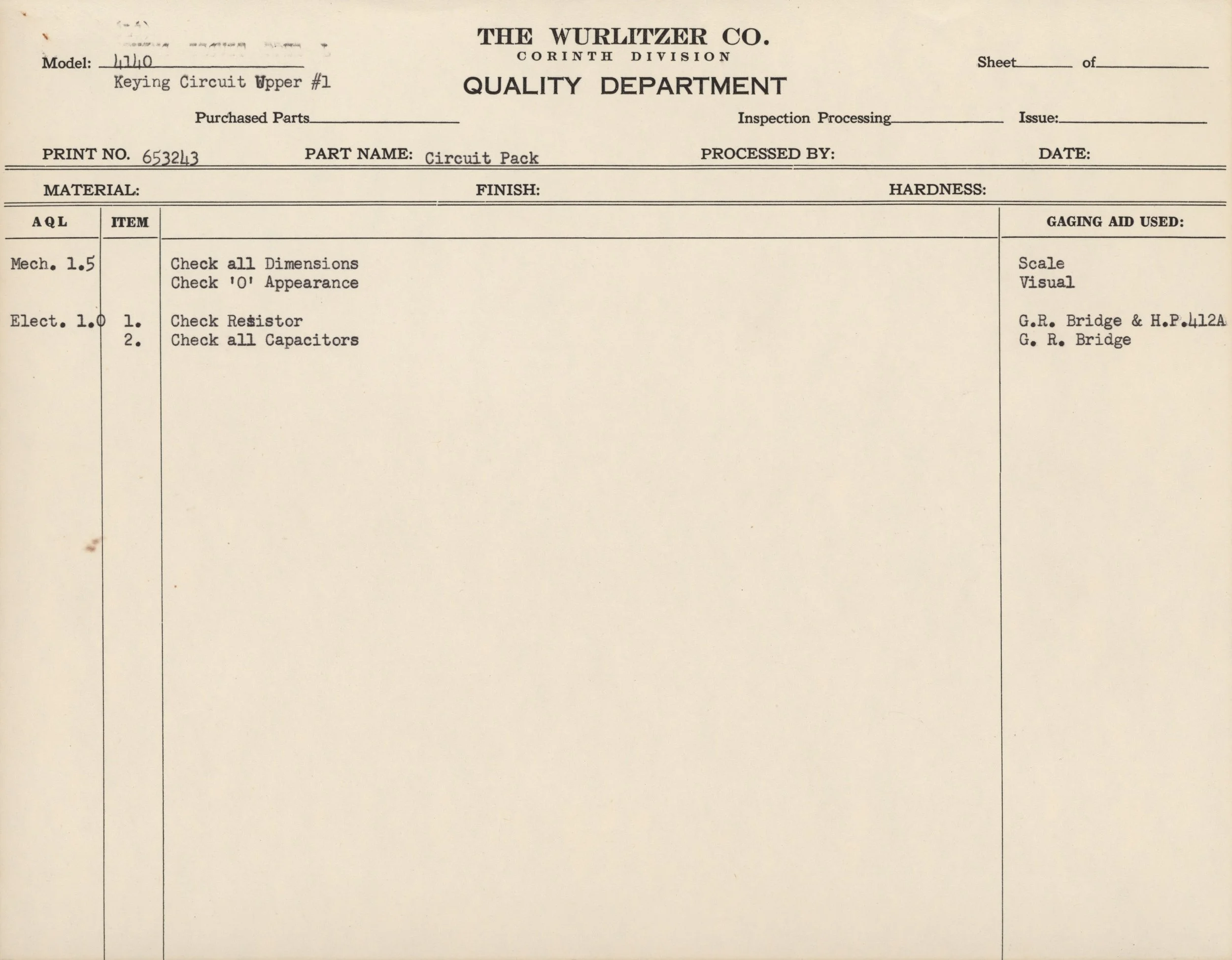

A vintage technical document from The Wurlitzer Company, Corinth Division, titled 'Keying Circuit Upper #1,' including instructions for inspecting electronic components such as resistors and capacitors.

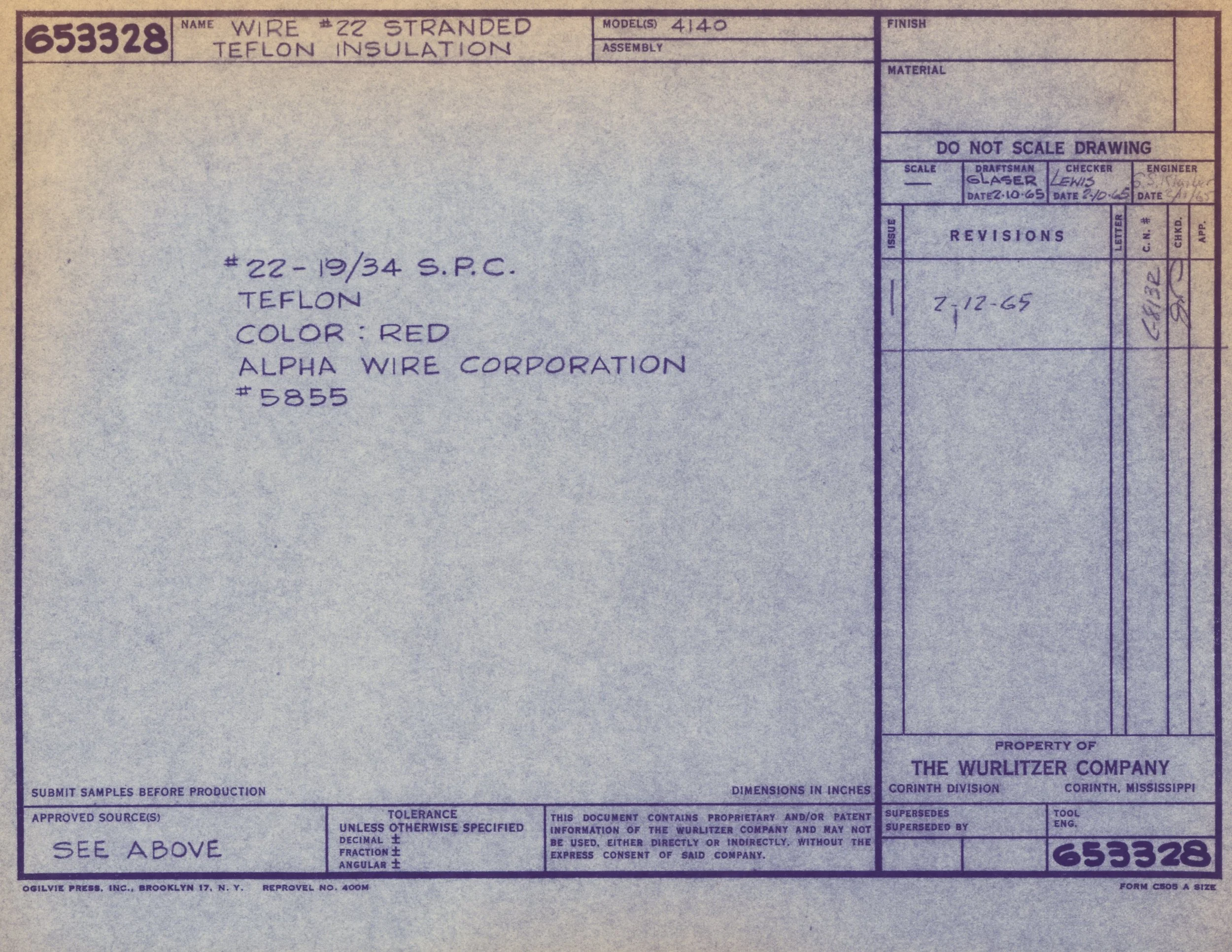

Blueprint drawing labeled with wire specifications, insulation details, and company information.

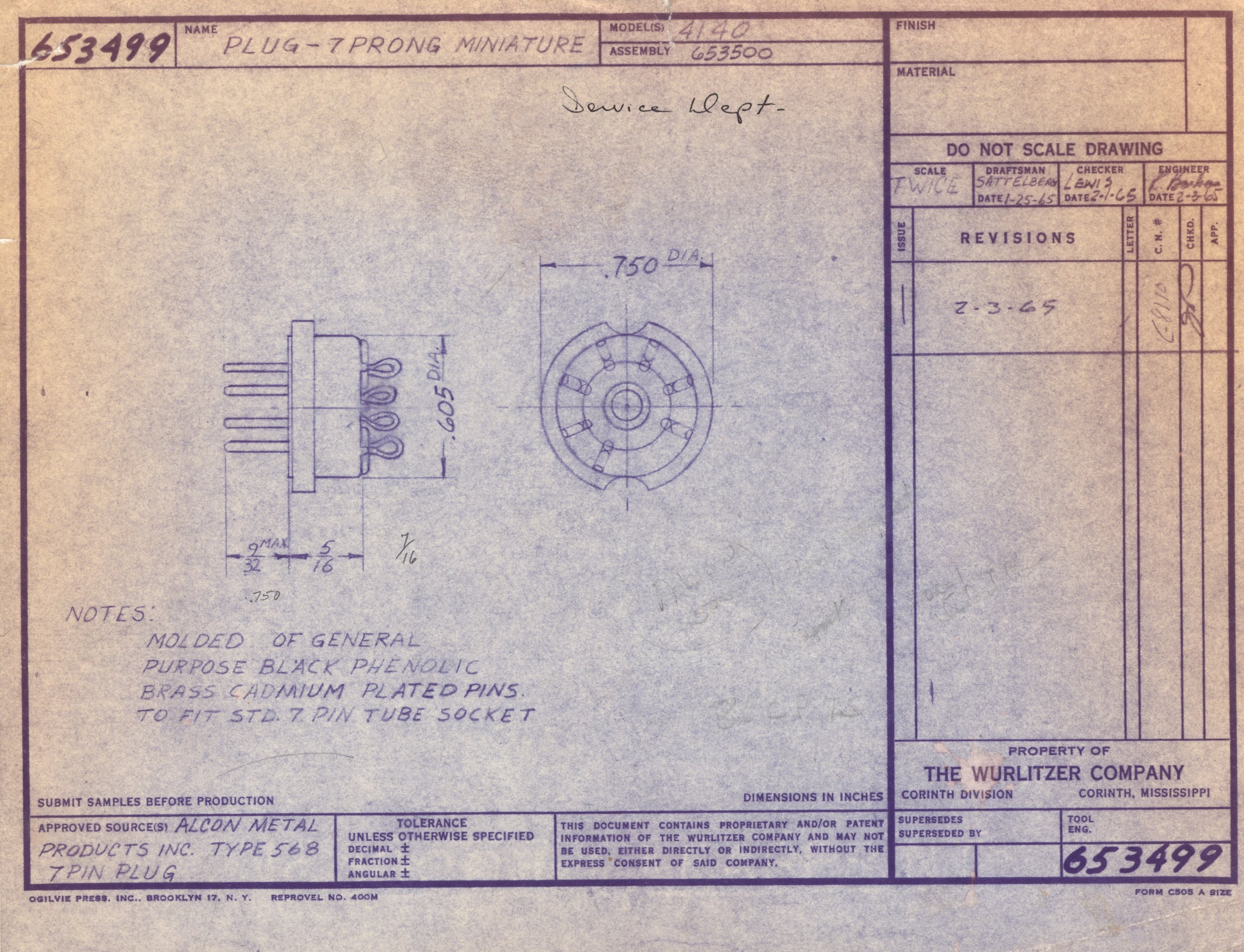

Technical drawing and specifications for a 7-prong miniature plug with detailed dimensions, material notes, revision history, and manufacturing information, attributed to The Wurlitzer Company in Corinth, Mississippi.

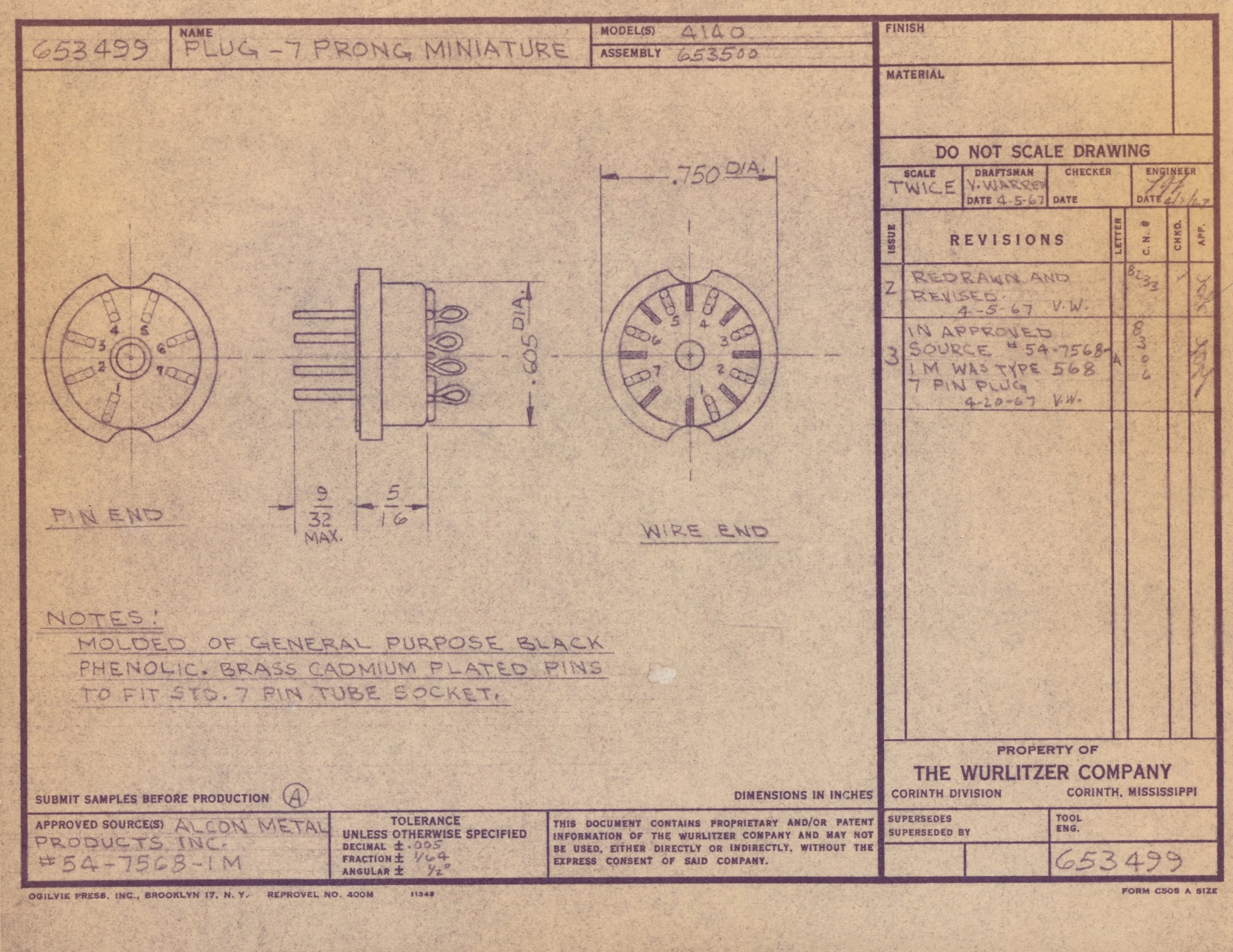

Technical blueprint or engineering drawing of a 7-prong miniature plug, showing front and side views, with detailed measurements and notes.

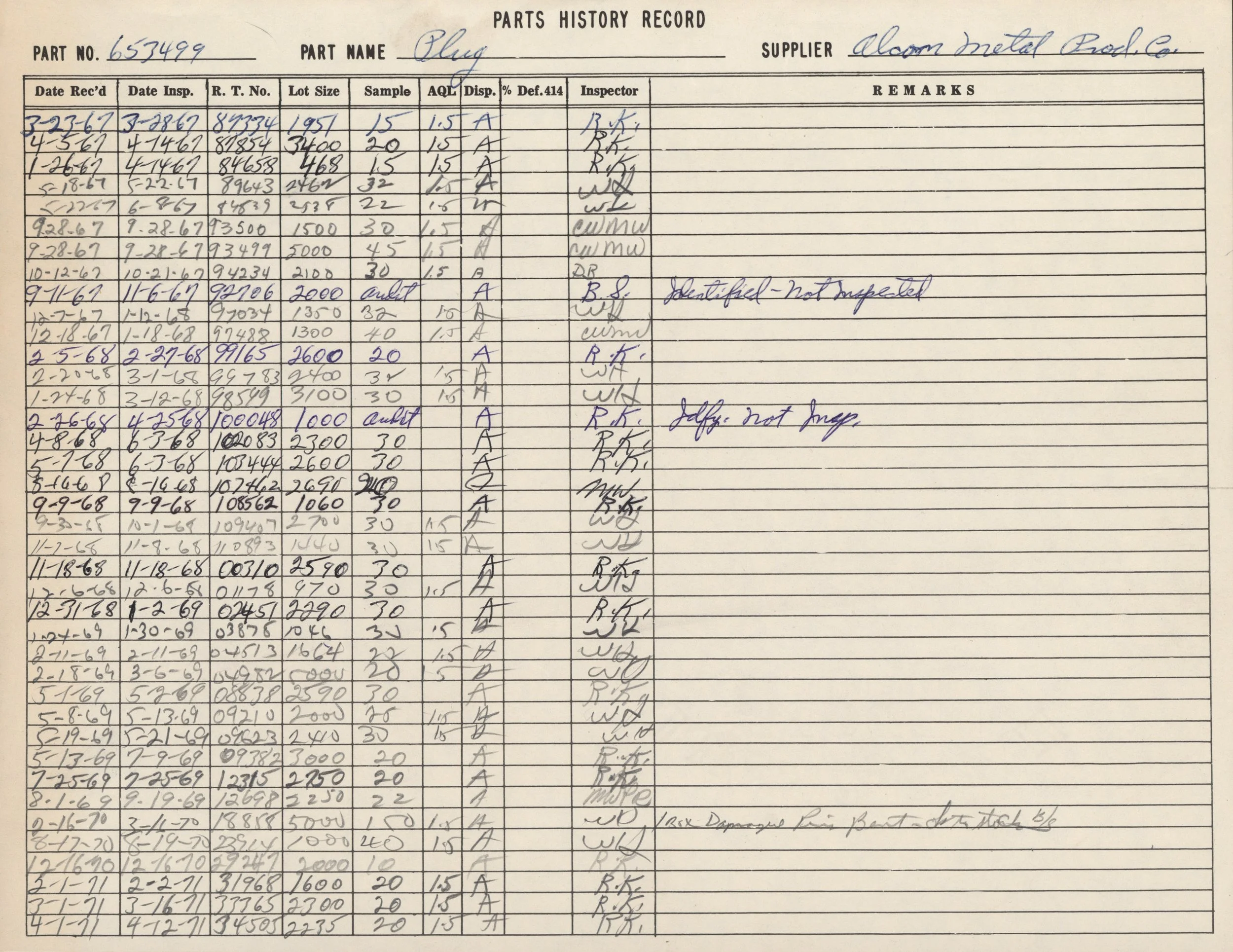

Image of a handwritten Part History Record document for a part with part number 652499, located in USA, with entries including dates, inspection results, and remarks.

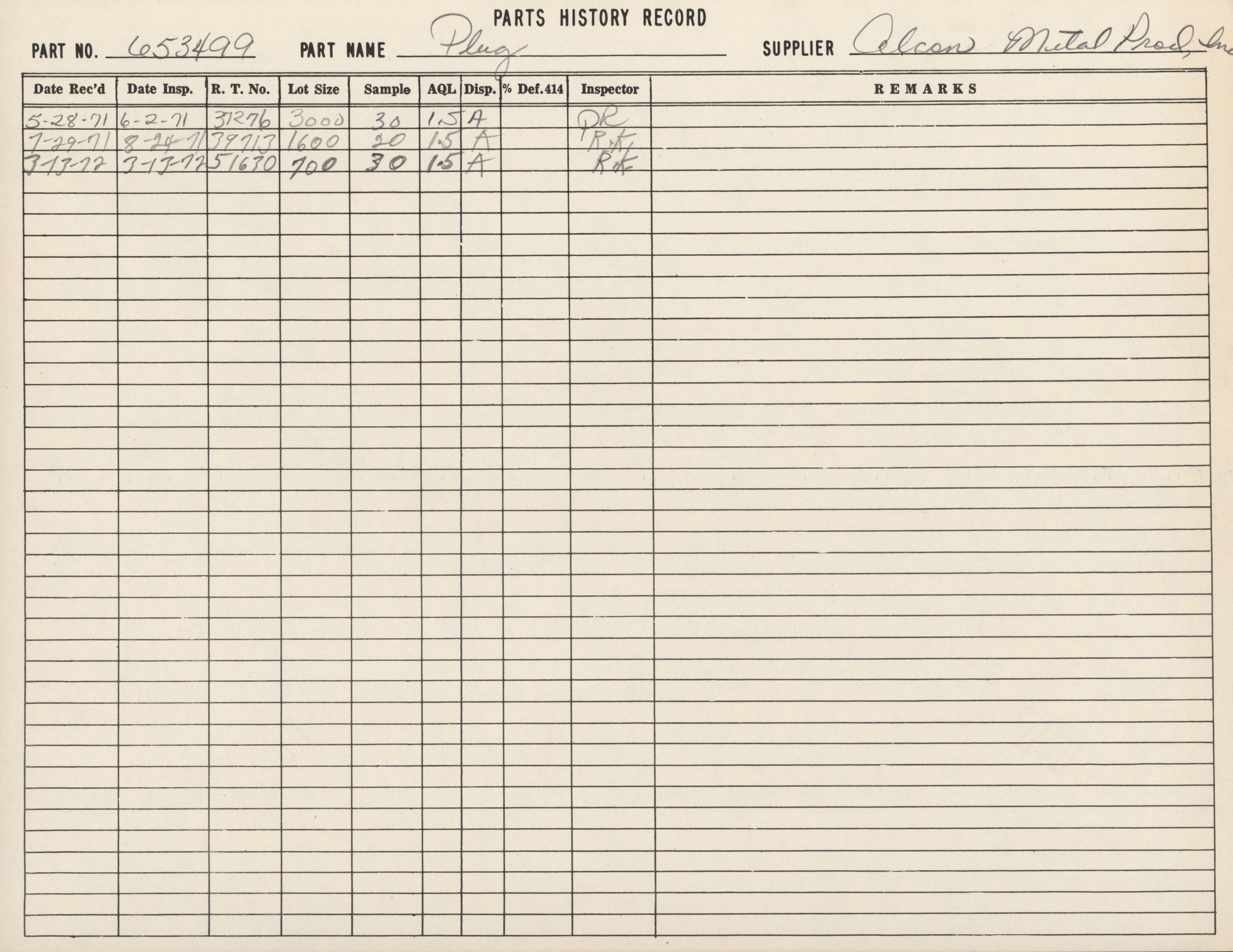

A handwritten parts history record form titled 'PARTS HISTORY RECORD'. It includes details such as part number 653499, part name 'Plug', supplier 'Alcon Metal Prod Inc.', and three entries with inspection and approval dates, lot sizes, samples, and r

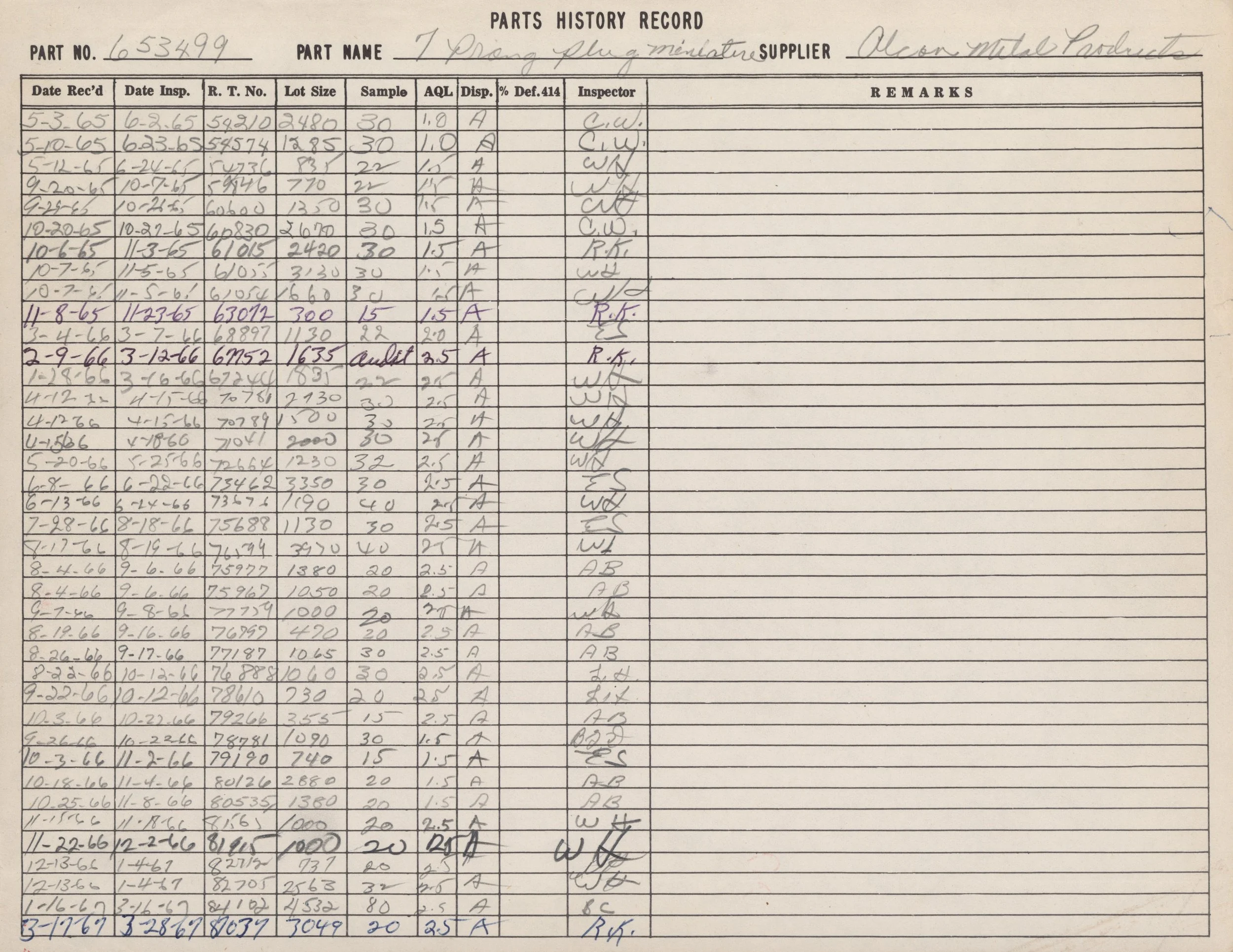

A handwritten parts history record sheet with columns for part number, part name, supplier, inspection dates, lot size, sample size, and inspector, filled with handwritten entries and signatures.
4140

Felt

The drawings we have currently scanned for felt components used in the Wurlitzer model 4140 organ include:

  • 653238 (Felt strip, stop tablets, pedal, for Wurlitzer 4140)

  • 653239 (Felt strip, stop tablets, upper, for 4140)

  • 653263 (Felt strip, stop tablet, upper, for 4140)

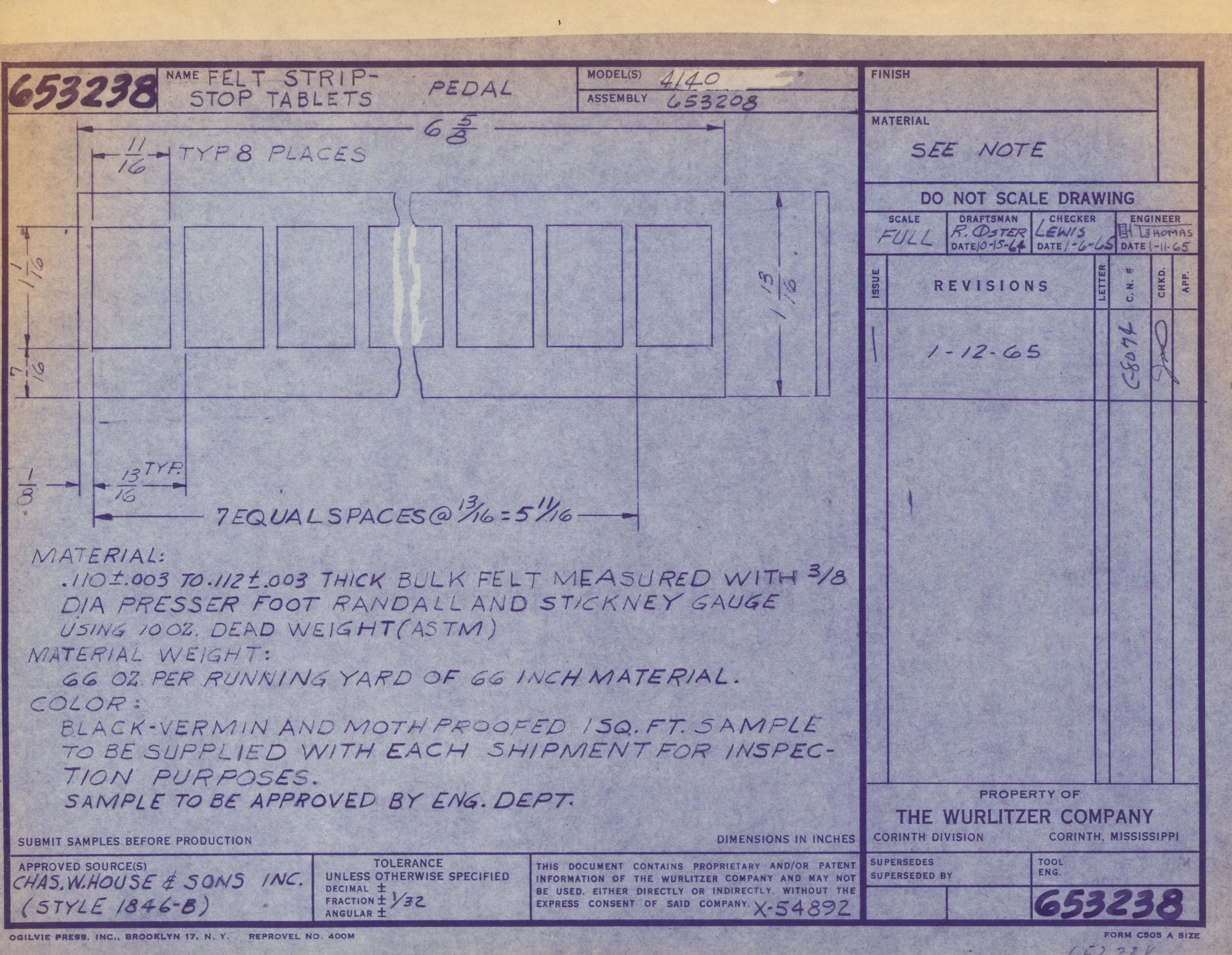

Blueprint drawing of felt strips for stop tablets, with measurements and notes, created by The Wurlitzer Company, dated 1-12-65.

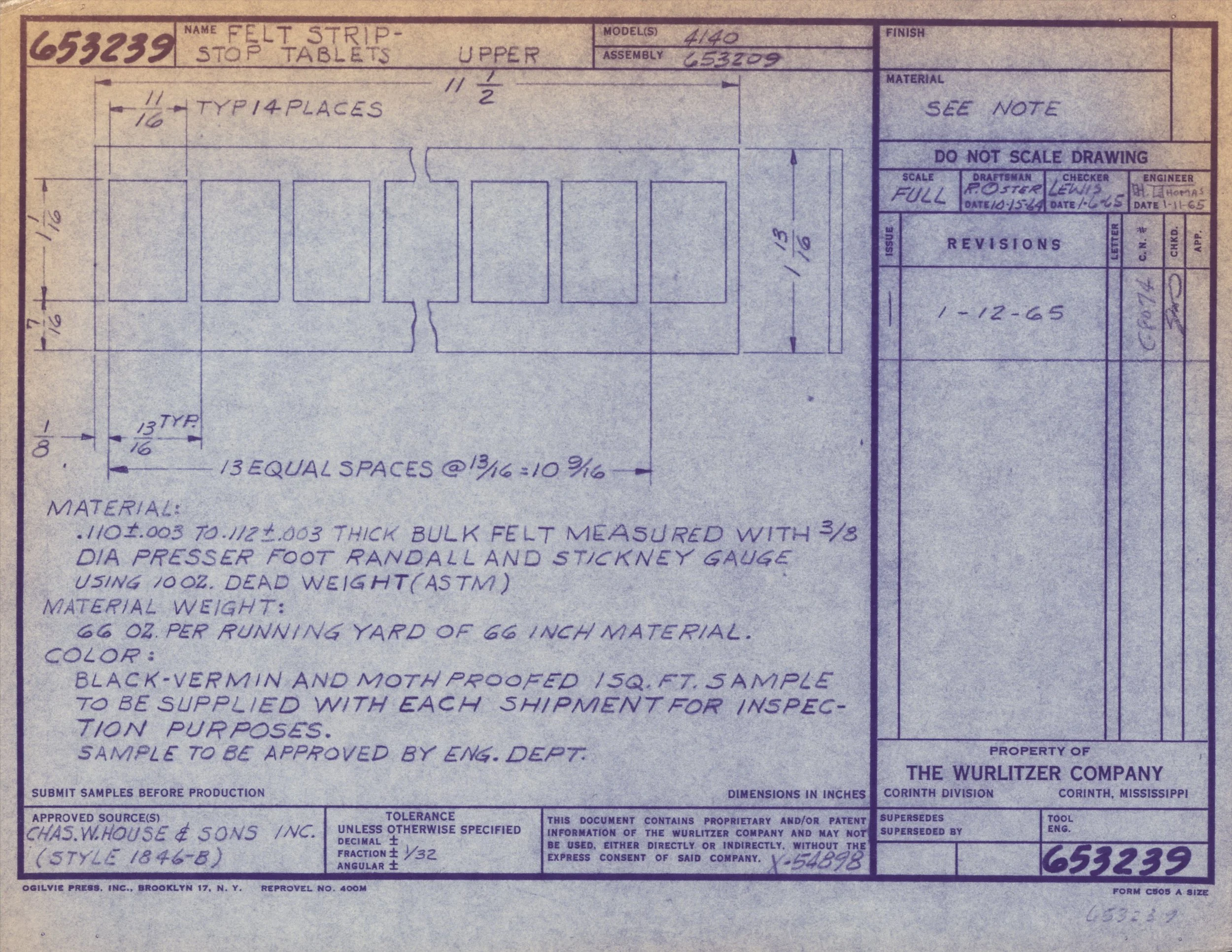

Technical blueprint or engineering drawing for a felt strip, containing measurements, specifications, and manufacturing instructions, including details about material, dimensions, and inspection procedures.

Mechanical drawings

The drawings we have currently scanned pertaining to mechanical components in the Wurlitzer model 4140 organ include:

  • 504723 (Mounting plate, spring, for Wurlitzer 4140)

  • 653160 (Support plate coil for 4140)

  • 653163 (Bulk extrusion, name rail, for 4140)

  • 653175 (Receptacle, 6 pin Molex, for 4140)

  • 653176 (Plug, 6 pin molex #1380, for 4140)

  • 653232 (Pivot pin, stop tablet, pedal, for 4140)

  • 653233 (Pivot pin, stop tablet, upper, for 4140)

  • 653234 (Pivot pin, stop tablet, lower, for 4140)

  • 653240 (Grommet, pure gum rubber, for 4140)

  • 653268 (Switch rod, sustain, upper manual, for 4140)

  • 653269 (Switch rod, lower manual, for 4140)

  • 653270 (Switch rod, upper manual, for 4140)

  • 653271 (Crank, switch rod, for 4140)

  • 653284 (T contact for 4140)

  • 653307 (Sway brace for 4140)

  • 653329 (Mounting stud, rotating speaker, for 4140)

  • 653332 (Spring for 4140)

  • 653333 (Compression ring for 4140)

  • 653347 (Mounting bracket, solenoid, for 4140)

  • 653363 (Shaft and cup assembly for 4140)

  • 653370 (Cap, rotating contact, for 4140)

  • 653371 (Solder lug for 4140)

  • 653374 (Bearing shaft for 4140)

  • 653375 (Mounting plate for 4140)

  • 653376 (Collar for 4140)

  • 653378 (Support bracket, mounting plate assembly, for 4140)

  • 653387 (Cleat, sustain support rail, for 4140)

  • 653409 (Spacer, sustain support rail, for 4140)

  • 653415 (Key block, doubling, for 4140)

  • 653628 (Wire link, stop tablet, upper manual, right, for 4140)

  • 653629 (Spacer, stop tablet, switch, for 4140)

  • 653630 (Spacer, stop tablet, switch, for 4140)

  • 653256 (Pivot pin, stop tablet, upper manual, for 4140)

  • 653265 (Support bracket, sustain, for 4140)

  • 653266 (Wire link, stop tablet, upper to lower coupler “B”, for 4140)

4140

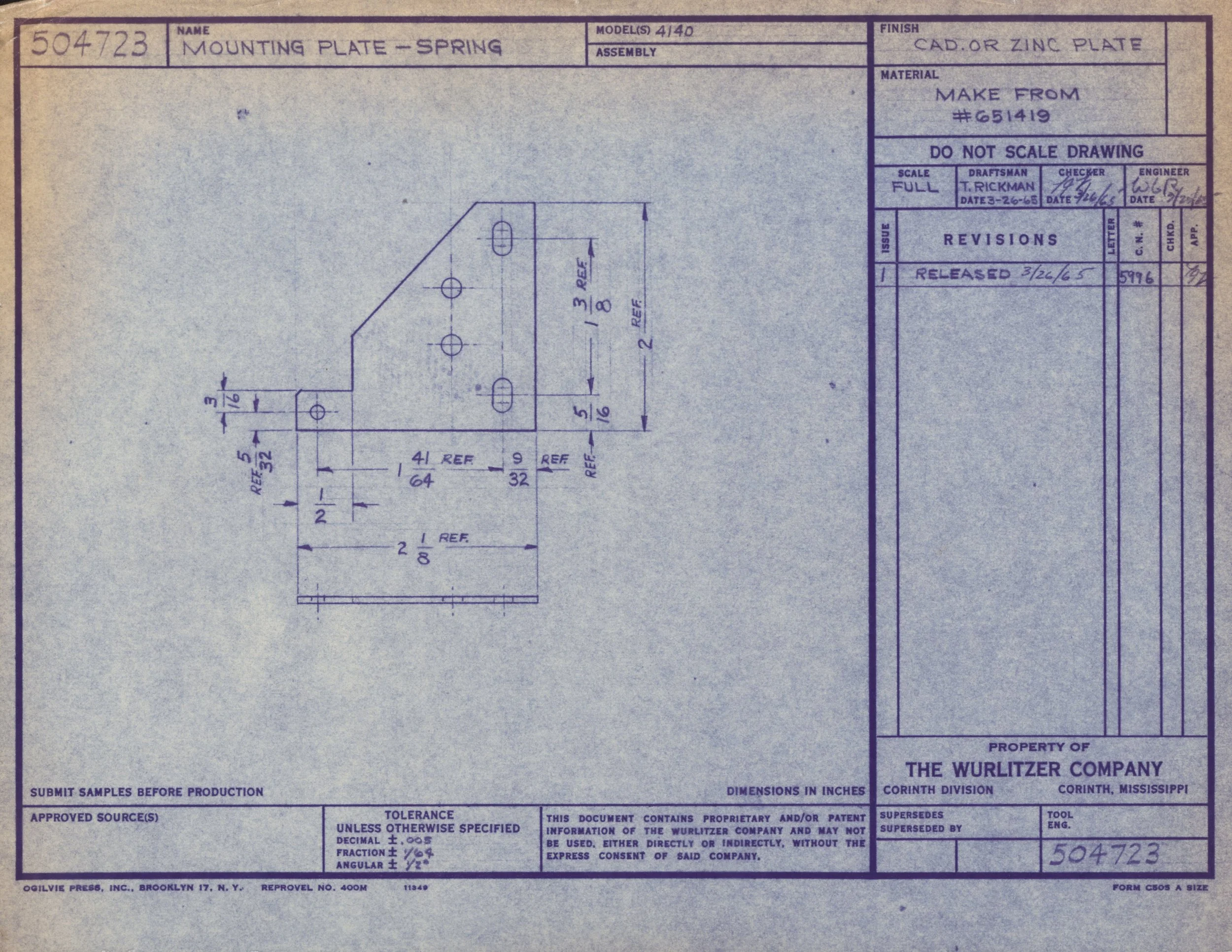

Blueprint drawing of a mounting plate labeled 'Mounting Plate - Spring' with dimensions and technical details.

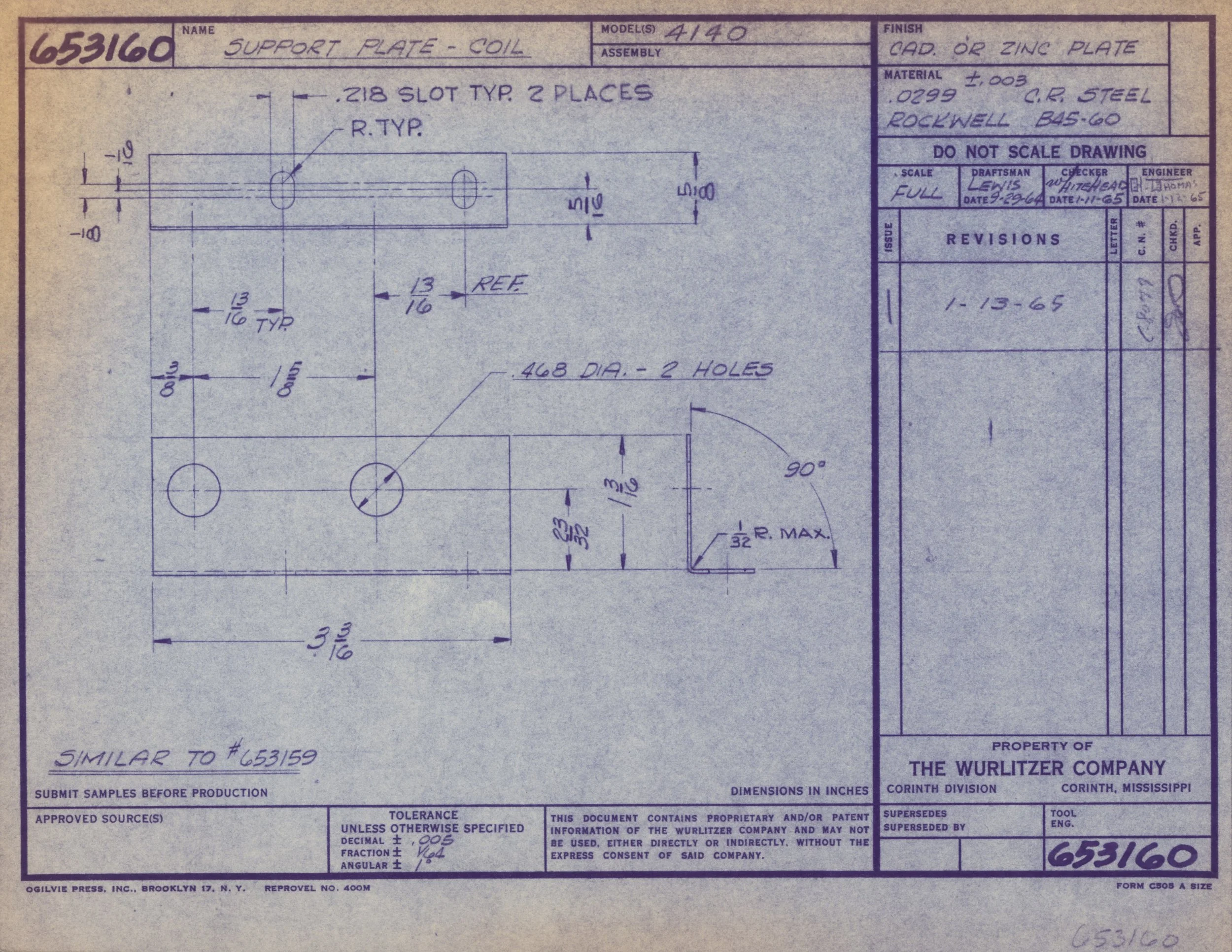

Technical engineering drawing of a support plate with dimensions, notes, and annotations, including screw hole details and material specifications, from a blueprint used in manufacturing.

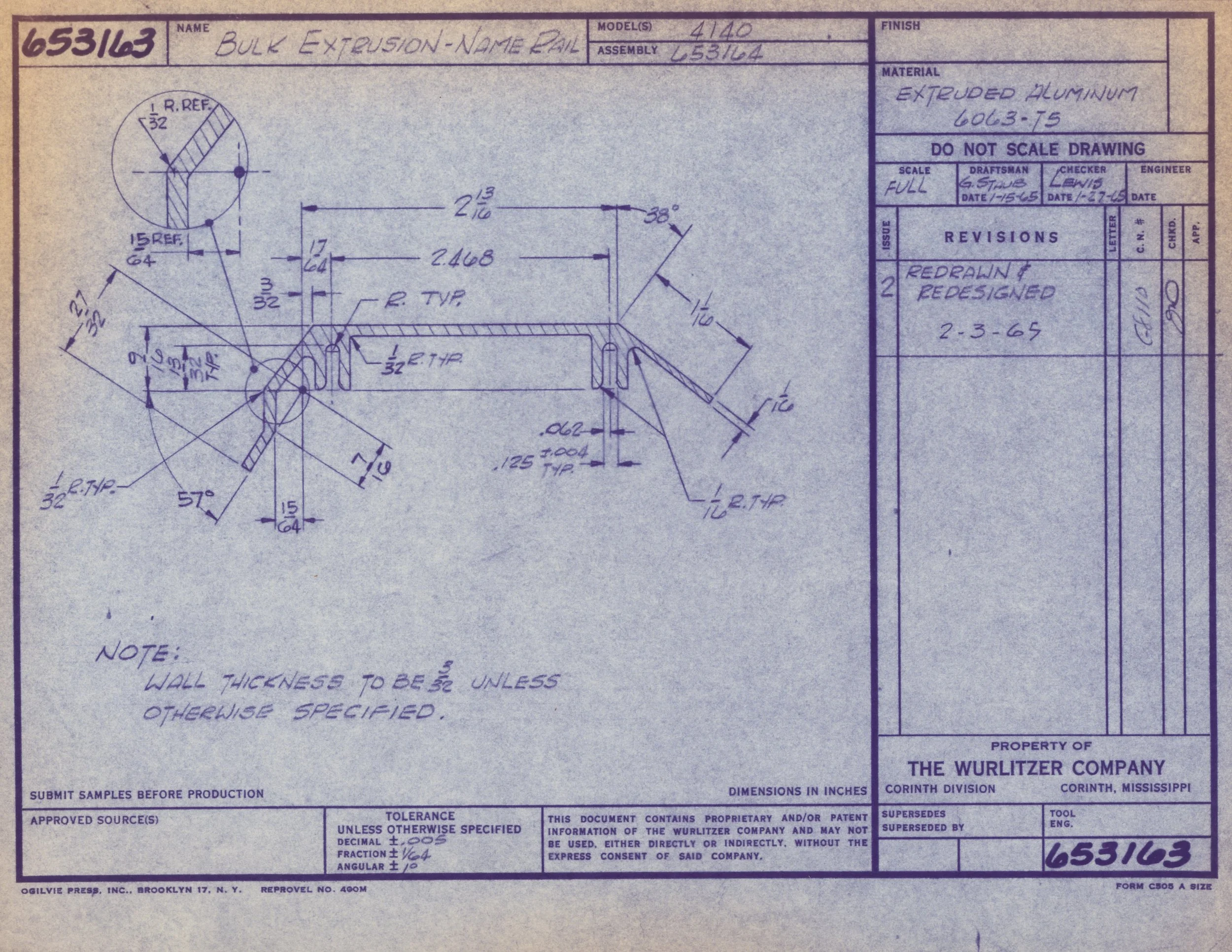

Technical drawing blueprint for a bulk extension rail designed in 1965, made of extruded aluminum, with detailed measurements and specifications.

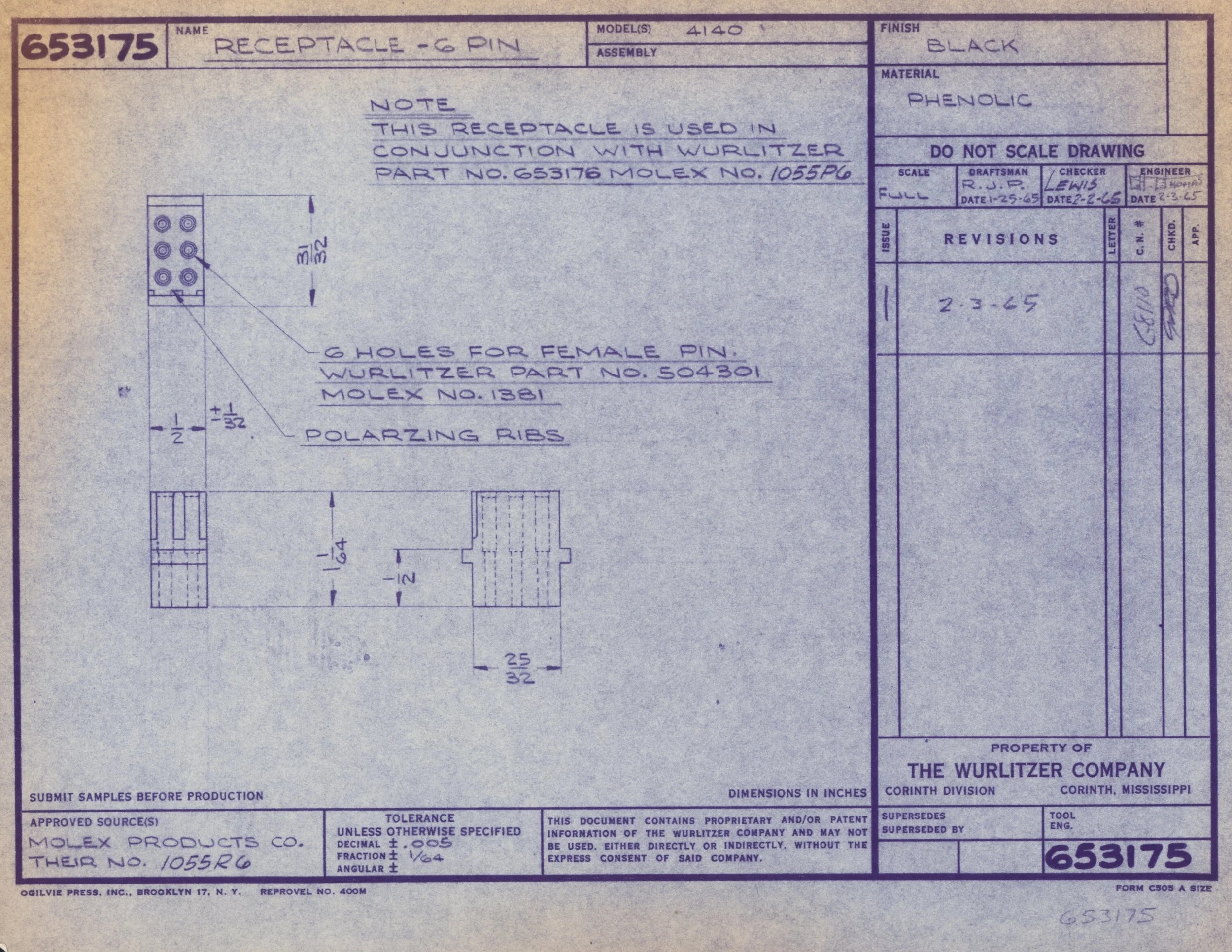

Blueprint drawing for a 6-pin receptacle model 4140, with technical specifications including dimensions, materials, and revisions, produced by The Wurlitzer Company.

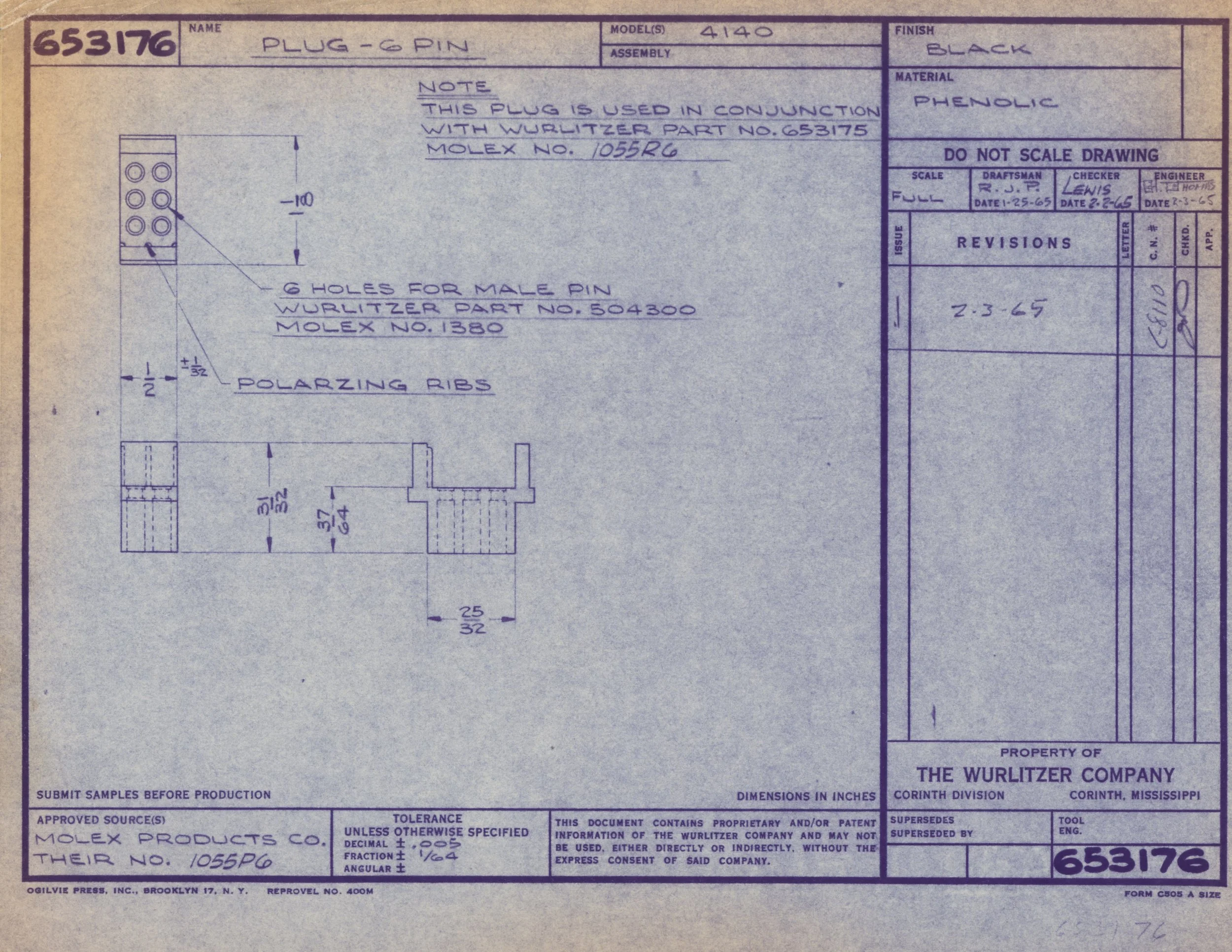

Technical drawing blueprint for a 6-pin plug with detailed measurements, notes, and specifications by The Wurlitzer Company.

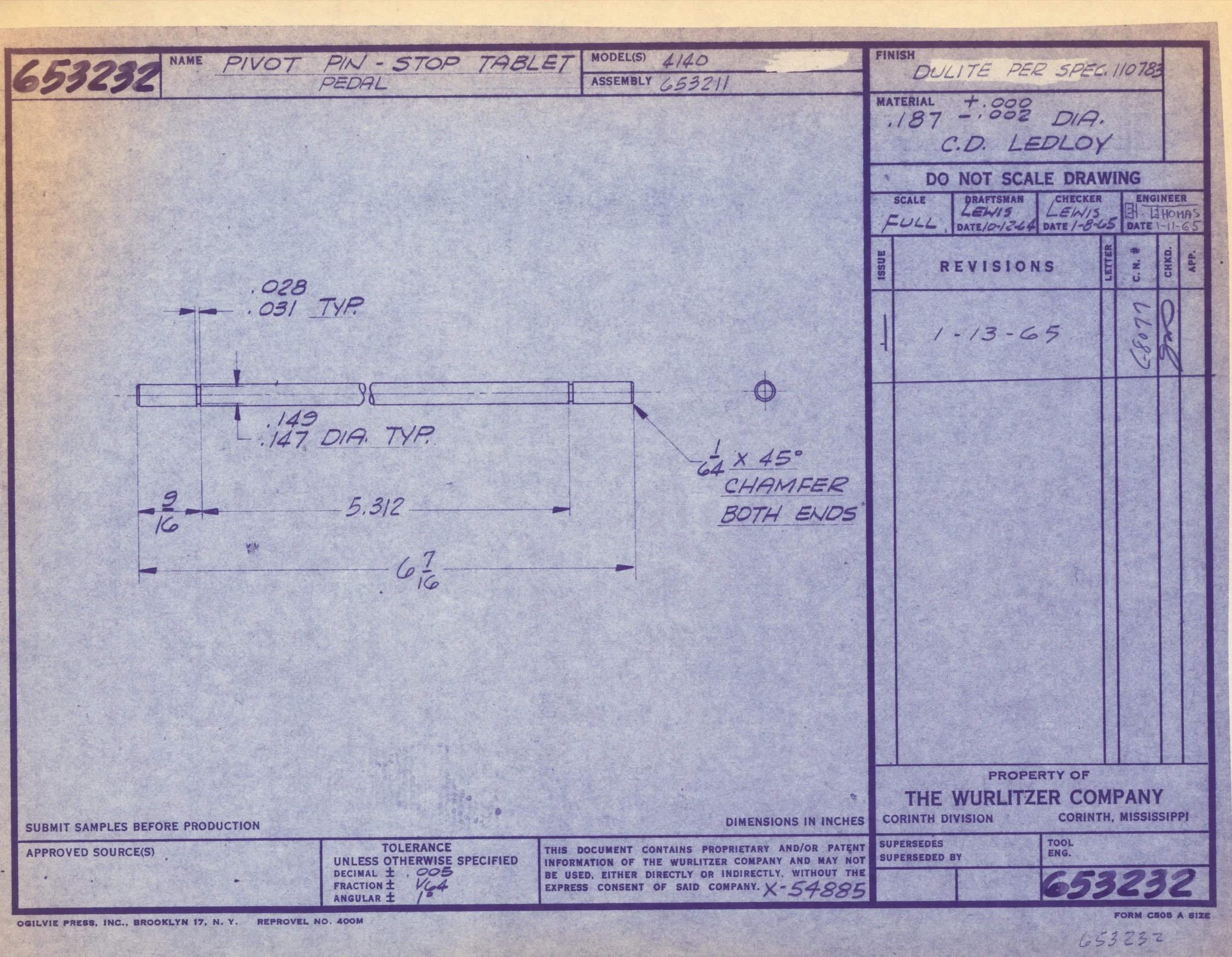

Technical drawing blueprint for a pivot pin-stop tablet pedal, showing dimensions, specifications, and manufacturing details.

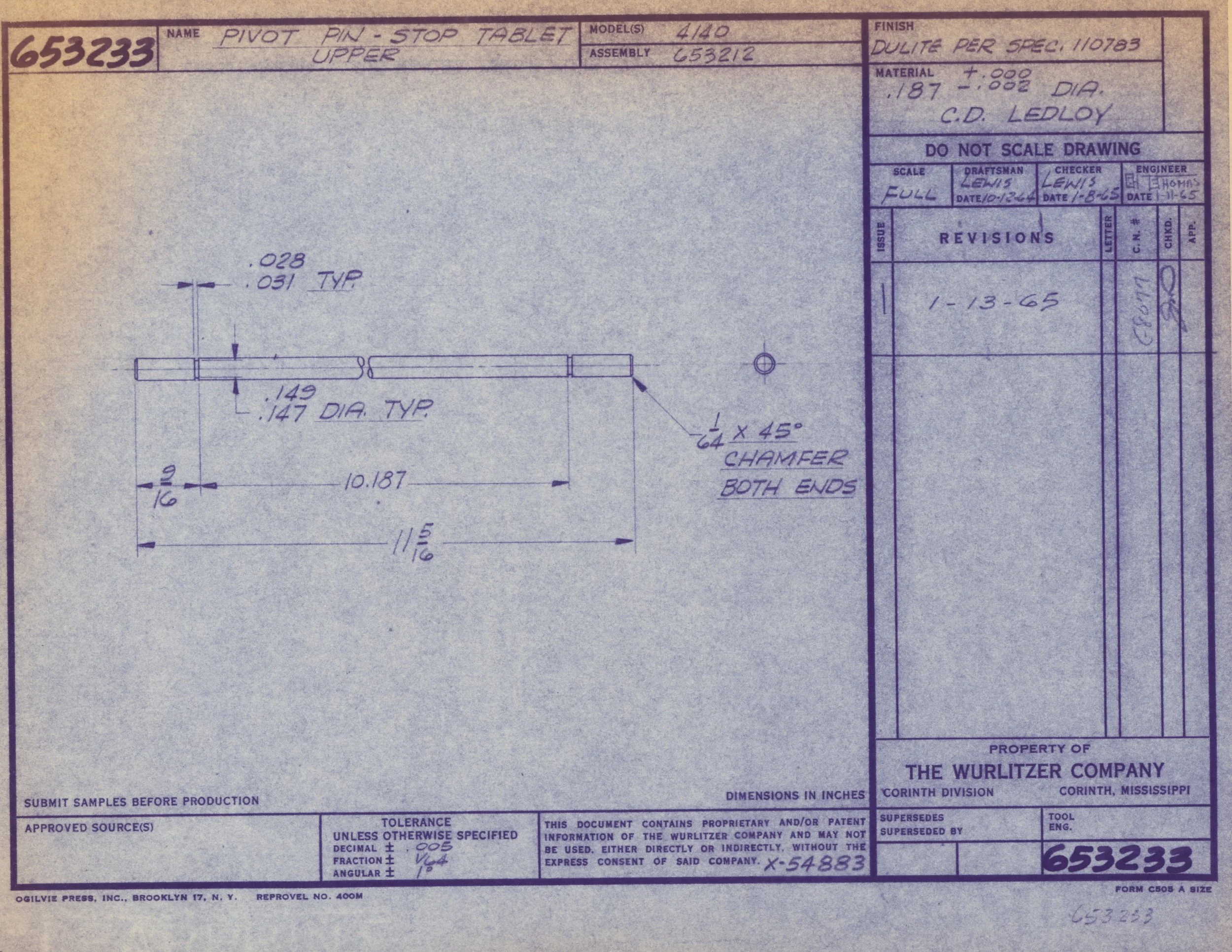

Blueprint drawing of a pivot pin-stop tablet with dimensions and technical specifications, labeled with the company's information and revision details.

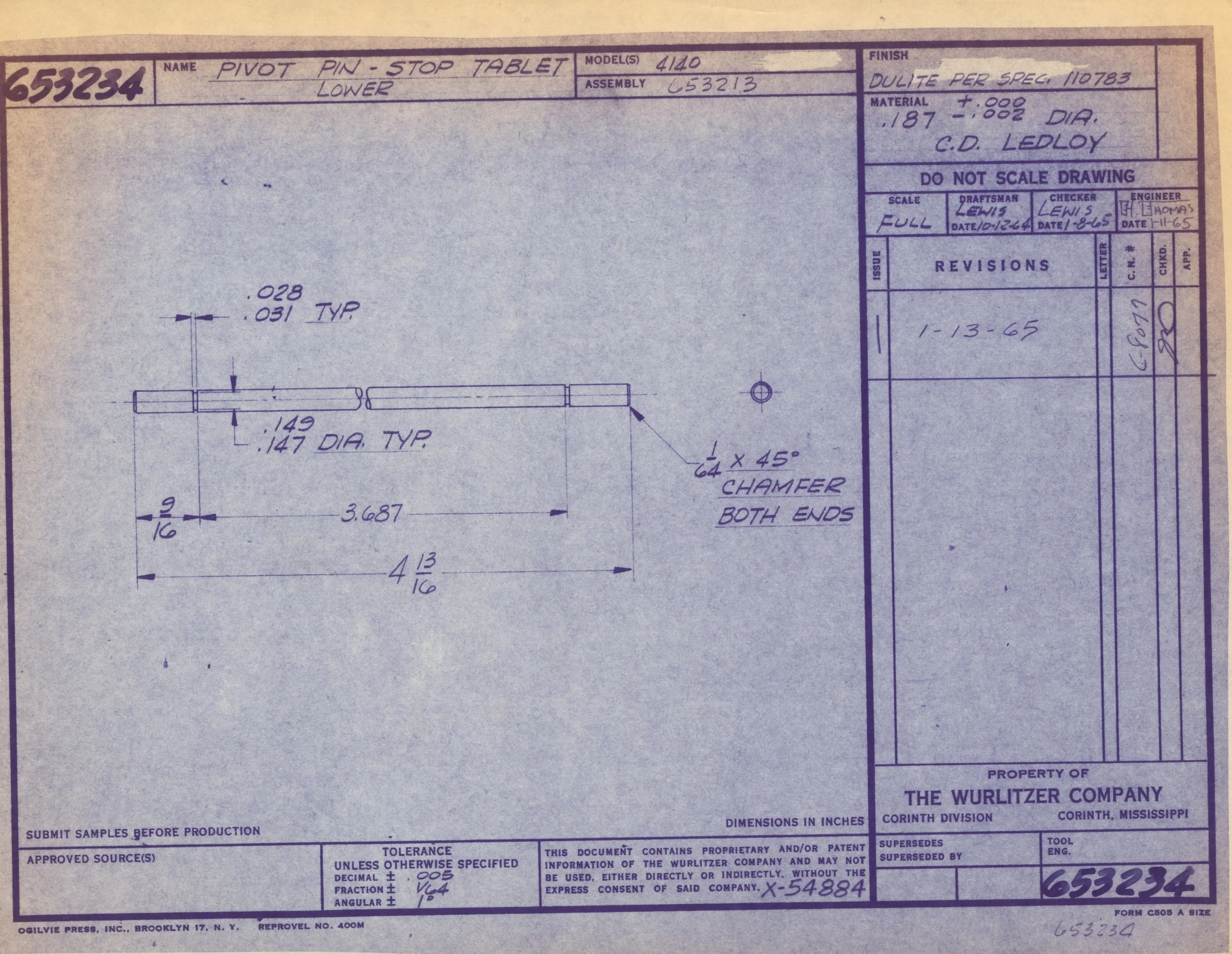

Technical drawing of a pivot pin-stop tablet lower, showing dimensions and specifications, with annotations and approval stamps.

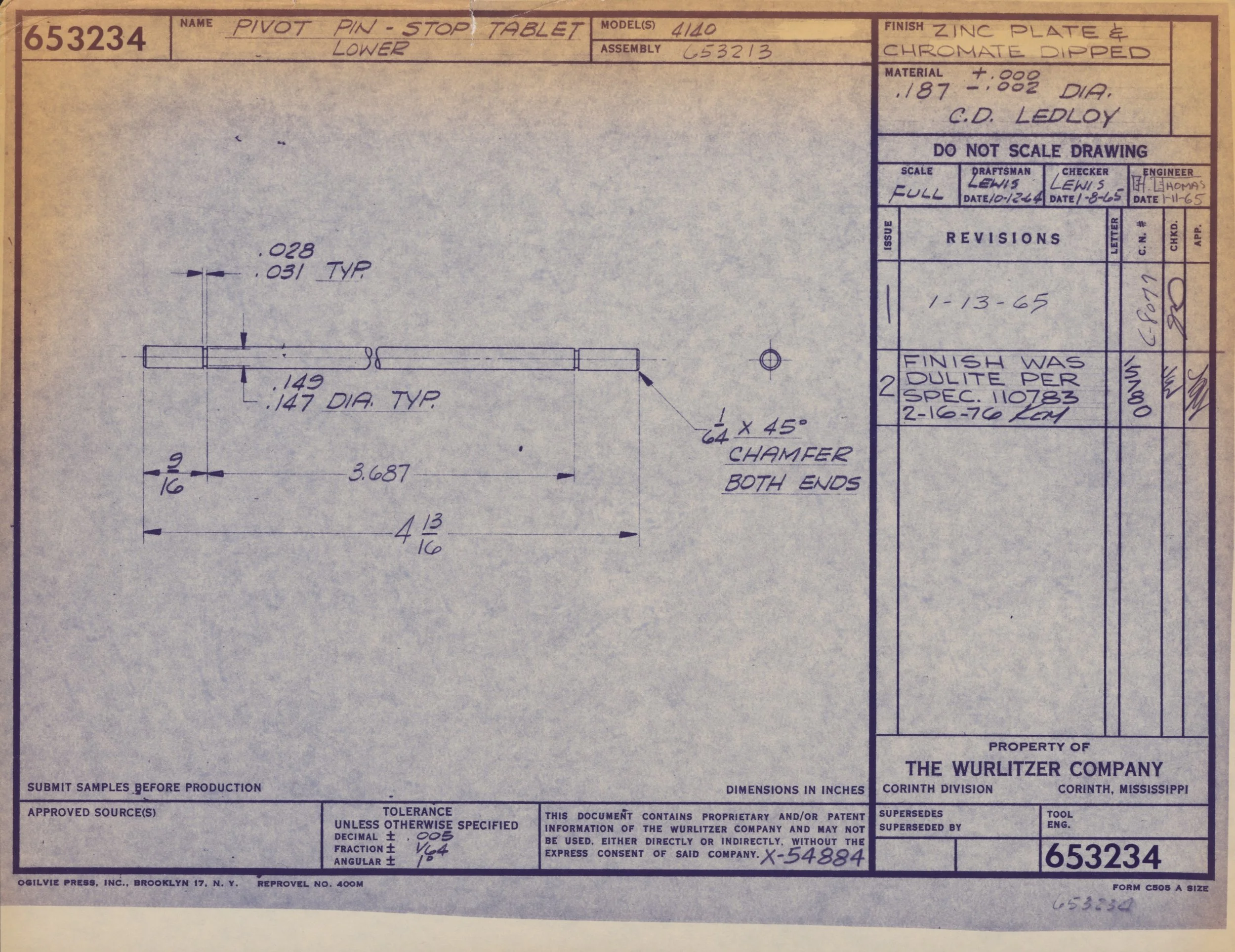

Technical blueprint or engineering drawing of a pivot pin stop tablet lower, showing detailed measurements and specifications.

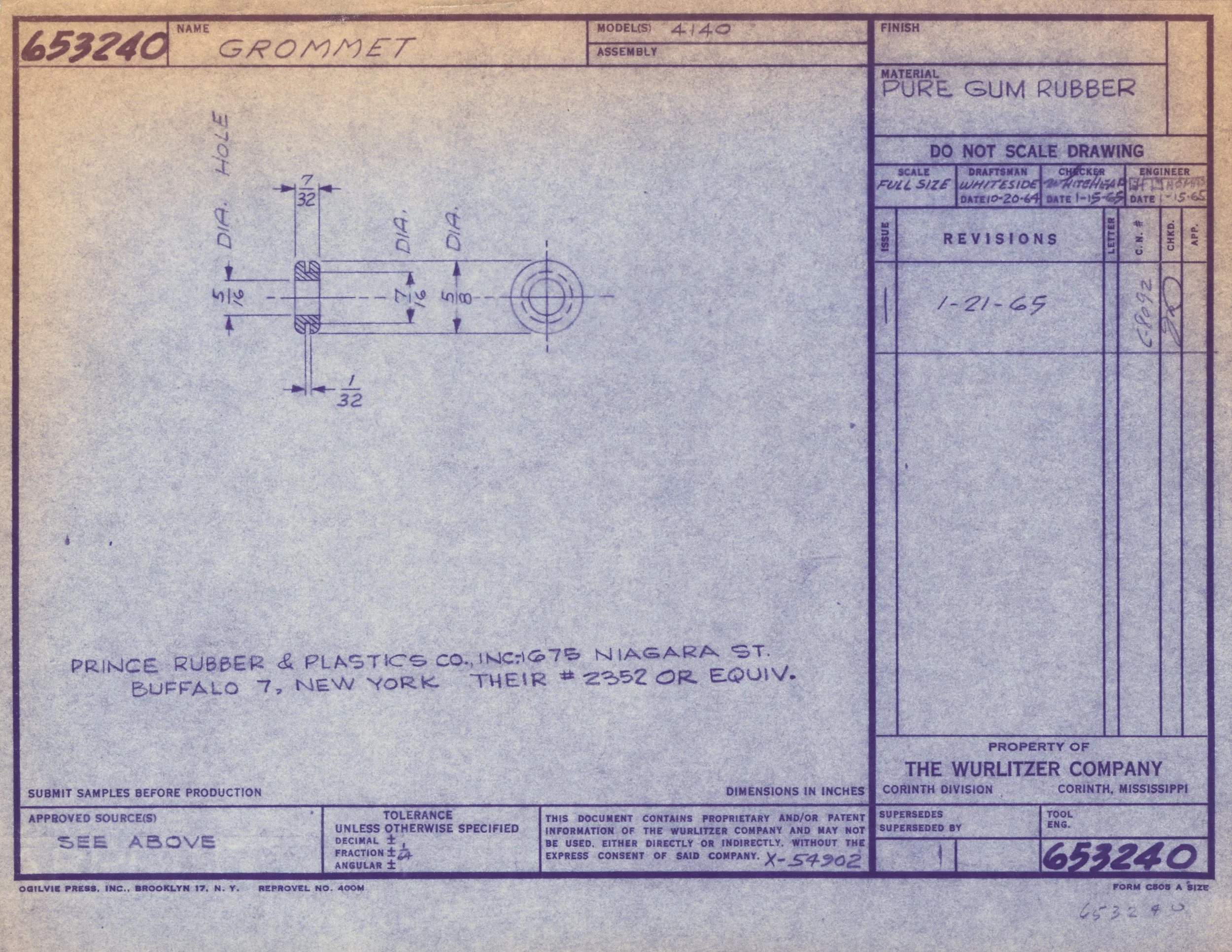

Blueprint technical drawing of a grommet, including detailed measurements and specifications, produced by Prince Rubber & Plastics Co., Inc., dated January 15, 1965.

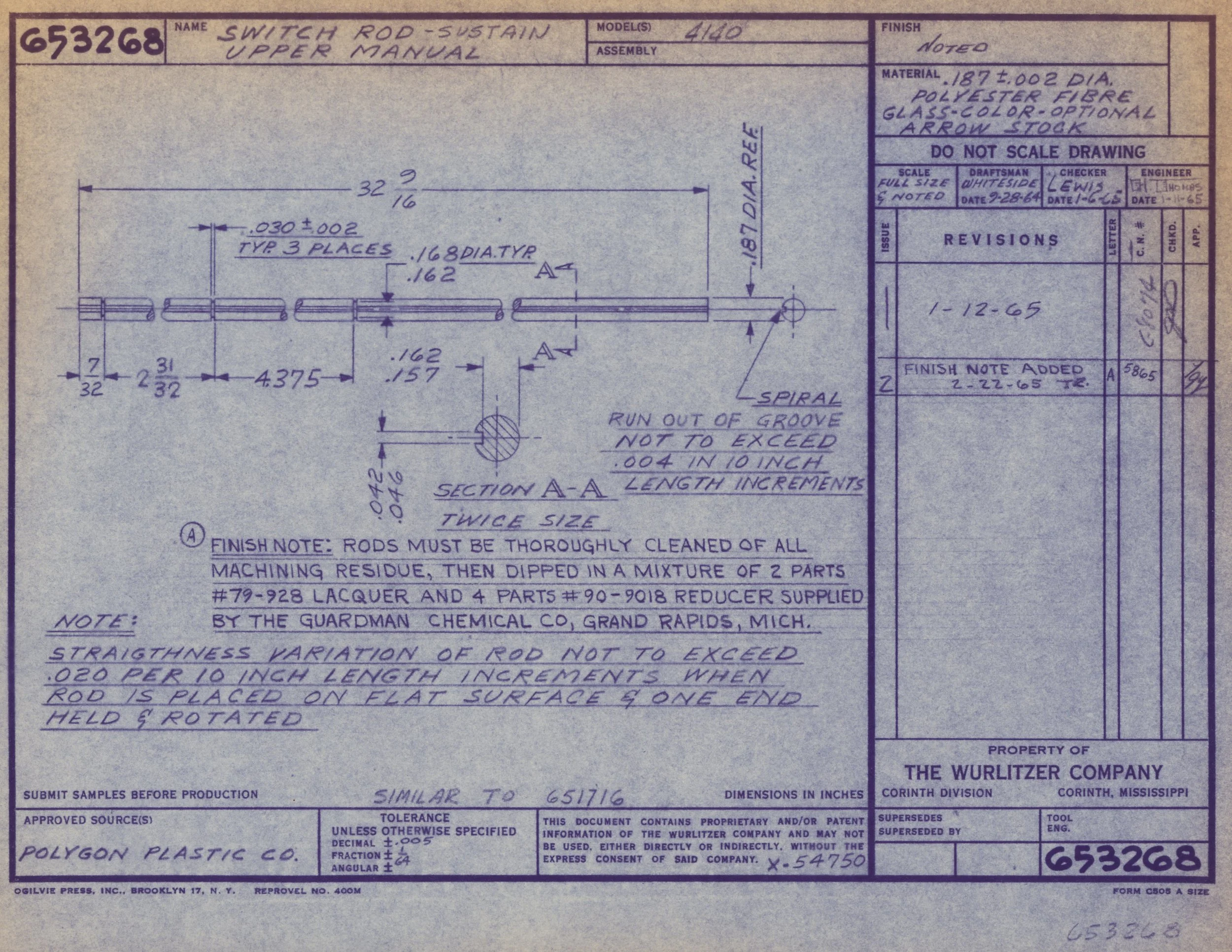

A technical drawing of a switch rod for an upper manual, showing detailed measurements, specifications, and material notes, with handwritten annotations, revision history, and approval signatures.

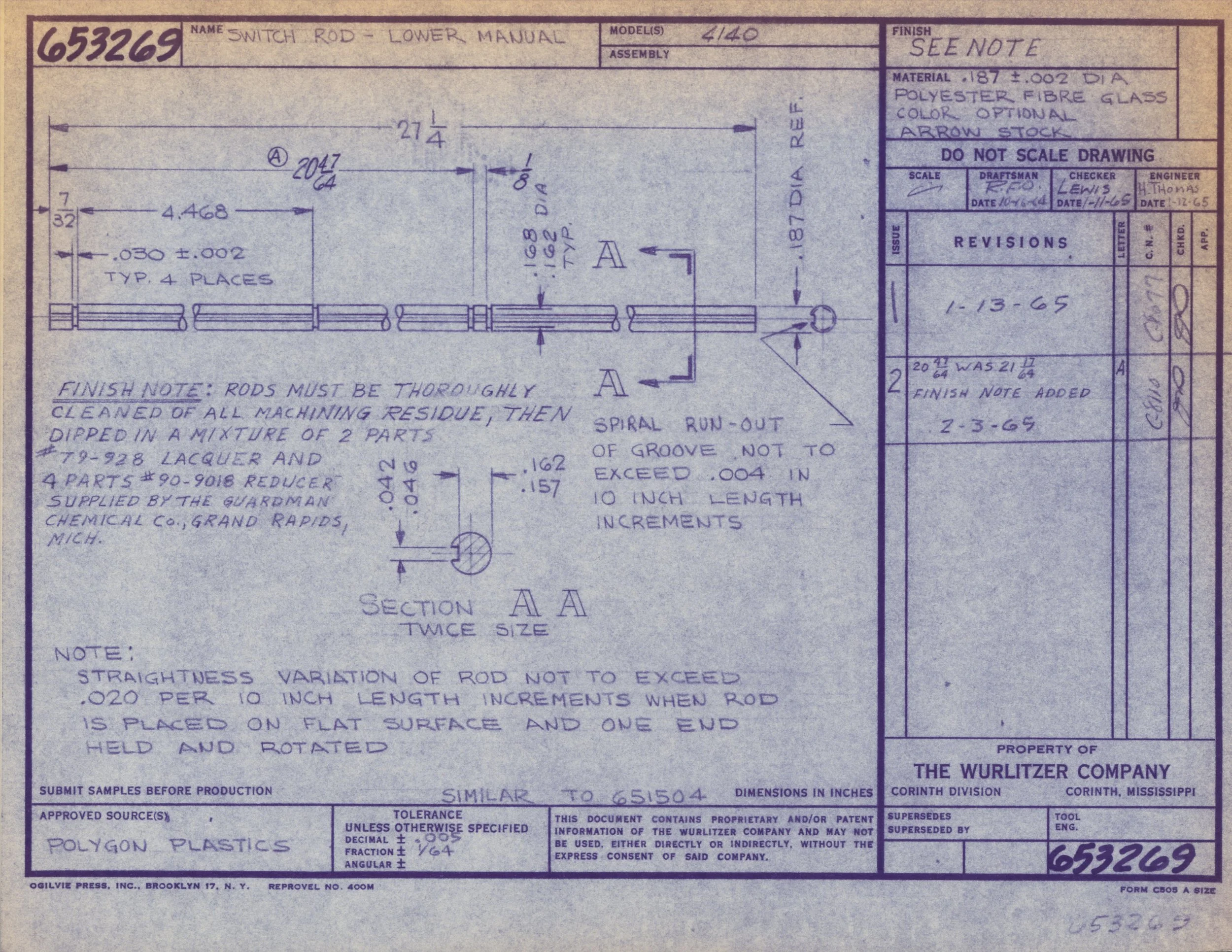

Technical engineering blueprint for a lower manual switch rod. Contains detailed measurements, annotations, and specifications for manufacturing or assembly.

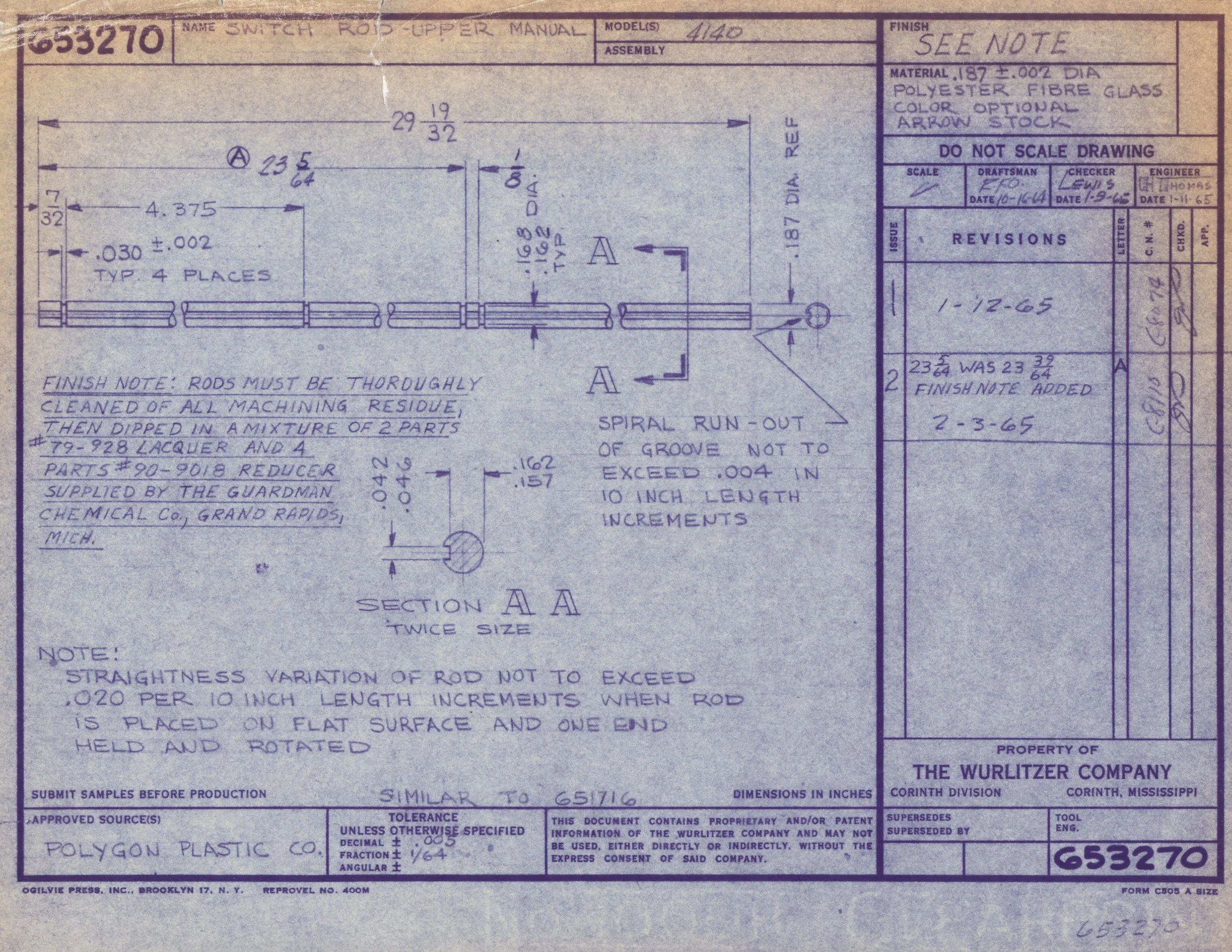

Technical engineering drawing of a rod, labeled 'Switch Rod-Upper Manual,' with detailed measurements and specifications, including material and finish notes.

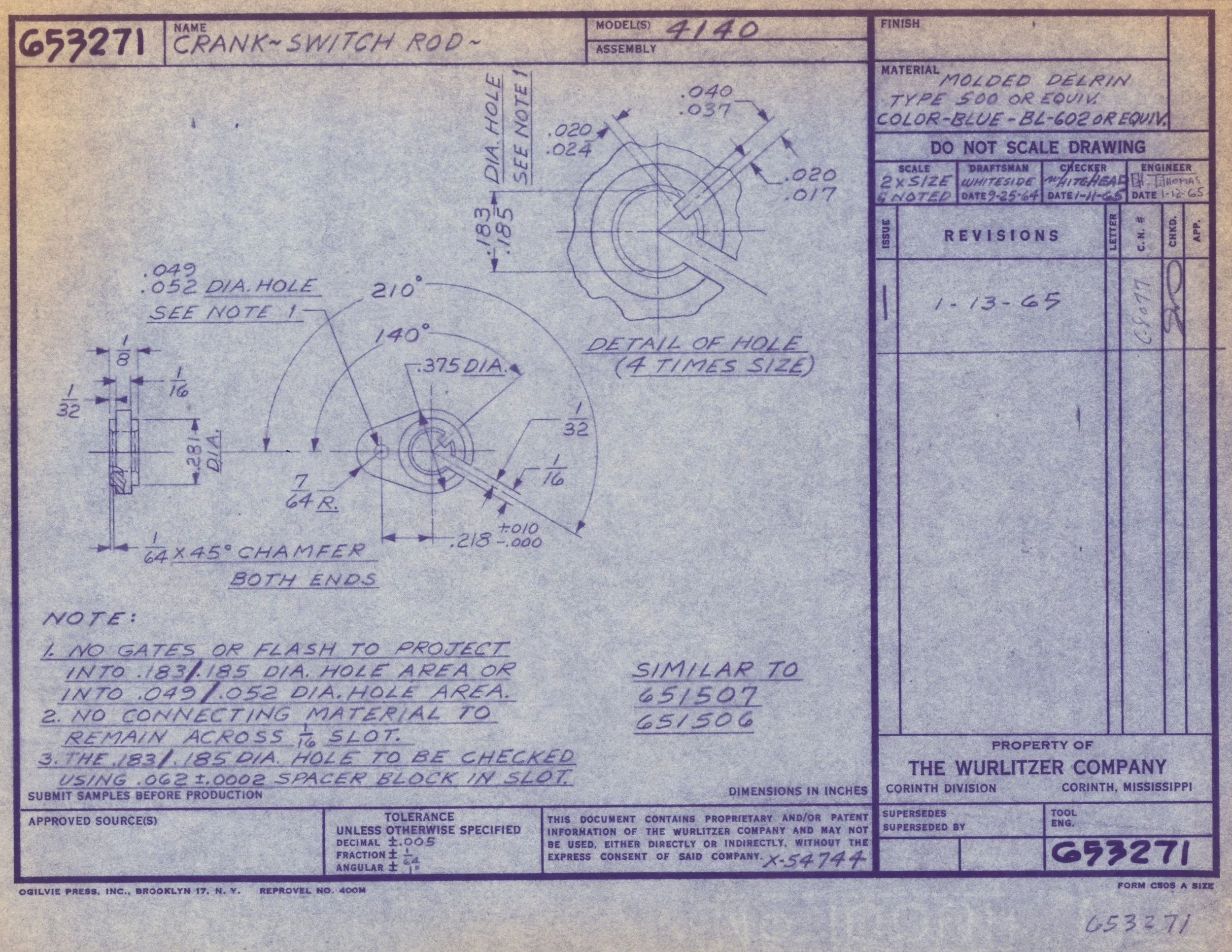

Technical drawing of a crank-switch rod with detailed measurements, annotations, and specifications, created on light purple blueprint paper.

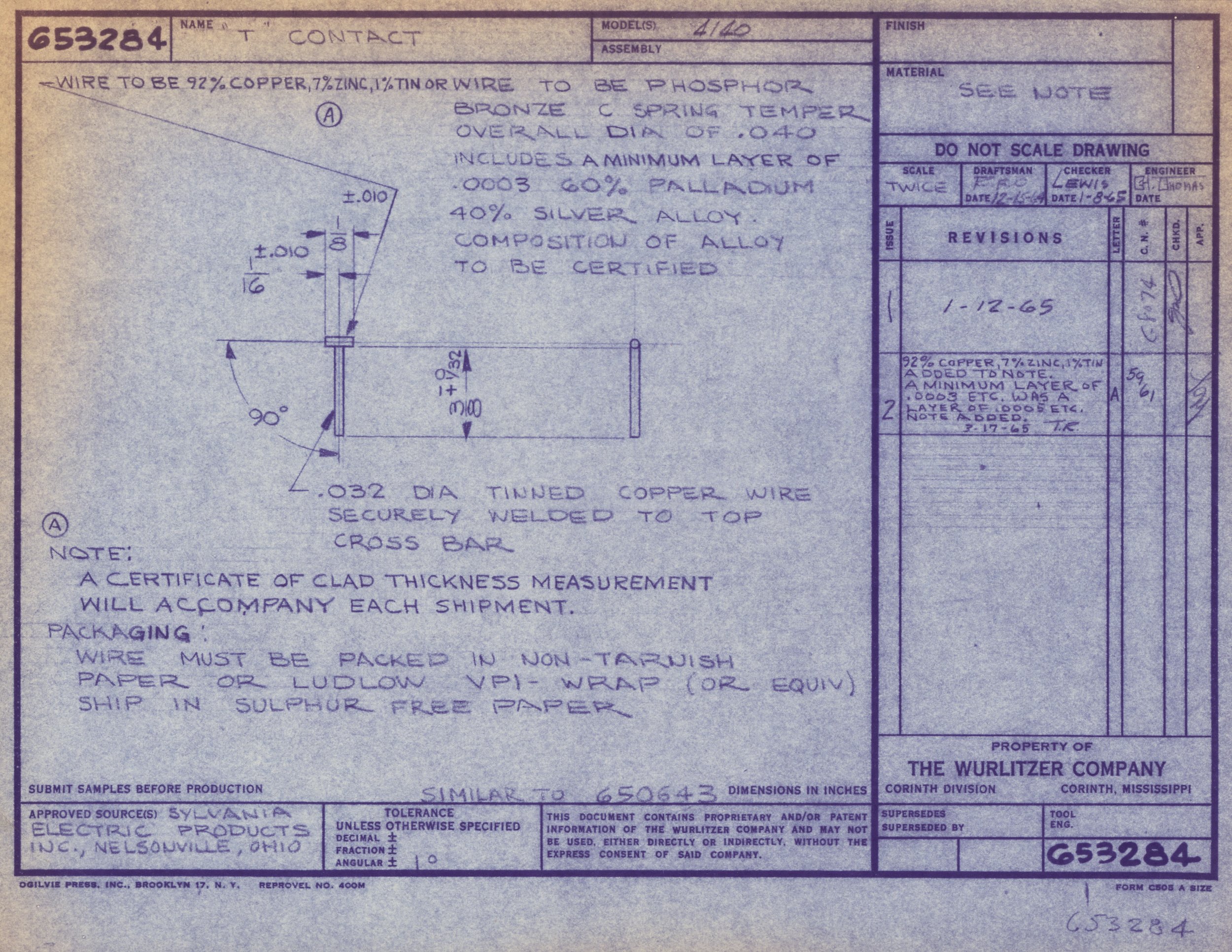

Blueprint technical drawing for a copper wire, including specifications for copper, zinc, and tin layers, and details about wire diameter, composition, and certification.

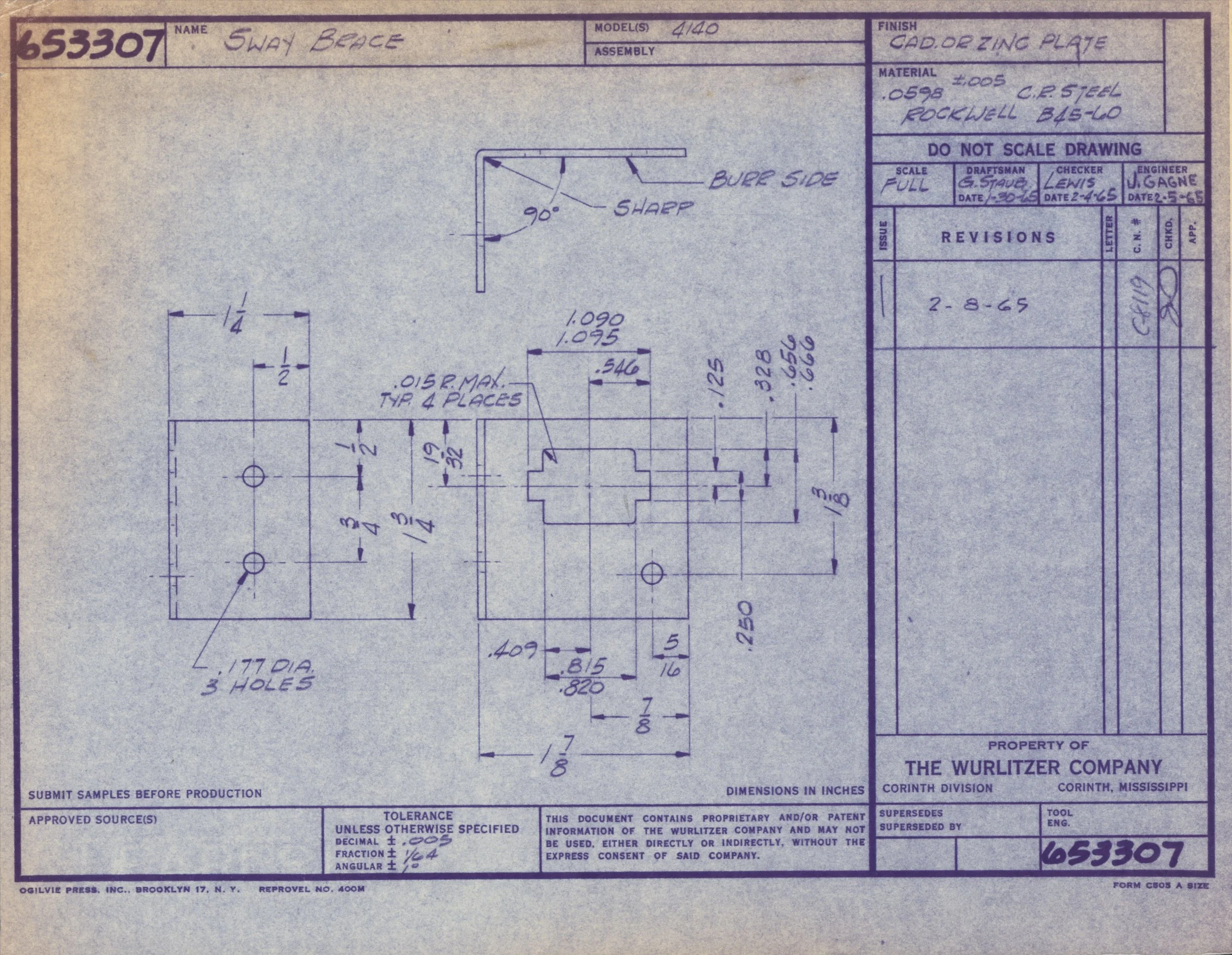

Blueprint drawing for a sledge brace with measurements, specifications, and notes on materials and construction details.

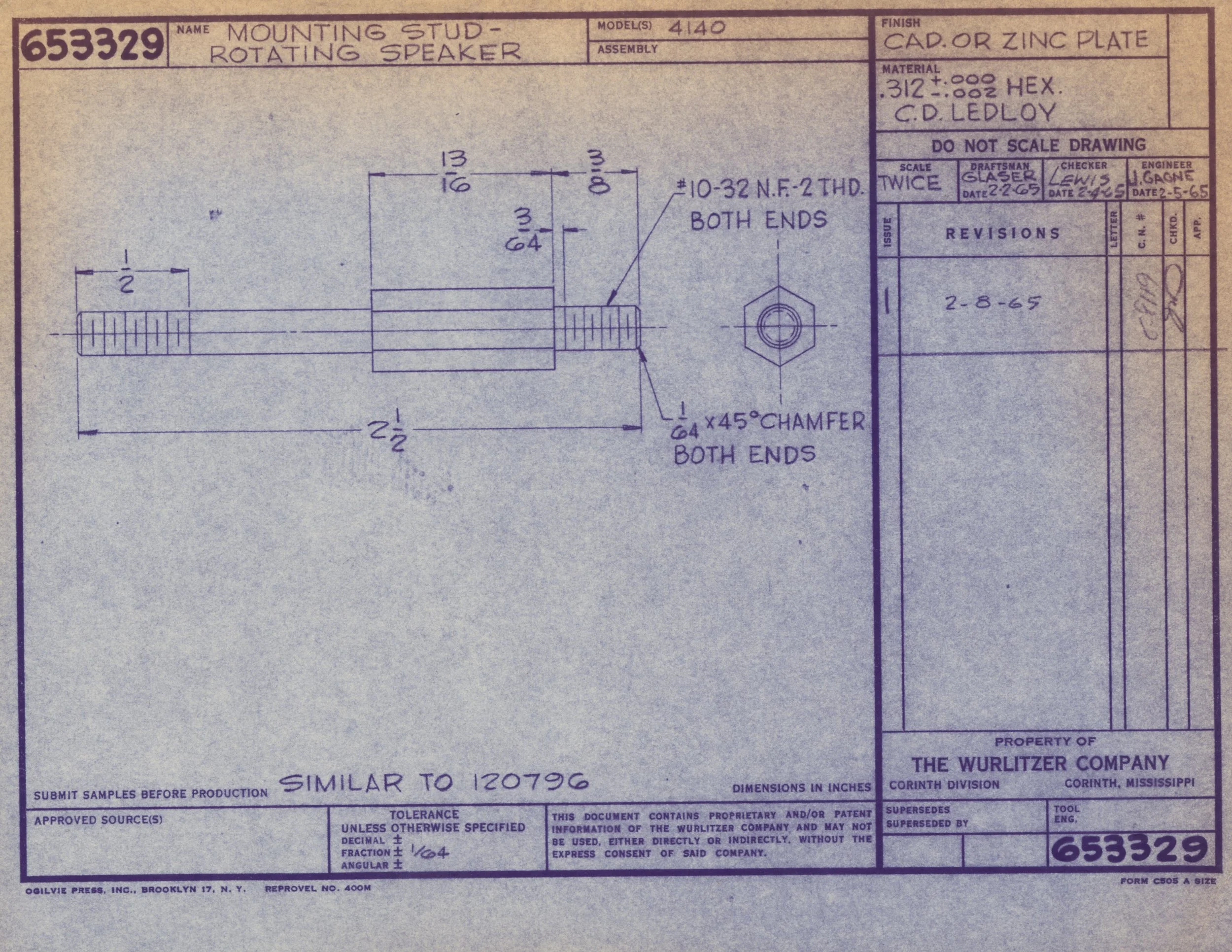

Technical blueprint of a rotating speaker mounting stud, showing dimensions, material specifications, and construction notes, with handwritten annotations and approval stamps.

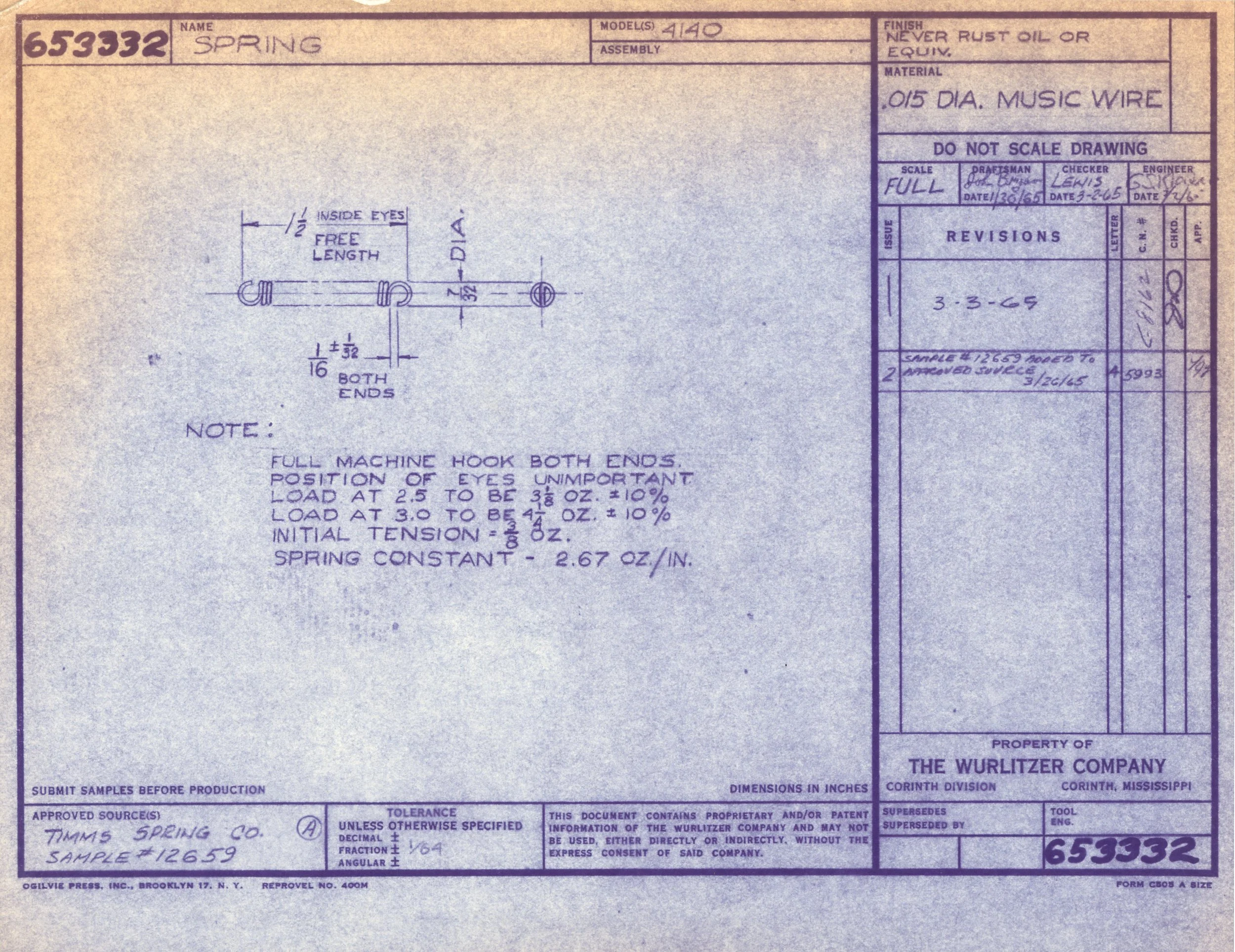

Technical drawing of a spring with detailed specifications, including dimensions, materials, and assembly instructions.

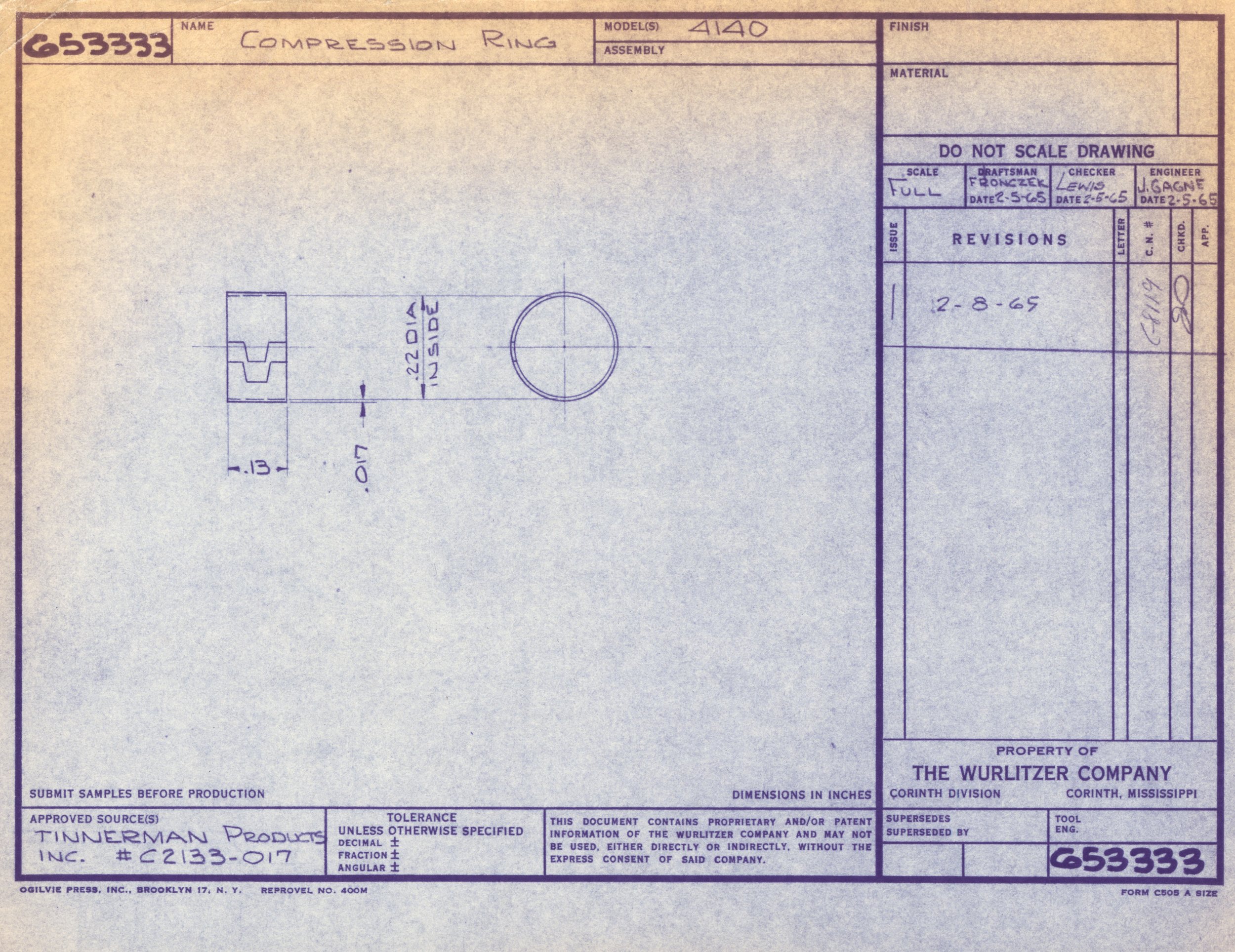

Technical drawing of a compression ring with dimensions and labels, including sample submission and approval details from Tinnerman Products.

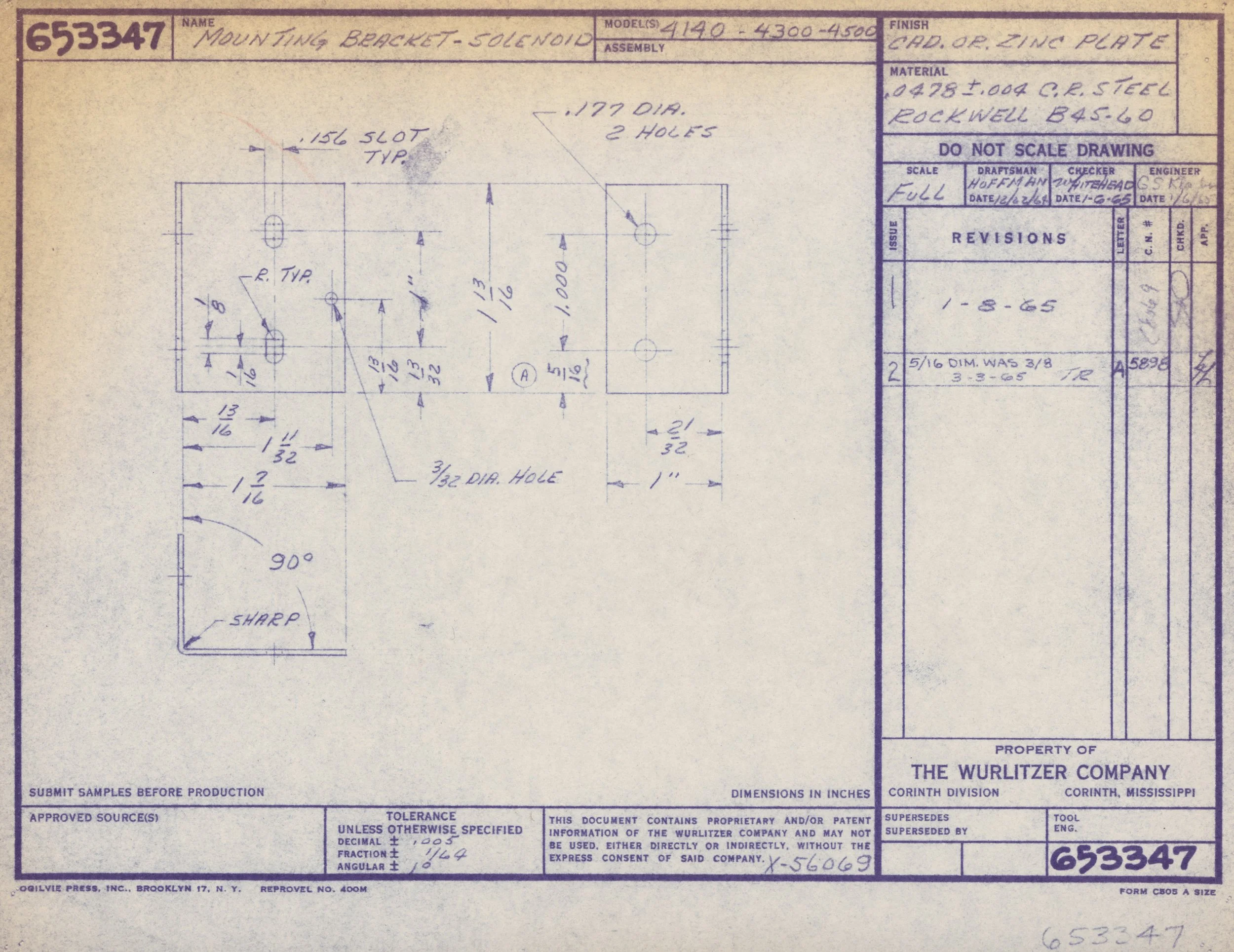

Technical engineering drawing of a mounting bracket made of steel, showing dimensions and hole placements, with annotations and hand-written notes.

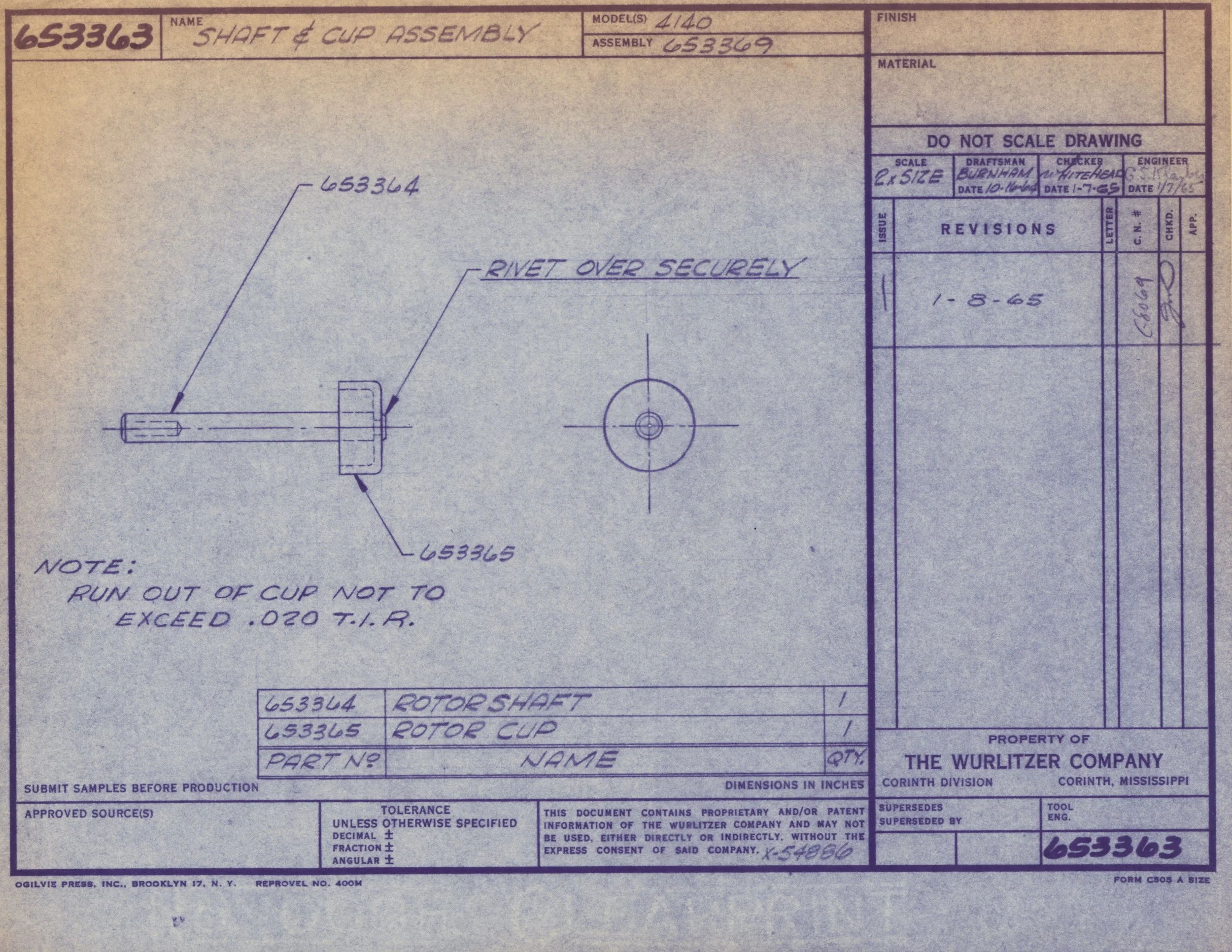

Technical engineering drawing blueprint of the shaft and cup assembly, including labeled dimensions and notes, from The Wurlitzer Company.

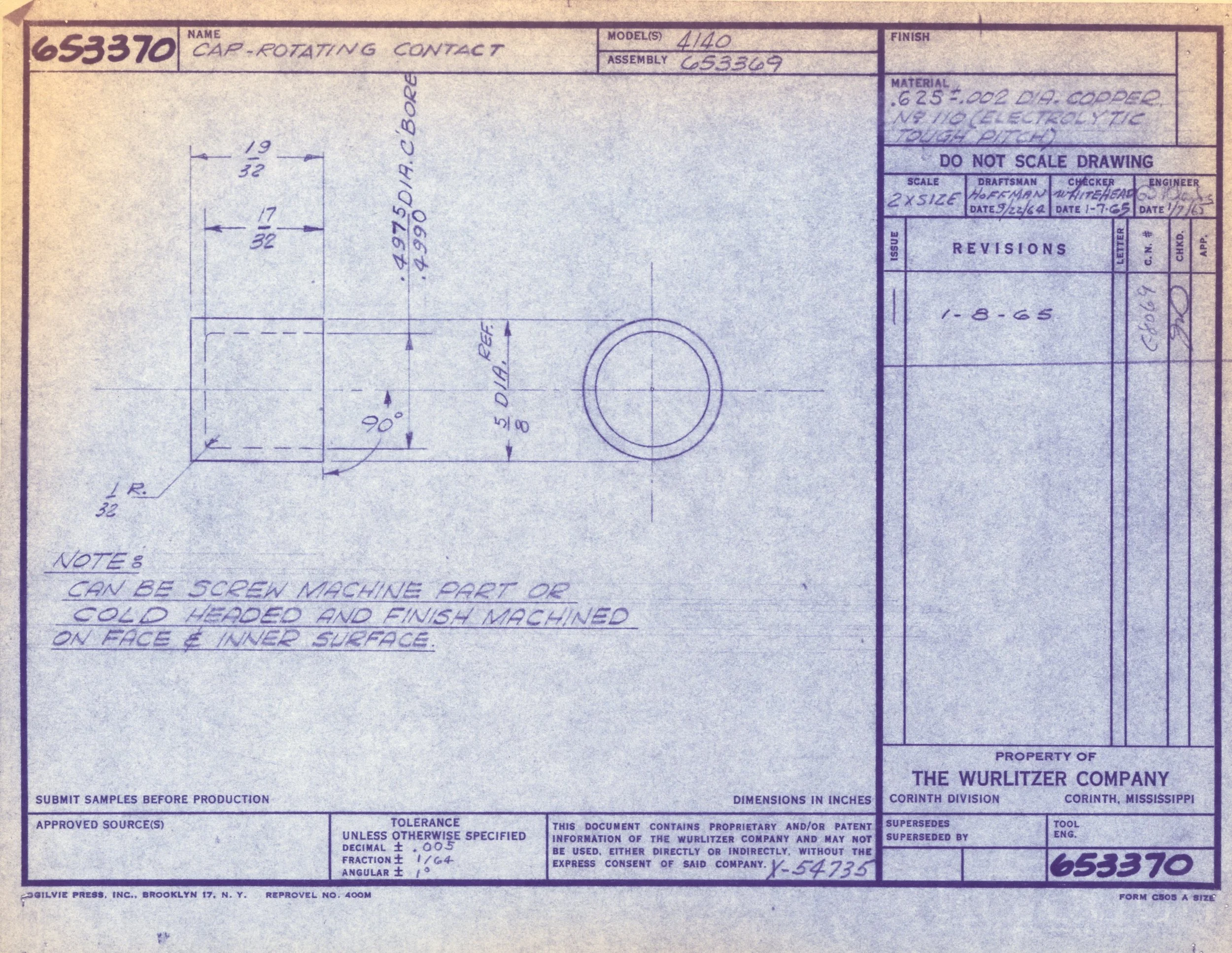

Technical blueprint or engineering drawing for a rotating contact cap, including detailed measurements and material specifications, produced by The Wurlitzer Company.

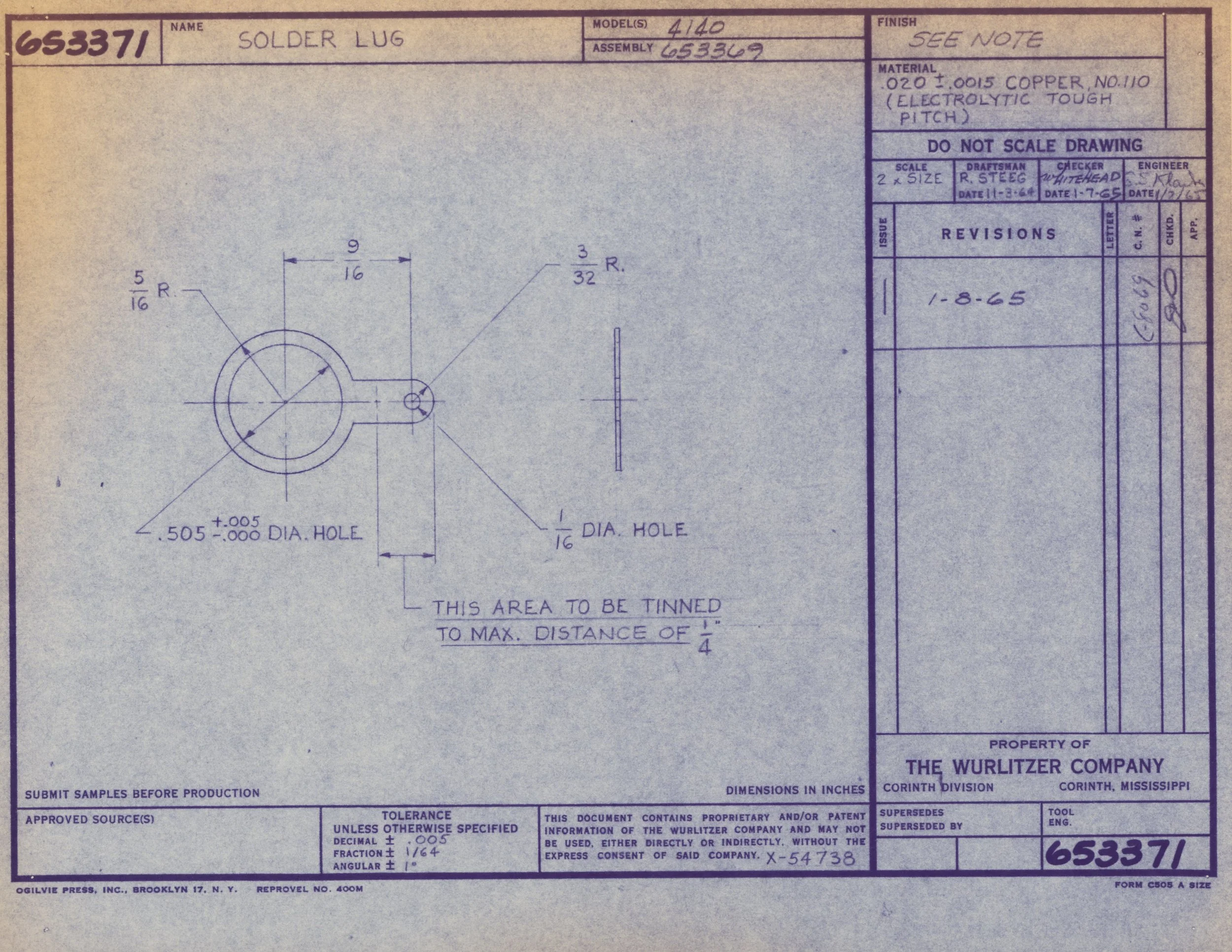

Technical drawing of a solder lug with detailed measurements and notes, including a 0.505-inch diameter hole and specified material, copper with electrolytic tough pitch.

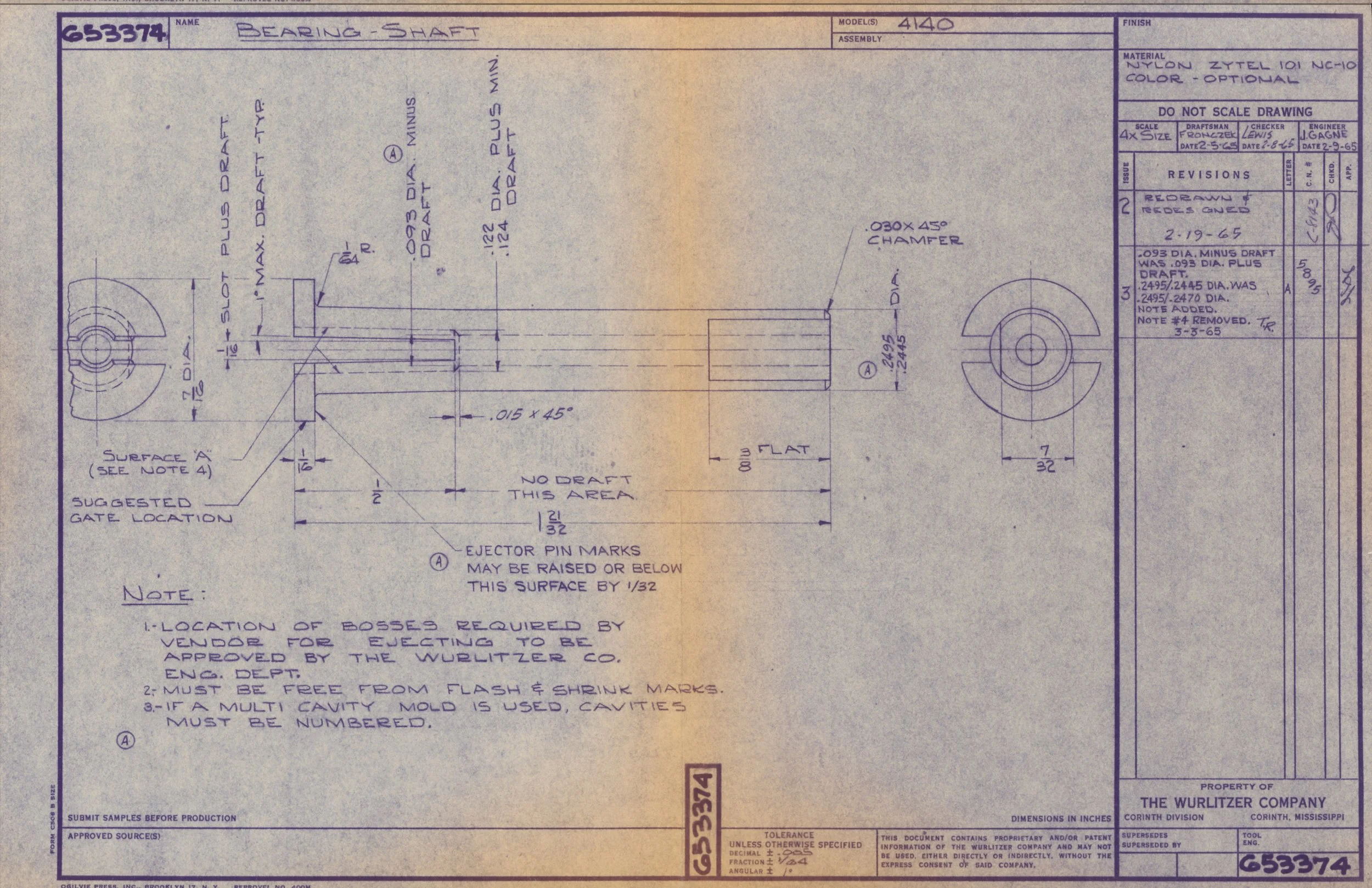

Technical engineering drawing of a bearing shaft with detailed dimensions, notes, and specifications, annotated with measurements and material information.

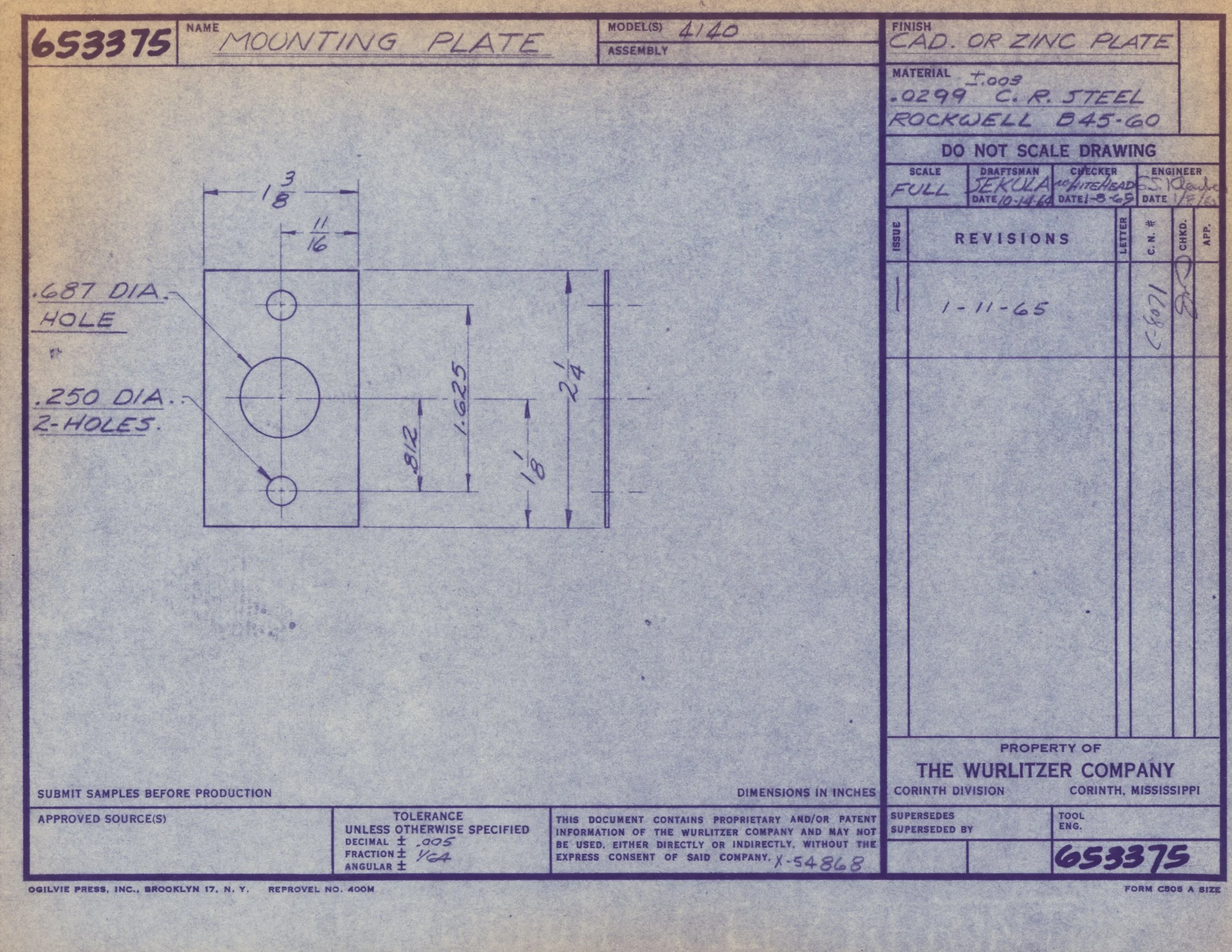

Technical drawing blueprint sketch of a mounting plate with measurements and details, labeled with part number 653375, including dimensions and specifications for manufacturing.

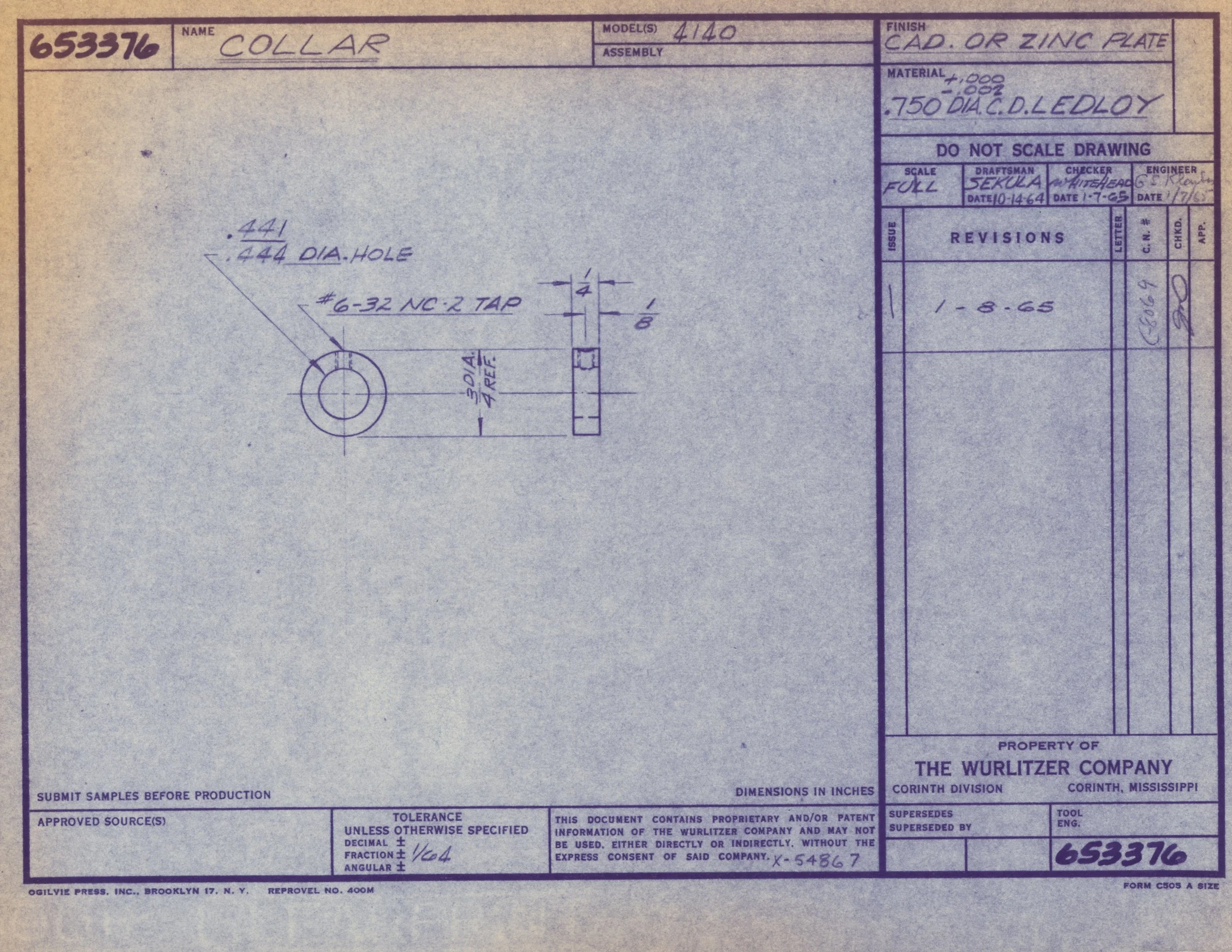

Blueprint technical drawing for a collar, showing a circular hole with diameter specifications and detailed dimensions, created by The Wurlitzer Company in Corinth, Mississippi, dated 1964.

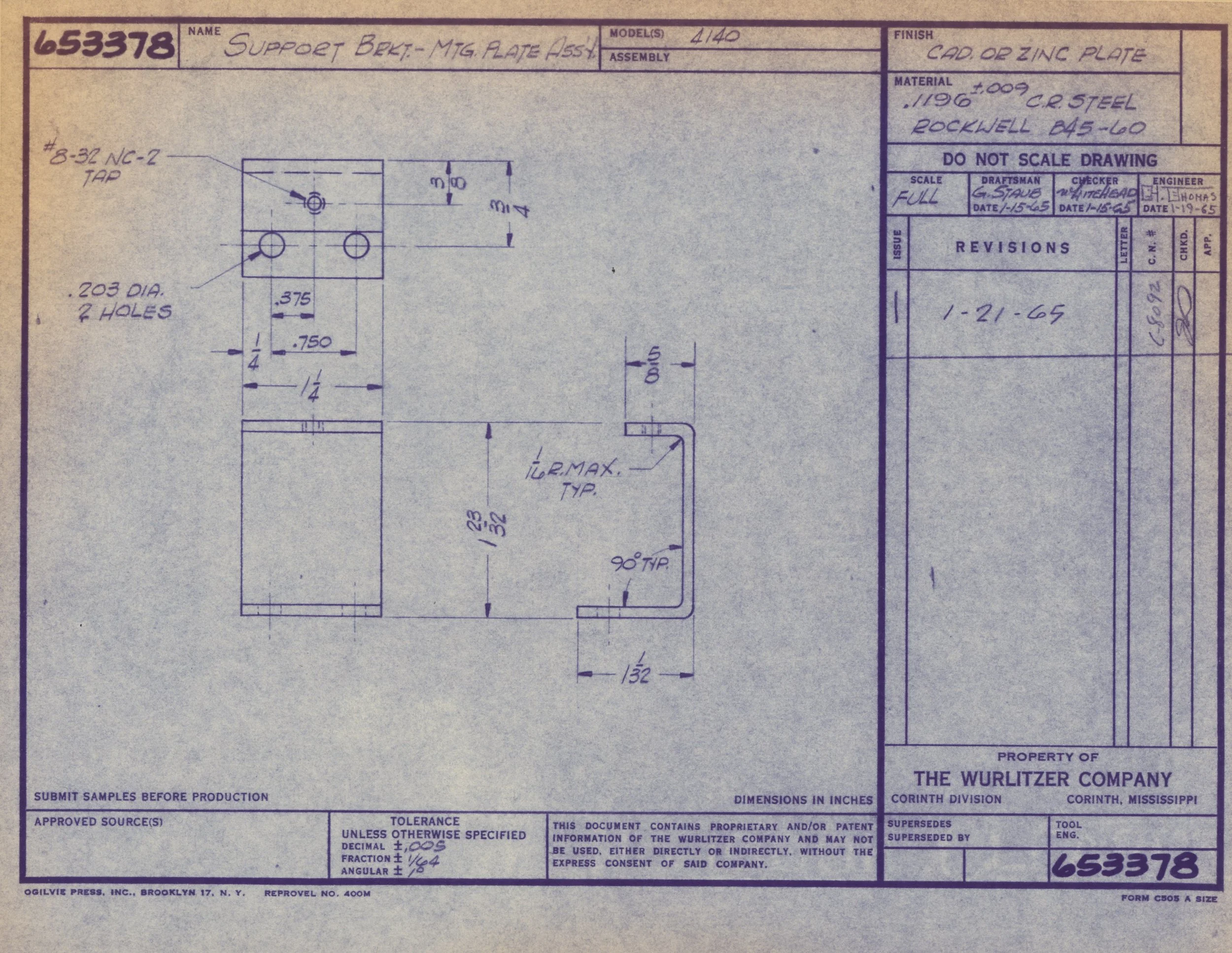

Technical engineering drawing of a support bracket, showing dimensions, hole placements, and construction details, with handwritten annotations and company information.

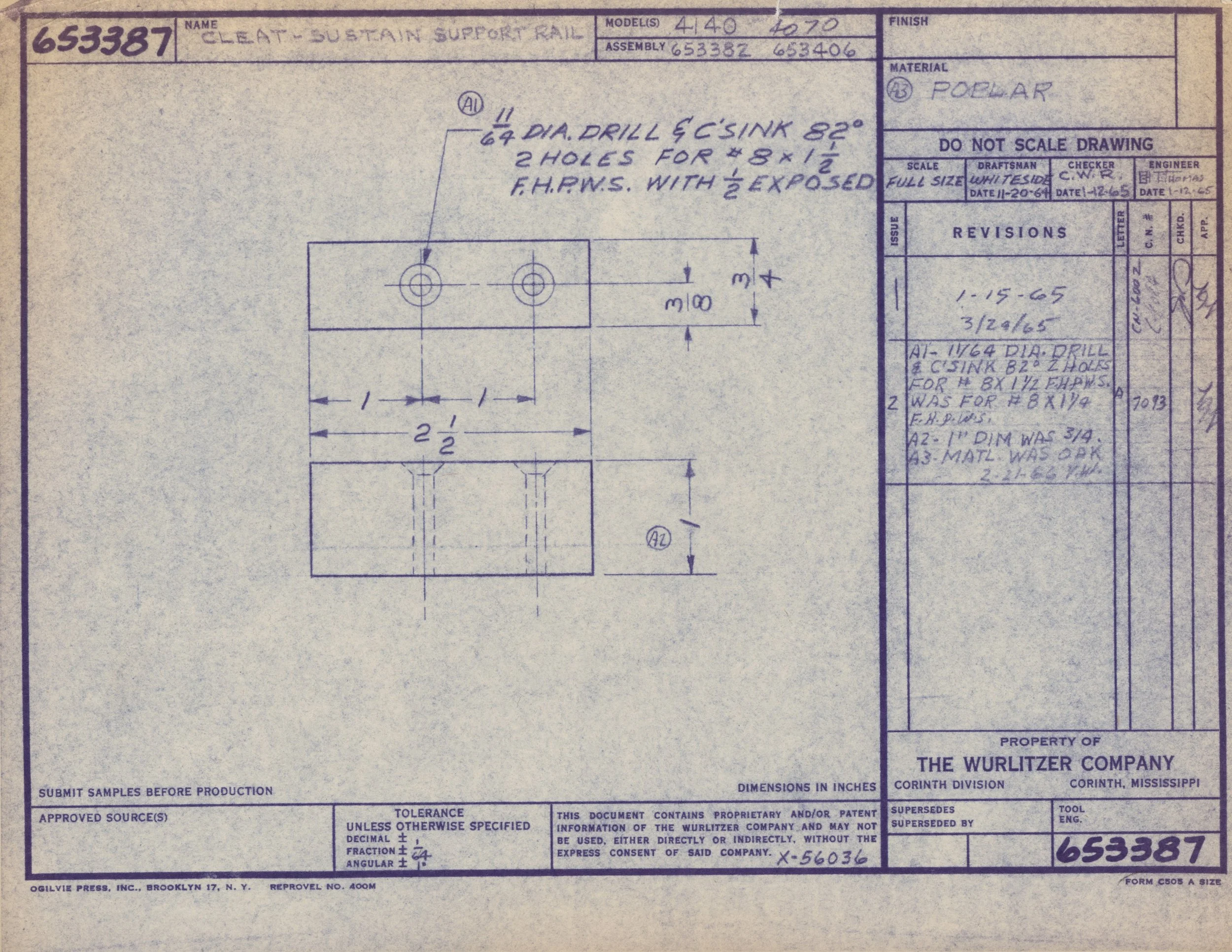

Blueprint drawing for a cleat or sustain support rail with measurements, including two holes for 8x1 1/2 inch fasteners, made of poplar wood, designed for a model 4140 or 4070 by Wurlitzer Company.

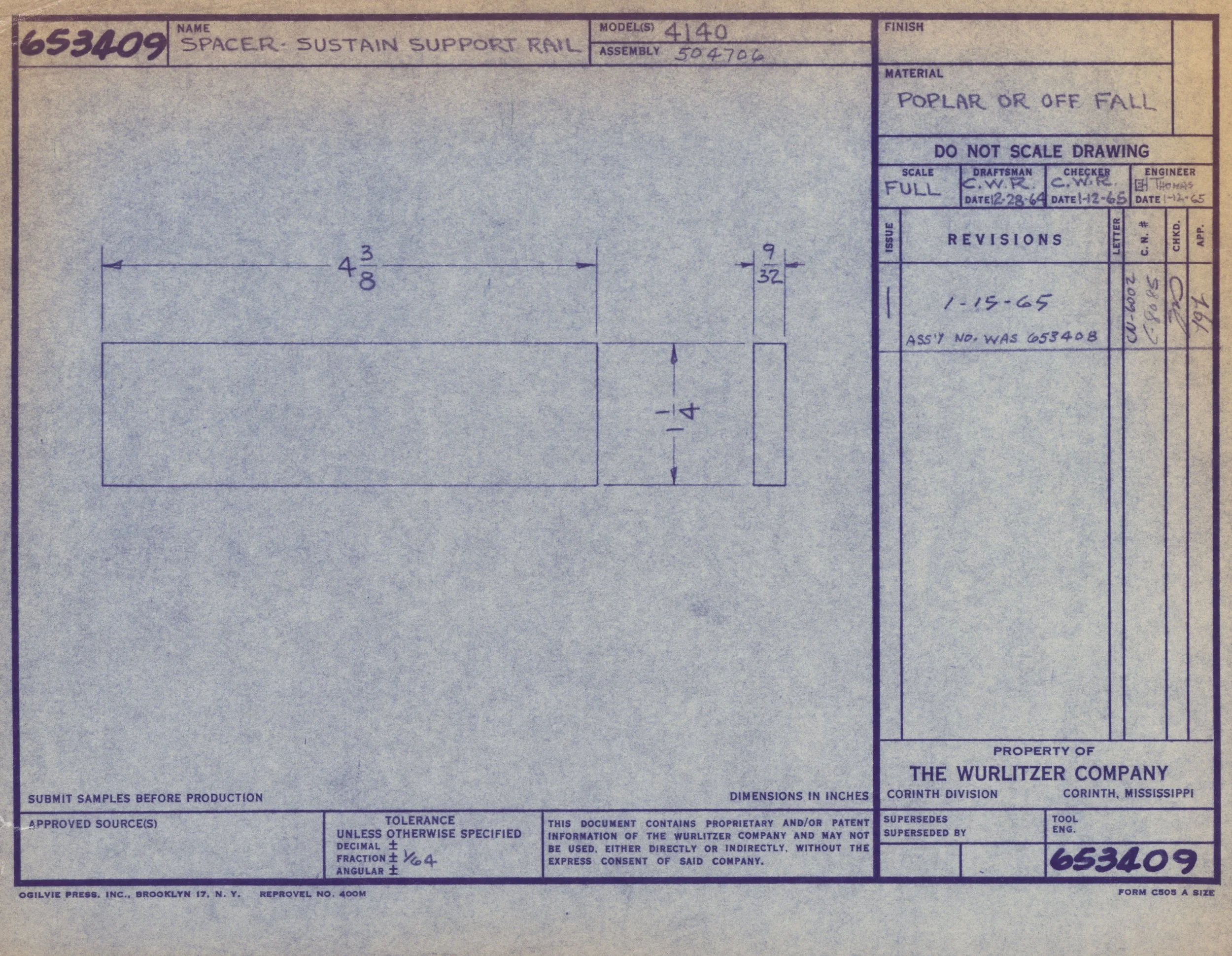

Technical blueprint drawing for a spacer and sustain support rail, with dimensions, notes, and approval stamps from a manufacturing company.

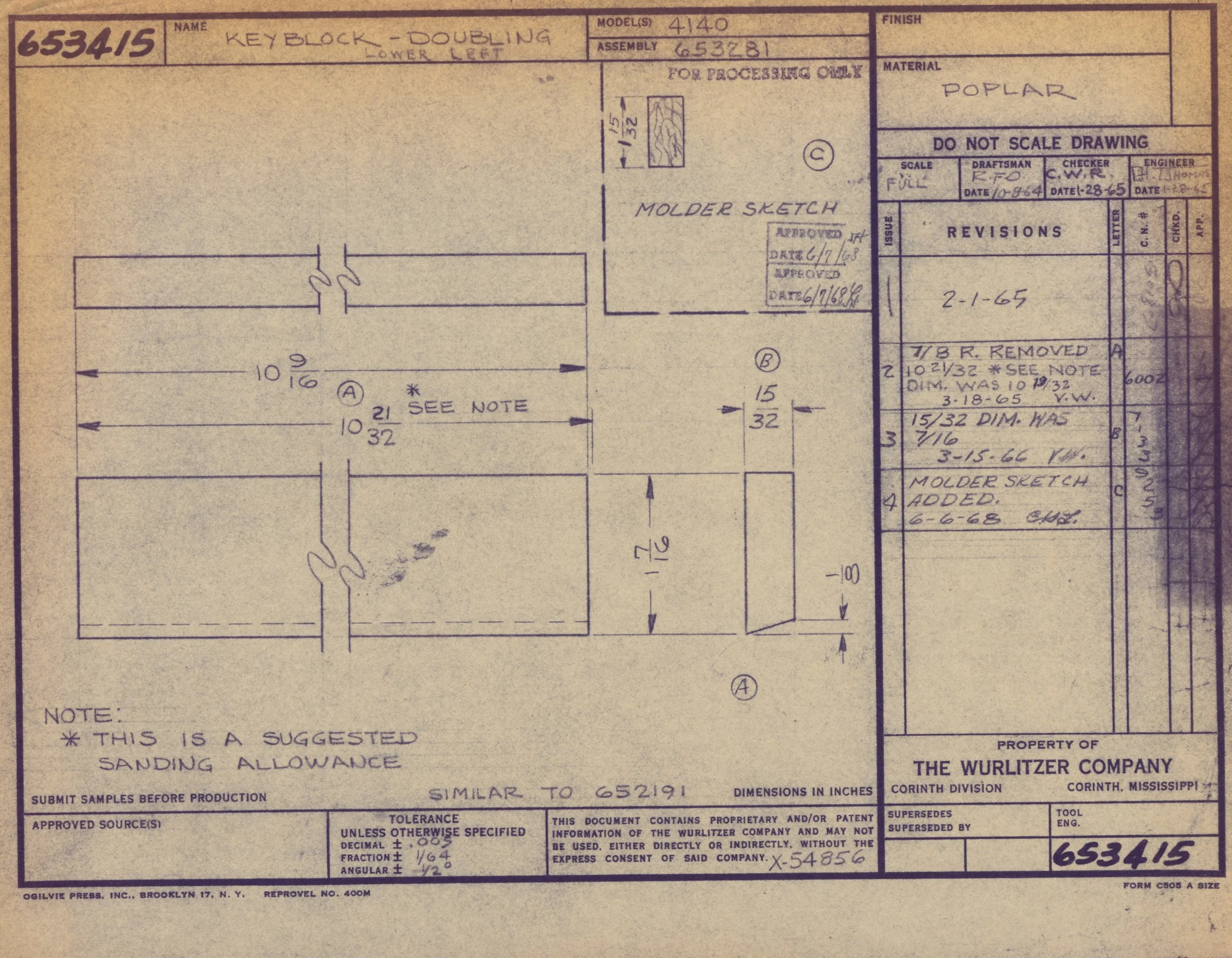

A technical blueprint or patent drawing for a double key block from The Wurlitzer Company, showing detailed measurements and specifications.

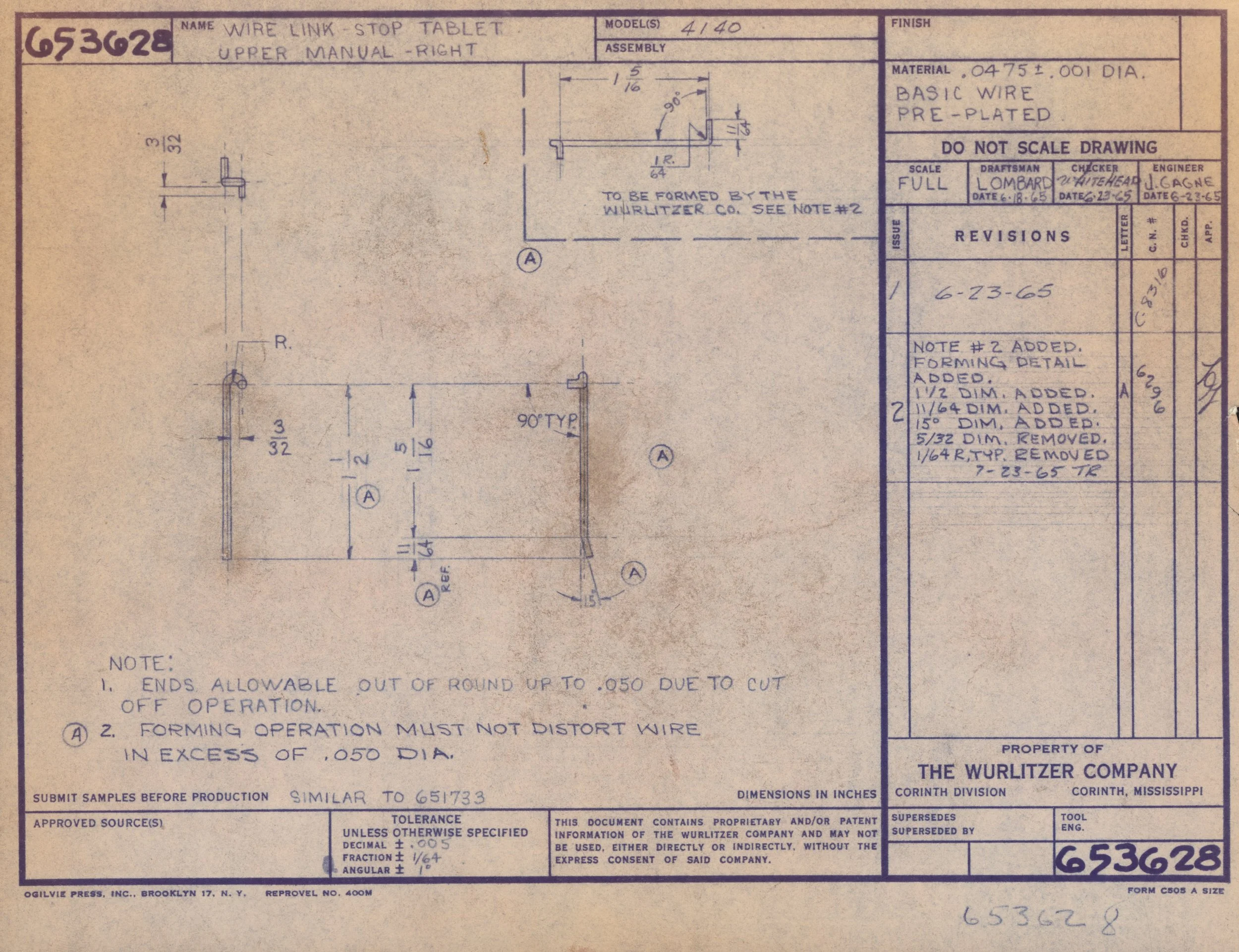

Engineering blueprint showing schematic of wire link stop tablet for upper manual right. Contains detailed measurements, instructions, and revisions from The Wurlitzer Company in Corinth, Mississippi.

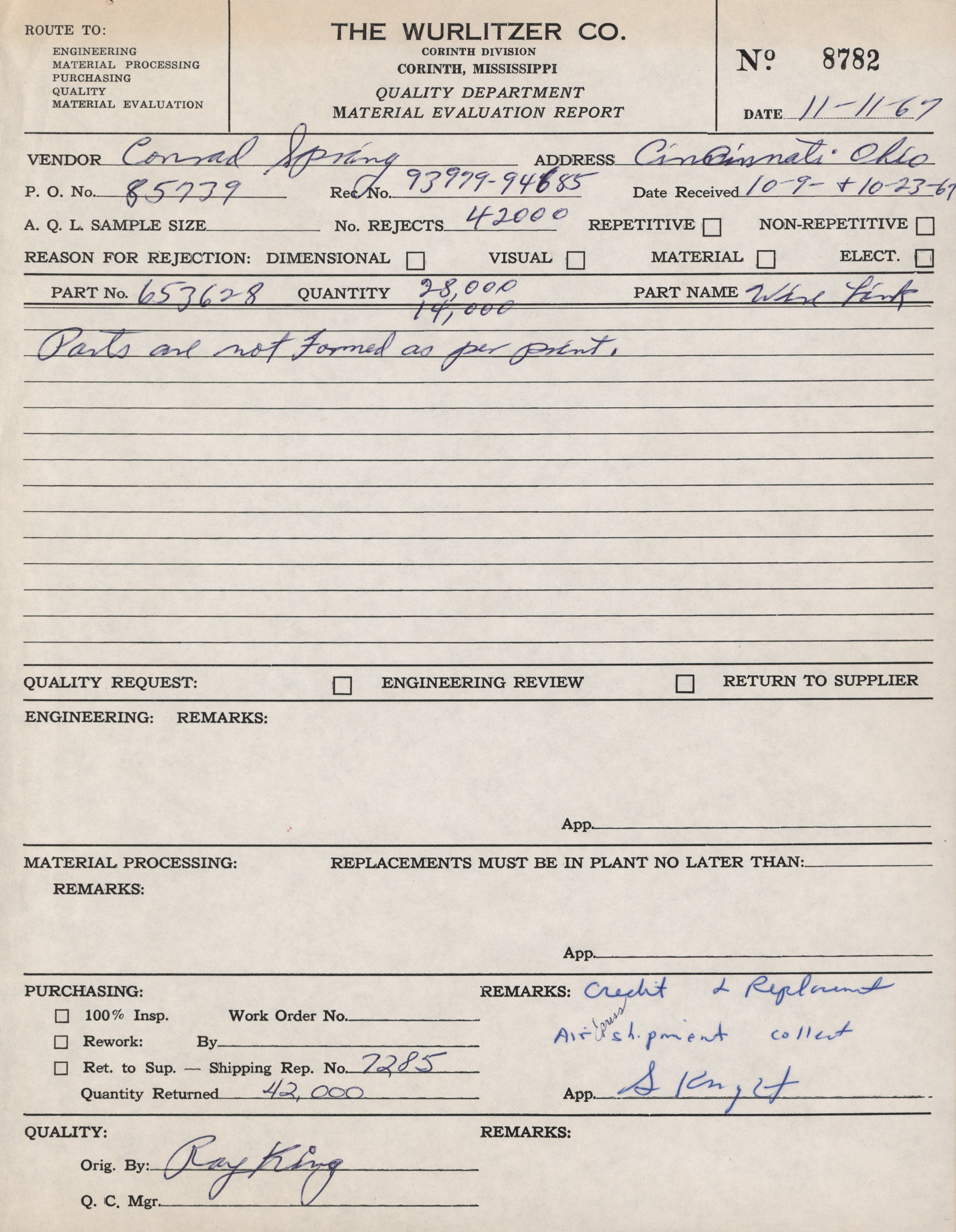

A detailed historical handwritten document titled 'Material Evaluation Report' from 'The Wurlitzer Co.' dated 11/11/69. The report includes various handwritten notes about parts, quantities, and remarks, with some parts of the text discussing electri

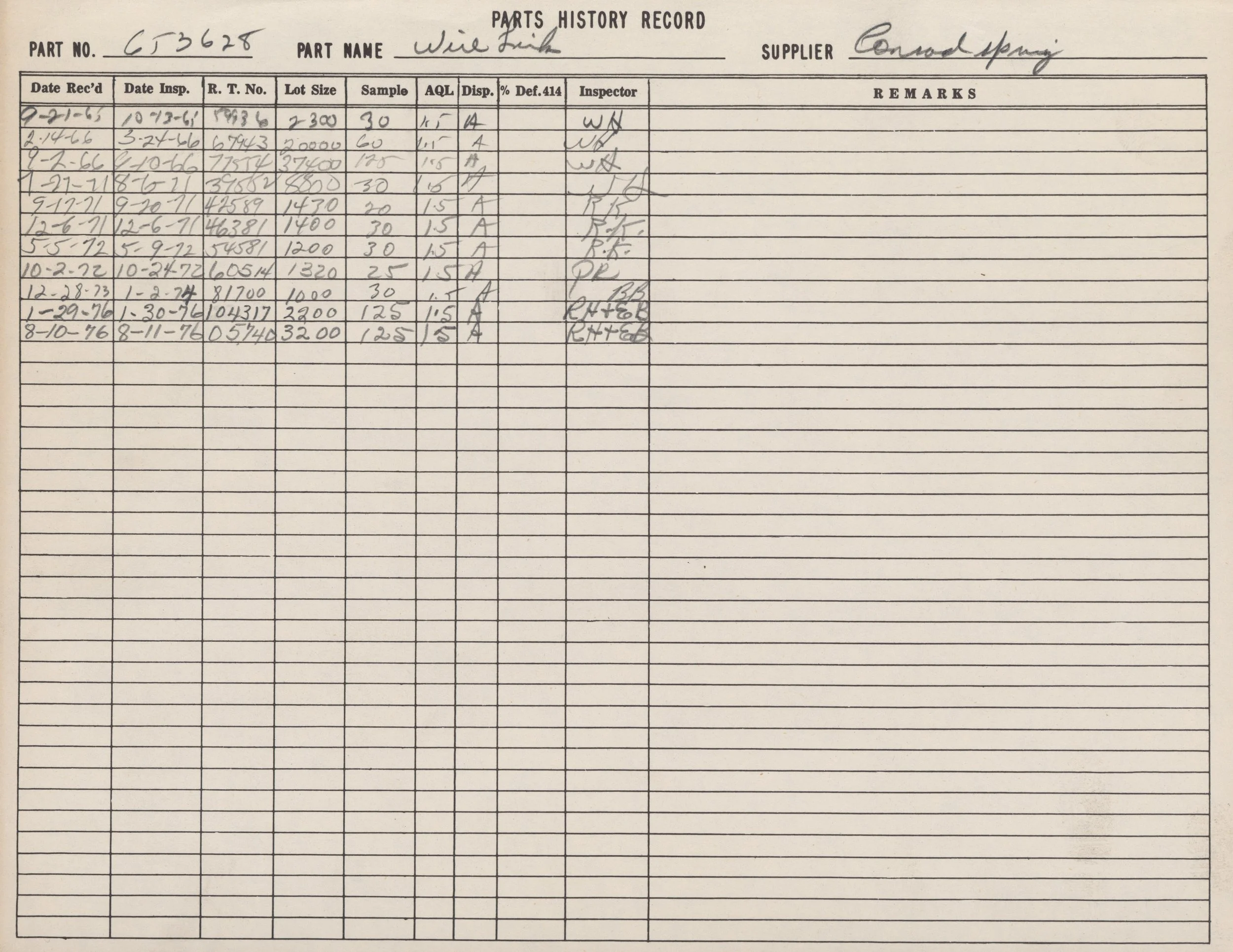

A page from a parts history record with handwritten entries including part number, part name, supplier, dates, lot sizes, samples, approval, disposal, and other details.

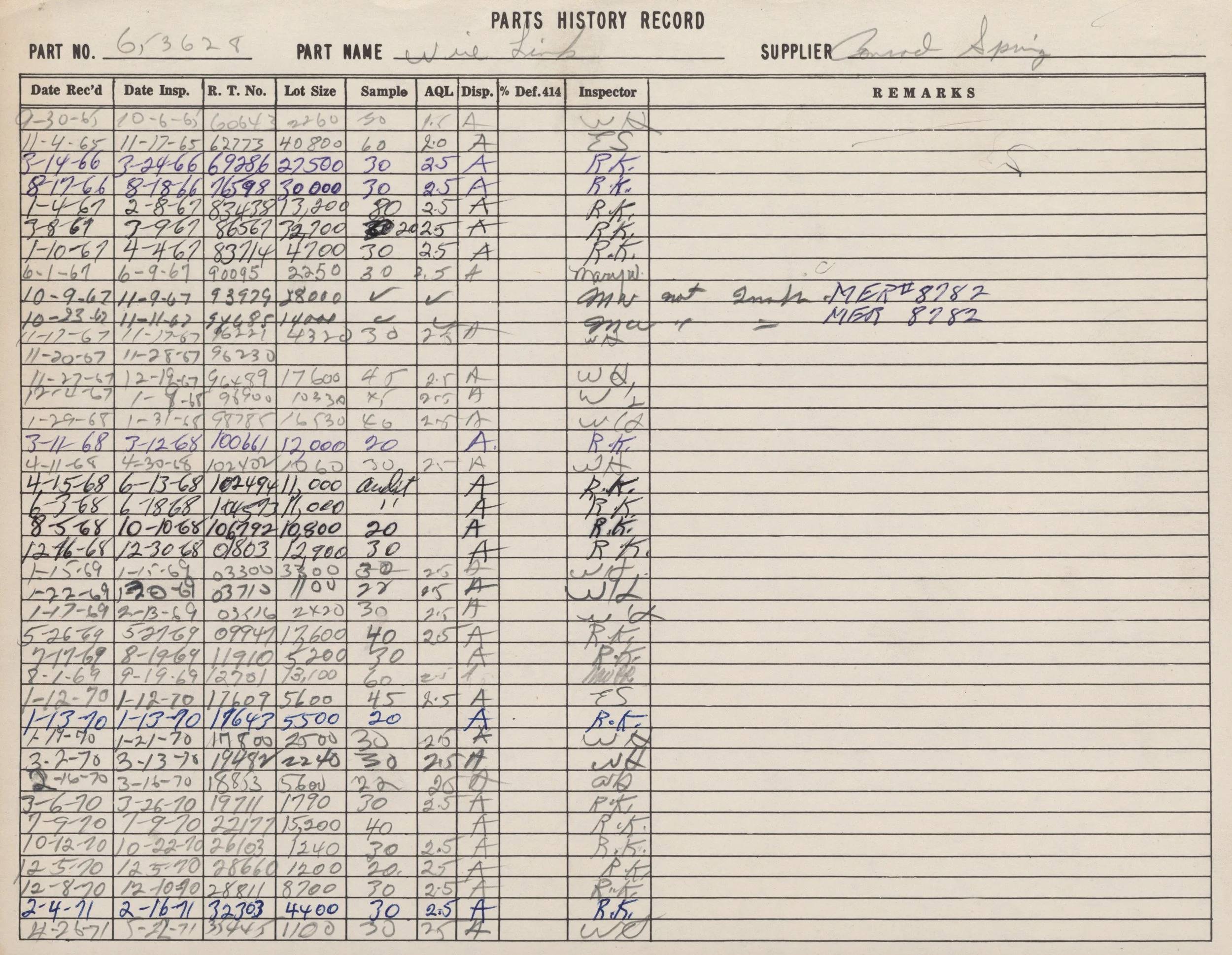

A handwritten parts history record sheet with columns for part number, part name, supplier, inspection dates, lot size, sample size, test results, inspector, remarks, and notes. The sheet contains multiple entries with dates and figures, some written

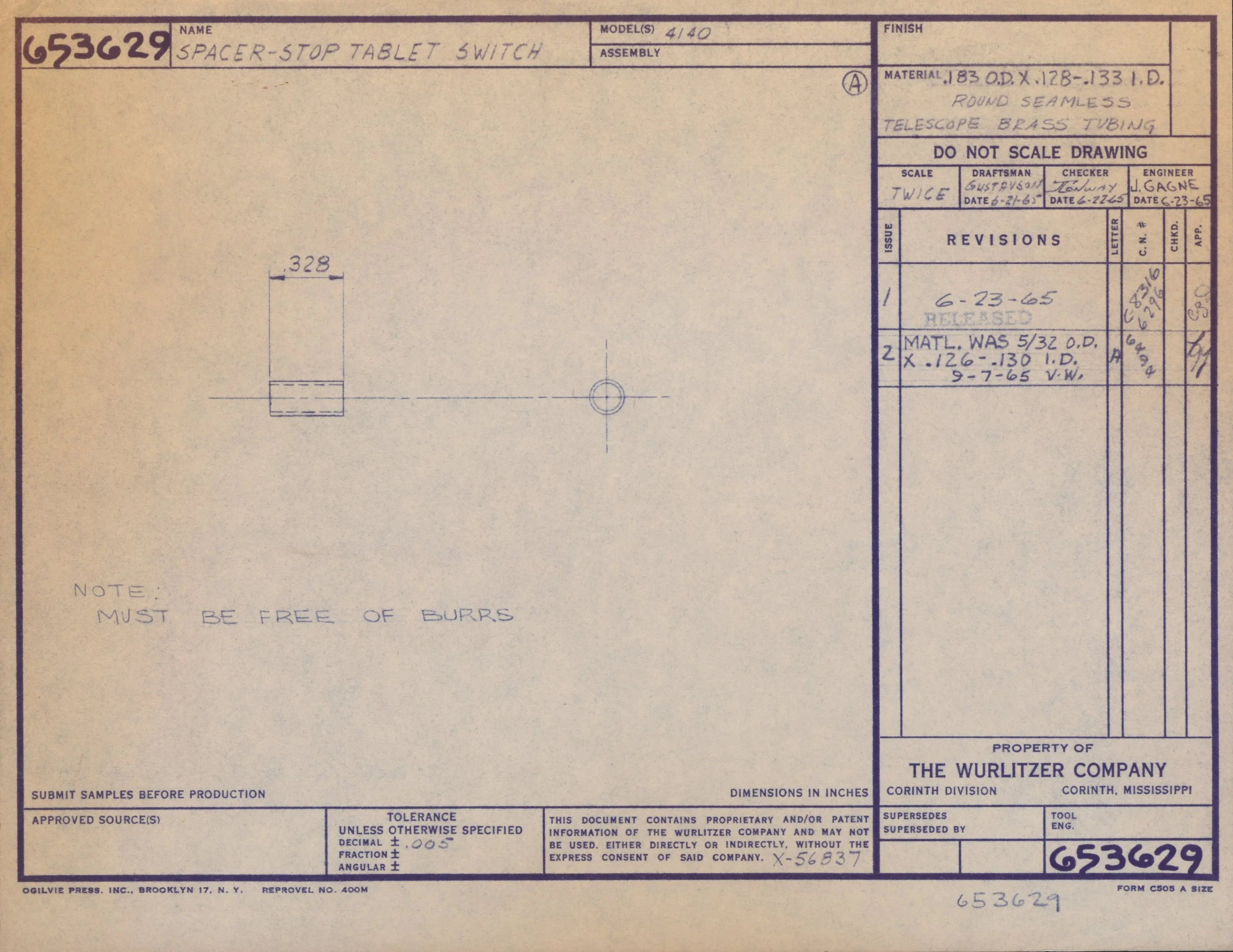

Blueprint or technical drawing for a spacer-stop tablet switch, model 4140, made of round seamless telescope brass tubing, with detailed measurements and revision notes.

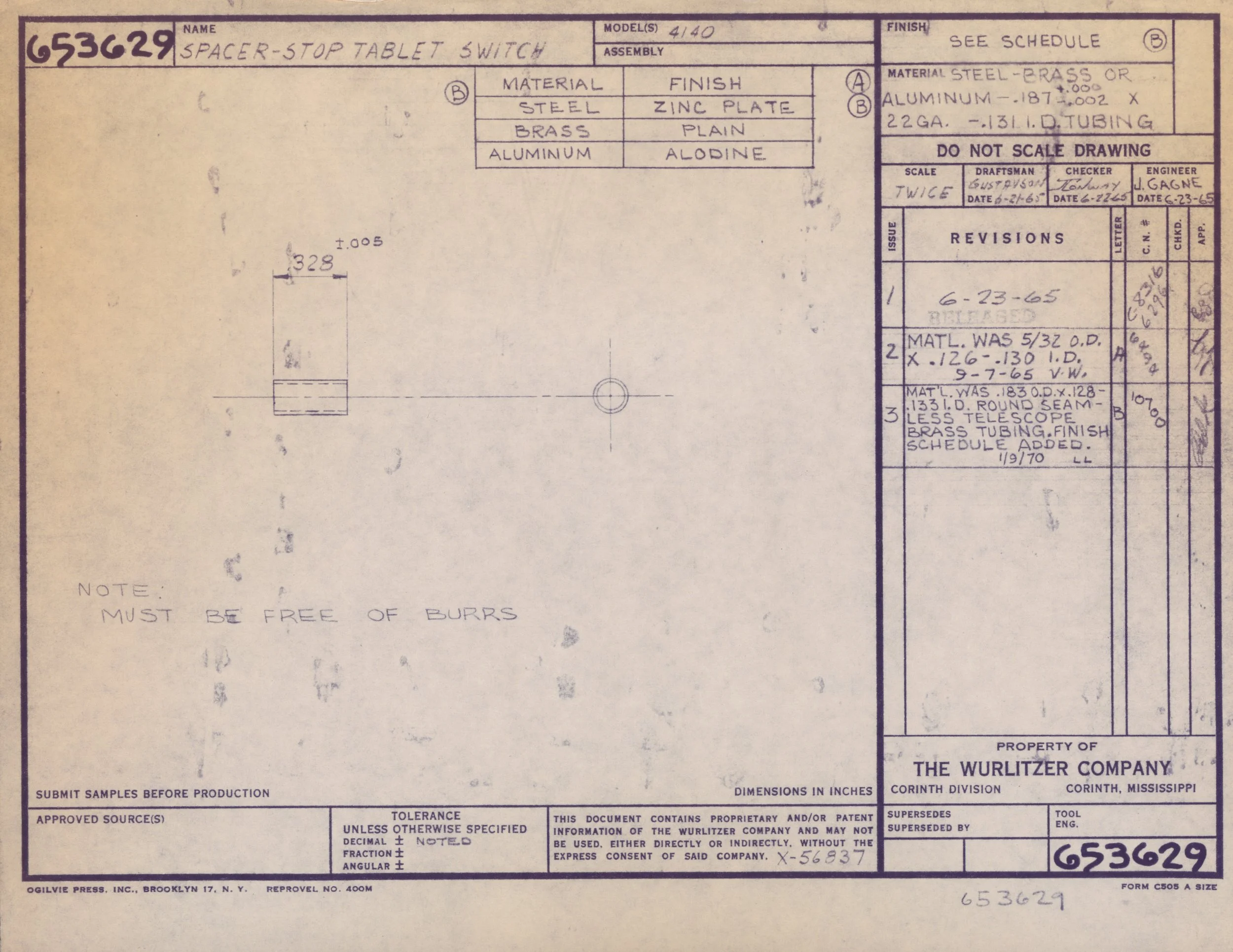

Technical blueprint or engineering drawing for a spacer-stop tablet switch, including dimensions, material specifications, and revision history from Wurlitzer Company.

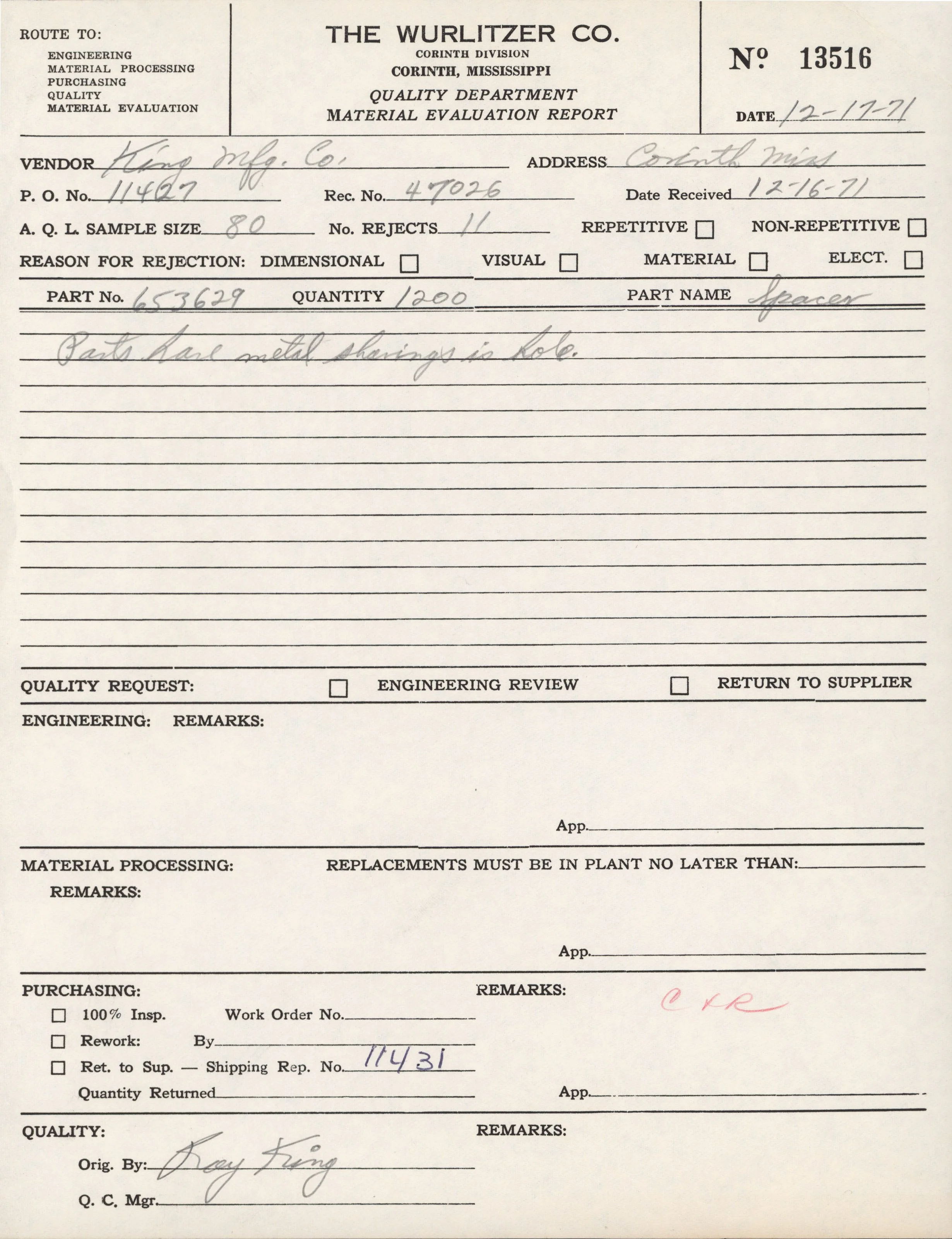

A historical material evaluation report form from The Wurlitzer Company, Corinth Division, in Corinth, Mississippi, with handwritten entries including vendor, address, part number, quantity, and remarks, dated December 17, 1971.

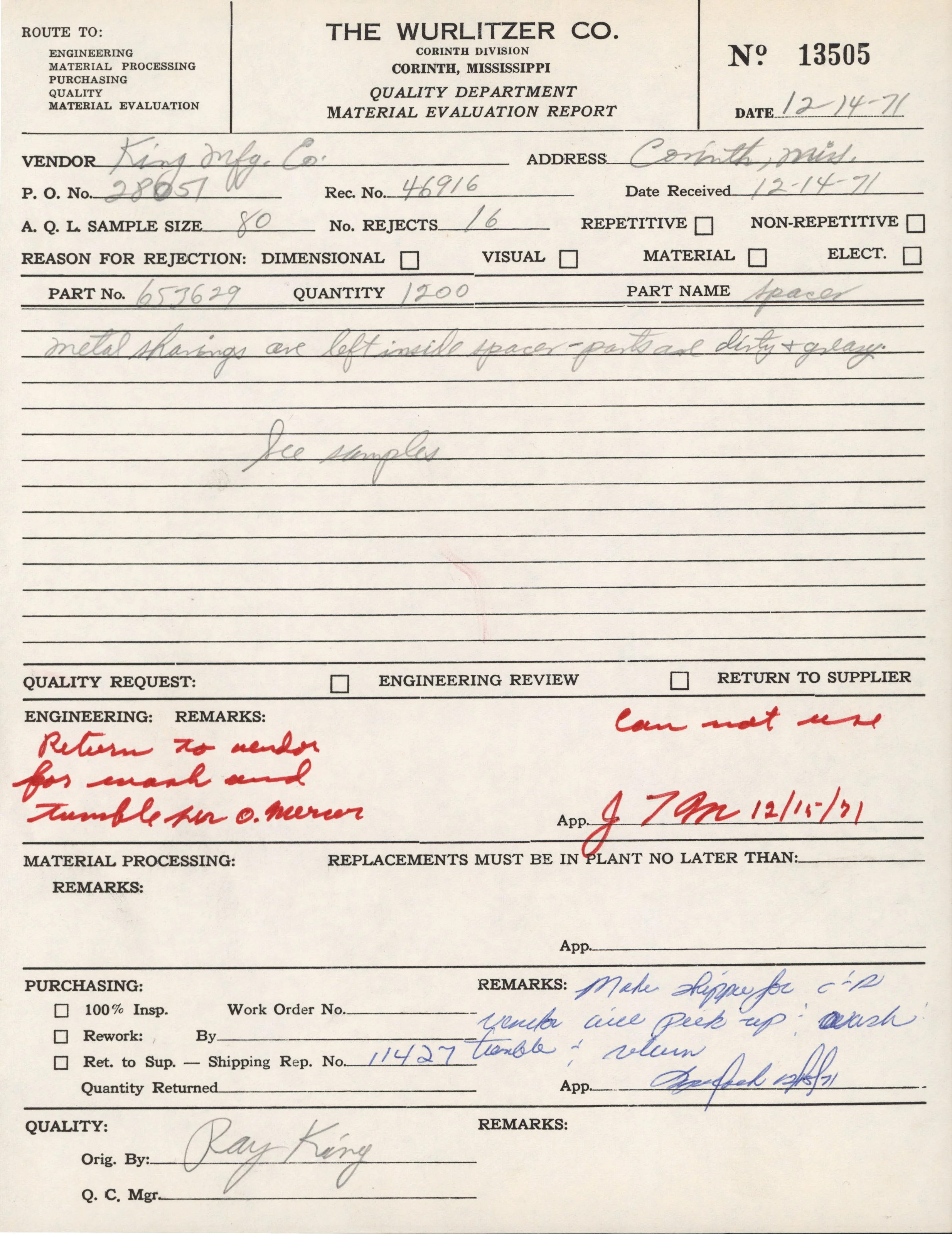

A vintage handwritten material evaluation report form from Wurlitzer Co., dated 12-14-71, with notes in red and blue ink about packaging and shipping, including returning items to the sender and discussing parts and replacements.

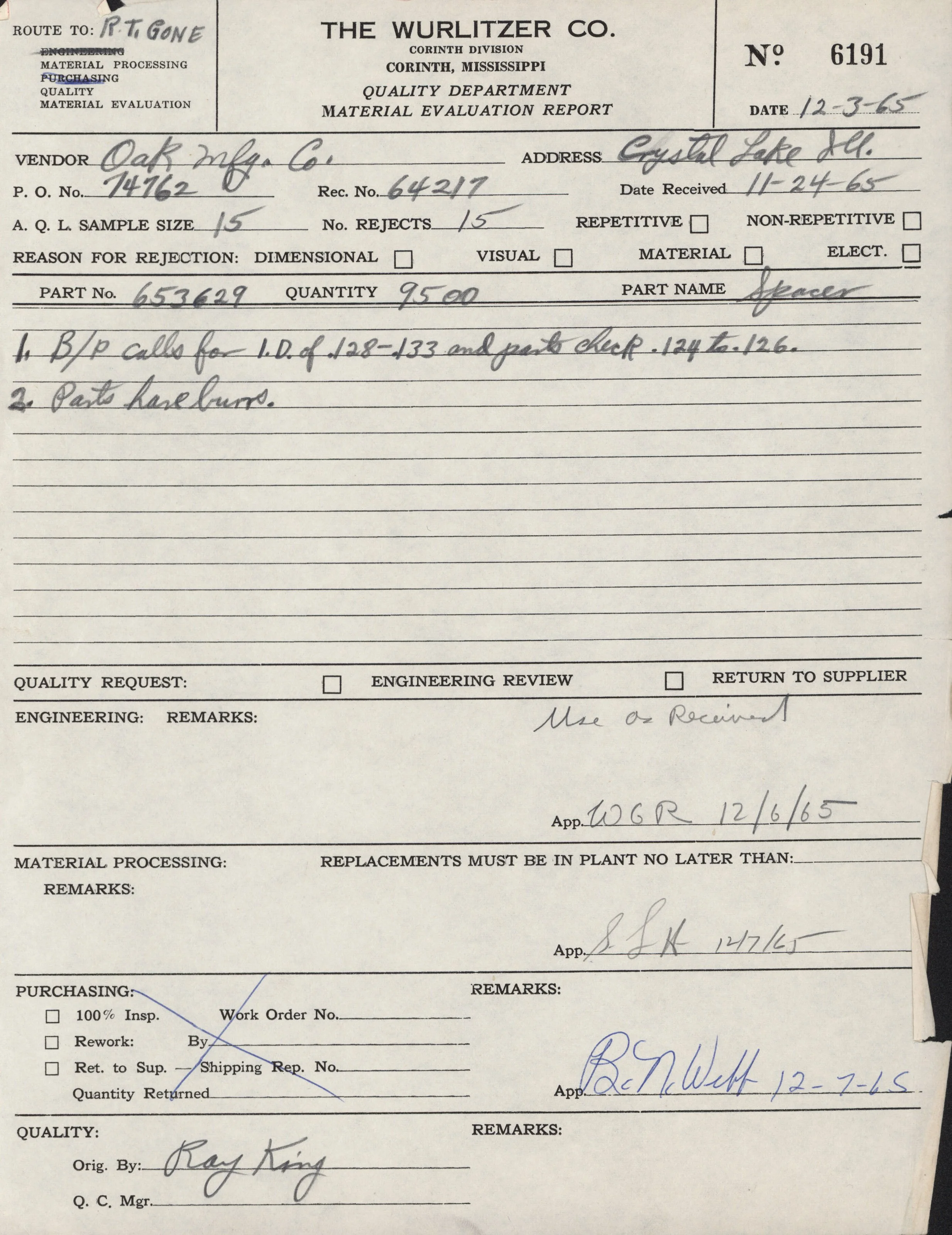

A vintage quality department material evaluation report document from The Wurlitzer Co., Corinth Division, Mississippi, dated December 3, 1965, with handwritten notes, signatures, and evaluation details.

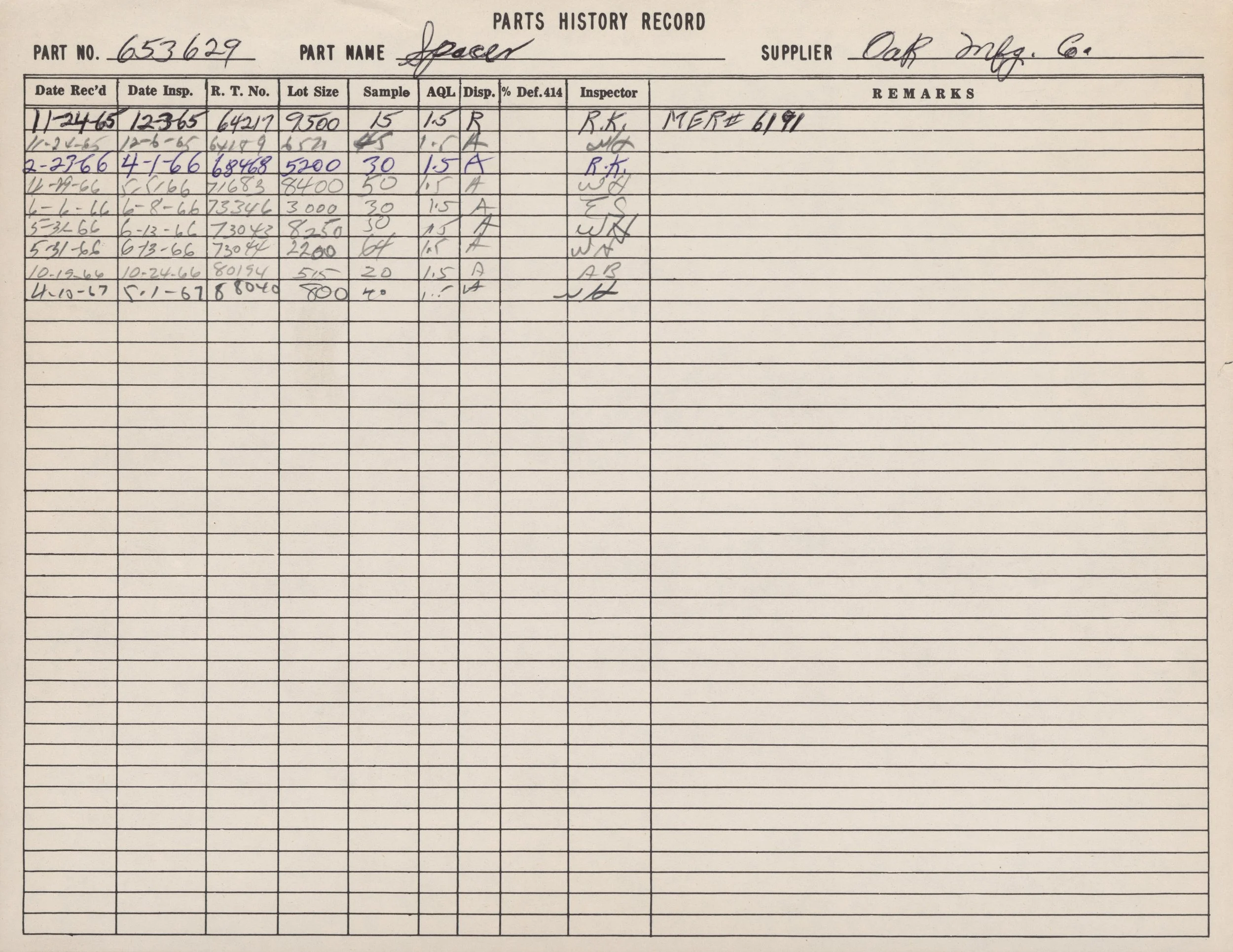

A handwritten record sheet titled 'Parts History Record' for part number 653629, with columns for dates, inspections, and remarks, filled with various handwritten entries and notes.

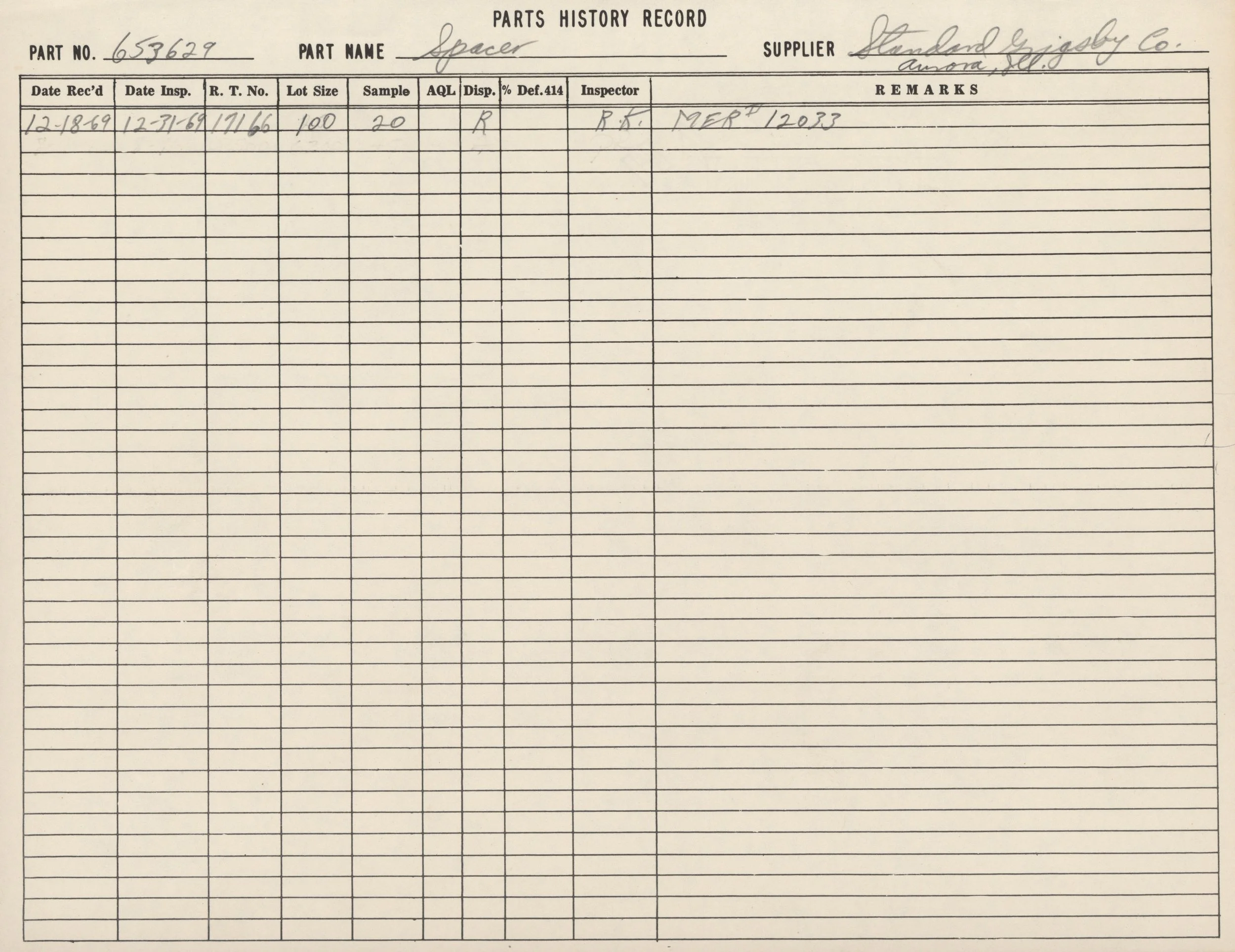

Historical Parts History Record sheet for part number 653629, named Spacer, supplied by Standard Jiggy Co. from Aurora, Illinois. Contains handwritten data including inspection dates, lot size, sample size, and remarks.

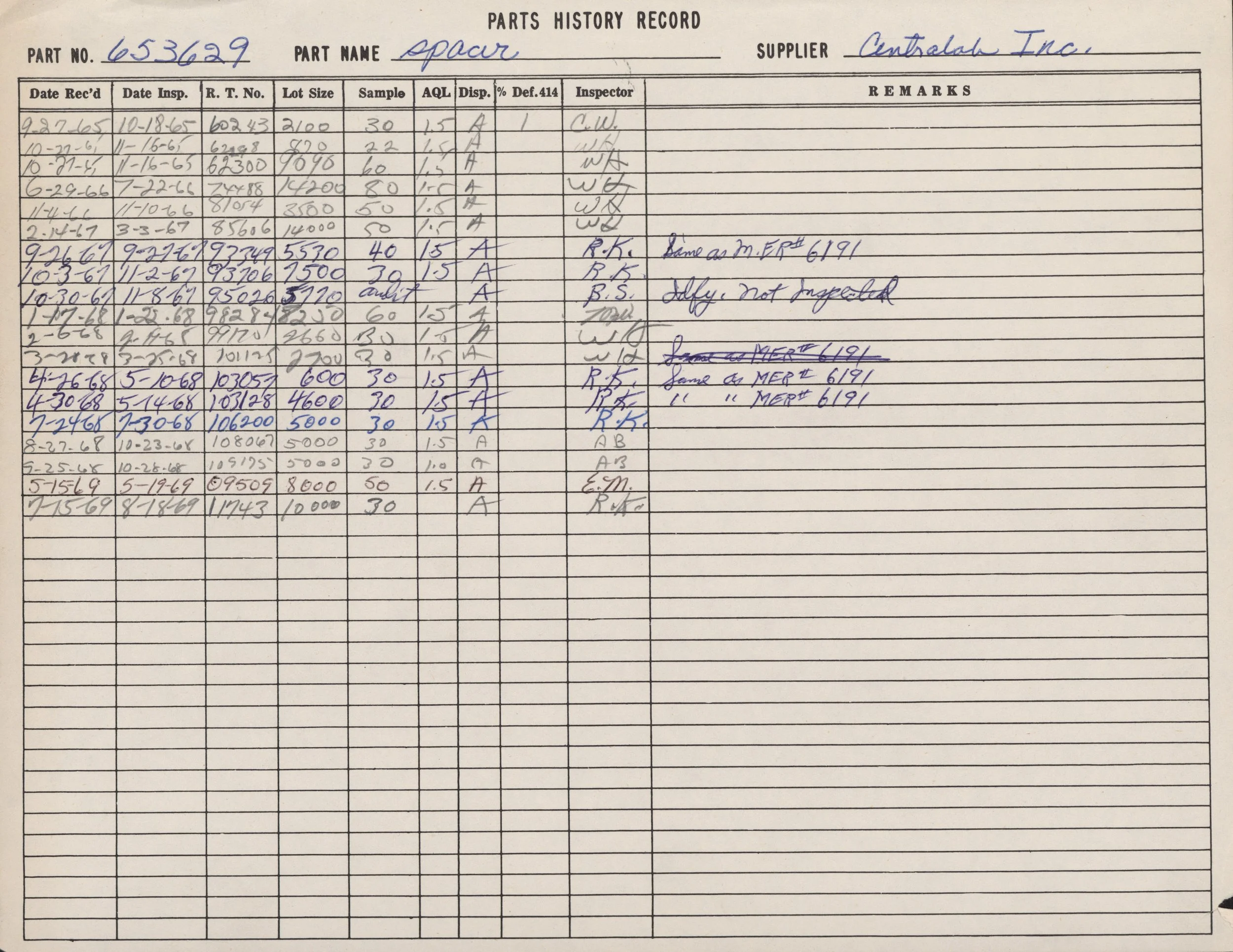

A parts history record sheet with handwritten entries, including part number 653629, part name 'Spacer', supplier 'Centralak Inc.' and various handwritten dates, measurements, and inspection details.

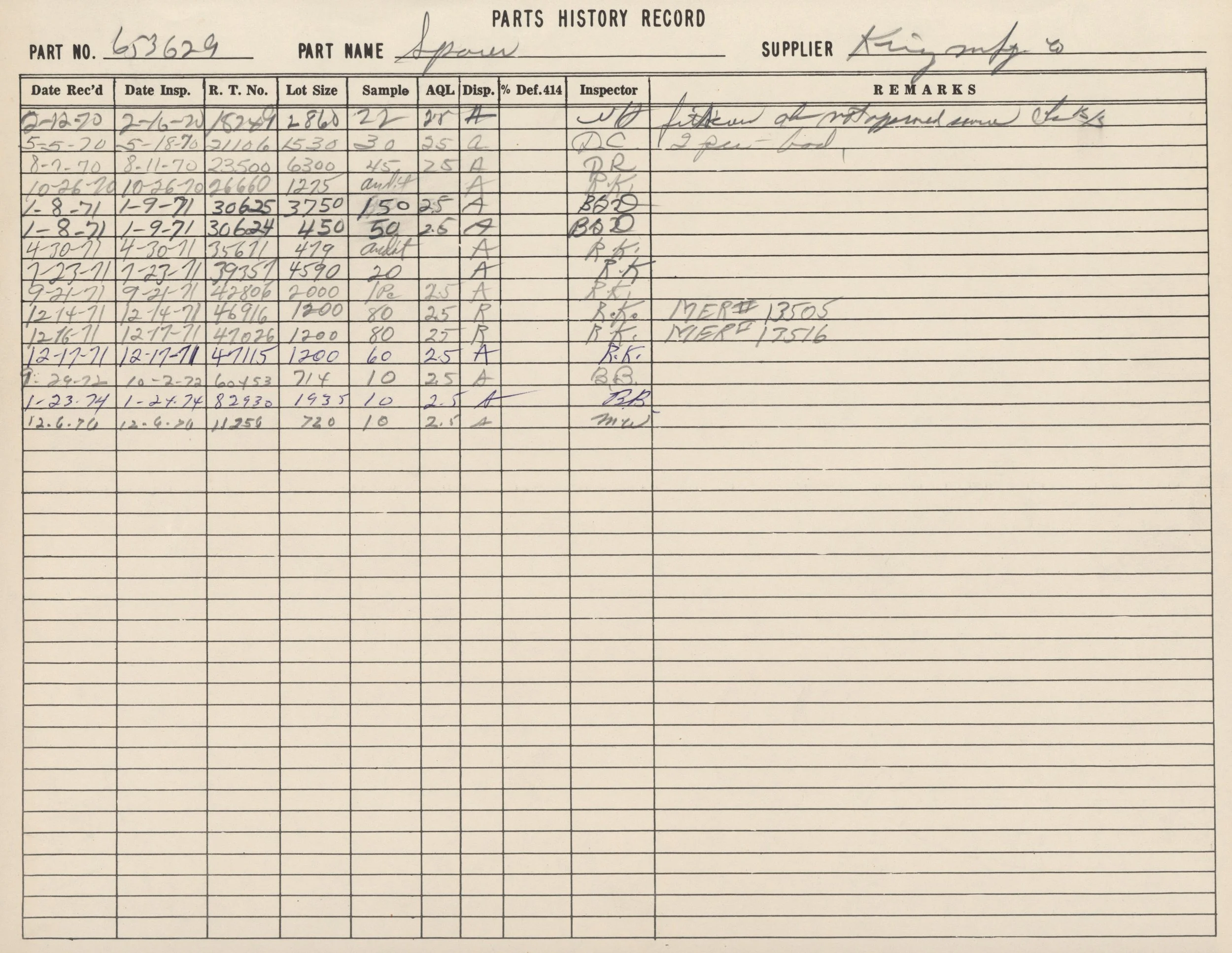

A vintage parts history record sheet with handwritten entries, showing part number, part name, supplier, dates, and remarks. The handwriting is cursive and varies in legibility.

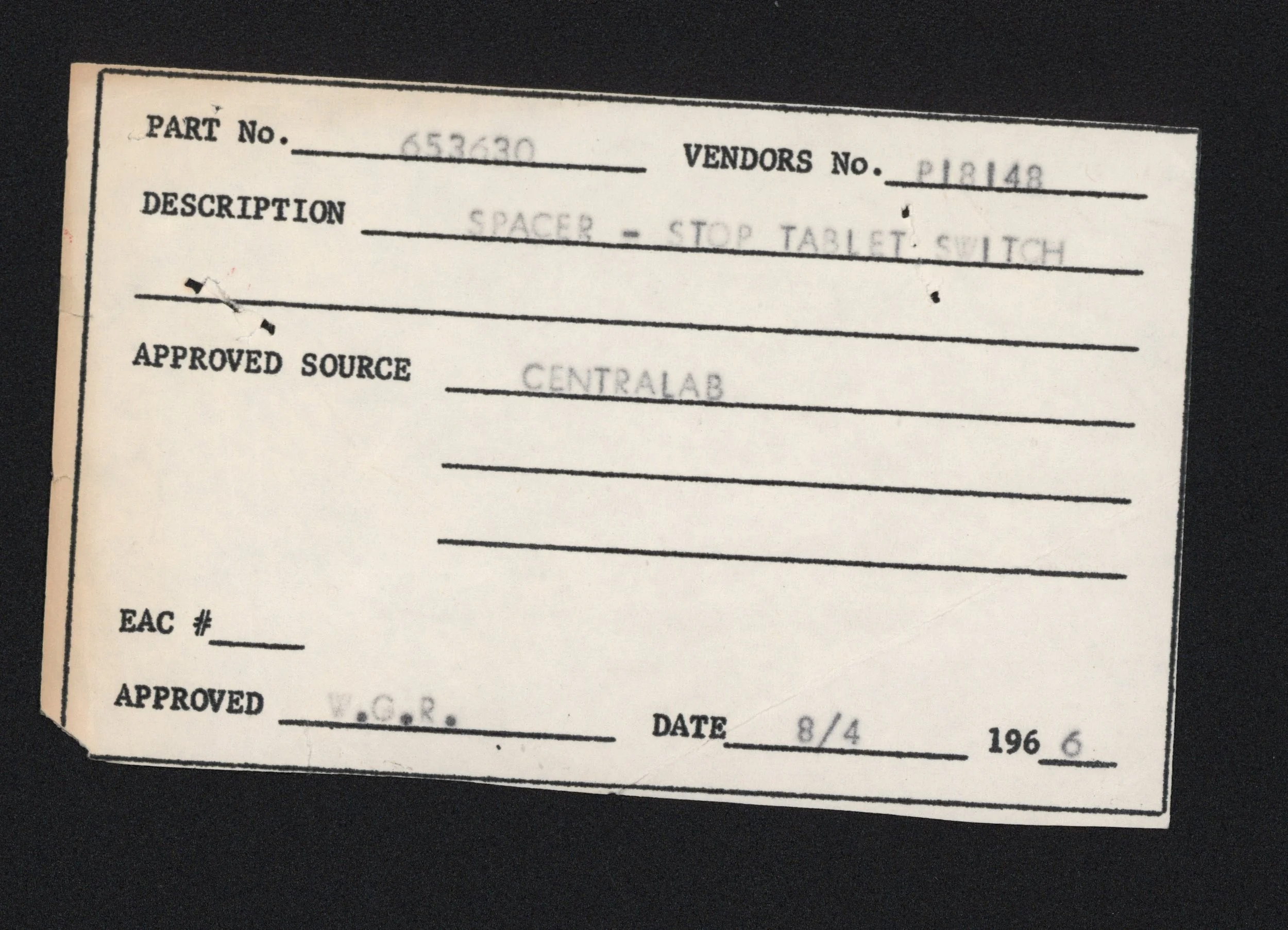

Close-up of a vintage typewritten document or form with fields for part number, vendor number, description, approved source, and date, partially tilted on a dark surface.

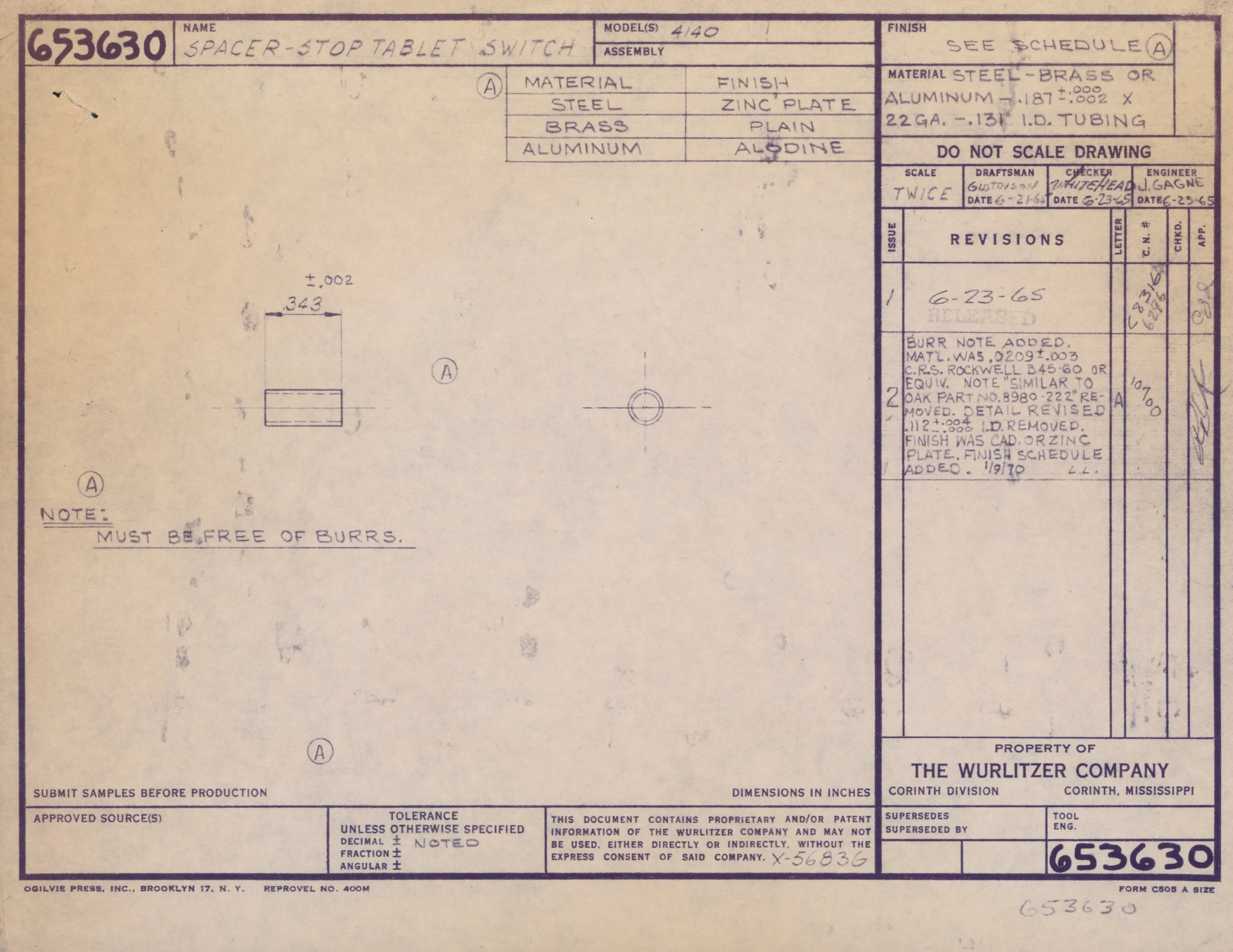

Technical drawing for a spacer-stop tablet switch, showing material specifications and revision details.

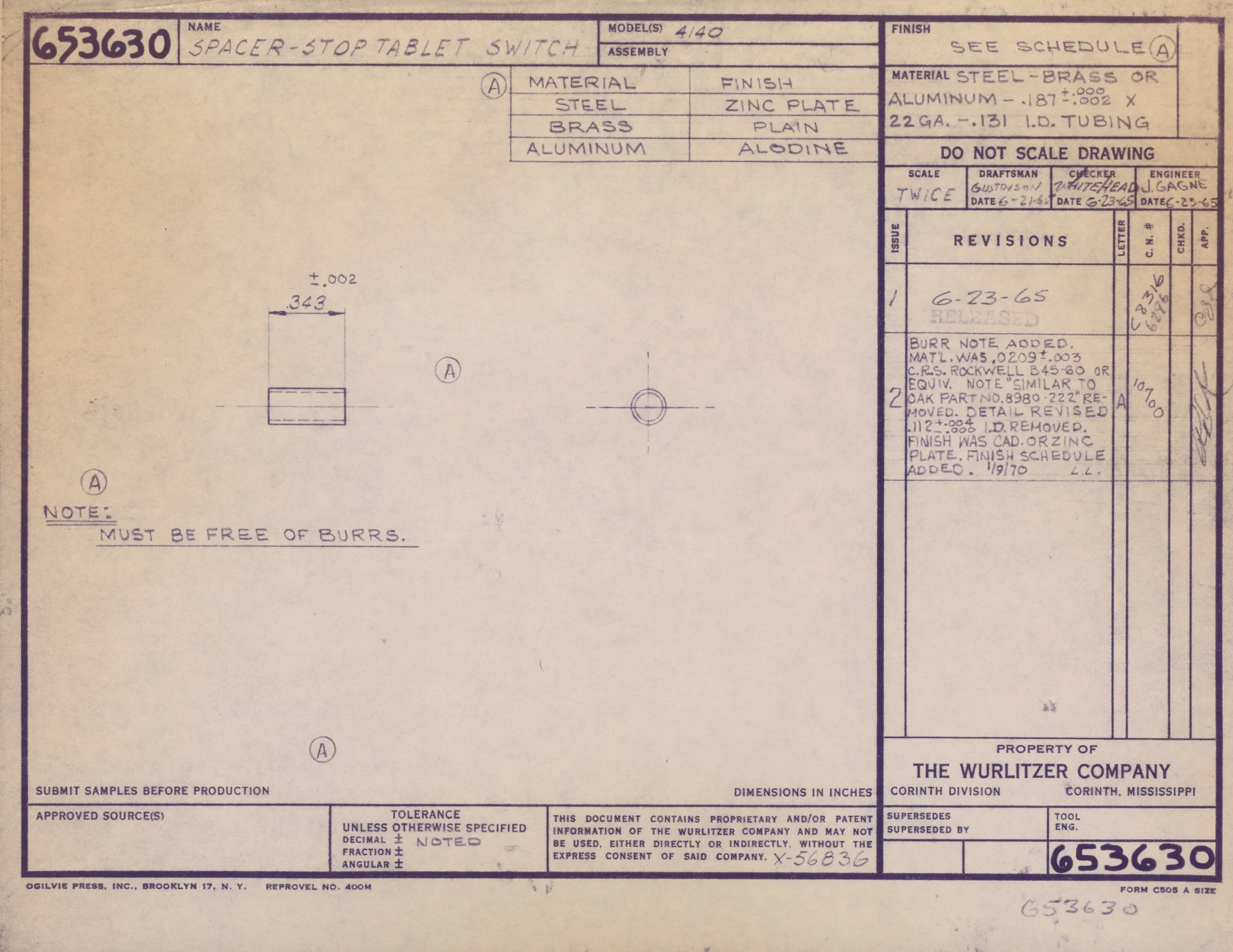

Blueprints for a spacer-stop tablet switch, including technical specifications, dimensions, and revision notes.

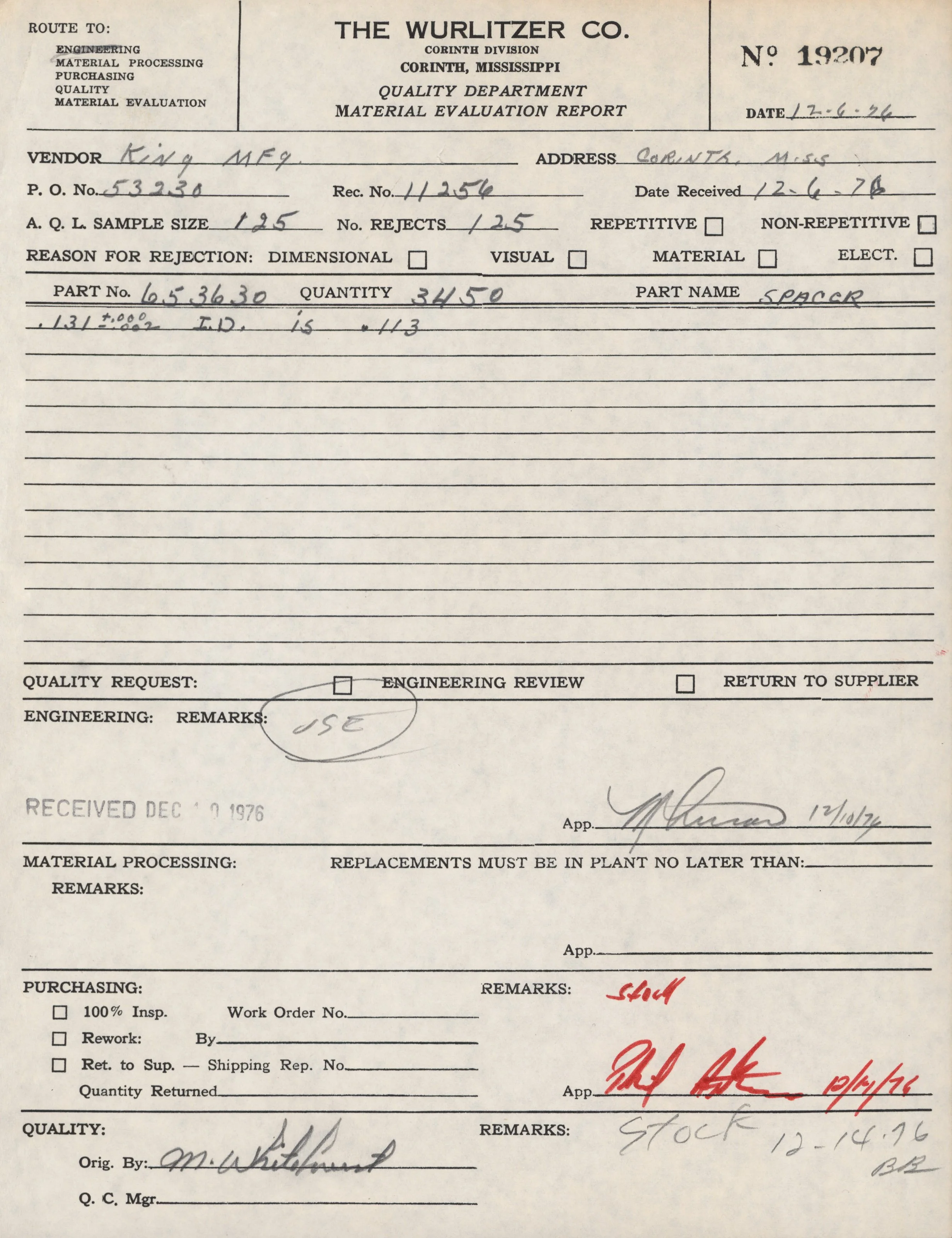

A vintage material evaluation report form from The Wurlitzer Co., Corinth Division, dated June 12, 1976. It contains handwritten details about a supplier named King Mfg., with reference numbers, quantities, part name 'Spacer,' and remarks about stock

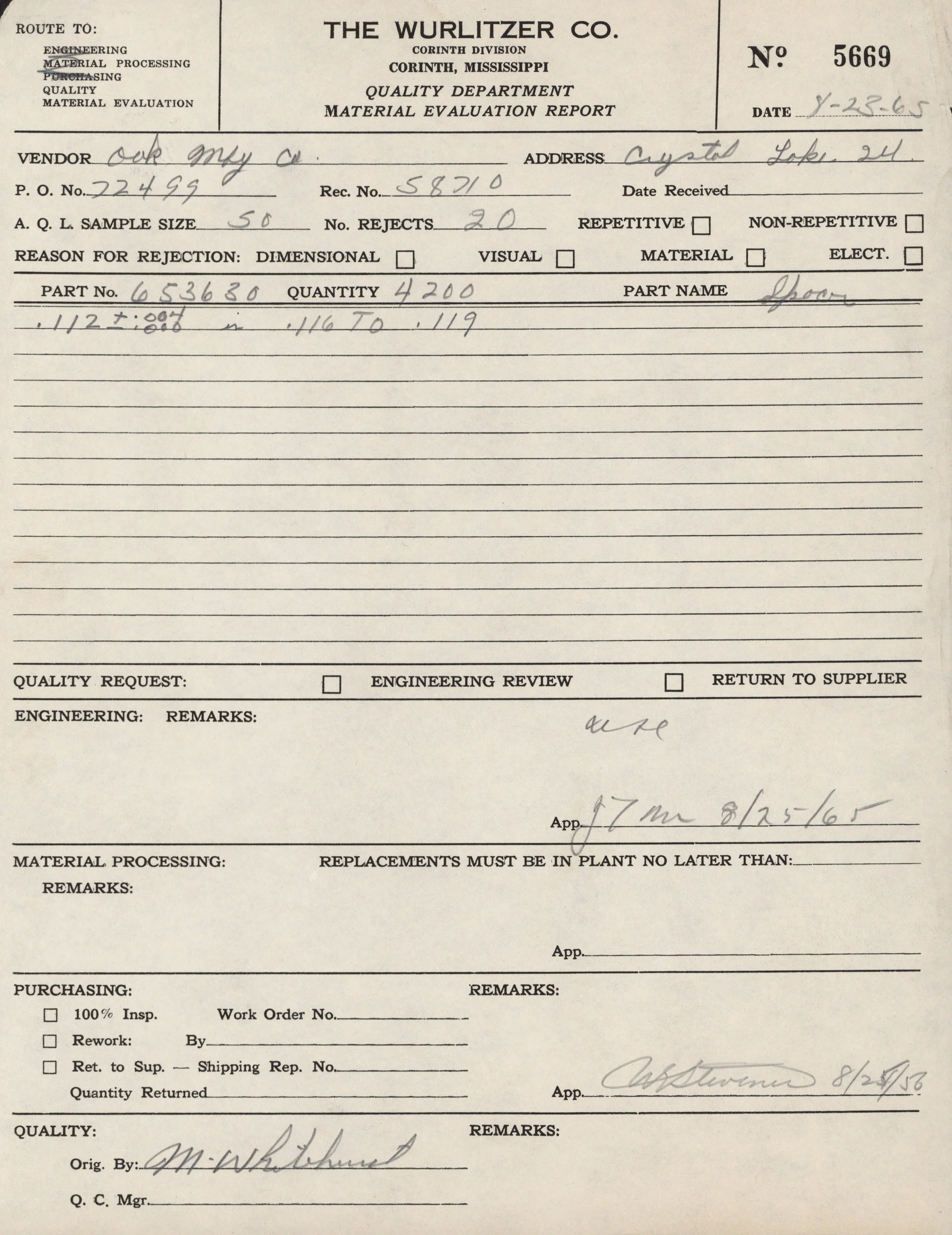

A vintage document titled 'Material Evaluation Report' from The Wurlitzer Co., Corinth Division, dated June 25, 1965, and handwritten details about a material sample.

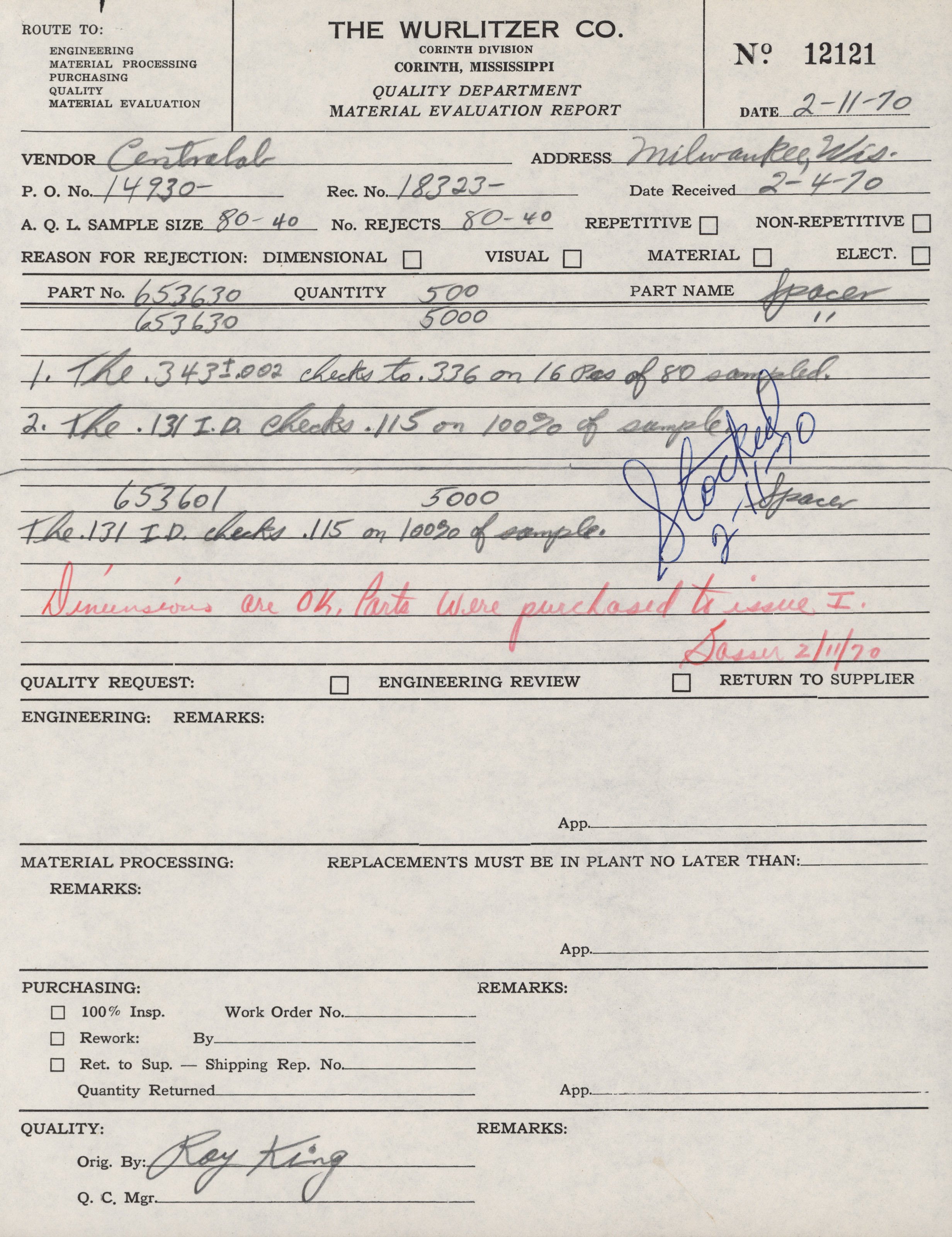

A handwritten document titled 'Material Evaluation Report' from The Wurlitzer Co., dated February 11, 1970, with details about a vendor, Milwaukee, Wisconsin, and various checkmarks, signatures, and notes in different handwriting and ink colors.

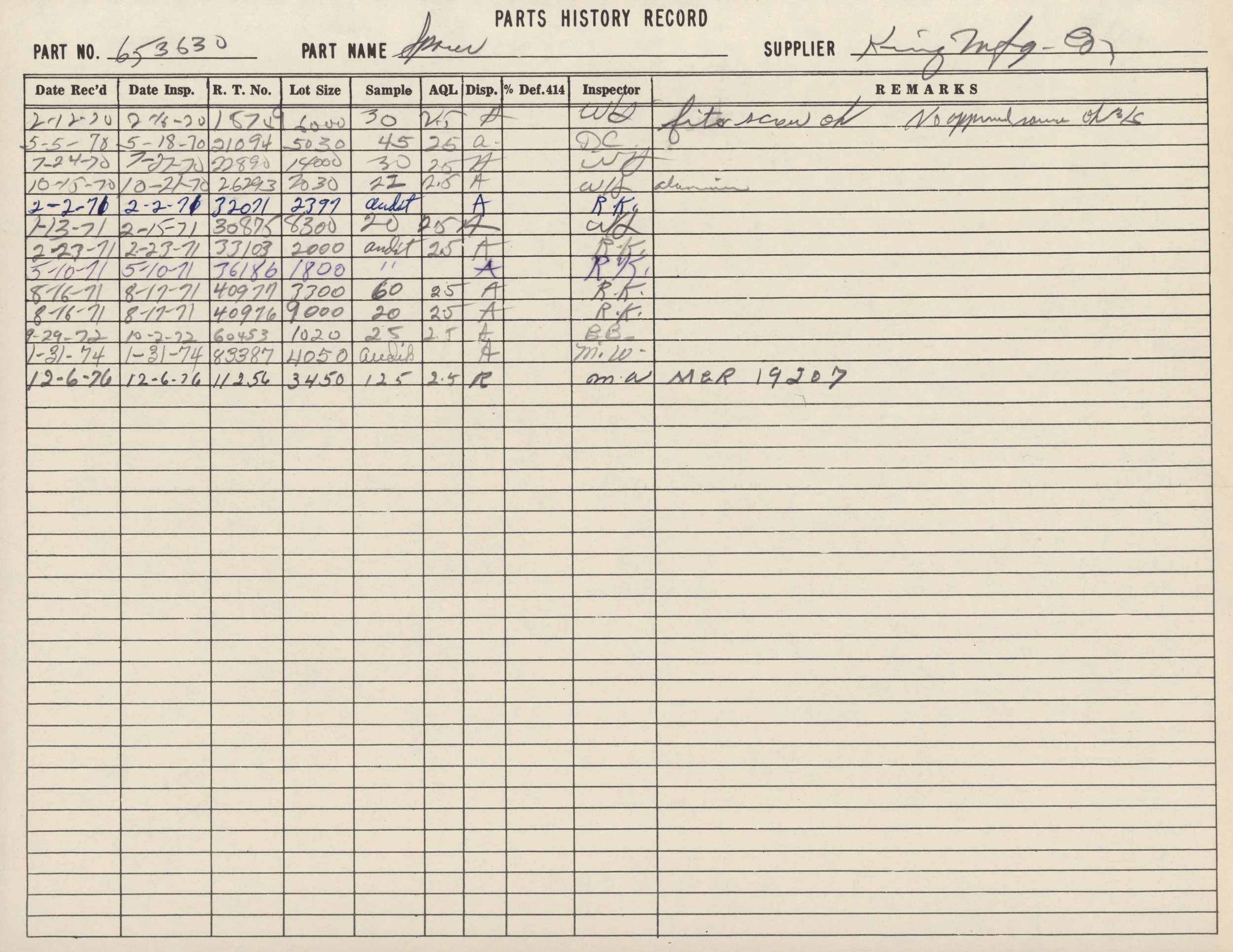

Historical parts record sheet with handwritten entries, dates, part numbers, details, and remarks.

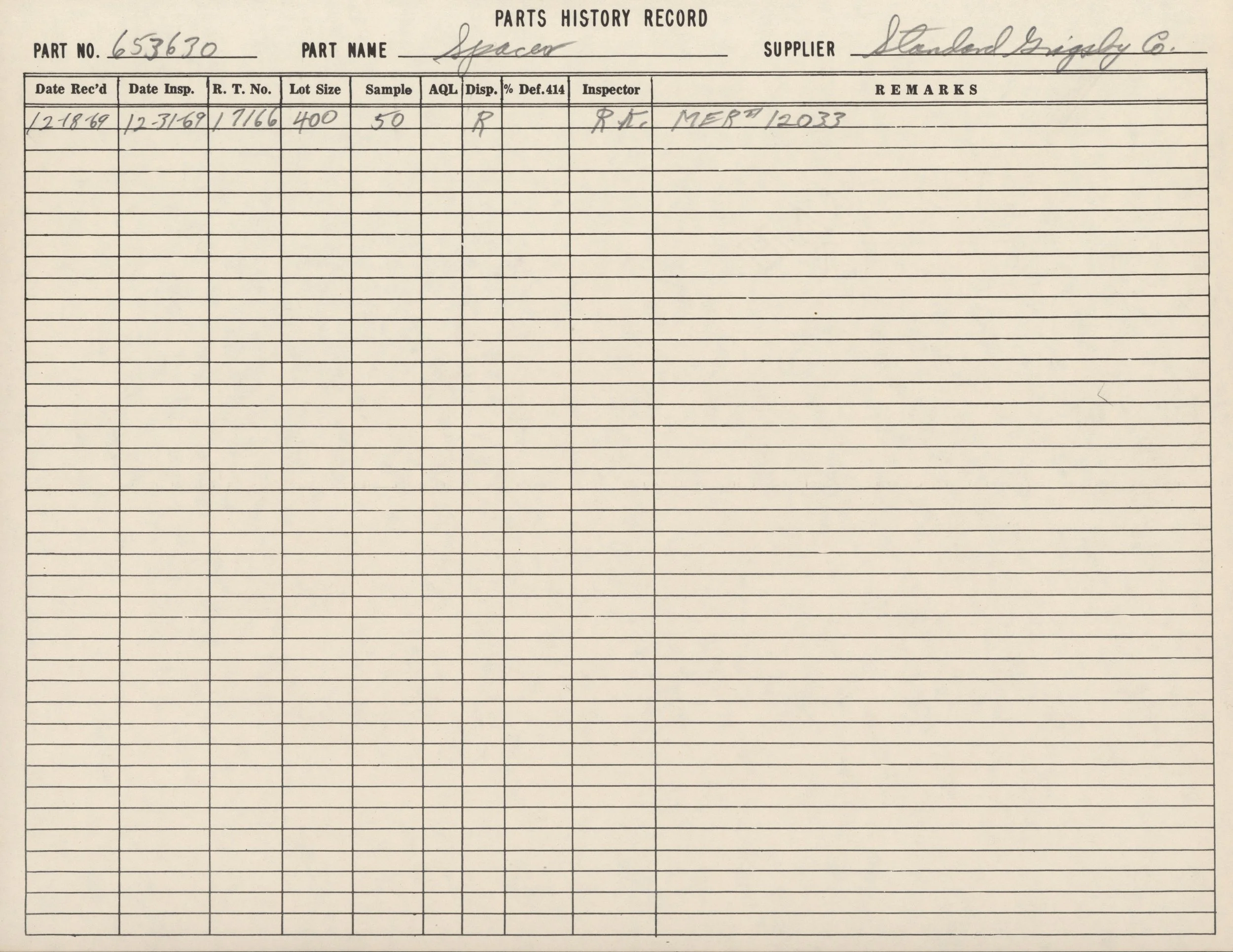

A handwritten parts history record form for part number 653670, part name Azacer, supplied by Standard Gray Co. The form includes columns for date received, date inspected, R.T. number, lot size, sample, AQL, disposition, percentage defect 414, inspe

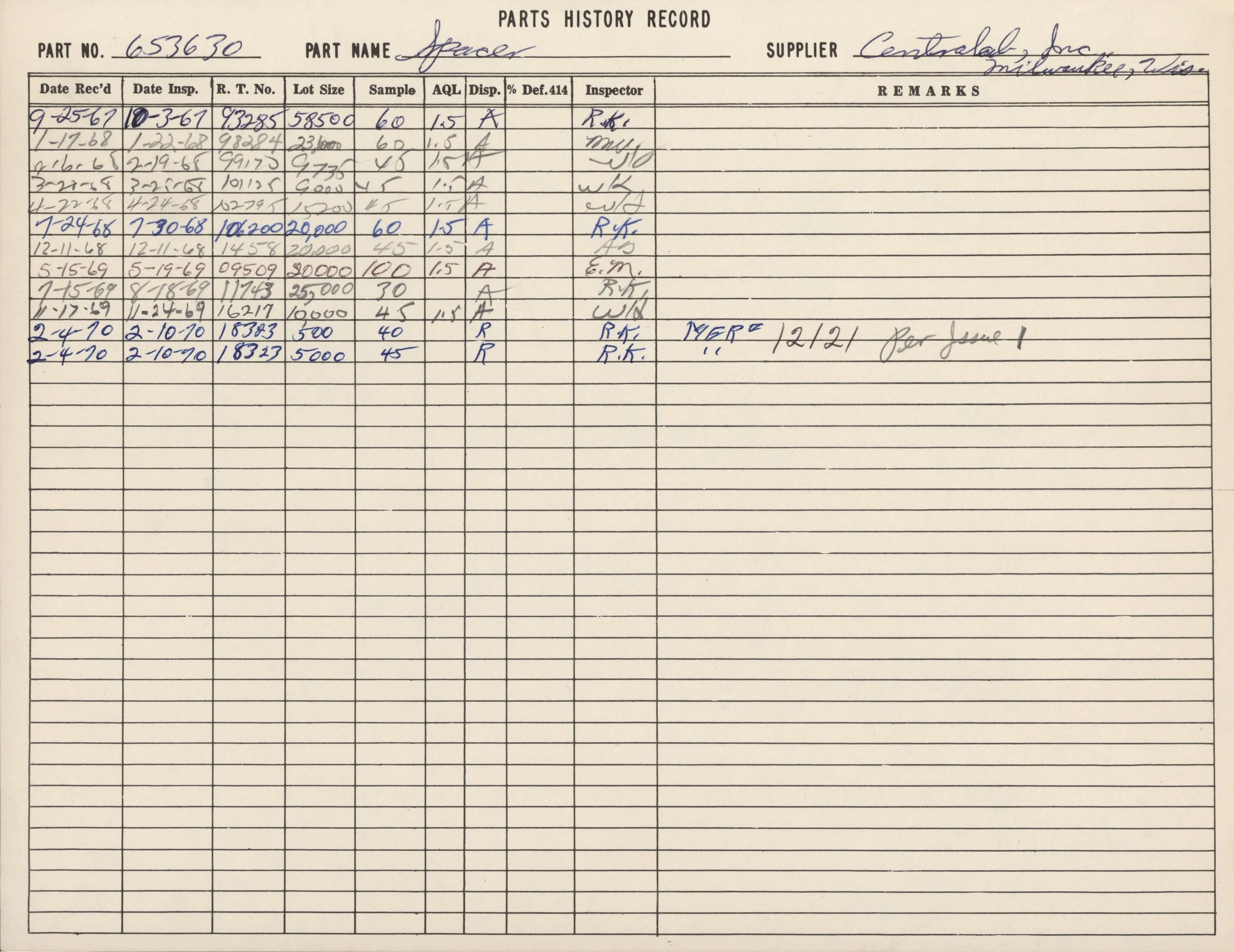

A handwritten record titled 'Parts History Record' with details about a part named 'Spacer', including dates, part numbers, lot sizes, samples, and inspection notes, with handwritten signatures and remarks.

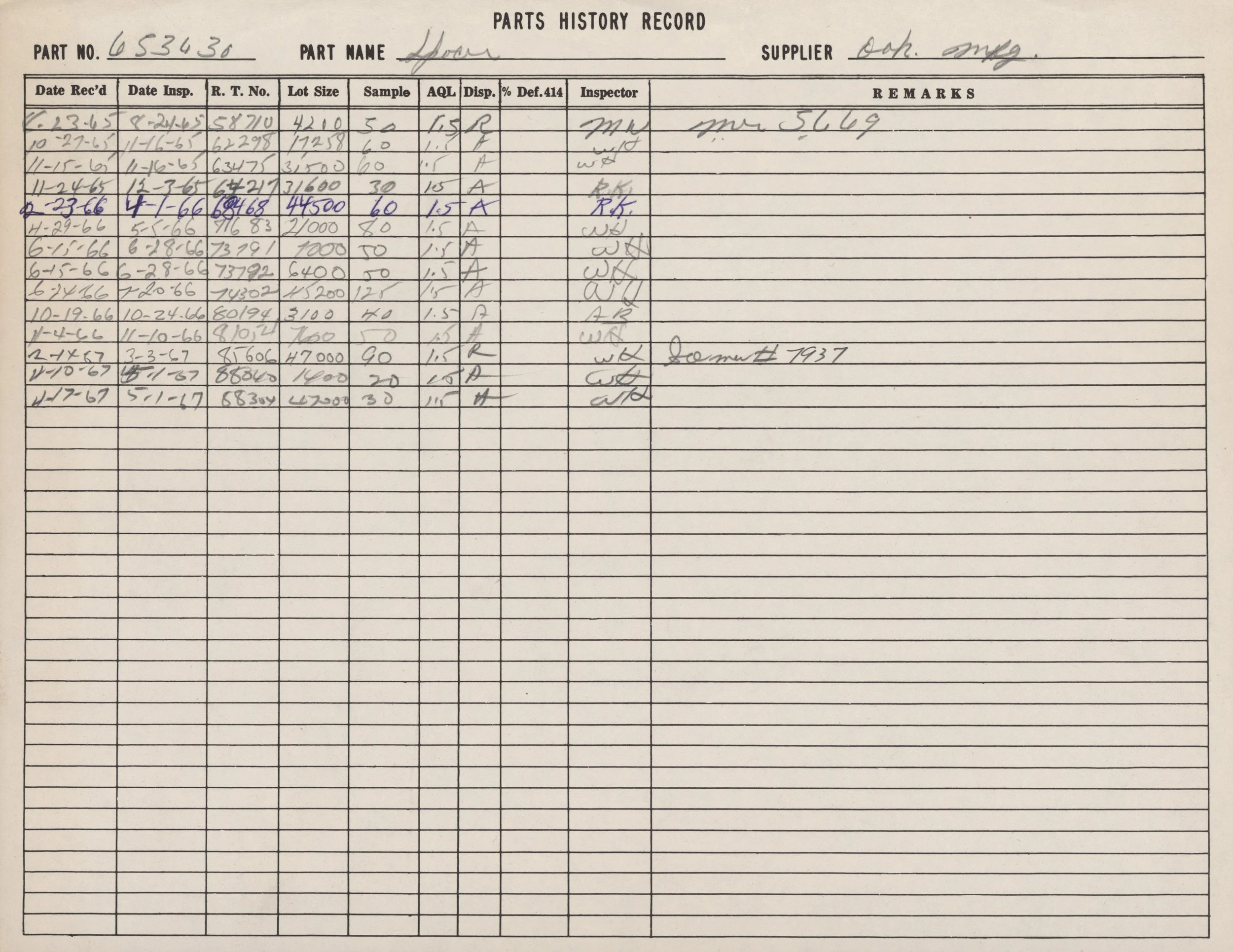

A handwritten parts history record sheet with columns for part number, part name, supplier, dates, lot size, sample, and remarks. The handwriting details inspection and quality control data for a specific part.

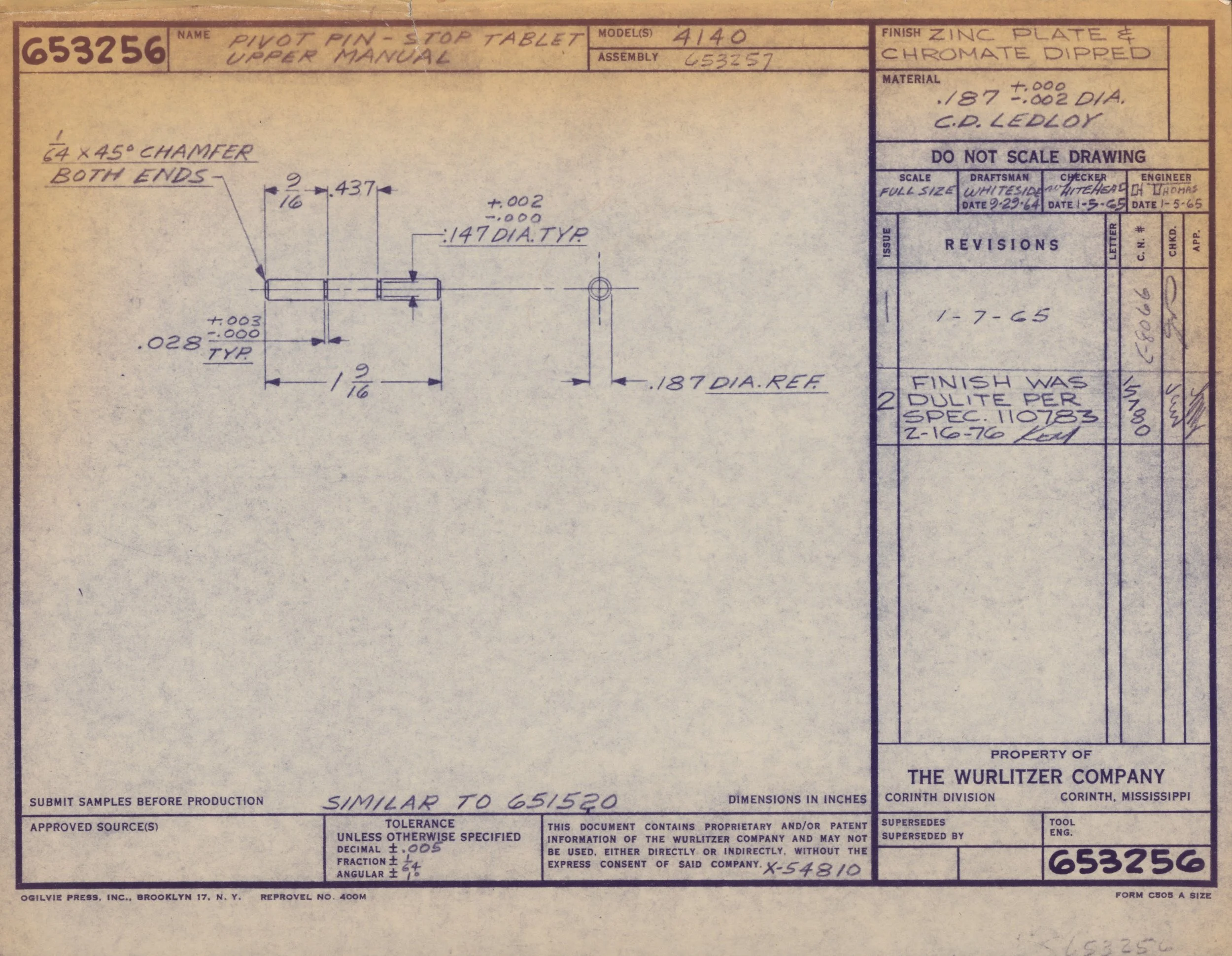

Technical drawing of a pivot pin-stop table, upper manual, showing dimensions and specifications, with handwritten notes and approval stamps.

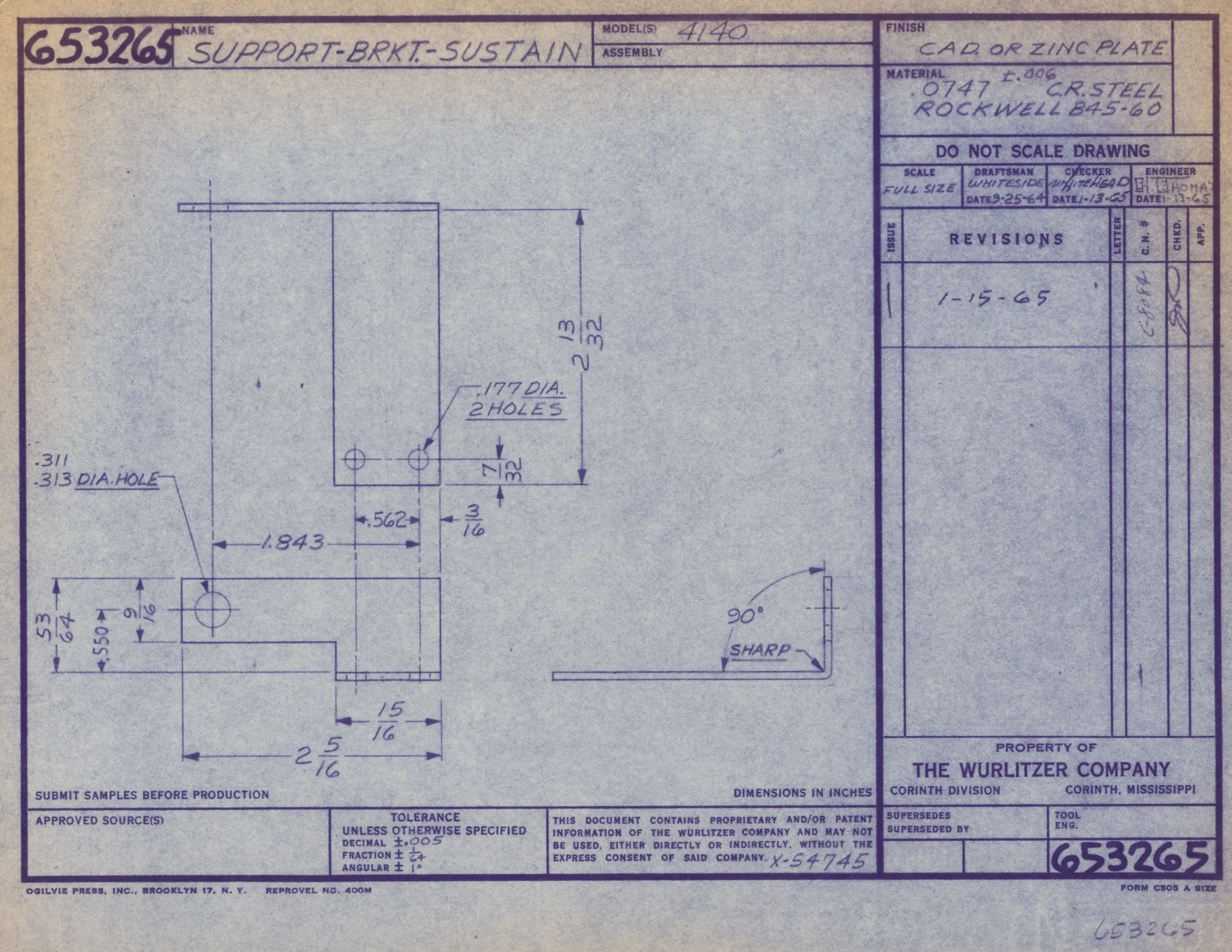

Engineering drawing of a support bracket made of zinc-plated material, with detailed measurements and specifications.

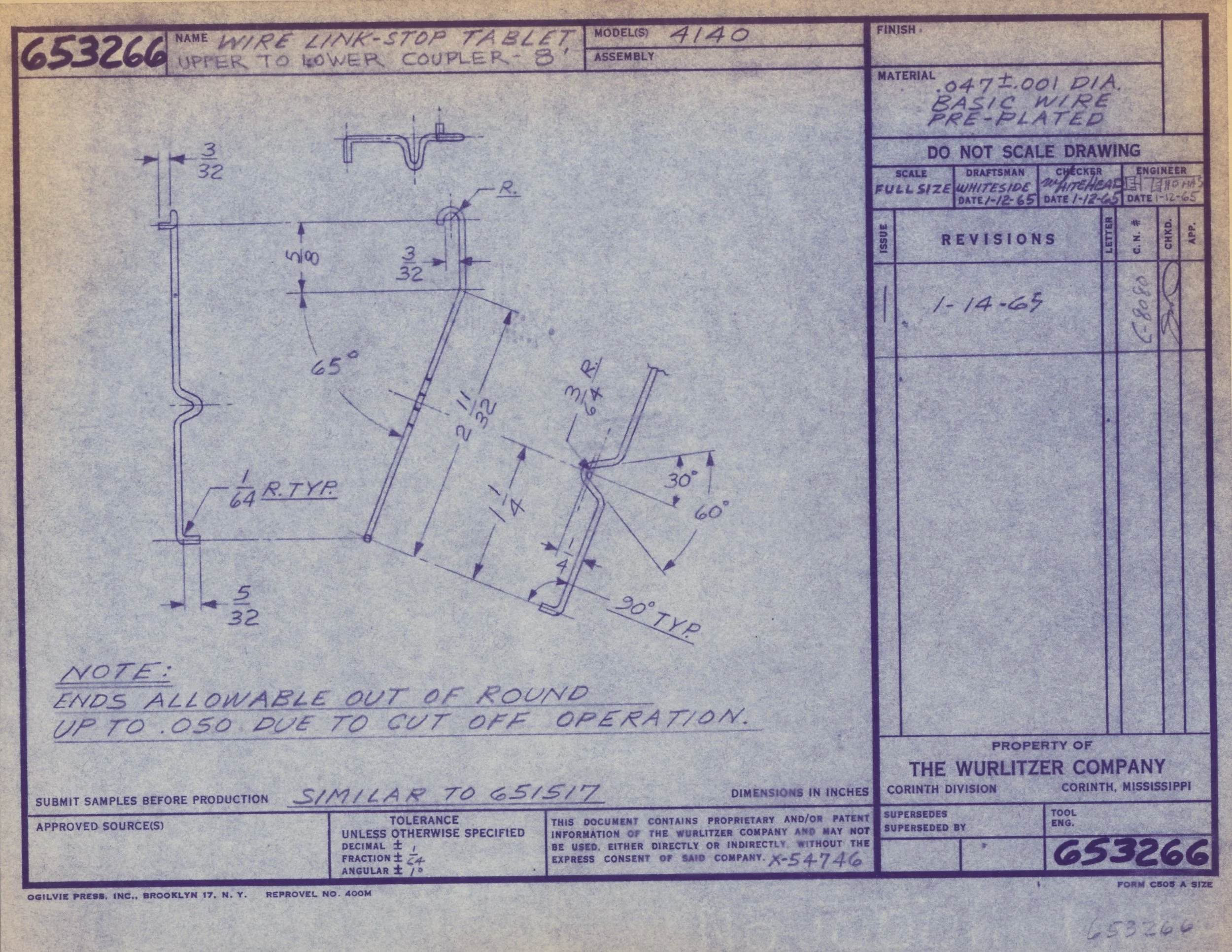

Technical blueprint drawing of a wire link stop tablet with detailed measurements and specifications.
