Wurlitzer 4700

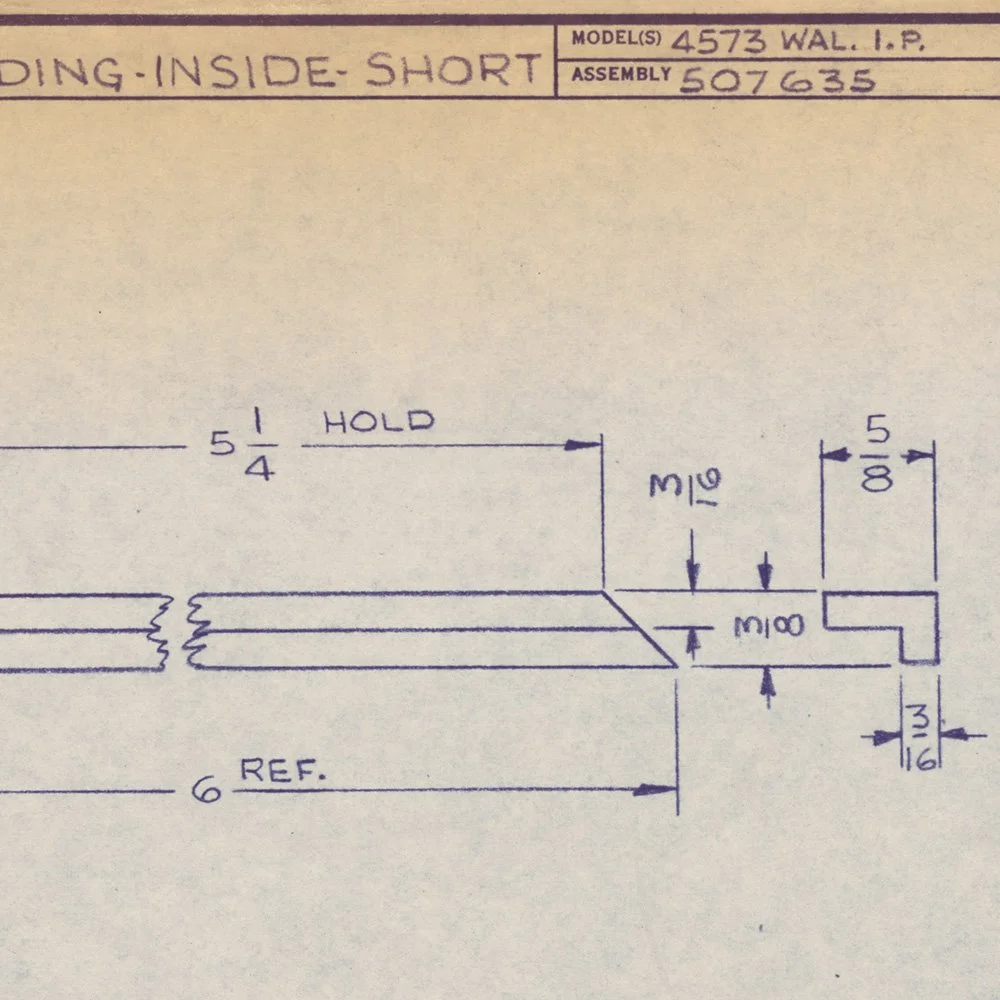

VIEW SIMILAR: 4573 | 320 | 330 & 330AThe Wurlitzer 4700 organ was an electronic organ built to American Guild of Organists specifications. This model was intended for serious home users and professionals.
In the tradition of the pipe organ, the Wurlitzer Concert Organ produces all families of organ tone—diapason, flute, string and reed. […] All voices project with spectacular authenticity…dramatic in solo…magnificent in ensemble. […] The capability of the Wurlitzer Concert Organ to combine 38 distinct musical voices covering a range of 96 pitches into a magnificent ensemble, reminiscent of the pipe organ itself, is equally thrilling to the discriminating organist and listener alike.
The 4700 has a solid state circuit and contains three power amplifiers driving a total of 8 speakers. It also contained onboard chimes and Spectra-Tone, although a Leslie tone cabinet could be optionally connected. In addition to Specta-Tone, it had electronic tremolo with speed and depth controls.
Looking for more 4700 organ drawings? Request them here.
WURLITZER 4700
TWO MANUAL CONCERT ORGANSPECIFICATIONS
UPPER MANUAL: 61 keys
LOWER MANUAL: 61 keys
PEDALS: 32 keys
AMPLIFIER
120 W total distributed amplification
12" speakers (4)
6x9" tweeters (2)
4" rotary speakers (2)FEATURES
Combination Capture Pistons
Penta-Sonic tone generations
Reverb
Spectra-Tone
Sustain
Chimes
Tune-Locked circuits
Vibrato oscillator
COUPLERS
Swell to Great 8'
Swell to Great 4'
Swell to Pedal 8'
Swell to Swell 16'
Swell to Swell 4'
Swell Unison Part no.: 654587
Part name: Knob
Model: 4700
Date: March 22 1966
Diazo print
Part History Record (2)
Speed letter - yellow copy (1)Part no.: 654918
Part name: Cleat - r. & l.h. - pedal clavier
Model: 4700
Date: March 31 1966
Diazo printPart no.: 654919
Part name: Cleat - l.h. - pedal clavier
Model: 4700
Date: March 31 1966
Diazo printPart no.: 654921
Part name: Label
Model: 4700
Date: October 25 1966
Diazo printPart no.: 654922
Part name: Label
Model: 4700
Date: October 25 1966
Diazo print
