Fasteners
Cable ties & clamps
The following drawings are of cable ties and clamps used in multiple Wurlitzer instruments.

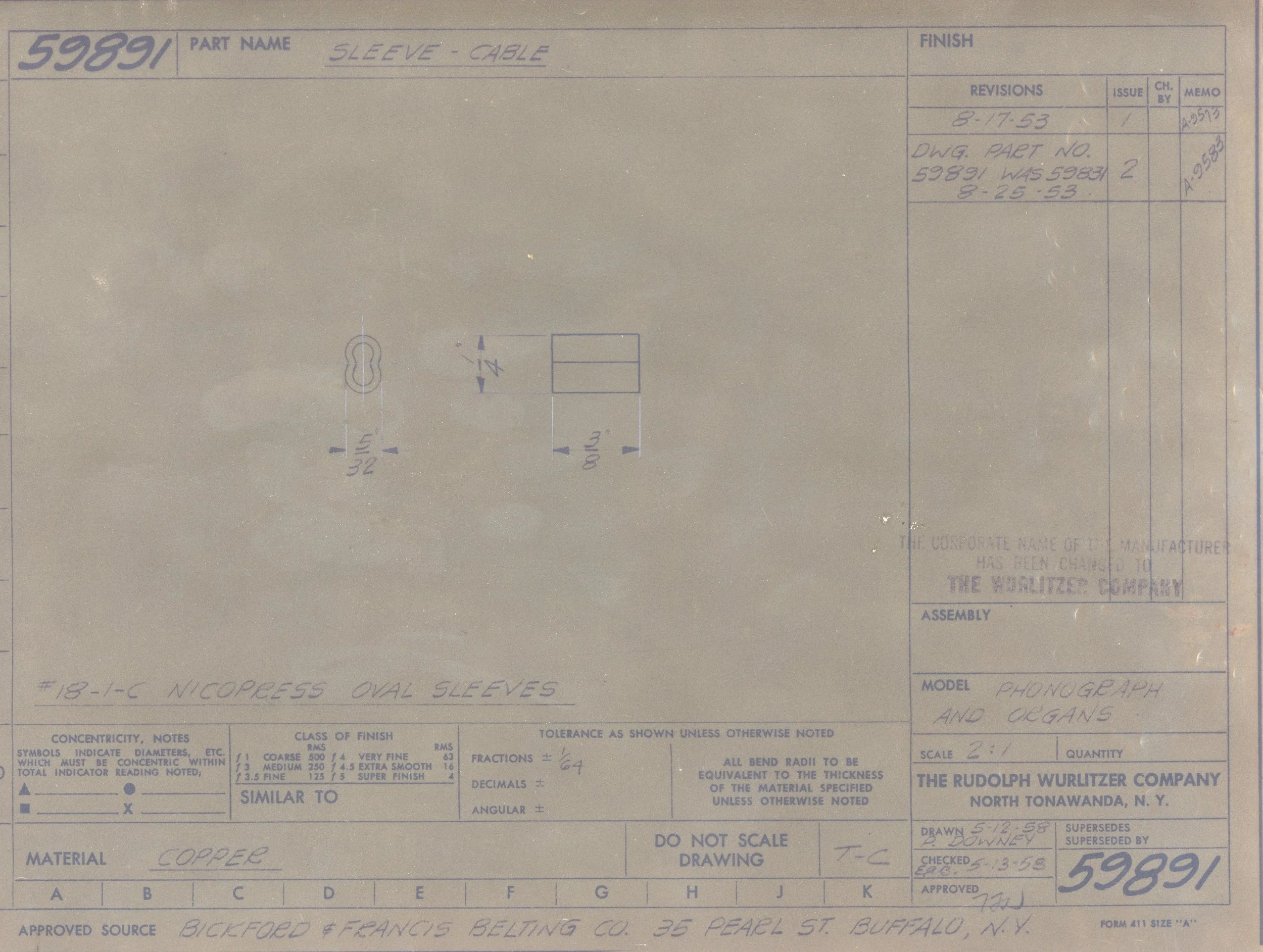

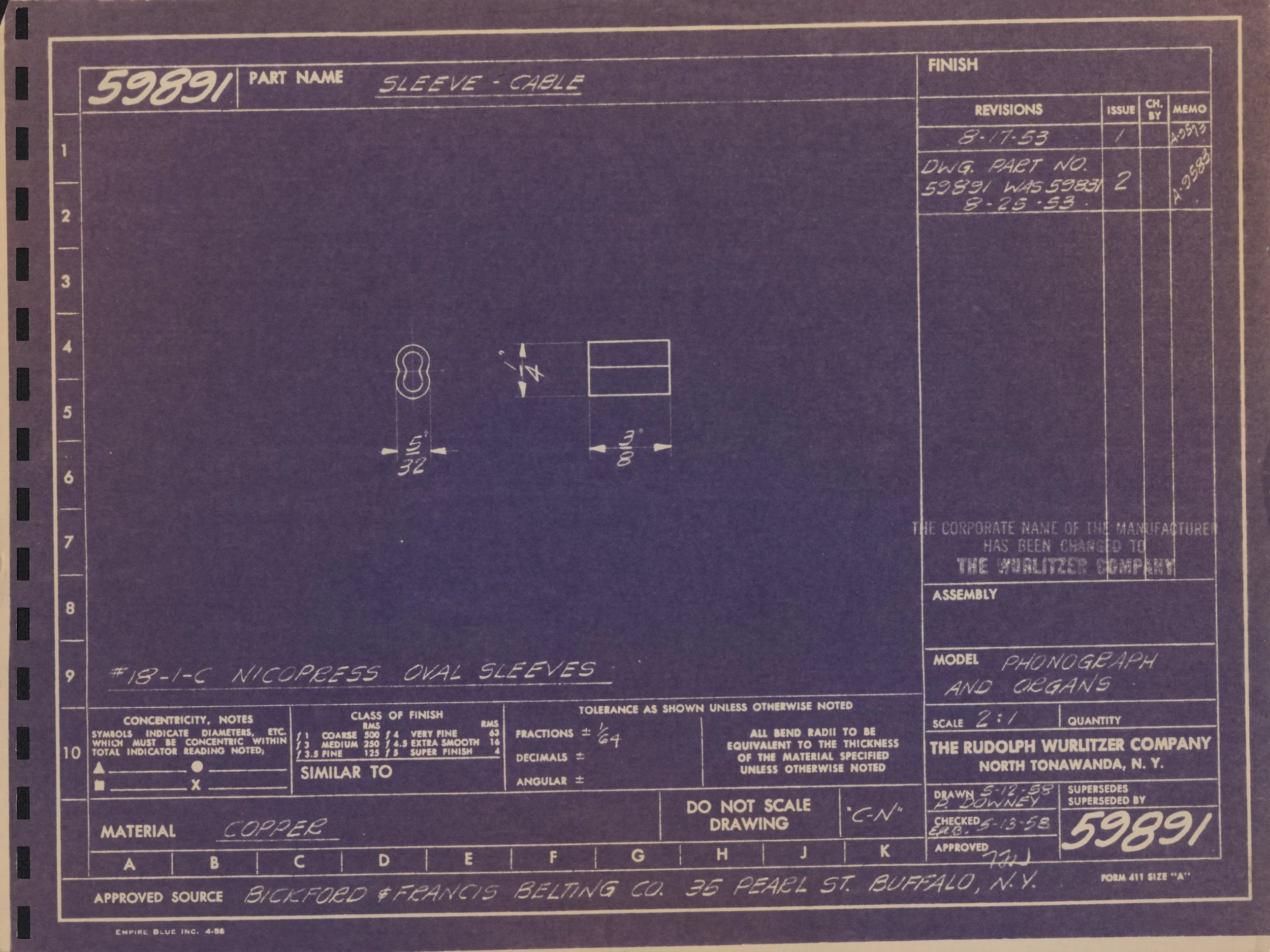

69891 (Cable sleeve)

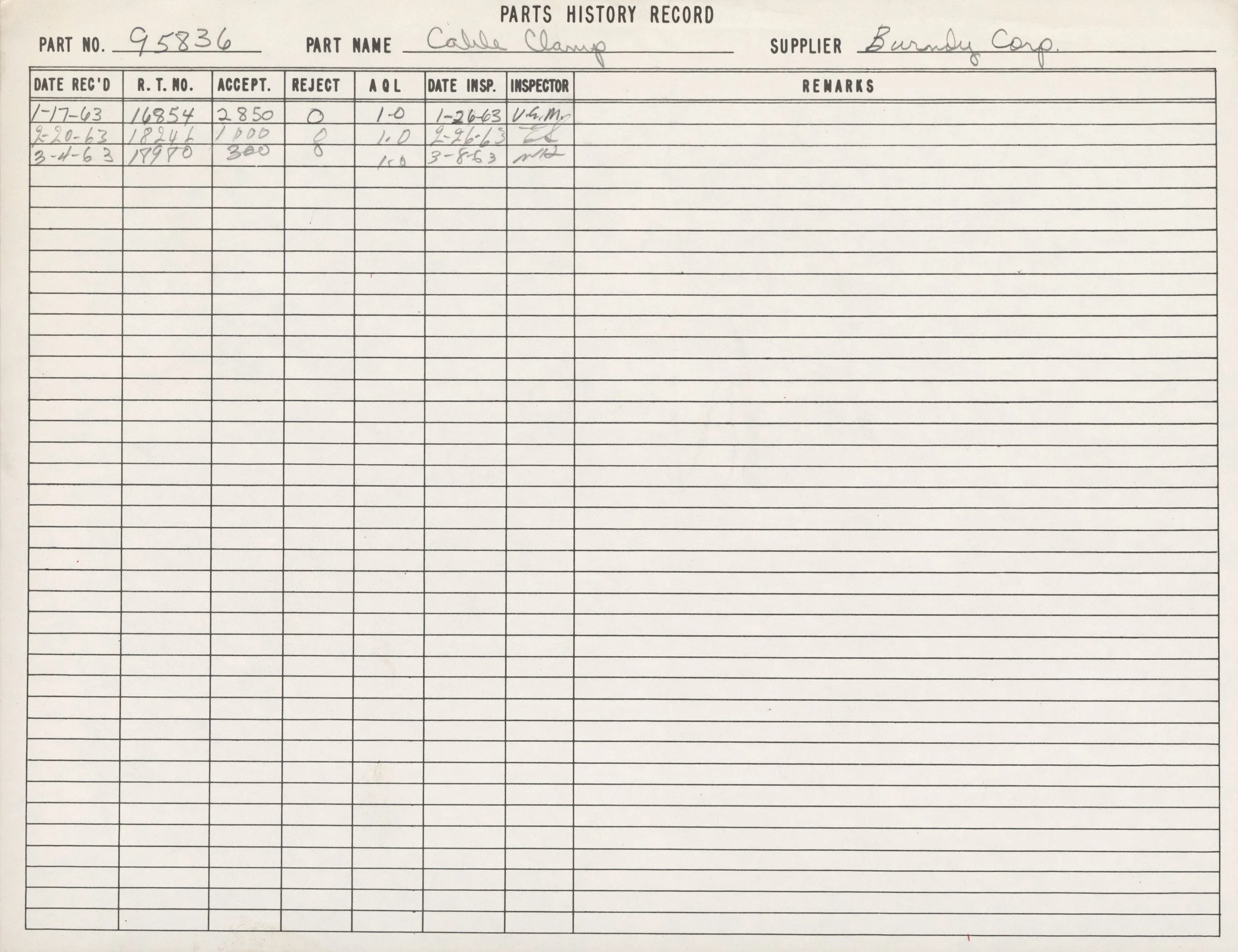

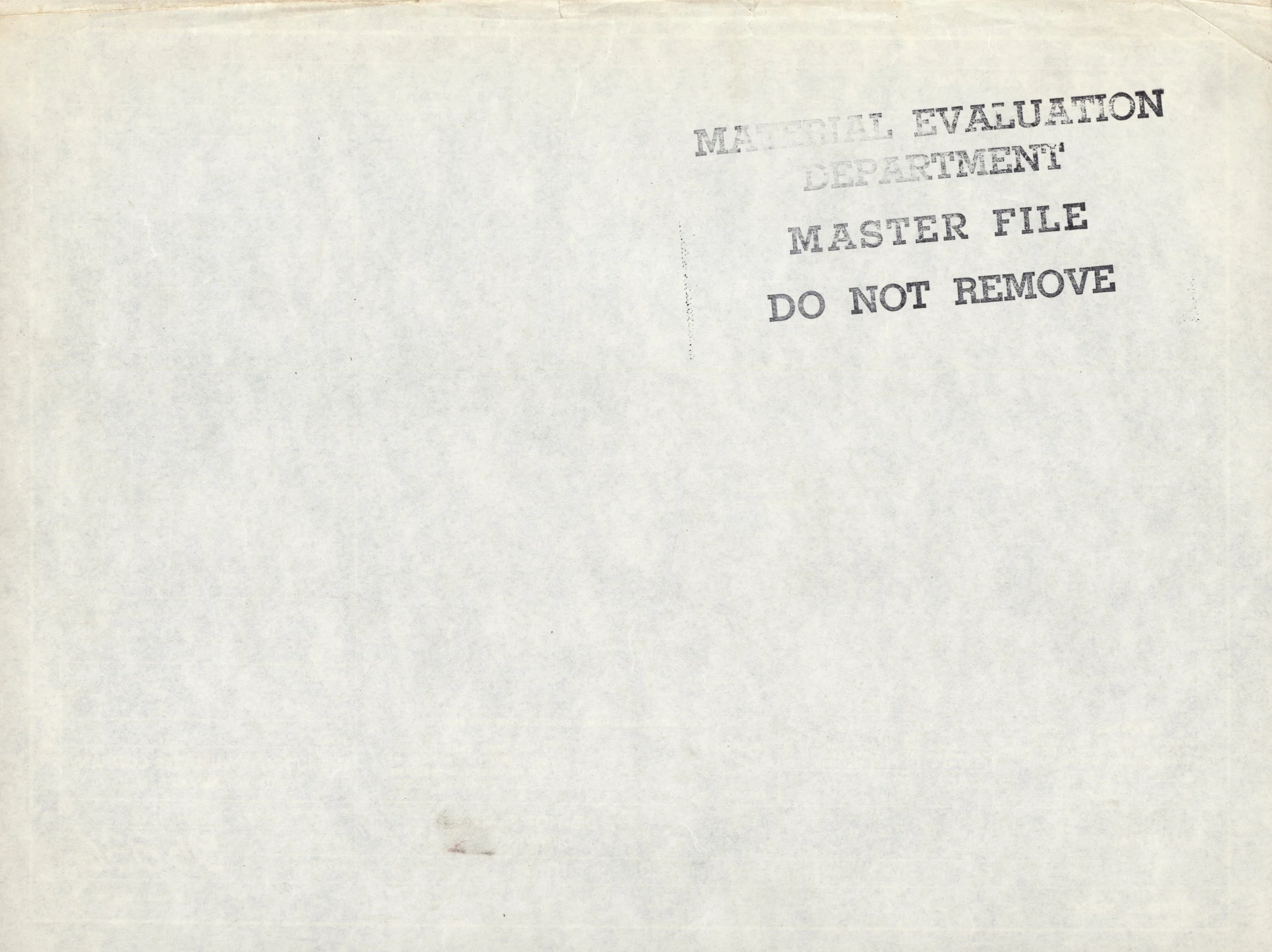

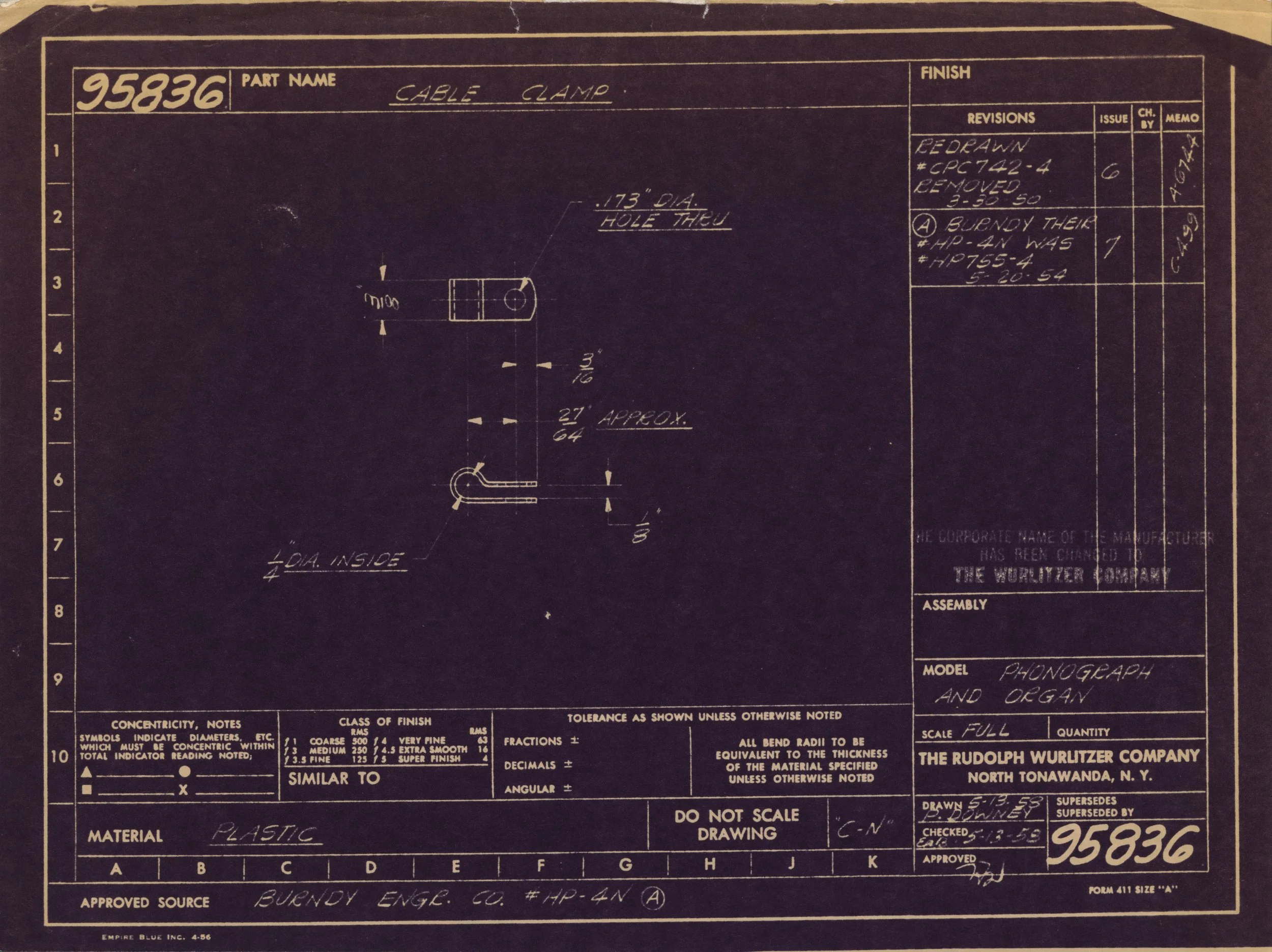

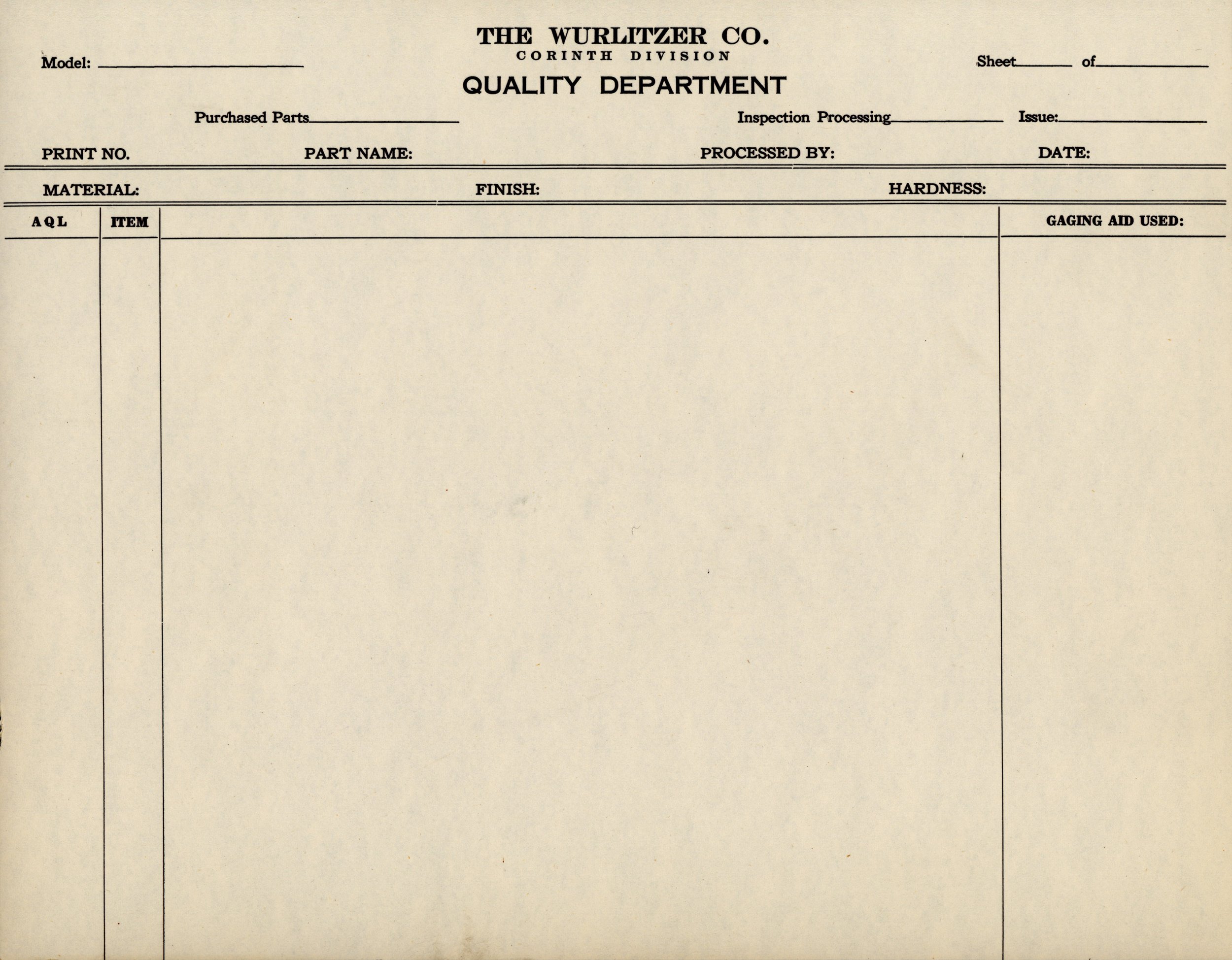

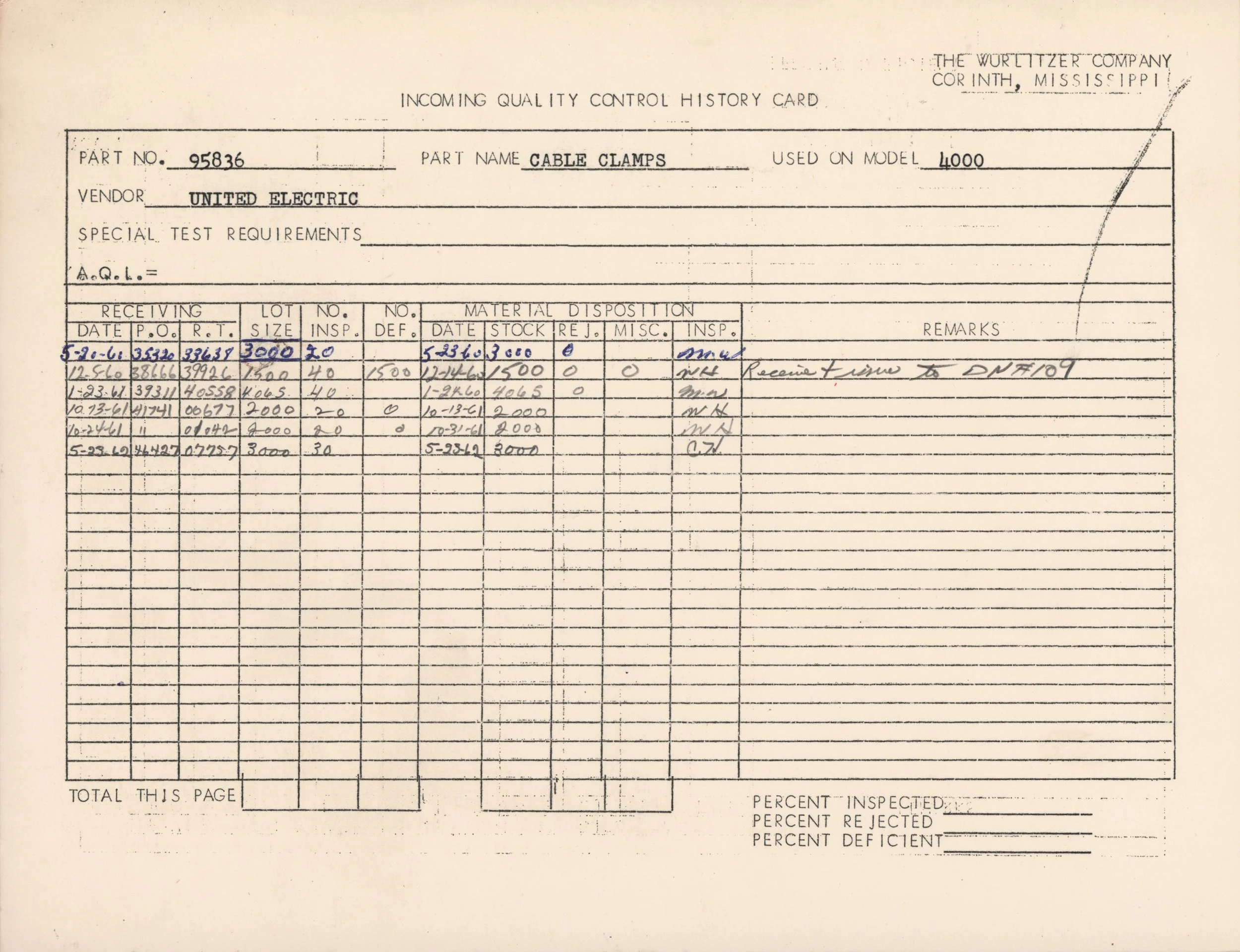

95836 (Cable clamp)

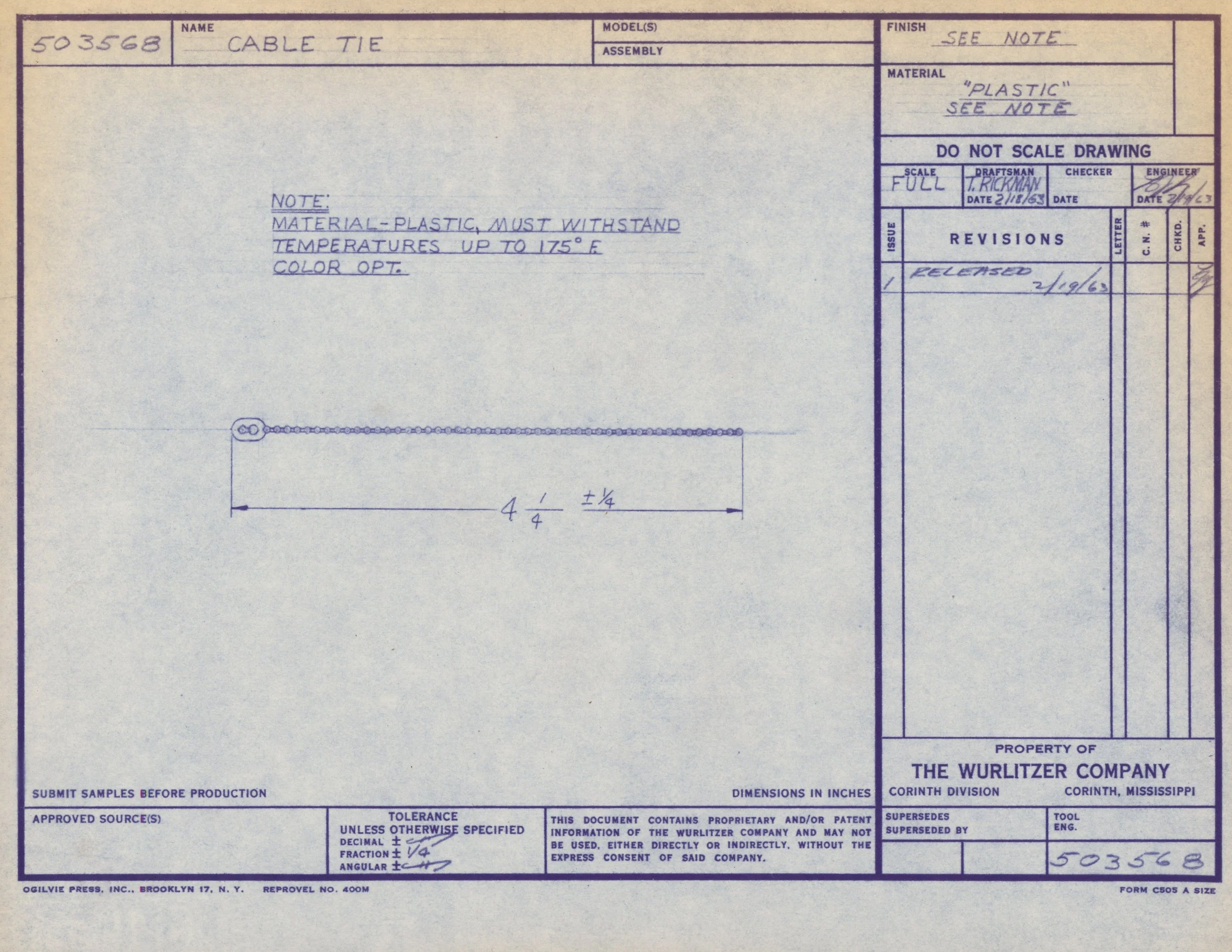

503568 (Cable tie)
Nails, wires & staples
The following drawings are of nails, formed wires, and staples that are used in multiple Wurlitzer instruments.

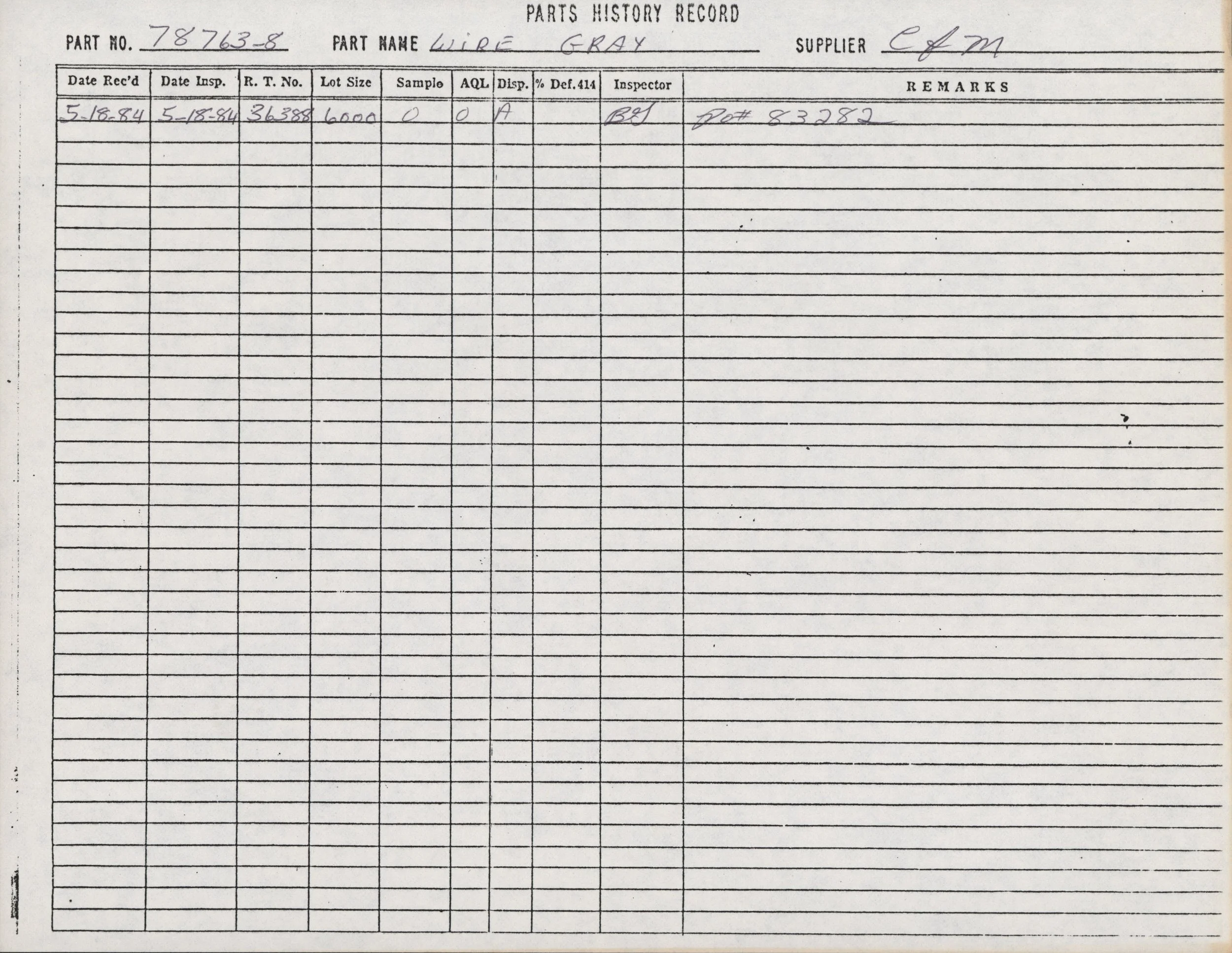

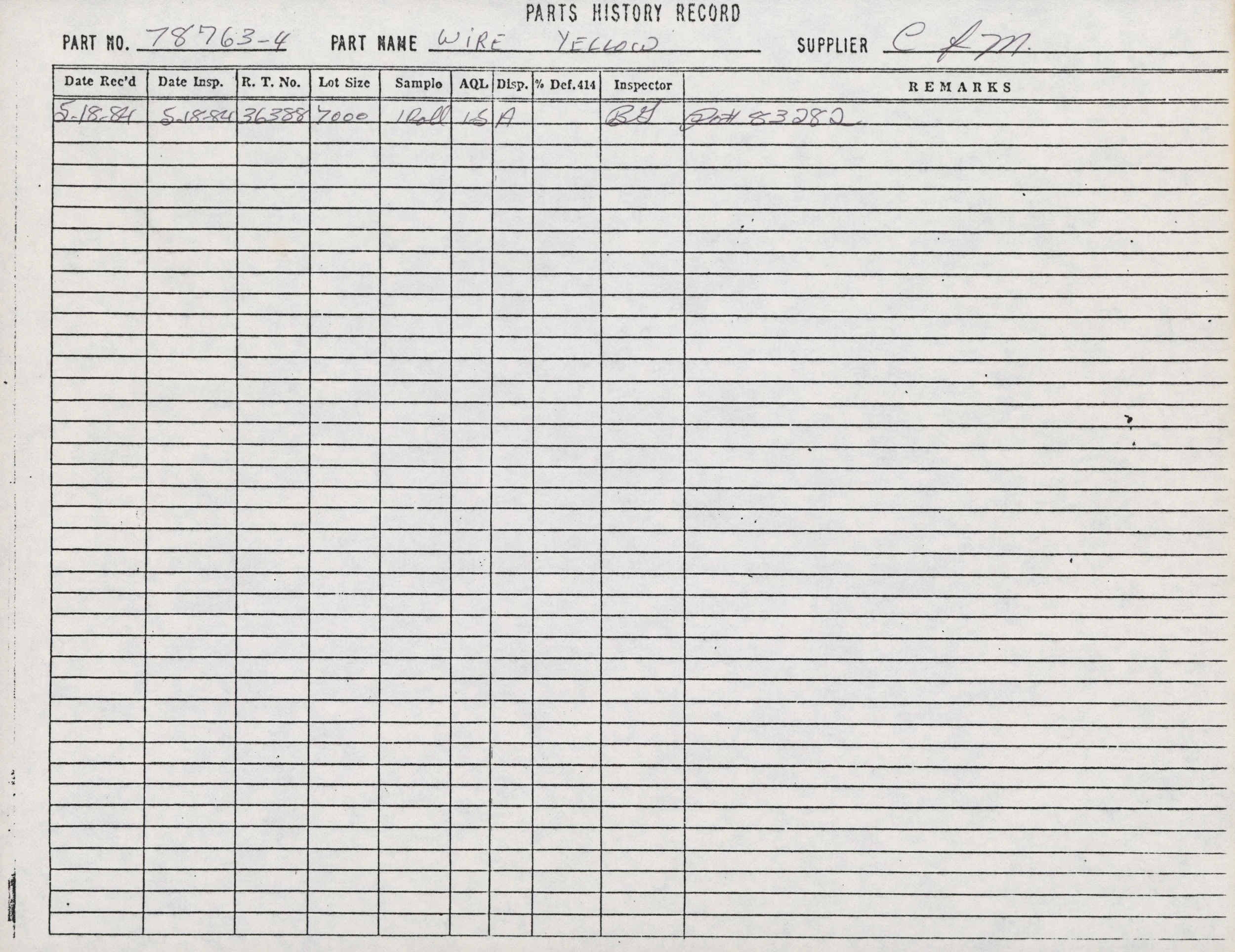

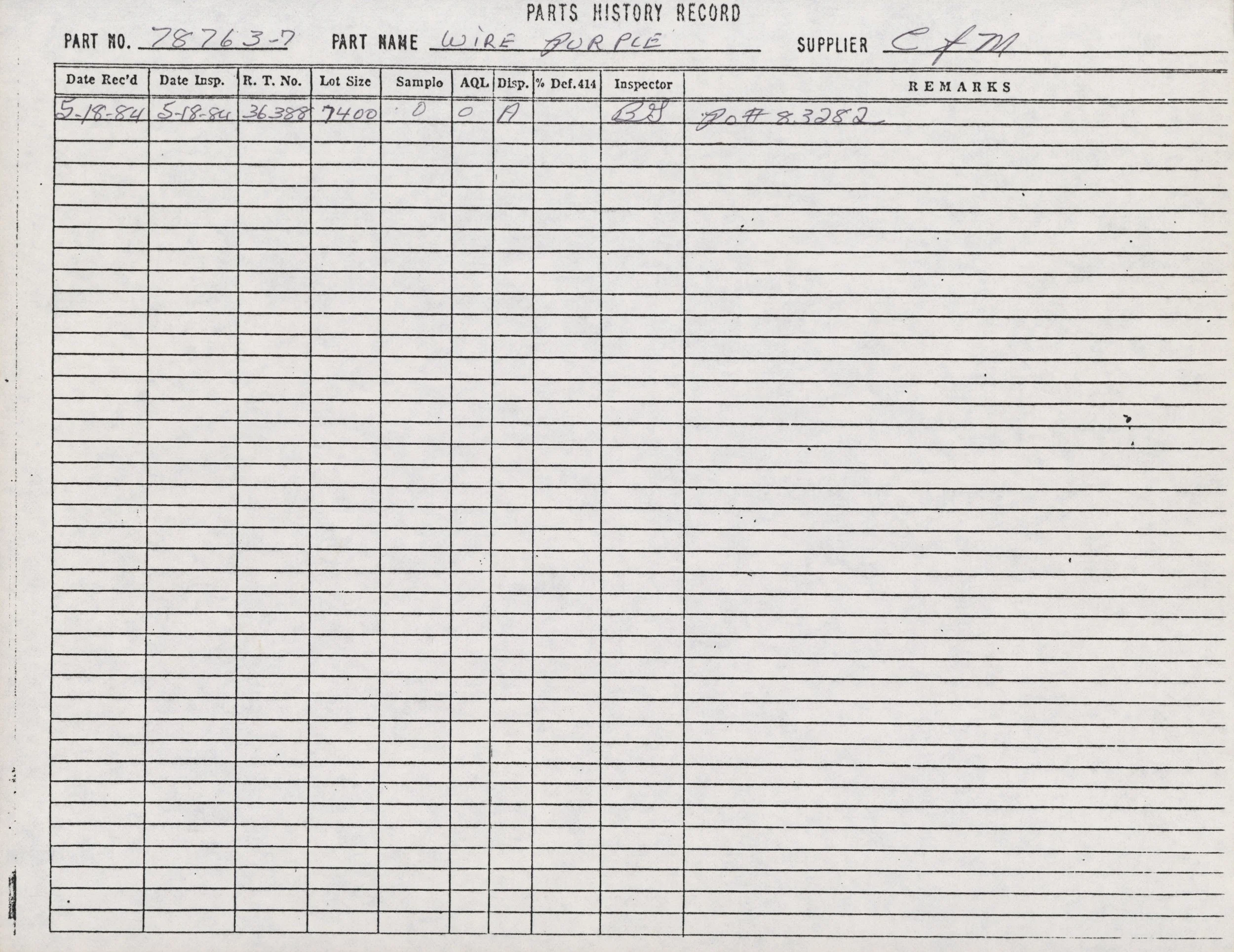

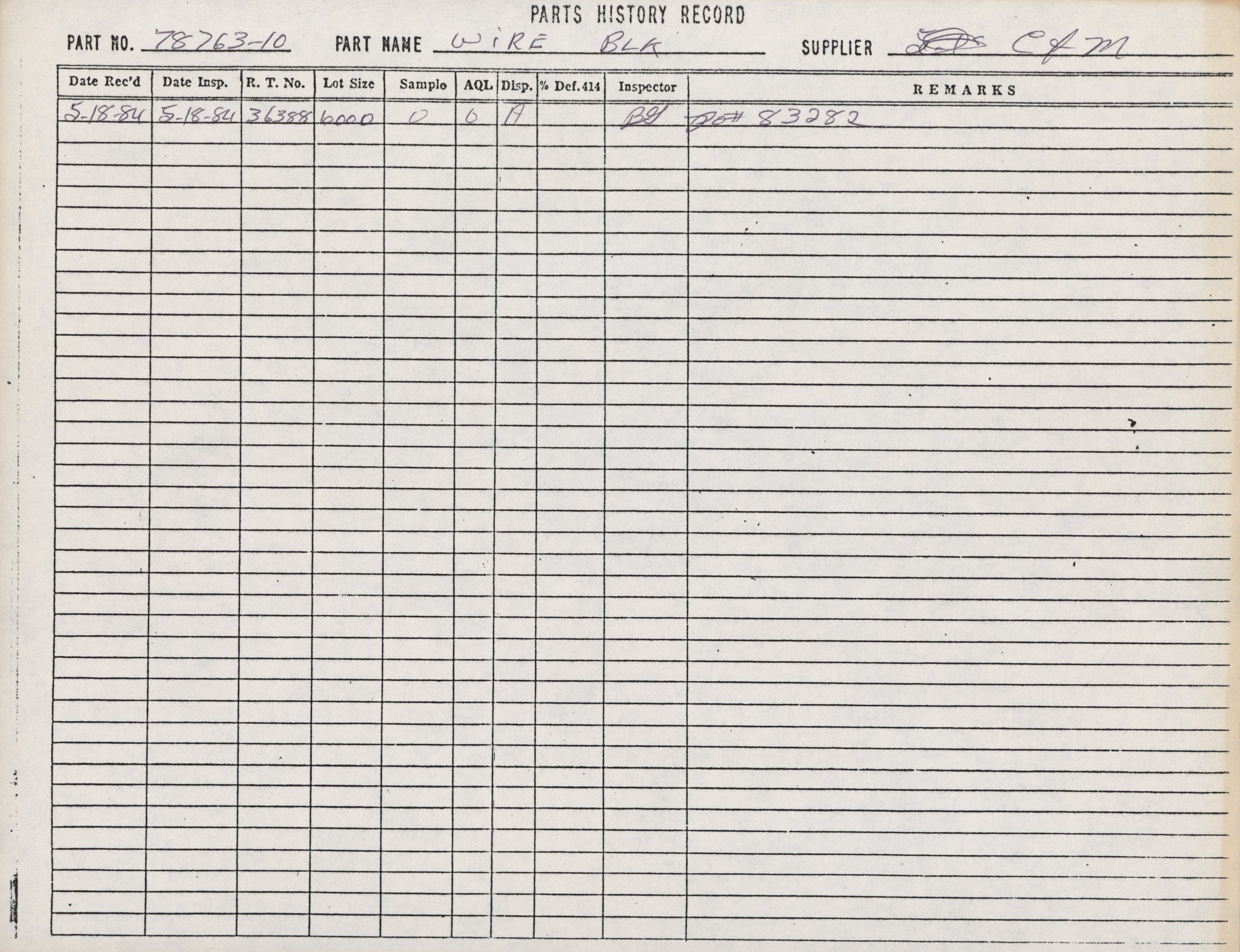

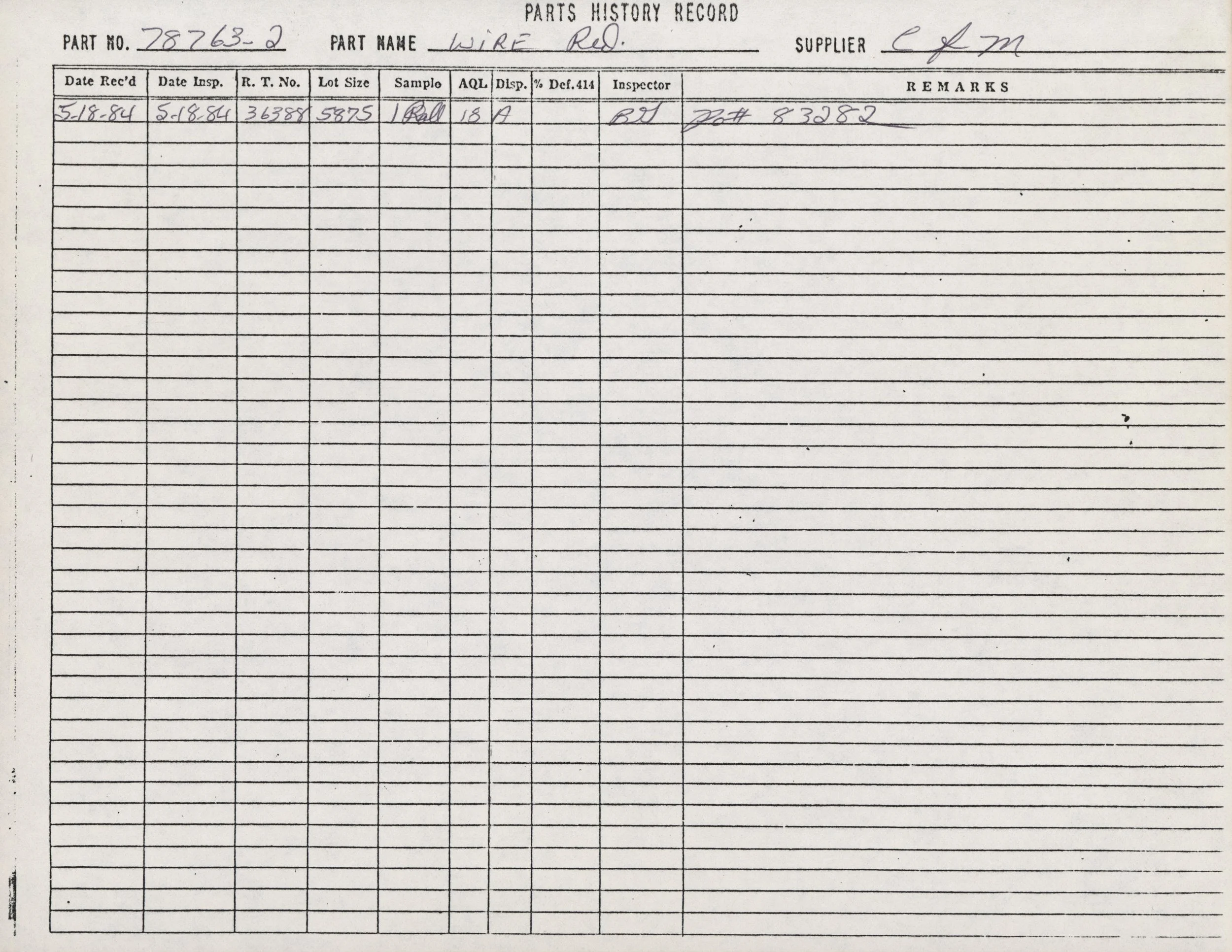

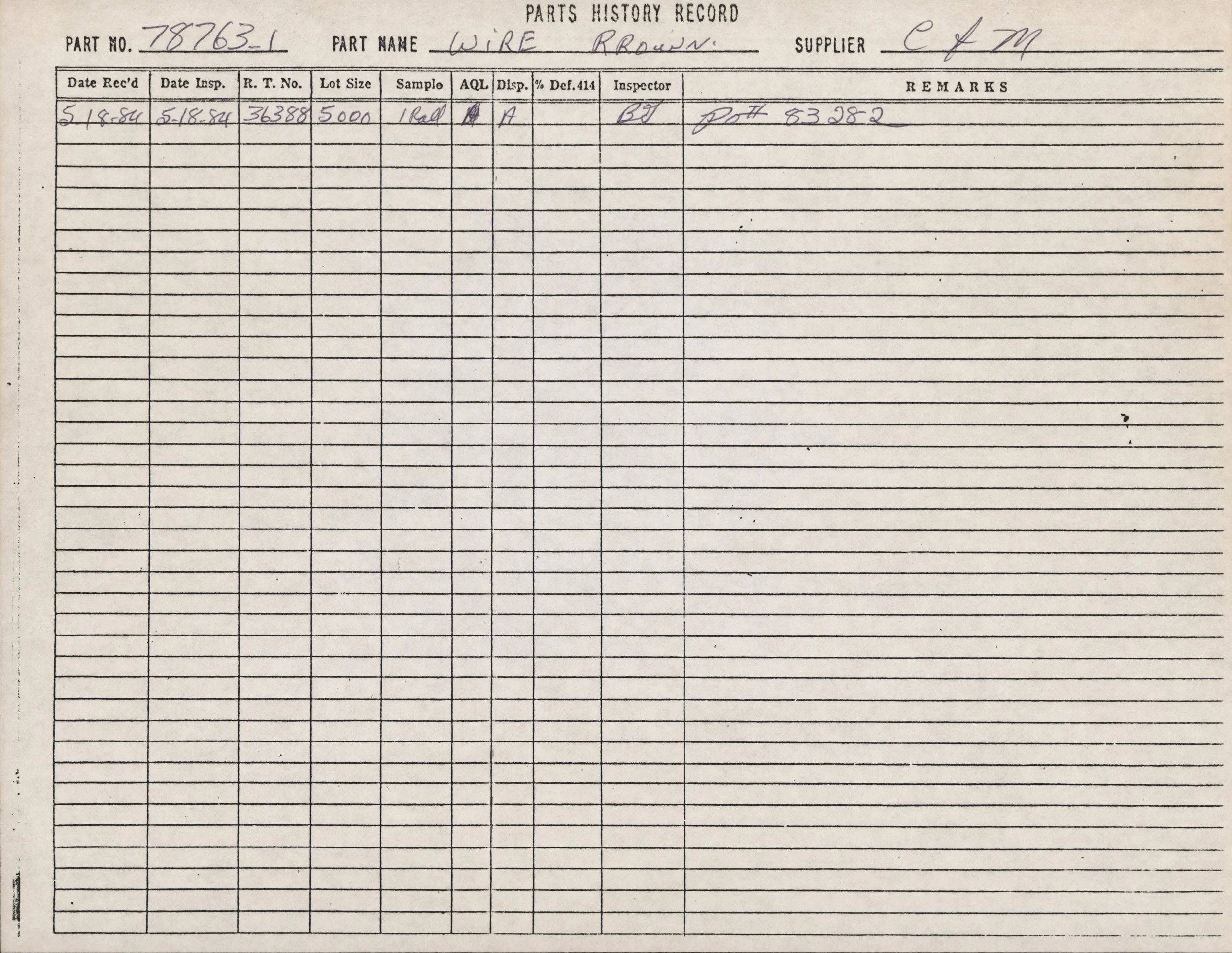

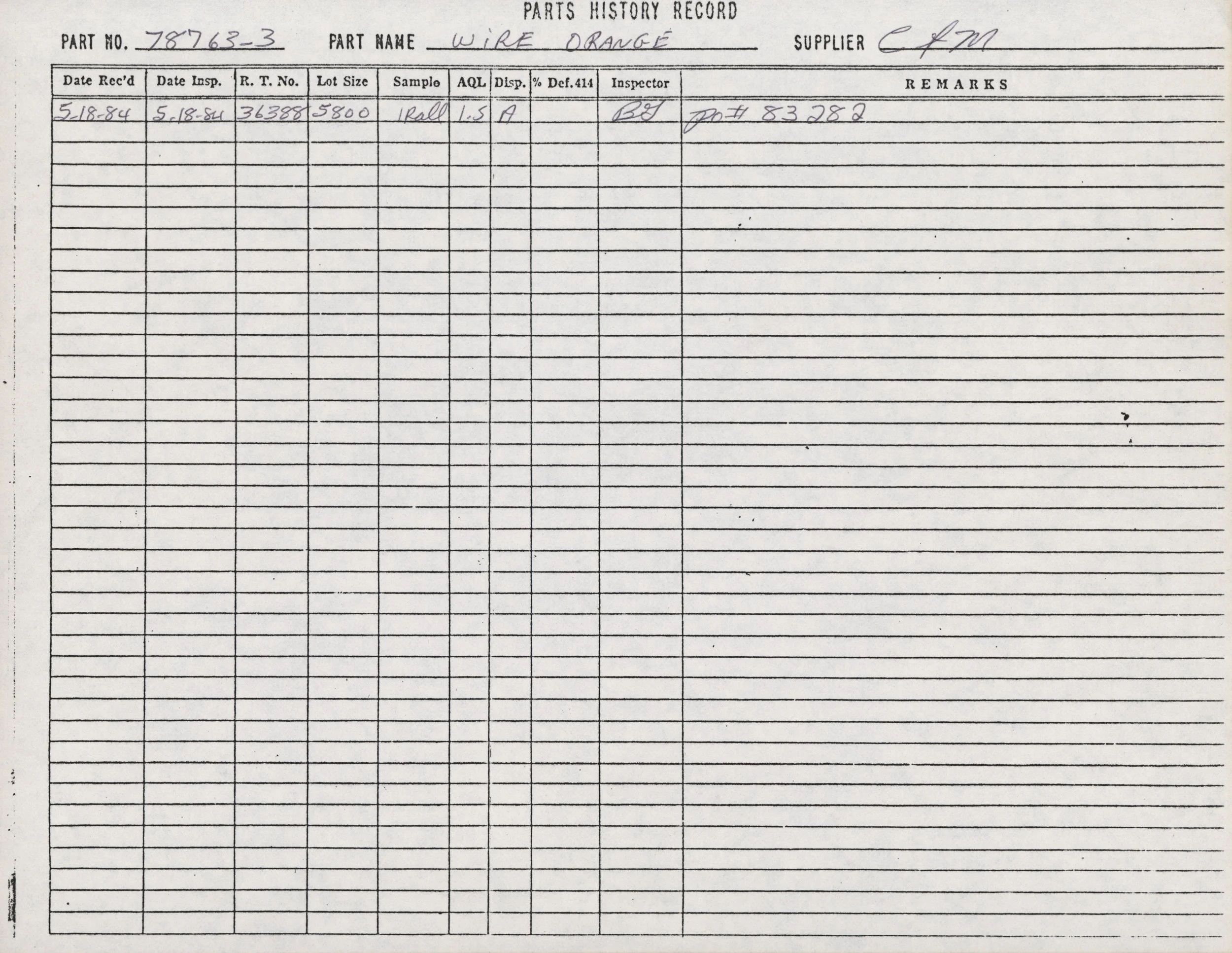

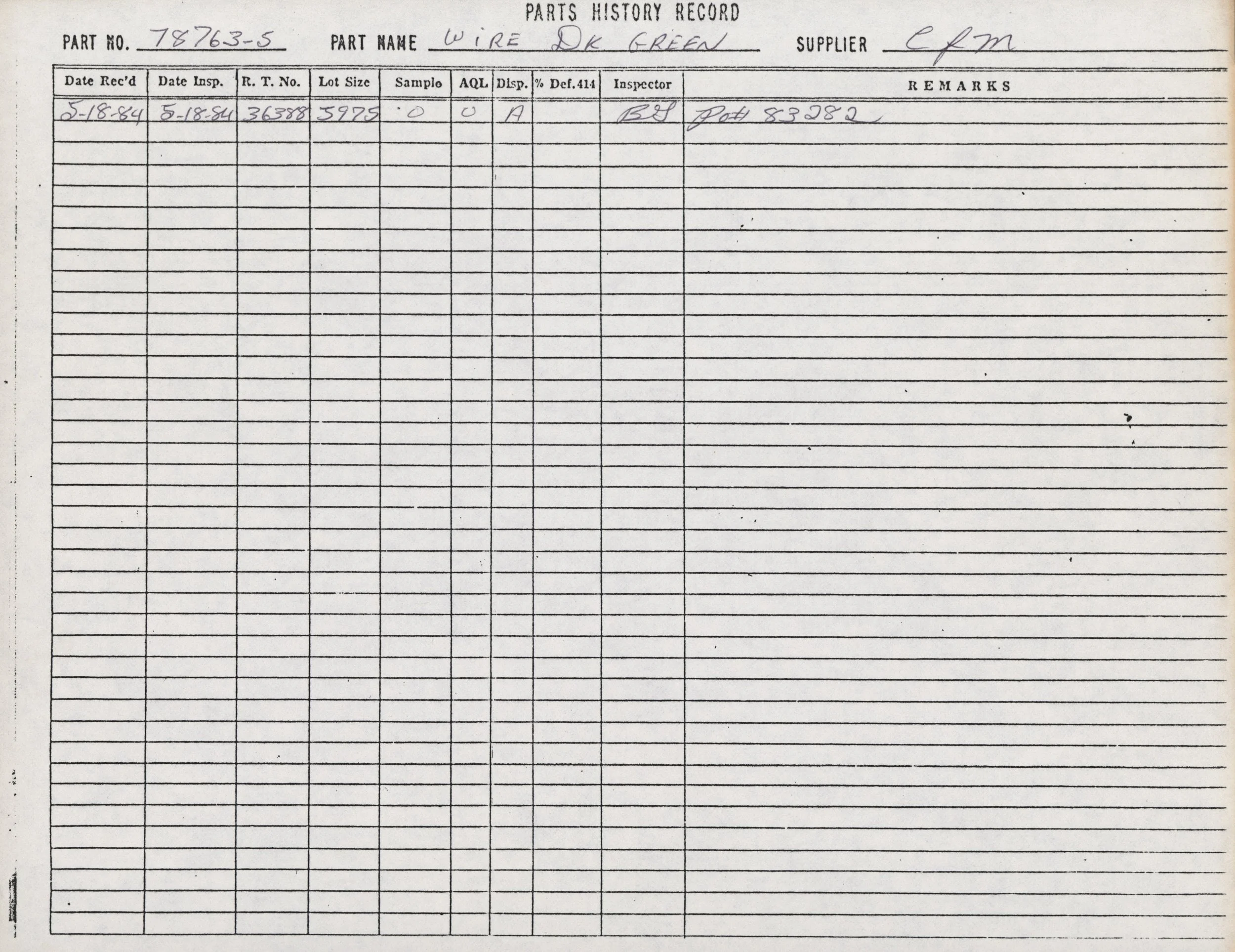

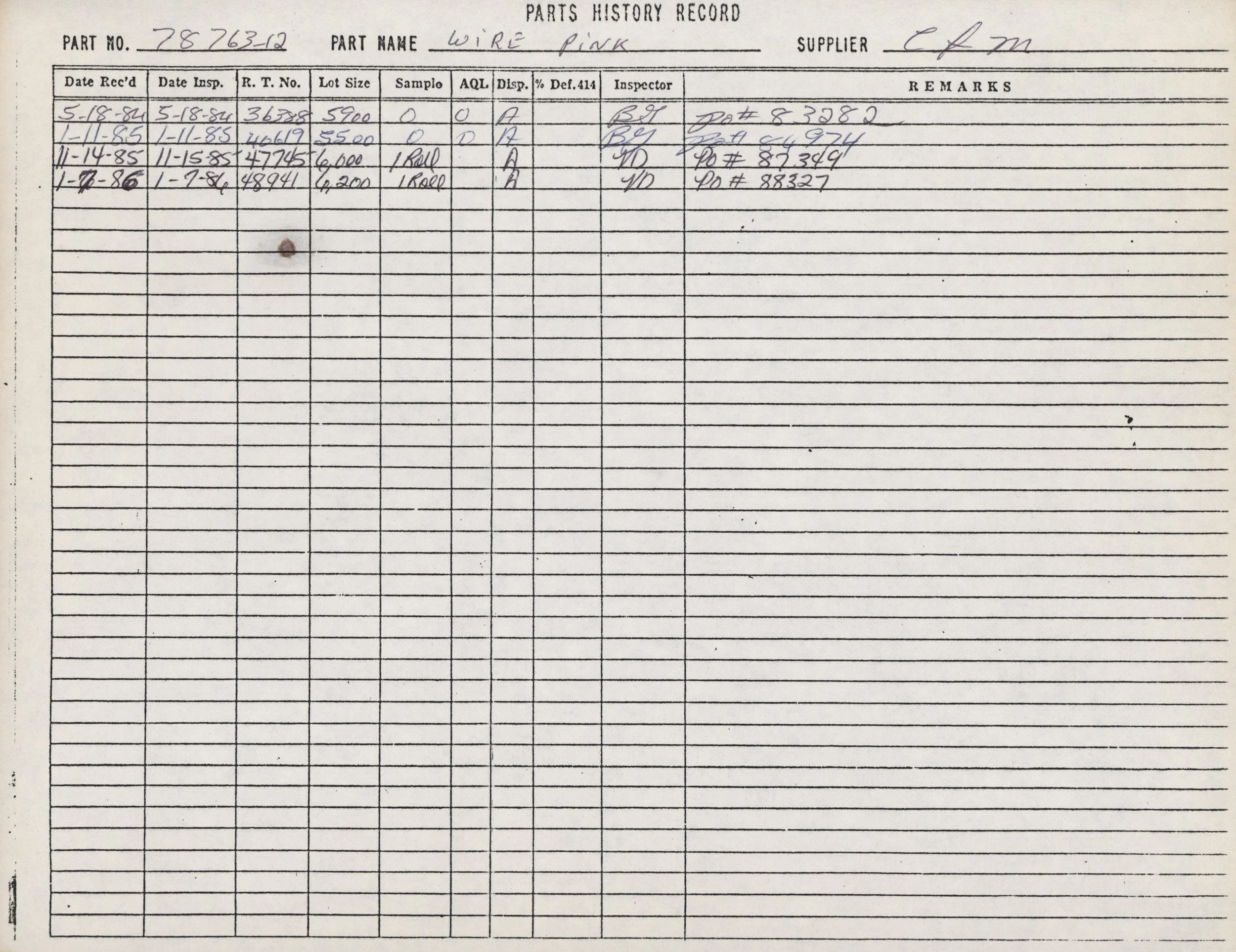

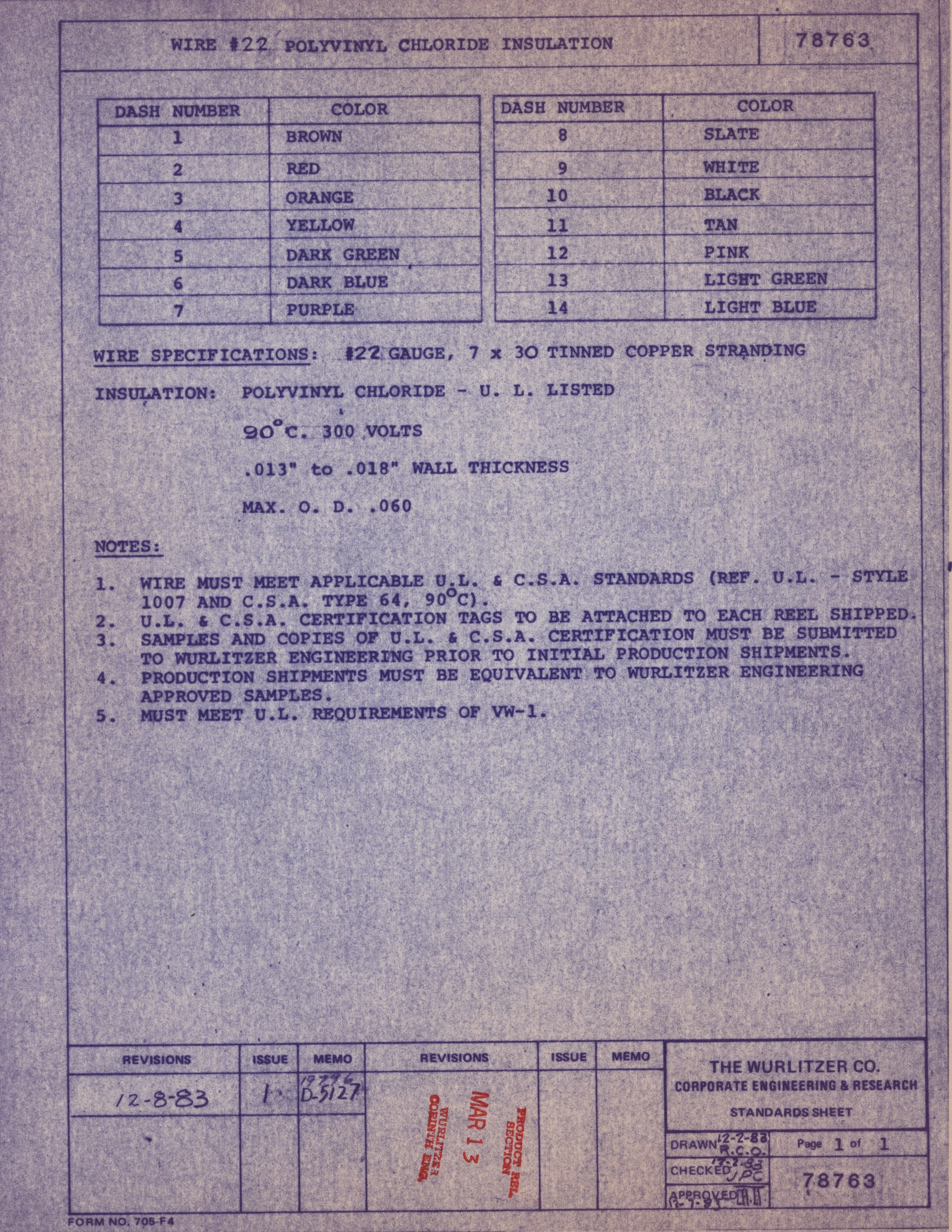

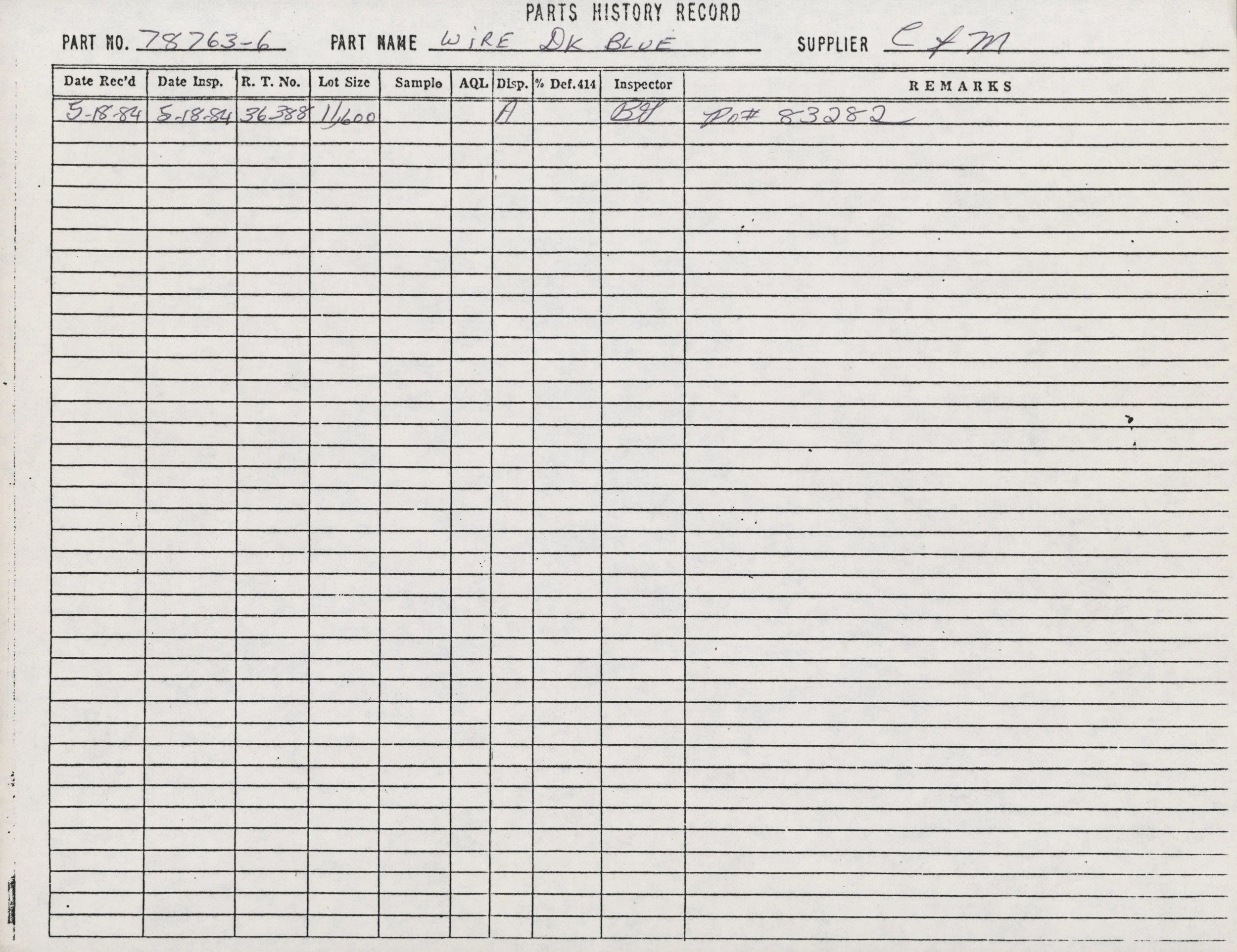

78763 (Aluminum staple)

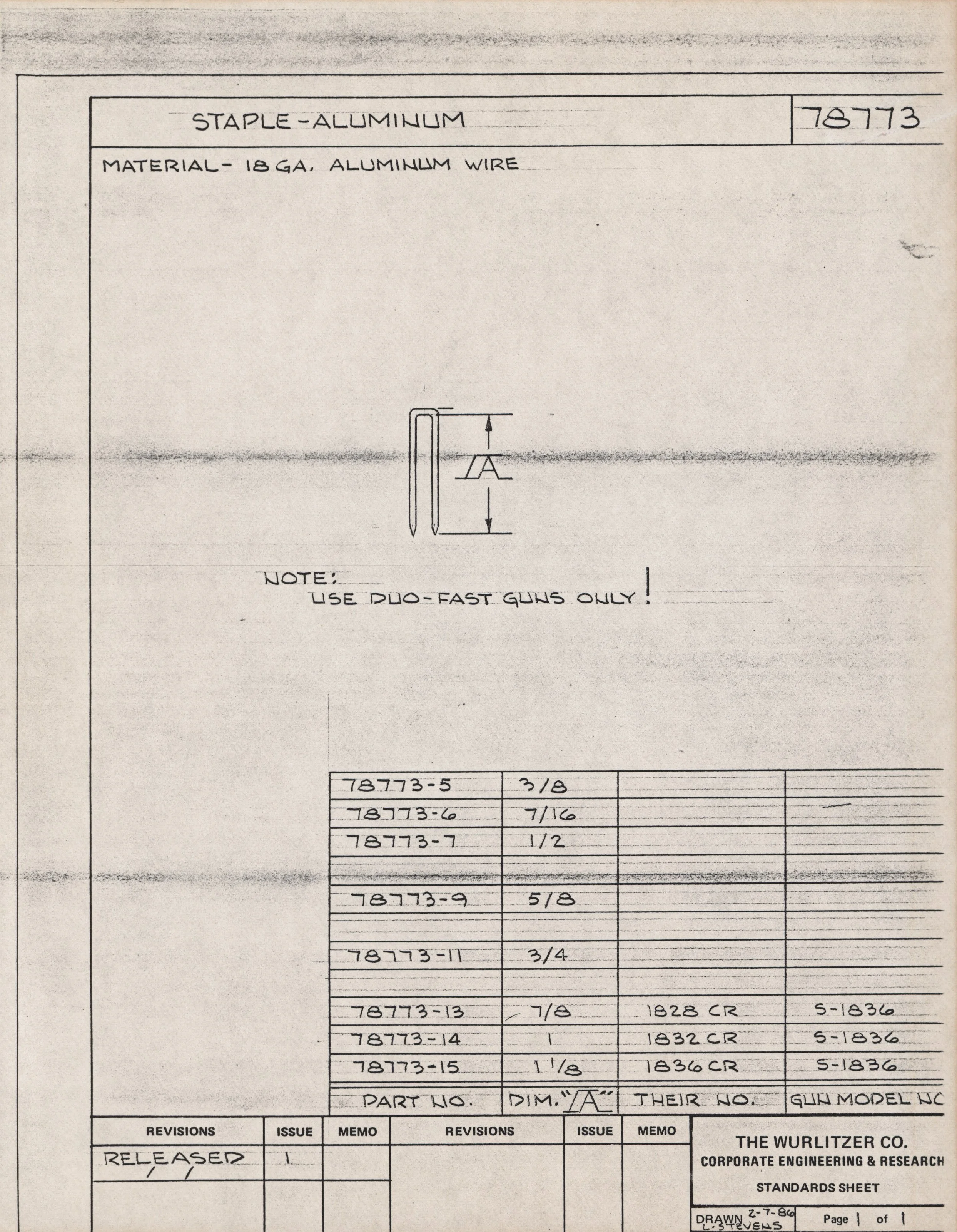

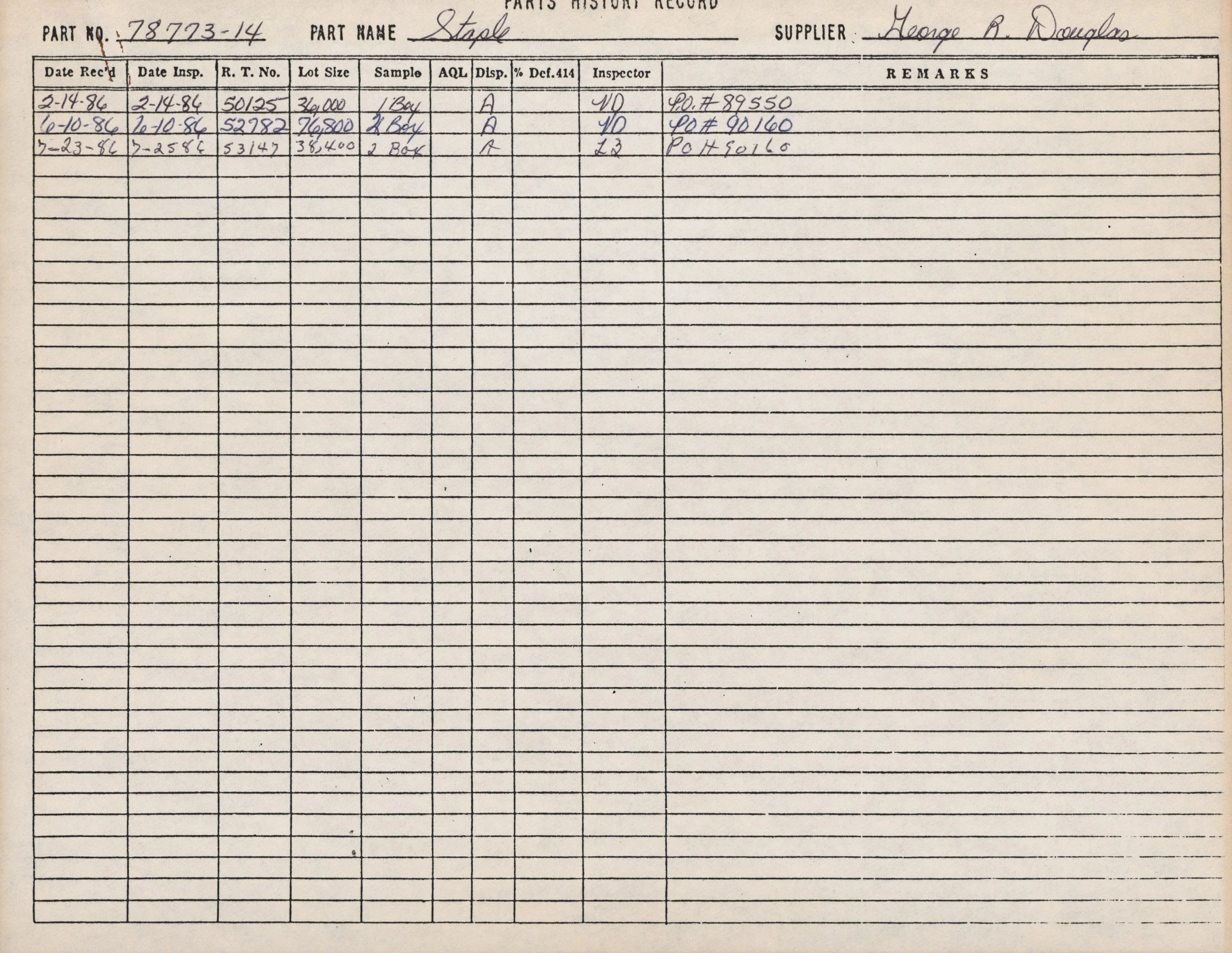

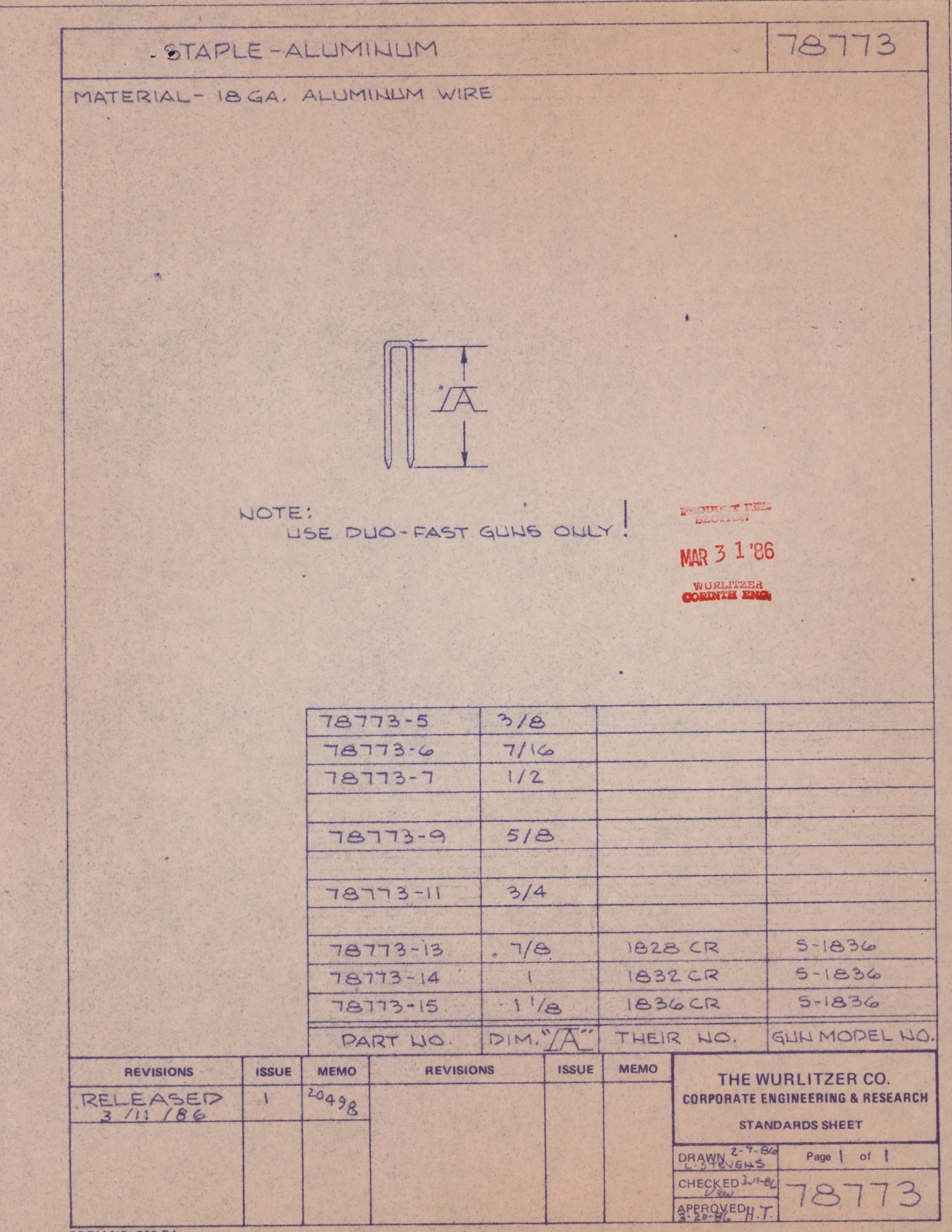

78773 (Aluminum staple)

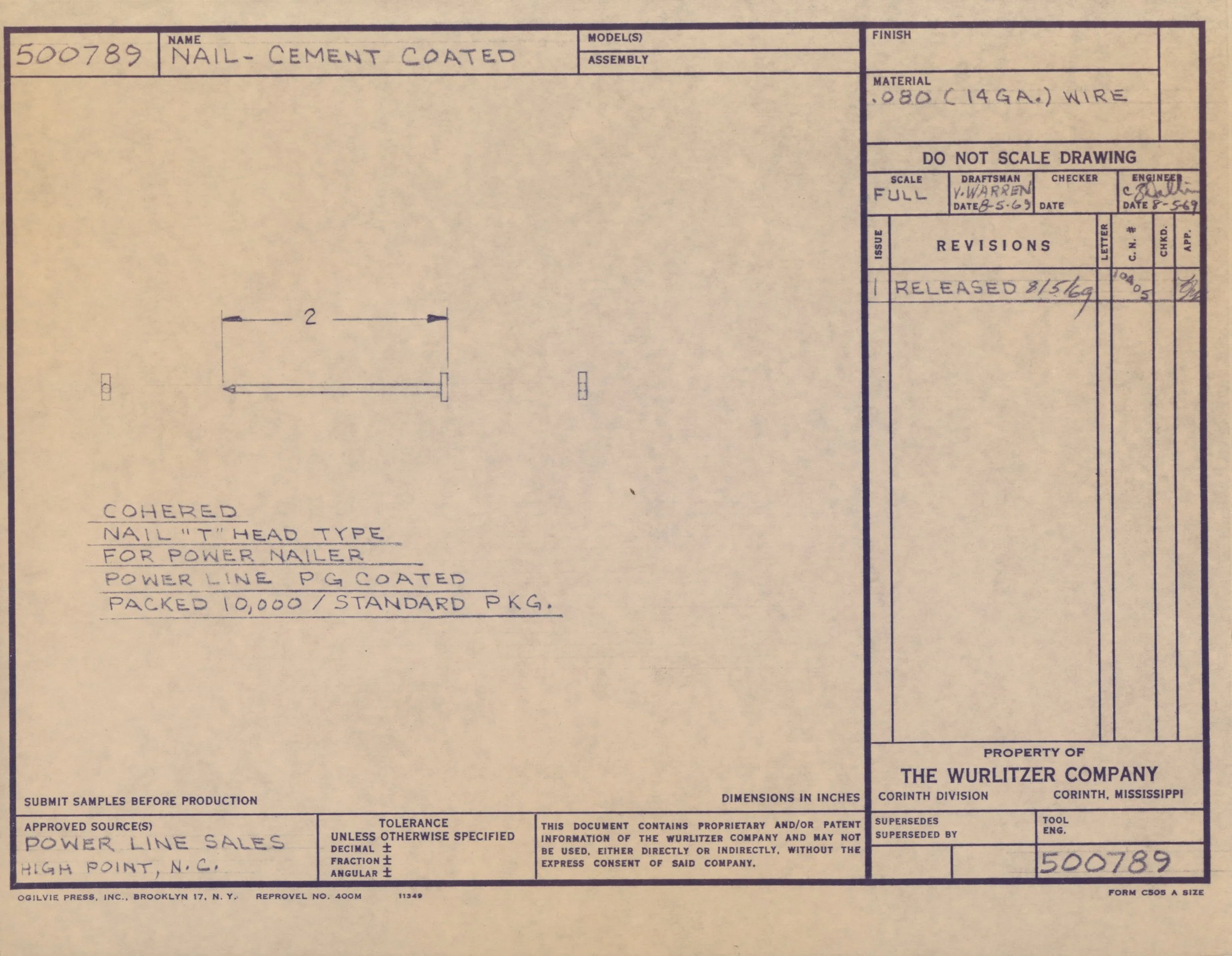

500789 (Cement coated nail)

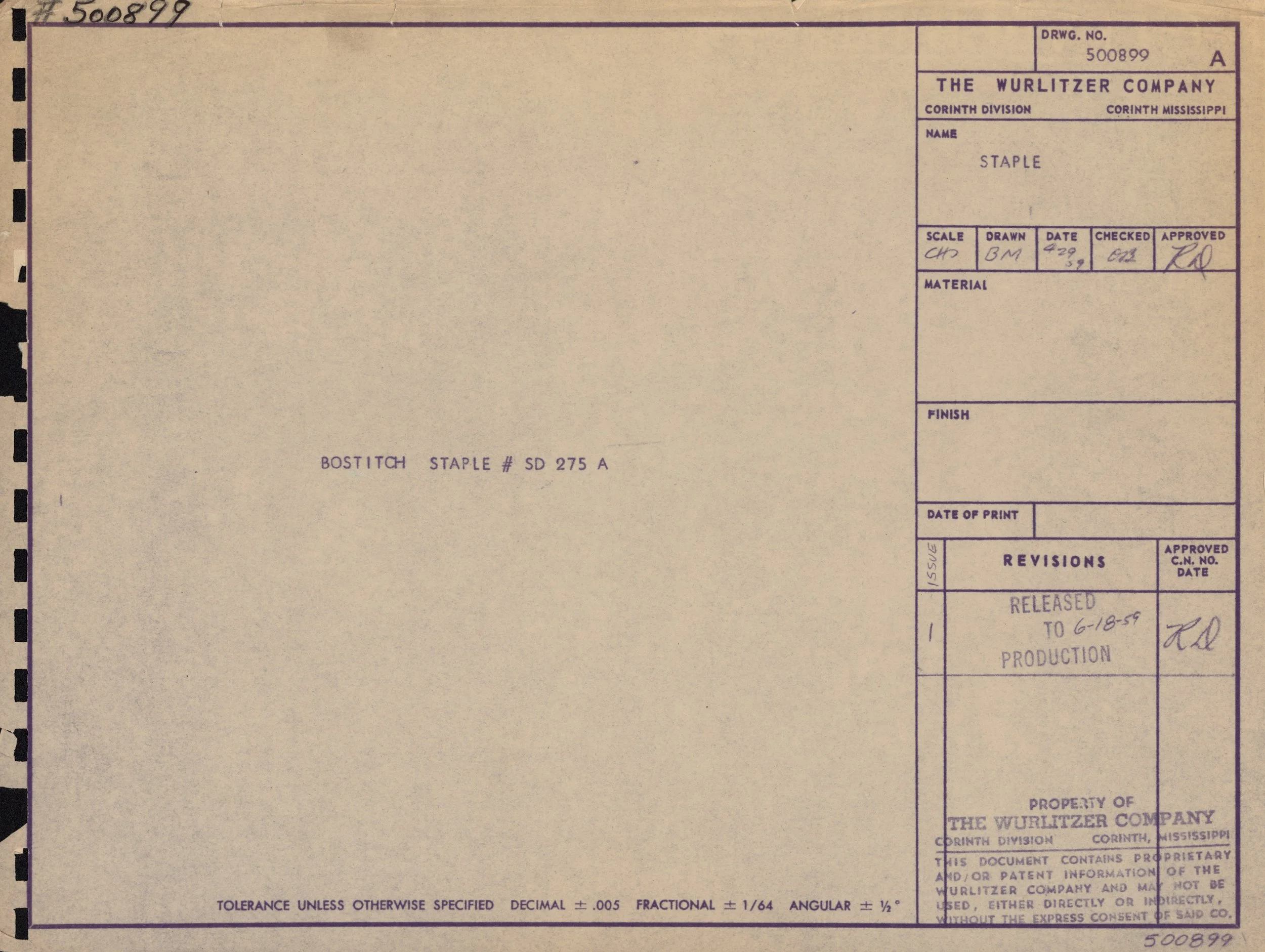

500899 (Bostitch staple #SD275A)
500900 (Bostitch staple #SD275A)

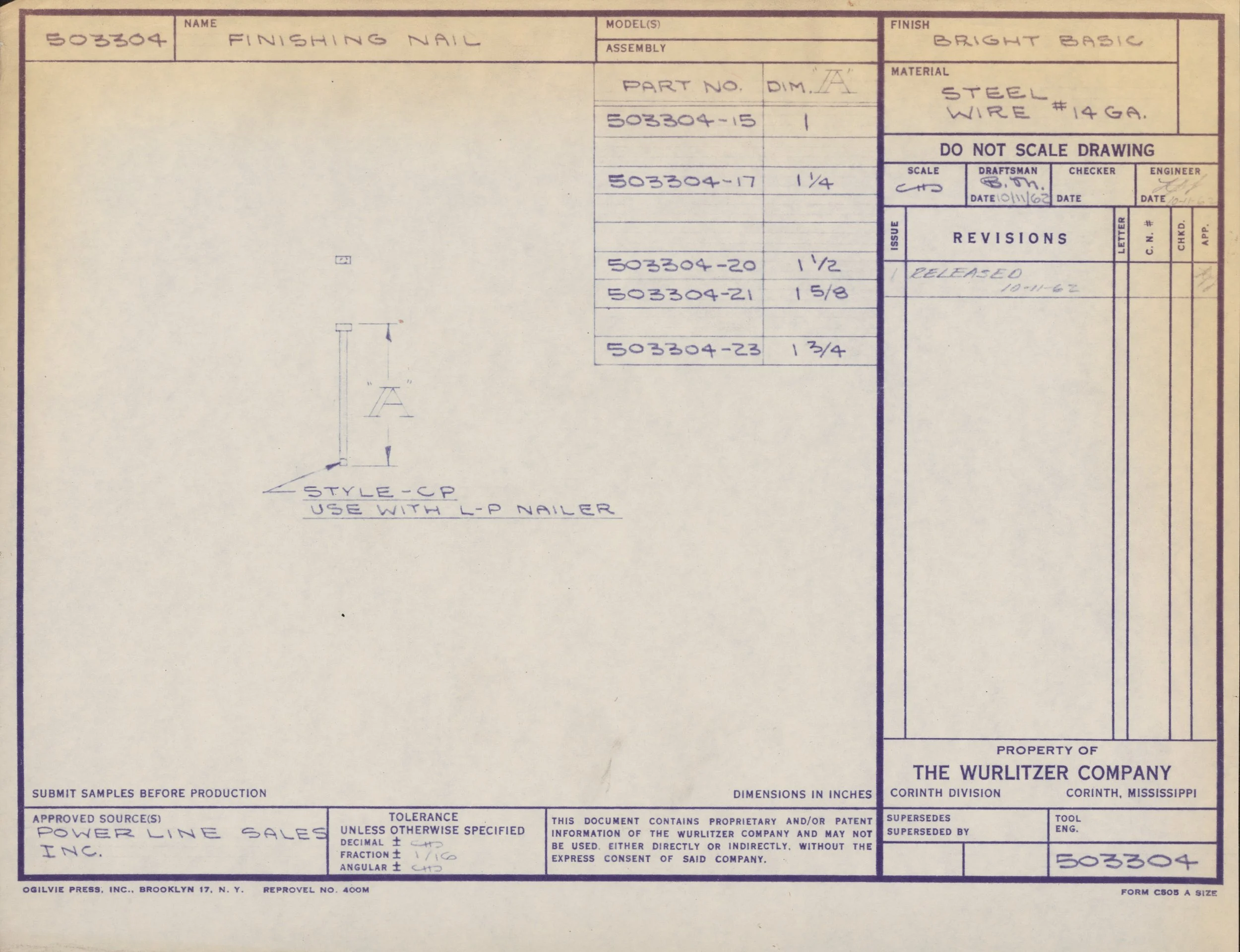

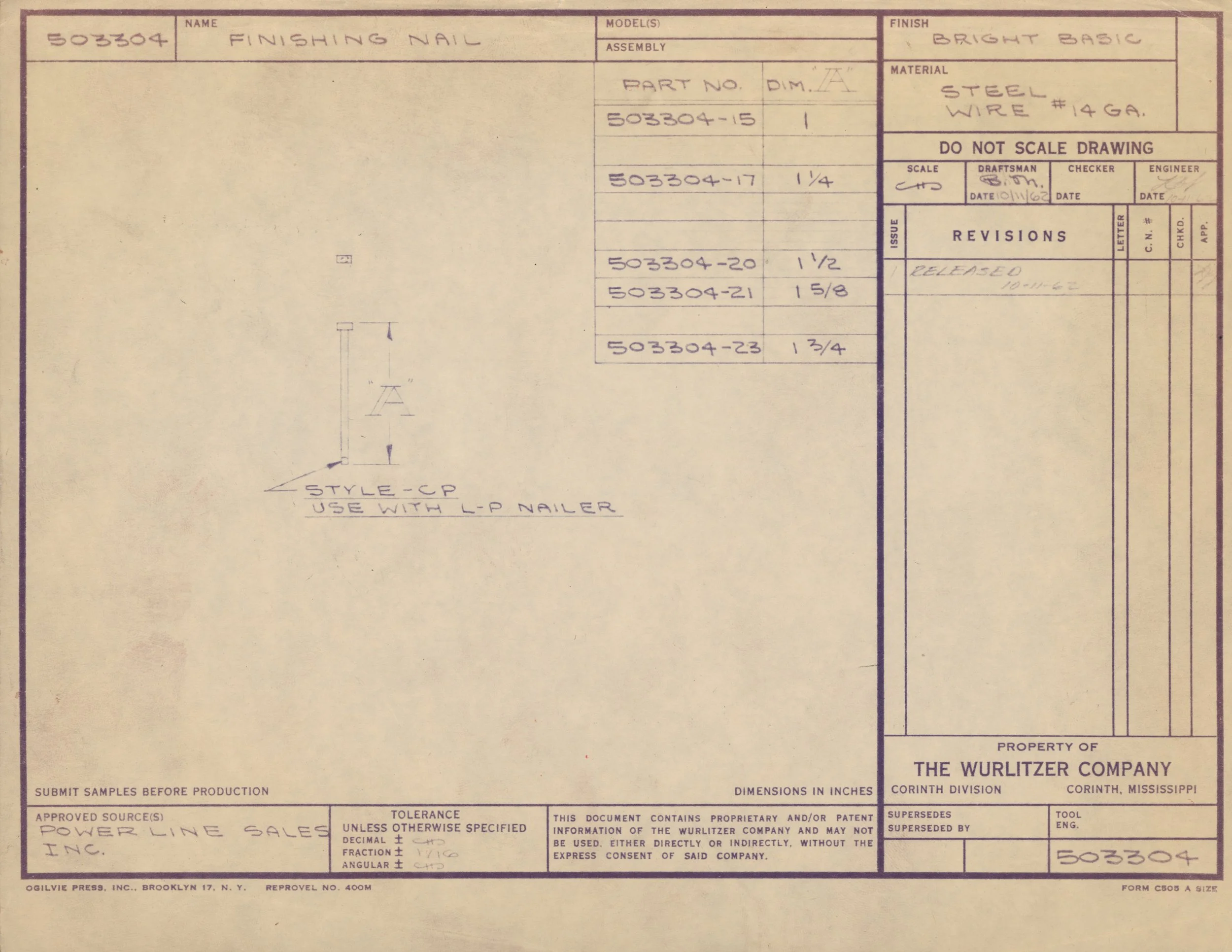

503304 (Finishing nail)

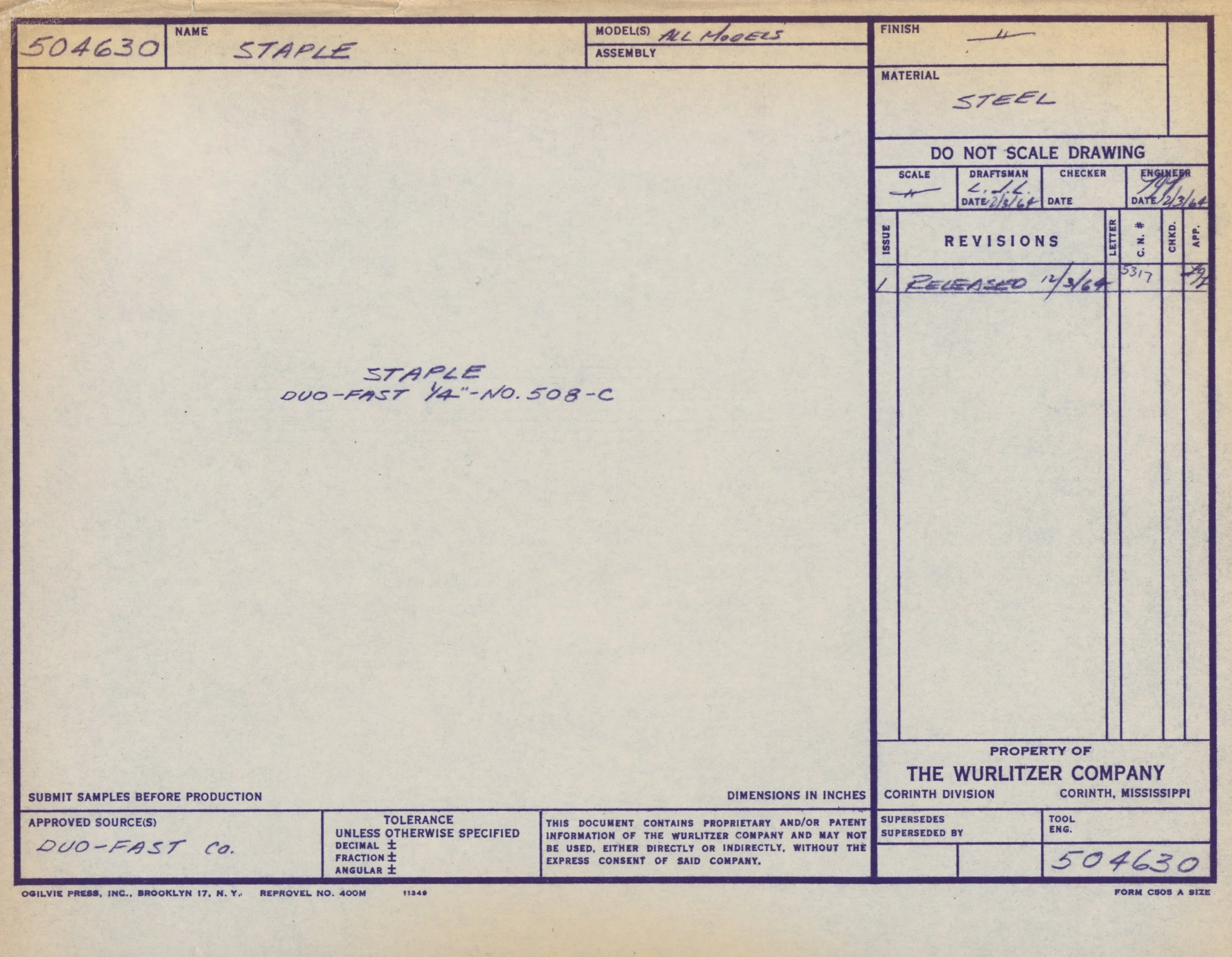

504630 (Staple)

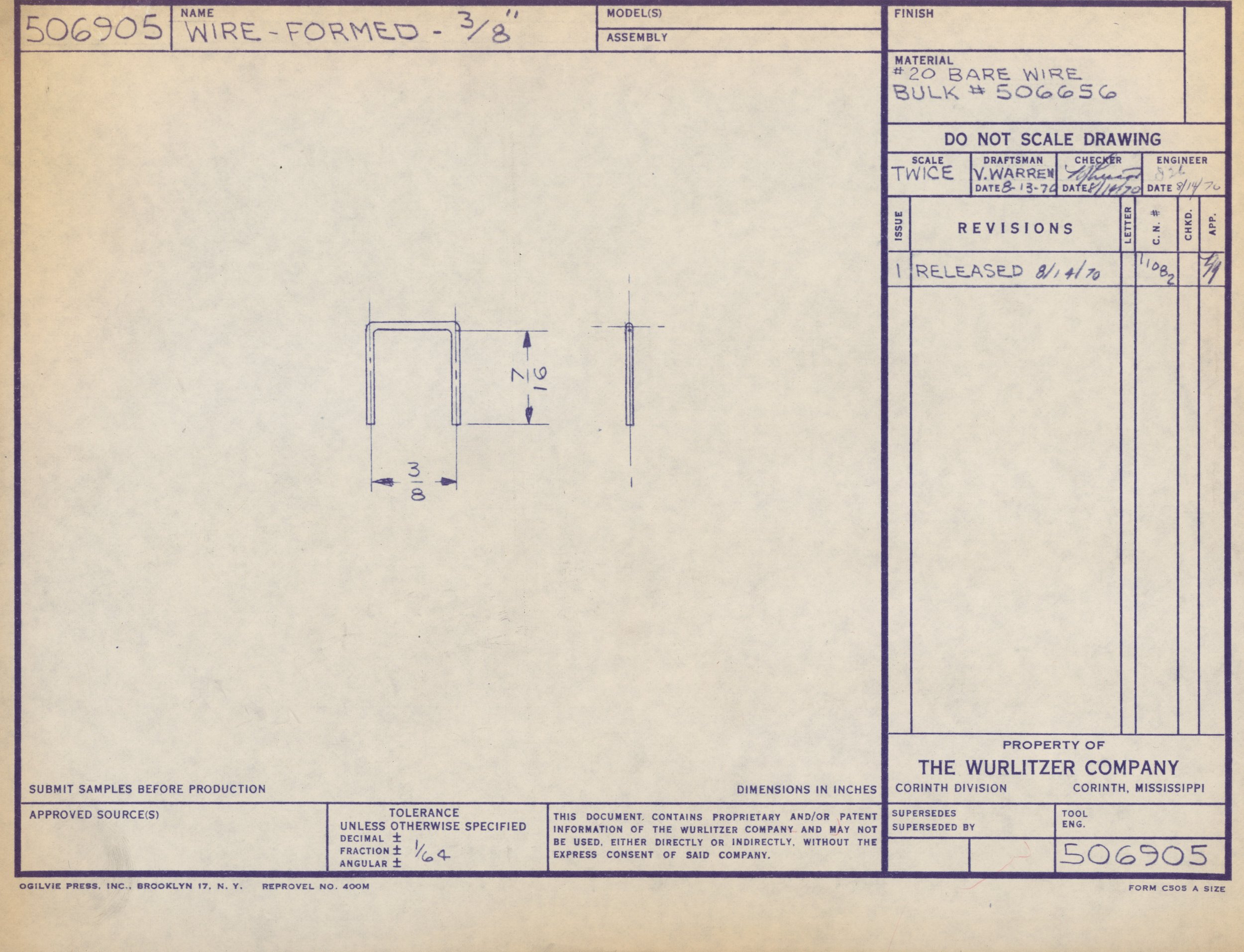

506905 (Formed 3/8” wire)

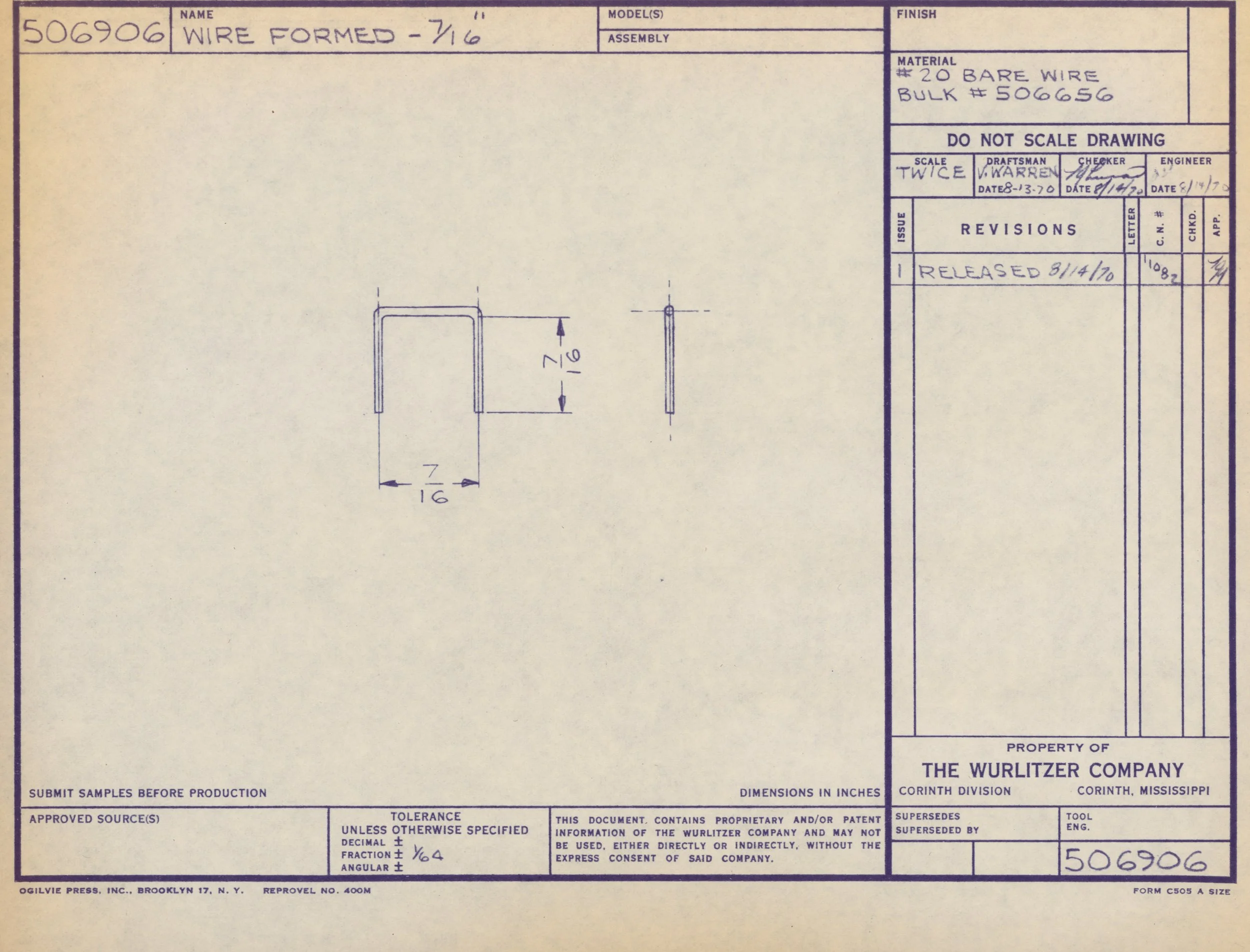

506906 (Formed 7/16” wire)

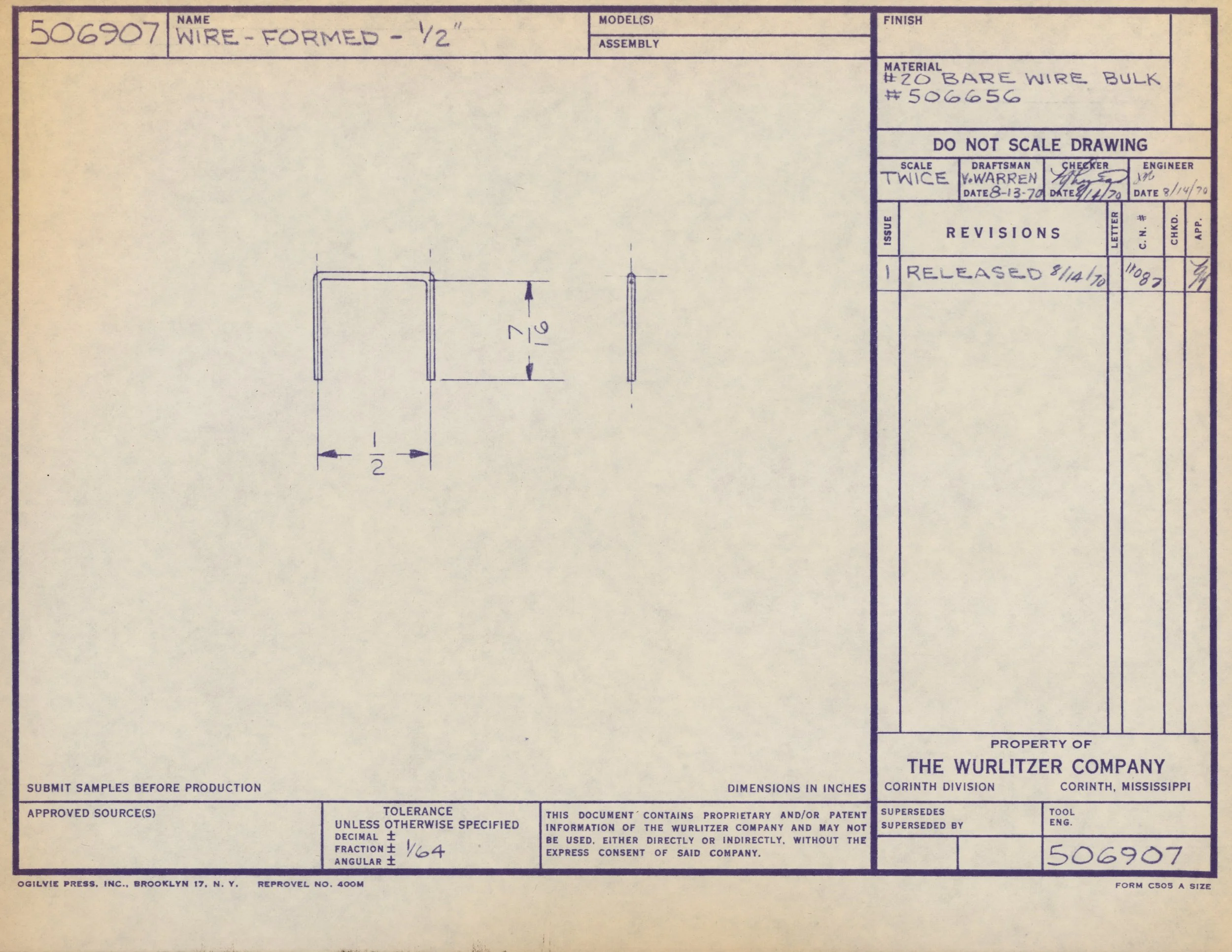

506907 (Formed 1/2” wire)

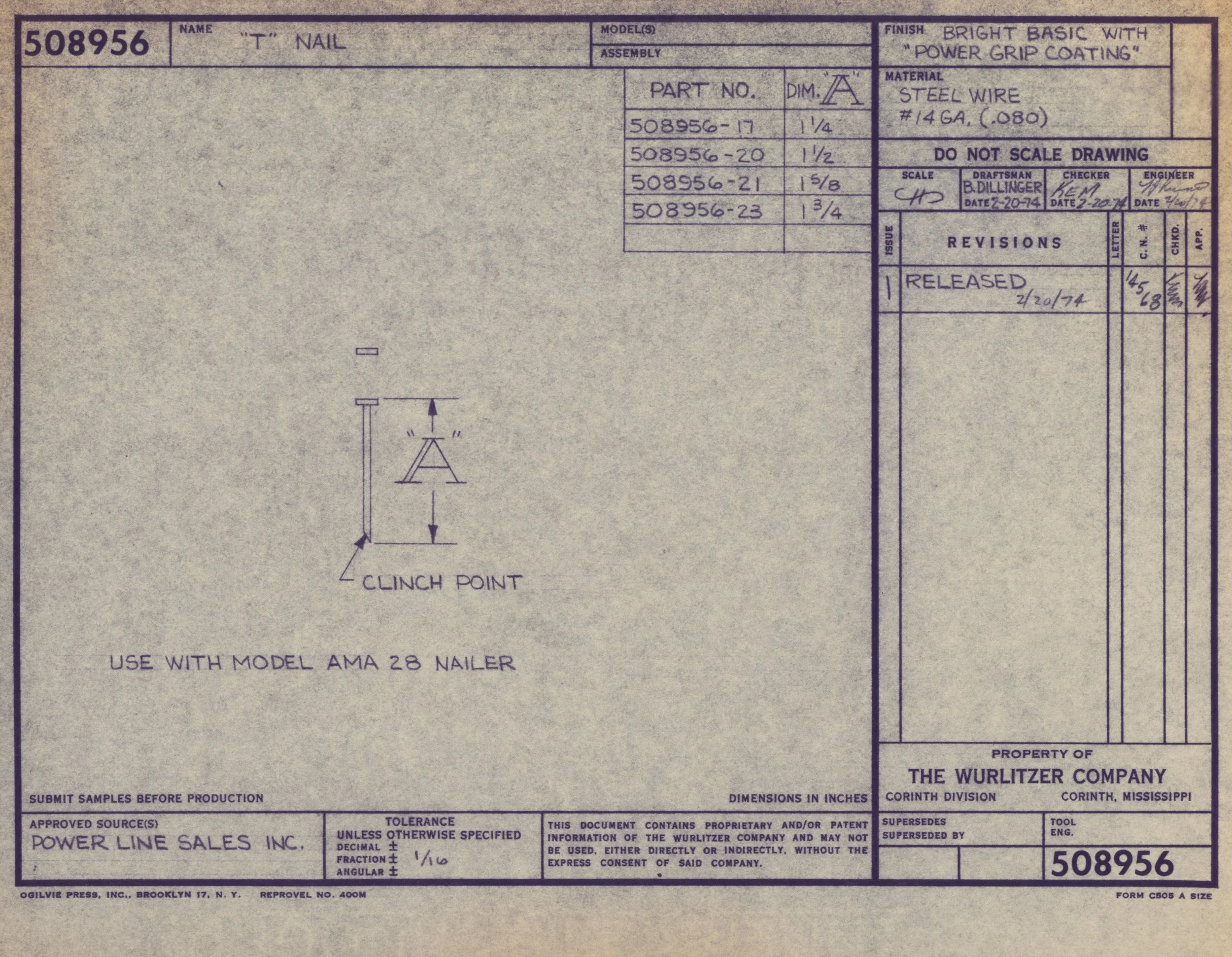

508956 (T nail)
Nuts & washers
The following drawings are of nuts and washers that are used in multiple Wurlitzer instruments.

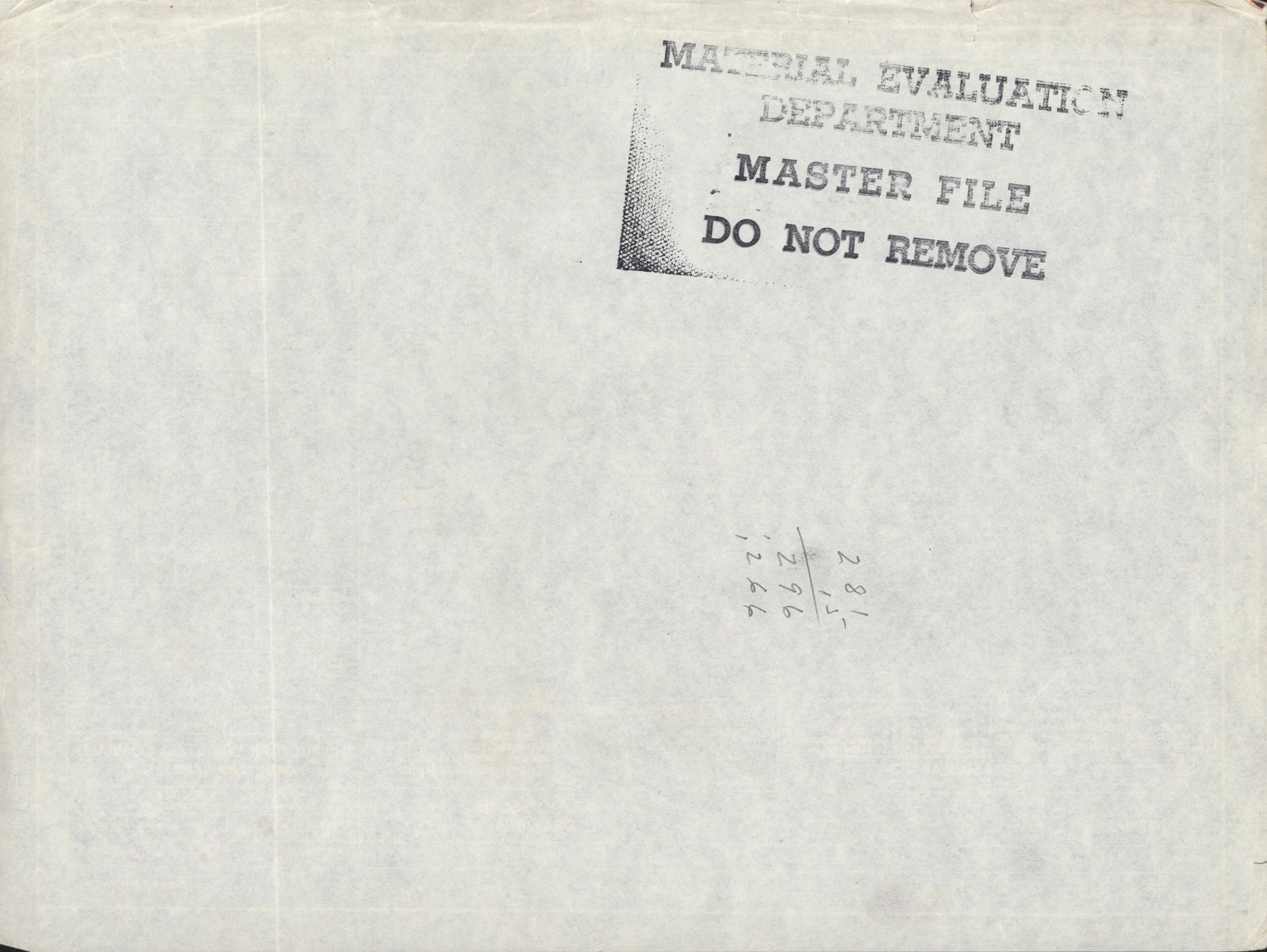

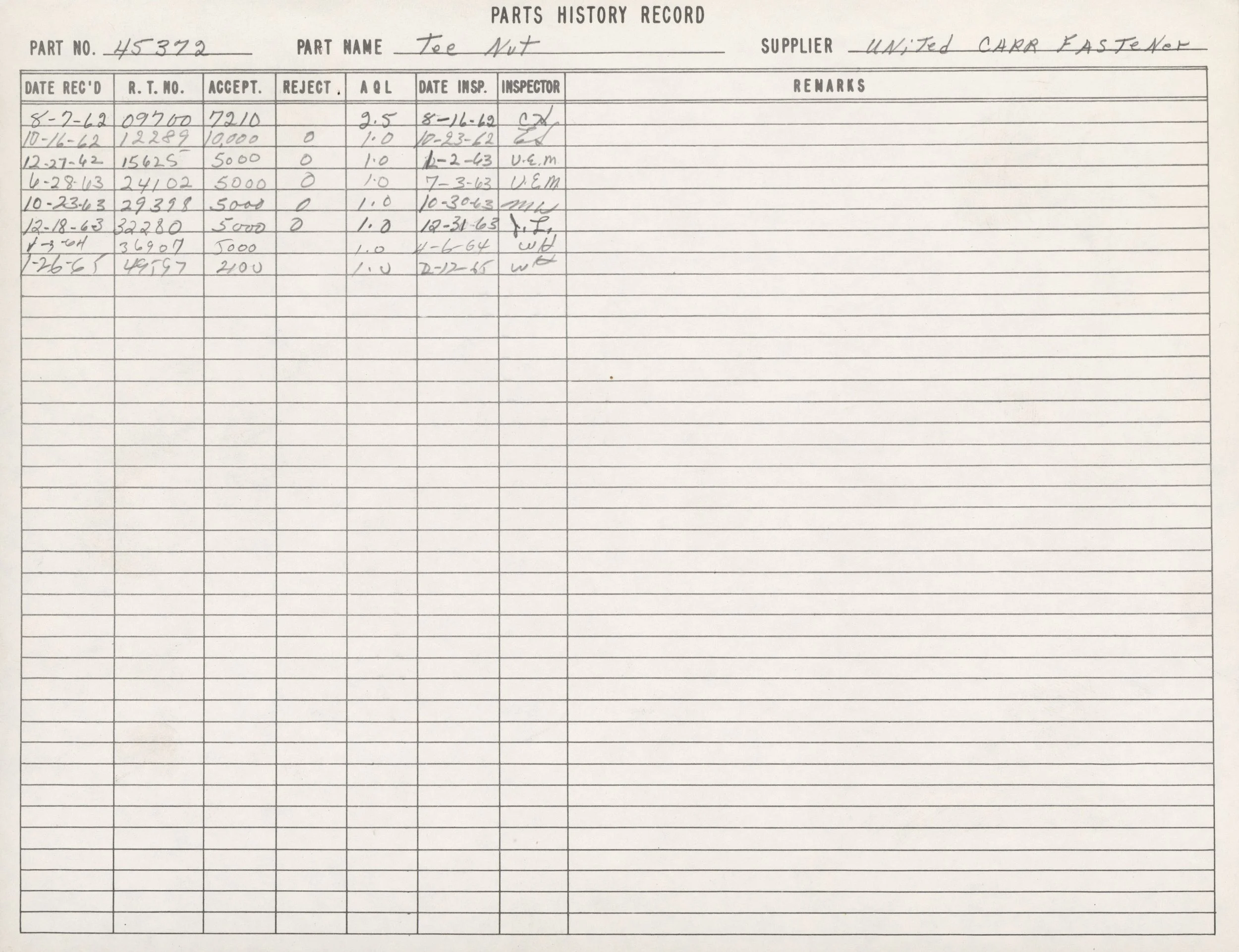

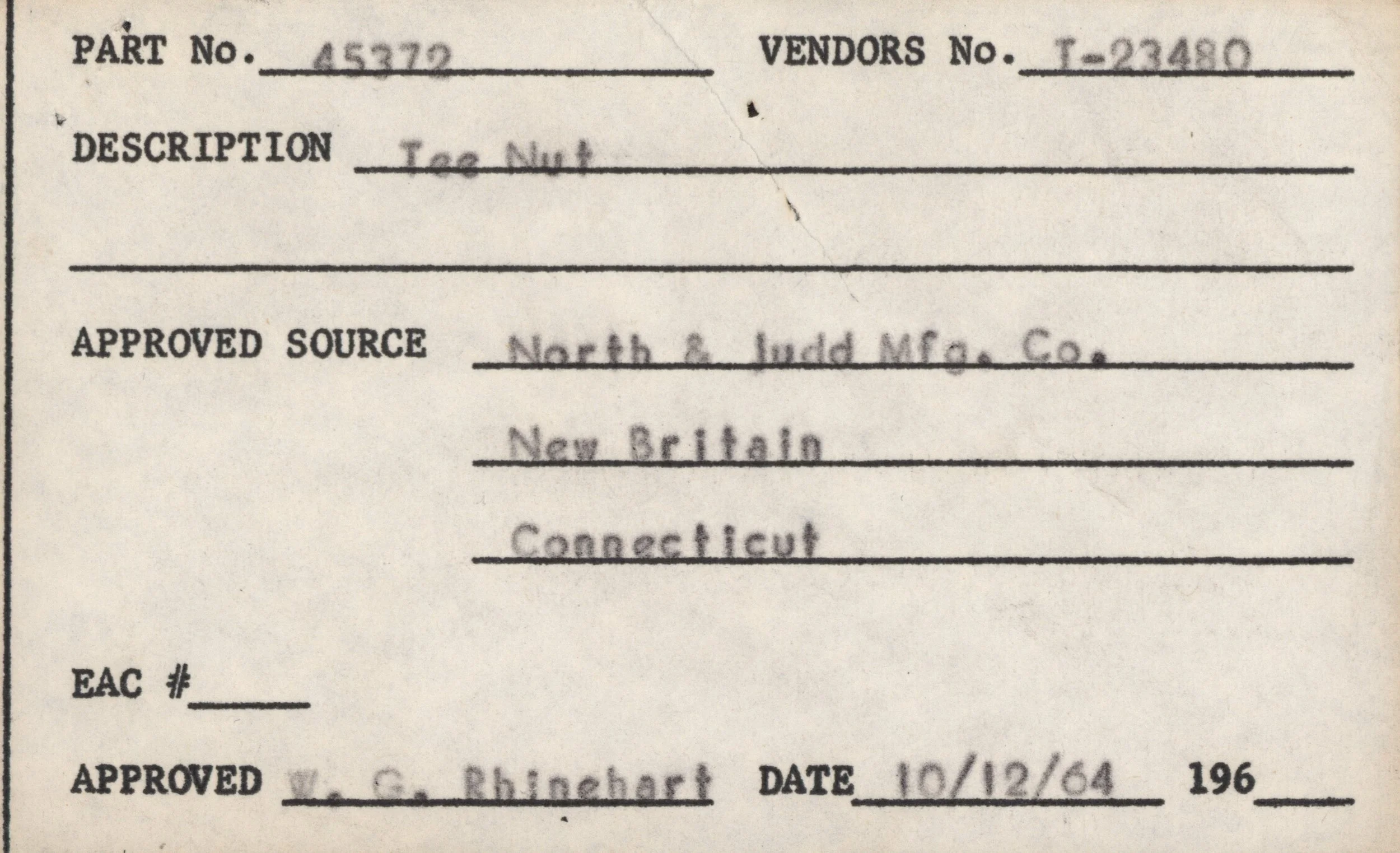

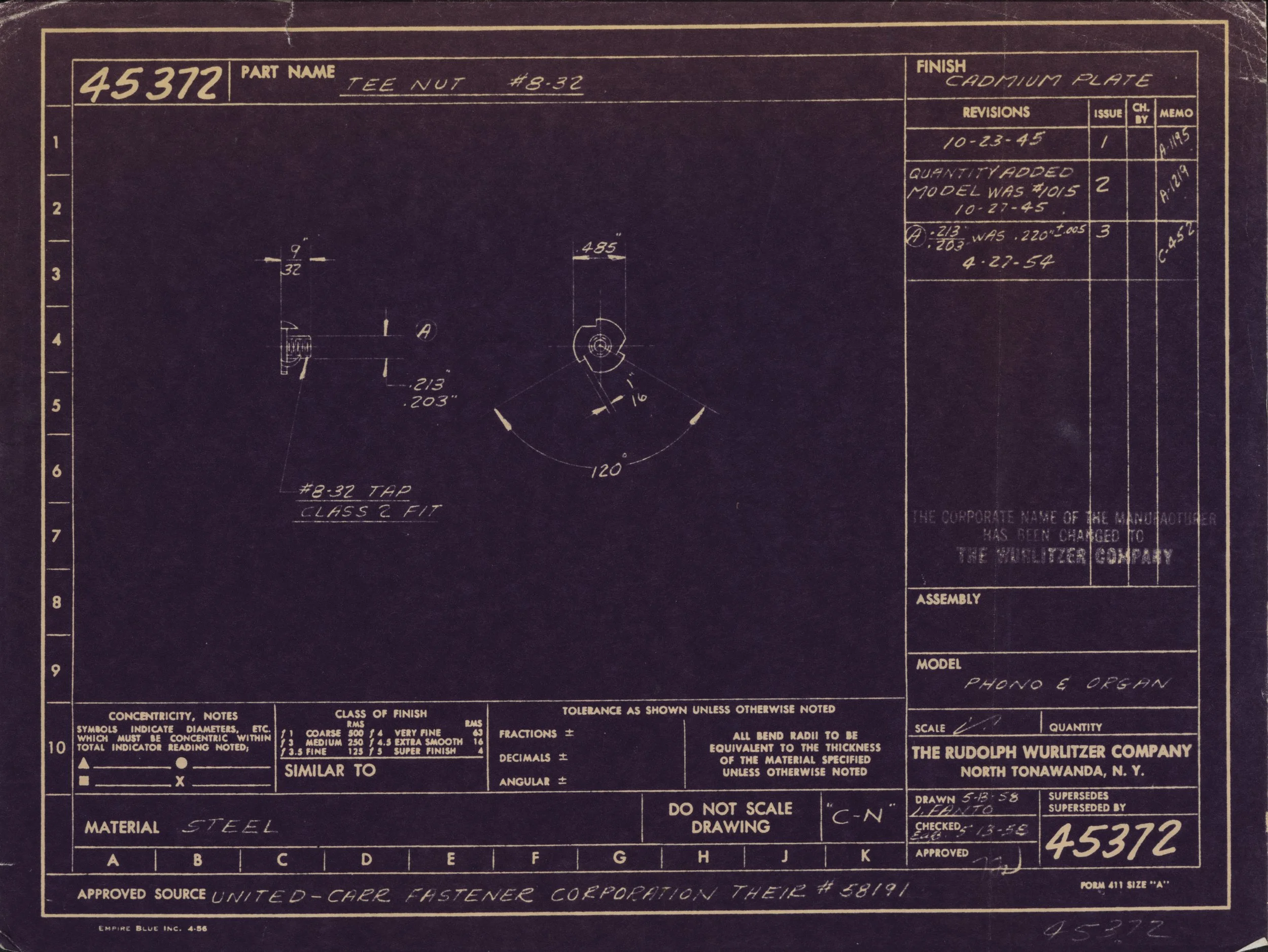

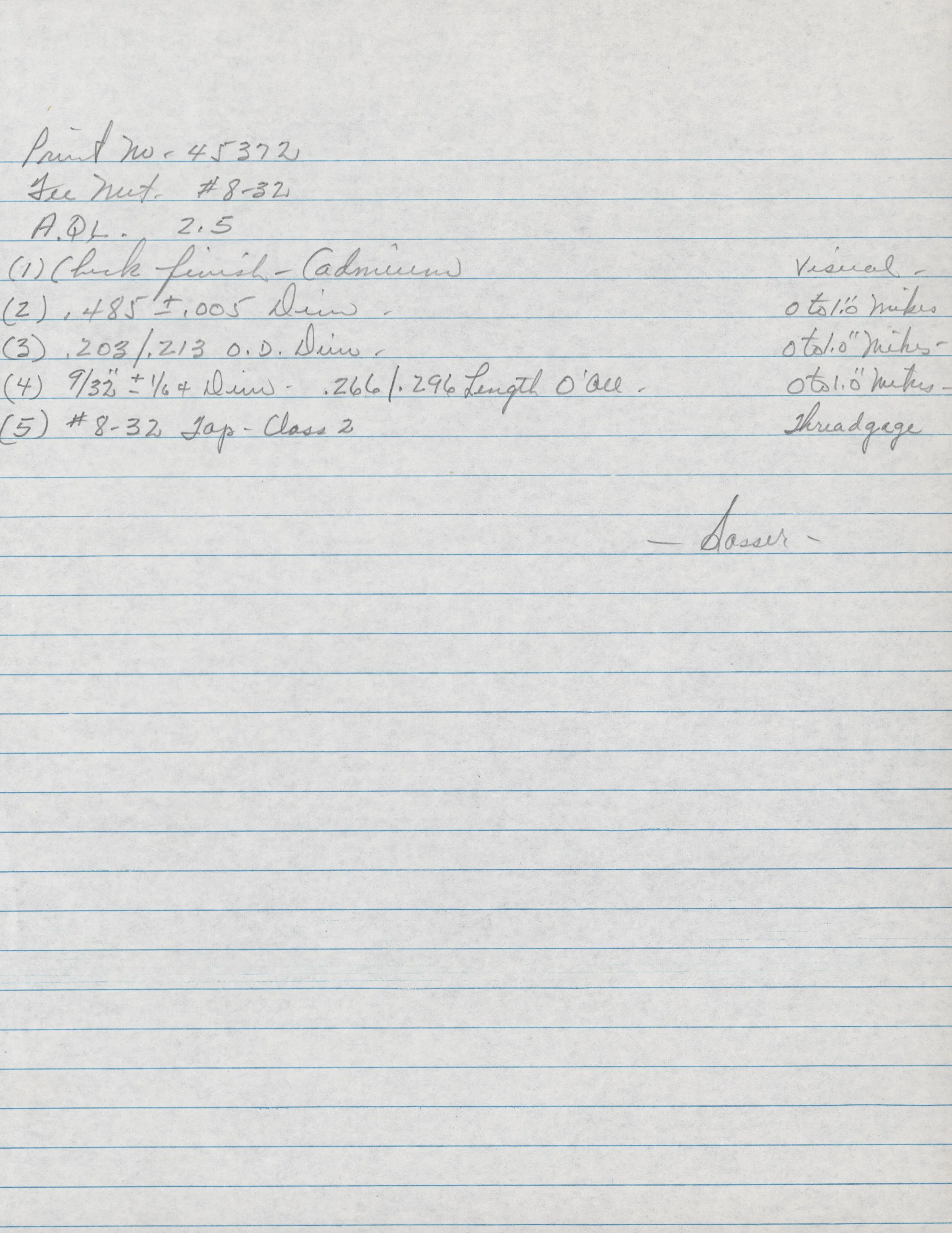

45372 (#8-32 tee nut)

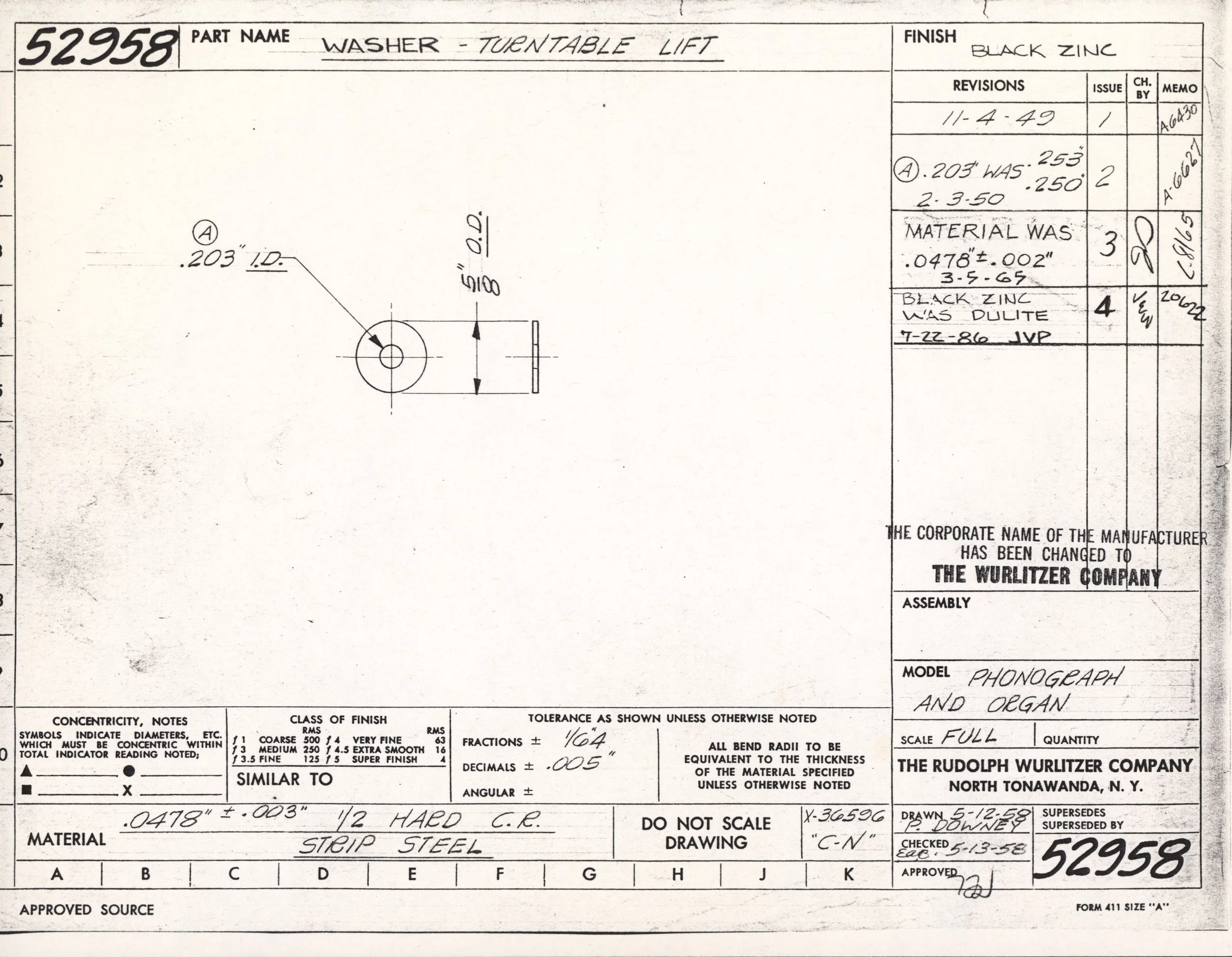

52958 (Turntable lift washer)

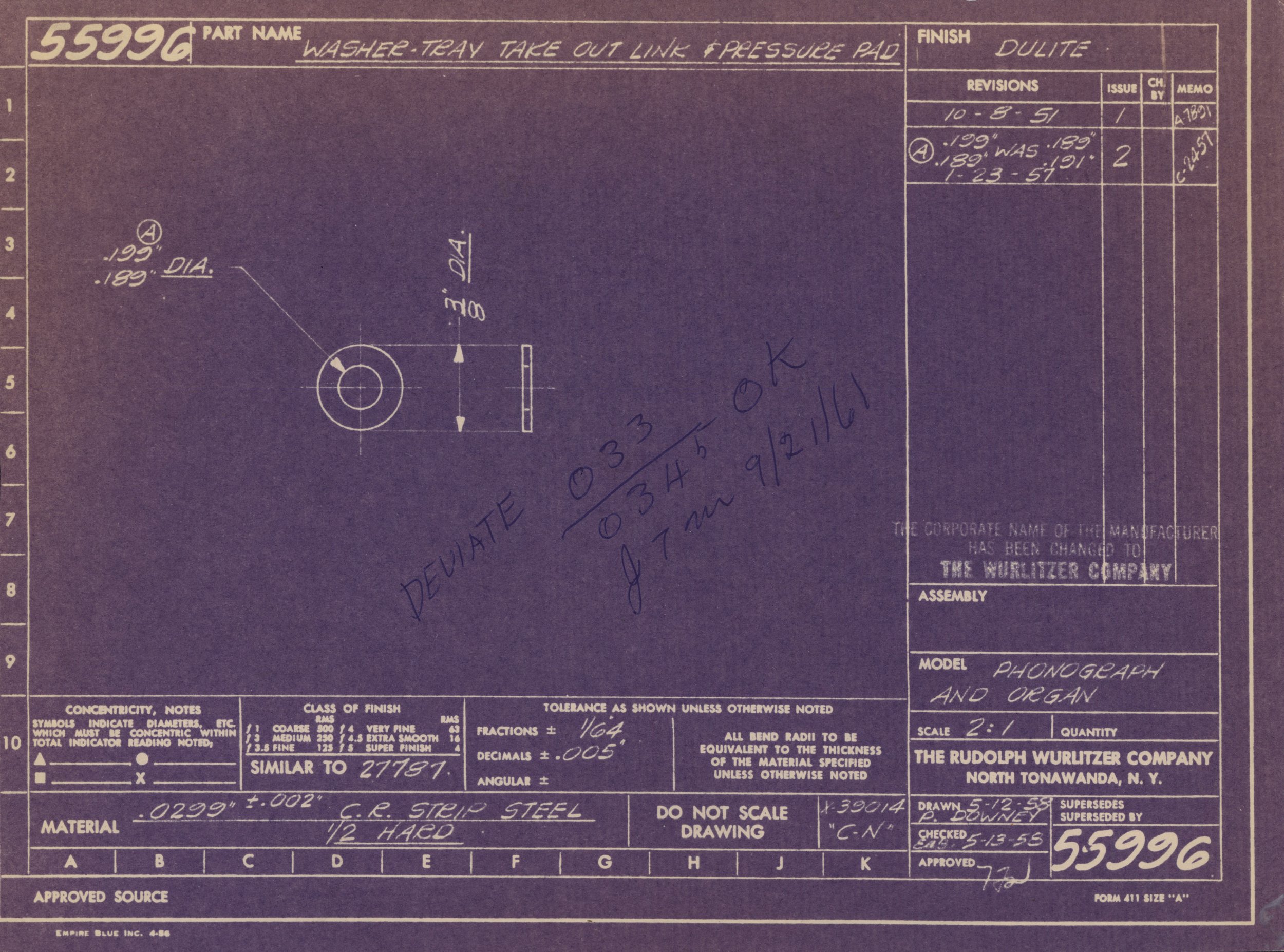

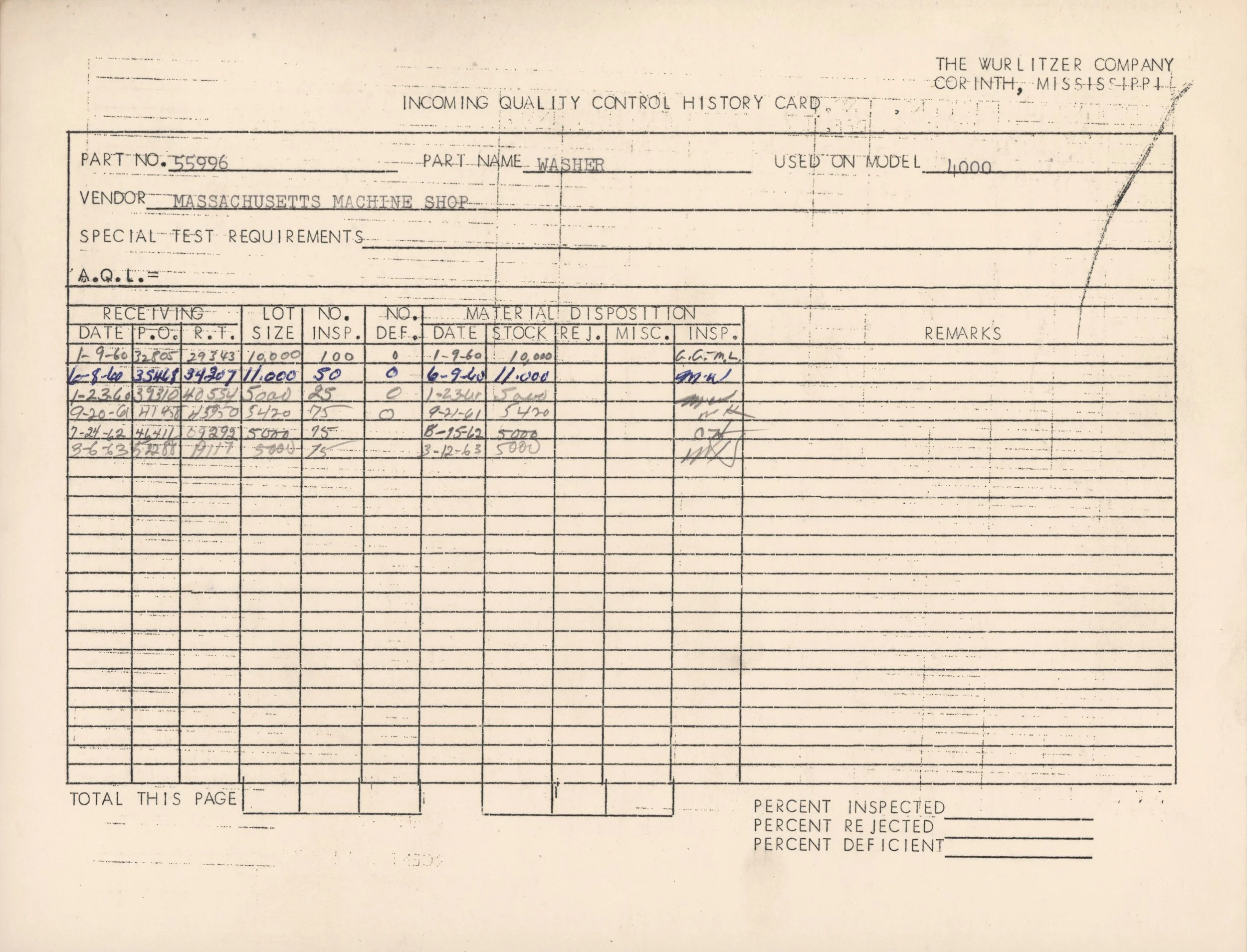

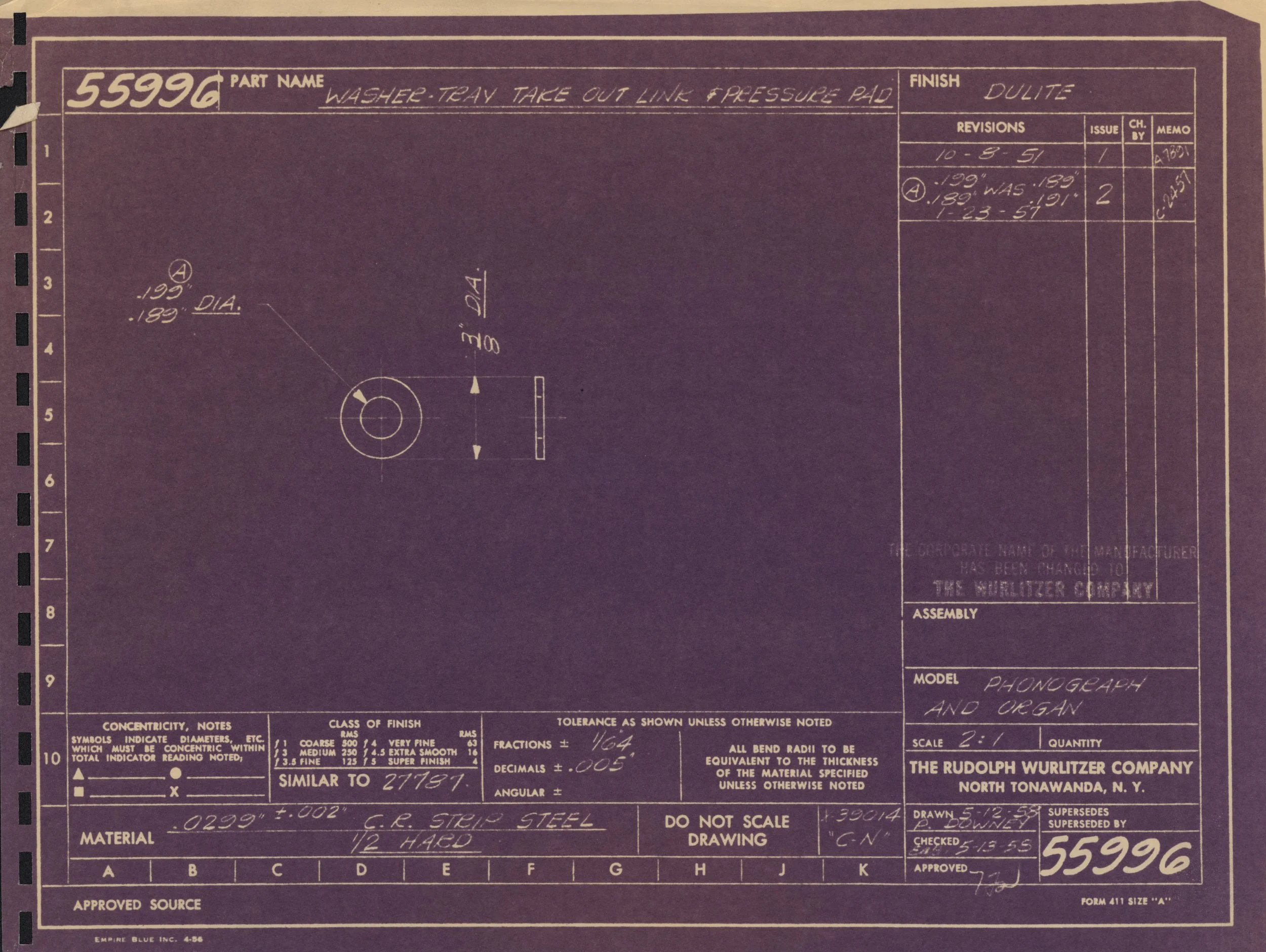

55996 (Washer for tray take out link & pressure pad)

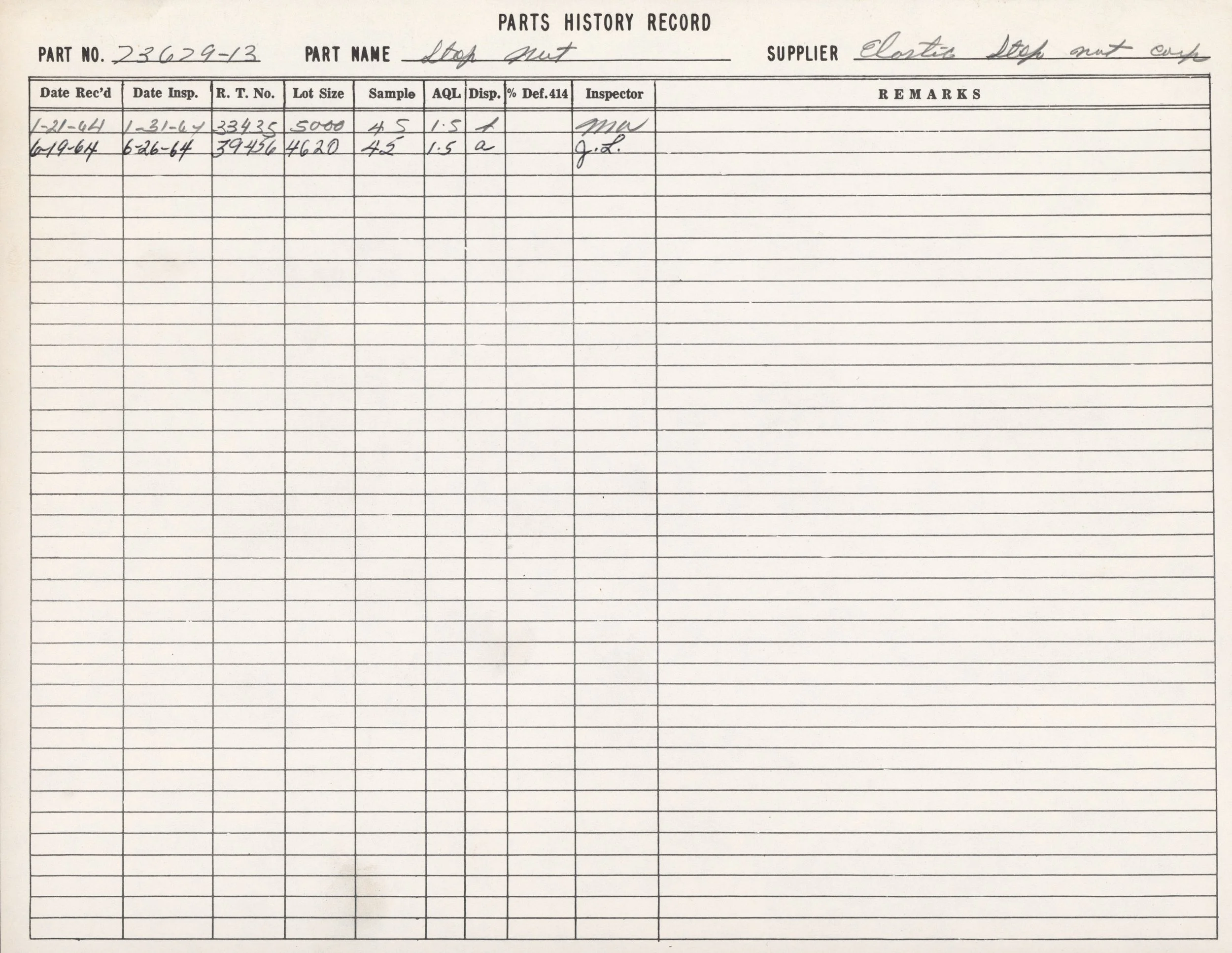

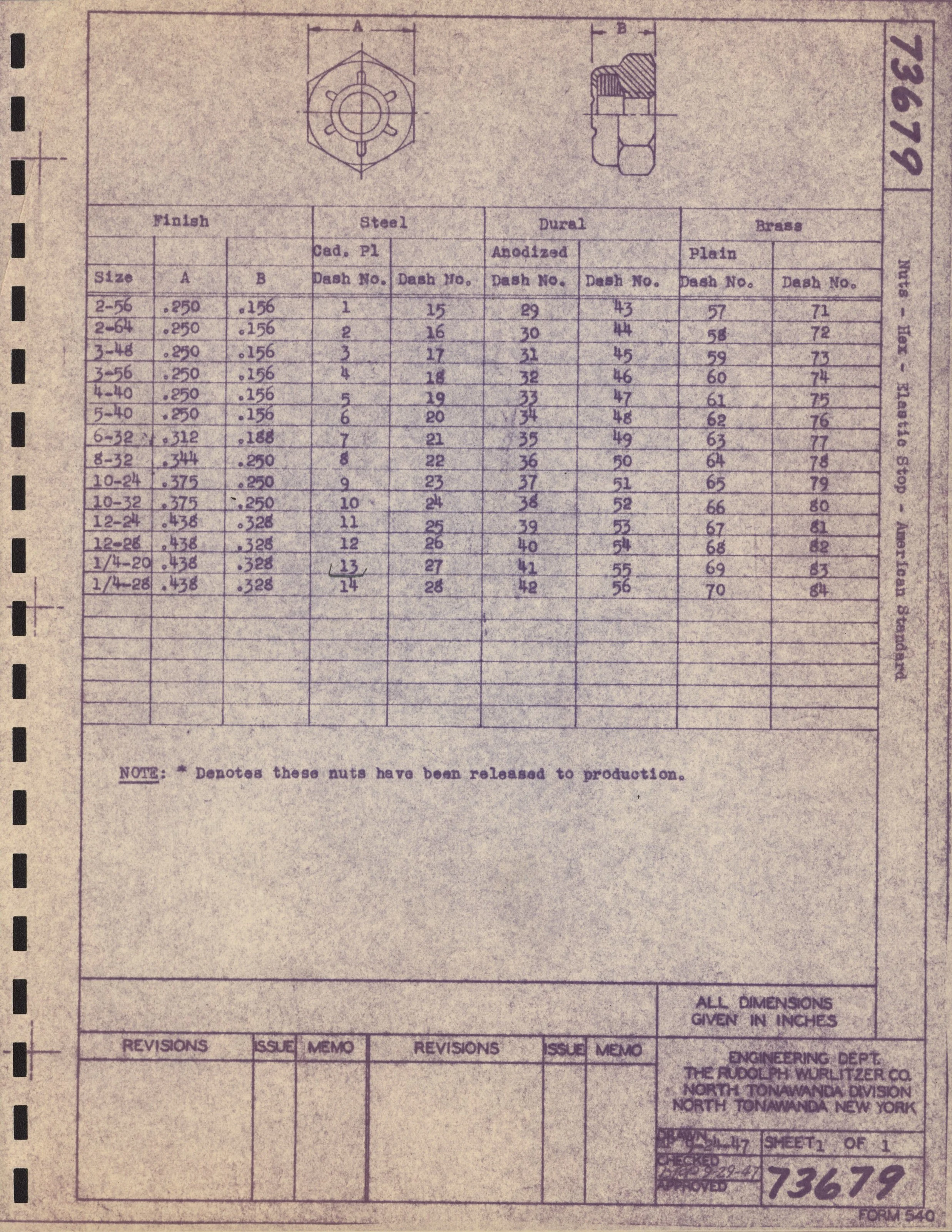

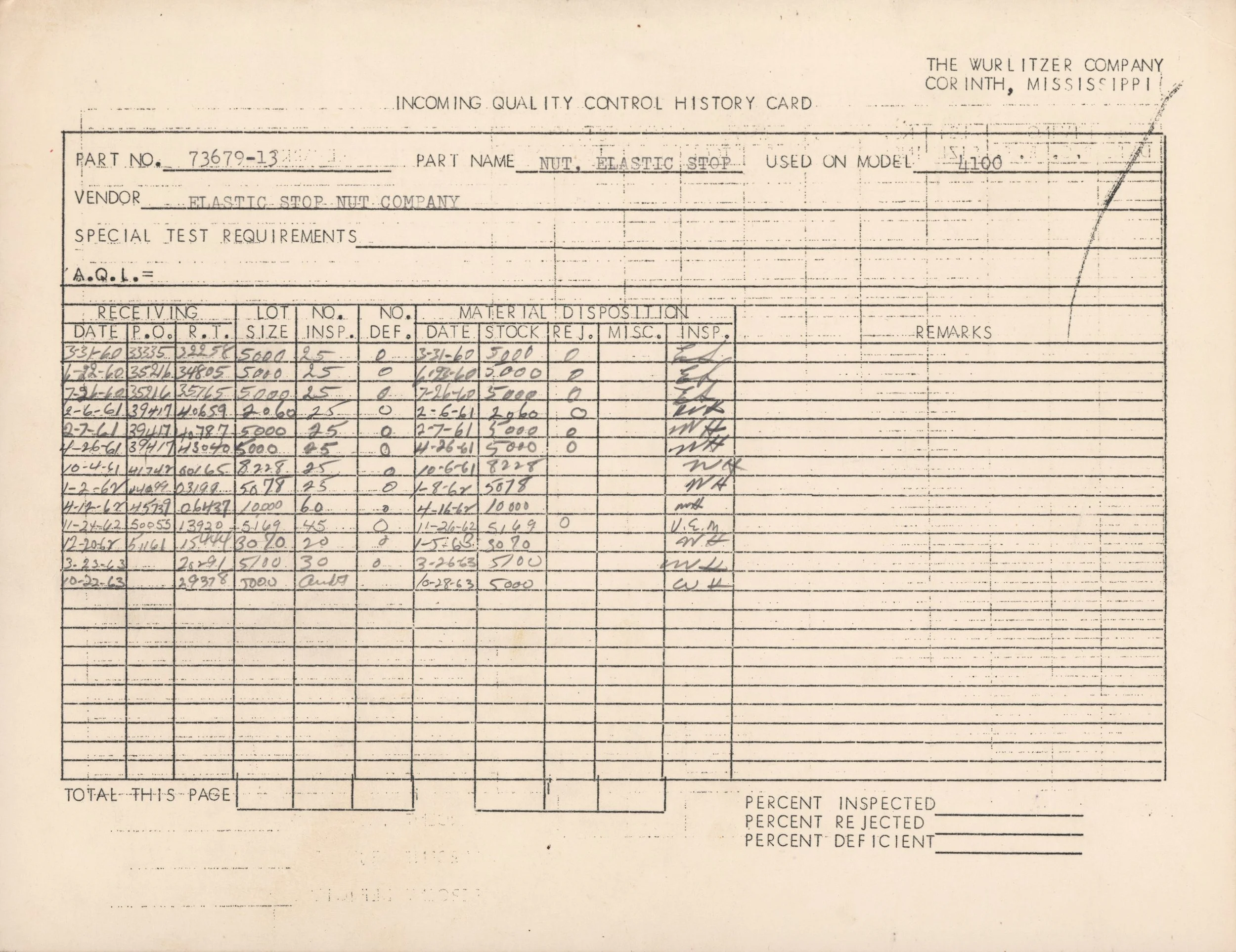

73679 (American standard elastic stop hex nuts)

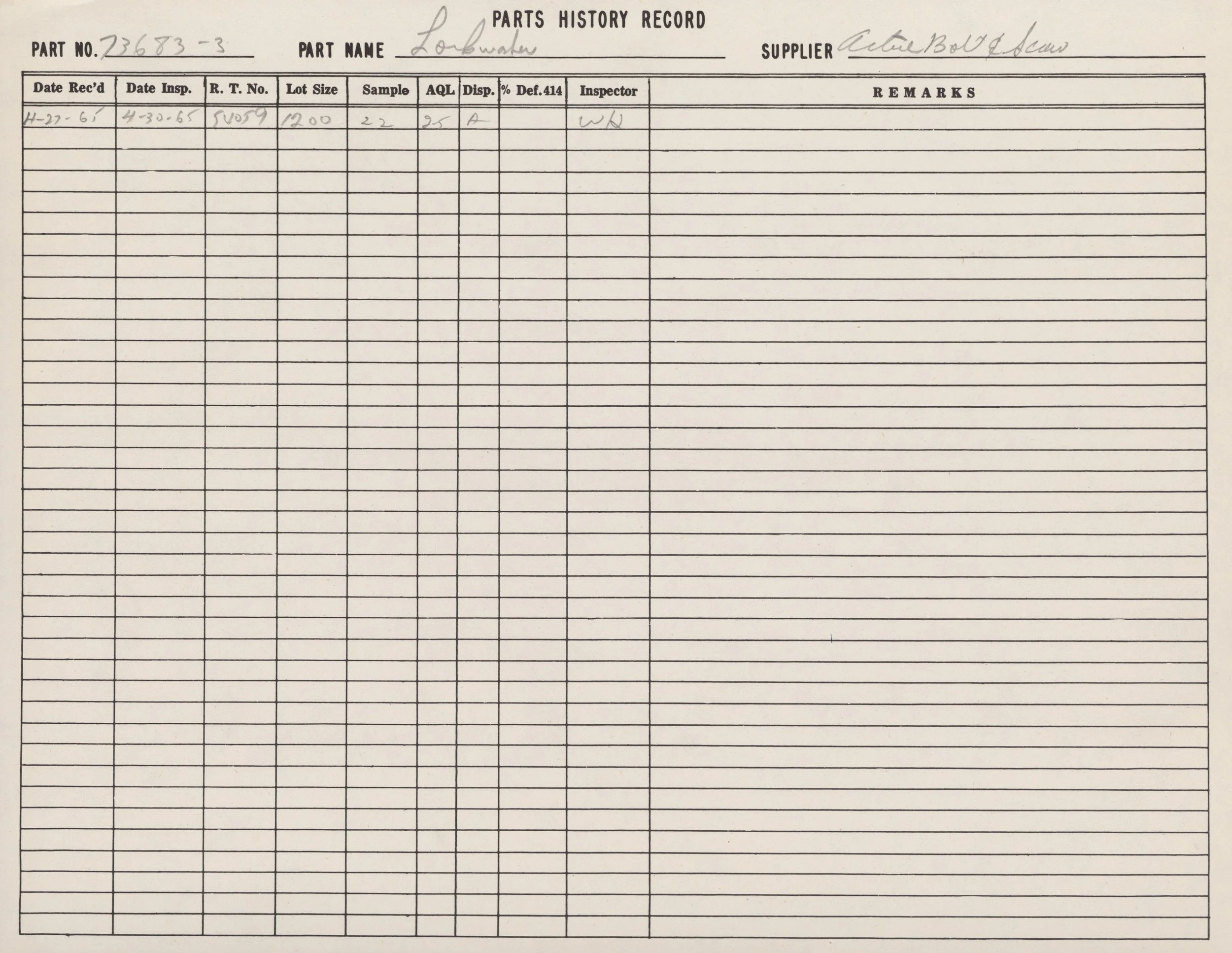

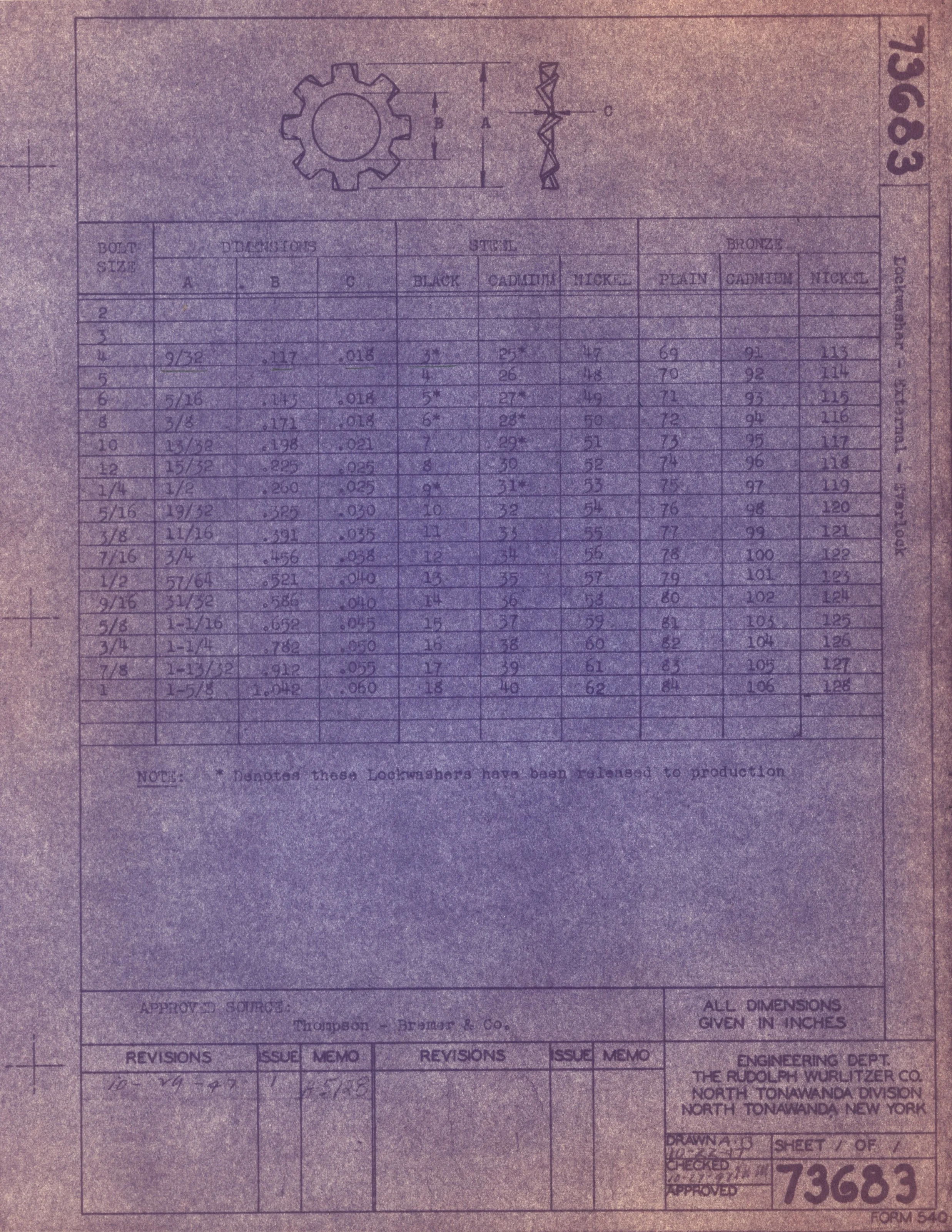

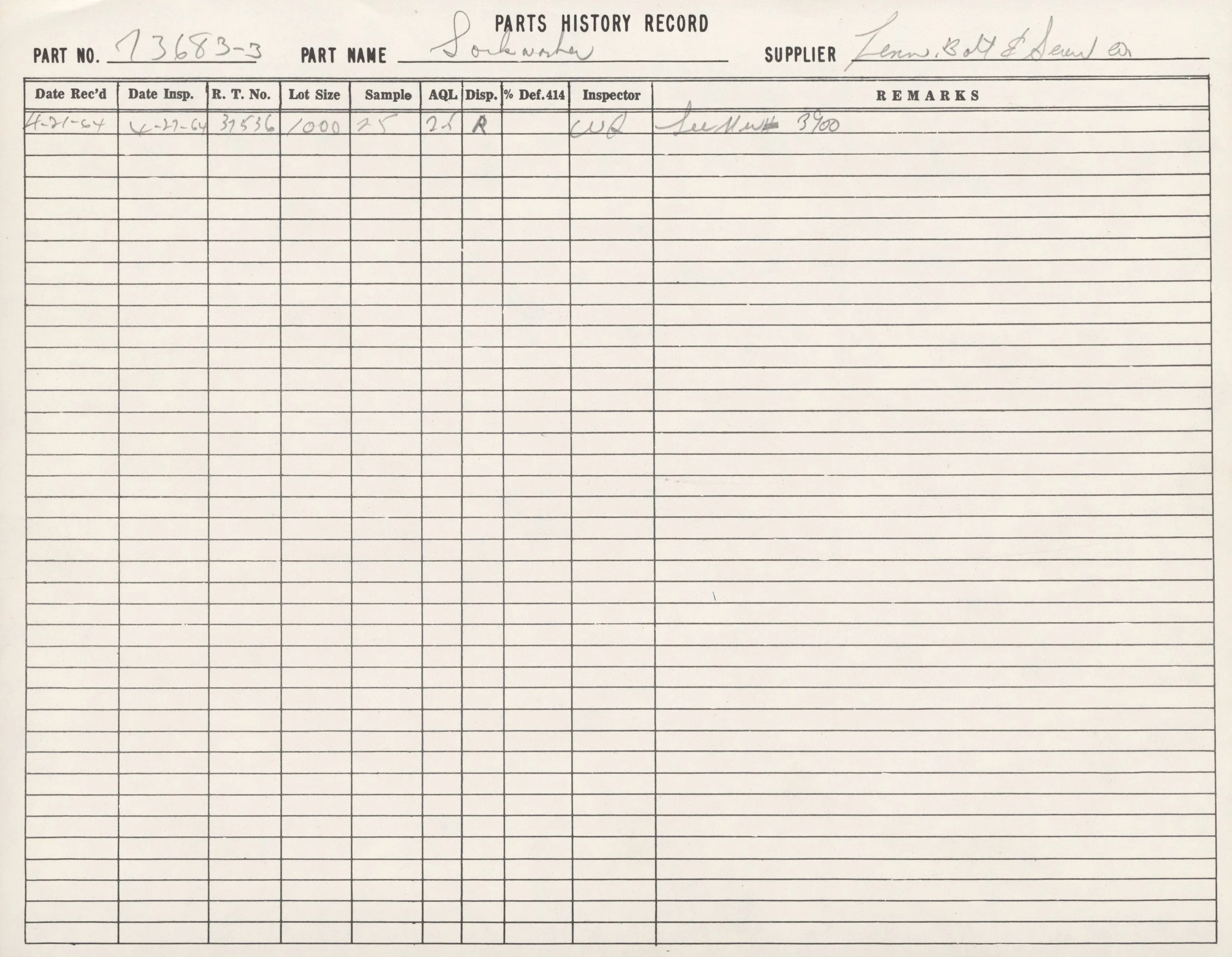

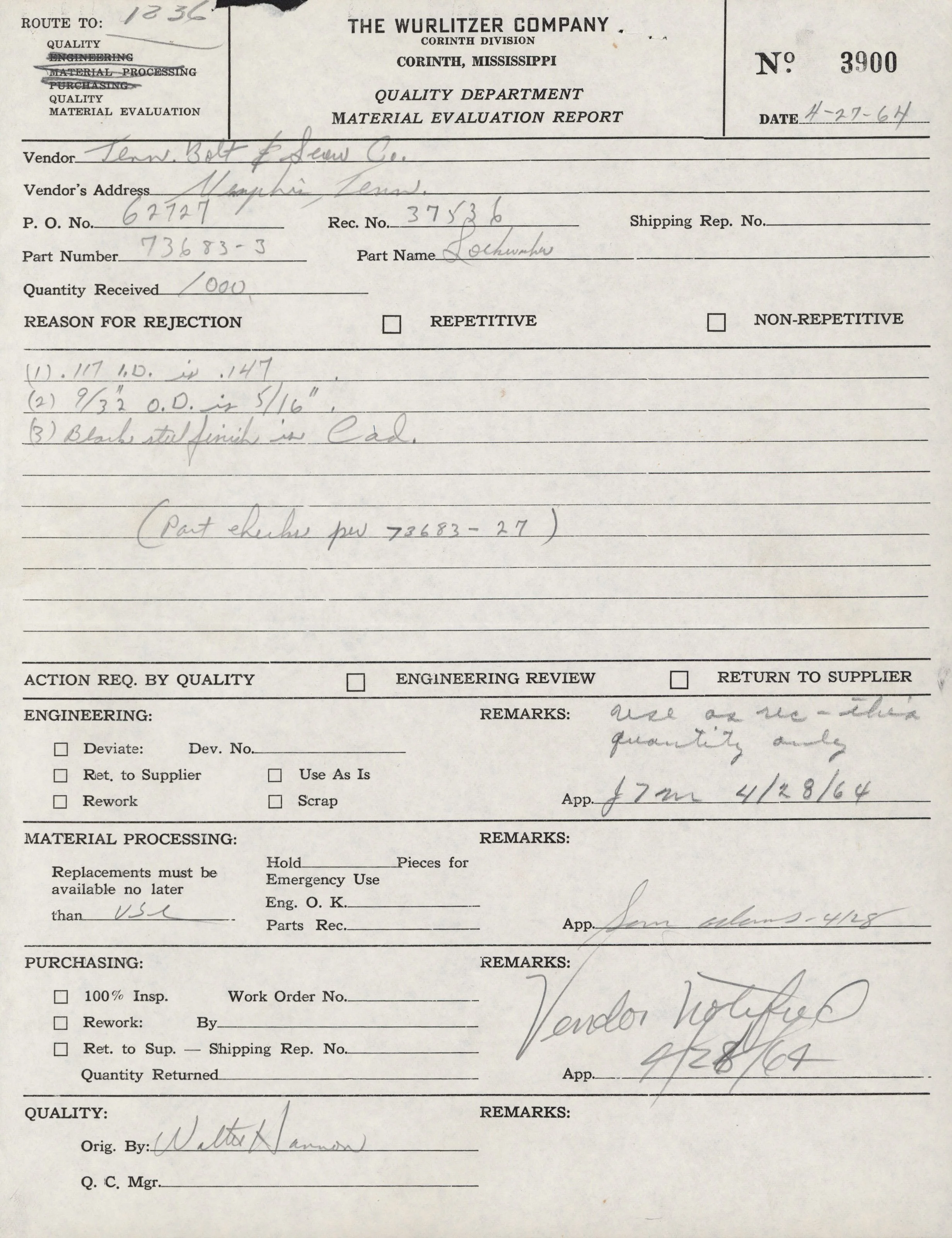

73683 (Everlock external lock washer)

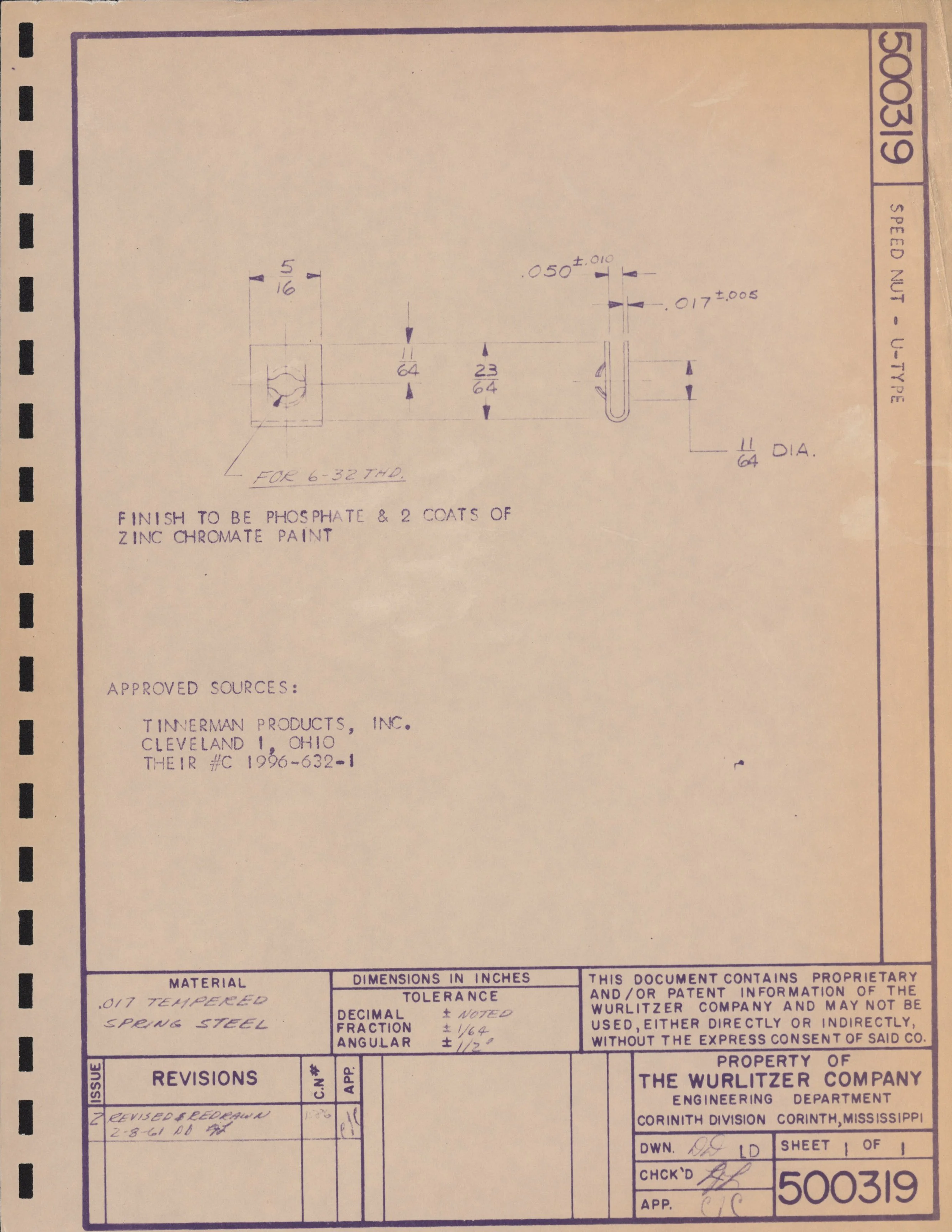

500319 (U-type speed nut)

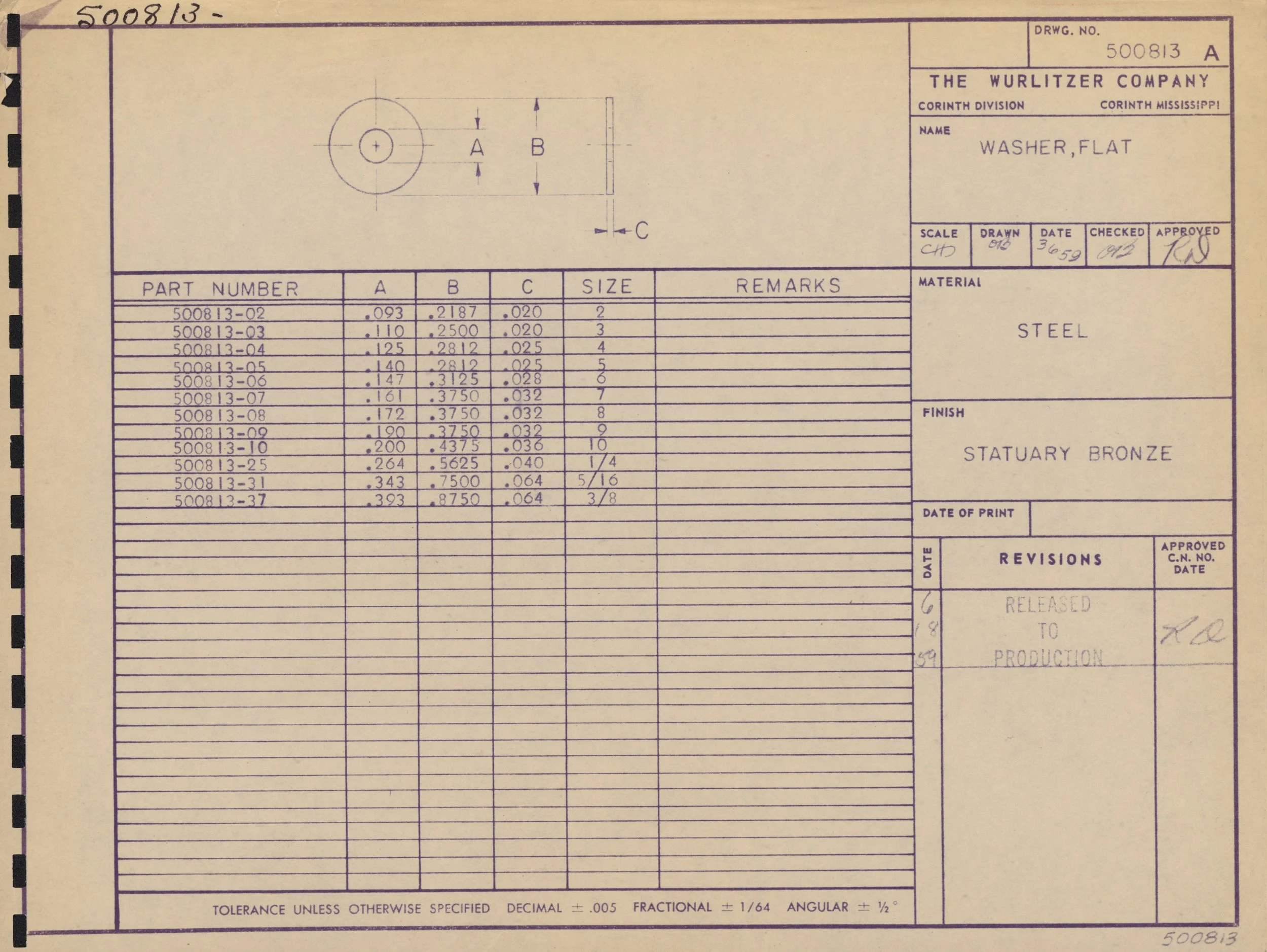

500813 (Flat washer)
Screws
The following drawings are of screws that are used in multiple Wurlitzer instruments.

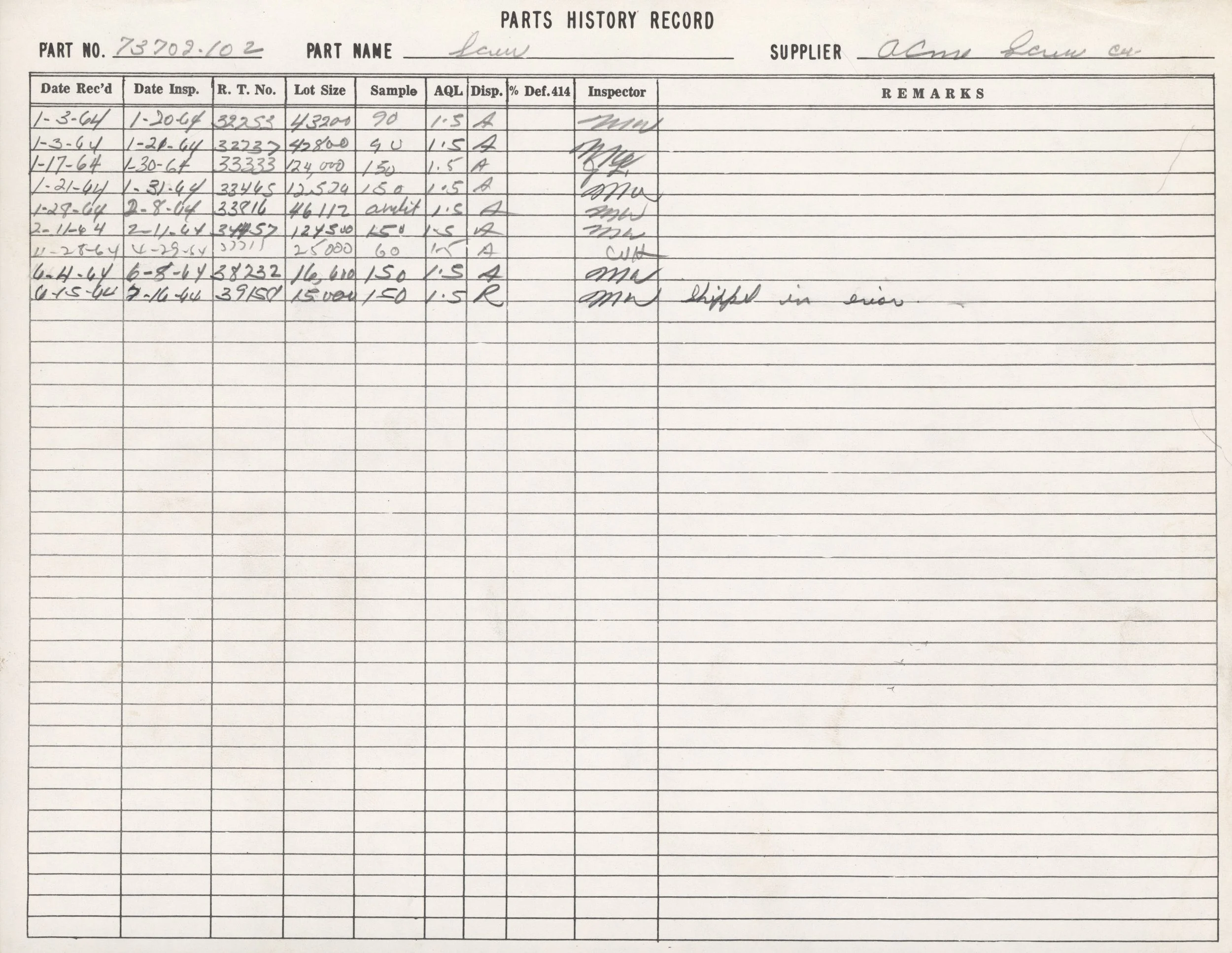

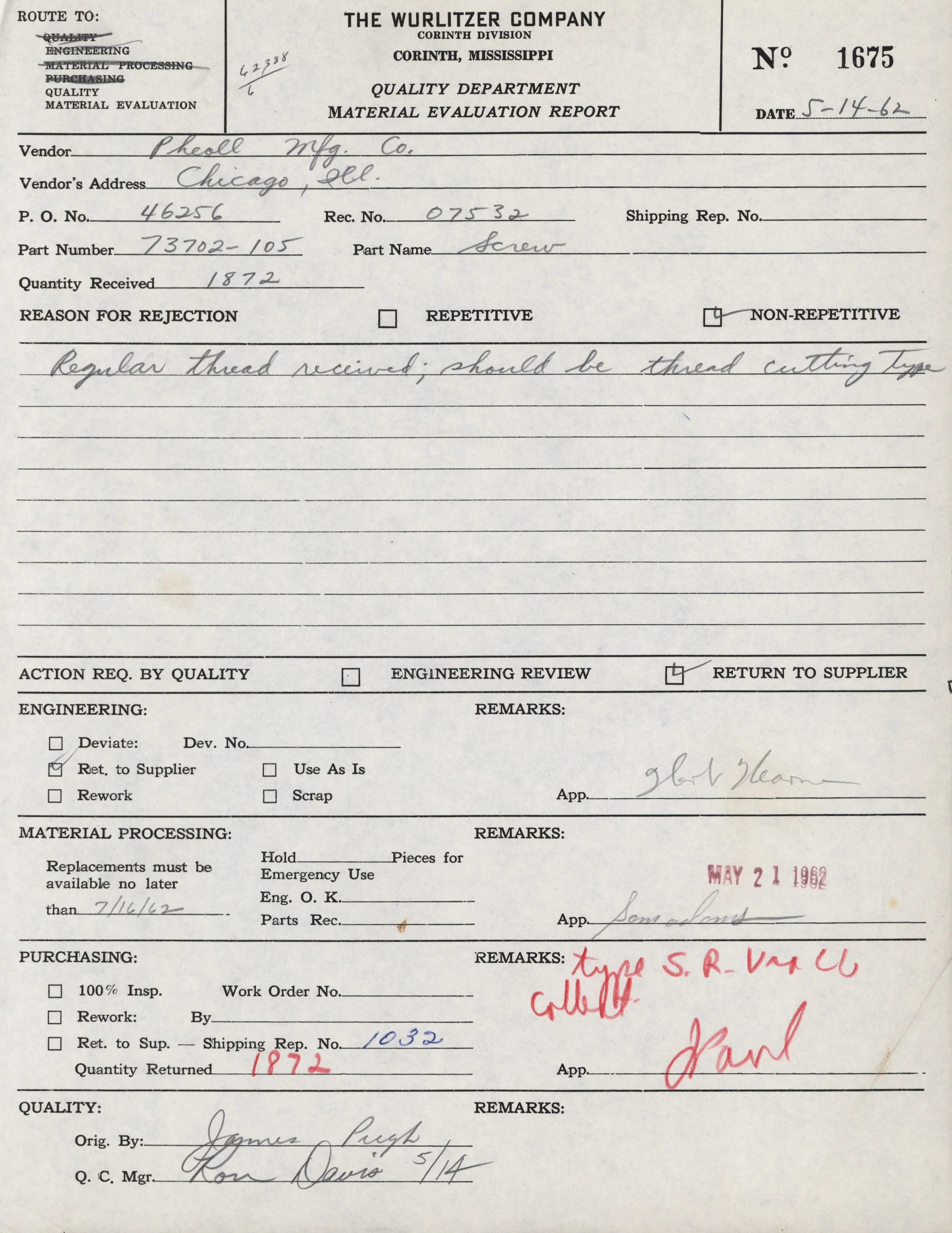

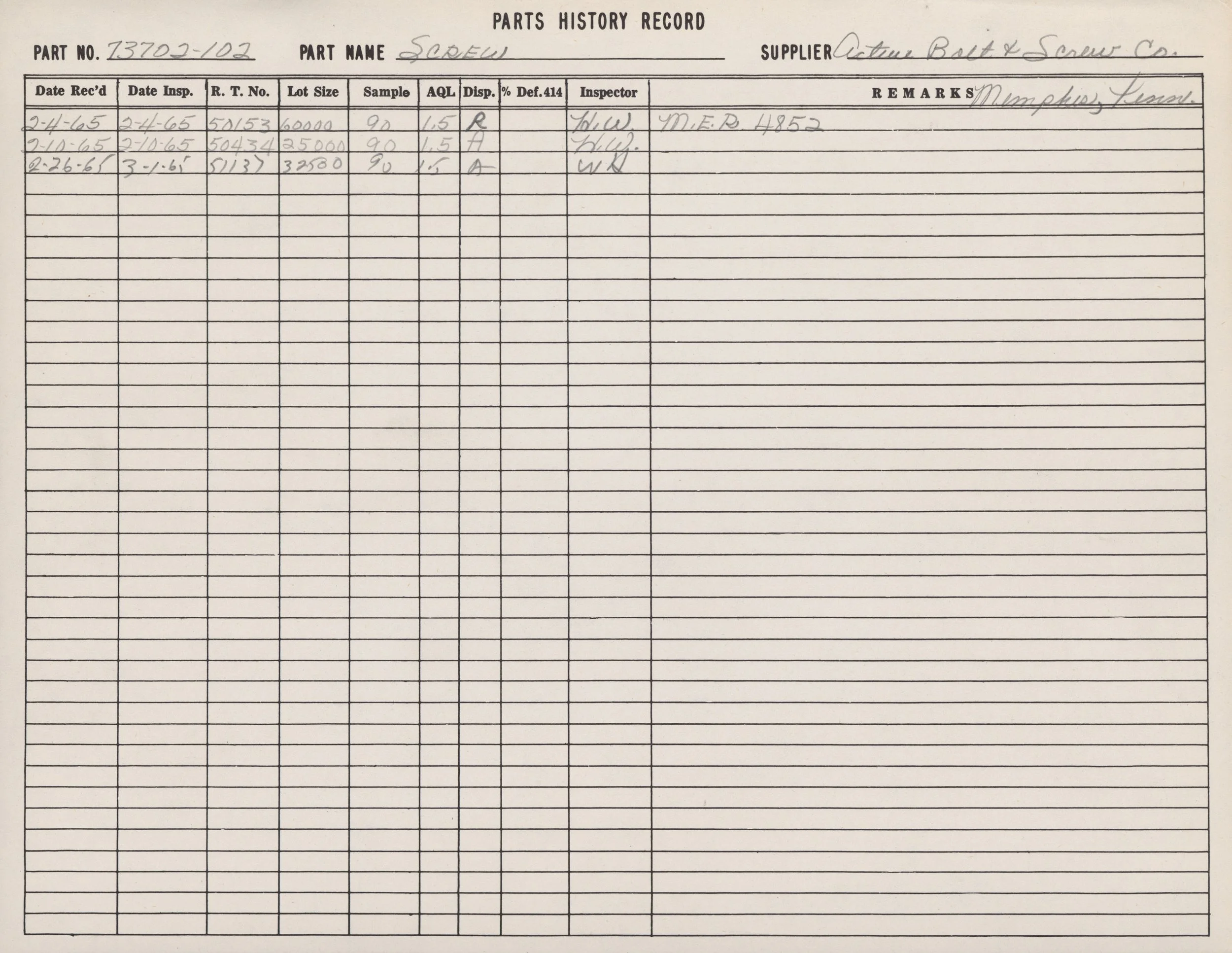

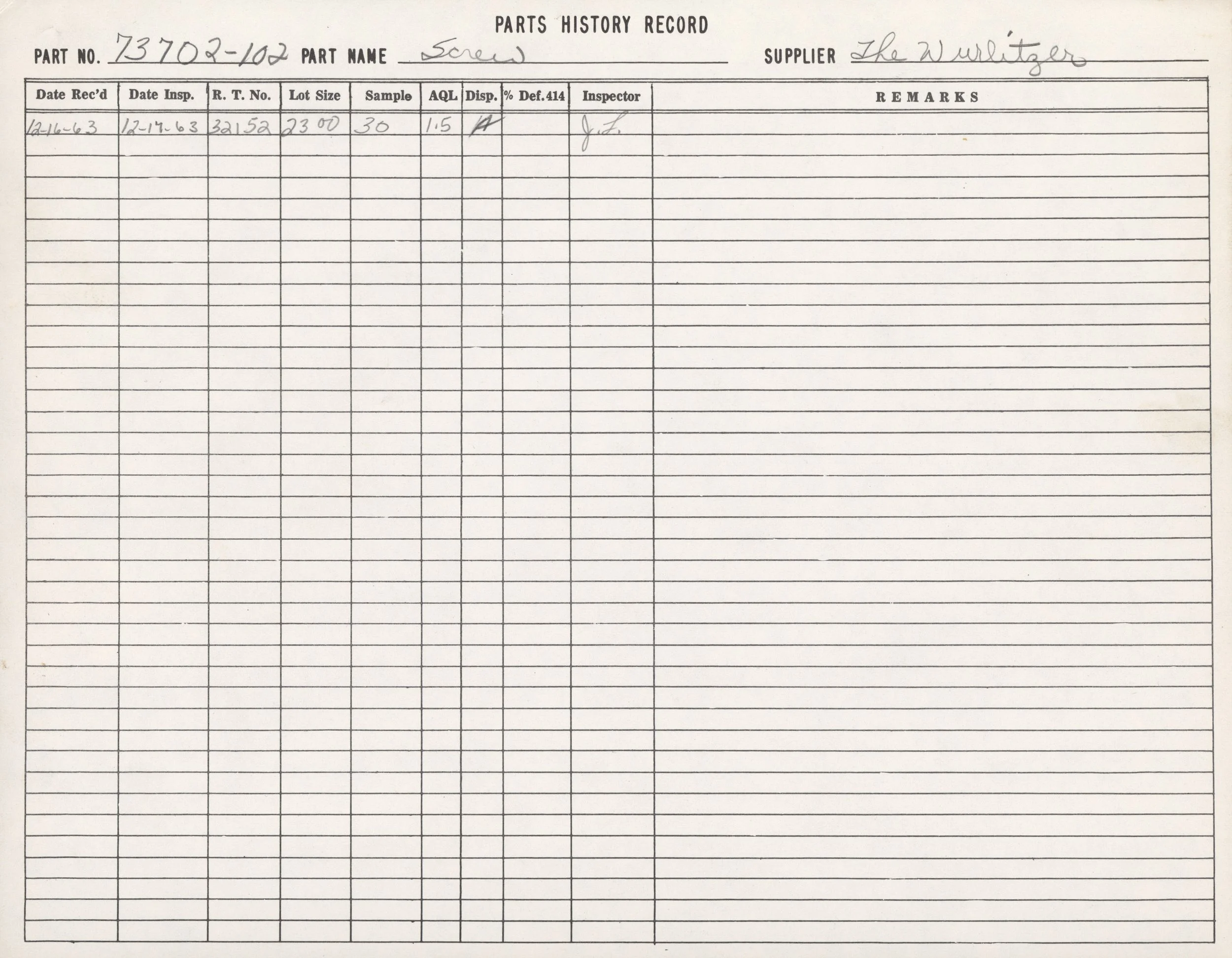

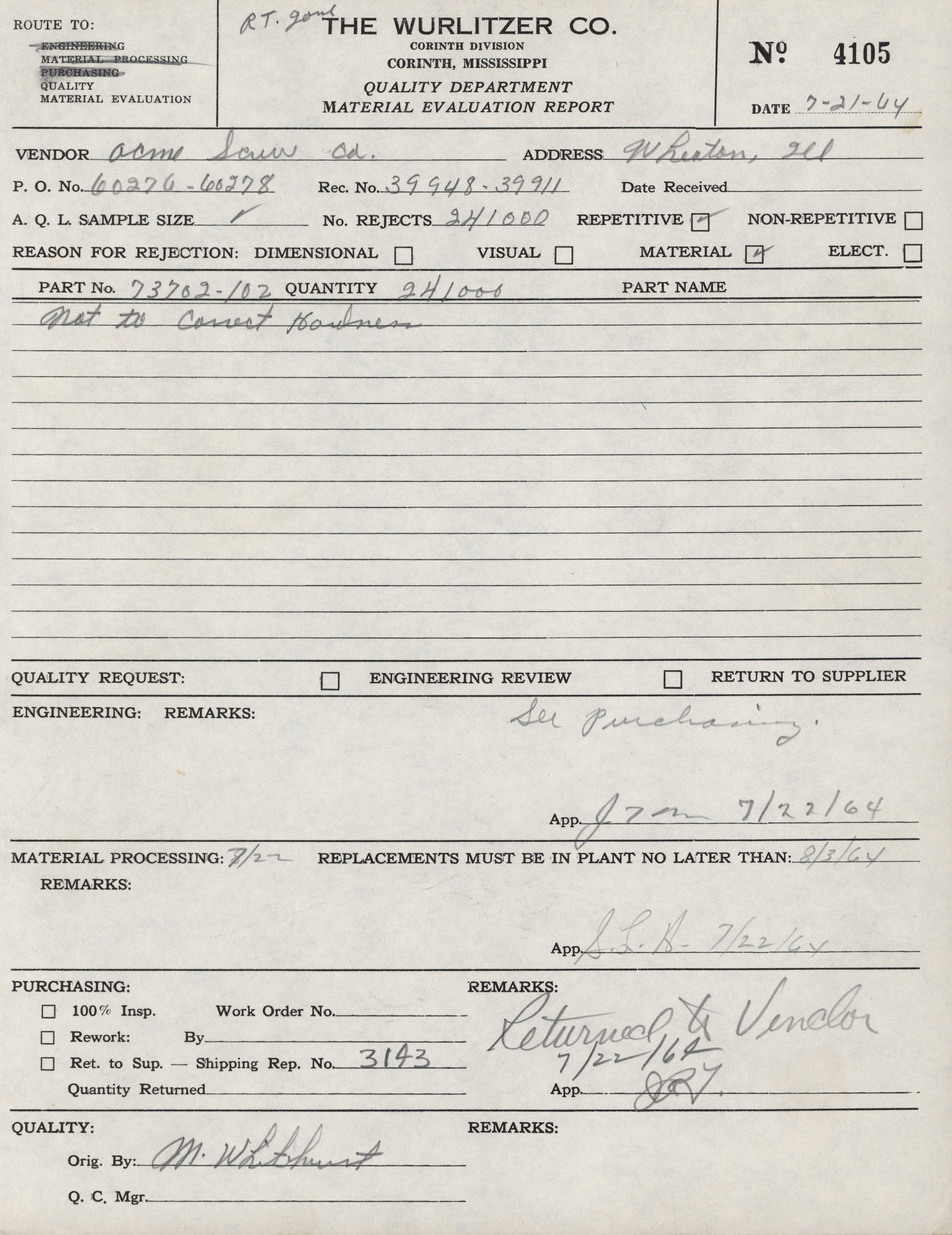

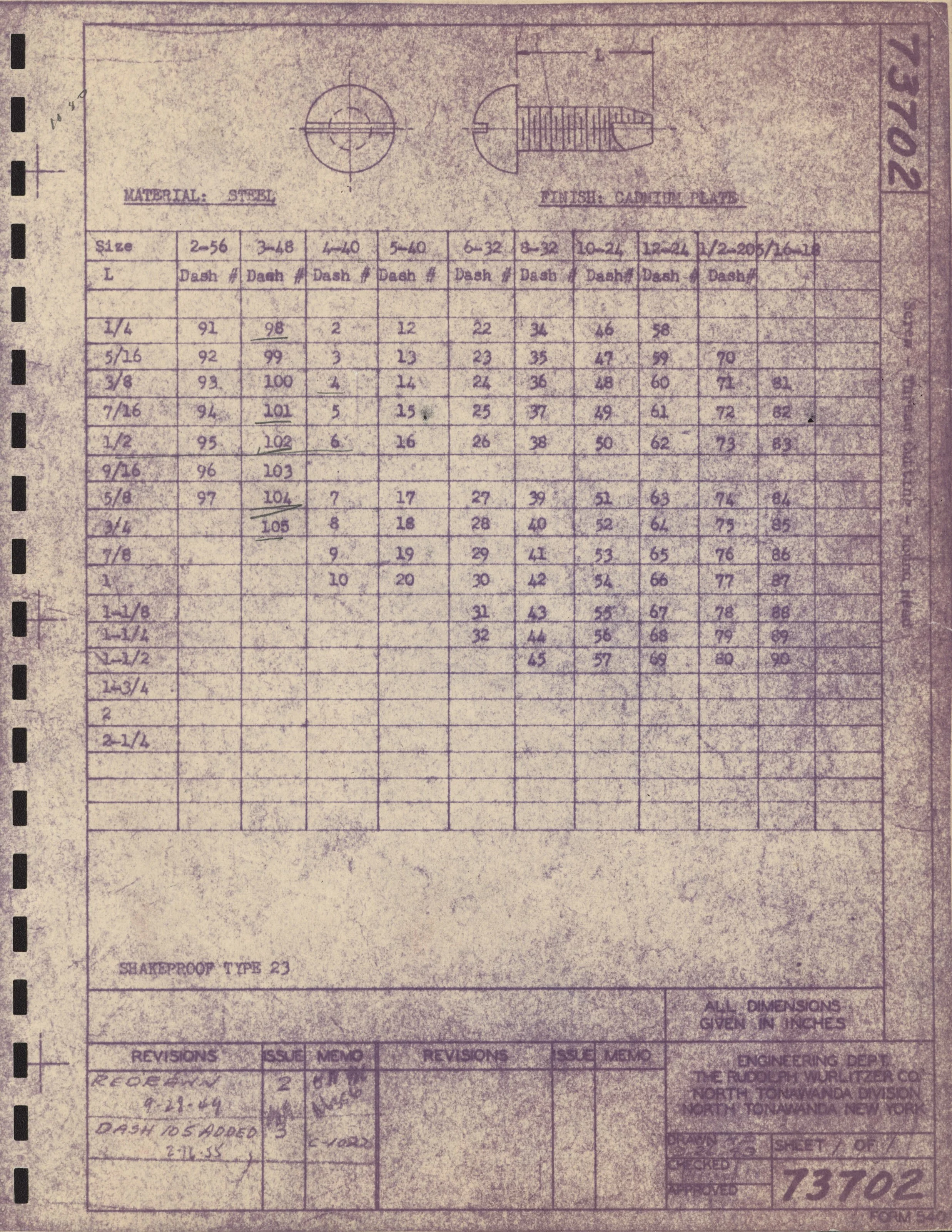

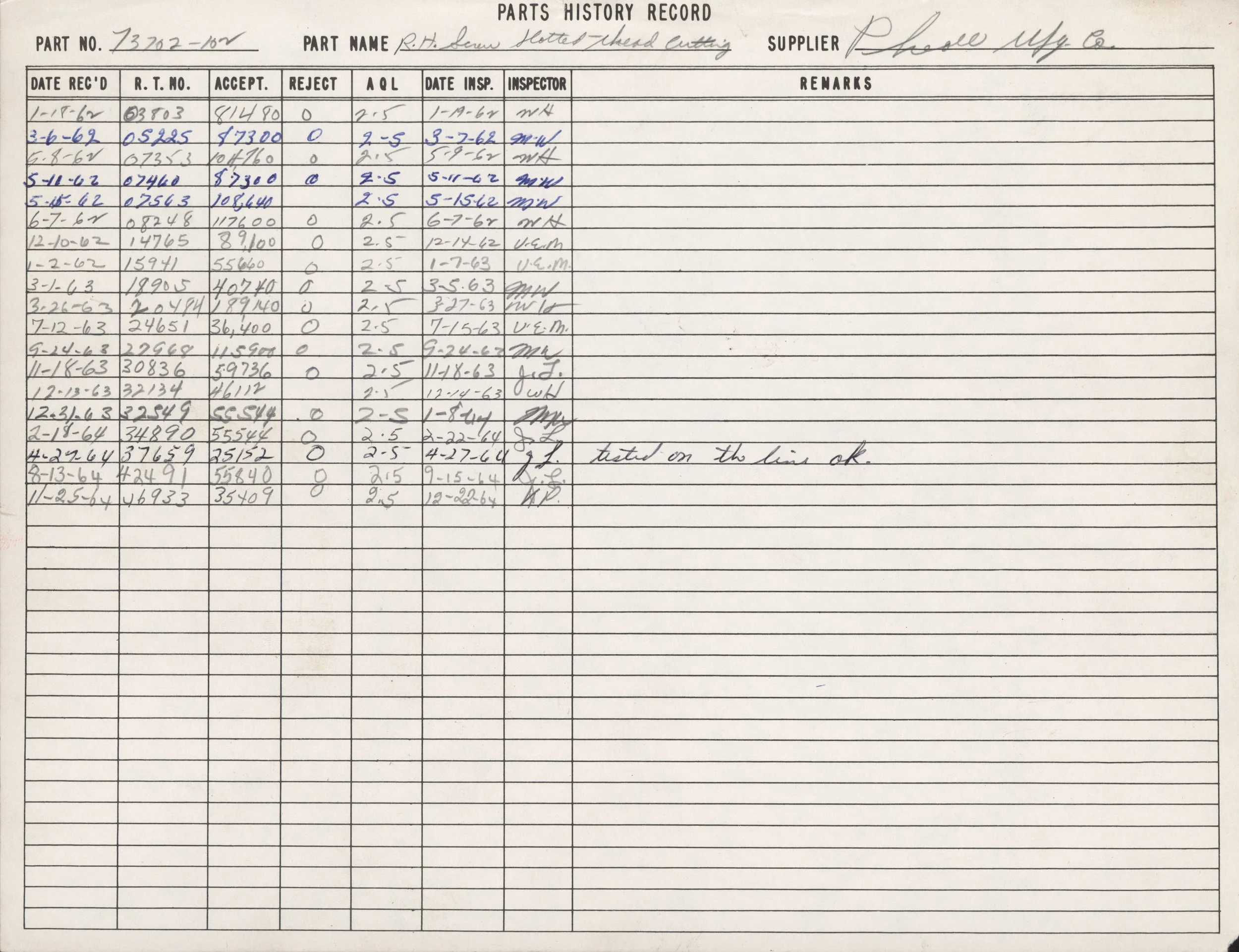

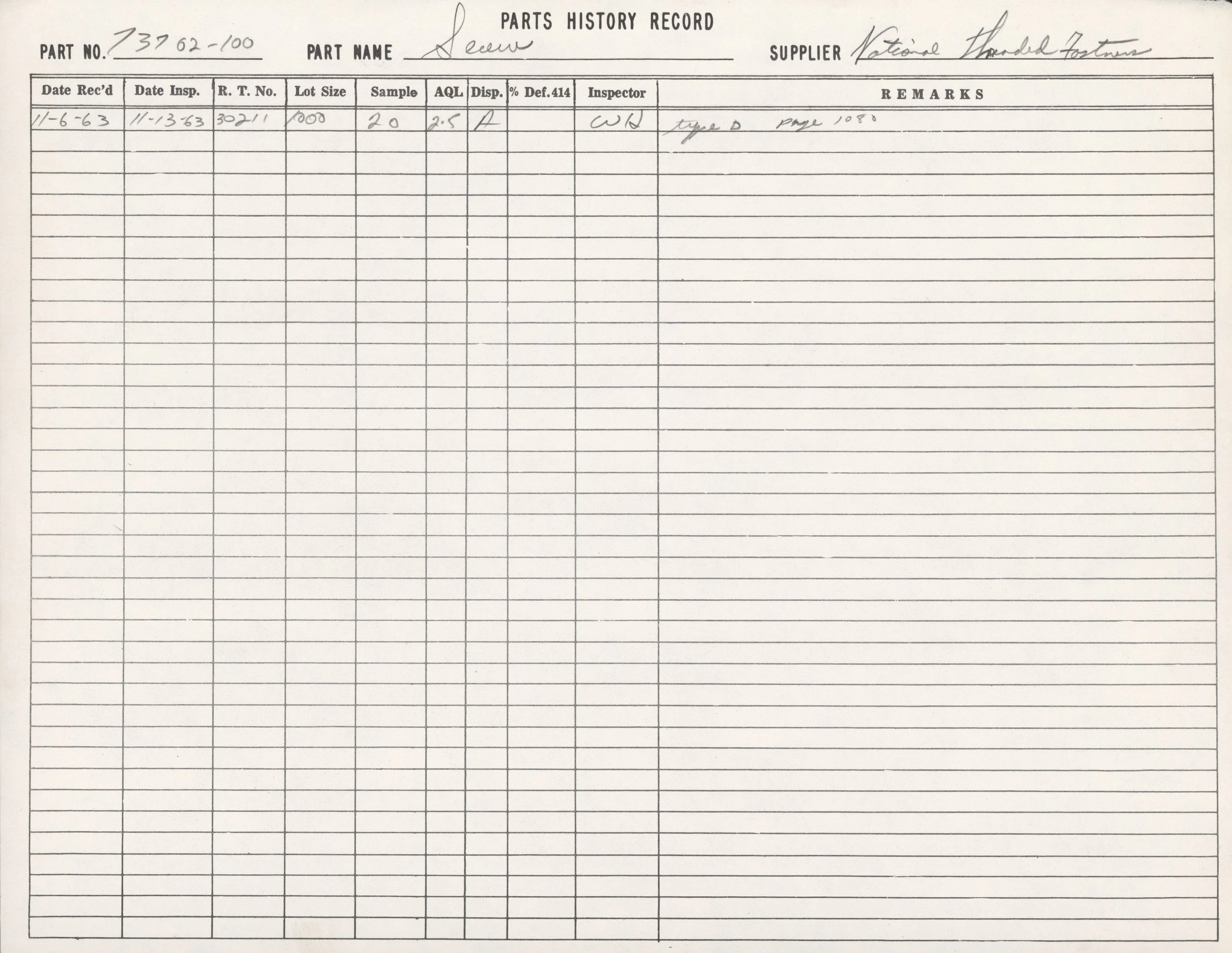

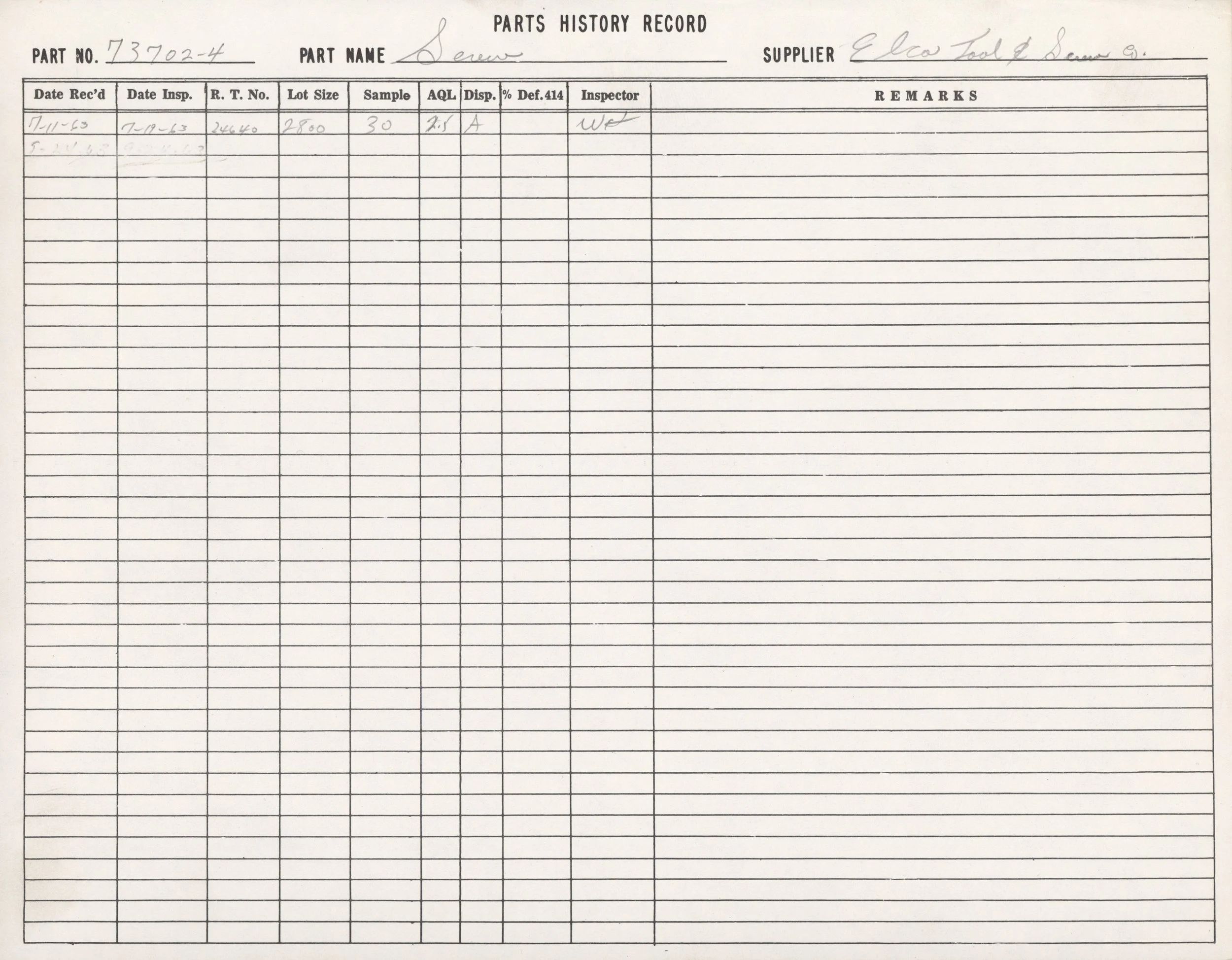

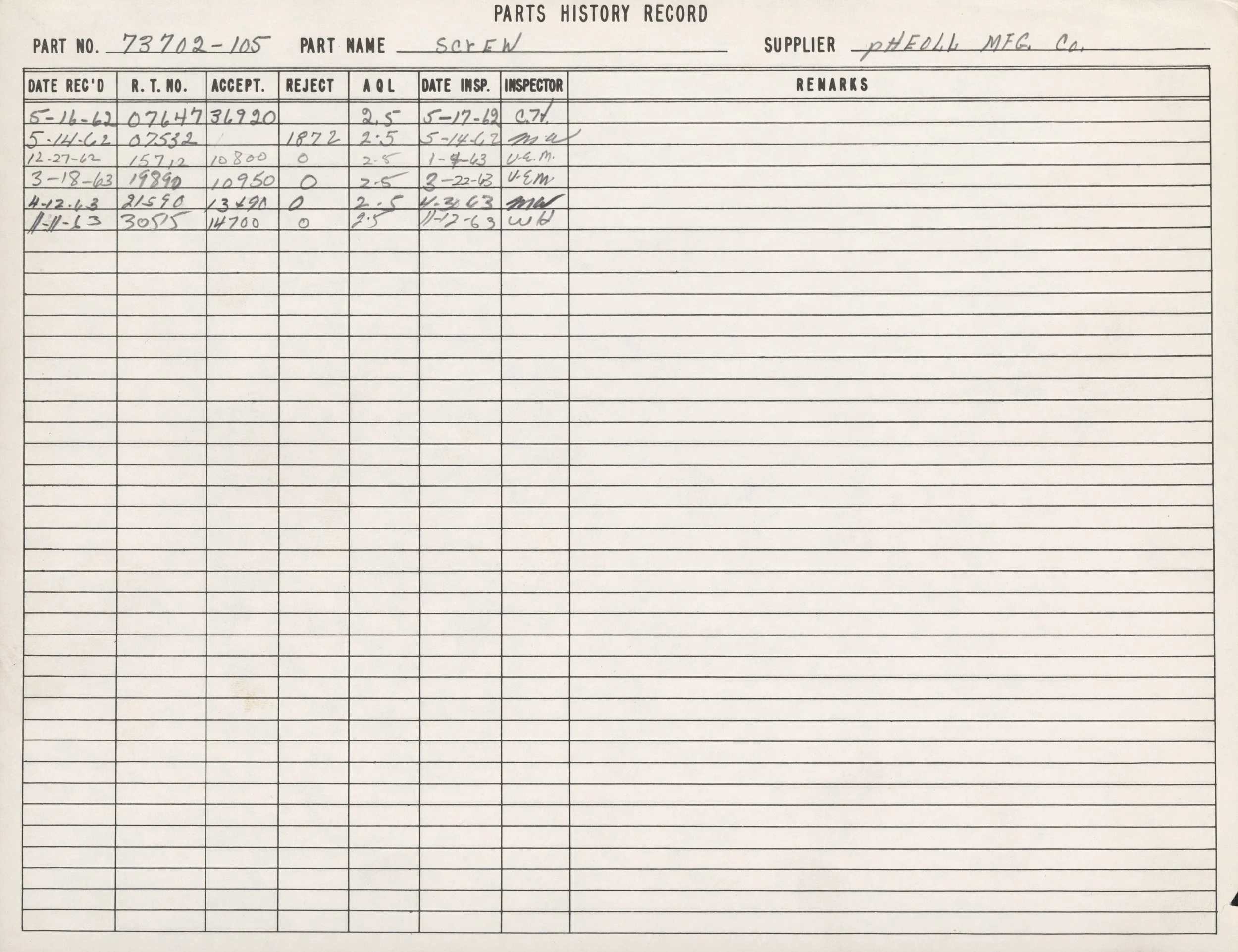

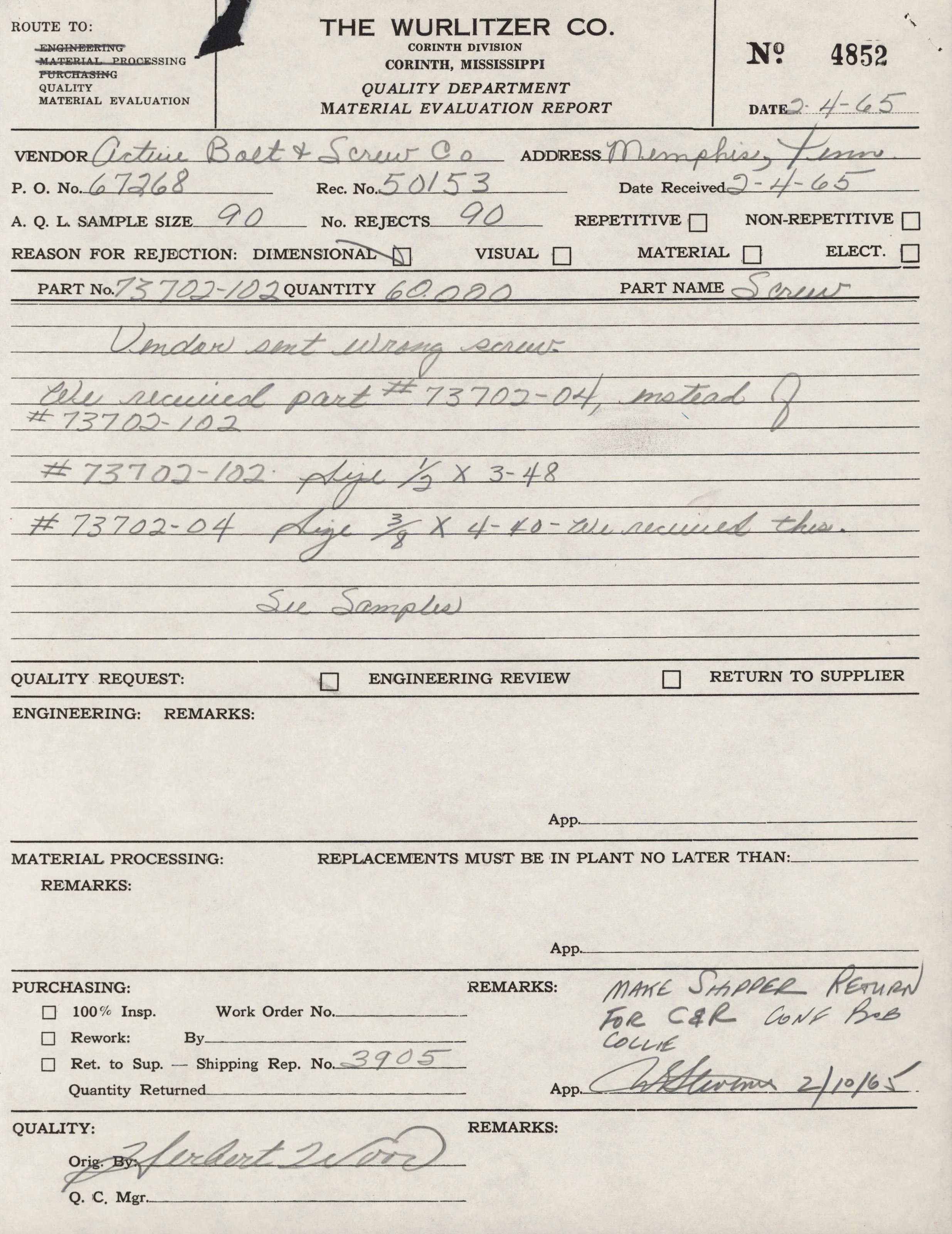

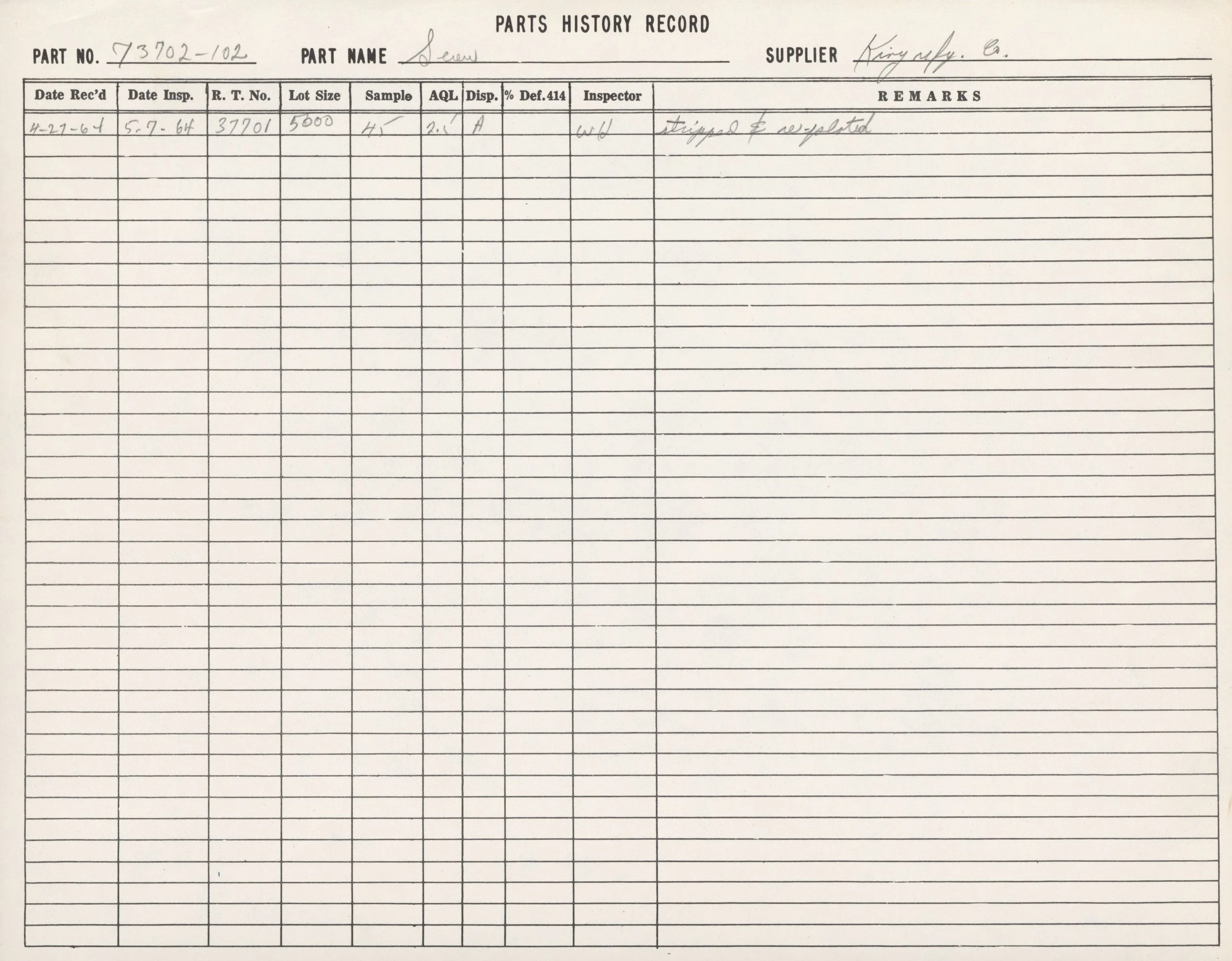

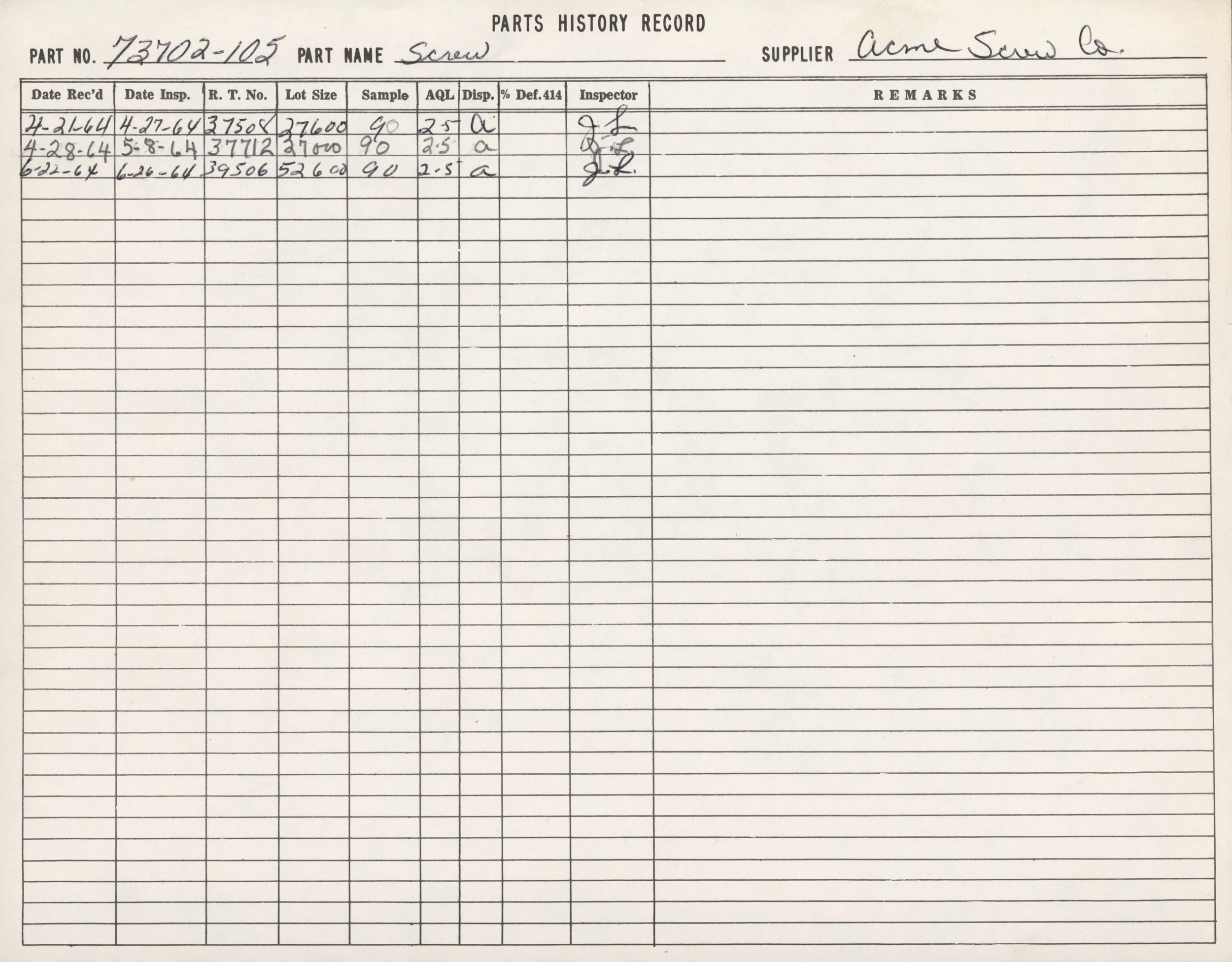

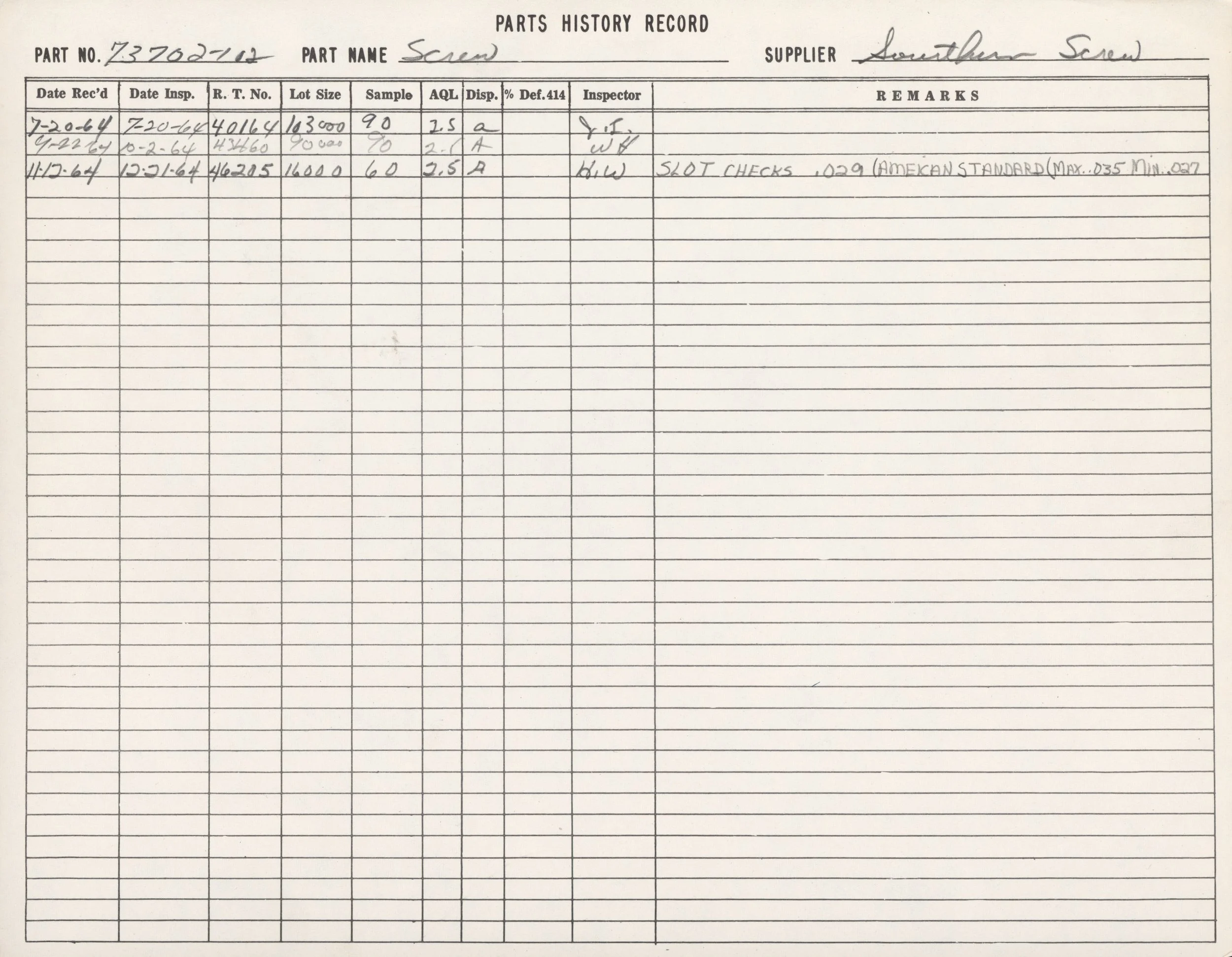

73702 (Screw)

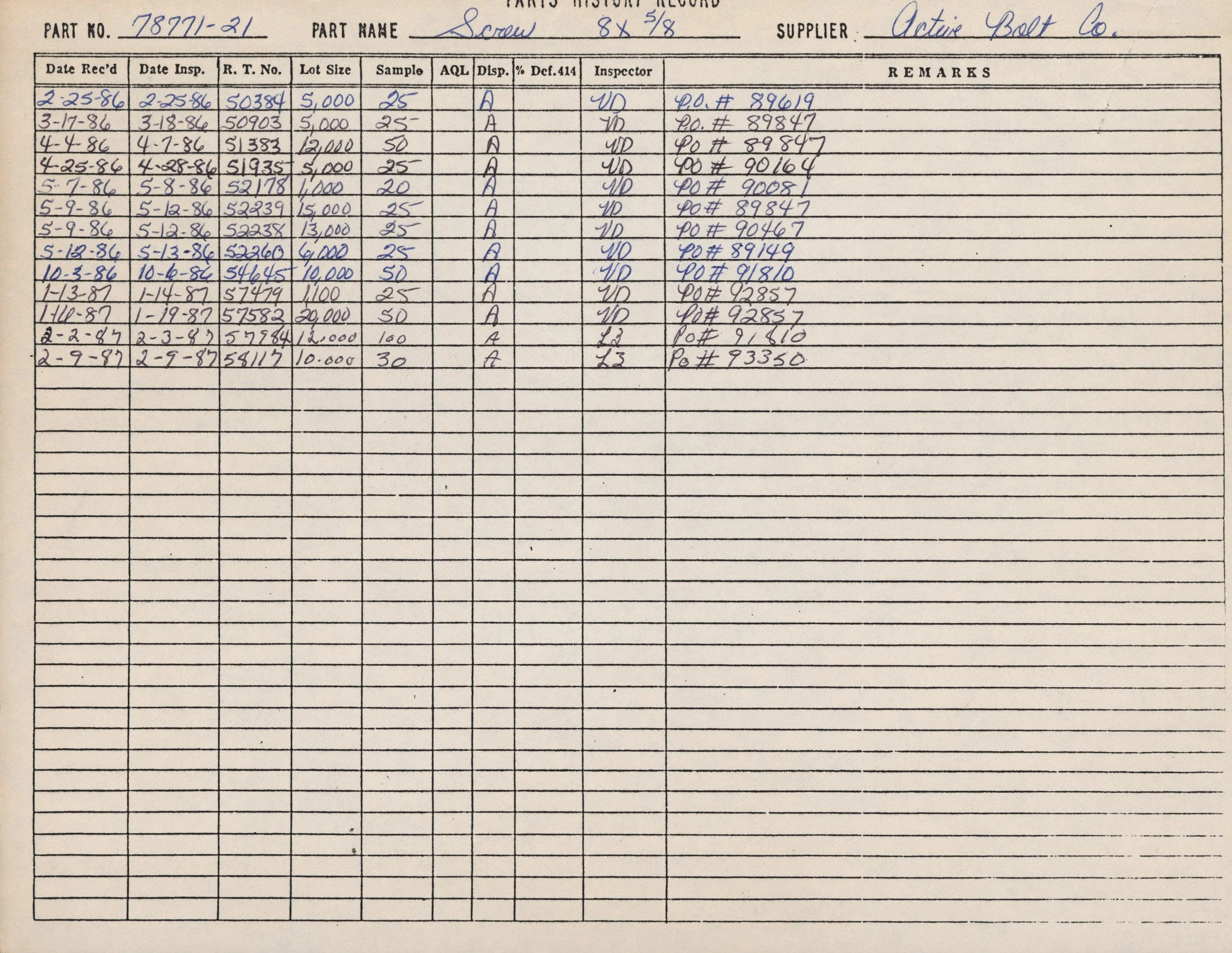

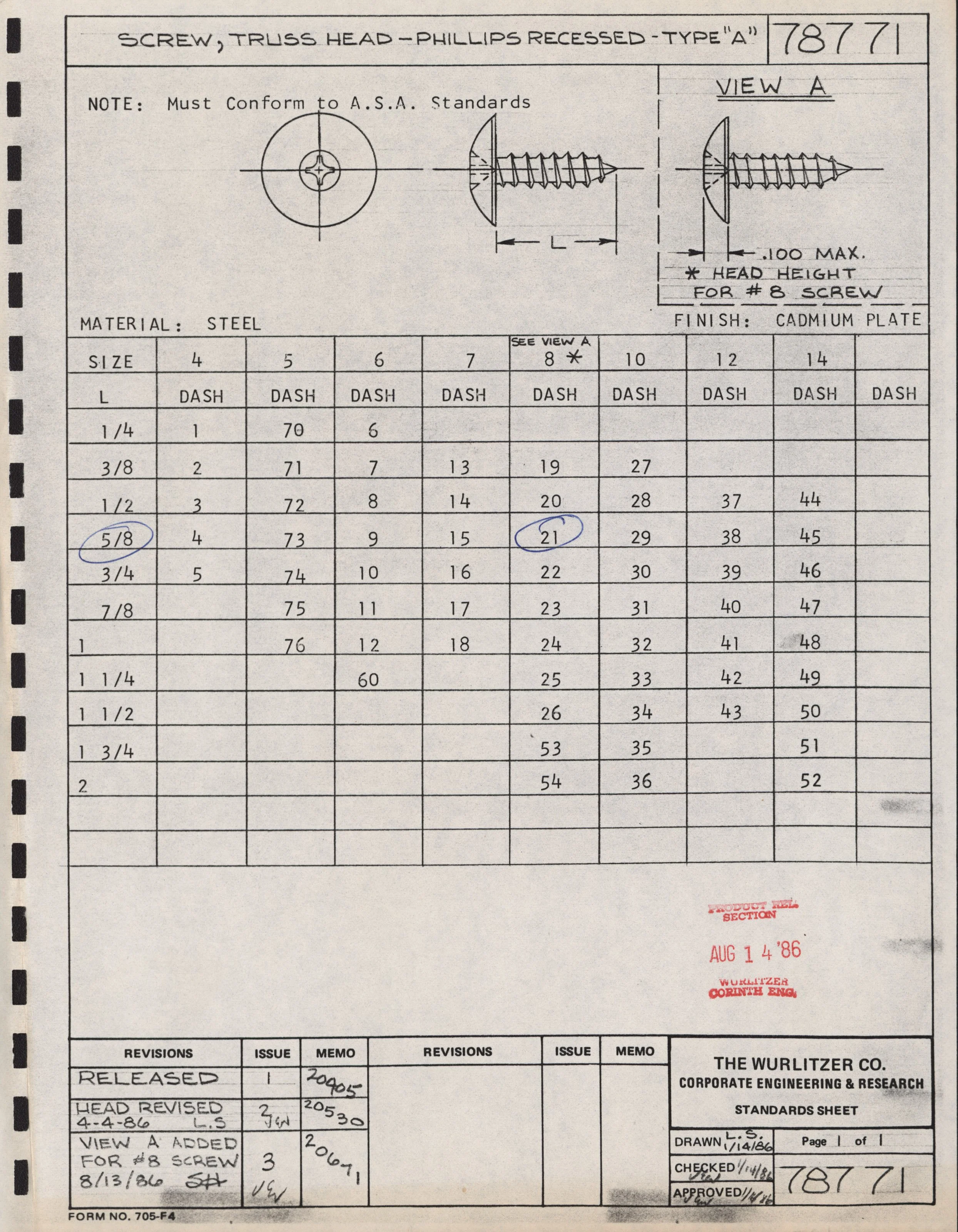

78771 (Truss head screw)

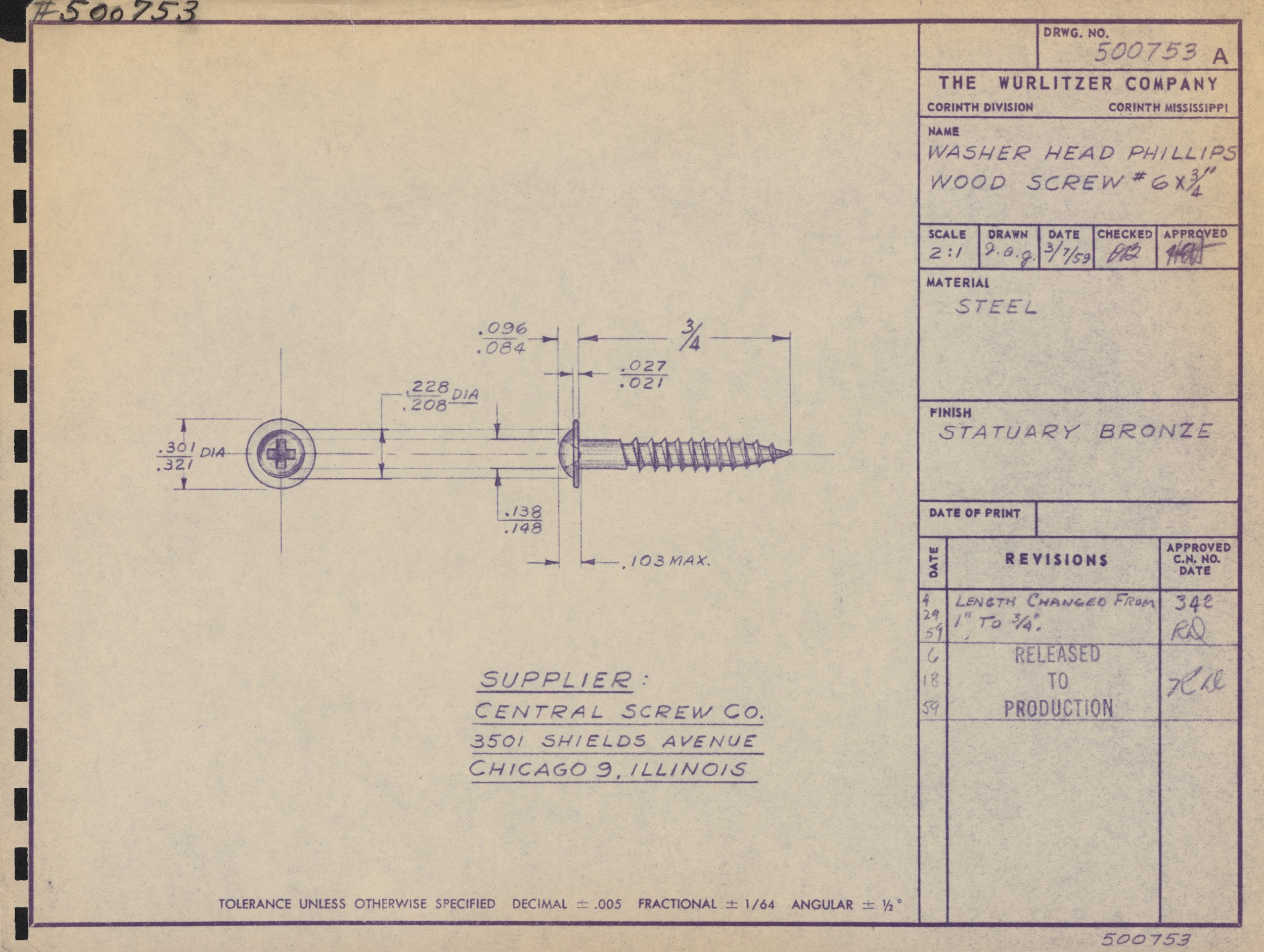

500753 (Washer head phillips wood screw #6×3/4”)

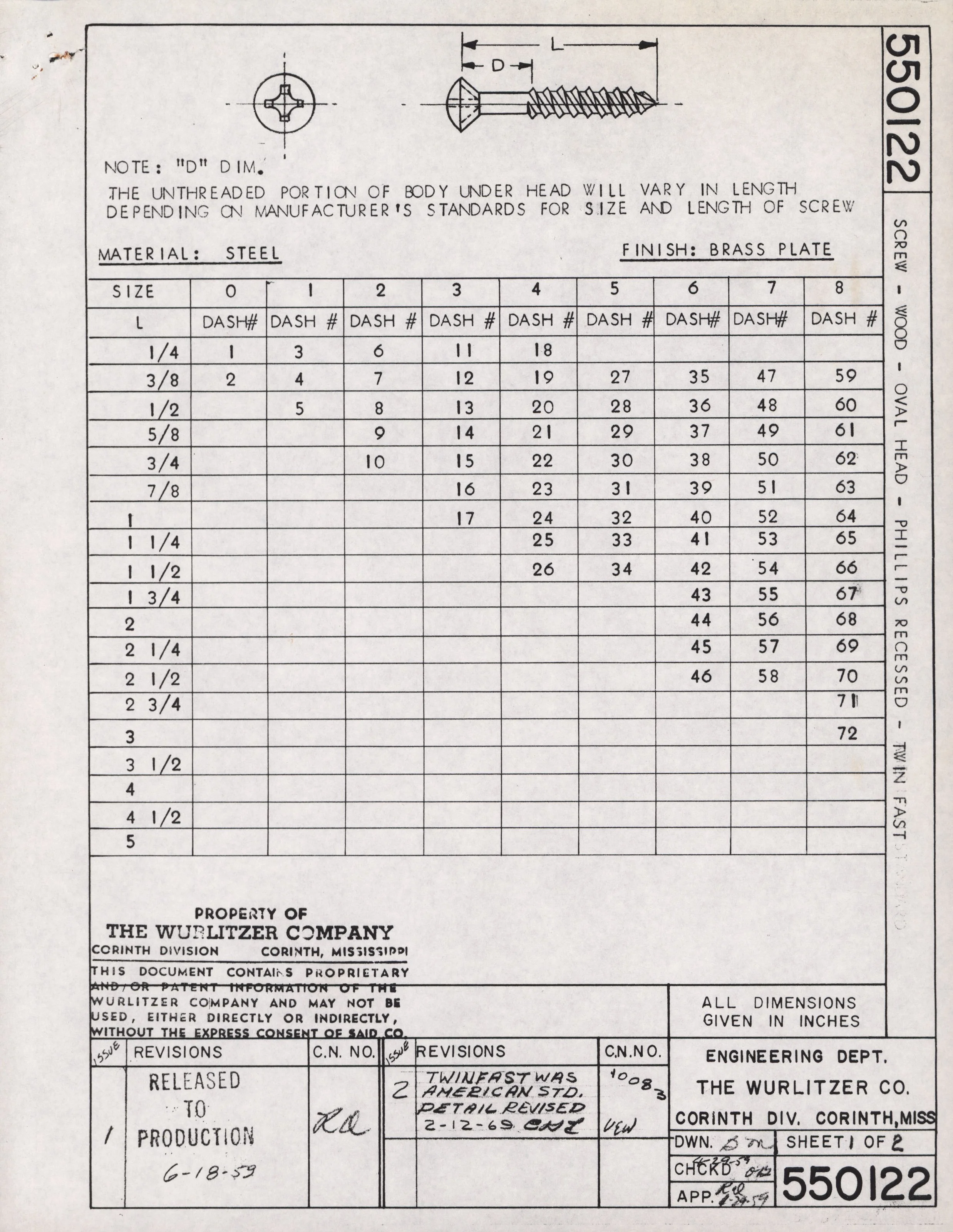

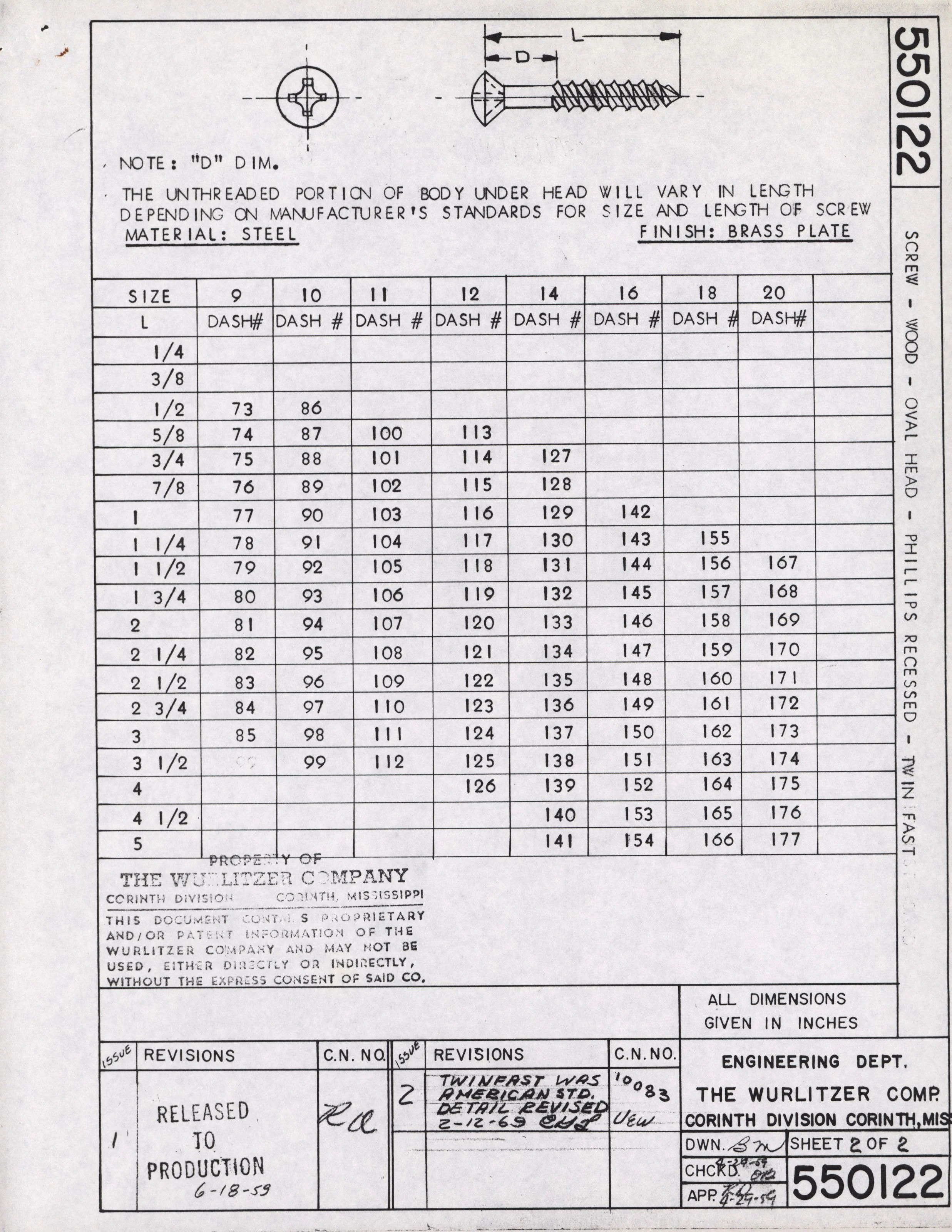

500122 (Oval head phillips recessed wood screw)
Studs
The following drawings are of studs that are used in multiple Wurlitzer instruments.

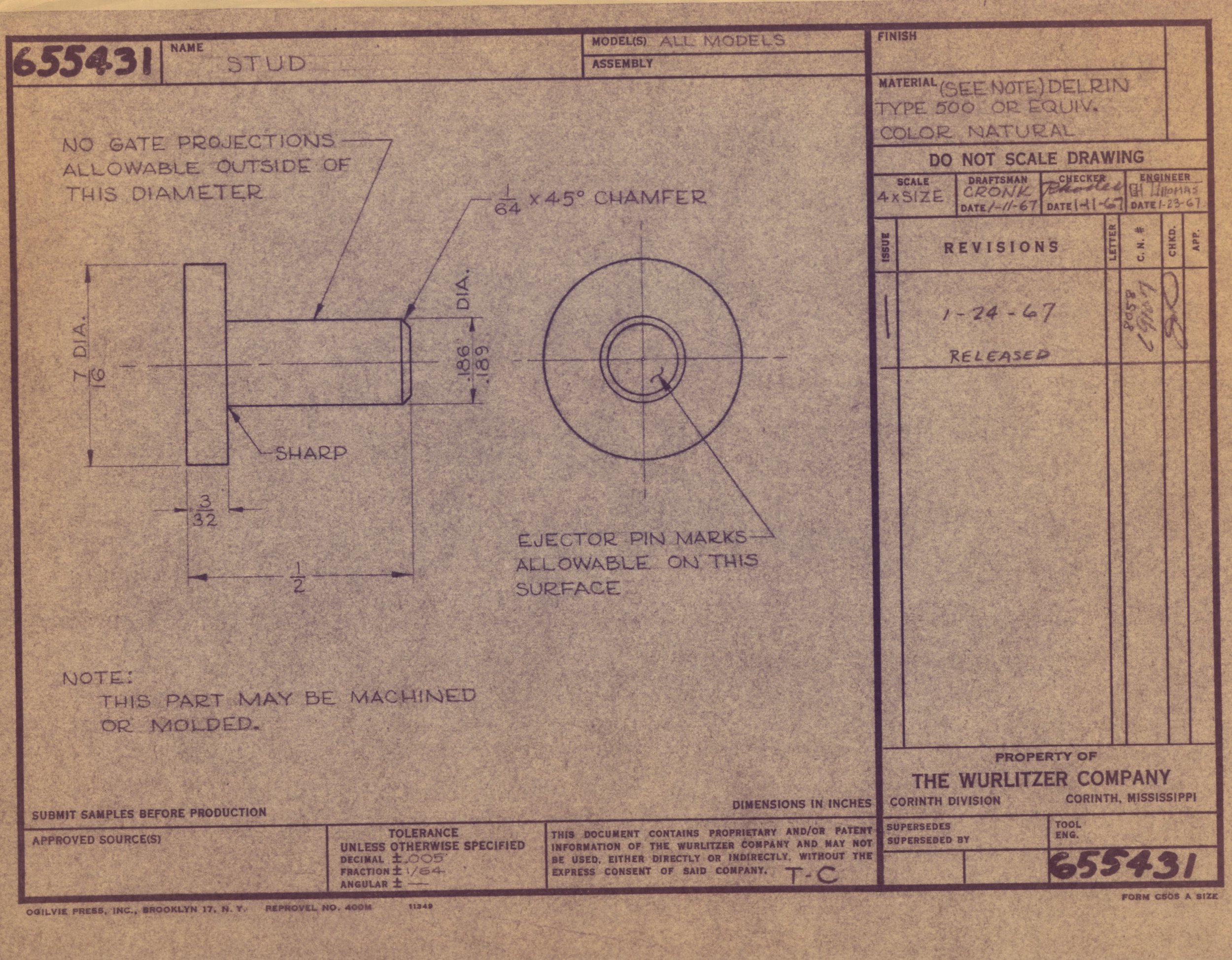

655431 (Studs)
