Electronic components
Capacitors
The following drawings are for capacitors that are used in multiple instruments. They include:

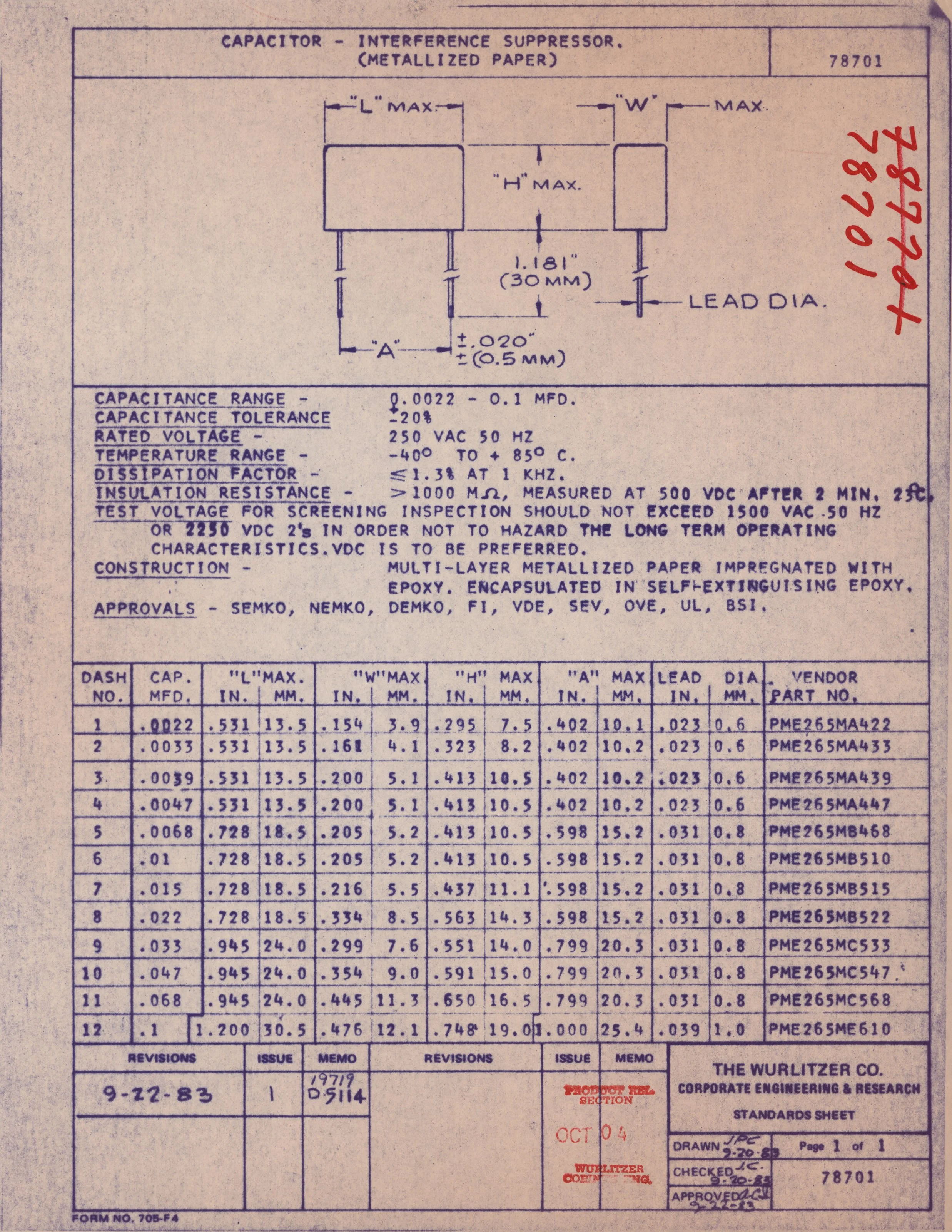

78701 (Metallized paper capacitor)
78703 (Insulated can electrolytic capacitor)
78711 (Aluminum electrolytic capacitor)
Fuses
The following drawings are for fuses that are used in multiple instruments. They include:
45352 (Fuse post)

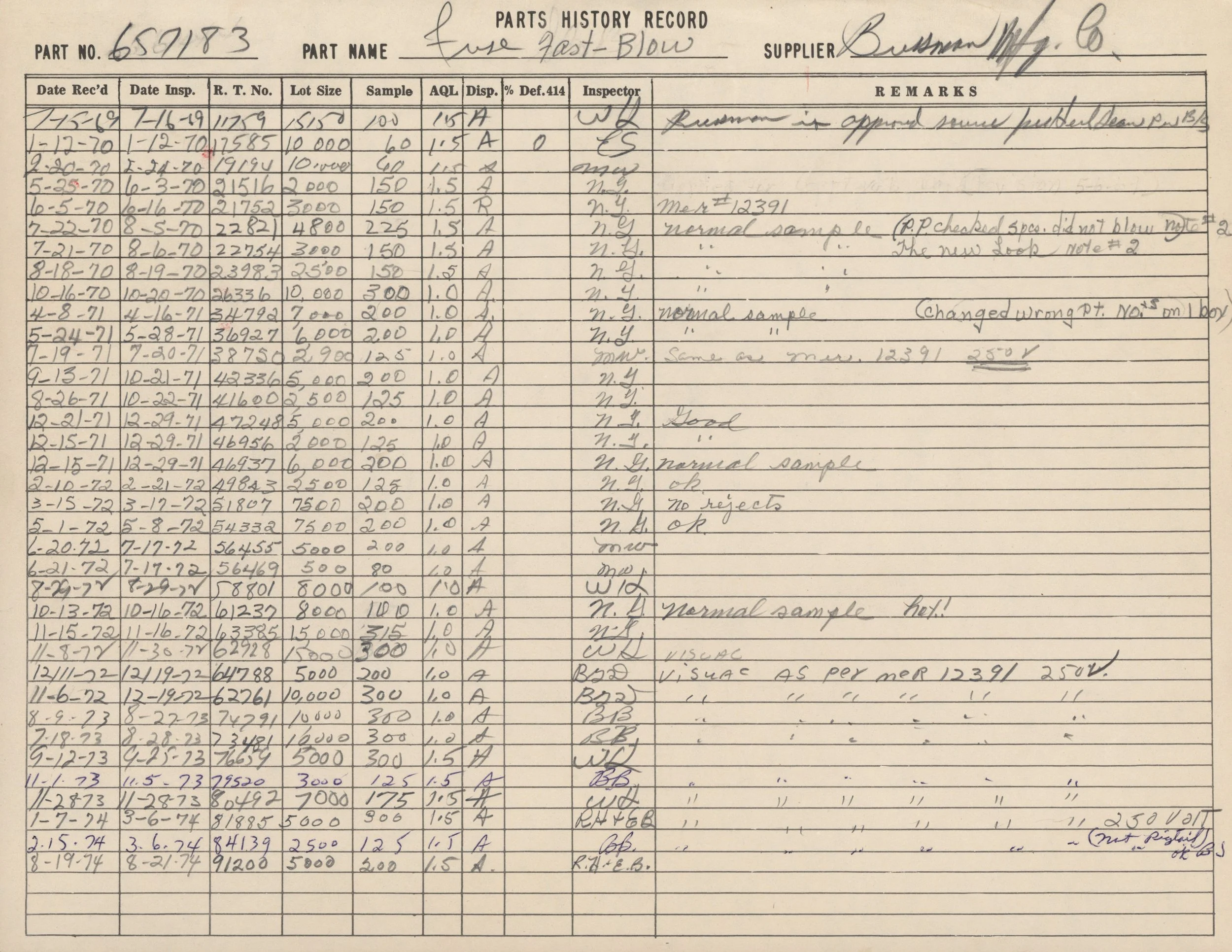

500755 (Slow-blow fuse)
657183 (Fast-blow fuse)
Lamps
The following drawings are for lamps that are used in multiple instruments. They include:
502197 (Neon pilot light)
Mounting & connectors
The following drawings are for solder lugs, mounting strips and other connectors that are used in multiple instruments. They include:
18831 (Insulated mounting strip)
45531 (Solder lug)
76980 (Printed circuit board spacer)
78193 (Closed end insulation displacement connector)

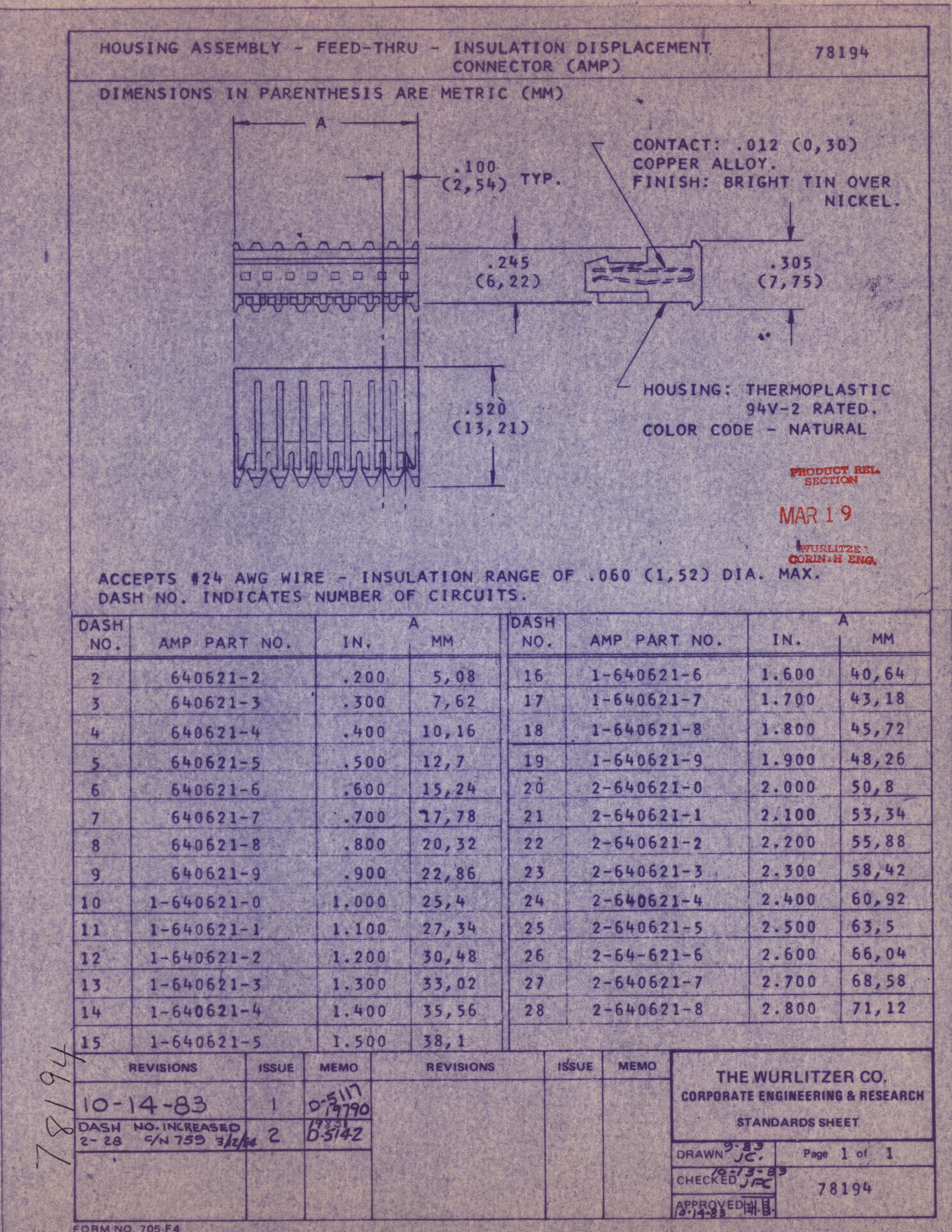

78194 (Feed-thru insulation displacement connector)
78628 (Friction lock wafer connector, Molex 6410)
503680 (Solder lug)
Resistors
The following drawings are for resistors that are used in multiple instruments. They include:

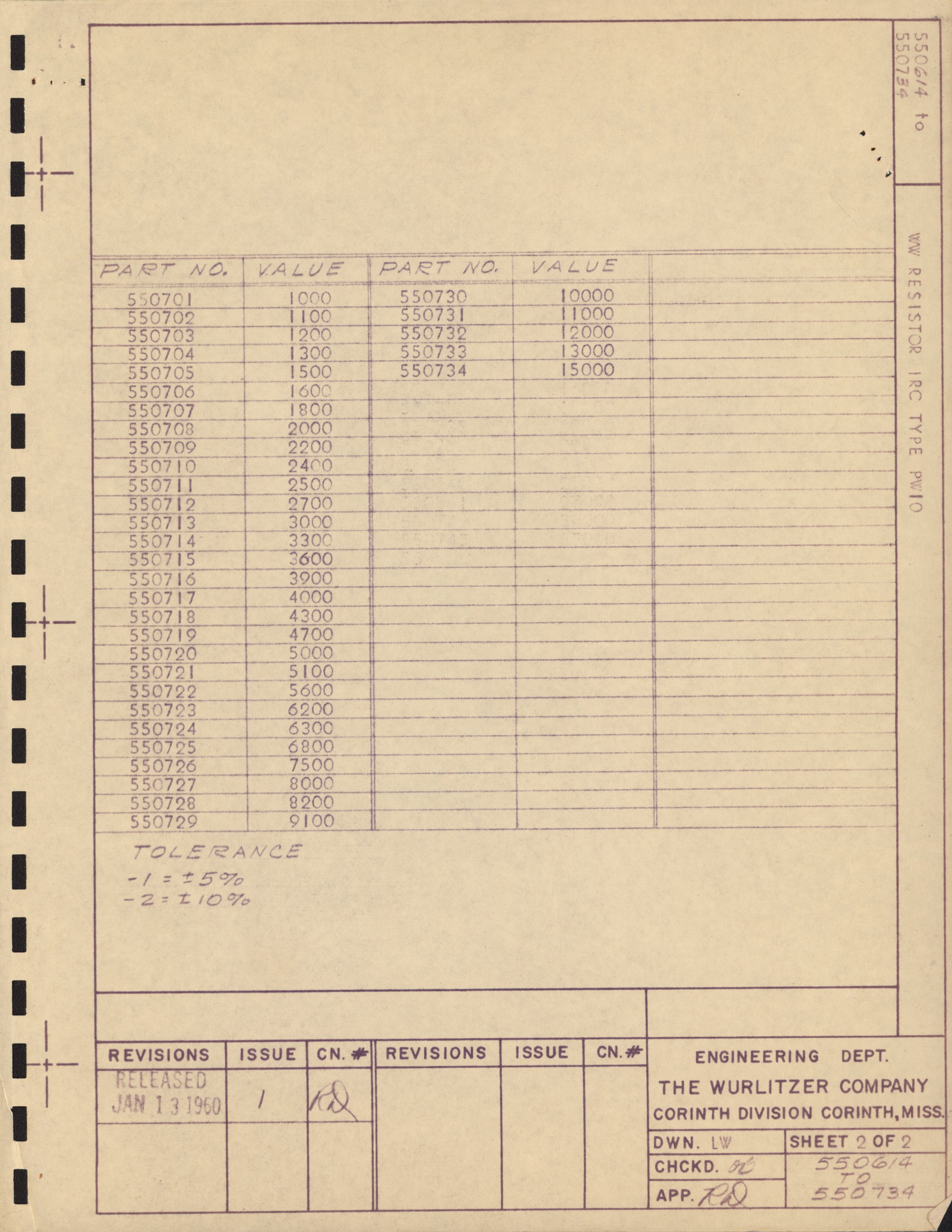

550614 (Wirewound resistor)
Semiconductors
The following drawings are for semiconductors that are used in multiple instruments. They include:
142081 (Silicon rectifier)

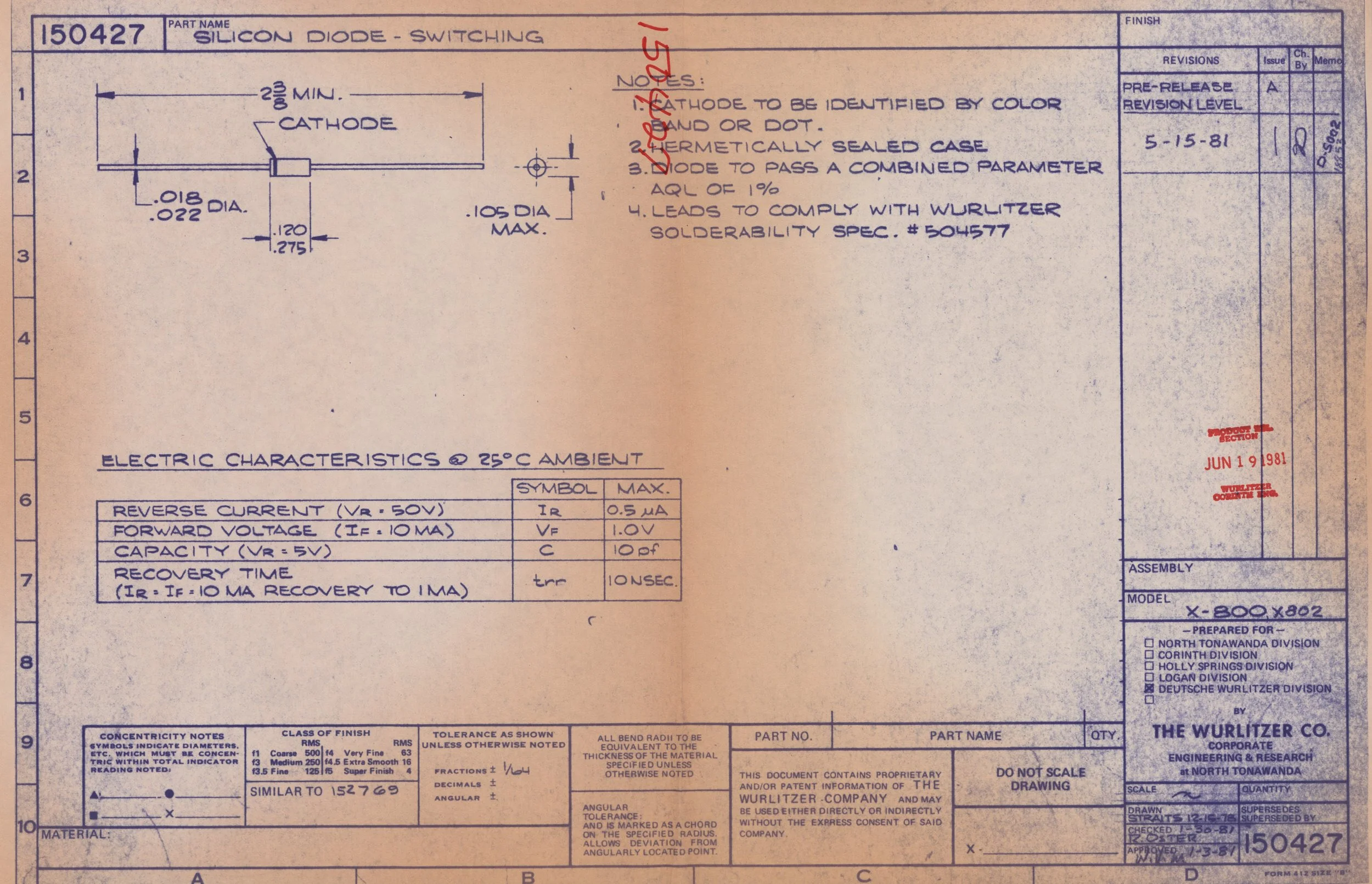

150427 (Silicon diode, switching)
500859 (Silicon rectifier)

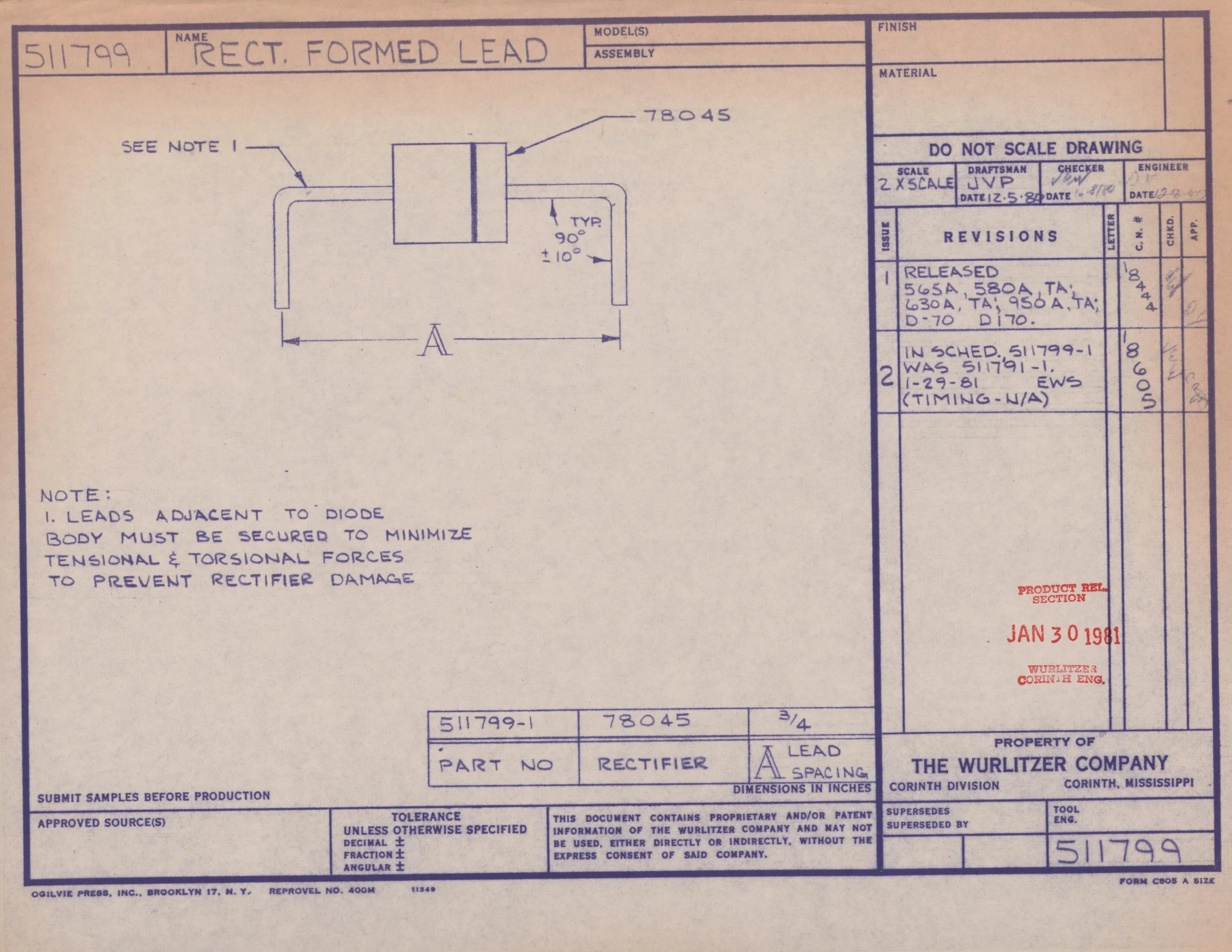

511799 Formed lead rectifier
Vacuum tubes
The following drawings are for vacuum tubes that are used in multiple instruments. They include:
58420 (Tube, type 12AU7A)
Wire & tubing
The following drawings are for wire, shielded cable, and plastic tubing that are used in multiple instruments. They include:
71092 (#14 extruded plastic tubing, transparent)
71589 (23 AWG heavy or double formvar insulated magnet wire)
74338 (24 AWG heavy or double formvar insulated magnet wire)
78192 (1 conductor shielded cable, bulk)
78762 (1 conductor shielded cable, bulk)

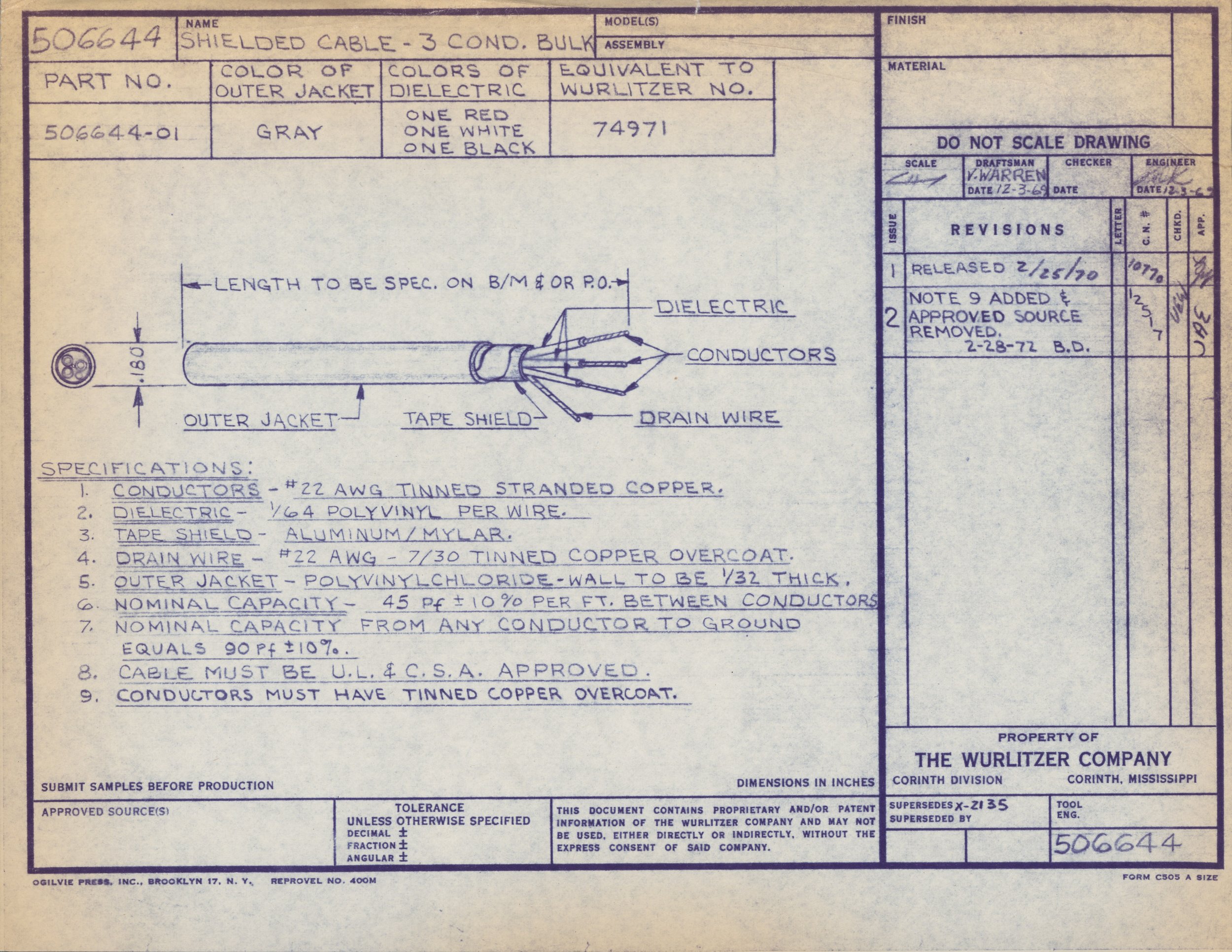

506644 (3 conductor shielded cable, bulk)

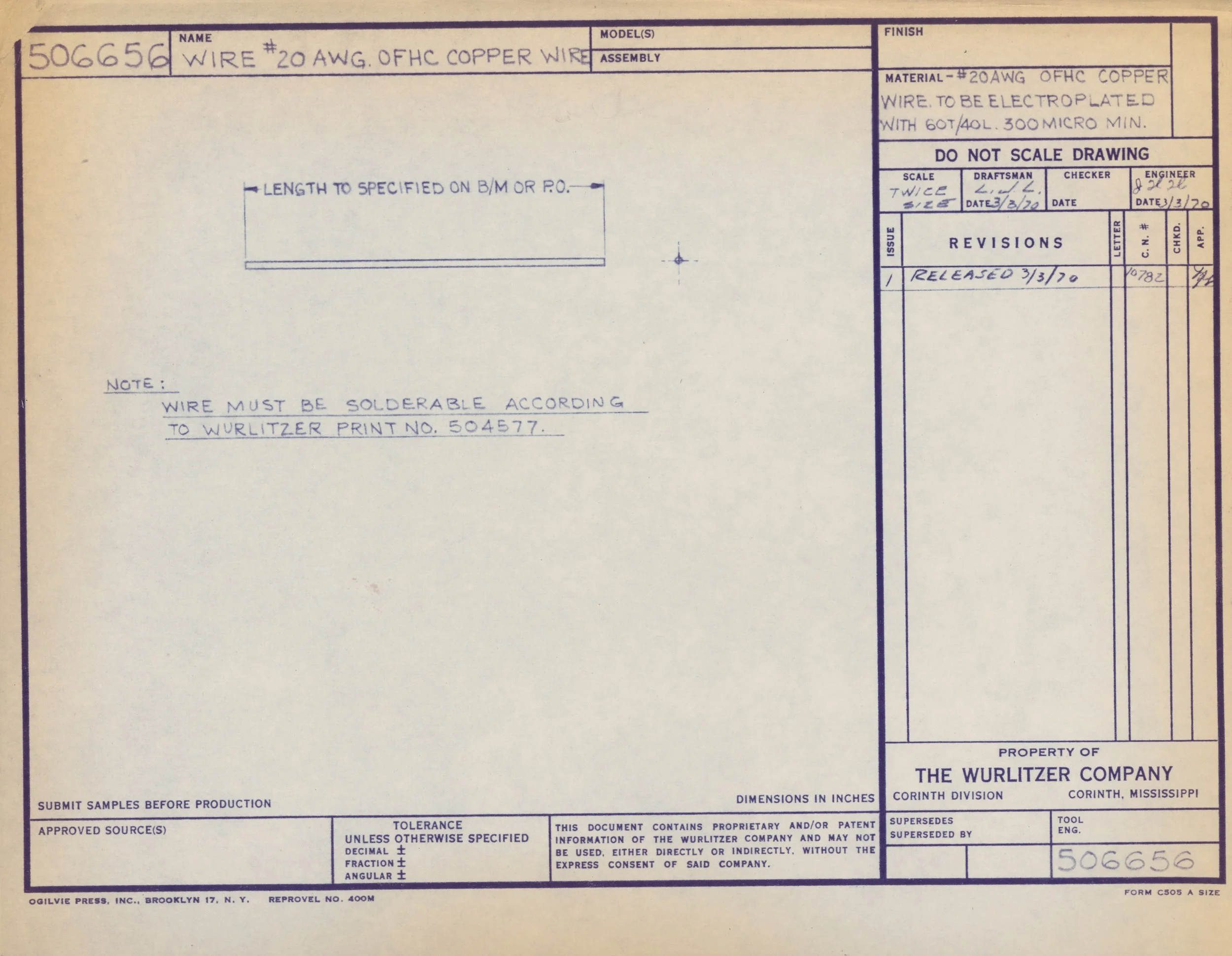

506656 (20 AWG OFHC copper wire)
