Model 50
The Model 50 is a two-manual keyed reed organ with a 32-note pedal clavier. The Model 50’s matching tone cabinet was the 40-watt Wurlitzer 75.
A photo of the Model 50 and other information about it can be found in Robert Eby’s Electronic Organs, although Eby does not include very much detail for this model.
Do you have additional info about the Model 50? Help the archive by contributing your knowledge or additional documentation about this model.
The archive has the Series 50 service model, but it hasn’t been scanned yet. We also have tens of thousands of drawings and paperwork that have yet to be digitized. If you are interested in seeing more Model 50 drawings, send us a request.
WURLITZER MODEL 50
TWO-MANUAL KEYED REED ORGANSPECIFICATIONS
UPPER MANUAL: 61 keys
LOWER MANUAL: 61 keys
PEDALS: 32 keys
DIMENSIONS
HEIGHT: 46 1/2"
WIDTH: 62 1/2"
DEPTH: 29 7/8"
DEPTH (INCL. PEDALS): 42 3/4"
WEIGHT: 546 lbs
BENCH WEIGHT: 40 lbsTONE GENERATOR
Keyed free reed
TONE CABINET

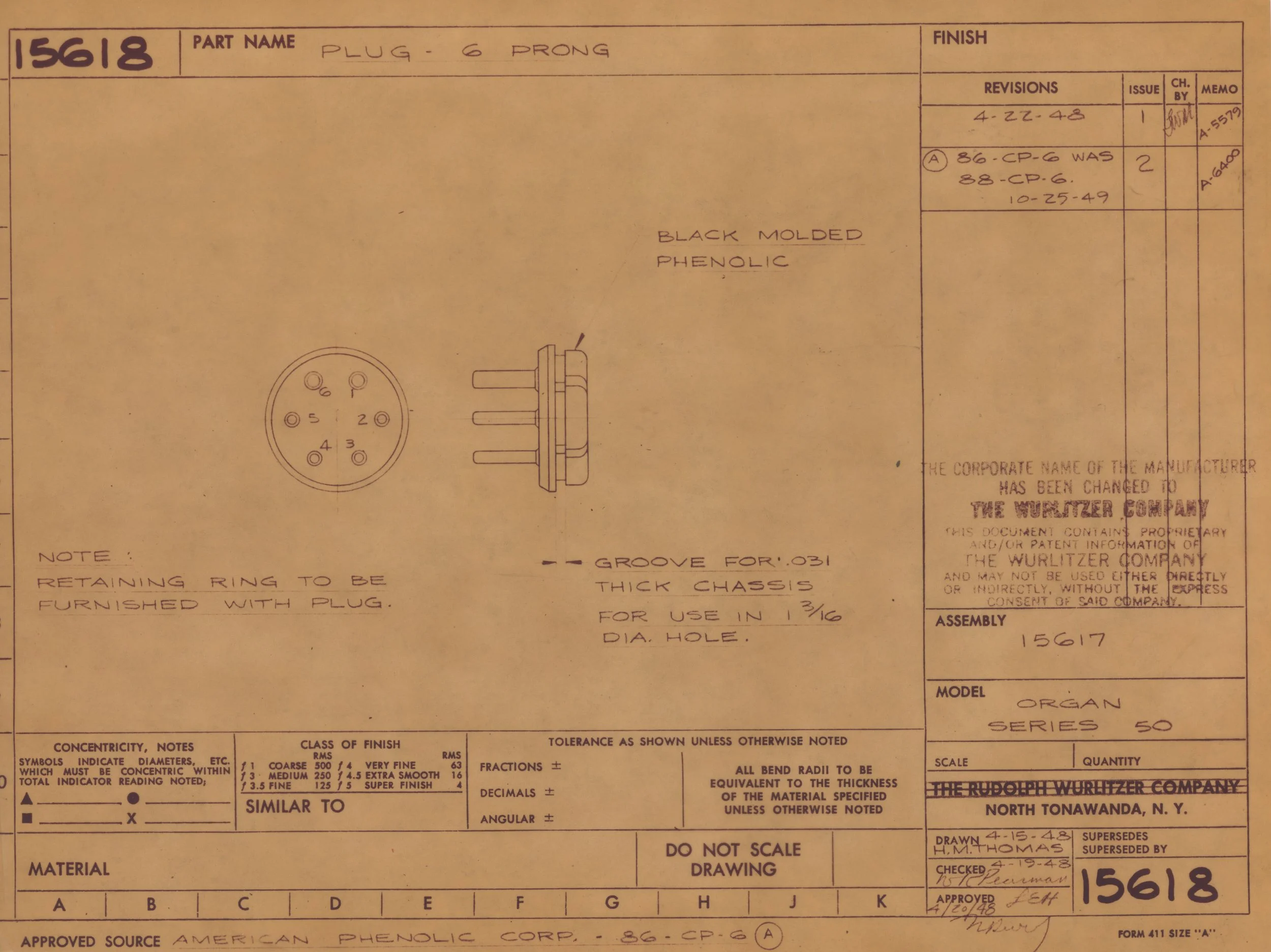

Model 75Part no.: 15618
Part name: Plug - 6 prong
Model: 50
Date: April 15 1948
Diazo print on plastic film
Diazo print on uncoated paper
Parts History Record (3)

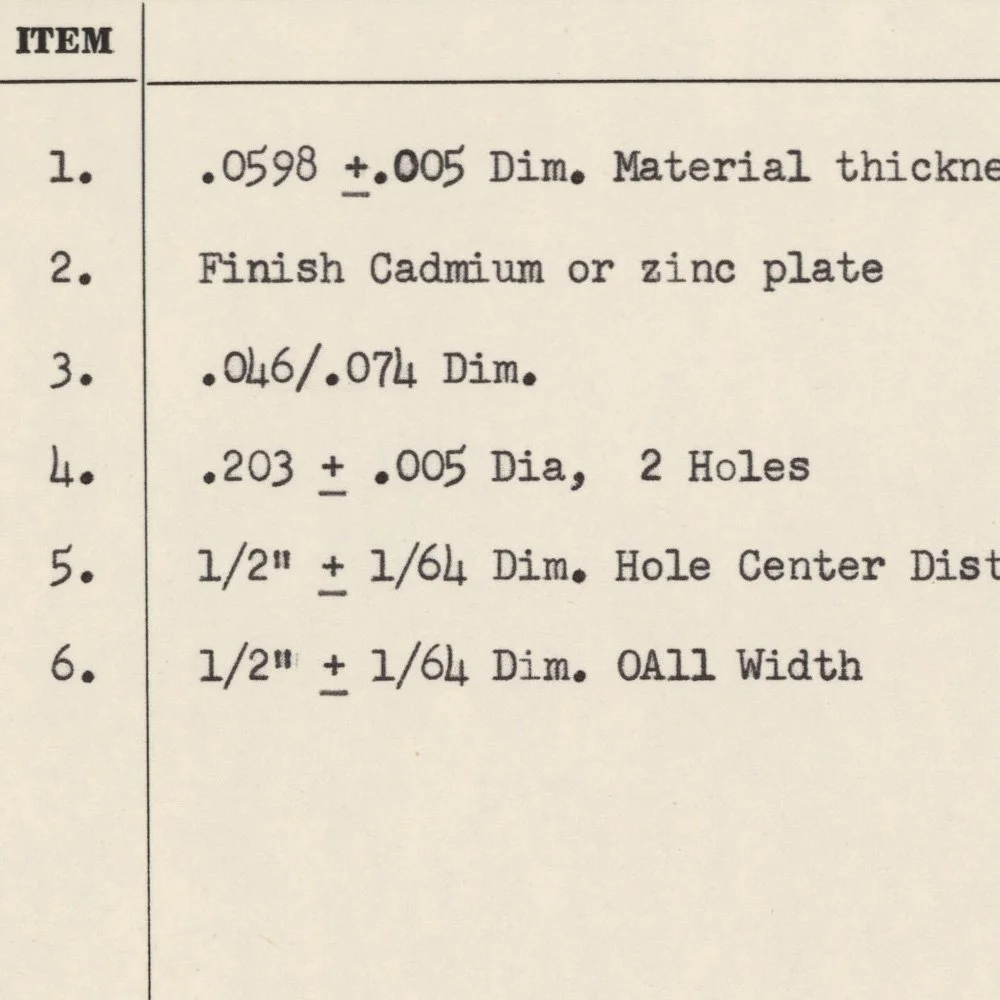

Quality Department Inspection Procedure (1)
