Wurlitzer 542

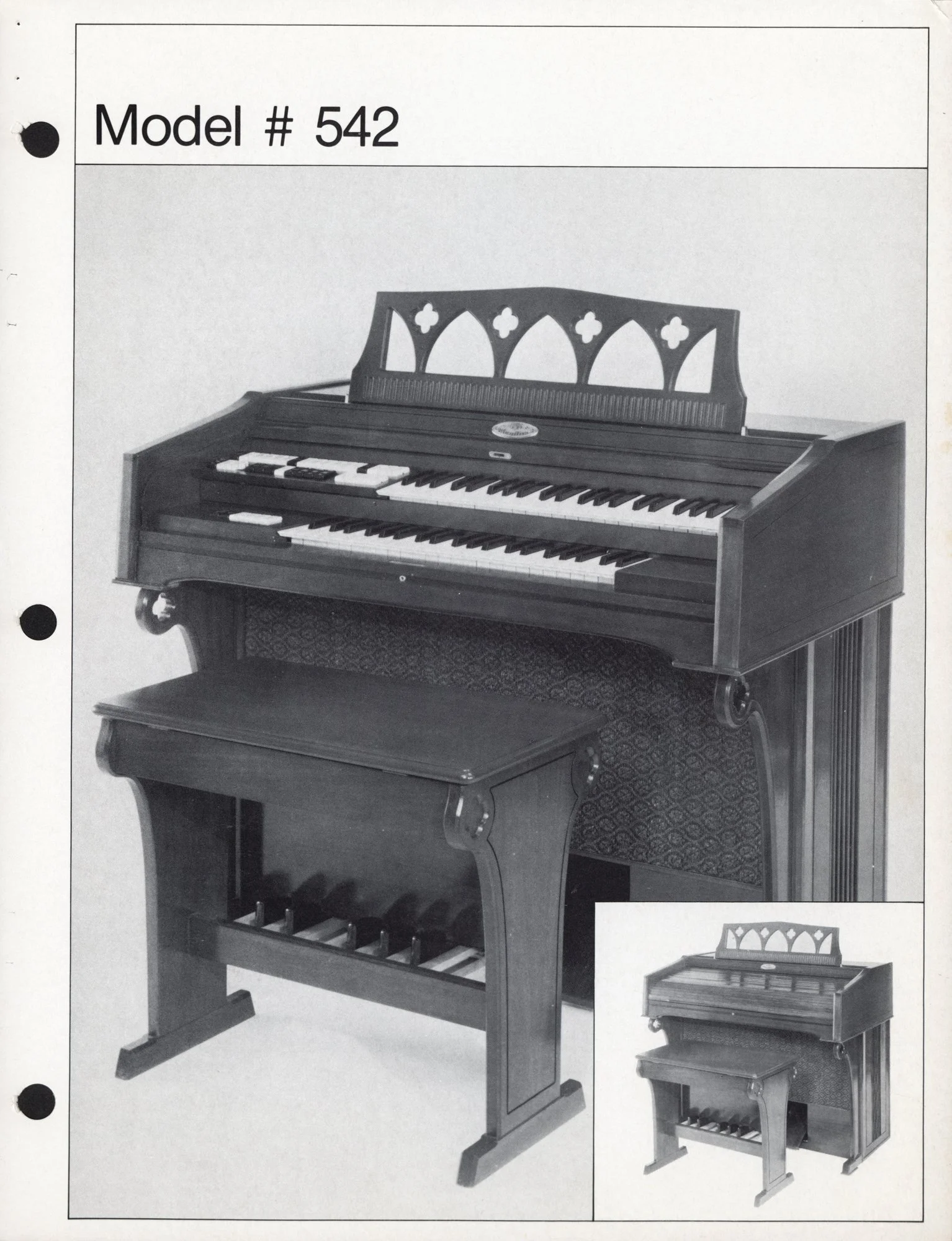

The Wurlitzer 542 is a home organ in the Funmaker line. It has an IC divider tone generator. A specification page shows that the cabinet included a locking rolltop cover.
At 177 lbs, this organ is on the smaller side, and a draft of the packaging booklet (shown below) show it packed in a waist-high shipping box. Still, it contains two 44-note manuals and a 13-note pedalboard, and features such as Leslie tremolo.
We have the 542 service manual, but have not digitized it yet. Interested? Request it here.
542 FUNMAKER
TWO MANUAL ORGANSPECIFICATIONS
LOWER MANUAL: 44 keys
UPPER MANUAL: 44 keys
PEDALBOARD: 13 keys
DIMENSIONS
HEIGHT: 34 3/4"
WIDTH: 43 1/2"
DEPTH: 24 1/2"
WEIGHT: 177 lbsTONE GENERATOR
IC divider
FEATURES
Leslie tremolo
Reverb
Slide
Sustain percussion

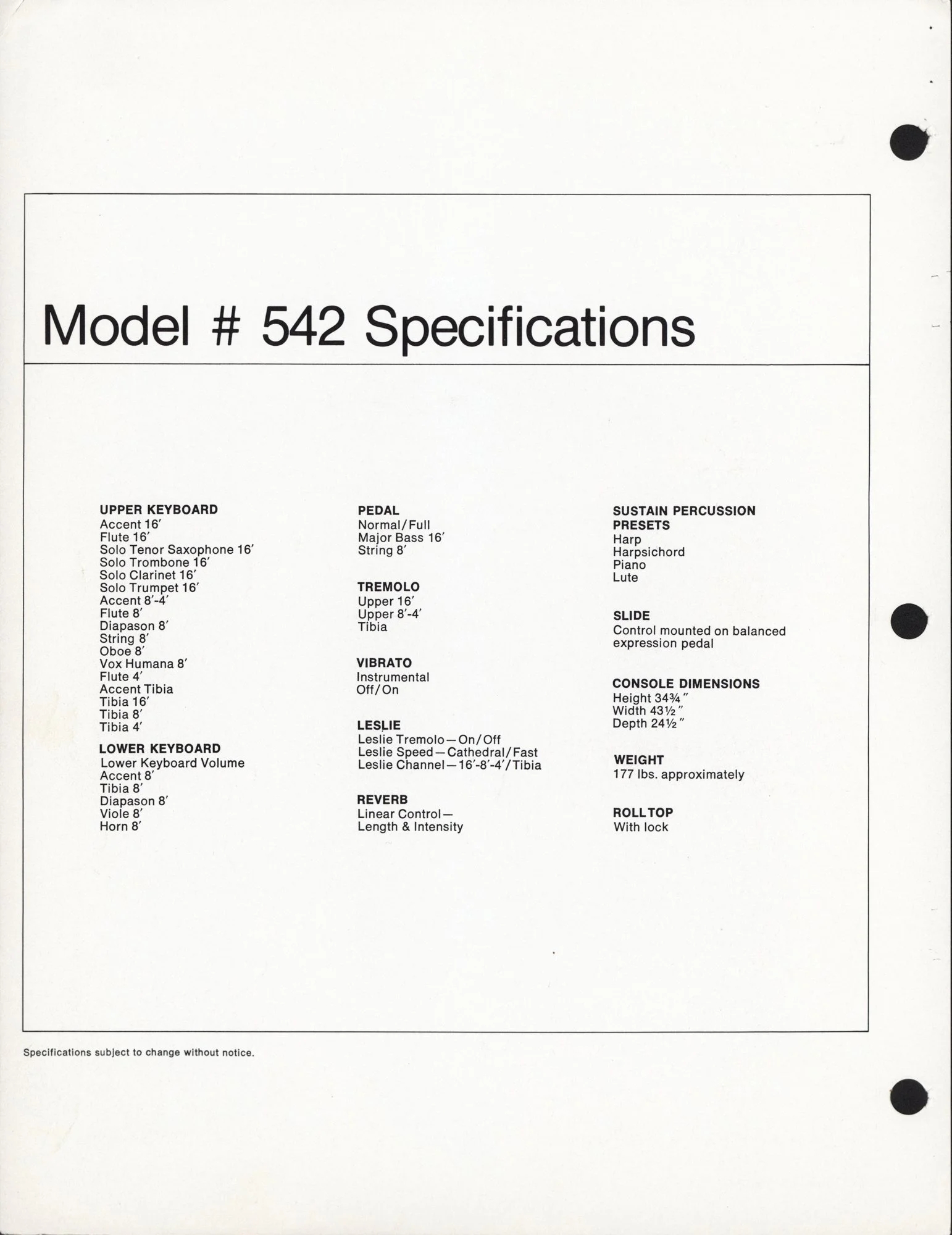

VibratoModel # 542 Specifications

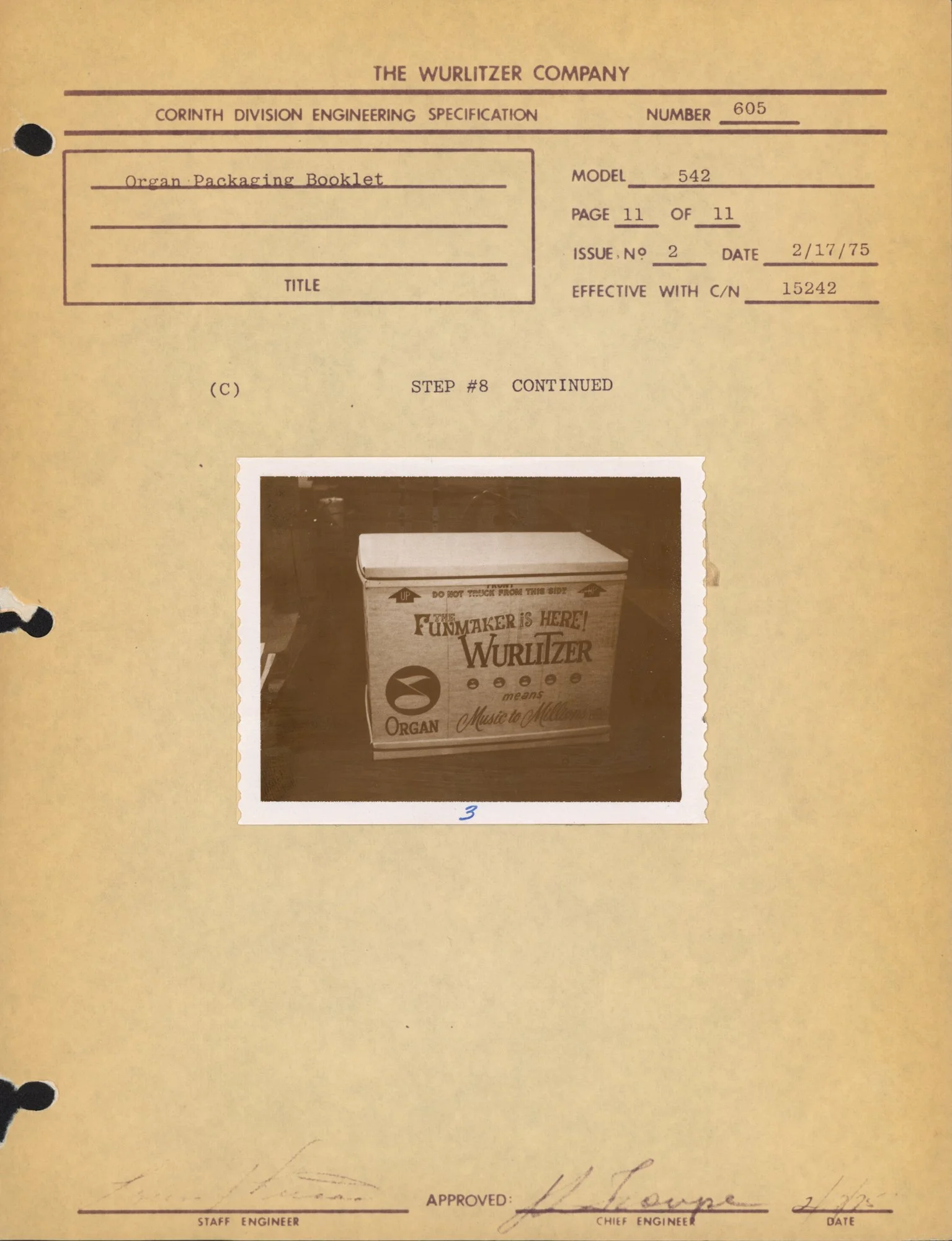

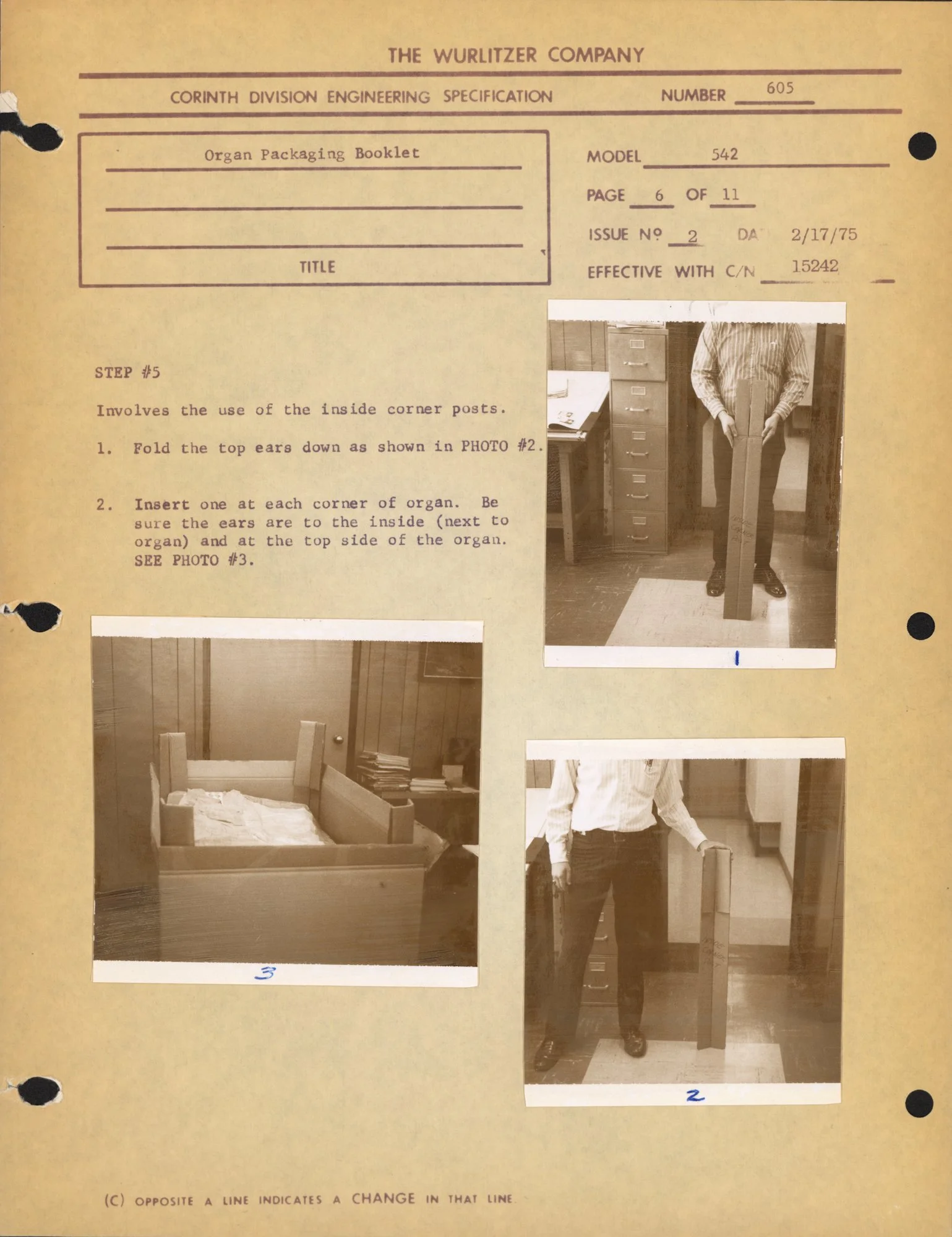

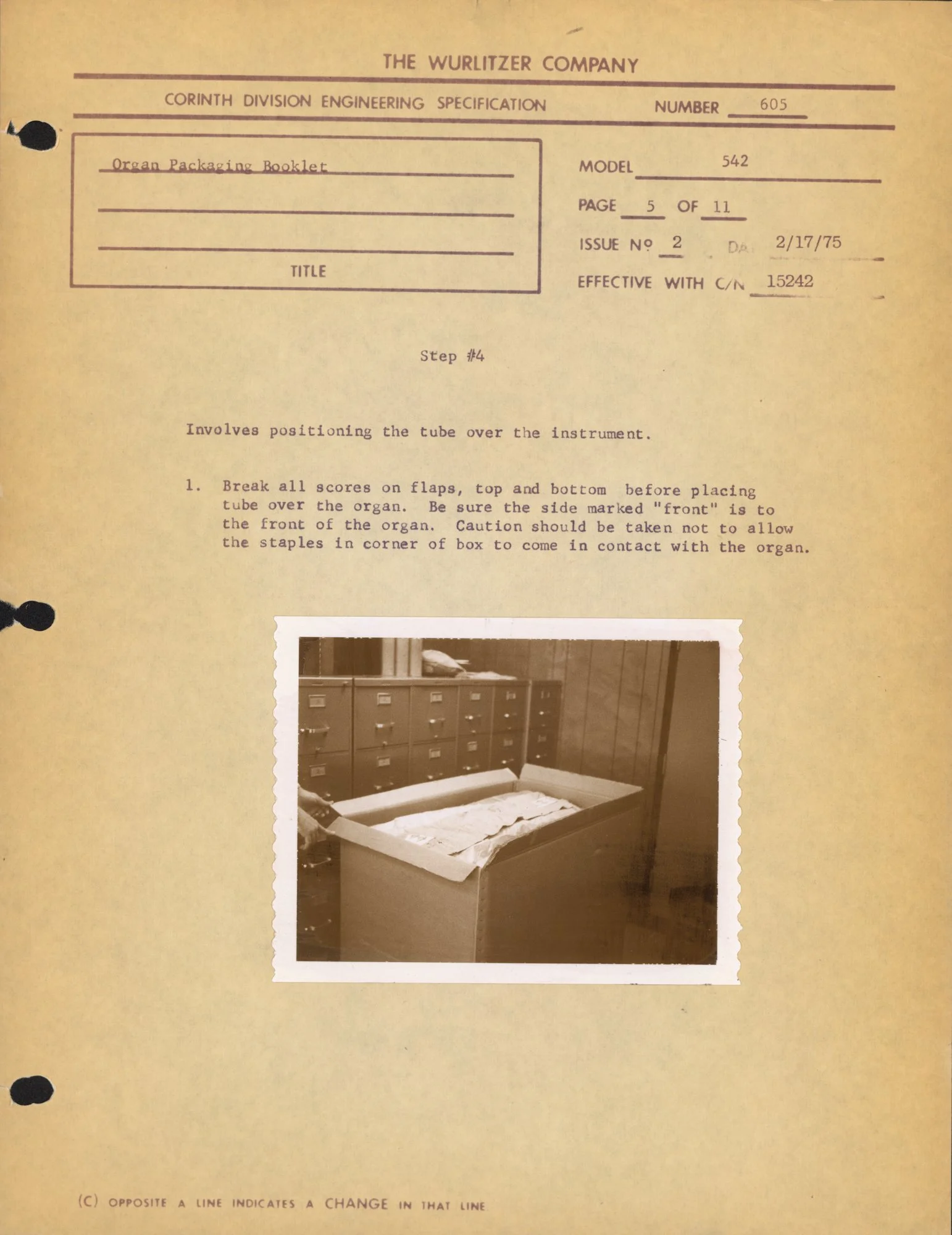

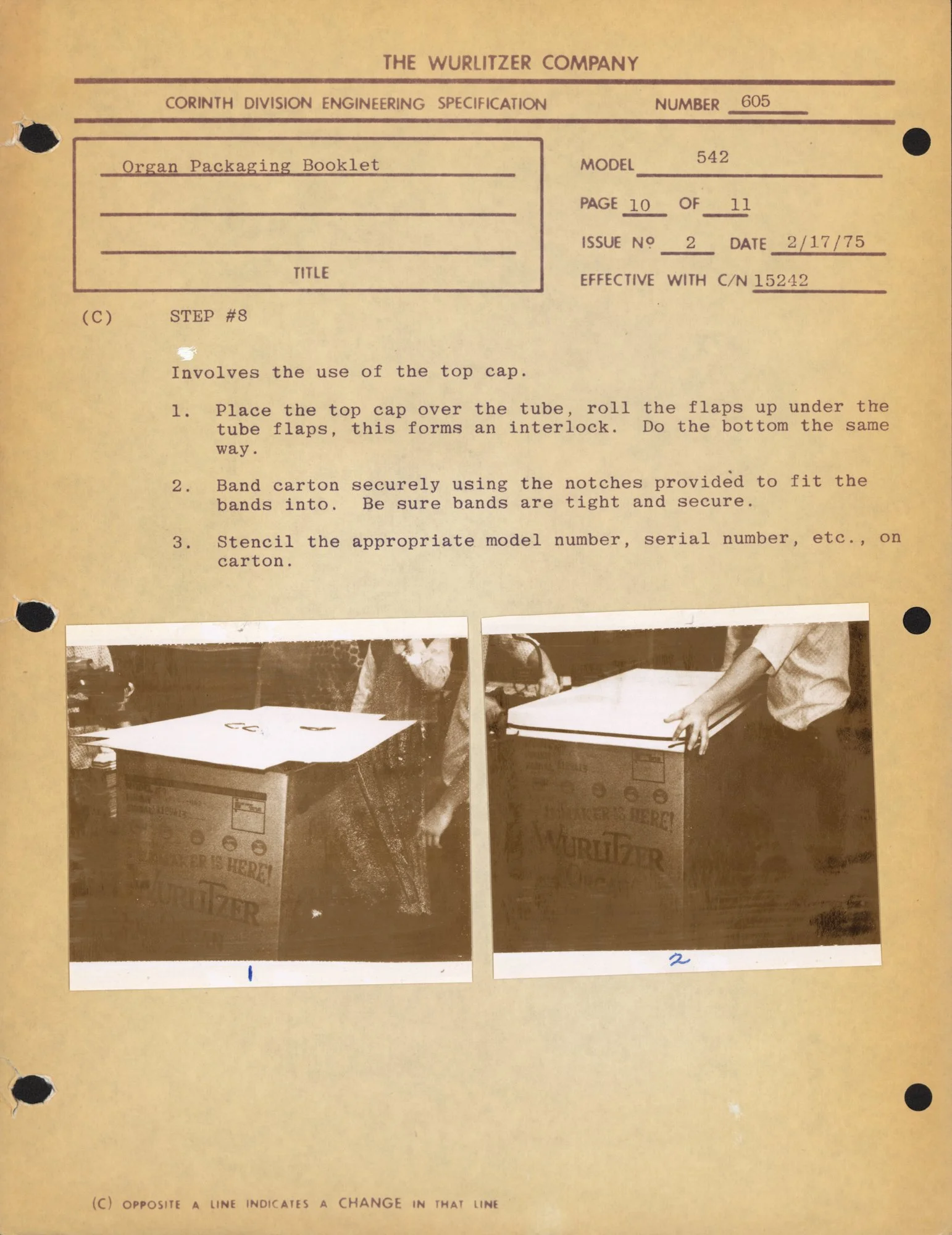

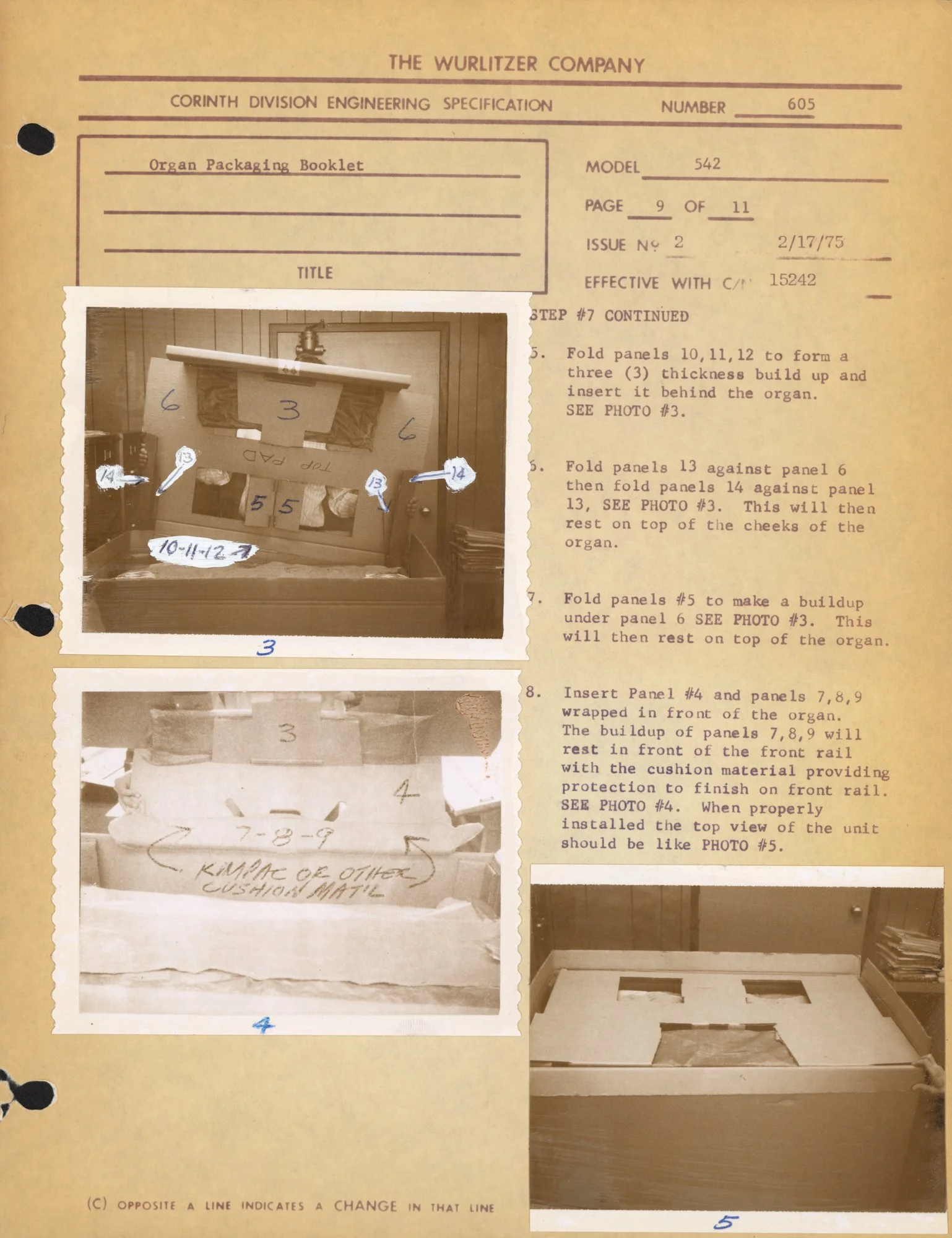

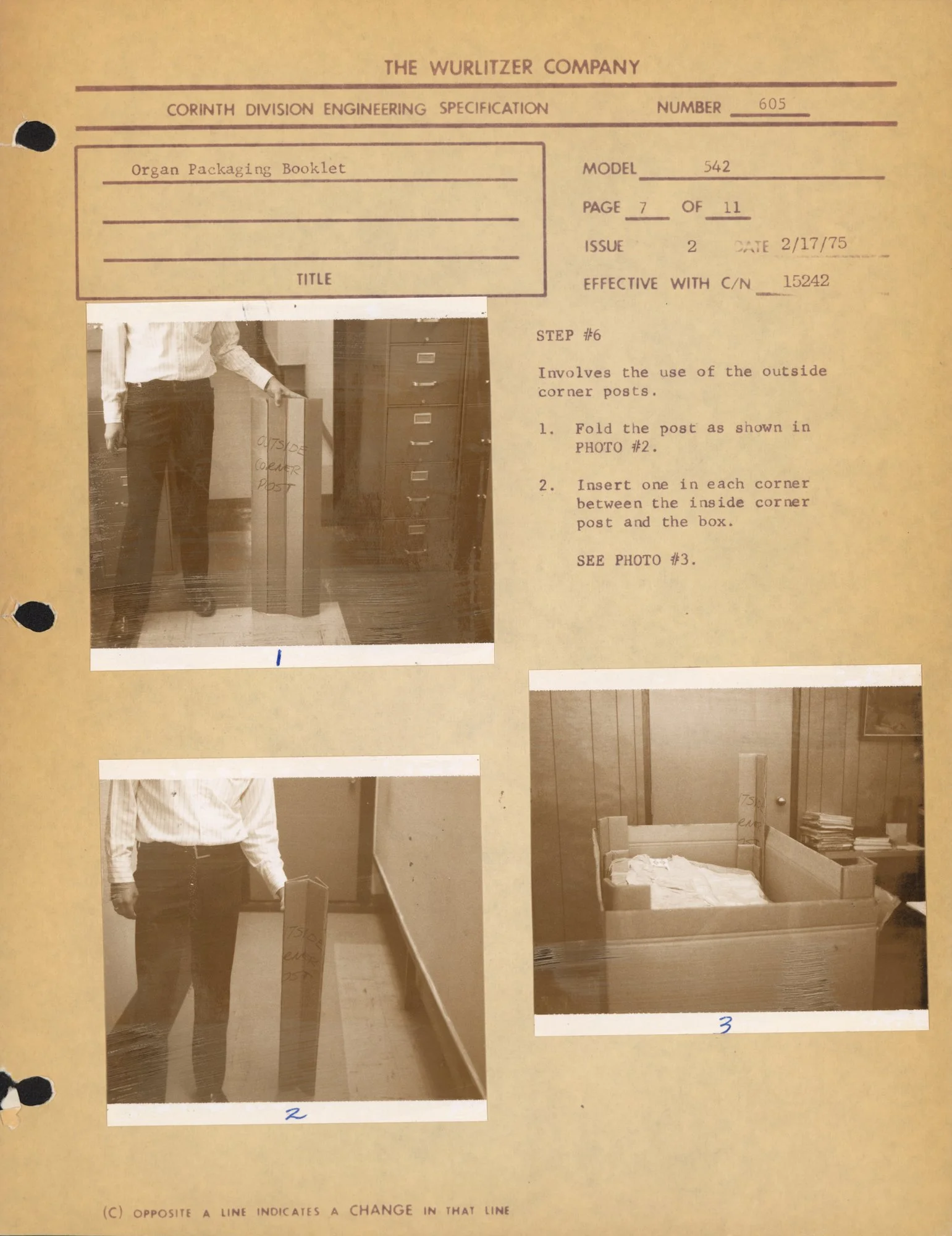

Black and white print on coated paperOrgan packaging booklet
Model: 542
Date: February 17 1975
Pages: 5, 6, 7, 9, 10 and 11 of 11
Diazo print with attached photographsPart no.: 509097
Part name: Bracket - painted
Model: 542
Date: June 3 1974
Diazo printPart no.: 661411
Part name: Bottom pad - foot
Model: 542
Date: February 14 1974
Diazo printPart no.: 661431
Part name: Bracket - molding - upper keyboard
Model: 542
Date: February 20 1974
Diazo printPart no.: 661432
Part name: Retainer - grille cloth
Model: 542
Date: February 27 1974
Diazo printPart no.: 661447
Part name: Bottom tongue - back
Model: 542
Date: February 23 1974
Diazo printPart no.: 661455
Part name: Filler block - keyblock - lower right
Model: 542
Date: February 27 1974
Diazo print
