Wurlitzer 4102 & 4102A
VIEW SIMILAR: 4100BW | 4150 | 4200 & 4250The Wurlitzer 4102 is an electronic organ with a vacuum tube tone divider. According to its service manual, it came in the following finishes: Mahogany, Walnut, and Blonde Oak.
Models ending in “02” typically designate church organ variants, so the 4102 is likely a model 4100 with a different cabinet and slightly different features. An advertisement for Harmony House, a Wurlitzer dealer in Phoenix, AZ, says:
Churchly in design, this model 4102 features a folding and locking top for the protection of the instrument when not in use. Because of these features, plus the versatility of the instrument, and the standard pipe-organ terminology for the tone controls, this Wurlitzer is the ideal choice for any church considering a spinet organ.
The “A” designated a change in amplifier layout. More details here.
Looking for more 4102 organ drawings? Request them here.
WURLITZER 4102 ELECTRONIC ORGAN
VACUUM TUBE DIVIDERFEATURES
Automatic Tone Controls
Master volume (Full//Soft)
Pedal Sustain (Medium/Long)
Vibrato depth (Normal/Full)
Vibrato speed (Slow/Fast)
COUPLERS
Upper to Lower 8'
Upper 8' - Off
Upper to Upper 16'
Upper to Upper 8'SPECIFICATIONS
UPPER MANUAL: 44 keys
LOWER MANUAL: 44 keys
PEDALS: 13 keys
DIMENSIONS
HEIGHT: 35 1/4"
WIDTH: 46 3/16"
DEPTH: 23 1/3"
WEIGHT: 214 lbs
AMPLIFIER
POWER CONSUMPTION: 235 W
POWER OUTPUT: 26 W
SPEAKERS: 12" (2)
INPUTS: Phono

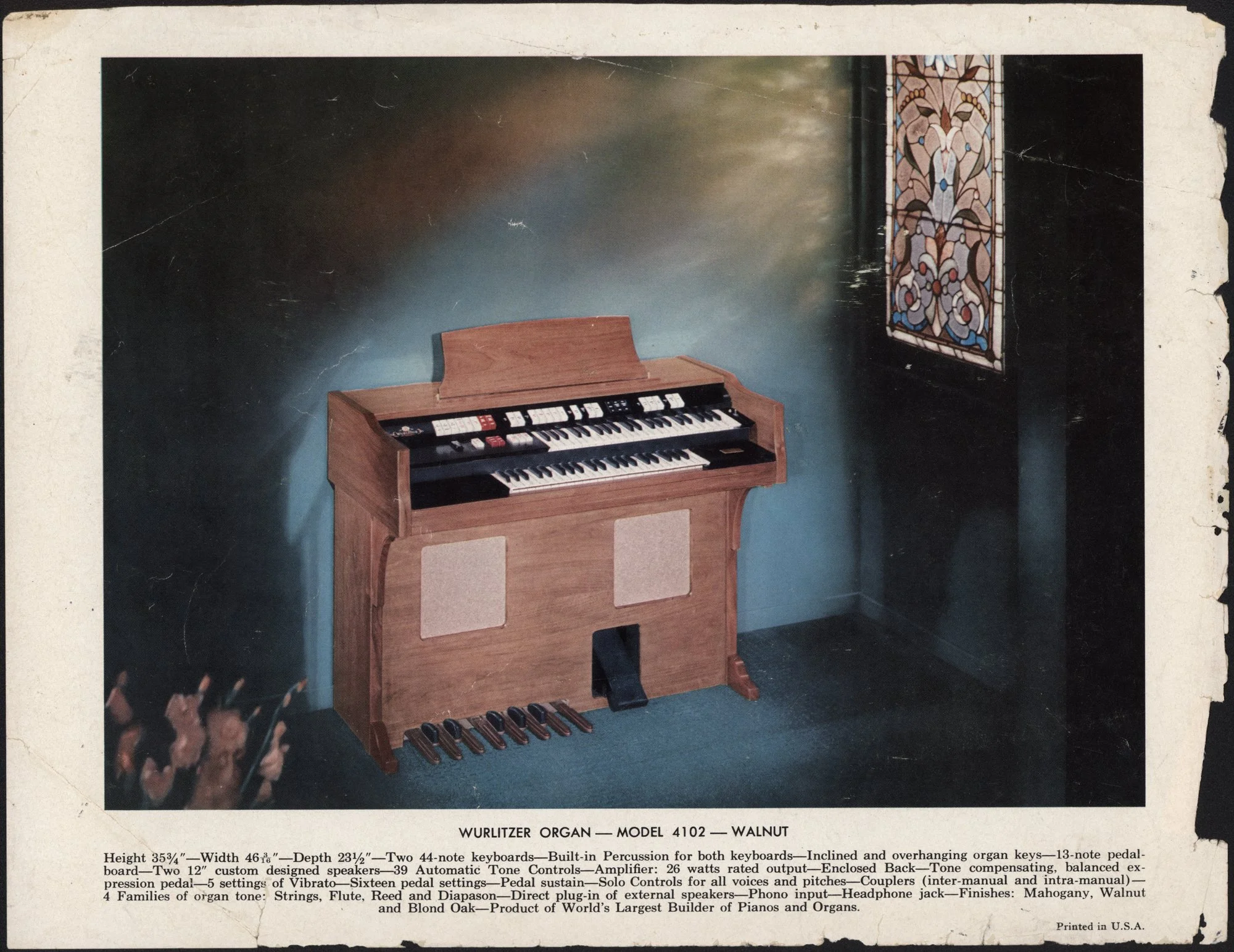

OUTPUTS: Headphone & ext. speakerWurlitzer 4102 product specification sheet
Color halftone print on coated paperPart no.: 500849
Part name: Dowel
Model: 4102
Date: May 7 1959
Diazo printPart no.: 500888
Part name: Toe assembly
Model: 4102
Date: April 15 1959
Diazo printPart no.: 501227
Part name: Toe assembly
Model: 4102
Date: April 15 1959
Diazo print
