Wurlitzer 420 tone cabinet

The Wurlitzer 420 is a tone cabinet produced as an accessory for Wurlitzer organs.

The technical drawings that we currently have scanned include:

  • 502702 (Shroud for Wurlitzer 420)

  • 502704 (Corner pad, front, for 420)

  • 502705 (Corner pad, rear, right, for 420)

  • 502706 (Plug and cable assembly for 420)

  • 502753 (Export crate assembly for 420)

  • 502762 (Capped ratchet plate for 420)

  • 503163 (Tag for 420)

  • 503598 (Wire and lug assembly for 420)

  • 504647 (Label, tropicalized, for 420)

  • 654009 (Socket and bracket assembly for 420)

  • 654015 (Silk screen for 420)

  • 654018 (Cable for 420)

  • 654021 (Cable for 420)

  • 654029 (Plug and wire assembly for 420)

  • 654031 (Cable and plug assembly for 420)

  • 654033 (Spring for 420)

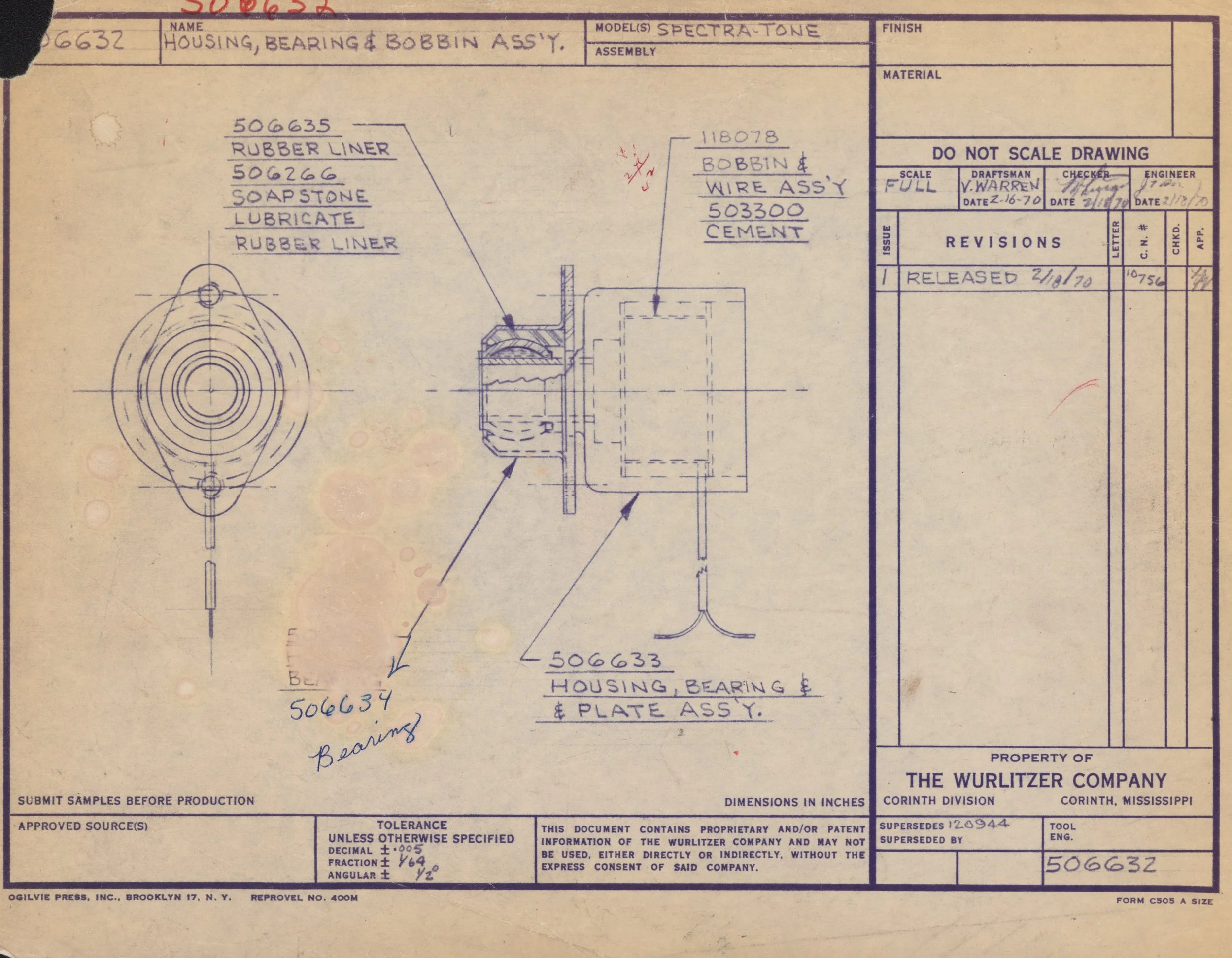

  • 506632 (Housing, bearing and bobbin assembly, for 420)

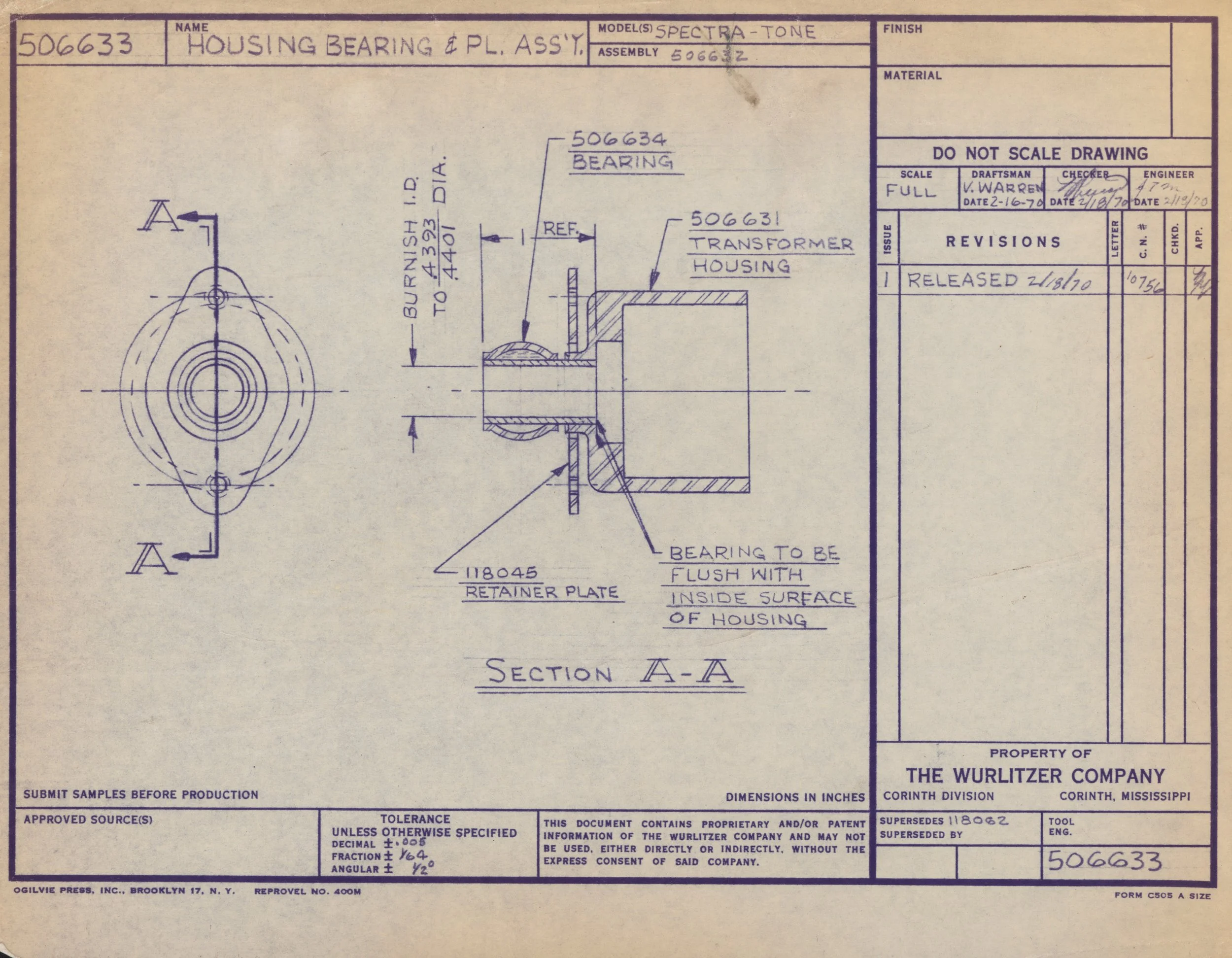

  • 506633 (Housing, bearing and bobbin assembly, for 420)

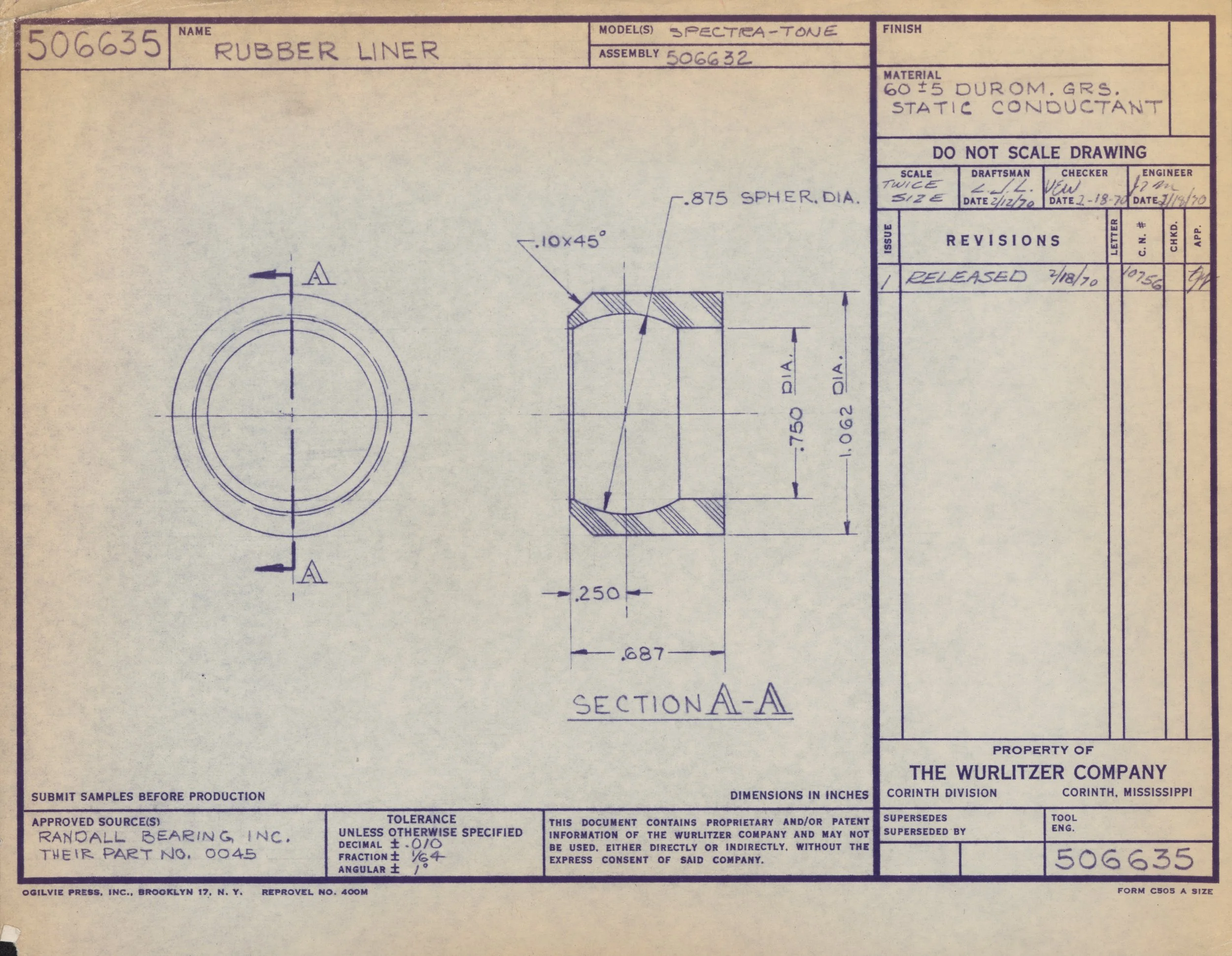

  • 506635 (Rubber liner for 420)

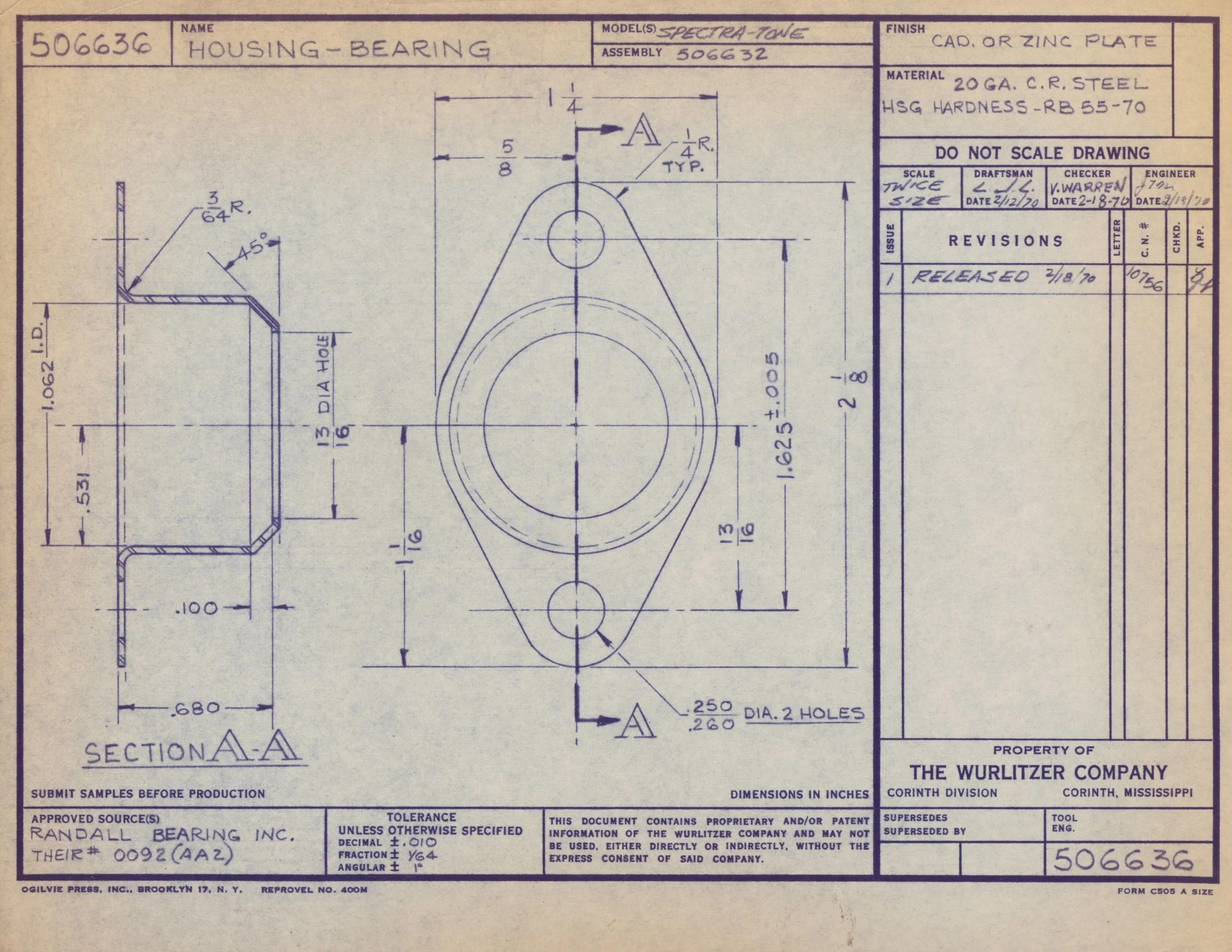

  • 506636 (Housing, bearing, for 420)

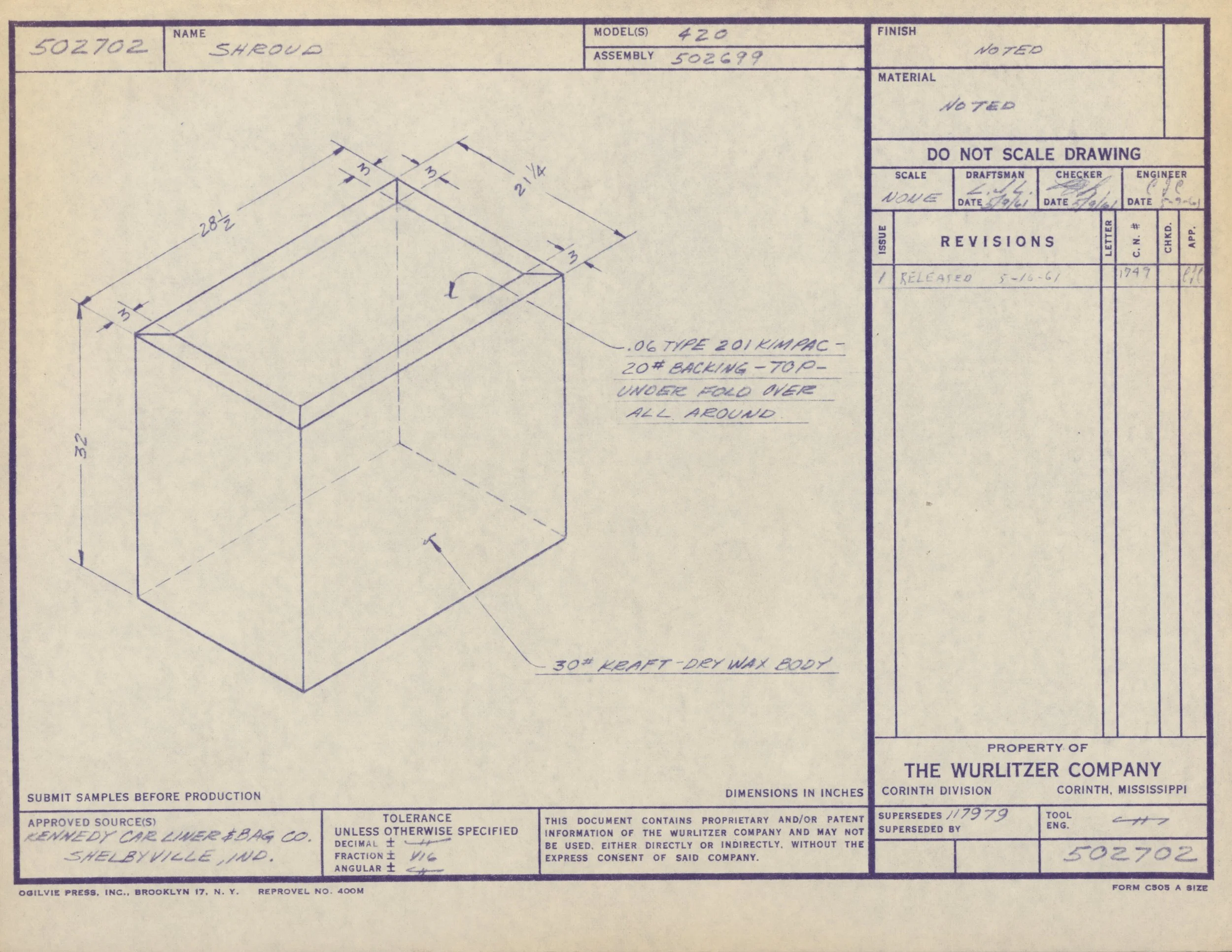

Blueprint technical drawing of a rectangular object with detailed dimensions and annotations. The drawing includes measurements in inches and notes about materials and finishes, with signatures and approval stamps.

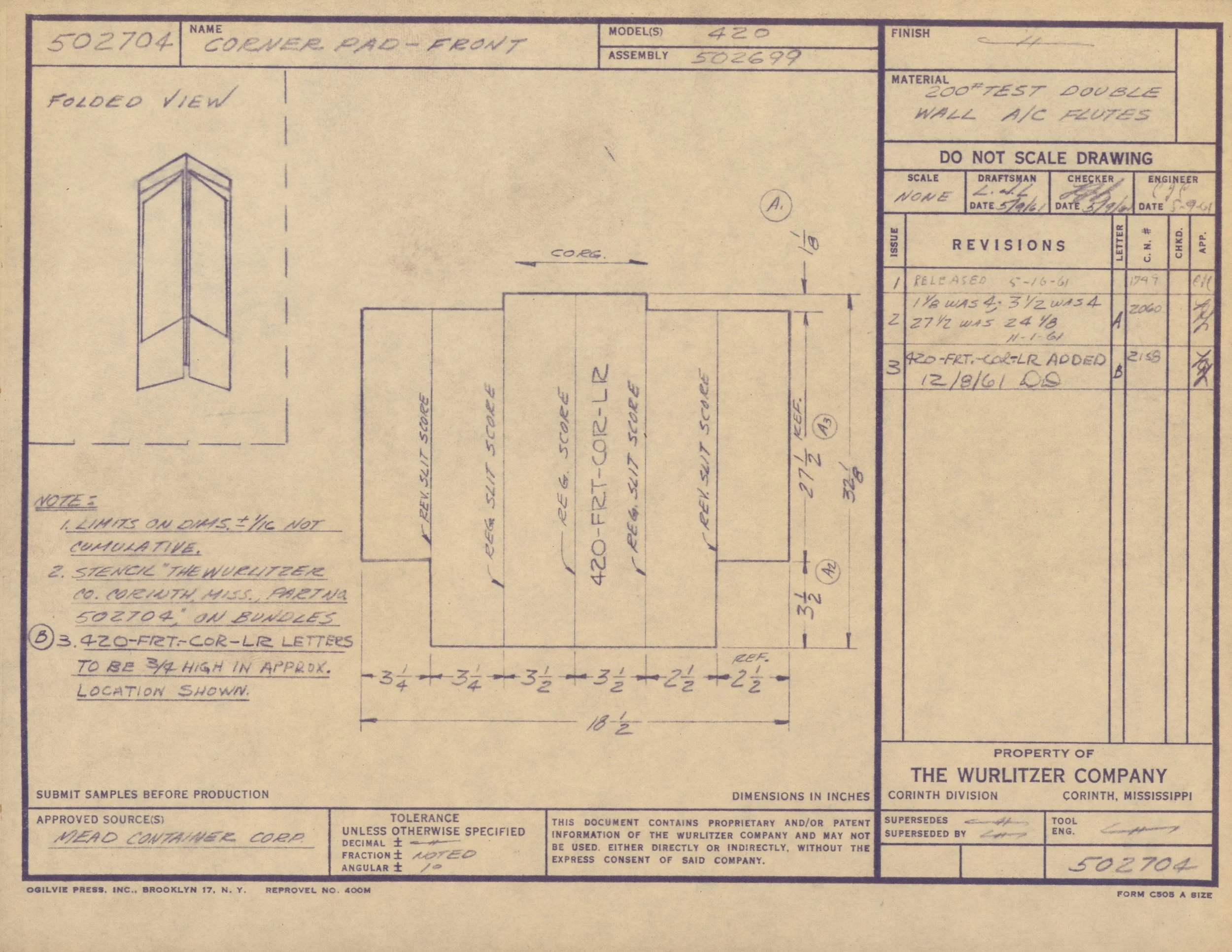

Blueprint drawing of a front corner guard panel for a 420 model vehicle, showing folded view and dimensions, created by The Wurlitzer Company.

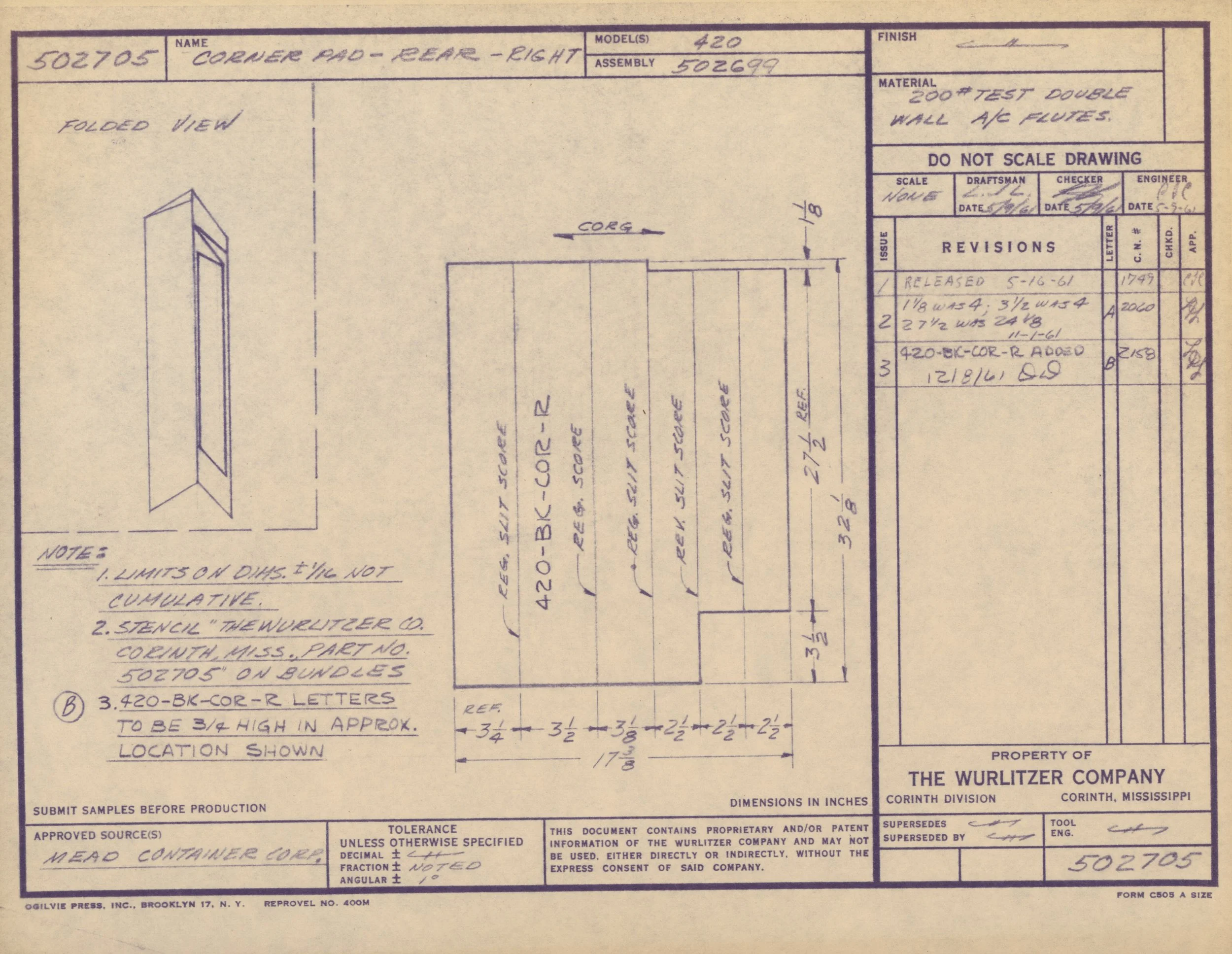

Blueprint of right corner of a wall with detailed measurements and notes, titled 'Corner 4d - Bear - Right', created by The Wurlitzer Company in Corinth, Mississippi.

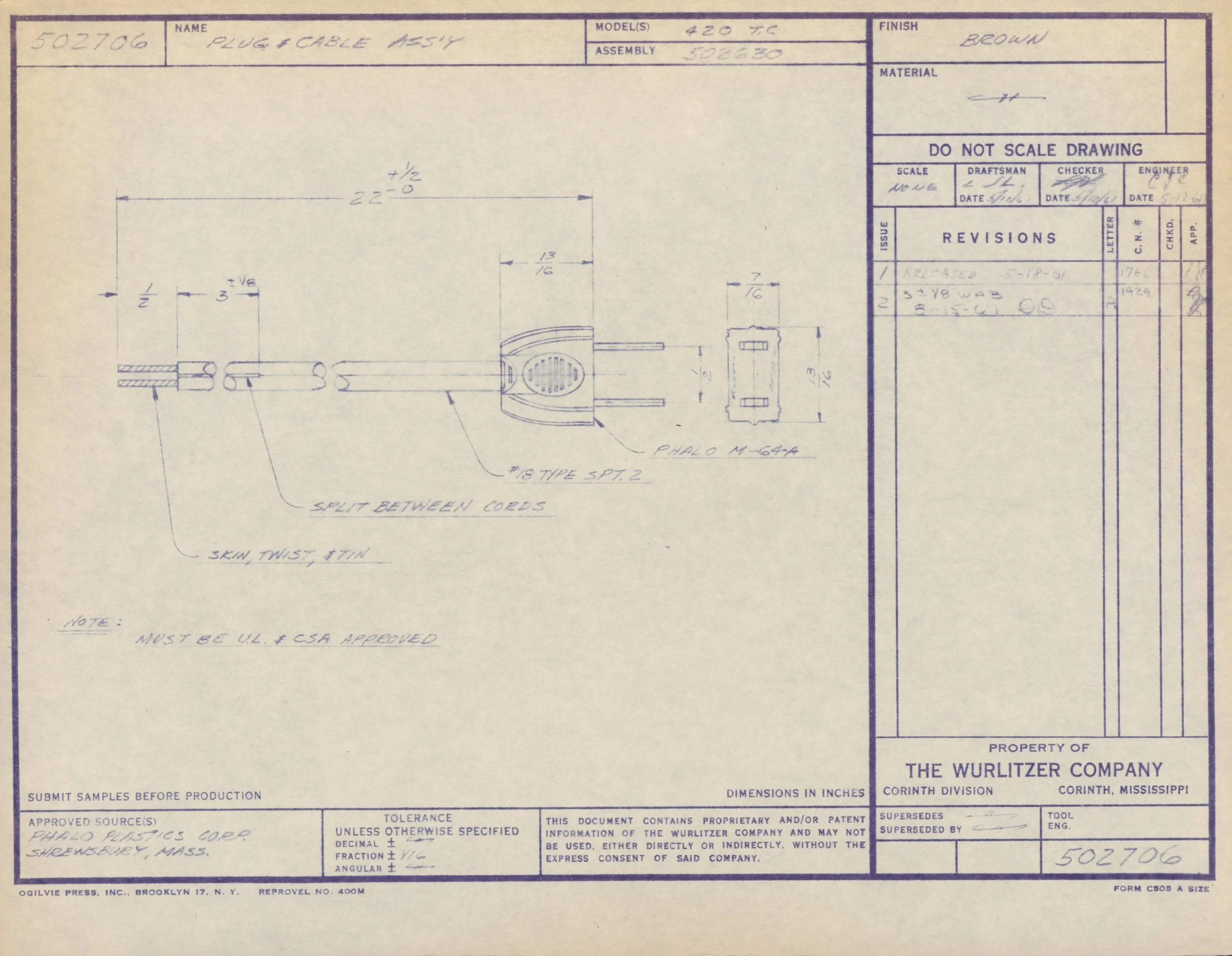

Technical drawing blueprint for a plug and cable assembly, showing measurements and detailed specifications from The Wurlitzer Company, dated 1951.

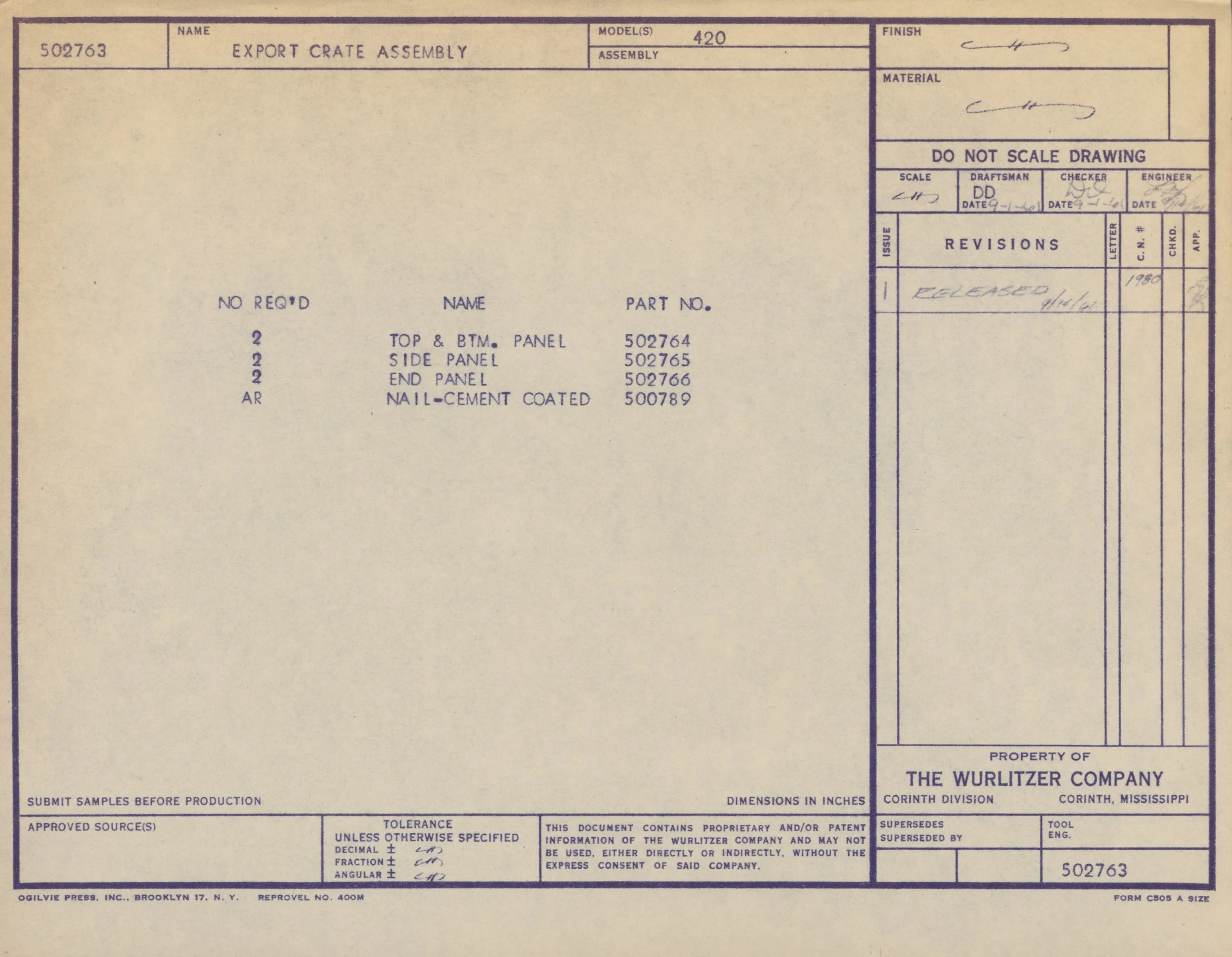

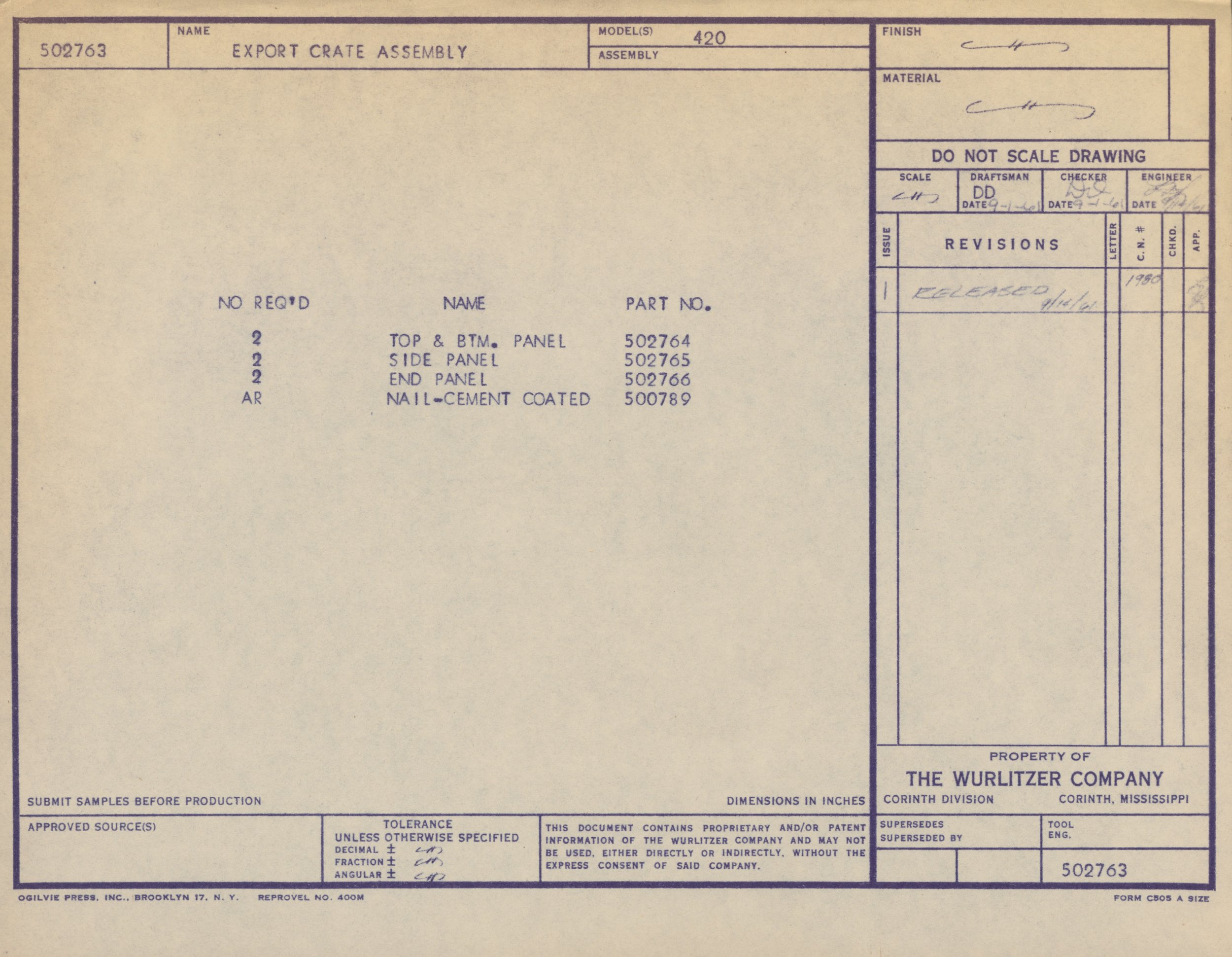

Technical drawing or blueprint for an export crate assembly, showing specific parts, dimensions, revisions, and company information from The Wurlitzer Company.

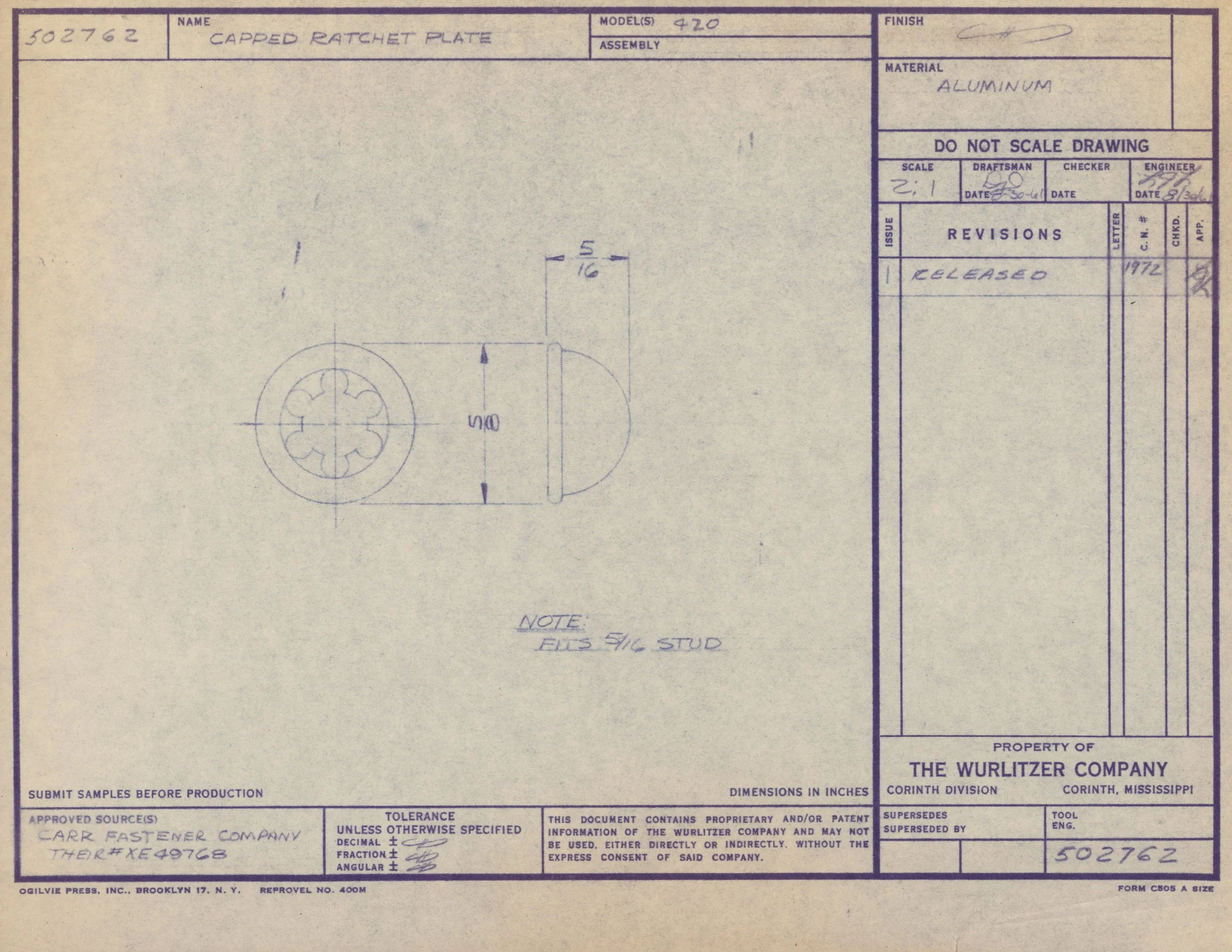

Technical drawing of a capped ratchet plate with dimensions and annotations, created by The Wurlitzer Company, dated 1972.

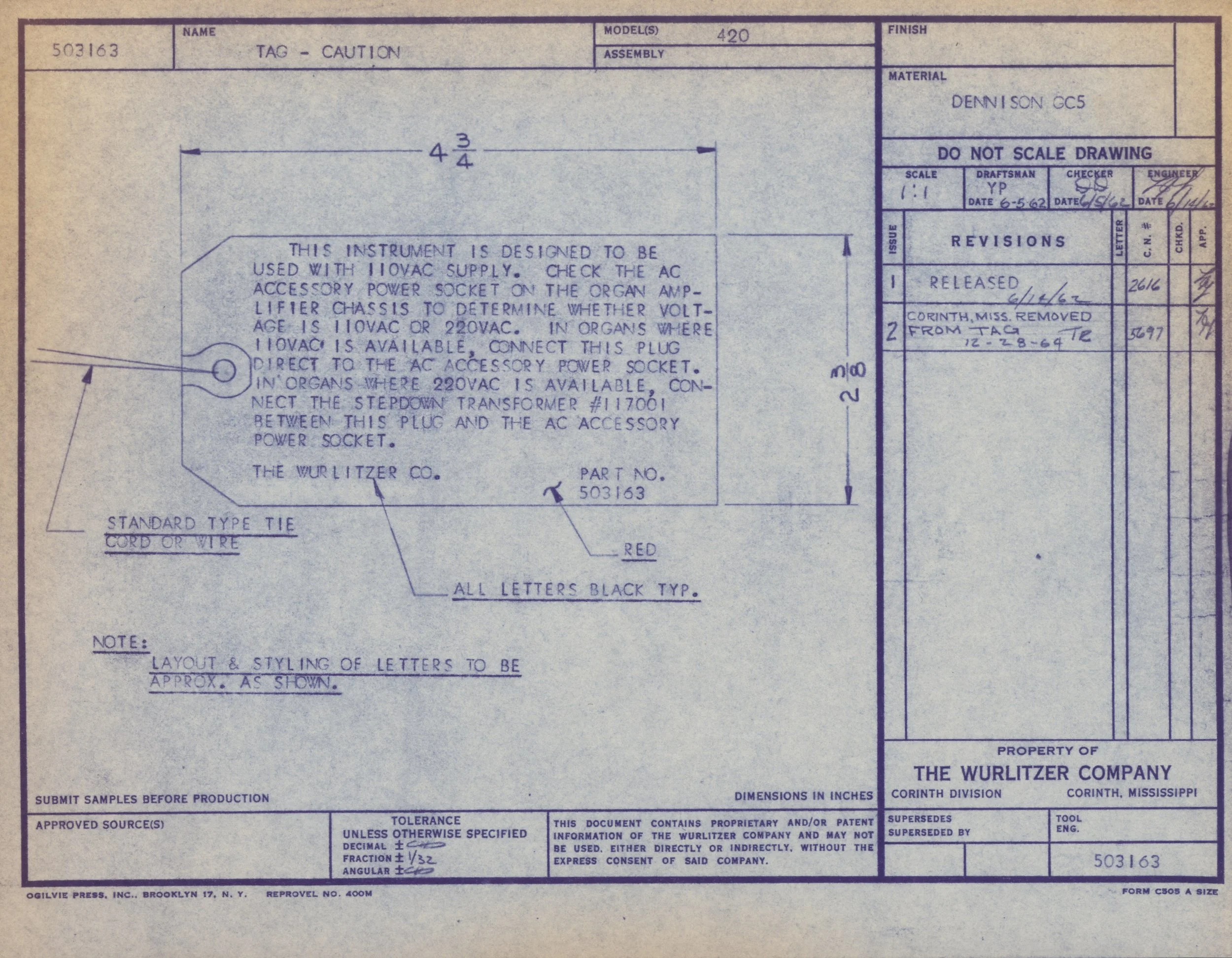

Technical blueprint or engineering drawing showing detailed specifications and measurements for a part or product. Contains text instructions, measurements in inches, and signatures for approval processes.

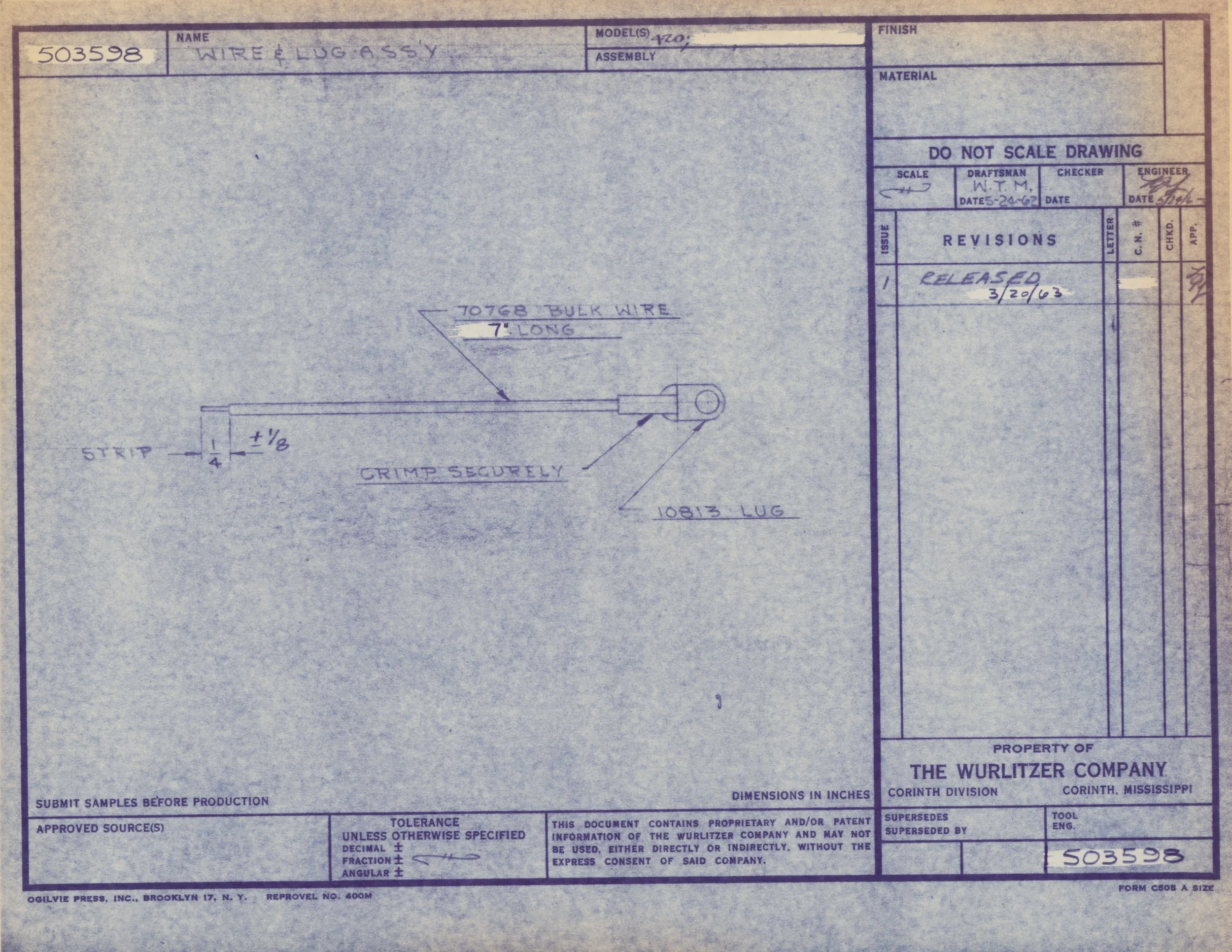

Engineering blueprint for wire and lug assembly with technical specifications, sketches, and handwritten notes.

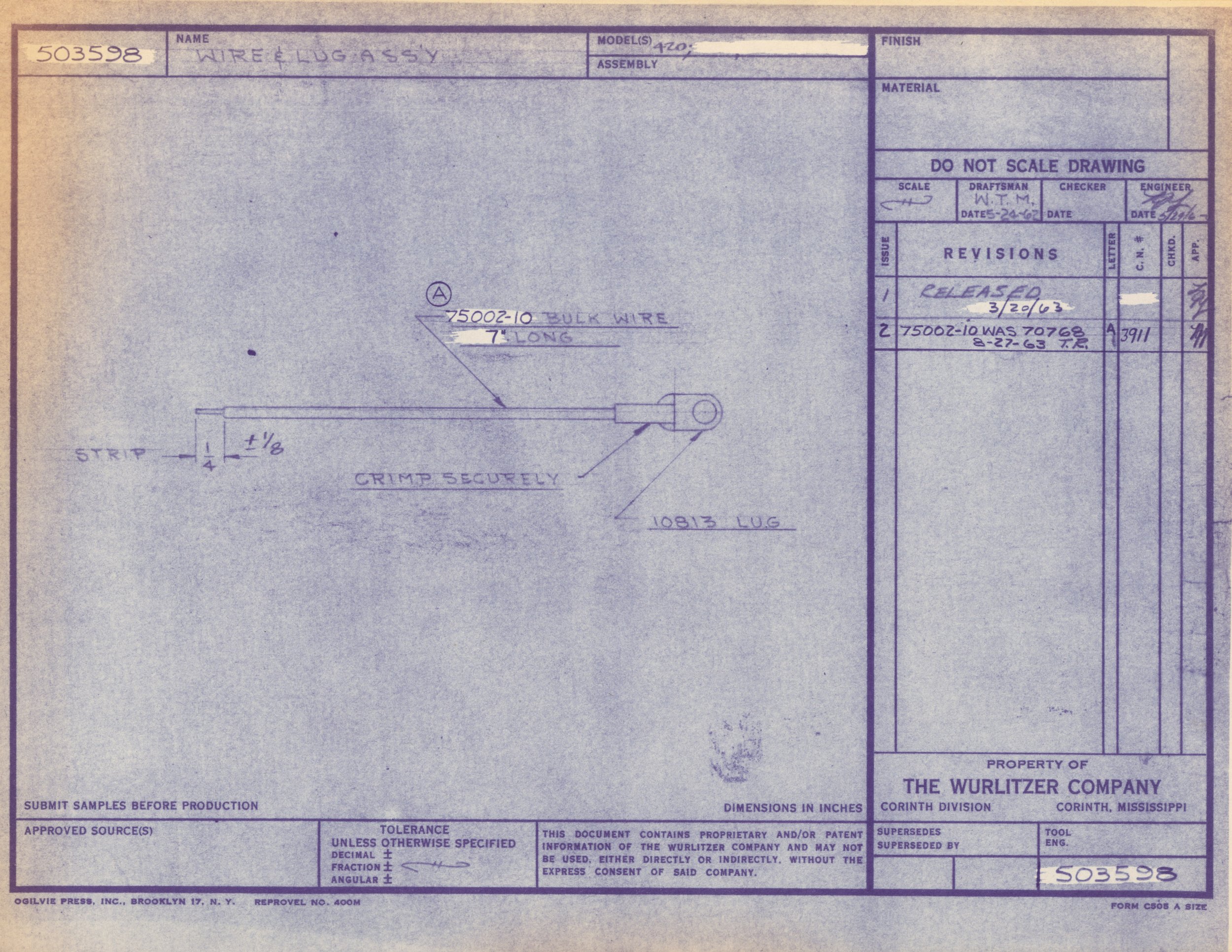

Technical drawing of wire and lug assembly, showing dimensions and details, with handwritten notes and signatures on blueprint paper.

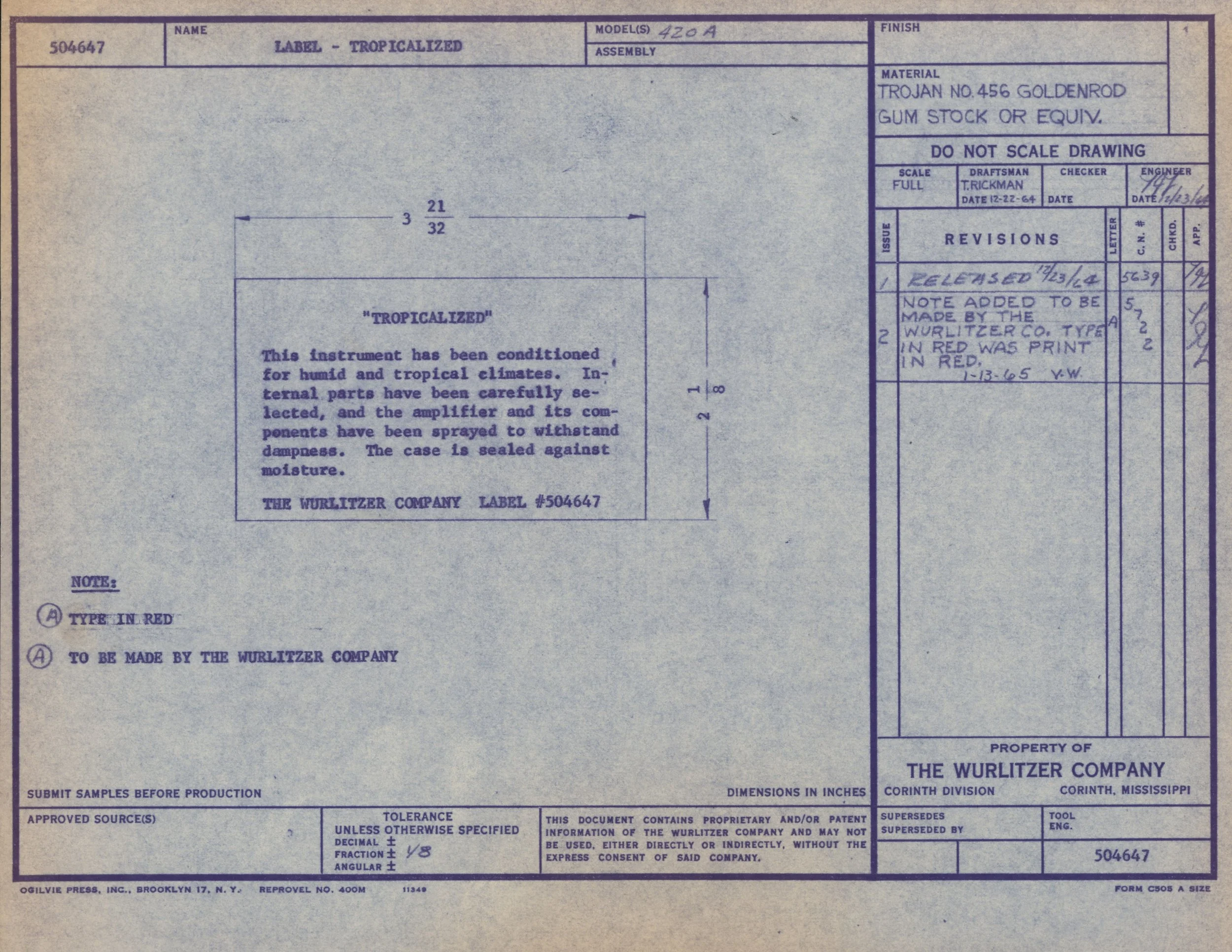

A blueprint or technical drawing of a label for a tropicalized instrument, showing measurements, text, and handwritten notes related to the design and production process.

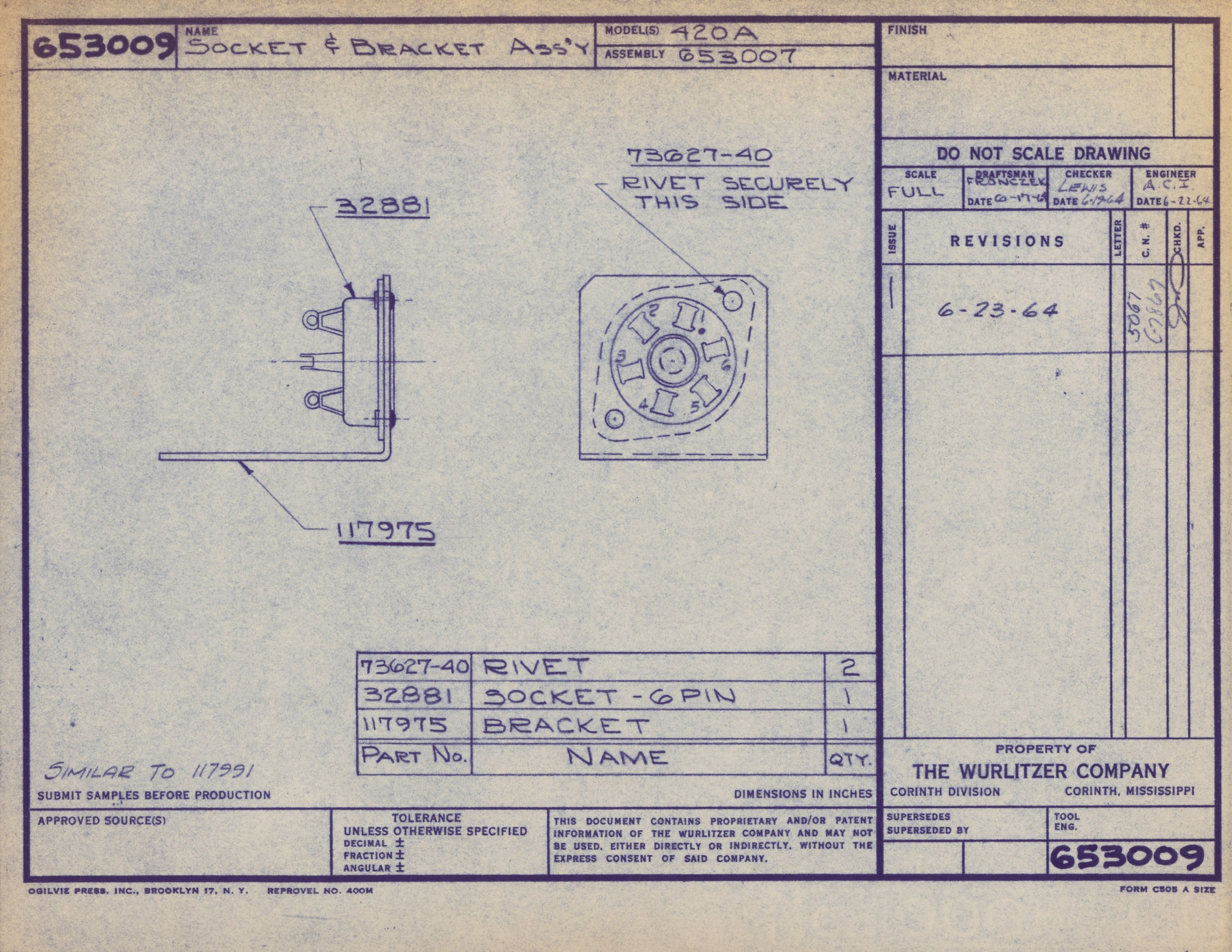

Technical drawing blueprint of a socket and bracket assembly with handwritten notes, part numbers, and dimensions.

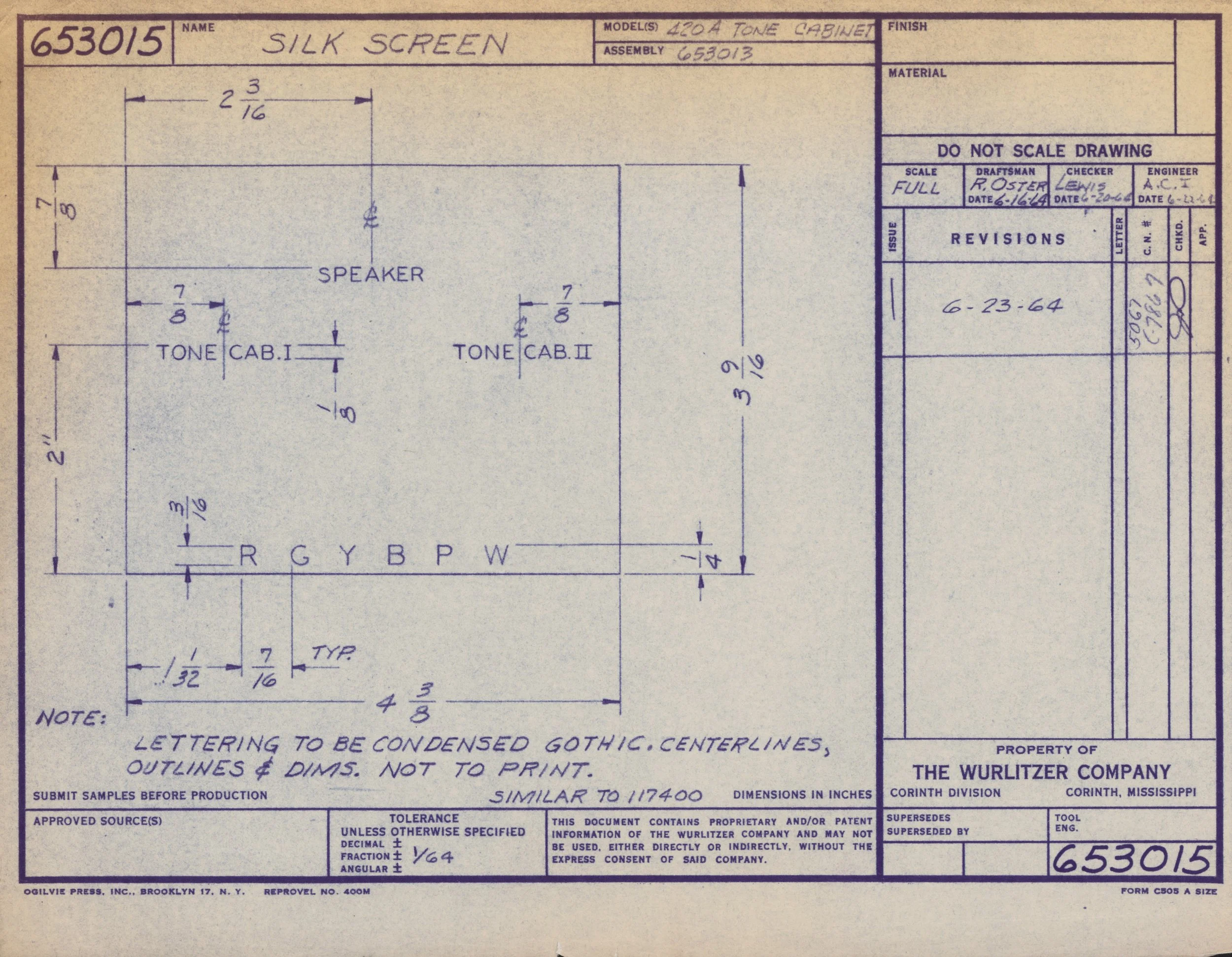

Technical drawing of a silk screen with measurements, labels, and notes for printing details, created by The Wurlitzer Company in Corinth, Mississippi.

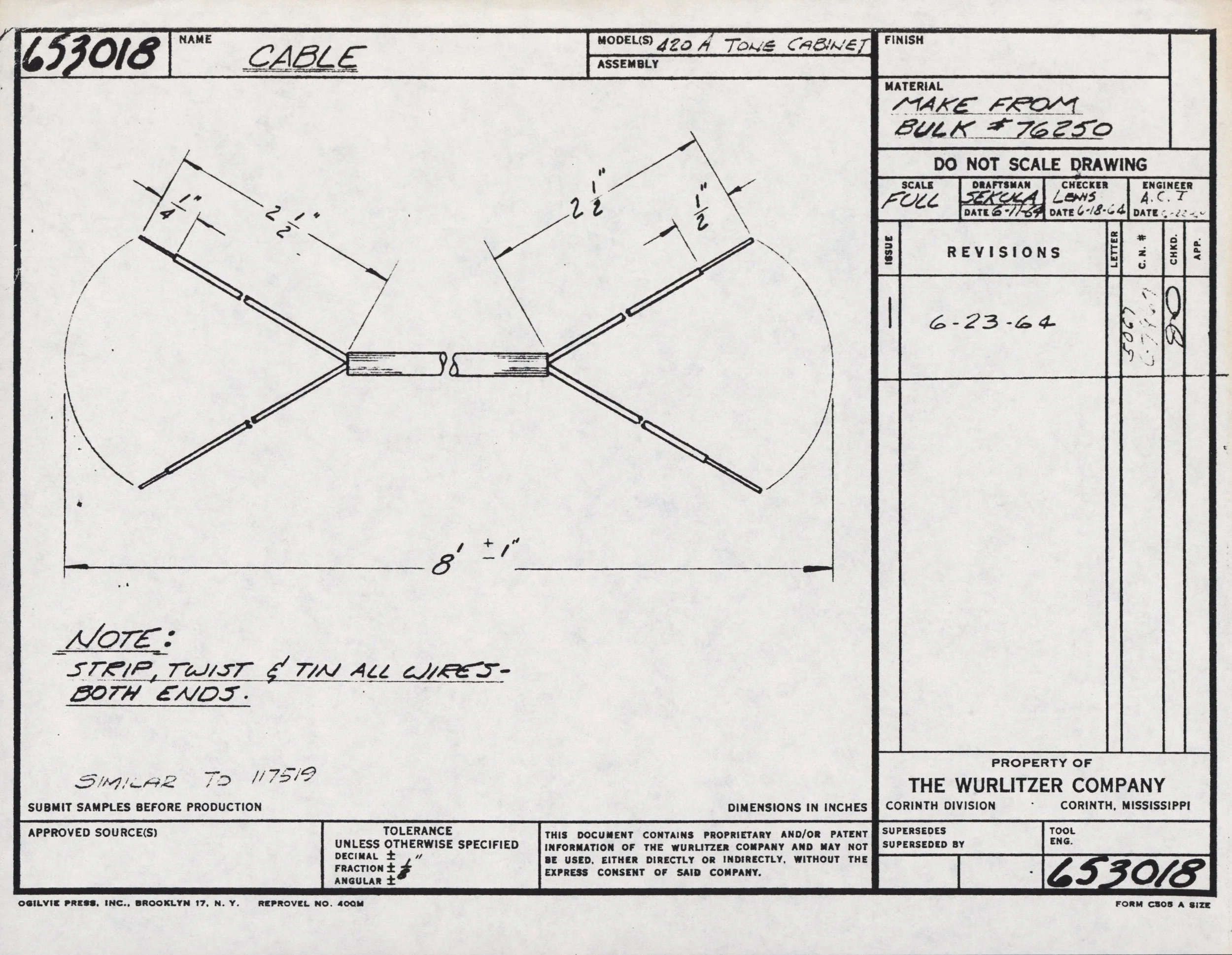

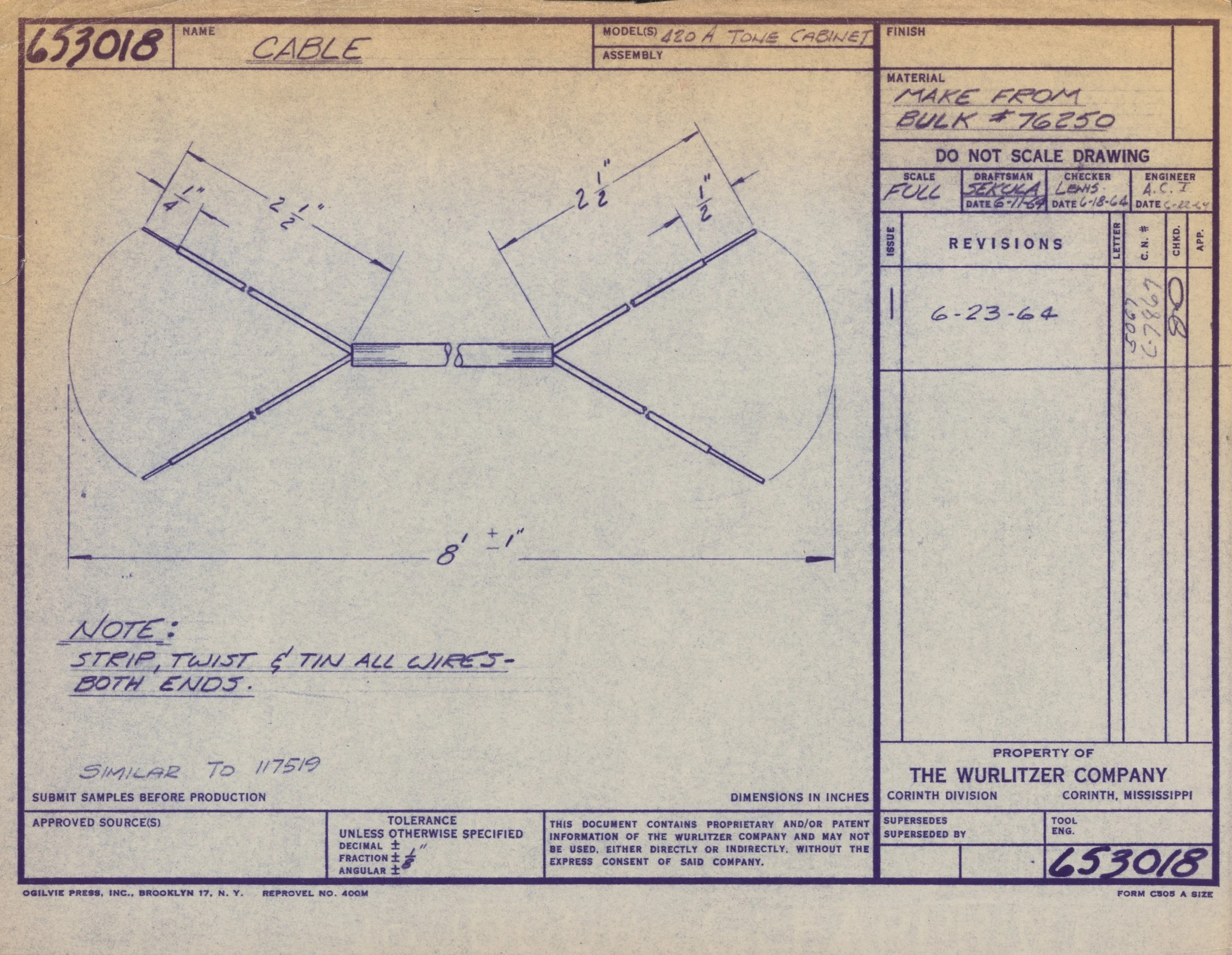

Technical drawing of a cable with measurements and construction notes, created by The Wurlitzer Company in Mississippi.

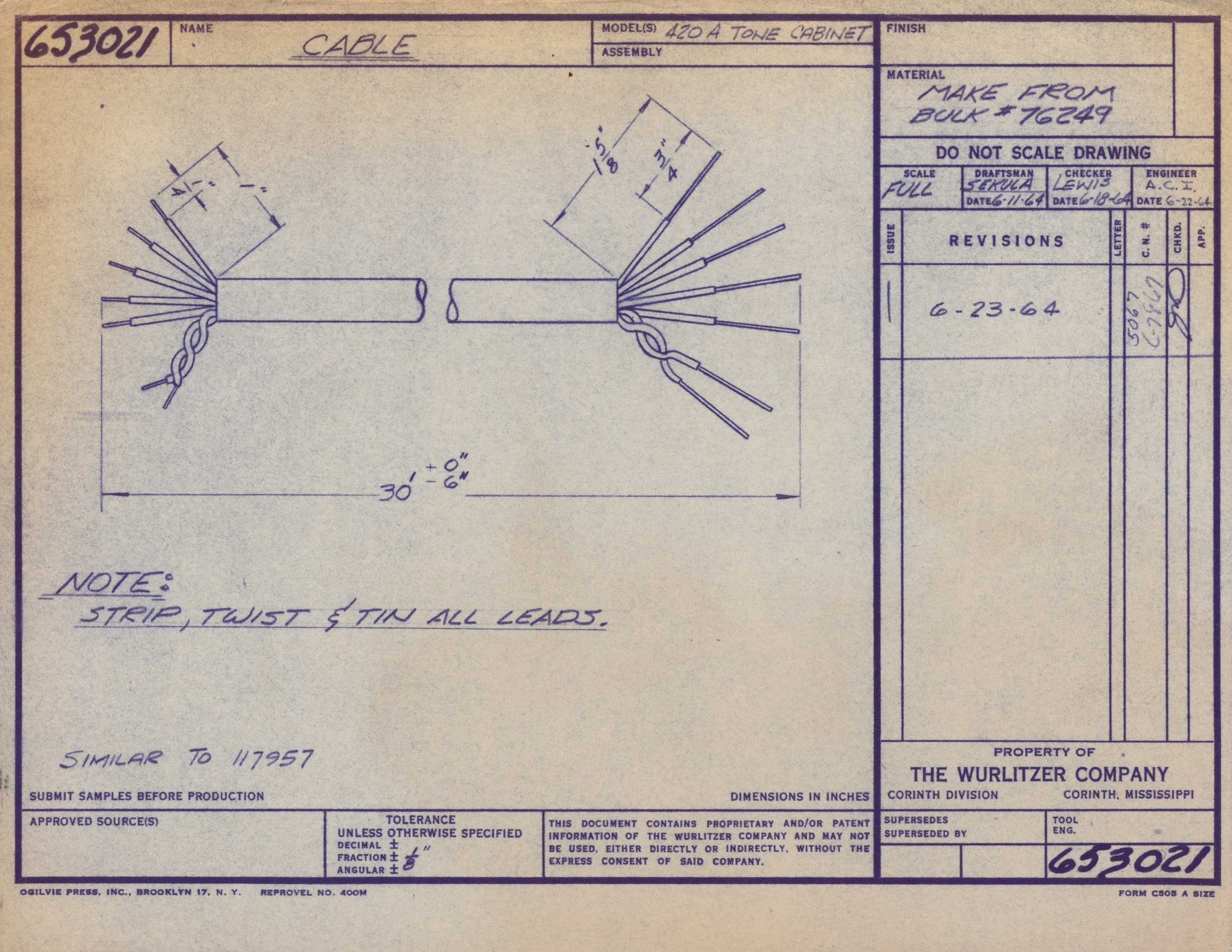

Technical drawing of a cable with detailed measurements, notes on wire stripping, and approval stamps from Wurlitzer Company.
Technical drawing of a cable with detailed measurements and instructions, created by The Wurlitzer Company.

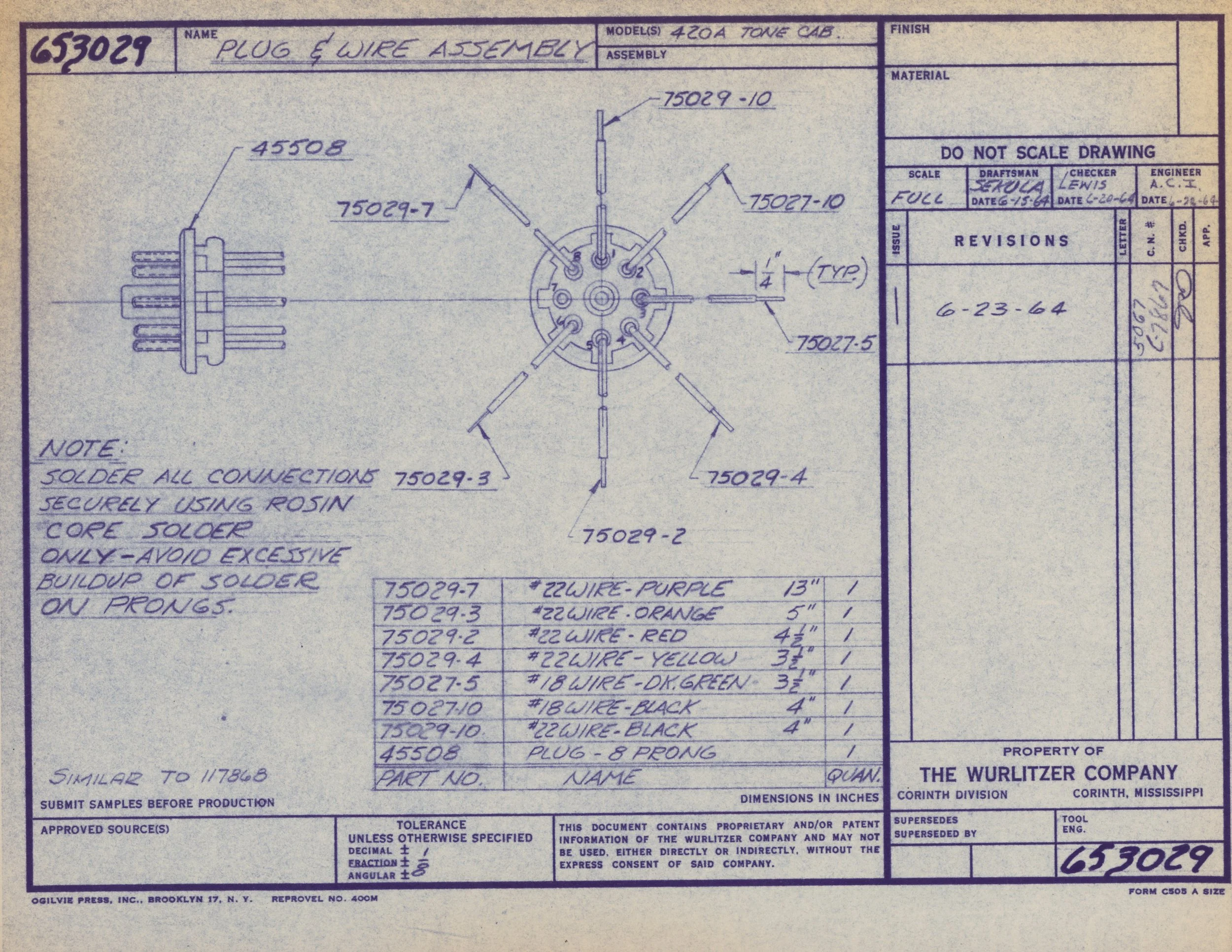

Blueprint technical drawing of a plug and wire assembly showing dimensions, part numbers, and details for manufacturing.

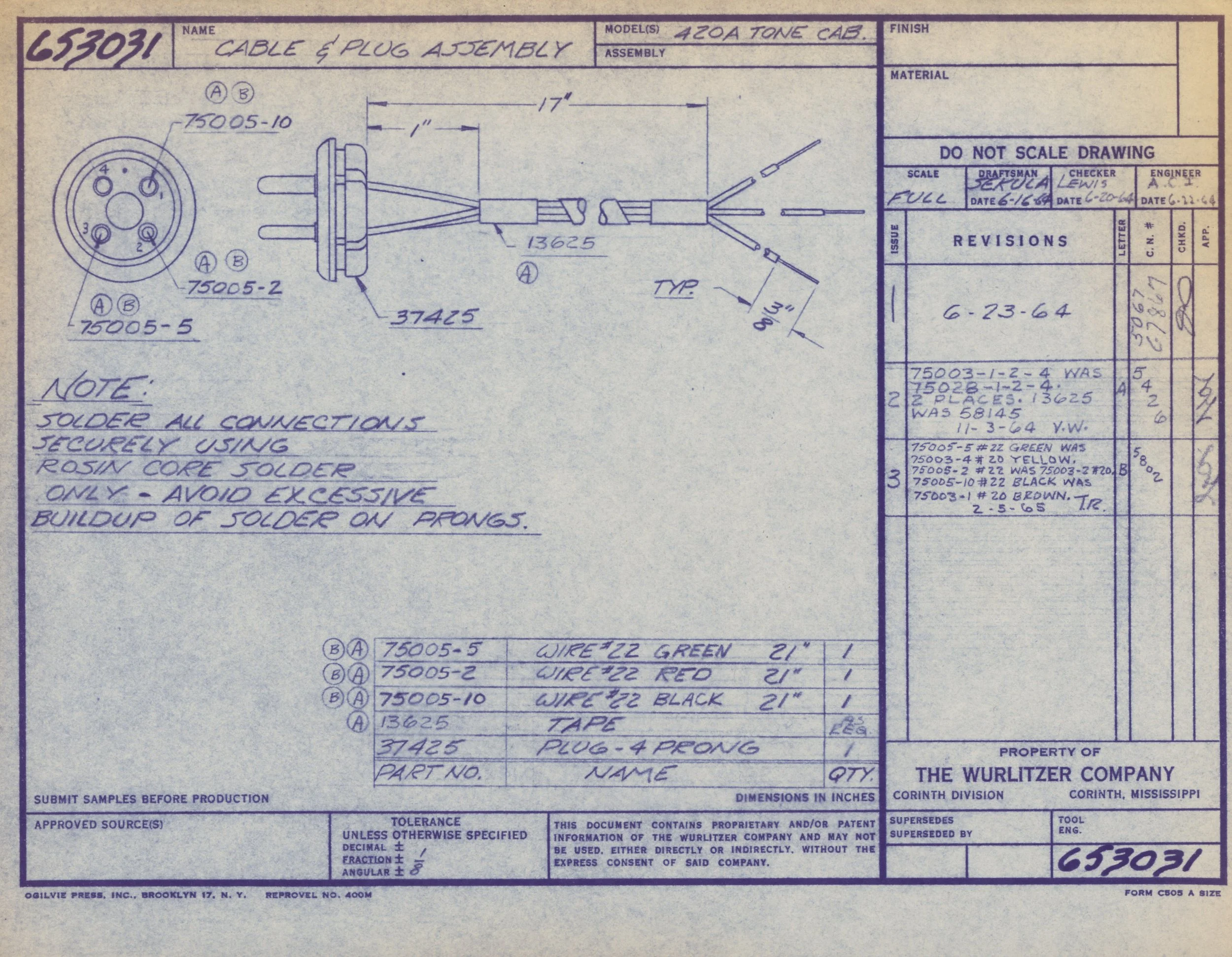

Technical drawing or blueprint of a cable and plug assembly, showing detailed measurements and annotations for assembly and wiring instructions.

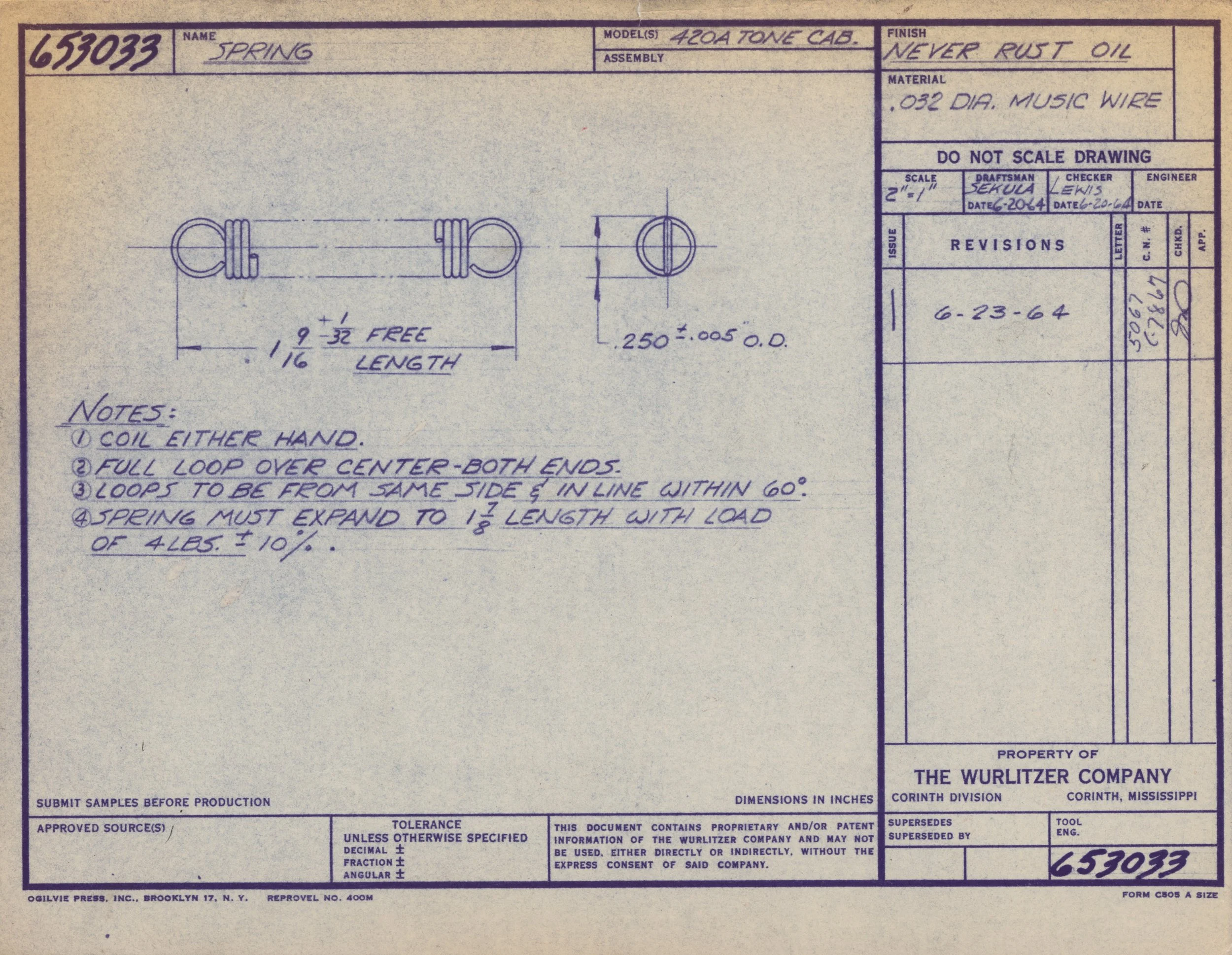

Blueprint drawing of a spring with detailed dimensions and specifications, including material, scale, and notes for construction.
