The Wuritzer 140 electronic pianos is the first produced portable model in the 140 series. The innovation in this model (from the 120) was the improved action and improved harp. The action was smoother and the notes had more sustain.
The amplifier in the 140 is a very early, but innovative solid state design that uses T03 transistors. The tremolo on this model is produced using varistors.
Looking for more 140 Electronic piano drawings? Request them here.
140 ELECTRONIC PIANO
WURLITZER ELECTRONIC PIANOSPECIFICATIONS
Updated action design
Dual harp design
AMPLIFIER
Solid state
Germanium power amplifier
Vibrato depth
DIMENSIONS
Height: 8.5"
Width: 40"
Depth: 21.5"
Weight: 80 lbsFEATURES
Integrated wood music rack
Textured paint finish
Tapered wood legs that store inside the key cover for transportPart no.: 650552

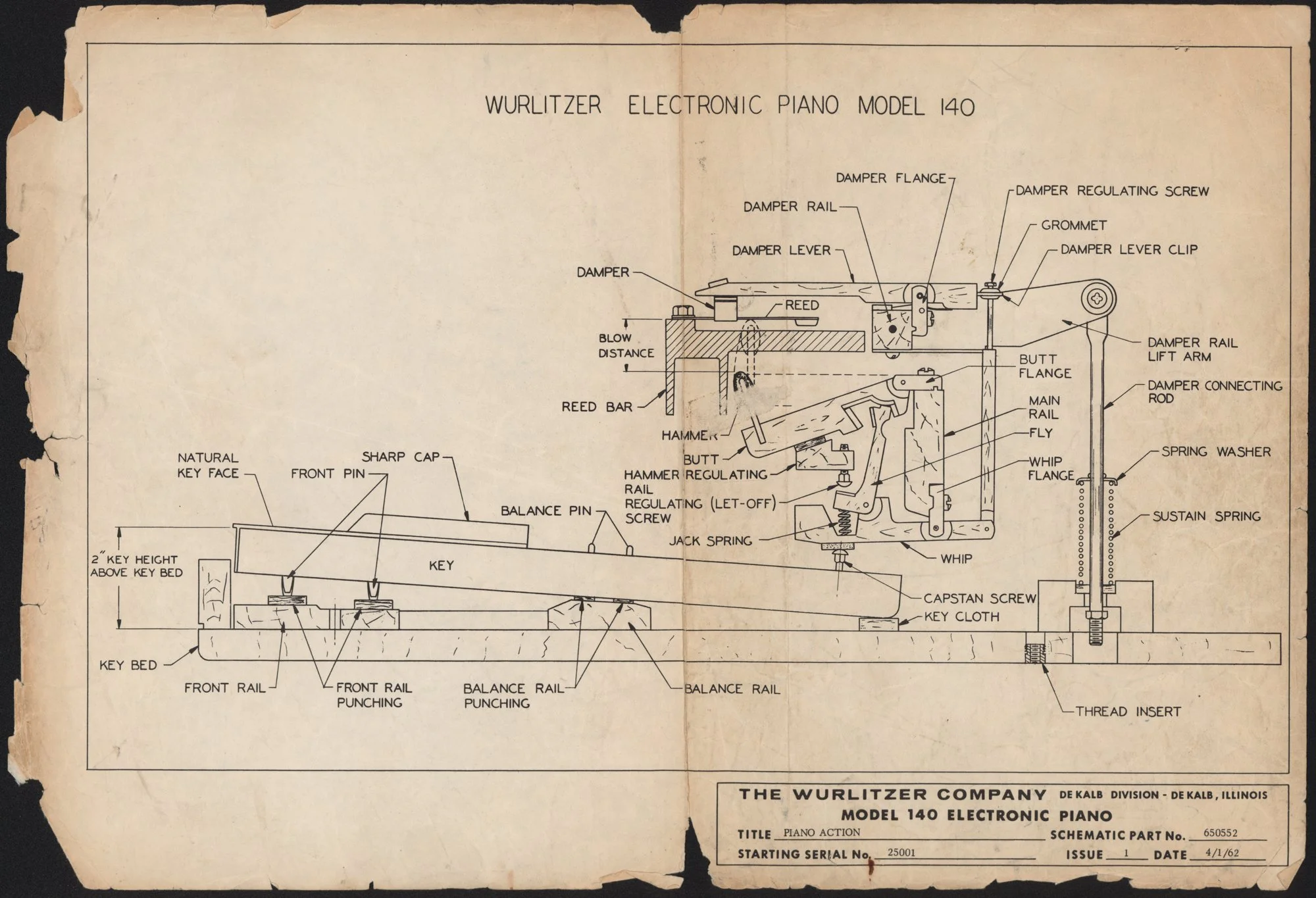

Title: Piano action
Model: 140
Date: April 1 1962
Diazo printPart no.: 502931
Part name: Cable assembly
Model: 140
Date: February 16 1962
Diazo printPart no.: 502995
Part name: Utility pad assembly
Model: 140
Date: February 27 1962
Diazo printPart no.: 503003
Part name: Carton
Model: 140
Date: February 7 1962
Diazo printPart no.: 503005
Part name: Wurlitzer decal - small
Model: 140
Date: February 12 1962
Diazo printPart no.: 503012
Part name: Whip stop
Model: 140
Date: March 23 1962
Diazo printPart no.: 503685
Part name: Cable assembly
Model: 140
Date: May 28 1963
Diazo printPart no.: 650191
Part name: Insulator bushing
Model: 140
Date: September 5 1961
Diazo printPart no.: 650196
Part name: Transistor
Model: 140
Date: January 15 1962

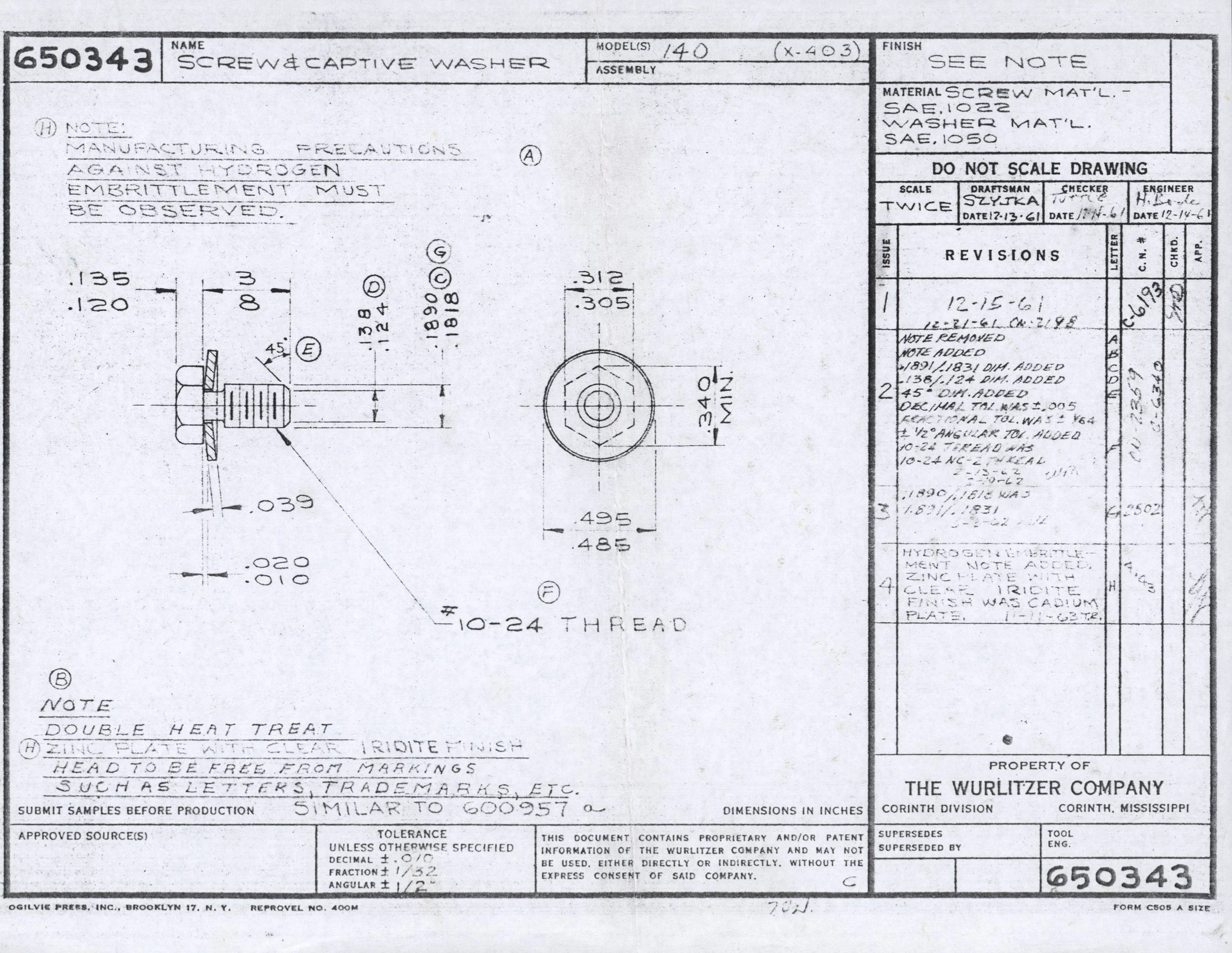

Diazo printPart no.: 650343
Part name: Screw & captive washer
Model: 140
Date: December 13 1961
Diazo printPart no.: 650412
Part name: Cable
Model: 140
Date: December 22 1961
Diazo printPart no.: 650453
Part name: Cable assembly - amplifier
Model: 140
Date: January 18 1962
Diazo printPart no.: 651193
Part name: Butt damper
Model: 140
Date: September 19 1962
Diazo printPart no.: 651195
Part name: Butt damper - reeds 33-64 inclusive
Model: 140
Date: September 24 1962
Diazo printPart no.: 651198
Part name: Damper bracket - cover
Model: 140
Date: September 21 1962
Diazo printPart no.: 651199
Part name: Damper cover
Model: 140
Date: September 21 1962
Diazo printPart no.: 651200
Part name: Damper assembly - cover
Model: 140
Date: September 21 1961
Diazo print
