Wurlitzer 140A
The Wurlitzer 140A electronic pianos is very similar to the 140 and share all the same innovations except for the changes made to the reeds. Though the dual harp design is responsible for the sustain of the notes, small changes were made to the reed shape.
The 140A uses the same amplifier as the 140. During the 140/140A time period there were reed screws which were more prone to cracking. 140 models and 140A models may be found with broken reed screws, but this issue was addressed in 140B models.
Looking for more 140A Electronic piano drawings? Request them here.
140A ELECTRONIC PIANO
WURLITZER ELECTRONIC PIANOSPECIFICATIONS
Updated action design
Dual harp design
AMPLIFIER
Solid state
Germanium power amplifier
Vibrato control
DIMENSIONS
Height: 8.5"
Width: 40"
Depth: 21.5"
Weight: 80 lbsFEATURES
Integrated wood music rack
Textured paint finish
Tapered wood legs that store in the key cover for transport
Part no.: 503345
Part name: Serial number plate - export
Model: 140A
Date: November 21 1962

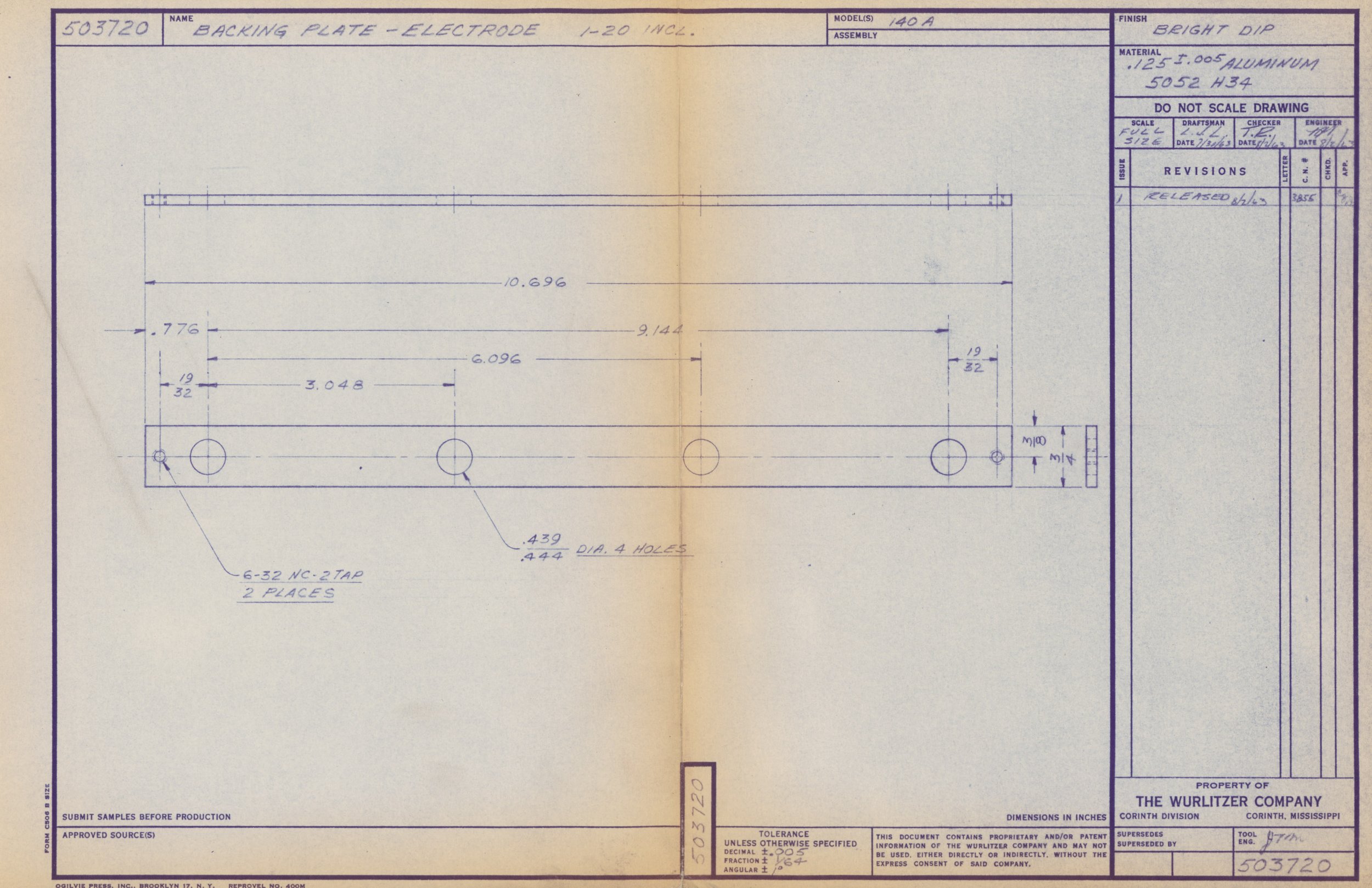

Diazo printPart no.: 503720
Part name: Backing plate - electrode - 1-20 incl.
Model: 140A
Date: July 31 1963

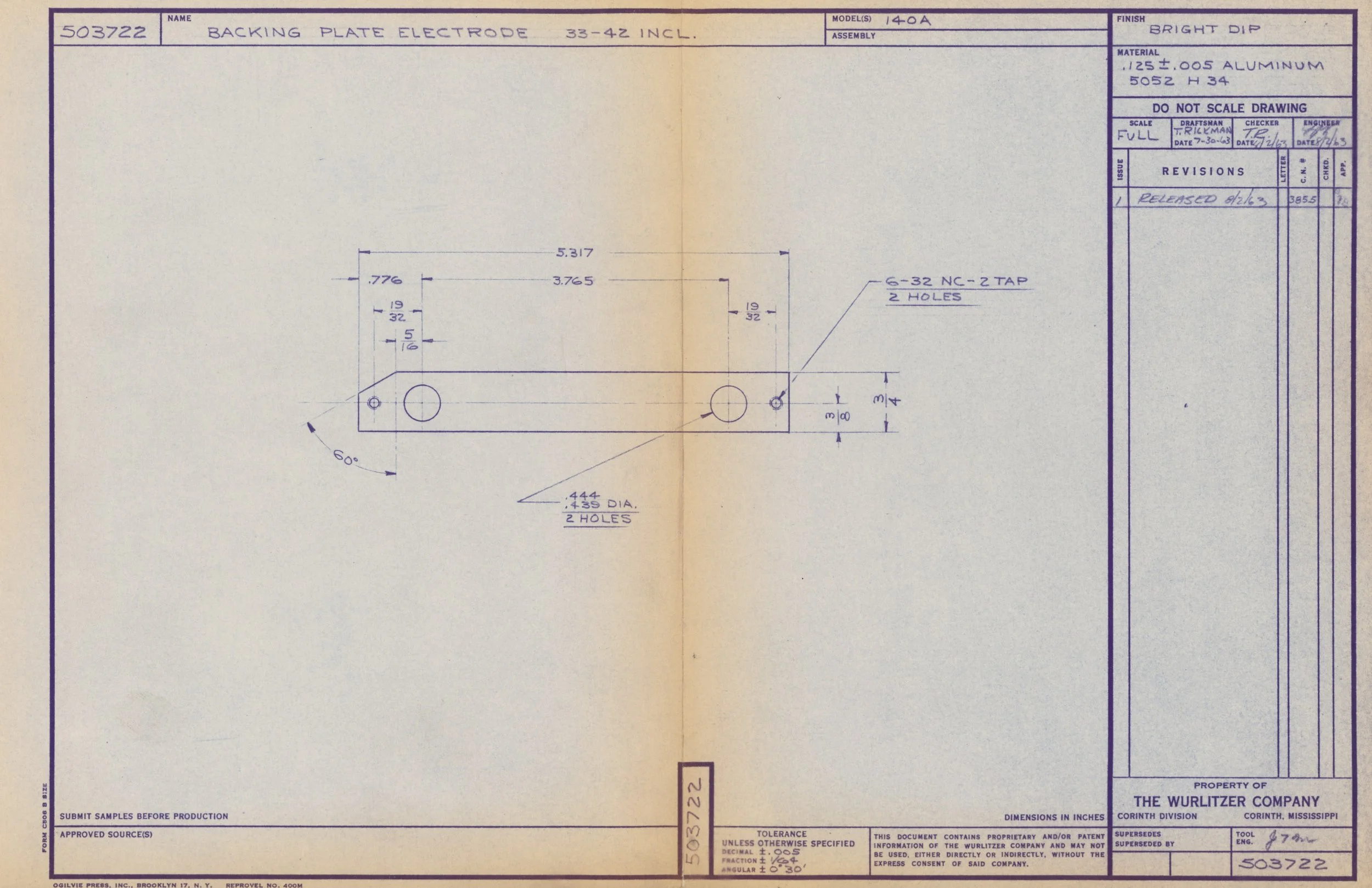

Diazo printPart no.: 503722
Part name: Backing plate - electrode - 33-42 incl.
Model: 140A
Date: July 30 1963
Diazo print
