Wurlitzer 4100
VIEW SIMILAR: 4000 | 4100A | 4100BD & 4100BP The Wurlitzer 4100 is an electronic organ with vacuum tube oscillators. It is the base model, whereas the 4102 has similar electronics in a church-style cabinet, and the 4150 includes chord buttons on the left keyblock.
According to its service manual, the 4100 came in multiple styles and finishes: Mahogany, Cherry, Walnut, Modern Ebony, Modern Blond Oak, French Provincial Cherry and Italian Provincial Walnut.
Looking for more 4100 organ drawings? Request them here. Or, contact us if you would like to contribute information or documents about this model to the archive.

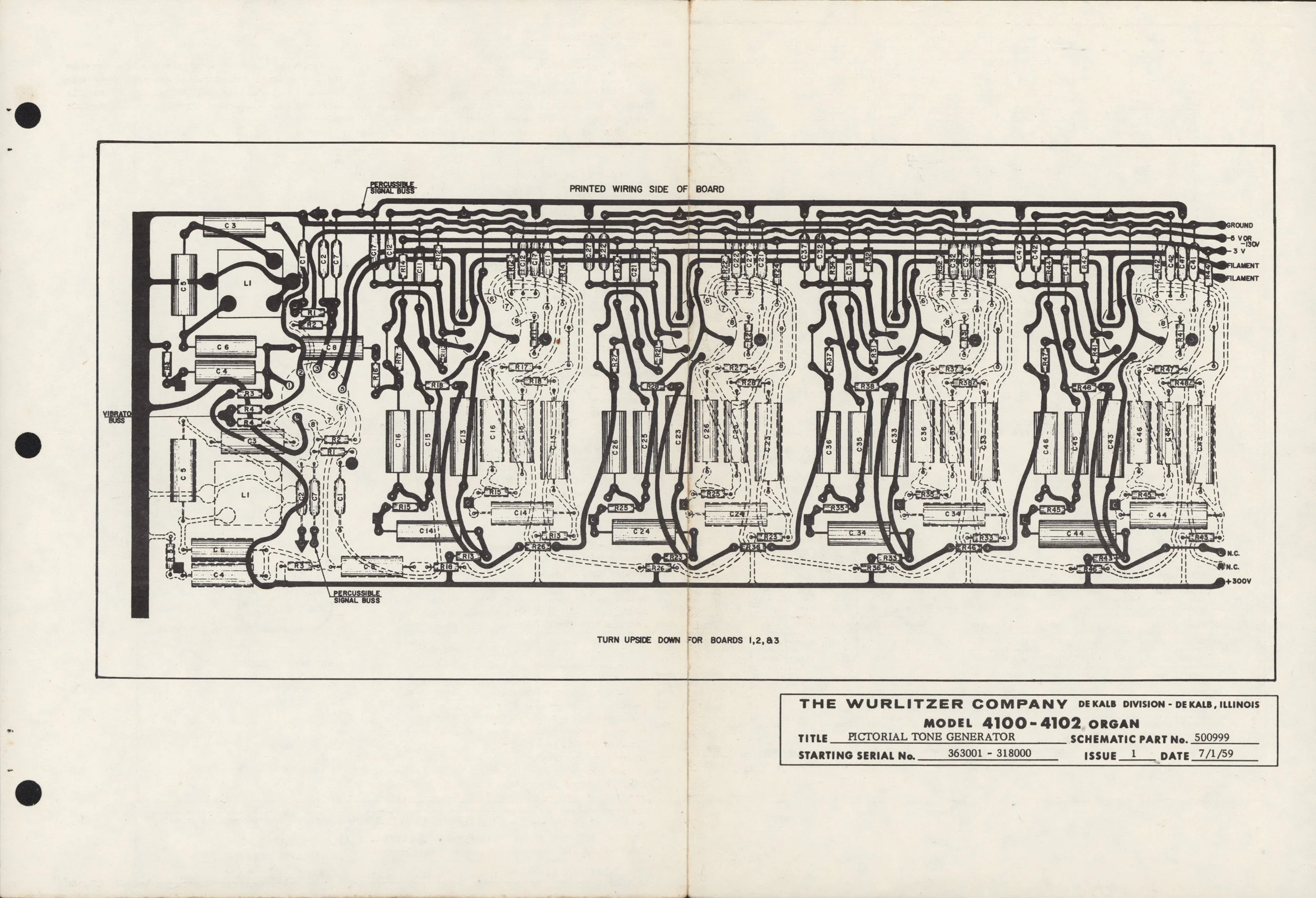

WURLITZER 4100
VACUUM TUBE ORGANSPECIFICATIONS
UPPER MANUAL: 44 keys
LOWER MANUAL: 44 keys

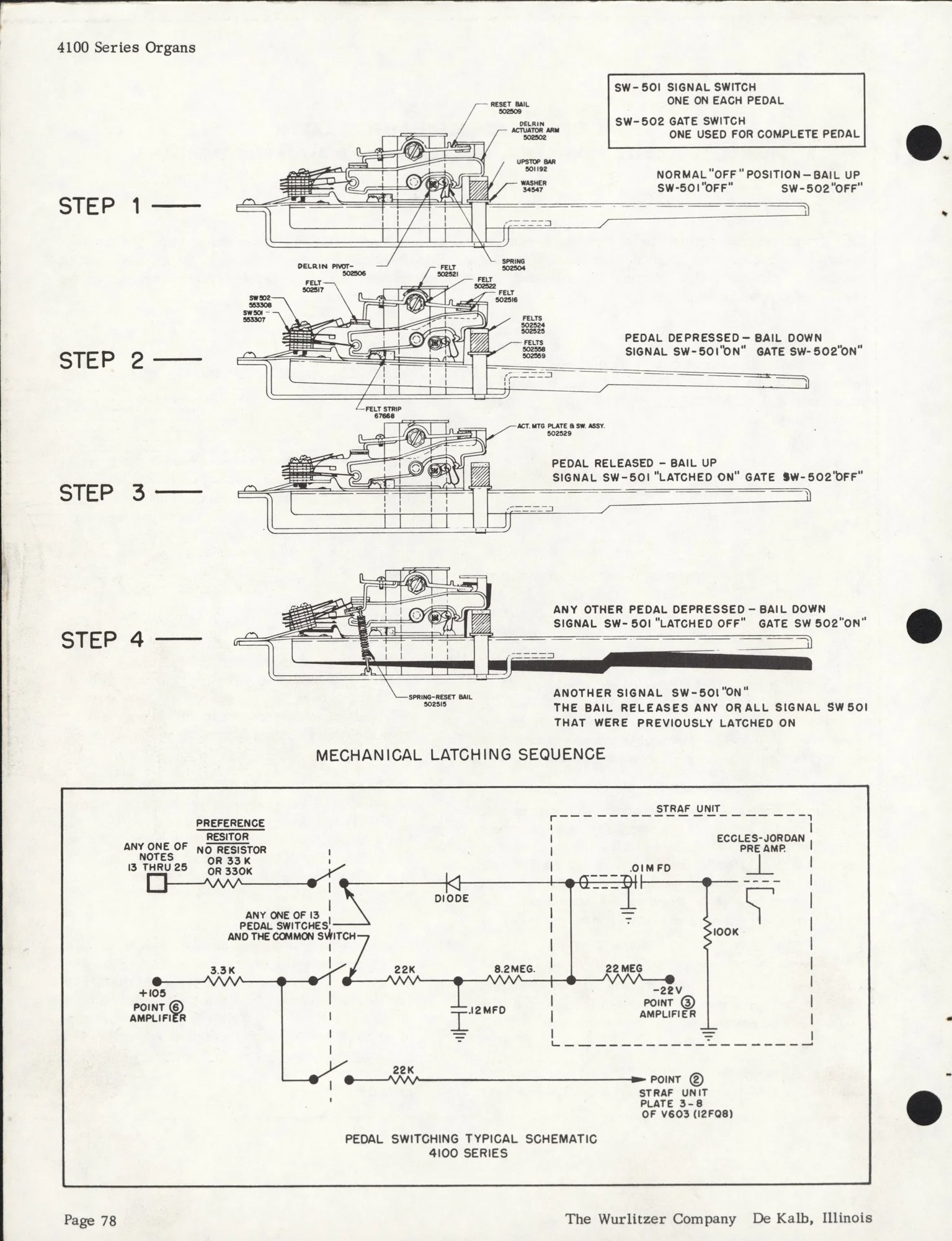

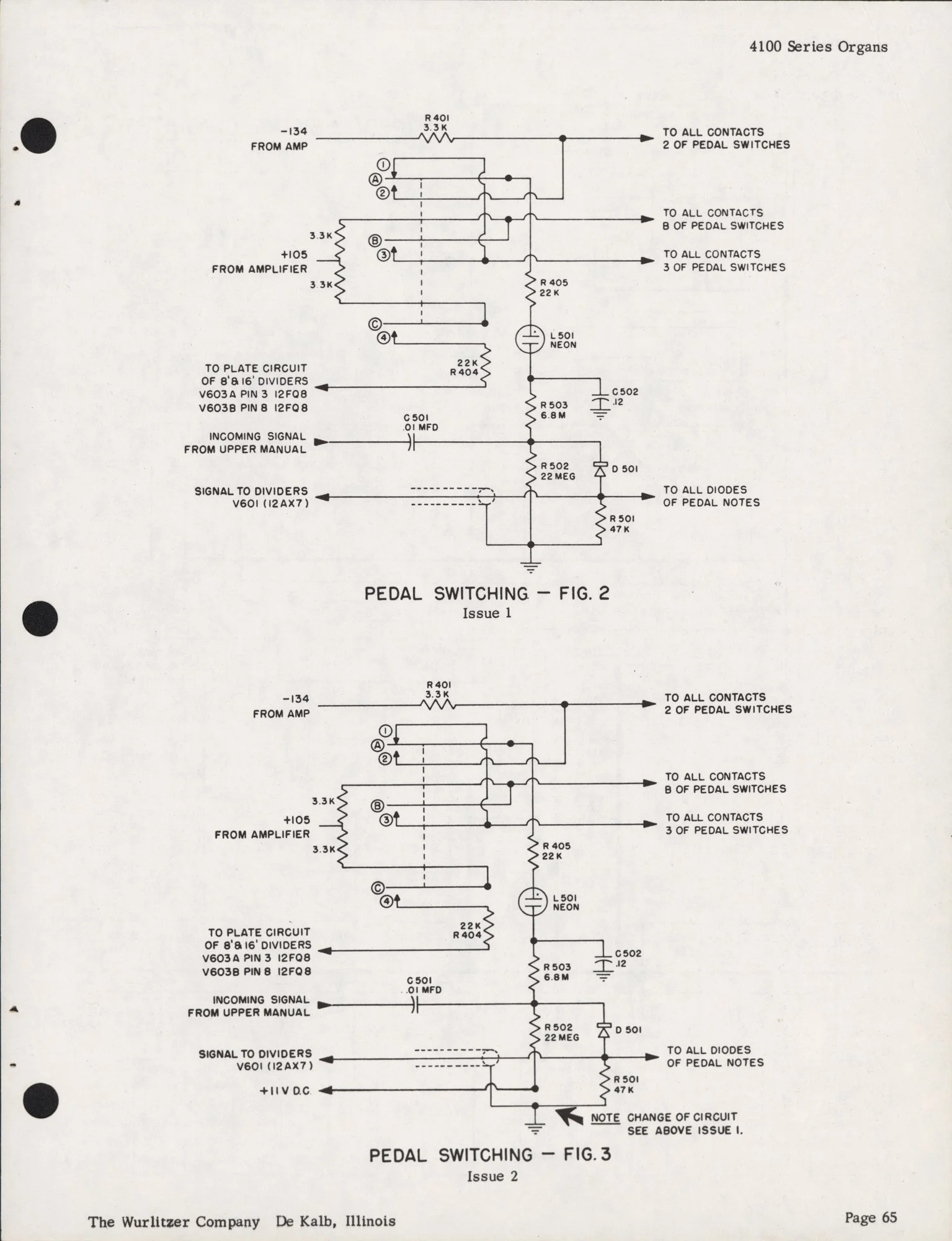

PEDALS: 13 keys
DIMENSIONS
HEIGHT: 35 1/4"
WIDTH: 46 3/16"
DEPTH: 23 1/3"
WEIGHT: ~205 lbs
BENCH WEIGHT: ~15 lbs

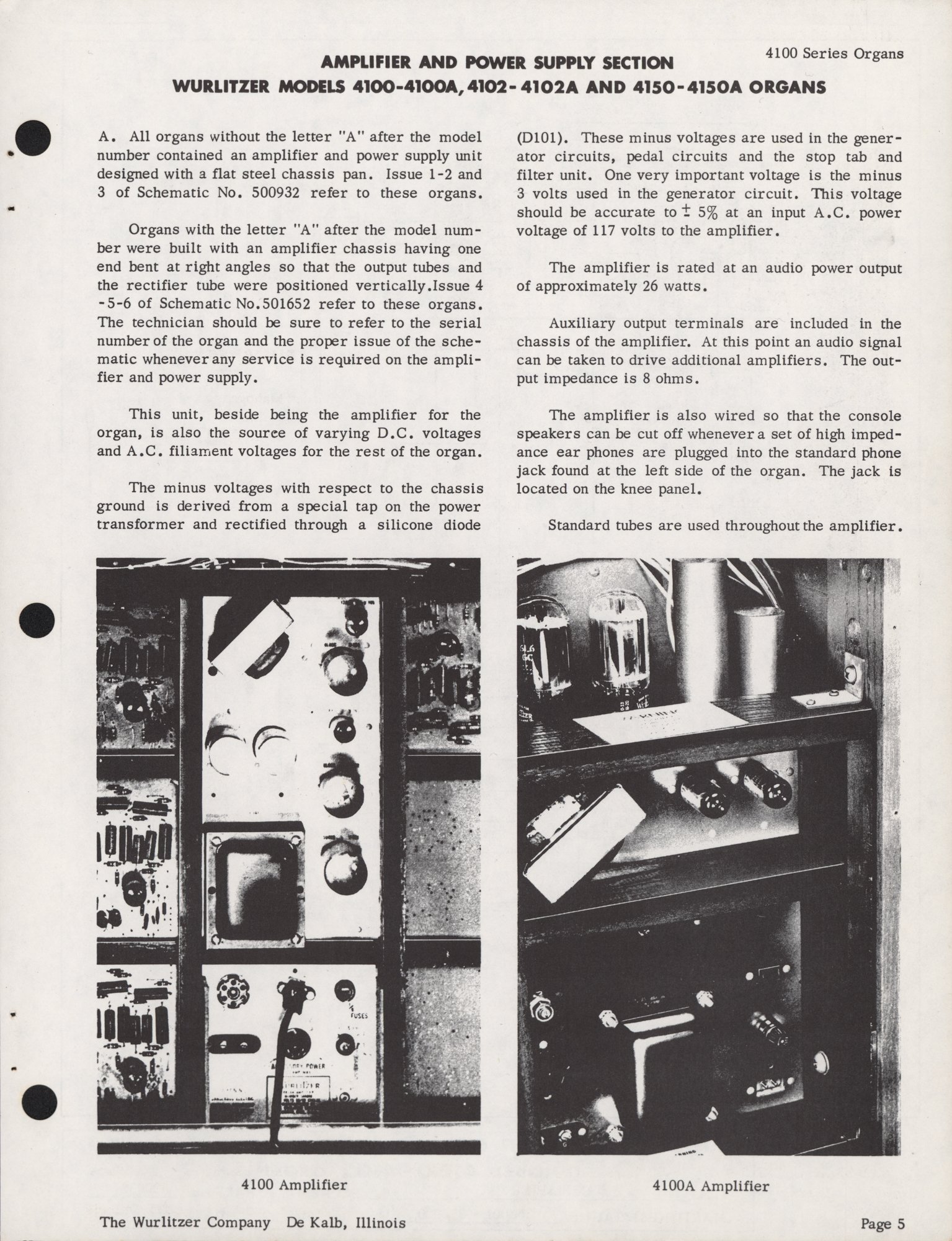

AMPLIFIER
POWER: 235 WFEATURES
Automatic Tone Controls
Master volume (Full//Soft)
Pedal Sustain (Medium/Long)
Vibrato depth (Normal/Full)
Vibrato speed (Slow/Fast)
COUPLERS
Upper to Lower 8'
Upper 8' - Off
Upper to Upper 16'
Upper to Upper 8'Part no.: 500313
Part name: Switch plate
Model: 4100
Date: March 13 1959
Diazo printPart no.: 500314
Part name: Tee nut
Model: 4100
Date: January 15 1959
Diazo printPart no.: 500320
Part name: Washer - switch mtg. stud
Model: 4100
Date: January 9 1958
Diazo printPart no.: 500601
Part name: Support bracket - upper switch rod
Model: 4100
Date: January 14 1959
Diazo printPart no.: 500603
Part name: Support bracket - lower switch rods
Model: 4100
Date: January 15 1959
Diazo printPart no.: 500605
Part name: Retainer - lower switch rods
Model: 4100
Date: January 12 1959
Diazo printPart no.: 500602
Part name: Support - manual switch rods
Model: 4100
Date: January 19 1959
Diazo printPart no.: 500604
Part name: Support - lower switch rods
Model: 4100
Date: June 15 1959
Diazo printPart no.: 500606
Part name: Retainer - upper switch rods
Model: 4100
Date: January 16 1959
Diazo printPart no.: 500630
Part name: Terminal strip & eyelet assembly
Model: 4100
Date: January 22 1959
Diazo printPart no.: 500632
Part name: Terminal strip - lower
Model: 4100
Date: January 22 1959
Diazo printPart no.: 500634
Part name: Contact wire
Model: 4100
Date: April 9 1959
Diazo printPart no.: 500631
Part name: Terminal strip - resistor & eyelet assembly
Model: 4100
Date: January 22 1959
Diazo printPart no.: 500633
Part Terminal strip - upper
Model: 4100
Date: January 22 1959
Diazo printPart no.: 600635
Part name: Wire - switch
Model: 4100
Date: February 12 1959
Diazo printPart no.: 500638

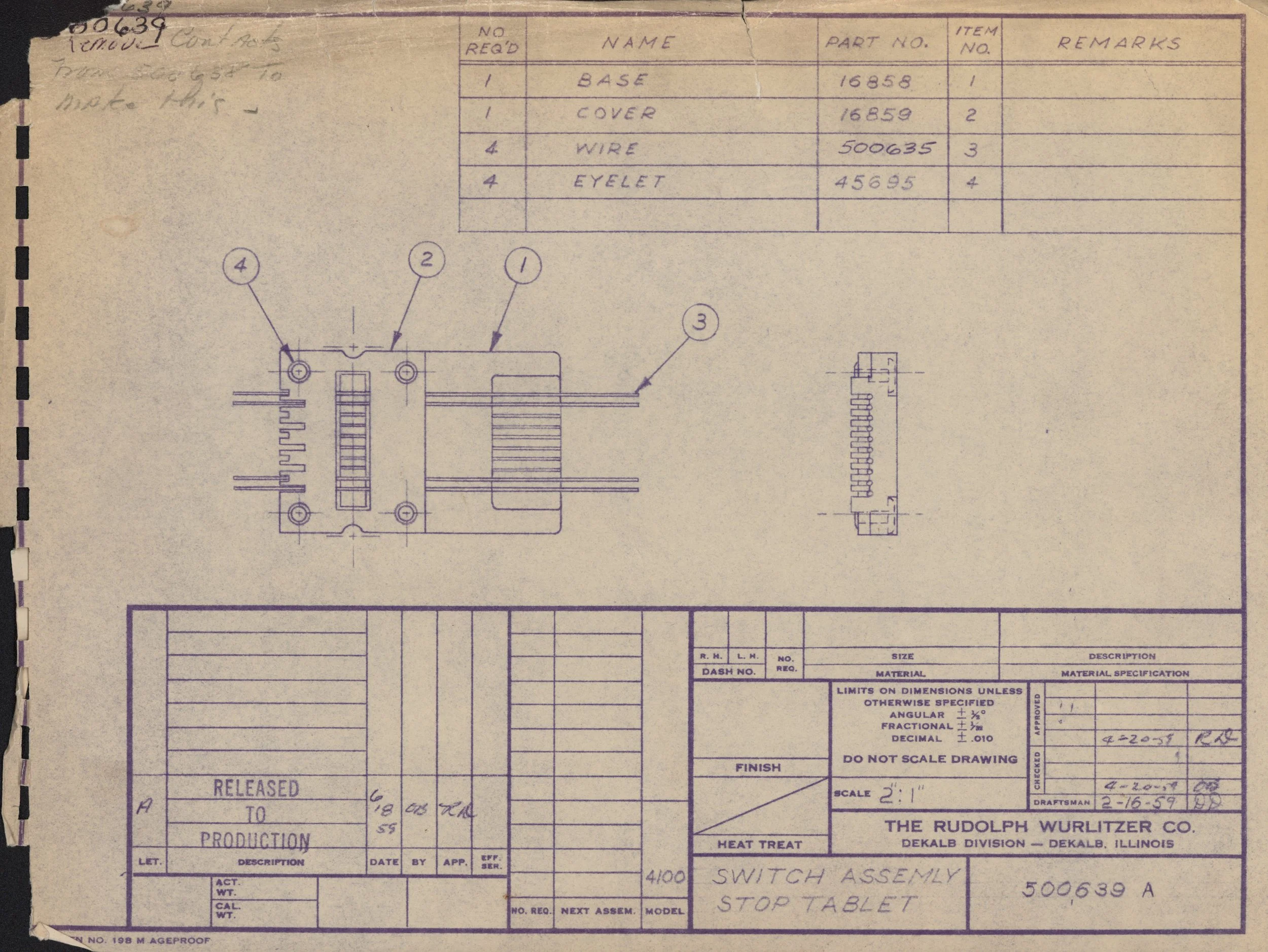

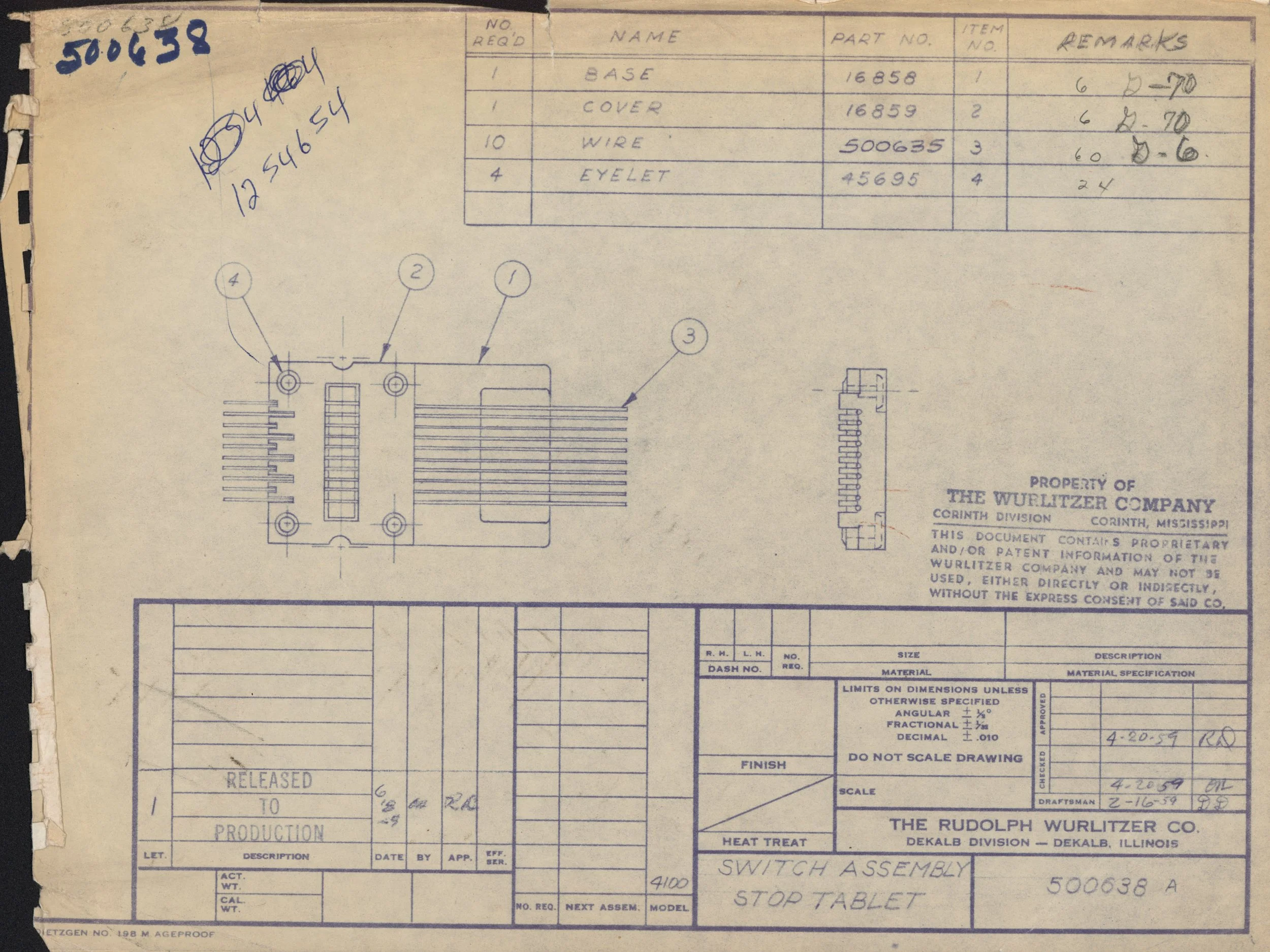

Part name: Switch assembly - stop tablet
Model: 4100
Date: February 16 1959
Diazo printPart no.: 500639
Part name: Switch assembly - stop tablet
Model: 4100
Date: February 16 1959
Diazo printPart no.: 500709
Part name: Console leg assembly
Model: 4100
Date: April 20 1959
Diazo printPart no.: 500711
Part name: Bottom ferrule
Model: 4100
Date: June 19 1959
Diazo printPart no.: 500712
Part name: Console leg assembly
Model: 4100
Date: April 20 1959
Diazo printPart no.: 500714
Part name: Bottom ferrule
Model: 4100
Date: January 27 1959
Diazo printPart no.: 500716
Part name: Music panel - face plate
Model: 4100
Date: January 21 19
Diazo printPart no.: 500715
Part name: Top ferrule
Model: 4100
Date: January 27 1959
Diazo printPart no.: 500717
Part name: Music panel - spacer
Model: 4100
Date: January 26 1959
Diazo printPart no.: 500719
Part name: Cleat - cover - knee panel
Model: 4100
Date: January 28 1959
Diazo printPart no.: 500724
Part name: Support - rear lower right
Model: 4100
Date: February 24 1959
Diazo printPart no.: 500725
Part name: Support block - right rear keyblock - upper left
Model: 4100
Date: April 22 1959
Diazo printPart no.: 500729
Part name: Support block - front - upper right
Model: 4100
Date: March 2 1959
Diazo printPart no.: 500731
Part name: Vertical rail generator frame
Model: 4100
Date: January 29 1959
Diazo printPart no.: 500732
Part name: Stringer - short generator frame
Model: 4100
Date: January 29 1959
Diazo printPart no.: 500733
Part name: Stringer - long generator frame
Model: 4100
Date: January 29 1959
Diazo printPart no.: 500756
Part name: Name plate - percussion
Model: 4100
Date: March 8 1959
Diazo printPart no.: 500761
Part Baffle
Model: 4100
Date: June 21 1960
Diazo printPart no.: 500771
Part name: Carton assembly - domestic
Model: 4100
Date: May 14 1959
Diazo printPart no.: 500854
Part name: Bayonet socket
Model: 4100
Date: March 17 1959
Diazo printPart no.: 500846
Part name: Hinge
Model: 4100
Date: April 29 1959
Diazo printPart no.: 500858
Part name: Cable - shielded
Model: 4100
Date: April 29 1959
Diazo printPart no.: 500862
Part name: Transformer - output
Model: 4100
Date: June 12 1961
Pages: 1 of 1
Diazo printPart no.: 500867
Part name: Heater - domestic
Model: 4100
Date: April 17 1959
Diazo printPart no.: 501211
Part name: Support & pad assembly
Model: 41
Date: December 4 1959
Diazo printPart no.: 500871
Part name: Hinge
Model: 4100
Date: April 9 1959
Diazo printPart no.: 501266
Part name: Terminal strip
Model: 4100
Date: December 29 1959
Diazo printPart no.: 502893
Part name: Ornament
Model: 4100
Date: December 14 1961
Diazo printPart no.: 503863
Part name: Keyblock assembly - complete l.r.
Model: 4100
Date: October 8 1963
Diazo printPart no.: 502939
Part name: Wire contact buss
Model: 4100
Date: December 9 1963
Diazo printPart no.: 503941
Part name: Switch rod - lower manual #2
Model: 4100
Date: December 10 1963
Diazo printPart no.: 503943
Part name: Switch rod - upper manual #4
Model: 4100
Date: December 10 1963
Diazo printPart no.: 503940
Part name: Switch rod - lower manual #1, #3
Model: 4100
Date: December 9 1963
Diazo printPart no.: 503942
Part name: Switch rod - upper manual #5
Model: 4100
Date: February 10 1963
Diazo printPart no.: 503944
Part name: Switch rod - upper manual #6
Model: 4100
Date: December 10 1963
Diazo printPart no.: 503945
Part name: Switch rod - upper manual #1, #2, #3
Model: 4100
Date: December 10 1963
Diazo printPart no.: 651049
Part name: Grommet
Model: X-410
Date: June 20 1962
Diazo printPart no.: 651062
Part name: Silk screen
Model: X-410
Date: June 22 1962
Diazo print
