140 Series
The 140-series Wurlitzer electronic pianos were considered by many to be a step forward in keyboard feel (from the previous 120 models). The new action (which is almost identical to the 200 action) smoothed out the key action and added a small amount of weight by adding a jack spring, among other changes.
The 140 series also introduced vibrato and more state-of-the-art amplifiers. The solid state amplifier in the 140 was a very contemporary design, and that was further improved upon slightly in the 140B. The 145 contained a hi-fi tube amplifier using 7868 tubes and a compactron tube, a tube designed to compete with transistors.
Another design improvement was splitting the metal harp into two sections, bass and treble. By doing so the harp had added rigidity and gave the reeds more sustain throughout the keyboard.
Looking for more 140 series Electronic piano drawings? Request them here.
MULTIPLE 140 SERIES MODELS
WURLITZER ELECTRONIC PIANOSPECIFICATIONS
Updated action design
Dual harp design
Advanced amplifiers
AMPLIFIER
Solid state T03 design or 7868 tube design
Vibrato control
DIMENSIONS
Height: 8.5"
Width: 40"
Depth: 21.5"
Weight: 80lbsFEATURES
Integrated music rack
Portable design
Curved wood cabinet
Tapered legsPart no.: 503009
Part name: Export crate
Model: 140, 145
Date: March 23 1962
Diazo printPart no.: 503010
Part name: Side export crate
Model: 140, 145
Date: March 22 1962
Diazo printPart no.: 503011
Part name: Top & bottom export crate
Model: 140, 145
Date: March 22 1962
Diazo printPart no.: 503134
Part name: Damper felt - bass - #15 thru #32
Model: 140, 145
Date: May 10 1962
Diazo printPart no.: 503135
Part name: Hammer & felt assembly - middle - #15 thru #51
Model: 140, 145
Date: May 11 1962
Diazo printPart no.: 503138
Part name: Guide & name plate - layout
Model: 140, 145
Date: May 11 1962
Diazo printPart no.: 503150
Part name: Shim - 7/8 diameter
Model: 140, 145
Date: May 29 1962
Diazo printPart no.: 503151
Part name: Shim - 1/2 diameter
Model: 140, 145, 720
Date: May 28 1962
Diazo printPart no.: 503152
Part name: Balance rail - shim
Model: 140, 145
Date: May 29 1962
Diazo printPart no.: 503172
Part name: Lock nut - nylok
Model: 140, 145
Date: June 21, 1962
Diazo printPart no.: 503344
Part name: Silk screen - side
Model: 145, 720
Date: November 21 1962
Diazo printPart no.: 503794
Part name: Spacer - electrode - center
Model: 140, 145
Date: September 12 1963
Diazo print
Part History Record (1)Part no.: 504126
Part name: Speaker & cable assembly
Model: 140B, 145B
Date: March 11 1964
Diazo printPart no.: 11-0379
Part name: Jack
Model: 140, 720
Date: December 21 1964
PhotocopyPart no.: 650190
Part name: Insulator bushing
Model: X-403
Date: September 5 1961
Diazo printPart no.: 650192
Part name: Insulator bushing
Model: X-403
Date: December 12 1961
Diazo printPart no.: 650194
Part name: Spacer - electrode
Model: X-403
Date: October 5 1961
Diazo printPart no.: 650416
Part name: Keyblock assembly - r.h.
Model: X-403
Date: January 9 1962

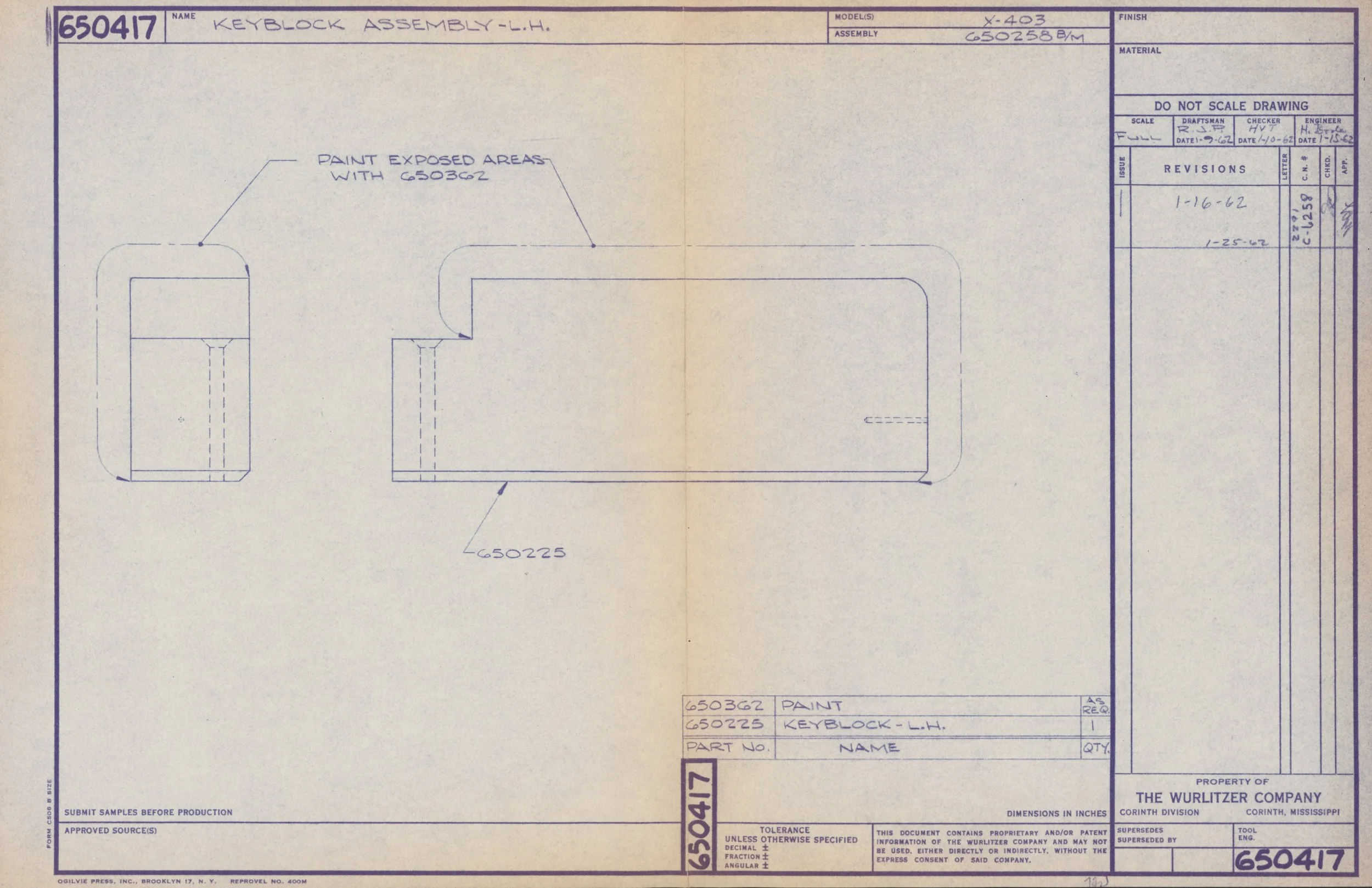

Diazo printPart no.: 650417
Part name: Keyblock assembly - l.h.
Model: X-403
Date: January 9 1962
Diazo printPart no.: 650438
Part name: Grille - speaker
Model: X-403
Date: January 1 1962
Diazo printPart no.: 650439
Part name: Knurled nut
Model: X-403
Date: January 16 1962
Diazo printPart no.: 650450
Part name: Damper felt - bass - #1 thru #14
Model: 140, 145
Date: January 12 1962
Diazo printPart no.: 650556
Part name: Control
Model: Tube EP
Date: March 15 1962
Diazo printPart no.: 650566
Part name: Control
Model: Tube EP
Date: March 29 1962
Diazo printPart no.: 650570
Part name: Tube
Model: Tube EP
Date: March 29 1962
Diazo printPart no.: 651071
Part name: Knob - vibrato
Model: 140, 145, 720
Date: July 5 1962
Diazo printPart no.: 651233
Part name: Bulk cable
Model: 140B, 145B
Date: October 30 1962
Diazo printPart no.: 651234
Part name: Cable - line switch
Model: 140B, 145B
Date: October 30 1962
Diazo printPart no.: 651235
Part name: Cleat - vertical
Model: 140B, 145B
Date: October 30 1962
Diazo printPart no.: 652229
Part name: Lamp - amplifier
Model: 140B, 145B
Date: December 12 1963
Diazo printPart no.: 652520
Part name: Control
Model: 140B, 145B
Date: February 10 1964
Diazo print
