200 Series
The Wurlitzer 200 series was the final iteration of mechanical electronic pianos. This line of electronic pianos featured the latest revisions that were made to the action parts.
Various models are contained within the 200 series such as teacher consoles, and studio consoles, but all have the same action, keys and reeds and therefore sound almost identical. The only sound difference would come from either the earlier amplifier (200 vs 200A “style” amps) or the speaker configuration which could be oval, round, ceramic magnet or alnico magnet.
The 200 series electronic pianos are loved for their relatively light weight (in the portable models like the 200 and 200A) their chrome details, their durable but light plastic lids, and their iconic Wurlitzer EP sound.
Looking for more 200 series Electronic piano drawings? Request them here.
200 SERIES ELECTRONIC PIANO
WURLITZER ELECTRONIC PIANOSPECIFICATIONS
64 keys
Screw down Music rack
AMPLIFIER
200 or 200A style solid state amplifier
KEYBOARD DIMENSIONS
Height: 7-1/8"
Width: 40"
Depth: 18-9/16"
Weight: 56 lbs (less legs & pedal)
AUDIO
4x8" oval Alnico speakers (2)
Line output
Headphone output
6x9" oval ceramic speaker (1)
8" round ceramic speaker (2-4)FEATURES
Vibrato
Headphone out & aux output
Removable or integrated sustain pedal
Amp rail mounted, lid mounted or baffle mounted speakersPart no.: 201706
Part name: Damper lift rod assembly - complete
Model: 200, 203W, 206, 207, 214
Date: September 28 1972
Photocopy with handwritten notePart no.: 201712
Part name: Grommet
Model: All EPs
Date of drawing: August 28 1972
Diazo printPart no.: 201719
Part name: Keybed dowel
Model: All EPs
Date of drawing: September 28 1972
Diazo print on filmPart no.: 201728
Part name: Fabric for covering base
Model: All except 200
Date: September 28 1972

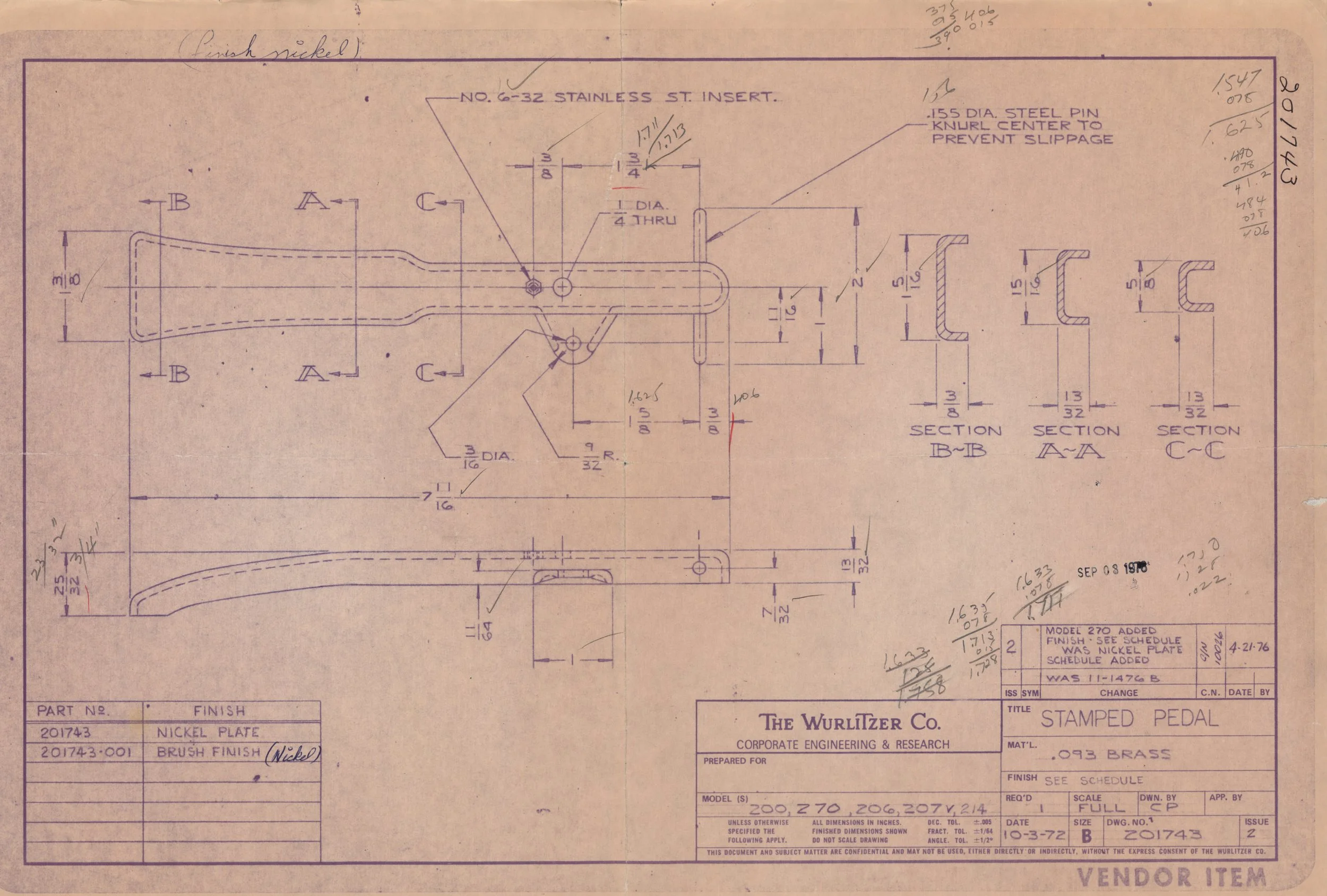

Diazo printPart no.: 201743
Part name: Stamped pedal
Model: 200, 270, 206, 207V, 214
Date: October 3 1972
Diazo printPart no.: 201744
Part name: Cable assembly
Model: All except 200
Date: October 3 1972
Diazo print
Pencil on drafting vellumPart no.: 201746
Part name: Cable nut
Model: All EPs
Date of drawing: October 2 1972
Diazo printPart no.: 201748
Part name: Cable mounting bracket
Model: 214, 207, 206, 203W
Date of drawing: October 2 1972
Diazo printPart no.: 201749
Part name: Cable clamp
Model: All EPs
Date of drawing: October 2 1972
PhotocopyPart no.: 201751
Part name: Screw eyes
Model: 203W, 206, 207, 214
Date of drawing: October 2 1972
Diazo printPart no.: 201754
Part name: Locking casters
Model: 208, 203W
Date: October 3 1972
Diazo print

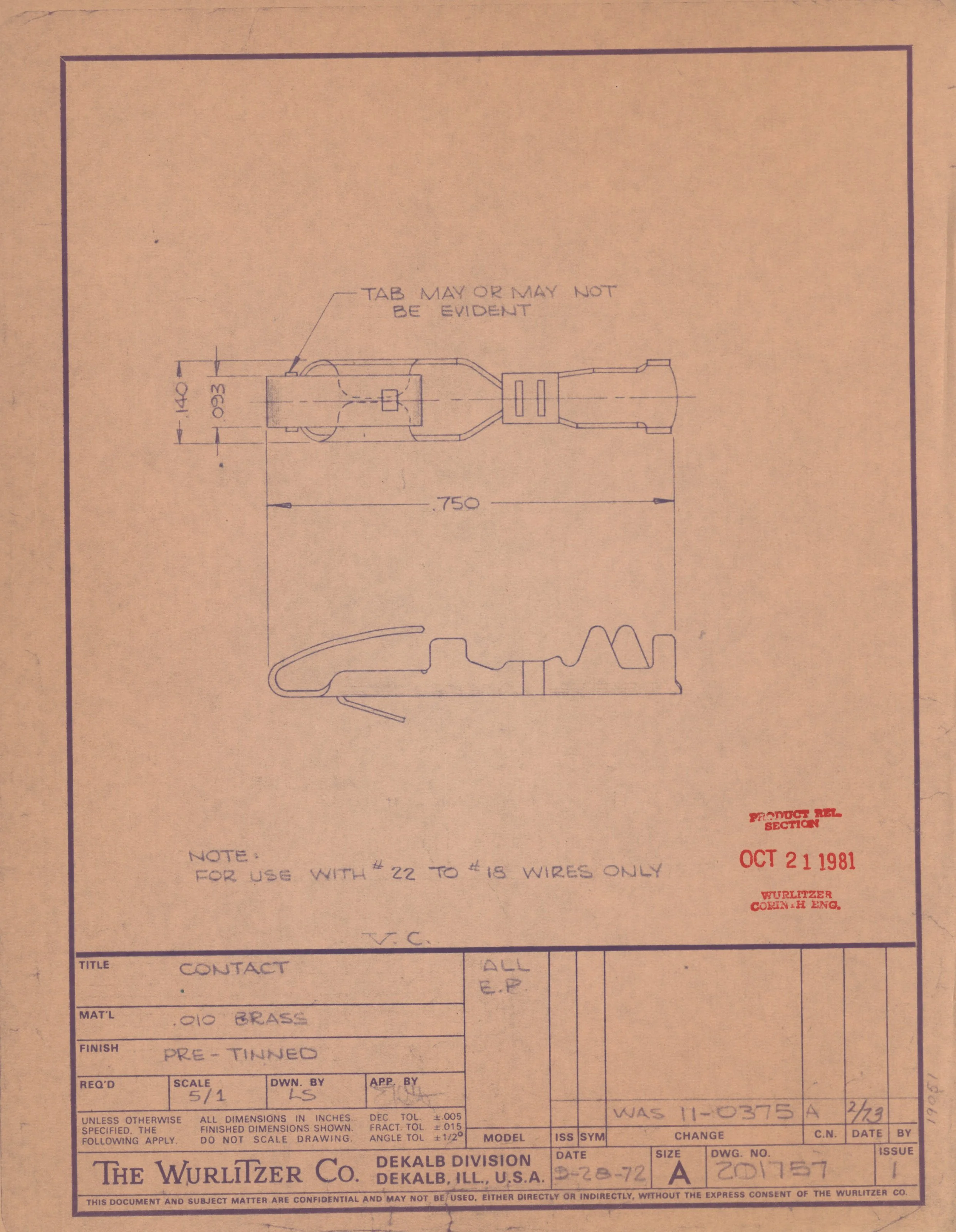

Diazo print with handwritten notePart no.: 201757
Part name: Contact
Model: All EPs
Date: September 29 172
Pencil on drafting vellum
Three diazo printsPart no.: 201763
Part name: Front rail punching
Model: All EPs
Date: September 28 1972
Diazo printPart no.: 203717
Part name: Variable resistor
Model: 200A, 206A, 207VA, 214A, 214VA
Date: November 16 1973
Diazo print
Material Evaluation Report (1)Part no.: 825371
Part name: Volume control
Model: 200 Series
Date: May 19 1981
Diazo print
